CN215561190U

CN215561190U - Cloth belt cleaning device that manufacturing and processing of textile enterprise used

Info

Publication number: CN215561190U
Application number: CN202121575302.3U
Authority: CN
Inventors: 屈永健
Original assignee: Shaoxing Minyue Textile Co ltd
Current assignee: Shaoxing Minyue Textile Co ltd
Priority date: 2021-07-12
Filing date: 2021-07-12
Publication date: 2022-01-18
Anticipated expiration: 2031-07-12

Abstract

The utility model belongs to the technical field of textile cleaning equipment, and discloses a cloth cleaning device for production and processing of textile enterprises. According to the utility model, the fixed block, the sliding block, the connecting plate and the cleaning wheel are arranged, the first motor is started, the rotating disc can be rotated due to the operation of the first motor, so that the sliding block is pushed to move up and down on the outer surface of the fixed block through the connecting rod, the second motor is started, the rotating shaft can be rotated due to the operation of the second motor, the cleaning wheel is driven to rotate together, under the mutual matching of the cleaning wheel and the brush plate, the cleaning of two surfaces of cloth can be realized, the cleaning effect of the cloth is improved, and the generation of impurities is avoided.

Description

Cloth belt cleaning device that manufacturing and processing of textile enterprise used

Technical Field

The utility model belongs to the technical field of textile cleaning, and particularly relates to a cloth cleaning device for production and processing of textile enterprises.

Background

With the development of production and the improvement of living standard of people, the social consumption condition of textile fabrics is continuously changed, the demand of indoor and outdoor decoration and industrial fabrics is more and more large, and people not only require various fancy varieties and comfortable wearing for the fabrics for clothing, but also require the fabrics with the performances of easy washing, non-ironing and the like.

At present, the enterprise often can use belt cleaning device when carrying out cloth production and processing, and current belt cleaning device is at the in-process of in-service use, though can realize basic cleaning function, but generally can't clean two faces of cloth for the cloth is comprehensive inadequately at abluent in-process, produces the residue of impurity easily, and then has influenced the subsequent production and processing of cloth.

The cloth cleaning device of general textile enterprise, because the effectual of washing, so general textile enterprise all adopts the mode of washing to clean the dust and the end of a thread on cloth surface, nevertheless because the cloth is washd in the water source, a large amount of moisture will remain on its surface, and the speed of these moisture natural drying is slower to subsequent processing operation of staff will be influenced, the operation of staff has brought the inconvenience.

SUMMERY OF THE UTILITY MODEL

The utility model aims to solve the problems, and provides a cloth cleaning device for production and processing of textile enterprises, which has the advantages of high cleaning efficiency and dehydration and drying.

In order to achieve the purpose, the utility model provides the following technical scheme: a cloth cleaning device used for production and processing of textile enterprises comprises a base, wherein a shell is fixedly mounted at the top of the base, a fixed support is fixedly mounted at the bottom of the left side in the shell, fixed blocks are mounted on two sides of the top of the fixed support, a sliding block is sleeved on the outer surface of each fixed block, a first motor is fixedly mounted at the bottom of the right side of the back of the shell, a turntable is fixedly sleeved at the other end of an output shaft of the first motor, a fixed shaft is fixedly mounted at the front of the turntable, a connecting rod is sleeved on the outer surface of the fixed shaft, the other end of the connecting rod is hinged with the sliding block, and the turntable, the fixed shaft and the connecting rod are rotated due to the operation of the first motor, so that the sliding block is pushed to move up and down on the surface of a connecting plate, a connecting plate is fixedly mounted at the right end of the sliding block, and a brush plate is fixedly mounted at the right end of the connecting plate, the positive left side top fixed mounting of shell has the second motor, the fixed cover of the other end of second motor output shaft has connect the pivot, the fixed cover of pivot surface has connect clean wheel, the inside movable mounting of shell has the leading wheel that is located under the clean wheel, the opening has all been seted up at the top of the shell left and right sides, the inside movable mounting of shell has the feeding wheel that is located clean wheel upper left side and upper right side, the middle part fixed mounting of shell inner chamber bottom has the baffle.

As a preferable technical scheme of the utility model, the right end of the top of the shell is fixedly provided with the warm air blower, the top of the warm air blower is fixedly provided with the exhaust pipe, the bottom end of the warm air blower is fixedly provided with the air outlet pipe, the bottom end of the air outlet pipe penetrates through the shell and extends into the shell, and due to the operation of the warm air blower, outside air is extracted through the exhaust pipe and then is converted into warm air flow which is exhausted through the air outlet pipe, so that the drying effect on cloth can be enhanced.

As a preferred technical scheme of the utility model, the upper pinch roller positioned on the left side of the air outlet pipe is movably installed on the right side of the inner cavity of the shell, the lower pinch roller positioned on the left lower side of the upper pinch roller is movably installed in the shell, and due to the matching between the upper pinch roller and the lower pinch roller, the squeezing effect on the cloth can be realized, so that the moisture in the cloth can be effectively separated, and the cloth is ensured to have a good drying effect.

As a preferred technical scheme of the utility model, the discharging wheel positioned on the right side of the air outlet pipe is movably mounted at the right end in the shell, the arc block positioned at the right end of the partition plate is fixedly mounted at the bottom end of the right side in the shell, and due to the design of the arc block, a water source extruded from the upper pressing wheel and the lower pressing wheel to the cloth can be collected, so that the effect of collecting the water source is realized.

As a preferred technical scheme of the utility model, a water source is arranged between the inside of the shell and the left side of the partition plate, the water surface of the water source is positioned below the top of the partition plate, and due to the matching of the water source, the brush plate and the cleaning wheel, the cloth cleaning effect can be improved, and the cleanness of the outer surface of the cloth is ensured.

As a preferred technical solution of the present invention, the number of the brush plates is two, the two brush plates have the same size, and are symmetrical with each other about the center of the fixing bracket, so that due to the design of the two brush plates, a good cleaning effect can be provided for the bottom surface of the cloth.

Compared with the prior art, the utility model has the following beneficial effects:

1. according to the utility model, the fixed block, the sliding block, the connecting plate and the cleaning wheel are arranged, the first motor is started, the rotating disc can be rotated due to the operation of the first motor, so that the sliding block is pushed to move up and down on the outer surface of the fixed block through the connecting rod, the second motor is started, the rotating shaft can be rotated due to the operation of the second motor, the cleaning wheel is driven to rotate together, under the mutual matching of the cleaning wheel and the brush plate, the cleaning of two surfaces of cloth can be realized, the cleaning effect of the cloth is improved, and the generation of impurities is avoided.

2. According to the utility model, the upper pressing wheel, the lower pressing wheel and the fan heater are arranged, the upper pressing wheel and the lower pressing wheel are matched, so that the cloth can be squeezed, residual moisture in the cloth can be separated, and due to the operation of the fan heater, warm air flow can be extracted through the exhaust pipe and then is discharged through the air outlet pipe, so that the drying effect on the cloth can be realized, the cloth drying speed is effectively improved, and convenience is brought to subsequent processing operation of workers.

Drawings

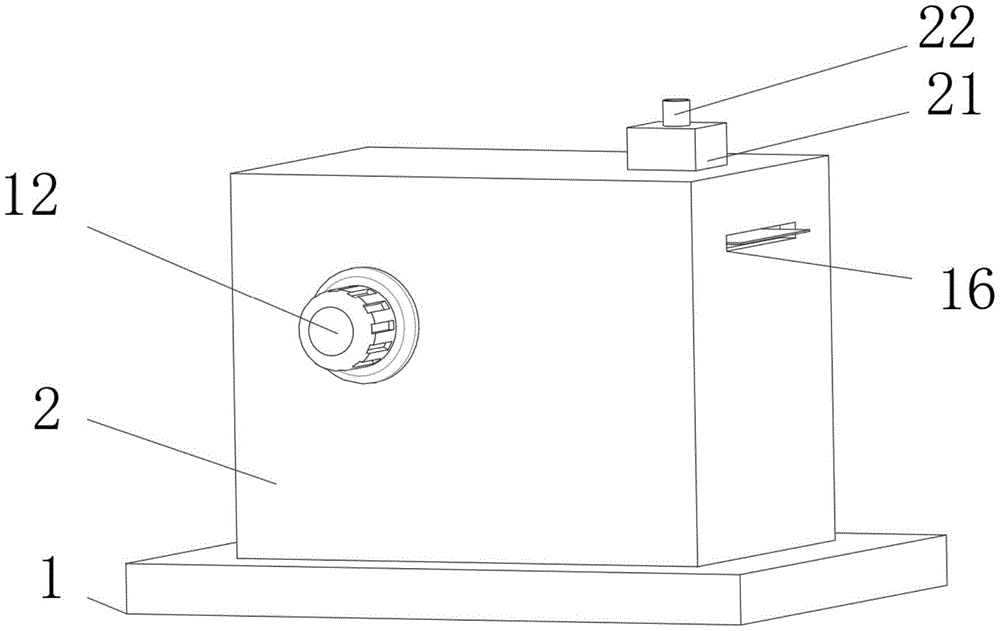

FIG. 1 is a schematic structural view of the present invention;

FIG. 2 is a schematic view of the backside of the present invention;

FIG. 3 is a schematic cross-sectional view of the front side of the present invention;

FIG. 4 is a schematic side view of the present invention;

fig. 5 is a schematic view of the enlarged structure of a portion a in fig. 3 according to the present invention.

In the figure: 1. a base; 2. a housing; 3. fixing a bracket; 4. a fixed block; 5. a slider; 6. a first motor; 7. a turntable; 8. a fixed shaft; 9. a connecting rod; 10. a connecting plate; 11. a brush plate; 12. a second motor; 13. a cleaning wheel; 14. a rotating shaft; 15. a guide wheel; 16. a port; 17. a feed wheel; 18. a discharging wheel; 19. an upper pinch roller; 20. a lower pinch roller; 21. a warm air blower; 22. an air exhaust pipe; 23. an air outlet pipe; 24. a partition plate; 25. and (4) an arc block.

Detailed Description

The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only a part of the embodiments of the present invention, and not all of the embodiments. All other embodiments, which can be derived by a person skilled in the art from the embodiments given herein without making any creative effort, shall fall within the protection scope of the present invention.

As shown in fig. 1 to 5, the utility model provides a cloth cleaning device for production and processing of textile enterprises, which comprises a base 1, wherein a shell 2 is fixedly arranged at the top of the base 1, a fixed support 3 is fixedly arranged at the bottom end of the left side inside the shell 2, fixed blocks 4 are respectively arranged at two sides of the top of the fixed support 3, a slider 5 is movably sleeved on the outer surface of each fixed block 4, a first motor 6 is fixedly arranged at the bottom of the right side of the back of the shell 2, a turntable 7 is fixedly sleeved at the other end of an output shaft of the first motor 6, a fixed shaft 8 is fixedly arranged at the front of the turntable 7, a connecting rod 9 is movably sleeved at the outer surface of the fixed shaft 8, the other end of the connecting rod 9 is hinged with the slider 5, the turntable 7, the fixed shaft 8 and the connecting rod 9 can rotate due to the operation of the first motor 6, so as to push the slider 5 to move up and down on the surface of the connecting plate 10, and a connecting plate 10 is fixedly arranged at the right end of the slider 5, the right-hand member fixed mounting of connecting plate 10 has brush board 11, the positive left side top fixed mounting of shell 2 has second motor 12, the fixed cover of the other end of second motor 12 output shaft has connect pivot 14, pivot 14 external surface fixing has cup jointed clean wheel 13, the inside movable mounting of shell 2 has leading wheel 15 that is located directly below clean wheel 13, opening 16 has all been seted up at the top of the 2 left and right sides of shell, the inside movable mounting of shell 2 has the feeding wheel 17 that is located clean wheel 13 upper left side and upper right side, the middle part fixed mounting of the 2 inner chambers bottom of shell has baffle 24.

Wherein, the right-hand member fixed mounting at shell 2 top has electric fan heater 21, and electric fan heater 21's top fixed mounting has exhaust tube 22, and electric fan heater 21's bottom fixed mounting has a tuber pipe 23, and the bottom of going out tuber pipe 23 runs through shell 2 and extends to the inside of shell 2, because electric fan heater 21's operation, will extract the outside air through exhaust tube 22, then convert it into the warm air current by a tuber pipe 23 discharge to can strengthen the drying effect to the cloth.

Wherein, the right side movable mounting of 2 inner chambers of shell has the last pinch roller 19 that is located air-out pipe 23 left side, and the inside movable mounting of shell 2 has the lower pinch roller 20 that is located pinch roller 19 left side below, because the cooperation between last pinch roller 19 and the lower pinch roller 20, can realize the squeezing action to the cloth for moisture in the cloth can effectually break away from, has ensured that the cloth has good drying effect.

Wherein, the inside right-hand member movable mounting of shell 2 has the play material wheel 18 that is located play tuber pipe 23 right side, and the inside right side bottom fixed mounting of shell 2 has the arc piece 25 that is located 24 right-hand members of baffle, because the design of arc piece 25, can collect the water source of extruding the cloth between pinch roller 19 and the pinch roller 20 down, has realized the collection effect to the water source.

Wherein, be equipped with the water source between the inside of shell 2 and the left side of baffle 24, and the surface of water at water source is located the below at baffle 24 top, because the cooperation between water source and brush board 11 and the cleaning wheel 13 to can improve the cleaning performance to the cloth, ensure the clean of cloth surface.

Wherein, the quantity of brush board 11 is two, and two brush board 11's size is the same, and two brush board 11 are each other about fixed bolster 3 central symmetry, because the design of two brush board 11, will play good clean effect to the bottom surface of cloth.

The working principle and the using process of the utility model are as follows:

firstly, the staff is full of the water source with the inside left side of shell 2, make inside cleaning wheel 13 and connecting plate 10 are in the water source, and make the surface of water be located the below at baffle 24 top, then start first motor 6 and second motor 12 simultaneously, because the operation of second motor 12 will make pivot 14 drive cleaning wheel 13 rotatory, because the operation of first motor 6, will make carousel 7 take place to rotate, thereby it is rotatory together to drive fixed axle 8, because the connection effect of connecting rod 9, will promote slider 5 at the surface up-and-down motion of fixed block 4, and then drive connecting plate 10 and brush board 11 and carry out the up-and-down motion, because the mutually supporting of brush board 11 and cleaning wheel 13, can make the both sides of cloth all obtain comprehensive cleanness.

The cloth is after the inside washing of water source, will be through the guide effect of leading wheel 15 and feeding wheel 17, carry the surface to pinch roller 19 and pinch roller 20 down, because under the mutual extrusion fit of pinch roller 19 and pinch roller 20 down, extrude the water source on the cloth, collect the inside at arc 25, start-up electric fan heater 21, because electric fan heater 21's operation, will extract external air through exhaust tube 22, then turn into the inside that the warm air current passes through air-out pipe 23 and channels into shell 2 with it, thereby can strengthen the drying effect to the cloth, the subsequent processing operation of the staff of being convenient for.

It is noted that, herein, relational terms such as first and second, and the like may be used solely to distinguish one entity or action from another entity or action without necessarily requiring or implying any actual such relationship or order between such entities or actions. Also, the terms "comprises," "comprising," or any other variation thereof, are intended to cover a non-exclusive inclusion, such that a process, method, article, or apparatus that comprises a list of elements does not include only those elements but may include other elements not expressly listed or inherent to such process, method, article, or apparatus.

Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the utility model, the scope of which is defined in the appended claims and their equivalents.

Claims

1. The utility model provides a cloth belt cleaning device that textile enterprise production and processing used, includes base (1), its characterized in that: the top of the base (1) is fixedly provided with a shell (2), the left bottom end inside the shell (2) is fixedly provided with a fixed support (3), fixed blocks (4) are installed on two sides of the top of the fixed support (3), a sliding block (5) is sleeved on the outer surface of the fixed block (4), a first motor (6) is fixedly installed at the bottom of the right side of the back of the shell (2), the other end of an output shaft of the first motor (6) is fixedly sleeved with a turntable (7), a fixed shaft (8) is fixedly installed on the front side of the turntable (7), a connecting rod (9) is sleeved on the outer surface of the fixed shaft (8) in a movable manner, the other end of the connecting rod (9) is hinged with the sliding block (5), a connecting plate (10) is fixedly installed at the right end of the sliding block (5), and a brush plate (11) is fixedly installed at the right end of the connecting plate (10), shell (2) positive left side top fixed mounting has second motor (12), the fixed cover of the other end of second motor (12) output shaft has connect pivot (14), pivot (14) external fixed surface has cup jointed clean wheel (13), the inside movable mounting of shell (2) has leading wheel (15) that is located under clean wheel (13), opening (16) have all been seted up at the top of shell (2) the left and right sides, the inside movable mounting of shell (2) has feed wheel (17) that is located clean wheel (13) upper left side and upper right side, the middle part fixed mounting of shell (2) inner chamber bottom has baffle (24).

2. The cloth cleaning device for textile enterprises according to claim 1, wherein: the right-hand member fixed mounting at shell (2) top has electric fan heater (21), the top fixed mounting of electric fan heater (21) has exhaust tube (22), the bottom fixed mounting of electric fan heater (21) has air-out pipe (23), the bottom of air-out pipe (23) runs through shell (2) and extends to the inside of shell (2).

3. The cloth cleaning device for textile enterprises according to claim 1, wherein: the right side movable mounting of shell (2) inner chamber has last pinch roller (19) that are located air-out pipe (23) left side, the inside movable mounting of shell (2) has lower pinch roller (20) that are located pinch roller (19) left side below.

4. The cloth cleaning device for textile enterprises according to claim 1, wherein: the material discharging device is characterized in that a material discharging wheel (18) located on the right side of the air outlet pipe (23) is movably mounted at the right end inside the shell (2), and an arc block (25) located at the right end of the partition plate (24) is fixedly mounted at the bottom end of the right side inside the shell (2).

5. The cloth cleaning device for textile enterprises according to claim 1, wherein: a water source is arranged between the inside of the shell (2) and the left side of the partition plate (24), and the water level of the water source is positioned below the top of the partition plate (24).

6. The cloth cleaning device for textile enterprises according to claim 1, wherein: the number of the brush plates (11) is two, the two brush plates (11) are the same in size, and the two brush plates (11) are mutually symmetrical relative to the center of the fixed support (3).
