Abstract
A novel portable stem cell atomizer belongs to the field of atomizers. At present, an atomizer for carrying out atomization treatment by using stem cell liquid medicine is lacked. A novel portable stem cell atomizer is characterized in that a breathing mask is used for contacting the face of a user, and a barb buckle is arranged at the port of the air inlet end of the breathing mask; the atomizer main body is used for controlling the atomization and circulation of stem cell liquid medicine, and the inner part of the atomizer main body is divided into an upper part liquid storage bin and a lower part control bin; the liquid storage bin is used for realizing the space required by the liquid medicine containing, atomizing and atomizing circulation; the port of the air outlet end of the liquid storage bin is provided with a clamping groove in snap fit with the barb; the control cabin is used for realizing the space required by the control unit, the integrated circuit board and the atomization circulation; the air inlet end of the breathing mask is connected with the air outlet end of the liquid storage bin of the atomizer main body; the control unit is connected with a structural member for realizing the functions of atomization, atomization circulation and integrated circuit in the liquid storage bin. The utility model has the advantages of convenient carrying and controllable atomization amount.
Description
Technical Field
The present invention relates to an atomizer.
Background
The medical atomizer is mainly used for treating various upper and lower respiratory system diseases, such as common cold, fever, cough, asthma, sore throat, pharyngitis, rhinitis, bronchitis, pneumoconiosis and other diseases in trachea, bronchus, alveolus and thoracic cavity. The aerosol inhalation therapy is an important and effective treatment method in the treatment method of respiratory system diseases, the aerosol inhaler is adopted to atomize liquid medicine into tiny particles, and the medicine enters the respiratory tract and the lung for deposition in a respiratory inhalation mode, so that the aim of painless, rapid and effective treatment is achieved. The existing market does not have a nebulizer for stem cell atomization.
Currently, there are three main types of atomizers: 1 ultrasonic atomization ware, 2 compressed air atomizers, 3 net atomizers, stability, droplet size, the atomizing efficiency that leads to atomizing all are different because of its different theory of operation, and wherein ultrasonic wave's theory of operation is with its easy operation, facilitates the use and by universal application, and other two kinds of modes all have certain influence to the cell activity.
Complete self-isolation is required for light new crown patients, so that a portable stem cell atomizer is necessary.
SUMMERY OF THE UTILITY MODEL
The utility model aims to solve the problem that the existing atomizer is not suitable for stem cell liquid medicine atomization treatment, and provides a novel portable stem cell atomizer.
A novel portable stem cell atomizer comprises a breathing mask and an atomizer main body;
the breathing mask is used for contacting the face of a user, and a barb buckle is arranged at the port of the air inlet end of the breathing mask;
the atomizer main body is used for controlling the atomization and circulation of stem cell liquid medicine, and the inner part of the atomizer main body is divided into an upper part liquid storage bin and a lower part control bin;
the liquid storage bin is used for realizing the space required by the liquid medicine containing, atomizing and atomizing circulation; the port of the air outlet end of the liquid storage bin is provided with a clamping groove in snap fit with the barb;
the control cabin is used for realizing the space required by the control unit, the integrated circuit board and the atomization circulation;
wherein, the air inlet end of the breathing mask is connected with the air outlet end of the liquid storage bin of the atomizer main body; the control unit is connected with a structural member for realizing the functions of atomization, atomization circulation and integrated circuit in the liquid storage bin.
Preferably, the left side and the right side of the breathing mask are respectively provided with a group of air holes.
Preferably, an ultrasonic oscillator is arranged in the liquid storage bin; a filter pipe is arranged in the liquid storage bin, a nanoscale film is arranged in the filter pipe, one end of the filter pipe is positioned in the liquid storage bin, and the other end of the liquid storage bin is inserted into the air outlet end of the liquid storage bin; the shell of the liquid storage bin is provided with a liquid filling through hole with threads, and a rubber plug with external threads is screwed in the liquid filling through hole;
the ultrasonic oscillator is connected with the control unit.
Preferably, the control unit and the integrated circuit board comprise a control main board, a temperature control sensor, a battery, a power control board, an extended usb charging interface and a display screen;
the control cabin is internally provided with a bracket and a micro circulating pump; the wall of the control bin is also provided with a main switch;
the temperature control sensor is arranged at the top of the bracket, is in contact with the wall of the liquid storage bin and measures the temperature of the liquid storage bin;
the micro circulating pump is arranged on the bracket, the working end of the micro circulating pump is inserted in the liquid storage bin, and the micro circulating pump is used for realizing the internal circulation of the liquid medicine in the liquid storage bin;
the battery, the power supply control board and the extended usb charging interface are arranged at the bottom of the bracket and used for supplying power to each electronic device;
the control main board is arranged on the bracket and is used for being connected with and controlling each electronic device;
the display screen and the flow control board are arranged on the shell of the control cabin, the display screen is connected with the control main board and the battery, the display screen is used for displaying the liquid medicine state, the battery electric quantity and the flow parameters of the micro circulating pump, and the flow control board is connected with the control main board and is used for controlling the running flow of the micro circulating pump and the efficacy of the ultrasonic oscillator;
the control mainboard is electrically connected with the ultrasonic oscillator, the temperature control sensor, the micro circulating pump, the battery, the power supply control board, the extended usb charging interface and the display screen; the power supply control board is connected with the main switch.
Preferably, the novel portable stem cell atomizer further comprises a neck shrinking pipe, wherein the neck shrinking pipe is used for connecting the air inlet end of the breathing mask and the air outlet end of the atomizer body; the two end ports of the neck reducing pipe are provided with clamping grooves matched with the barbs in a buckling mode.
Preferably, the inner wall of the liquid storage bin is sprayed with a medical colloid coating.
Preferably, the left side and the right side of the breathing mask are respectively provided with a threading hole, and an elastic rope is tied between the two threading holes.
Preferably, the housing of the atomizer body is made of an ABS material.
Preferably, the atomizer further comprises a placing bin and a disinfection cover; the placing bin is arranged in the bottom surface of the outer part of the control bin, and the bottom of the placing bin is provided with a pull bin door capable of being opened;
place the inside top surface detachable installation disinfection cover in storehouse, the disinfection cover adopt the preparation of software water proof material, the one end of disinfection cover with place the inside top surface detachable in storehouse and be connected, the disinfection cover other end sets up the opening, the pull passageway is made up all around to the opening, sets up the pull rope in the pull passageway, still sets up the air cock pneumatic valve of aerifing on the cover body of disinfection cover.
Preferably, the atomizer further comprises a heating layer, and the heating layer is arranged in an interlayer between the liquid storage bin and the control bin; the heating layer connect the control mainboard, when the temperature that the temperature control sensor detected is less than the threshold value scope of setting for, control mainboard control heating layer carries out work, when the temperature that the temperature control sensor detected is in the threshold value scope of setting for, control mainboard control heating layer stop heating work. The heating layer is formed by connecting a heating resistance wire and an electric control switch, and the electric control switch is connected with a temperature control sensor.
The utility model has the beneficial effects that:
1. the utility model installs the ultrasonic oscillator in the liquid storage bin, the ultrasonic oscillator is the atomization generating device of the liquid medicine; a filter pipe is arranged in the liquid storage bin, a nanoscale film is arranged in the filter pipe, macromolecular impurities can be filtered, the atomization purity of the stem cell liquid is ensured, one end of the filter pipe is positioned in the liquid storage bin, and the other end of the liquid storage bin is inserted into the air outlet end of the liquid storage bin; the shell of the liquid storage bin is provided with a liquid filling through hole with threads, and a rubber plug with external threads is screwed in the liquid filling through hole;
the temperature control sensor is arranged at the top of the bracket, is in contact with the wall of the liquid storage bin and measures the temperature of the liquid storage bin; the temperature of the stem cell fluid is obtained in real time, and the stem cells are guaranteed to keep good activity under the conditions of constant temperature and constant pressure. The micro circulating pump is arranged on the bracket, the working end of the micro circulating pump is inserted into the liquid storage bin, and the micro circulating pump is used for realizing the internal circulation of the liquid medicine in the liquid storage bin, keeping the stem cells in a suspension state and avoiding the precipitation of the stem cell liquid in the liquid storage bin;
the control main board is arranged on the bracket and is used for being connected with and controlling each electronic device;
the display screen and the flow control board are arranged on the shell of the control cabin, the display screen is connected with the control main board and the battery, the display screen is used for displaying the liquid medicine state, the battery electric quantity and the flow parameters of the micro circulating pump, and the flow control board is connected with the control main board and is used for controlling the running flow of the micro circulating pump and the efficacy of the ultrasonic oscillator; the control of the spray flow and the flow of the microcirculation can be realized by rotating the flow control plate to control the knob of the miniature circulating pump.
After the disinfection device is used, a closed space can be built through the disinfection cover for disinfection treatment, the whole device is wrapped in the closed space, and disinfection liquid is sprayed from the air inlet of the disinfection device for spraying to perform disinfection treatment.
2. The utility model has beautiful appearance, reasonable design, compact structure and convenient use. The utility model can be used in the process of lying and resting or walking, is suitable for treating novel coronavirus, is more portable and portable compared with the traditional table type atomizer, is suitable for being carried about, is simple to clean and change medicine, is convenient to use in an isolation environment, and is suitable for mild patients or rehabilitation patients. The face guard can be installed fast with atomizing transmitter through portable buckle, and its respirator uses medical silica gel preparation, and facial laminating degree is good, reduces gas leakage, links with atomizing generator through neck draw, and the person of facilitating the use uses under any state, including lying, posture such as standing.
Drawings

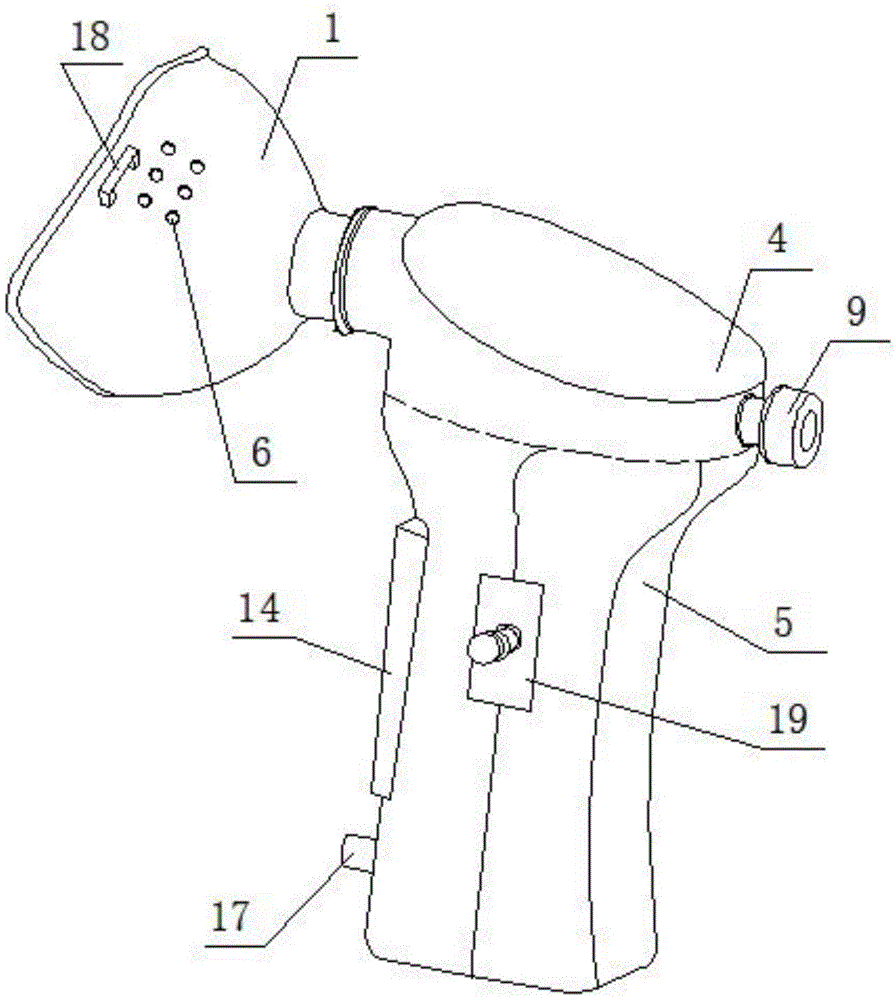

FIG. 1 is a schematic external view of the present invention (without a necked-down tube configuration);
FIG. 2 is a schematic external view of the present invention (with a necked-down tube configuration);
FIG. 3 is an exploded view of FIG. 2;
FIG. 4 is a schematic view of the structure of the disinfection cover pulled out from the bottom of the control cabin;
fig. 5 is a schematic view of the structure of the entire atomizer wrapped by the sterilization cover.
Wherein the reference numerals in the figures denote:
1 is respirator, 2 is the neck draw pipe, 3 is the barb buckle, 4 is the stock solution storehouse, 5 is the control storehouse, 6 is the bleeder vent, 7 is ultrasonic oscillator, 8 is the filter tube, 9 is the plug, 10 is the control mainboard, 11 is the temperature control sensor, 12 is the battery, 13 is power control board, 14 is the display screen, 15 is the support, 16 is the micro-circulation pump, 17 is the main switch, 18 is the through wires hole, 19 is flow control board, 20 is the disinfection cover, 21 is the pull rope, 22 is the inflation air cock pneumatic valve.
Detailed Description
Reference will now be made in detail to embodiments of the present invention, examples of which are illustrated in the accompanying drawings, wherein like or similar reference numerals refer to the same or similar elements or elements having the same or similar function throughout. The embodiments described below with reference to fig. 1-3 are exemplary and intended to be used to illustrate the utility model, but are not to be construed as limiting the utility model.
In the description of the present invention, it is to be understood that the terms "length", "width", "upper", "lower", "front", "rear", "left", "right", "vertical", "horizontal", "top", "bottom", "inner", "outer", and the like, indicate orientations or positional relationships based on the orientations or positional relationships illustrated in the drawings, and are used merely for convenience in describing the present invention and for simplicity in description, and do not indicate or imply that the devices or elements referred to must have a particular orientation, be constructed in a particular orientation, and be operated, and thus, are not to be construed as limiting the present invention.
Furthermore, the terms "first", "second" and "first" are used for descriptive purposes only and are not to be construed as indicating or implying relative importance or implicitly indicating the number of technical features indicated. Thus, a feature defined as "first" or "second" may explicitly or implicitly include one or more of that feature. In the description of the present invention, "a plurality" means two or more unless specifically defined otherwise.
In the present invention, unless otherwise expressly stated or limited, the terms "mounted," "connected," "secured," and the like are to be construed broadly and can, for example, be fixedly connected, detachably connected, or integrally formed; can be mechanically or electrically connected; either directly or indirectly through intervening media, either internally or in any other relationship. The specific meanings of the above terms in the present invention can be understood by those skilled in the art according to specific situations.
The first embodiment is as follows:
a novel portable stem cell nebulizer of the present embodiment is shown in fig. 1 and 3, and includes a breathing mask 1 and a nebulizer body;
the breathing mask 1 is used for contacting the face of a user, and the barb buckle 3 is arranged at the air inlet end of the breathing mask 1, so that the breathing mask is conveniently and directly connected with the atomization generating device; the breathing mask 1 is made of medical silica gel, is soft and comfortable to wear, does not generate facial indentation after long-term use,
the atomizer main body is used for controlling the atomization and circulation of stem cell liquid medicine, and the inner part of the atomizer main body is divided into a liquid storage bin 4 at the upper part and a control bin 5 at the lower part;
the liquid storage bin 4 is used for realizing the space required by the liquid medicine containing, atomizing and atomizing circulation; the end port of the air outlet end of the liquid storage bin 4 is provided with a clamping groove matched with the barb buckle 3;
the control bin 5 is used for realizing the space required by the control unit, the integrated circuit board and the atomization circulation;
wherein, the air inlet end of the breathing mask 1 is connected with the air outlet end of the liquid storage bin 4 of the atomizer main body; the control unit is connected with a structural part which realizes the functions of atomization, atomization circulation and integrated circuit in the liquid storage bin 4.
The second embodiment is as follows:
different from the specific embodiment, in the novel portable stem cell atomizer of the present embodiment, as shown in fig. 1 and 3, a set of ventilation holes 6 are respectively formed in the cheek of the breathing mask 1, so that the suffocation feeling is reduced during use, and the novel portable stem cell atomizer can also be used for ventilation.
The third concrete implementation mode:
different from the first or second embodiment, in the novel portable stem cell atomizer of the present embodiment, as shown in fig. 1 and 3, an ultrasonic oscillator 7 is installed in the liquid storage bin 4, and the ultrasonic oscillator 7 is an atomization generating device for liquid medicine; a filter pipe 8 is arranged in the liquid storage bin 4, a nanoscale film is arranged in the filter pipe 8, so that macromolecular impurities can be filtered, the atomization purity of the stem cell liquid is ensured, one end of the filter pipe 8 is positioned in the liquid storage bin 4, and the other end of the liquid storage bin 4 is inserted into the air outlet end of the liquid storage bin 4; the shell of the liquid storage bin 4 is provided with a liquid filling through hole with threads, and a rubber plug 9 with external threads is screwed in the liquid filling through hole;
the ultrasonic oscillator 7 is connected with the control unit.
The fourth concrete implementation mode:
different from the third embodiment, in the novel portable stem cell atomizer of the present embodiment, as shown in fig. 1 and 3, the control unit and the integrated circuit board include a control main board 10, a temperature control sensor 11, a battery 12, a power control board 13, an extended usb charging interface, and a display screen 14;
a bracket 15 and a micro circulating pump 16 are also arranged in the control cabin 5; the wall of the control bin 5 is also provided with a main switch 17;
the temperature control sensor 11 is arranged at the top of the bracket 15, and the temperature control sensor 11 is contacted with the wall of the liquid storage bin 4 and measures the temperature of the liquid storage bin 4; monitoring the temperature of the stem cell fluid in real time to ensure the activity of the stem cell fluid;
the micro-circulation pump 16 is arranged on the bracket 15, the working end of the micro-circulation pump 16 is inserted into the liquid storage bin 4, and the micro-circulation pump 16 is used for realizing the internal circulation of the liquid medicine liquid in the liquid storage bin 4 and avoiding the precipitation of stem cell liquid in the liquid storage bin 4;
the battery 12, the power control board 13 and the extended usb charging interface are arranged at the bottom of the bracket 15, and the battery 12, the power control board 13 and the extended usb charging interface are used for supplying power to each electronic device;
the control mainboard 10 is installed on the bracket 15, and the control mainboard 10 is used for connecting with each electronic device and controlling the electronic device;
the display screen 14 and the flow control board 19 are arranged on the shell of the control cabin 5, the display screen 14 is connected with the control main board 10 and the battery 12, the display screen 14 is used for displaying the liquid medicine state, the electric quantity of the battery 12 and the flow parameter of the micro-circulation pump 16, the flow control board 19 is connected with the control main board 10, and the control main board 10 is connected with the micro-circulation pump 16 and the ultrasonic oscillator 7; a knob is arranged on the flow control board 19, the rotation amount of the knob is converted into the input amount of the control main board 10, and the operation flow of the micro circulating pump 16 and the effect of the ultrasonic oscillator 7 are controlled through the flow control board 19;
the control main board 10 is electrically connected with the ultrasonic oscillator 7, the temperature control sensor 11, the micro circulating pump 16, the battery 12, the power supply control board 13, the extended usb charging interface and the display screen 14; the power control board 13 is connected to the main switch 17.
It should be noted that the control main board 10 may be a single chip microcomputer, the specific model specification needs to be determined by type selection according to the actual specification of the device, and the specific calculation methods for control and the like adopt the prior art, so detailed description is omitted.
The fifth concrete implementation mode:
different from the first, second or fourth embodiments, in the novel portable stem cell atomizer of the present embodiment, as shown in fig. 2 and 3, the novel portable stem cell atomizer further includes a neck-shrinking tube 2, and the neck-shrinking tube 2 is used for connecting the air inlet end of the breathing mask 1 and the air outlet end of the atomizer main body; the two end ports of the neck contracting pipe 2 are provided with clamping grooves matched with the barb buckles 3, so that the breathing mask 1 can be quickly connected, and the disassembly and the cleaning are convenient; the neck reducing pipe 2 is made of plastic flexible pipe, can be freely stretched and contracted, has high degree of freedom, and is convenient for users to use under different postures and states.
The sixth specific implementation mode:
different from the fifth specific embodiment, in the novel portable stem cell atomizer of the present embodiment, the inner wall of the liquid storage bin 4 is sprayed with a medical colloid coating, so as to ensure sterility in the use process.
The seventh embodiment:
different from the first, second, fourth or sixth specific embodiments, the novel portable stem cell atomizer of the present embodiment is, as shown in fig. 1 to 3, provided with a threading hole 18 on each of the left and right sides of the respiratory mask 1, and an elastic cord is tied between the two threading holes 18 for being fixed on the head of a user, so that the respiratory mask 1 can be kept more attached to the face of the user without being held by a hand, and the inhalation rate of the atomized liquid medicine is higher. And is more convenient to use without being held by hands.
The specific implementation mode is eight:
the seventh difference from the specific embodiment is that the shell of the atomizer body is made of ABS material and is manufactured by one-step injection molding.
The specific implementation method nine:
the eighth difference of the embodiment is that the novel portable stem cell atomizer further comprises a placing bin and a disinfecting cover;
the placing bin is arranged in the bottom surface outside the control bin 5, and the bottom of the placing bin is provided with a pull bin door capable of being opened; the pulling bin gate does not influence the stability of the whole atomizer, and the operation is convenient.
The disinfection cover 20 is detachably mounted on the top surface inside the placing bin, the disinfection cover 20 is made of soft waterproof materials, one end of the disinfection cover 20 is detachably connected with the top surface inside the placing bin, the other end of the disinfection cover 20 is provided with an opening, a drawing channel is sewn around the opening, a drawing rope 21 is arranged in the drawing channel, and an inflation air nozzle air valve 22 is further arranged on the cover body of the disinfection cover 20;
when the atomizer is disinfected by the disinfection cover 20, the disinfection cover 20 is stretched, one end of the disinfection cover 20 is fixed at the bottom of the atomizer, the opening at the other end of the disinfection cover 20 is opened, the opening is stretched outwards and upwards, as shown in fig. 4, the original outer part of the disinfection cover 20 is changed into the inner part to wrap the whole atomizer, and then the opening is sealed as shown in fig. 5. Spraying disinfectant into the atomizer through the air valve 22 to sterilize the entire atomizer body; set up disinfection cover 20 can guarantee that the focus of disinfection spraying longer time is in atomizer outer wall and around, and the airtight space of disinfection cover 20 creation can also prevent that the disinfection spraying from being taken away by the air that flows to have the effect of practicing thrift the quantity of antiseptic solution.
The sterilizing cover 20 can be removed after a prescribed number of uses, replaced with a new one, and placed in the storage compartment.
The detailed implementation mode is ten:
the eighth difference of the specific implementation mode is that the novel portable stem cell atomizer further comprises a heating layer, wherein the heating layer is arranged in an interlayer between the liquid storage bin 4 and the control bin 5; the heating layer is connected with the control main board 10, when the temperature detected by the temperature control sensor 11 is lower than the set threshold range, the control main board 10 controls the heating layer to work, and until the temperature detected by the temperature control sensor 11 is in the set threshold range, the control main board 10 controls the heating layer to stop heating. The heating layer is formed by connecting a heating resistance wire and an electric control switch, and the electric control switch is connected with a temperature control sensor.
The above description is only for the purpose of illustrating the preferred embodiments of the present invention and is not to be construed as limiting the utility model, and any modifications, equivalents and improvements made within the spirit and principle of the present invention are intended to be included within the scope of the present invention.
Claims (10)
1. A novel portable stem cell atomizer which is characterized in that: the respirator comprises a breathing mask and an atomizer main body;
the breathing mask is used for contacting the face of a user, and a barb buckle is arranged at the port of the air inlet end of the breathing mask;
the atomizer main body is used for controlling the atomization and circulation of stem cell liquid medicine, and the inner part of the atomizer main body is divided into an upper part liquid storage bin and a lower part control bin;
the liquid storage bin is used for realizing the space required by the liquid medicine containing, atomizing and atomizing circulation; the port of the air outlet end of the liquid storage bin is provided with a clamping groove in snap fit with the barb;
the control cabin is used for realizing the space required by the control unit, the integrated circuit board and the atomization circulation;
wherein, the air inlet end of the breathing mask is connected with the air outlet end of the liquid storage bin of the atomizer main body; the control unit is connected with a structural member for realizing the functions of atomization, atomization circulation and integrated circuit in the liquid storage bin.
2. The novel portable stem cell nebulizer of claim 1, wherein: the left side and the right side of the breathing mask are respectively provided with a group of air holes.
3. A novel portable stem cell nebulizer as claimed in claim 1 or 2 wherein: an ultrasonic oscillator is arranged in the liquid storage bin; a filter pipe is arranged in the liquid storage bin, a nanoscale film is arranged in the filter pipe, one end of the filter pipe is positioned in the liquid storage bin, and the other end of the liquid storage bin is inserted into the air outlet end of the liquid storage bin; the shell of the liquid storage bin is provided with a liquid filling through hole with threads, and a rubber plug with external threads is screwed in the liquid filling through hole;
the ultrasonic oscillator is connected with the control unit.
4. The novel portable stem cell nebulizer of claim 3, wherein: the control unit and the integrated circuit board comprise a control main board, a temperature control sensor, a battery, a power supply control board, an extended usb charging interface and a display screen;
the control cabin is internally provided with a bracket and a micro circulating pump; the wall of the control bin is also provided with a main switch;
the temperature control sensor is arranged at the top of the bracket, is in contact with the wall of the liquid storage bin and measures the temperature of the liquid storage bin;
the micro circulating pump is arranged on the bracket, the working end of the micro circulating pump is inserted in the liquid storage bin, and the micro circulating pump is used for realizing the internal circulation of the liquid medicine in the liquid storage bin;
the battery, the power supply control board and the extended usb charging interface are arranged at the bottom of the bracket and used for supplying power to each electronic device;
the control main board is arranged on the bracket and is used for being connected with and controlling each electronic device;
the display screen and the flow control board are arranged on the shell of the control cabin, the display screen is connected with the control main board and the battery, the display screen is used for displaying the liquid medicine state, the battery electric quantity and the flow parameters of the micro circulating pump, and the flow control board is connected with the control main board and is used for controlling the running flow of the micro circulating pump and the efficacy of the ultrasonic oscillator;
the control mainboard is electrically connected with the ultrasonic oscillator, the temperature control sensor, the micro circulating pump, the battery, the power supply control board, the extended usb charging interface and the display screen; the power supply control board is connected with the main switch.
5. The novel portable stem cell nebulizer of claim 1, 2 or 4, wherein: the novel portable stem cell atomizer further comprises a neck shrinking pipe, and the neck shrinking pipe is used for connecting the air inlet end of the breathing mask and the air outlet end of the atomizer main body; the two end ports of the neck reducing pipe are provided with clamping grooves matched with the barbs in a buckling mode.
6. The novel portable stem cell nebulizer of claim 5, wherein: the inner wall of the liquid storage bin is sprayed with a medical colloid coating.
7. The novel portable stem cell nebulizer of claim 1, 2, 4 or 6, wherein: the left side and the right side of the breathing mask are respectively provided with a threading hole, and an elastic rope is tied between the two threading holes.
8. The novel portable stem cell nebulizer of claim 7, wherein: the shell of the atomizer main body is made of ABS materials.
9. The novel portable stem cell nebulizer of claim 8, wherein: the atomizer also comprises a placing bin and a disinfecting cover; the placing bin is arranged in the bottom surface of the outer part of the control bin, and the bottom of the placing bin is provided with a pull bin door capable of being opened;
place the inside top surface detachable installation disinfection cover in storehouse, the disinfection cover adopt the preparation of software water proof material, the one end of disinfection cover with place the inside top surface detachable in storehouse and be connected, the disinfection cover other end sets up the opening, the pull passageway is made up all around to the opening, sets up the pull rope in the pull passageway, still sets up the air cock pneumatic valve of aerifing on the cover body of disinfection cover.
10. The novel portable stem cell nebulizer of claim 9, wherein: the atomizer also comprises a heating layer which is arranged in an interlayer between the liquid storage bin and the control bin; the heating layer is connected with the control main board, when the temperature detected by the temperature control sensor is lower than a set threshold range, the control main board controls the heating layer to work, and when the temperature detected by the temperature control sensor is within the set threshold range, the control main board controls the heating layer to stop heating; the heating layer is formed by connecting a heating resistance wire and an electric control switch, and the electric control switch is connected with a temperature control sensor.
