The utility model discloses an elastic sealing sliding window upper rail section, which comprises a fixing strip, a Z-shaped elastic sheet, a sealing rubber strip, a pushing plate, an upper rail, an upper part and a hooked rabbet, wherein the Z-shaped elastic sheet is connected with the sealing rubber strip, the Z-shaped elastic sheet, the sealing rubber strip and the fixing strip are positioned in the upper rail, the pushing plate is arranged on the hooked rabbet, the pushing plate pushes the sealing rubber strip, and the sealing rubber strip is pressed downwards to be in contact with the upper part. The upper rail section bar of the elastic sealing sliding window is characterized in that a sealing rubber strip is arranged on the upper rail section bar, a fixing strip is arranged on the upper rail section bar, a Z-shaped elastic sheet is arranged on the upper rail section bar, a pushing plate is arranged on the upper rail section bar, a groove is arranged on the lower rail section bar, a groove is arranged on the upper rail section bar, a groove is arranged on the groove, and a groove is arranged on the groove.
Description
Technical Field
The utility model relates to the field of building materials, in particular to an elastic sealing sliding window upper rail section.
Background
The rail section bar on the austral window, sliding sash is a support equipment that carries out the door and window push-and-pull, and door and window is visible everywhere in the life, and door and window's use type is also more diversified, and wherein, the use of austral window, sliding sash is more general, and the sealed effect of rail on the austral window, sliding sash is the direction of pursuing in the industry always, and along with the continuous development of science and technology, people also are more and more high to the manufacturing process requirement of rail section bar on the austral window, sliding sash.
The existing sliding window upper rail section bar has certain defects when in use, some current sealing blocks and sealing wool tops cannot achieve the desired effect, the opening smoothness can be influenced by sealing with leather strips, the use of people is not facilitated, certain adverse influence is brought to the use process of people, and therefore the sliding window upper rail section bar with the elastic sealing function is provided.
SUMMERY OF THE UTILITY MODEL
Technical problem to be solved
Aiming at the defects of the prior art, the utility model provides the elastically sealed sliding window upper rail section, the opening smoothness is not influenced by loosening the sealing leather strip during opening, the sealing leather strip is compressed during closing, the upper rail sealing effect is ensured, the elastically sealed sliding window upper rail section mainly comprises an upper rail, a fixing strip, a Z-shaped elastic sheet and a sealing rubber strip, the elastic sealing is realized by matching with an upper part, a hooked rabbet and a pushing plate, the sealing performance of the upper rail is greatly improved, the opening effect of a window is not influenced, and the problems in the background technology can be effectively solved.
(II) technical scheme
In order to achieve the purpose, the utility model adopts the technical scheme that: the utility model provides an elastic sealing's austral window, sliding sash upper rail section bar, includes fixed strip, Z shape shell fragment, joint strip, slurcam, upper rail, top, hooked rabbet, joint strip is connected to Z shape shell fragment, joint strip, fixed strip location are in the inside of upper rail, the slurcam is installed on hooked rabbet, the slurcam promotes joint strip, and joint strip pushes down and the top contact.
Preferably, an adhesive is arranged between the sealing adhesive tape and the Z-shaped elastic sheet, and one end of the sealing adhesive tape is fixedly connected with the lower end of the Z-shaped elastic sheet through the adhesive.
Preferably, the outer sides of the Z-shaped elastic sheet and the sealing rubber strip are connected with the inner side of the lower end of the upper rail in a positioning mode through the fixing strip.
Preferably, a sliding groove is formed between the fixed strip and the hooked rabbet, and the inner side of the lower end of the fixed strip is movably connected with the outer side of the upper end of the hooked rabbet through the sliding groove.
Preferably, an installation block is arranged between the hooked rabbet and the pushing plate, and the front part of the upper end of the hooked rabbet is fixedly connected with the outer side of the pushing plate through the installation block.
Preferably, an installation support is arranged between the upper part and the hooked rabbet, and the inner side of the hooked rabbet is connected with two ends of the upper part in a positioning mode through the installation support.
(III) advantageous effects
Compared with the prior art, the utility model provides the elastic sealing upper rail section bar of the sliding window, which has the following beneficial effects: the sliding window upper rail section bar with the elastic sealing function is mainly composed of an upper rail, a fixing strip, a Z-shaped elastic sheet and a sealing rubber strip, wherein the sealing rubber strip is loosened during opening so as not to affect the opening smoothness, and the sealing rubber strip is pressed during closing so as to ensure the sealing effect of the upper rail; when opening, the hooked rabbet drives the pushing plate to move, loosens the sealing rubber strip, and the Z-shaped elastic sheet recovers the original height, drives the sealing rubber strip to move upwards, keeps a certain gap with the upper part, avoids influencing the opening effect, and the rail section bar on the whole sliding window is simple in structure, convenient to operate and better in using effect compared with the traditional mode.
Drawings

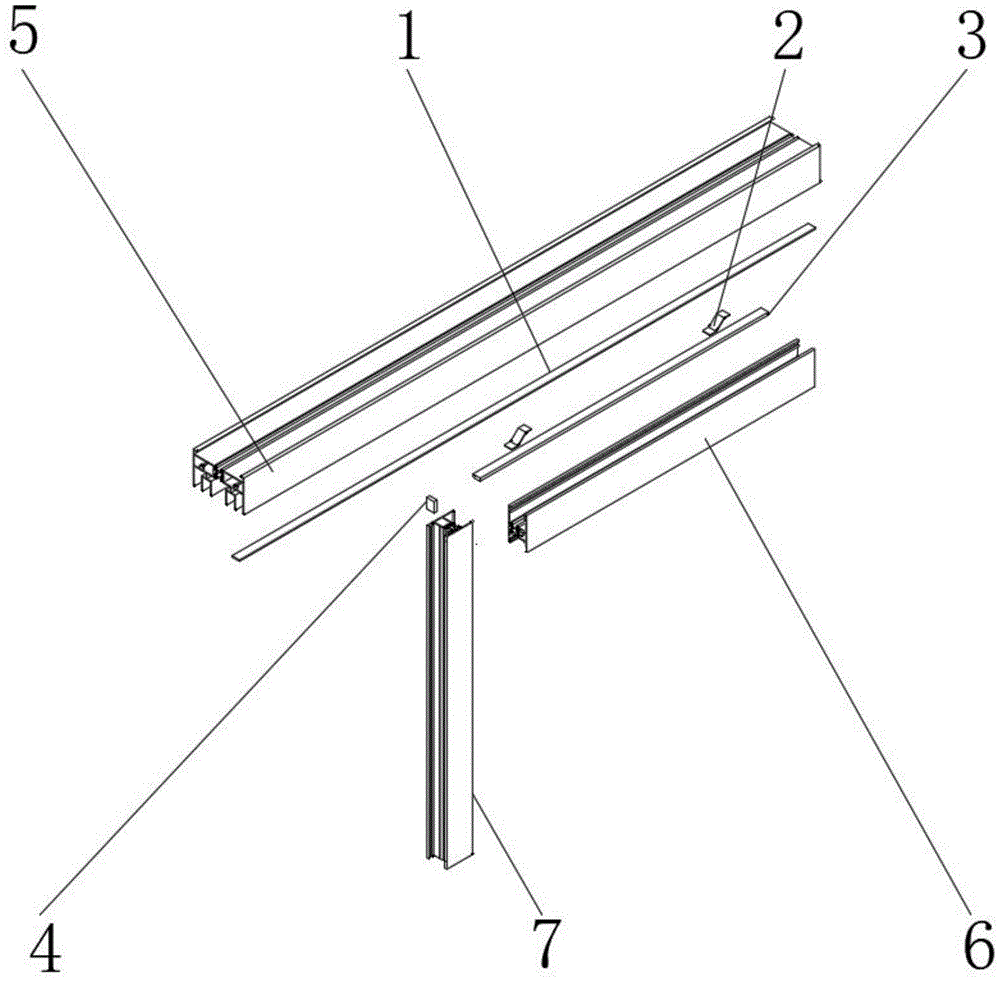

Fig. 1 is a schematic view of the overall structure of an elastic sealing sliding window upper rail section bar.
Fig. 2 is a schematic structural view of the closing of doors and windows in the elastic sealing sliding window upper rail section bar.
Fig. 3 is a schematic structural view of opening of doors and windows in the elastic sealing sliding window upper rail section bar.
Fig. 4 is a schematic structural diagram of a side view in the section bar of the upper rail of the elastic sealing sliding window.
In the figure: 1. a fixing strip; 2. a Z-shaped spring plate; 3. sealing rubber strips; 4. a push plate; 5. rail mounting; 6. an upper part; 7. a hooked rabbet.
Detailed Description
In order to make the technical means, the creation characteristics, the achievement purposes and the effects of the utility model easy to understand, the utility model is further described with the specific embodiments.
As shown in fig. 1-4, a section of elastic sealing sliding window upper rail section bar comprises a fixed strip 1, a Z-shaped elastic sheet 2, a sealing rubber strip 3, a pushing plate 4, an upper rail 5, a top 6 and a hooked rabbet 7, wherein the Z-shaped elastic sheet 2 is connected with the sealing rubber strip 3, the Z-shaped elastic sheet 2, the sealing rubber strip 3 and the fixed strip 1 are positioned inside the upper rail 5, the pushing plate 4 is installed on the hooked rabbet 7, the pushing plate 4 pushes the sealing rubber strip 3, and the sealing rubber strip 3 is pressed down to contact with the top 6.
Furthermore, an adhesive glue is arranged between the sealing rubber strip 3 and the Z-shaped elastic piece 2, one end of the sealing rubber strip 3 is fixedly connected with the lower end of the Z-shaped elastic piece 2 through the adhesive glue, a sealing leather strip is pressed when the sealing rubber strip is closed, and the sealing effect of the upper rail 5 is guaranteed.
Furthermore, the outer sides of the Z-shaped elastic sheet 2 and the sealing rubber strip 3 are connected with the inner side of the lower end of the upper rail 5 through the fixing strip 1 in a positioning mode, the sealing performance of the upper rail 5 is greatly improved, and the opening effect of a window is not affected.
Furthermore, a sliding groove is formed between the fixed strip 1 and the hooked rabbet 7, the inner side of the lower end of the fixed strip 1 is movably connected with the outer side of the upper end of the hooked rabbet 7 through the sliding groove, and the opening and closing are smoother.
Furthermore, an installation block is arranged between the hooked rabbet 7 and the pushing plate 4, the front part of the upper end of the hooked rabbet 7 is fixedly connected with the outer side of the pushing plate 4 through the installation block, the pushing plate 4 arranged on the hooked rabbet 7 pushes the sealing rubber strip 3 when the window is closed, and the Z-shaped elastic sheet 2 connected with the sealing rubber strip 3 deforms to enable the sealing rubber strip 3 to be pressed downwards to be in contact with the upper part 6, so that the upper rail 5 is closed.
Furthermore, an installation support is arranged between the upper part 6 and the hooked rabbet 7, and the inner side of the hooked rabbet 7 is connected with the two ends of the upper part 6 in a positioning manner through the installation support, so that the installation and the positioning are facilitated.
The working principle is as follows: the window sealing device comprises a fixing strip 1, a Z-shaped elastic sheet 2, a sealing rubber strip 3, a pushing plate 4, an upper rail 5, an upper part 6 and a hooked rabbet 7, wherein when the window sealing device is used, the sealing rubber strip 3 is connected with the Z-shaped elastic sheet 2 and is fixed in the upper rail 5 through the fixing strip 1, when the window is closed, the pushing plate 4 arranged on the hooked rabbet 7 pushes the sealing rubber strip 3, and the Z-shaped elastic sheet 2 connected with the sealing rubber strip 3 deforms to press the sealing rubber strip 3 downwards to be in contact with the upper part 6, so that the upper rail 5 is sealed; hooked rabbet 7 drives kickboard 4 and removes when opening, loosen joint strip 3, Z shape shell fragment 2 resumes original height, it moves up to drive joint strip 3, keep certain clearance with top 6, avoid influencing the effect of opening, loosen joint strip when opening and do not influence and open smooth and easy degree, compress tightly joint strip when closing, guarantee the sealed effect of upper rail 5, mainly by upper rail 5, fixed strip 1, Z shape shell fragment 2, joint strip 3 constitutes, through with top 6, elastic sealing is realized in hooked rabbet 7 and kickboard 4's cooperation, greatly increased upper rail 5's leakproofness, and do not influence the effect of opening of window.
It is noted that, herein, relational terms such as first and second (a, b, etc.) and the like may be used solely to distinguish one entity or action from another entity or action without necessarily requiring or implying any actual such relationship or order between such entities or actions. Also, the terms "comprises," "comprising," or any other variation thereof, are intended to cover a non-exclusive inclusion, such that a process, method, article, or apparatus that comprises a list of elements does not include only those elements but may include other elements not expressly listed or inherent to such process, method, article, or apparatus. Without further limitation, an element defined by the phrase "comprising an … …" does not exclude the presence of other identical elements in a process, method, article, or apparatus that comprises the element.
The foregoing shows and describes the general principles and broad features of the present invention and advantages thereof. It will be understood by those skilled in the art that the present invention is not limited to the embodiments described above, which are described in the specification and illustrated only to illustrate the principle of the present invention, but that various changes and modifications may be made therein without departing from the spirit and scope of the present invention, which fall within the scope of the utility model as claimed. The scope of the utility model is defined by the appended claims and equivalents thereof.
Claims (6)
1. The utility model provides an elastic seal's austral window, sliding sash upper rail section bar, includes fixed strip (1), Z shape shell fragment (2), joint strip (3), slurcam (4), upper rail (5), top (6), hooked rabbet (7), its characterized in that: sealing rubber strip (3) is connected to Z shape shell fragment (2), sealing rubber strip (3), fixed strip (1) are fixed a position in the inside of last rail (5), catch plate (4) are installed on hooked rabbet (7), catch plate (4) promote sealing rubber strip (3), and sealing rubber strip (3) push down and top (6) contact.
2. An elastically sealing sliding window upper rail profile according to claim 1, wherein: and an adhesive glue is arranged between the sealing adhesive tape (3) and the Z-shaped elastic sheet (2), and one end of the sealing adhesive tape (3) is fixedly connected with the lower end of the Z-shaped elastic sheet (2) through the adhesive glue.
3. An elastically sealing sliding window upper rail profile according to claim 1, wherein: the outer sides of the Z-shaped elastic sheet (2) and the sealing rubber strip (3) are connected with the inner side of the lower end of the upper rail (5) in a positioning mode through the fixing strip (1).
4. An elastically sealing sliding window upper rail profile according to claim 1, wherein: a sliding groove is arranged between the fixed strip (1) and the hooked rabbet (7), and the inner side of the lower end of the fixed strip (1) is movably connected with the outer side of the upper end of the hooked rabbet (7) through the sliding groove.
5. An elastically sealing sliding window upper rail profile according to claim 1, wherein: an installation block is arranged between the hooked rabbet (7) and the pushing plate (4), and the front part of the upper end of the hooked rabbet (7) is fixedly connected with the outer side of the pushing plate (4) through the installation block.
6. An elastically sealing sliding window upper rail profile according to claim 1, wherein: an installation support is arranged between the upper part (6) and the hooked rabbet (7), and the inner side of the hooked rabbet (7) is connected with the two ends of the upper part (6) in a positioning way through the installation support.
