Abstract
The utility model discloses a novel sliding support for a window sash, which comprises a sliding groove, a sliding block, a short rod, a middle rod, a long rod and a support arm, wherein the sliding block is connected with the sliding groove in a sliding mode, one end of the long rod is rotatably connected with the sliding groove, the other end of the long rod is rotatably connected with the support arm, one end of the short rod is rotatably connected with the sliding block, the other end of the short rod is rotatably connected with the support arm, one end of the middle rod is rotatably connected with the sliding block, the other end of the middle rod is movably connected with the support arm, and the middle rod and the short rod are arranged in a crossed mode and are rotatably connected at the crossed position. The middle rod of the novel sliding support is directly and movably connected with the supporting arm, the short rod, the middle rod and the supporting arm are encircled to form a triangle which can be changed along with the opening and closing of the sliding support, one end of each of the short rod, the middle rod and the long rod is connected with the sliding chute, the other end of each of the short rod, the middle rod and the long rod is connected with the supporting arm, the integral bearing force of the sliding support can be concentrated on the supporting arm, the structure is simple, the assembly and disassembly are convenient and rapid, the bearing effect of the sliding support is better, the sliding support is not easy to deform, the safety performance is high, and the sealing performance of a window using the novel sliding support is better.
Description
[ technical field ]
The utility model relates to a novel sliding support for a window sash.
[ background art ]
The sliding support for the window sash is used for connecting the window sash and the window frame, and the top and the bottom of the window sash are both provided, so that a user can conveniently open the window sash. The existing sliding support structure generally comprises a sliding assembly and a plurality of linkage rods, wherein four linkage rods form a parallelogram, two adjacent linkage rods are rotatably connected, one linkage rod is used as a supporting arm for supporting a sash window, and the parallelogram can be changed along with the opening and closing of the sliding support, so that the window opening and closing effects are achieved. However, the load-bearing force of the existing sliding support structure is dispersed, the load-bearing force is not concentrated on the supporting arm, when the window sash is heavy, the load-bearing effect of the sliding support is poor, the sliding support is easy to deform, and the sliding support cannot form a straight line shape when being closed, so that the sealing performance of the window is poor when the window sash is closed, and the safety performance is low.
The present invention has been made in view of the above problems.
[ contents of utility model ]
The utility model aims to provide a novel sliding support for a window sash, which is simple in structure, better in bearing effect and high in safety performance, and the integral bearing force of the sliding support can be concentrated on a supporting arm.
In order to solve the technical problems, the technical scheme adopted by the utility model is as follows:
the utility model provides a novel sliding support that casement was used, includes spout, slider, quarter butt, king-rod, stock and trailing arm, slider and spout sliding connection, stock one end is rotated with the spout and is connected, the other end rotates with the trailing arm to be connected, quarter butt one end is rotated with the slider and is connected, the other end rotates with the trailing arm to be connected, king-rod one end rotates with the slider to be connected, the other end and trailing arm swing joint, king-rod and quarter butt cross arrangement just rotate at the intersection and be connected.
According to the novel sliding support for the window sash, the support arm is provided with the sliding groove, and the connecting point of the middle rod and the support arm can slide back and forth along the sliding groove and can rotate in the sliding groove.
The novel sliding support for the window sash is characterized in that the sliding groove is formed between the rotating connection point of the short rod and the support arm and the rotating connection point of the long rod and the support arm.
According to the novel sliding support for the window sash, the connecting piece connected with the middle rod penetrates through the sliding groove.
The novel sliding support for the window sash comprises an end cap clamped on the sliding groove and a cylinder penetrating into the sliding groove, wherein one end of the cylinder is connected with the end cap, and the other end of the cylinder is connected with the middle rod.
According to the novel sliding support for the window sash, the gasket is arranged between the middle rod and the support arm, and the gasket is sleeved on the column body.
According to the novel sliding support for the window sash, the reinforcing sheet is fixedly connected to the sliding groove, and one end of the long rod is rotatably connected with the reinforcing sheet.
The novel sliding support for the window sash comprises a first sliding block and a second sliding block, wherein the first sliding block and the second sliding block are positioned on the same side of a rotating connection point of the long rod and the sliding groove, one end of the short rod is rotatably connected with the first sliding block, and one end of the middle rod is rotatably connected with the second sliding block.
According to the novel sliding support for the window sash, the sliding block is provided with the second sliding groove, and the rotating connection point of the short rod or the middle rod and the sliding block can slide along the second sliding groove.
Compared with the prior art, the utility model has the beneficial effects that:
the middle rod of the novel sliding support is directly and movably connected with the supporting arm, the short rod, the middle rod and the supporting arm are encircled to form a triangle which can be changed along with the opening and closing of the sliding support, one end of each of the short rod, the middle rod and the long rod is connected with the sliding chute, the other end of each of the short rod, the middle rod and the long rod is connected with the supporting arm, the integral bearing force of the sliding support can be concentrated on the supporting arm, the structure is simple, the assembly and disassembly are convenient and rapid, the bearing effect of the sliding support is better, the sliding support is not easy to deform, the safety performance is high, and the sealing performance of a window using the novel sliding support is better.
[ description of the drawings ]

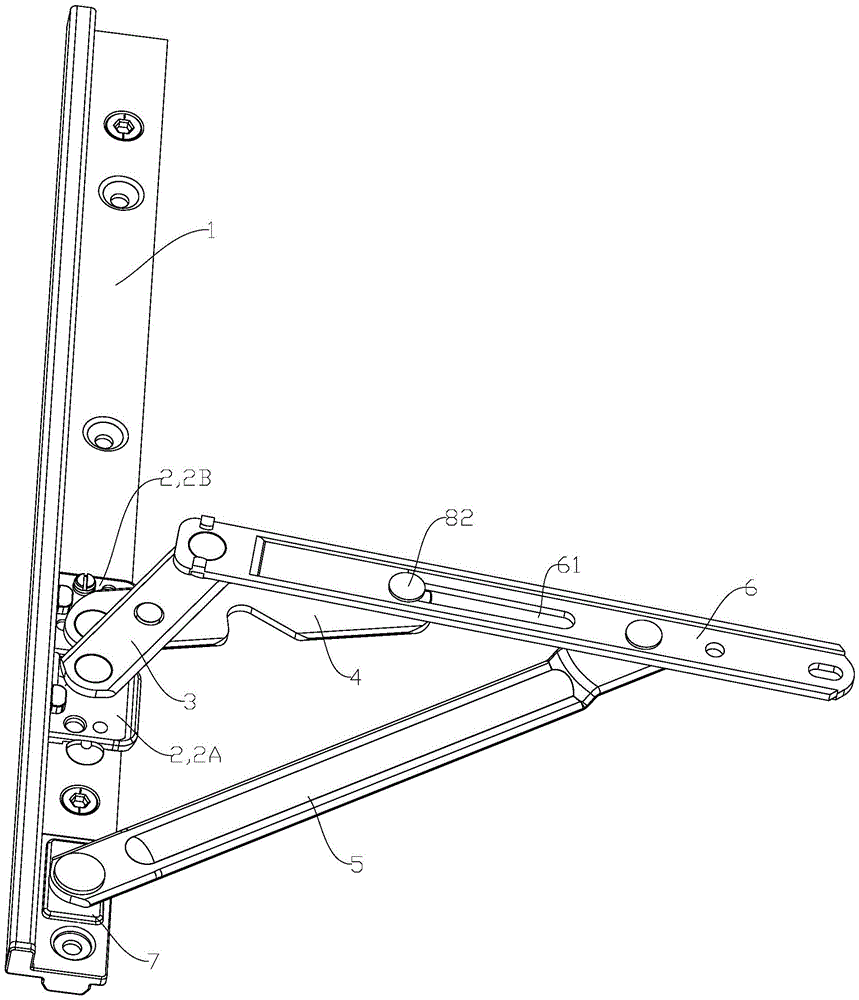

FIG. 1 is a perspective view of the present invention;
fig. 2 is an exploded view of the present invention.
[ detailed description of the utility model ]
The utility model is described in further detail below with reference to the accompanying drawings:
as shown in fig. 1 to 2, the device comprises a sliding groove 1, a sliding block 2, a short rod 3, a middle rod 4, a long rod 5 and a supporting arm 6, wherein the sliding block 2 is connected with the sliding groove 1 in a sliding mode, one end of the long rod 5 is connected with the sliding groove 1 in a rotating mode, the other end of the long rod is connected with the supporting arm 6 in a rotating mode, one end of the short rod 3 is connected with the sliding block 2 in a rotating mode, the other end of the short rod is connected with the supporting arm 6 in a rotating mode, one end of the middle rod 4 is connected with the sliding block 2 in a rotating mode, the other end of the middle rod is movably connected with the supporting arm 6, and the middle rod 4 and the short rod 3 are arranged in a crossed mode and are connected in a rotating mode at the crossed position.
The middle rod 4 of the utility model is directly and movably connected with the supporting arm 6, the short rod 3, the middle rod 4 and the supporting arm 6 enclose a triangle which can change along with the opening and closing of the sliding support, one end of each of the short rod 3, the middle rod 4 and the long rod 5 is connected with the sliding chute 1, and the other end is connected with the supporting arm 6, thus the integral bearing force of the sliding support can be concentrated on the supporting arm 6. The novel sliding support is simple in structure, convenient and quick to disassemble and assemble, good in bearing effect, not easy to deform, high in safety performance and good in sealing performance of a window using the novel sliding support.
The bracket arm 6 is provided with a sliding groove 61, and the connecting point of the middle rod 4 and the bracket arm 6 can slide back and forth along the sliding groove 61 and can rotate in the sliding groove 61. The sliding slot 61 is located between the rotational connection point of the short bar 3 and the bracket arm 6 and the rotational connection point of the long bar 5 and the bracket arm 6. When the sliding support is opened and closed, the middle rod 4 can rotate around the connecting point, and the connecting point can slide back and forth in the sliding groove 61, so that the rotation connection between the middle rod 4 and the bracket arm 6 and the relative folding of the middle rod and the bracket arm are realized.
The sliding groove 61 is provided with a connecting piece 82 connected with the middle rod 4 in a penetrating way, and the connecting piece 82 penetrates through the sliding groove 61 and is connected with the middle rod 4. The connecting piece 82 comprises an end cap clamped on the sliding groove 61 and a column body penetrating into the sliding groove 61, wherein one end of the column body is connected with the end cap, and the other end of the column body is connected with the middle rod 4. A washer 83 is arranged between the middle rod 4 and the bracket arm 6, and the washer 83 is sleeved on the column body. The connecting piece 82 can be a rivet which is riveted with the middle rod 4 after penetrating through the sliding groove 61, the connecting structure between the middle rod 4 and the supporting arm 6 is simpler, and the production cost is low.
Fixedly connected with reinforcing piece 7 on spout 1, 5 one ends of stock rotate with reinforcing piece 7 and be connected, and reinforcing piece 7 can effectual increase the joint strength between stock 5 and the spout 1.
In this embodiment, the slider 2 includes the first slider 2A and the second slider 2B that lie in the rotation tie point of stock 5 and spout 1 with one side, and 3 one end of quarter butt are rotated with first slider 2A and are connected, and 4 one ends of king-rod are rotated with second slider 2B and are connected.
In another embodiment, the sliding block 2 is provided with a second sliding groove (not shown in the figure), and the rotation connection point of the short rod 3 or the middle rod 4 and the sliding block 2 can slide along the second sliding groove.
Claims (9)
1. The utility model provides a novel sliding support that casement was used which characterized in that: including spout (1), slider (2), quarter butt (3), king-rod (4), stock (5) and trailing arm (6), slider (2) and spout (1) sliding connection, stock (5) one end is rotated with spout (1) and is connected, the other end rotates with trailing arm (6) to be connected, quarter butt (3) one end rotates with slider (2) to be connected, the other end rotates with trailing arm (6) to be connected, king-rod (4) one end rotates with slider (2) to be connected, the other end and trailing arm (6) swing joint, king-rod (4) and quarter butt (3) cross arrangement just rotate at the intersection and are connected.
2. The novel slide fastener for a window sash according to claim 1, wherein: a sliding groove (61) is formed in the support arm (6), and a connecting point of the middle rod (4) and the support arm (6) can slide back and forth along the sliding groove (61) and can rotate in the sliding groove (61).
3. The novel slide fastener for a window sash according to claim 2, wherein: the sliding groove (61) is positioned between the rotation connecting point of the short rod (3) and the support arm (6) and the rotation connecting point of the long rod (5) and the support arm (6).
4. The novel slide fastener for a window sash according to claim 2, wherein: the sliding groove (61) is provided with a connecting piece (82) which is connected with the middle rod (4) in a penetrating way.
5. The novel slide fastener for a window sash according to claim 4, wherein: the connecting piece (82) comprises an end cap clamped on the sliding groove (61) and a column body penetrating into the sliding groove (61), one end of the column body is connected with the end cap, and the other end of the column body is connected with the middle rod (4).
6. The novel slide fastener for a window sash according to claim 5, wherein: a washer (83) is arranged between the middle rod (4) and the supporting arm (6), and the washer (83) is sleeved on the column body.
7. A new slide fastener for a window sash according to any one of claims 1 to 6, wherein: fixedly connected with reinforcing piece (7) on spout (1), stock (5) one end rotates with reinforcing piece (7) and is connected.
8. A new slide fastener for a window sash according to any one of claims 1 to 6, wherein: slider (2) are including first slider (2A) and second slider (2B) that are located stock (5) and spout (1) rotation connection point same side, quarter butt (3) one end is rotated with first slider (2A) and is connected, king-rod (4) one end is rotated with second slider (2B) and is connected.
9. A new slide fastener for a window sash according to any one of claims 1 to 6, wherein: a second sliding groove is formed in the sliding block (2), and the rotating connection point of the short rod (3) or the middle rod (4) and the sliding block (2) can slide along the second sliding groove.
