CN215456400U

CN215456400U - Recording device for forestry statistics

Info

Publication number: CN215456400U
Application number: CN202121172276.XU
Authority: CN
Inventors: 杨芬
Original assignee: Individual
Current assignee: Individual
Priority date: 2021-05-28
Filing date: 2021-05-28
Publication date: 2022-01-11
Anticipated expiration: 2031-05-28

Abstract

The utility model relates to the technical field of forestry and discloses a recording device for forestry statistics, which comprises a box body for loading, wherein supporting legs for supporting are arranged at four corners of the lower surface of the box body, a handle for holding is arranged in the middle of the back of the box body, and drawers for placing articles are inserted into the bottoms of the left side surface and the right side surface of the box body. This recording device is used in forestry statistics, promote the sliding block through the user and slide along setting up the board, make the sliding block drive the sliding plate through second even board and connecting seat and carry out longitudinal sliding, the sliding plate drives through first even board and places the board and use the erection column to incline as the centre of a circle, the regulation to placing board inclination has been realized, make the user adjust the inclination of placing the board according to the user demand, user's use has been made things convenient for, do not need the user to hand and place the board and carry out the record to data, the statistical effect to the forestry has been guaranteed.

Description

Recording device for forestry statistics

Technical Field

The utility model relates to the technical field of forestry, in particular to a recording device for forestry statistics.

Background

Through retrieval, Chinese patent number CN213056493U discloses a novel data recording device for forestry management investigation, relates to forestry management technical field, and specifically relates to a novel data recording device for forestry management investigation, which comprises a placing plate, wherein a spring clamp is arranged on the surface of the placing plate, a recording meter is arranged on the surface of the placing plate, and the recording meter is clamped and fixed through the spring clamp.

Recording device simple structure under the prior art, mostly all is one and places the board, then places the record table on placing the board surface, when needs record, the board is placed to handheld, and another holds the recording pen to take notes, and the in-process of use, record board stability is relatively poor, writes inconvenient moreover, and the in-process mistake appears easily of drawing and record moreover, influences the result of investigation.

SUMMERY OF THE UTILITY MODEL

Technical problem to be solved

In view of the deficiencies of the prior art, the utility model provides a recording device for forestry statistics, which solves the problems in the background art.

(II) technical scheme

In order to achieve the purpose, the utility model provides the following technical scheme: a recording device for forestry statistics comprises a box body for loading, wherein supporting legs for supporting are arranged at four corners of the lower surface of the box body, a handle for holding is arranged in the middle of the back of the box body, drawers for placing objects are inserted into the bottoms of the left side surface and the right side surface of the box body, recording paper, a recording pen and a sucker are arranged in the drawers, positioning pins for positioning are arranged on the outer sides of the front surface and the back surface of the drawers, spring positioning pins for positioning are arranged in the middle of the outer side surfaces of the positioning pins, separating frames for separating are arranged in the drawers, handles for pushing and pulling are arranged in the middle of the outer side surfaces of the drawers, mounting columns for mounting are arranged at the tops of the left inner wall and the right inner wall of the box body, placing plates for placing objects are sleeved on the outer surfaces of the mounting columns, supporting rods for supporting are arranged on the left side and the right side of the back of the box body, the inner end of the supporting rod is fixedly connected with an erection plate for supporting, the middle part of the outer surface of the erection plate is sleeved with a blocking block for blocking, the left side and the right side of the outer surface of the erection plate are both sleeved with sliding blocks for adjusting, the middle part of the back surface of the sliding block is provided with a positioning bolt for positioning, the middle part of the upper surface of the sliding block is provided with an adjusting rod for adjusting, the front sides of the top inner wall and the bottom inner wall of the sliding block are provided with first connecting columns for connecting, the inside of the box body is slidably connected with a sliding plate for adjusting, the left side and the right side of the lower surface of the placing plate and the left side and the right side of the upper surface of the sliding plate are both provided with hinged seats for mounting, the inside of the hinged seats is provided with a first connecting plate for transmission, the middle part of the back surface of the sliding plate is provided with a connecting seat for connecting, the left side and the right side of the top inner wall and the bottom inner wall of the connecting seat are both provided with second connecting shafts for connecting, and the outer surfaces of the first connecting column and the second connecting column are sleeved with a second connecting plate for transmission.

Preferably, the left side and the right side of the inner wall of the top of the box body are both provided with T-shaped sliding chutes, and the left side and the right side of the upper surface of the sliding plate are both fixedly connected with T-shaped sliding blocks.

Preferably, the limiting grooves are formed in the front side and the rear side of the inner wall of the bottom of the box body, and the limiting plates are fixedly connected to the front side and the rear side of the lower surface of the drawer.

Preferably, the left and right sides of the front and back of the box body and the middle of the outer side surface of the positioning foot are provided with positioning slots.

Preferably, the top of the back of the box body is provided with a through groove, and the width of the through groove is one, one and five times of the width of the second connecting plate.

Preferably, threaded holes are formed in the middle of the back faces of the positioning seat and the sliding block on the erection plate, and the inner diameter of each threaded hole is matched with the outer diameter of the positioning bolt.

(III) advantageous effects

Compared with the prior art, the utility model provides a recording device for forestry statistics, which has the following beneficial effects:

1. this recording device is used in forestry statistics, promote the sliding block through the user and slide along setting up the board, make the sliding block drive the sliding plate through second even board and connecting seat and carry out longitudinal sliding, the sliding plate drives through first even board and places the board and use the erection column to incline as the centre of a circle, the regulation to placing board inclination has been realized, make the user adjust the inclination of placing the board according to the user demand, user's use has been made things convenient for, do not need the user to hand and place the board and carry out the record to data, the statistical effect to the forestry has been guaranteed.

2. This recorder is used in forestry statistics, through setting up recorder into the formula structure that can accomodate, made things convenient for the user to carry recorder for the user can remove through the handheld recorder of handle, made things convenient for the user to use recorder, through setting up the drawer, made things convenient for the user to deposit the instrument of taking for, made things convenient for the user to carry the instrument, it is comparatively convenient to use, has improved recorder's flexibility.

3. This recorder is used in forestry statistics, separate the frame through setting up, the separation to a plurality of record tools has been realized, the regularity of record tool in the drawer inside has been guaranteed, the probability that a plurality of record tools mixed phenomenon together appears has been reduced, it uses record tool to make things convenient for the user, the required time of forestry statistics has been reduced, work efficiency is improved, set up to hidden structure through a plurality of structures with in the recorder, the holistic volume of recorder has been reduced, the user has been made things convenient for and has carried recorder.

Drawings

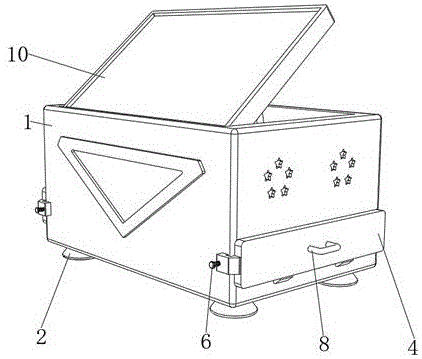

FIG. 1 is a schematic structural view of the present invention;

FIG. 2 is an exploded view of the structure of the present invention;

FIG. 3 is an enlarged view of the structure at the position A of the present invention.

In the figure: 1. a box body; 2. supporting legs; 3. a grip; 4. a drawer; 5. a positioning leg; 6. a spring positioning pin; 7. a spacer; 8. a handle; 9. mounting a column; 10. placing the plate; 11. a support bar; 12. erecting a plate; 13. a barrier block; 14. a slider; 15. positioning the bolt; 16. adjusting a rod; 17. a sliding plate; 18. a hinged seat; 19. a first connecting plate; 20. and a second connecting plate.

Detailed Description

The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only a part of the embodiments of the present invention, and not all of the embodiments. All other embodiments, which can be derived by a person skilled in the art from the embodiments given herein without making any creative effort, shall fall within the protection scope of the present invention.

Referring to fig. 1-3, the present invention provides a technical solution: a recording device for forestry statistics comprises a box body 1 for loading, supporting legs 2 for supporting are arranged at four corners of the lower surface of the box body 1, a handle 3 for holding is arranged in the middle of the back of the box body 1, drawers 4 for placing objects are inserted into the bottoms of the left side surface and the right side surface of the box body 1, the drawer 4 is arranged, a user can conveniently store recording tools, the user can conveniently carry the tools, the use is convenient, the flexibility of the recording device is improved, recording paper, a recording pen and a sucker are arranged inside the drawer 4, positioning pins 5 for positioning are arranged on the outer sides of the front surface and the back surface of the drawer 4, spring positioning pins 6 for positioning are arranged in the middle of the outer side surface of each positioning pin 5, a separation frame 7 for separating is arranged inside the drawer 4, and the separation of a plurality of recording tools is realized by arranging the separation frame 7, the neatness of the recording tools in the drawer 4 is ensured, the probability of occurrence of the phenomenon that a plurality of recording tools are mixed together is reduced, the recording tools are convenient for a user to use, the time required by forestry statistics is reduced, the working efficiency is improved, a handle 8 for pushing and pulling is arranged in the middle of the outer side surface of the drawer 4, mounting columns 9 for mounting are arranged at the tops of the left inner wall and the right inner wall of the box body 1, a placing plate 10 for placing objects is sleeved on the outer surface of each mounting column 9, supporting rods 11 for supporting are arranged on the left side and the right side of the back surface of the box body 1, an erection plate 12 for supporting is fixedly connected to the inner ends of the supporting rods 11, a blocking block 13 for blocking is sleeved in the middle of the outer surface of the erection plate 12, sliding blocks 14 for adjusting are sleeved on the left side and the right side of the outer surface of the erection plate 12, and positioning bolts 15 for positioning are arranged in the middle of the back surface of the sliding blocks 14, an adjusting rod 16 for adjustment is arranged in the middle of the upper surface of the sliding block 14, a first connecting column for connection is arranged on the front sides of the top inner wall and the bottom inner wall of the sliding block 14, a sliding plate 17 for adjustment is connected in the box body 1 in a sliding manner, hinged seats 18 for installation are arranged on the left side and the right side of the lower surface of the placing plate 10 and the left side and the right side of the upper surface of the sliding plate 17, a first connecting plate 19 for transmission is arranged in the hinged seats 18, a connecting seat for connection is arranged in the middle of the back surface of the sliding plate 17, second connecting shafts for connection are arranged on the left side and the right side of the top inner wall and the bottom inner wall of the connecting seat, a second connecting plate 20 for transmission is sleeved on the outer surfaces of the first connecting column and the second connecting column, the sliding block 14 is pushed by a user to slide along the erecting plate 12, so that the sliding block 14 drives the sliding plate 17 to slide longitudinally through the second connecting plate 20 and the connecting seat, sliding plate 17 drives through first even board 19 and places board 10 and use erection column 9 to incline as the centre of a circle, realized placing the regulation of board 10 inclination, make the user can adjust the inclination of placing board 10 according to the user demand, user's use has been made things convenient for, do not need the handheld board 10 of placing of user to take notes data, the statistical effect to the forestry has been guaranteed, set up to hidden structure through a plurality of structures with in the recorder, the holistic volume of recorder has been reduced, the user has been made things convenient for and has carried recorder, through setting up recorder to the formula structure that can accomodate, the user has been made things convenient for and has carried recorder, make the user can remove through the handheld recorder of handle 3, made things convenient for the user to use recorder.

In order to ensure the stability of the sliding plate 17 during sliding, the left side and the right side of the inner wall of the top of the box body 1 are both provided with T-shaped sliding grooves for limiting, the left side and the right side of the upper surface of the sliding plate 17 are both fixedly connected with T-shaped sliding blocks, when the sliding plate 17 slides, the T-shaped sliding blocks slide in the T-shaped sliding grooves, and the T-shaped sliding blocks limit the sliding plate 17, so that the stability of the sliding plate 17 during sliding is ensured.

In order to ensure the stability of the drawer 4 when the drawer 4 is pushed and pulled, the front side and the rear side of the inner wall of the bottom of the box body 1 are both provided with limiting grooves, the front side and the rear side of the lower surface of the drawer 4 are both fixedly connected with limiting plates, when the drawer 4 is pushed and pulled, the limiting plates move in the box body 1 through the limiting grooves, and the limiting plates and the limiting grooves limit the movement of the drawer 4, so that the stability of the drawer 4 when the drawer 4 is pushed and pulled is ensured.

In order to realize the fixation between the box body 1 and the positioning pins 5, the positioning slots for penetrating the spring positioning pins 6 are respectively arranged on the left side and the right side of the front surface and the back surface of the box body 1 and the middle parts of the outer side surfaces of the positioning pins 5, and the spring positioning pins 6 are inserted into the box body 1 and the positioning pins 5 through the positioning slots, so that the fixation between the box body 1 and the positioning pins 5 is realized.

In order to realize the adjustment of the longitudinal position of the sliding plate 17, the top of the back surface of the box body 1 is provided with a through groove for allowing the second connecting plate 20 to pass through, the width of the through groove is one point to five times of the width of the second connecting plate 20, when the longitudinal movement of the sliding plate 17 is adjusted, the second connecting plate 20 moves in the through groove, and the second connecting plate 20 drives the sliding plate 17 to longitudinally move through the connecting seat, so that the adjustment of the longitudinal position of the sliding plate 17 is realized.

In order to realize the fixed installation between the erection plate 12 and the sliding block 14, the threaded holes are respectively formed in the middle parts of the positioning seats on the erection plate 12 and the back surface of the sliding block 14, the inner diameter of each threaded hole is matched with the outer diameter of the positioning bolt 15, and the positioning bolt 15 fixes the positioning seats on the erection plate 12 and the sliding block 14 through the threaded holes, so that the fixed installation between the erection plate 12 and the sliding block 14 is realized.

The electrical components presented in the document are all electrically connected with an external master controller and 220V mains, and the master controller can be a conventional known device controlled by a computer or the like.

When using, when needs are to take notes to forestry data, the user will keep flat recording device subaerial through supporting legs 2, keep flat the back, the user twists positioning bolt 15 clockwise, disconnect between mounting plate 12 and the sliding block 14, after the disconnection, the user promotes sliding block 14 and slides along mounting plate 12 inboard, sliding block 14 drives sliding plate 17 through second even board 20 and connecting seat and slides to the front side, sliding plate 17 drives through first even board 19 and places board 10 and use erection column 9 as the centre of a circle to incline, place board 10 slope and finish the back, the user takes drawer 4 out, after taking out, the user places the inside recording paper of drawer 4 on placing board 10, fix the recording paper by the sucking disc again, after finishing fixing, the user carries out the record to the defeated material on the recording paper.

In conclusion, this forestry statistics uses recorder, promote sliding block 14 through the user and slide along erectting board 12, make sliding block 14 drive sliding plate 17 through second even board 20 and connecting seat and carry out longitudinal sliding, sliding plate 17 drives through first even board 19 and places board 10 and use erection column 9 to incline as the centre of a circle, realized the regulation to placing board 10 inclination, make the user adjust the inclination of placing board 10 according to the user demand, user's use has been made things convenient for, do not need the user to hand and place board 10 and take notes data, the statistical effect to the forestry has been guaranteed.

This recorder is used in forestry statistics, through setting up recorder into the formula structure that can accomodate, made things convenient for the user to carry recorder for the user can remove through the handheld recorder of handle 3, made things convenient for the user to use recorder, through setting up drawer 4, made things convenient for the user to deposit the instrument of taking for, made things convenient for the user to carry the instrument, it is comparatively convenient to use, has improved recorder's flexibility.

This recorder is used in forestry statistics, separate frame 7 through setting up, the separation to a plurality of record instrument has been realized, the regularity of record instrument in drawer 4 inside has been guaranteed, the probability that a plurality of record instrument mixed phenomenon appears has been reduced, the user has been made things convenient for and has used record instrument, the required time of forestry statistics has been reduced, work efficiency has been improved, set up to hidden structure through a plurality of structures with in the recorder, the holistic volume of recorder has been reduced, the user has been made things convenient for and has carried recorder.

Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the utility model, the scope of which is defined in the appended claims and their equivalents.

Claims

1. The utility model provides a recording device is used in forestry statistics, is including box (1) that is used for loading, the four corners of box (1) lower surface all is provided with supporting legs (2) that are used for supporting, the middle part at the box (1) back is provided with handle (3) that are used for handing, its characterized in that: the bottom of the left side surface and the bottom of the right side surface of the box body (1) are respectively spliced with a drawer (4) for placing articles, the inside of each drawer (4) is provided with recording paper, a recording pen and a sucker, the outer sides of the front surface and the back surface of each drawer (4) are respectively provided with a positioning pin (5) for positioning, the middle part of the outer side surface of each positioning pin (5) is provided with a spring positioning pin (6) for positioning, the inside of each drawer (4) is provided with a separation frame (7) for separating, the middle part of the outer side surface of each drawer (4) is provided with a handle (8) for pushing and pulling, the top parts of the inner wall of the left side and the inner wall of the right side of the box body (1) are provided with mounting columns (9) for mounting, the outer surfaces of the mounting columns (9) are sleeved with placing plates (10) for placing articles, and the left side and right side surfaces of the back surface of the box body (1) are respectively provided with a supporting rod (11) for supporting, the inner end of the supporting rod (11) is fixedly connected with an erection plate (12) for supporting, a blocking block (13) for blocking is sleeved in the middle of the outer surface of the erection plate (12), sliding blocks (14) for adjusting are sleeved on the left side and the right side of the outer surface of the erection plate (12), a positioning bolt (15) for positioning is arranged in the middle of the back of each sliding block (14), an adjusting rod (16) for adjusting is arranged in the middle of the upper surface of each sliding block (14), first connecting columns for connecting are arranged on the front sides of the top inner wall and the bottom inner wall of each sliding block (14), a sliding plate (17) for adjusting is slidably connected inside the box body (1), hinge seats (18) for mounting are arranged on the left side and the right side of the lower surface of the placing plate (10) and the left side and the right side of the upper surface of each sliding plate (17), and first connecting plates (19) for transmission are arranged inside each hinge seat (18), the middle part of the back of the sliding plate (17) is provided with a connecting seat for connection, the left side and the right side of the inner wall of the top part and the inner wall of the bottom part of the connecting seat are respectively provided with a second connecting shaft for connection, and the outer surfaces of the first connecting column and the second connecting column are sleeved with a second connecting plate (20) for transmission.

2. The forestry statistics recording apparatus according to claim 1, wherein: t-shaped sliding grooves are formed in the left side and the right side of the inner wall of the top of the box body (1), and T-shaped sliding blocks are fixedly connected to the left side and the right side of the upper surface of the sliding plate (17).

3. The forestry statistics recording apparatus according to claim 1, wherein: limiting grooves are formed in the front side and the rear side of the inner wall of the bottom of the box body (1), and limiting plates are fixedly connected to the front side and the rear side of the lower surface of the drawer (4).

4. The forestry statistics recording apparatus according to claim 1, wherein: positioning slots are formed in the left side and the right side of the front surface and the back surface of the box body (1) and in the middle of the outer side surface of the positioning foot (5).

5. The forestry statistics recording apparatus according to claim 1, wherein: the top of the back of the box body (1) is provided with a through groove, and the width of the through groove is one point to one five times of the width of the second connecting plate (20).

6. The forestry statistics recording apparatus according to claim 1, wherein: the middle parts of the upper positioning seat of the erection plate (12) and the back of the sliding block (14) are provided with threaded holes, and the inner diameters of the threaded holes are matched with the outer diameters of the positioning bolts (15).
