The application relates to the field of shoes, in particular to a pair of men's shoes, each shoe comprises a sole, wherein a front upper and a rear upper are arranged on each sole, one end of each front upper is detachably connected to each sole, and the other end of each front upper is fixedly connected to each rear upper. The warm keeping shoe has the effect of adjusting the warm keeping performance of the men's shoes.

Description

Shoes for men

Technical Field

The application relates to the field of shoes, in particular to a pair of men's shoes.

Background

Men's shoes are literally understood as men's shoes. The shoe for men is mainly characterized by being unique from the shoes for women, such as elegant and elegant appearance, and showing more business, atmosphere and leisure one side, and the styles and types of the shoes for men are more than thousands.

Along with different seasons, the performance of the men's shoes worn by people is also differentiated, and the shoes with the warm-keeping effect are suitable for being worn in winter with cold weather, and can effectively slow down the heat loss of feet of the wearer.

With respect to the related art among the above, the inventors consider that the following drawbacks exist: the men's shoes with the warm-keeping effect are not suitable for summer with hot weather, and the warm-keeping effect of the men's shoes can make the heat of feet difficult to be dissipated by a wearer.

SUMMERY OF THE UTILITY MODEL

In order to improve the problem that the heat of the foot of a wearer is difficult to dissipate due to the heat insulation effect of the warm-keeping men shoes, the application provides the men's shoes.

The application provides a pair of men's shoes, adopts the following technical scheme:

a shoe for men comprises a sole, wherein a front upper and a rear upper are arranged on the sole, one end of the front upper is detachably connected to the sole, and the other end of the front upper is fixedly connected to the rear upper.

By adopting the technical scheme, the front upper can be detachably connected to the sole, and when weather turns hot, the front upper can be rotated to the rear upper, so that the foot of a wearer is directly contacted with the outside air, the heat of the foot of the wearer is radiated, and the seasonal adaptability of the male shoe is improved.

Preferably, the front upper comprises a blocking net connected to the rear upper, the front upper further comprises a turning piece located above the blocking net, the sole is connected to the connecting piece, one end of the turning piece is connected to the rear upper, the other end of the turning piece is detachably connected to the connecting piece, and the other end of the blocking net is connected to the connecting piece.

By adopting the technical scheme, the heat dissipation of the foot of a wearer can be changed by rotating the turning sheet, and the probability that the turning sheet falls into the front upper and the back upper can be reduced by the blocking net.

Preferably, the side wall of the blocking net surface facing the turning piece is provided with a first female magic tape, and the side wall of the turning piece surface facing the blocking net is provided with a first male magic tape for bonding the first female magic tape.

By adopting the technical scheme, the turning piece is firstly turned to be attached to the blocking net, and then the first female magic tape on the turning piece is bonded with the first male magic tape on the turning piece, so that the turning piece is bonded on the blocking net, and the warm-keeping effect of the male shoe is enhanced; when the turning piece needs to be opened, the first female magic tape and the first male magic tape are directly separated, so that the turning piece and the blocking net can be disconnected, the warm-keeping effect of the male shoe can be adjusted, and the adjusting mode is convenient and quick.

Preferably, turn over the piece and be provided with the female magic subsides of second on the lateral wall of keeping off the net dorsad, be provided with first protection piece on the connecting piece, be provided with on the first protection piece and be used for bonding the public magic subsides of second on the female magic subsides of second, the border that first protection piece will turn over the piece covers.

Through adopting above-mentioned technical scheme, through the bonding of the female magic subsides of second and the public magic subsides, make first protection piece be connected with the piece that turns over for the piece that turns over is connected with the connection piece through first protection piece, makes the piece that turns over more stable fixedly, and first protection piece will turn over the gap cover between piece and the connection piece, has reduced the external ash that falls and has got into the inside probability of front wall from the gap between piece and the connection piece that turns over, plays the guard action to the front wall inside.

Preferably, a third male magic tape for adhering the second female magic tape is arranged on the side wall of the back upper.

Through adopting above-mentioned technical scheme, when the weather changes hot, will turn over the piece and open the heat that increases the wearer foot and give off, will turn over the female magic subsides of second on the piece and bond with the public magic subsides of third on the back group lateral wall again, reduce the shake that turns over the piece after opening and produce when the wearer walks about, it is more smooth and easy when making the wearer walk about.

Preferably, a second protection sheet is further arranged on the side wall of the back upper, a third female magic tape is arranged on the second protection sheet, the third female magic tape is used for being bonded on a third male magic tape, and the third female magic tape on the second protection sheet is also used for being bonded on the first male magic tape.

By adopting the technical scheme, when the weather turns cool and the turning piece is connected with the connecting piece, the third female magic tape is adhered with the third male magic tape, so that the second protection piece covers the third male magic tape, and the situation that the adhesive force of the third male magic tape is reduced due to the fact that external dust falls on the third male magic tape is reduced; when the weather turns hot, the turning piece is opened and is bonded on the back upper, the third female magic tape is bonded with the first male magic tape, the bonding strength of the turning piece and the back upper is enhanced, and the turning piece and the back upper are connected more stably.

Preferably, an anti-skid layer for skid resistance is arranged on the side wall of the sole back facing the heel part.

Through adopting above-mentioned technical scheme, increase the frictional force on sole and ground when the person of dress walks about through the skid resistant course for the person of dress is difficult for skidding when walking about, and the skid resistant course has increased the thickness of sole, has strengthened the structural strength of sole.

Preferably, the side wall of the anti-skid layer back to the sole is provided with an anti-skid groove and an anti-skid recess for skid resistance.

Through adopting above-mentioned technical scheme, increase the pressure between sole and the ground when the person of dress walks to move through anti-skidding recess, increased frictional force, make the person of dress walk the difficult slip, through the setting in anti-skidding groove, when making the person of dress walk in the mud ground, earth can be absorbed in the anti-skidding groove, has increased the frictional force on sole and ground.

In summary, the present application includes at least one of the following beneficial technical effects:

1. through the front upper detachably connected to the sole, when weather turns hot, the front upper can be rotated to the rear upper, so that the foot of a wearer directly contacts with the outside air, the heat of the foot of the wearer is dissipated, and the seasonal adaptability of the male shoe is improved.

2. The turning sheet is turned to be attached to the blocking net, and then the first female magic tape on the turning sheet is bonded with the first male magic tape on the turning sheet, so that the turning sheet is bonded on the blocking net, and the warm-keeping effect of the male shoes is enhanced; when the turning piece needs to be opened, the first female magic tape and the first male magic tape are directly separated, so that the turning piece and the blocking net can be disconnected, the warm-keeping effect of the male shoe can be adjusted, and the adjusting mode is convenient and quick.

Drawings

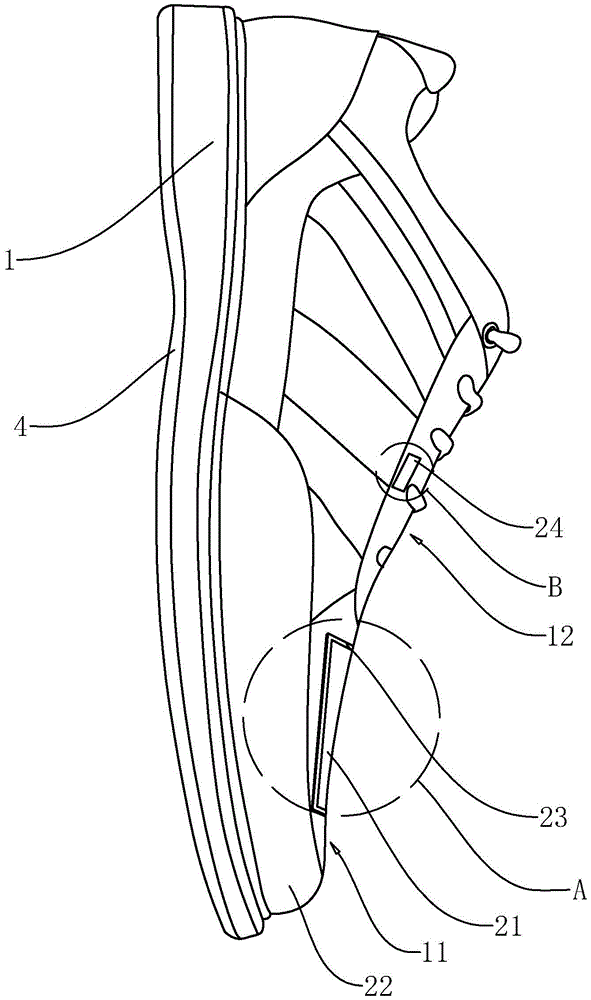

Fig. 1 is a schematic overall structure diagram of an embodiment of the present application.

Fig. 2 is a schematic diagram of the exploded structure at a in fig. 1.

Fig. 3 is a schematic diagram of an exploded structure at B in fig. 1.

FIG. 4 is a schematic view of the structure of the highlighted anti-slip layer.

Description of reference numerals: 1. a sole; 11. front upper; 12. a back upper; 2. blocking the net; 21. turning over the sheet; 22. connecting sheets; 23. a first protective sheet; 24. a second protective sheet; 3. a first female magic tape; 31. a first male magic tape; 32. a second female magic tape; 33. a second male magic tape; 34. a third male magic tape; 35. a third female magic tape; 4. an anti-slip layer; 41. an anti-slip groove; 42. and (4) preventing slipping and sinking.

Detailed Description

The present application is described in further detail below with reference to figures 1-4.

The embodiment of the application discloses a pair of men's shoes. Referring to fig. 1, the men's shoe comprises a sole 1, a heel counter 12 is fixedly connected to the sole 1, a front counter 11 is fixedly connected to the heel counter 12, and the other end of the front counter 11 is detachably connected to the sole 1.

Referring to fig. 1 and 2, a connecting piece 22 is fixedly connected to a sole 1, the connecting piece 22 is further fixedly connected to a back upper 12, the length direction of the connecting piece 22 extends along the edge of the sole 1, a cavity is formed between the connecting piece 22 and the back upper 12, the front upper 11 comprises a blocking net 2 and a turning piece 21 which are located in the cavity, the blocking net 2 and the turning piece 21 both cover the opening surface of the cavity, the blocking net 2 is fixedly connected between the connecting piece 22 and the back upper 12, the turning piece 21 is located on one side of the blocking net 2 back to the sole 1, one end of the turning piece 21 is fixedly connected to the back upper 12, and the other end of the turning piece 21 is detachably connected to the connecting piece 22.

Referring to fig. 2, keep off 2 faces towards the first female magic subsides 3 of fixedly connected with on the lateral wall of turning over piece 21 of net, turn over piece 21 and face towards the first public magic subsides 31 that the first female magic subsides 3 of fixedly connected with supply to bond on the lateral wall of keeping off net 2, the length direction of first female magic subsides 3 extends along the border of keeping off net 2, first public magic subsides 31 and the first 3 looks adaptations of female magic subsides.

Referring to fig. 2, the turning piece 21 is back to the female magic of fixedly connected with subsides 32 of second on the lateral wall of keeping off net 2, the length direction of the female magic of second subsides 32 extends along the border of the turning piece 21, the last first protection piece 23 of fixedly connected with of connection piece 22, the length direction of first protection piece 23 extends along the border of connection piece 22, fixedly connected with is used for bonding the public magic subsides 33 of second on the female magic of second subsides 32 on the first protection piece 23, the public magic subsides 33 of second and the adaptation of the female magic subsides 32 of second, first protection piece 23 can turn over to the turning piece 21 on, and will turn over the border of the piece 21 and cover.

Referring to fig. 2 and 3, two third male magic tapes 34 for adhering the second female magic tape 32 are fixedly connected to the side wall of the back upper 12, the two third male magic tapes 34 are symmetrically arranged and adhere the second female magic tape 32 to the back upper 12, the side wall of the back upper 12 is further connected with a second protection sheet 24, one end of the second protection sheet 24 is fixedly connected to the back upper 12, the side wall of the second protection sheet 24 is fixedly connected with a third female magic tape 35 matched with the third male magic tape 34, when the turning sheet 21 is turned over to the back upper 12 and is fixed by adhering the second female magic tape 32 to the third male magic tape 34, the third magic tape 35 on the second protection sheet 24 can be adhered to the first male magic tape 31.

Referring to fig. 4, the anti-slip layer 4 for preventing slip is fixedly connected to the side wall of the sole 1 facing away from the heel part 12, and in this embodiment, the anti-slip layer 4 is made of thermoplastic rubber, and the thermoplastic rubber has the rapid, effective and economical effect like thermoplastic plastics. The anti-slip layer 4 is provided with a plurality of anti-slip recesses 42 on the side wall back to the sole 1, the adjacent anti-slip recesses 42 are parallel to each other, the anti-slip layer 4 is also provided with anti-slip grooves 41 on the side wall back to the sole 1, the length direction of the anti-slip grooves 41 is parallel to the edge of the sole 1, and the anti-slip grooves 41 are communicated with the anti-slip recesses 42.

The implementation principle of the man shoes in the embodiment of the application is as follows: when the weather is hot, the second female magic tape 32 and the second male magic tape 33 are firstly separated, then the turning piece 21 is pulled to separate the first female magic tape 3 and the first male magic tape 31, then the turning piece 21 is rotated to be attached to the side wall of the back part 12, the second female magic tape 32 is attached to the third male magic tape 34, and finally the third female magic tape 35 is attached to the second male magic tape 33.

The above embodiments are preferred embodiments of the present application, and the protection scope of the present application is not limited by the above embodiments, so: all equivalent changes made according to the structure, shape and principle of the present application shall be covered by the protection scope of the present application.

Claims

1. A man's shoe comprises a shoe sole (1), wherein a front upper (11) and a rear upper (12) are arranged on the shoe sole (1), and is characterized in that: one end of the front upper (11) is detachably connected to the sole (1), and the other end of the front upper (11) is fixedly connected to the rear upper (12).

2. The men's shoe of claim 1, wherein: the shoe is characterized in that the front upper (11) comprises a blocking net (2) connected to the back upper (12), the front upper (11) further comprises a turning piece (21) located above the blocking net (2), the sole (1) is connected to a connecting piece (22), one end of the turning piece (21) is connected to the back upper (12), the other end of the turning piece (21) is detachably connected to the connecting piece (22), and the other end of the blocking net (2) is connected to the connecting piece (22).

3. A men's shoe as set forth in claim 2, wherein: keep off and be provided with first female magic subsides (3) on net (2) face the lateral wall of turning over piece (21), it is provided with first public magic subsides (31) that supply first female magic subsides (3) to bond to turn over piece (21) face on the lateral wall of keeping off net (2).

4. A men's shoe as set forth in claim 2, wherein: the utility model discloses a novel magic tape, including stirring piece (21), connection piece (22), first protection piece (23), second male magic subsides (33) that are used for bonding on second female magic subsides (32) are provided with on first protection piece (23), the border that first protection piece (23) will stir piece (21) covers to stirring piece (21) back to being provided with on the lateral wall of keeping off net (2) the female magic subsides (32) of second, be provided with on first protection piece (23).

5. The men's shoe of claim 4, wherein: and a third male magic tape (34) for bonding the second female magic tape (32) is arranged on the side wall of the back part (12).

6. A men's shoe as set forth in claim 5, wherein: still be provided with second screening glass (24) on back group (12) lateral wall, be provided with female magic subsides of third (35) on second screening glass (24), female magic subsides of third (35) are used for bonding on male magic subsides of third (34), just female magic subsides of third (35) on second screening glass (24) still are used for bonding first male magic subsides (31).

7. The men's shoe of claim 1, wherein: the anti-skid layer (4) for skid resistance is arranged on the side wall of the sole (1) back to the back upper (12).

8. The men's shoe of claim 7, wherein: the side wall of the anti-skid layer (4) facing the sole (1) is provided with an anti-skid groove (41) and an anti-skid recess (42).
