本实用新型公开了一种可附着智能按摩贴片的功能服装，涉及保健器材领域，包括服装主体后片，所述服装主体后片设置有导线组合片，所述导线组合片上设有底部托片，所述底部托片设置于所述导线组合片远离服装主体后片的一面，所述底部托片下端设有贴片兜袋，所述底部托片上对称设置有第一带状管和第二带状管，所述第一带状管和第二带状管下端设置于贴片兜袋内，所述服装主体后片连接有双层育克结构，双层育克结构包括两片育克，所述导线组合片上端嵌设于两片育克之间，带状管条用于引导按摩贴片的导线，导线端口与按摩贴片进行可拆卸地连接，起到对肩、腰、背等不同部位进行机械按摩的作用，并可通过启动手机端的APP实时控制按摩贴片的启停。
The utility model discloses a functional garment to which an intelligent massage patch can be attached, and relates to the field of health care equipment. , the bottom support piece is arranged on the side of the wire assembly sheet away from the rear piece of the main body of the garment, the lower end of the bottom support piece is provided with a patch pocket, and the bottom support piece is symmetrically provided with a first strip tube and a second Band-shaped tube, the lower ends of the first band-shaped tube and the second band-shaped tube are arranged in the pocket of the patch, the rear piece of the garment body is connected with a double-layer yoke structure, and the double-layer yoke structure includes two pieces of yoke , the upper end of the wire combination sheet is embedded between the two pieces of Yuke, the strip tube is used to guide the wire of the massage patch, and the wire port is detachably connected to the massage patch, which plays a role in the shoulder, waist, back, etc. The function of mechanical massage in different parts, and the start and stop of the massage patch can be controlled in real time by starting the APP on the mobile phone.
Description
Technical Field
The utility model relates to the field of health care equipment, in particular to a functional garment capable of being attached with an intelligent massage patch.
Background
The garment takes office workers suffering from shoulder, back and waist pain as objects, aiming at the phenomenon that the office workers lack time for massage and cannot effectively relieve body fatigue, the appearance and the structure of the garment are optimally designed from the function of the garment and the application characteristics of the intelligent massage instrument, so that the garment can meet the physiological and psychological requirements of different types of office workers, the convenience and the comfort of the office workers using the massage instrument are improved, and the health care efficiency of the body is improved.
SUMMERY OF THE UTILITY MODEL
The utility model aims to provide a functional garment capable of being attached with an intelligent massage patch so as to solve the problems in the background technology.
In order to achieve the purpose, the utility model adopts the following technical scheme: the functional garment comprises a garment body back piece, wherein a wire combination piece is arranged on the garment body back piece, a bottom supporting piece is arranged on the wire combination piece and arranged on one side, away from the garment body back piece, of the wire combination piece, a patch pocket is arranged at the lower end of the bottom supporting piece, a first strip-shaped pipe and a second strip-shaped pipe are symmetrically arranged on the bottom supporting piece, and the lower ends of the first strip-shaped pipe and the second strip-shaped pipe are arranged in the patch pocket. The wire combination piece can design different sizes and shapes according to people of different age groups and different body types, can design different styles, such as small style, common style, increased style and the like for different crowds to select and use, and when the massage is finished, the massage paster can be placed in the paster pocket to protect the massage paster from being lost.
Furthermore, the rear piece of the garment main body is connected with a double-layer york structure, the double-layer york structure comprises two yorks, and the upper end of the wire combination piece is embedded between the two yorks.
Furthermore, the first strip-shaped pipe and the second strip-shaped pipe are symmetrically arranged on two sides of the longitudinal center line of the bottom supporting sheet. The conducting wires of the massage patches can be arranged in the strip-shaped pipe strips to play a role in fixing.
Furthermore, a plurality of thread passing holes are formed in the surfaces, far away from the back piece of the garment main body, of the first strip-shaped tube and the second strip-shaped tube. The line hole is used for the guide to arrange first banded pipe with length and position that massage paster wire in the second banded intraductal stretches out, the user selects the most suitable line hole of crossing to wear out the wire and is connected with the massage paster according to the difference at massage position to play the effect of carrying out mechanical massage to positions acupuncture points such as shoulder, waist, back of the body conveniently, and the accessible starts opening of APP real time control massage paster of cell-phone end and stops.
Further, the wire through hole is a rubber round hole.
Furthermore, the wire passing hole annular array is provided with wire locking teeth, and the wire locking teeth are elastic sheet bodies. When a user manually leads the conducting wire of the massage patch through the wire passing hole and determines the required length, the tail end of the wire locking tooth presses the conducting wire due to the elastic deformation of the wire locking tooth, so that the conducting wire can be prevented from sliding, and the conducting wire is fixed.
Furthermore, the line locking teeth are rubber sheets, and arc-shaped edges are arranged at one ends, far away from the inner wall of the line passing hole, of the rubber sheets. The rubber texture is soft, can direct contact human and harmless to the human body, and the lockstitch tooth can not let the user feel the back has the foreign matter for the sheet rubber, improves the travelling comfort of using. On the other hand, after the user manually leads the conducting wire of the massage patch through the wire passing hole and determines the required length, the conducting wire can be prevented from sliding due to the large friction coefficient between the conducting wire and the rubber material, so that the conducting wire is fixed, and the stable massage effect of the corresponding part is effectively achieved.
Further, any one of a hook and loop fastener, a snap fastener and a zipper is arranged at the opening of the patch pocket. Preferably, the magic tape is selected as the pasting piece for the opening of the patch pocket, so that the massage patch in the patch pocket can be effectively prevented from being lost carelessly.
Furthermore, the patch pocket is provided with air holes. Can effectively improve the air permeability.
Further, the wire combination piece and the bottom supporting piece are respectively any one of cotton, hemp, terylene and spandex.
The utility model has the beneficial effects that:
the back piece of the garment body is provided with a wire combination piece, the left side and the right side of a backing support piece of the wire combination piece are respectively provided with a strip-shaped pipe strip, and the strip-shaped pipe strips are respectively provided with a rubber wire passing hole for outputting a massage patch wire so as to achieve the effects of fixing the wire arranging and connecting the massage patch, so that the massage patch can carry out mechanical massage with different functions on the back through a USB interface of an intelligent massage instrument. The functional garment can be worn at work and leisure without the limitation of time and space, and is more convenient to use especially for office workers who are busy in work. The user can select any small-size intelligent paster massage appearance in the market, arranges the wire in the banded tube strip, and the wire output line is connected with the massage paster, just can be relieved and carry out the paster massage, does not worry that the massage paster is lost because of droing. The appearance of the functional garment is basically the same as that of daily-worn garments, and the garment can be suitable for wide consumers.
Drawings
The figures further illustrate the utility model, but the examples in the figures do not constitute any limitation of the utility model.

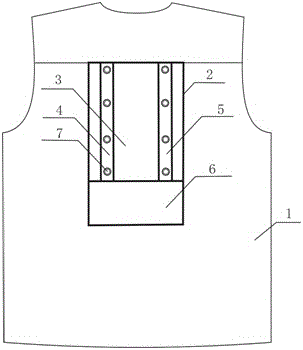

FIG. 1 is a schematic view of the structure of the present invention.
Fig. 2 is a schematic view of a wire combination sheet according to the present invention.
Fig. 3 is a schematic view of the base fabric support sheet and strip of the present invention.
Fig. 4 is a schematic view of the patch pocket of the present invention.
Fig. 5 is a schematic view of a wire passing hole and a wire locking tooth of the present invention.
Wherein 1-the back of the main body of the garment, 2-the wire combination piece, 3-the backing cloth supporting piece, 4-the first belt-shaped tube, 5-the second belt-shaped tube, 6-the patch pocket, 7-the line passing hole and 8-the line locking tooth.
Detailed Description
The following detailed description of embodiments of the utility model refers to the accompanying drawings. It should be understood that the detailed description and specific examples, while indicating the present invention, are given by way of illustration and explanation only, not limitation.
It will be understood that when an element is referred to as being "secured to" or "disposed on" another element, it can be directly on the other element or intervening elements may also be present. When an element is referred to as being "connected to" another element, it can be directly connected to the other element or intervening elements may also be present.
In the present invention, unless otherwise specified, the terms of orientation such as "upper, lower, left, right" used herein generally refer to the upper, lower, left, and right directions as shown in fig. 1. "inner and outer" refer to the inner and outer portions of a particular contour. "distal and proximal" refer to distal and proximal relative to a component.
As shown in fig. 1 to 5, a functional garment attachable with an intelligent massage patch according to an embodiment of the present invention includes a garment main body rear piece 1, the garment main body rear piece 1 is provided with a wire combination piece 2, the wire combination piece 2 is provided with a bottom support piece 3, the bottom support piece 3 is disposed on a side of the wire combination piece 2 away from the garment main body rear piece 1, a patch pocket 6 is disposed at a lower end of the bottom support piece 3, a first ribbon tube 4 and a second ribbon tube 5 are symmetrically disposed on the bottom support piece 3, and lower ends of the first ribbon tube 4 and the second ribbon tube 5 are disposed in the patch pocket 6. The wire combination piece 2 is sewn on the back piece 1 of the garment main body, the wire combination piece 2 can be designed into different sizes and shapes according to people of different ages and different body types, such as small size, common size, enlarged size and the like for different people to select, when the massage is finished, the massage patch can be placed in the patch pocket 6, and the massage patch is protected from being lost.
Furthermore, the rear piece 1 of the garment main body is connected with a double-layer brook structure, the double-layer brook structure comprises two brooks, and the upper end of the wire combination piece 2 is embedded between the two brooks.
Furthermore, the first strip-shaped tube 4 and the second strip-shaped tube 5 are symmetrically arranged on two sides of the longitudinal center line of the bottom supporting sheet 3. The conducting wires of the massage patches can be arranged in the strip-shaped pipe strips to play a role in fixing.
Furthermore, a plurality of thread passing holes 7 are formed in one surfaces, far away from the rear piece 1 of the garment main body, of the first strip-shaped tube 4 and the second strip-shaped tube 5. The line hole 7 is used for guiding and arranges first banded pipe 4 with length and position that massage paster wire in the second banded pipe 5 stretches out, the user selects the most suitable line hole 7 of crossing to wear out the wire and be connected with the massage paster according to the difference at massage position to play the effect of carrying out mechanical massage to positions acupuncture points such as shoulder, waist, back of the body conveniently, and the accessible starts opening of APP real time control massage paster of cell-phone end and stops.
Further, the wire through hole 7 is a rubber circular hole.
Furthermore, the wire passing holes 7 are annularly arrayed with wire locking teeth 8, and the wire locking teeth 8 are elastic sheet bodies.
Furthermore, the line locking teeth 8 are rubber sheets, and arc-shaped edges are arranged at one ends, far away from the inner wall of the line passing hole, of the rubber sheets. The rubber texture is soft, can direct contact human and harmless to the human body, and the lockstitch tooth 8 can not let the user feel the back has the foreign matter for the sheet rubber, improves the travelling comfort of using. On the other hand, after the user manually leads the conducting wire of the massage patch through the wire passing hole 7 and determines the required length, the conducting wire can be prevented from sliding due to the large friction coefficient between the conducting wire and the rubber material, so that the conducting wire is fixed, and the stable massage effect of the corresponding part is effectively achieved.
Further, any one of a hook and loop fastener, a snap fastener and a zipper is arranged at the opening of the patch pocket 6. Preferably, the opening of the patch pocket 6 is selected to be a magic tape as the adhesive part, so that the massage patch in the patch pocket 6 can be effectively prevented from being carelessly lost.
Further, the patch pocket 6 is provided with air holes.
Further, the wire combination sheet 2 and the bottom supporting sheet 3 are respectively any one of cotton, hemp, terylene and spandex.
The technical features of the embodiments described above may be arbitrarily combined, and for the sake of brevity, all possible combinations of the technical features in the embodiments described above are not described, but should be considered as being within the scope of the present specification as long as there is no contradiction between the combinations of the technical features.
The above-mentioned embodiments only express several embodiments of the present invention, and the description thereof is more specific and detailed, but not construed as limiting the scope of the utility model. It should be noted that, for a person skilled in the art, several variations and modifications can be made without departing from the inventive concept, which falls within the scope of the present invention. Therefore, the protection scope of the present patent shall be subject to the appended claims.
