Abstract
The utility model relates to the technical field of rewinding machines, in particular to a dust-free paper rewinding machine beneficial to quickly removing paper scraps, which comprises: the dust collection assembly is arranged at the upper end of the inner side of the machine body and comprises a dust collection frame and a dust collector, the dust collection frame is fixed at the upper left end of the inner side of the machine body, the dust collection frame is communicated in the front and back direction, the dust collector is connected to the right end of the dust collection frame, the left side of the dust collector and the upper end and the lower end of the dust collection frame are both communicated with dust collection pipes, the inner side of each dust collection pipe is communicated with a plurality of dust collection covers which are sequentially arranged from left to right, and the inner ends of the dust collection covers penetrate into the inner side of the dust collection frame; through inserting dust-free paper from back to front and passing the frame that removes dust, and make the up end and the lower extreme that go up the spacing roller and be located dust-free paper respectively with lower spacing roller, then adsorb dust through suction hood to dust-free paper's up end and lower terminal surface, do benefit to adsorb dust such as wastepaper upper end and lower extreme, guaranteed the quality of dust-free paper after the rolling.
Description
Technical Field
The utility model relates to the technical field of rewinding machines, in particular to a dust-free paper rewinding machine beneficial to quickly removing paper scraps.
Background
Dustless paper rewinding machine, be the indispensable equipment in the paper production, carry out the rewinding through the wind-up roll to dustless paper usually, in order to improve the rolling utilization ratio of dustless paper, but present dustless paper rewinding machine, because the dustless paper produces the back, dustless paper surface can be stained with dust such as attaches wastepaper, when rolling to dustless paper, if do not in time clear up dustless paper, can lead to the use quality decline of dustless paper, and when dustless paper rolled on the wind-up roll, can increase the limiting plate and control spacingly to dustless paper, but the limiting plate is difficult to remove on the wind-up roll, so that the wind-up roll is difficult to the dustless paper of the multiple width of rolling, thereby lead to the practicality of rewinding machine not good enough.
SUMMERY OF THE UTILITY MODEL
The utility model provides a dust-free paper rewinding machine beneficial to quickly removing paper scraps, and aims to solve the problems that the use quality of dust-free paper is reduced if the dust-free paper is not cleaned in time, and a limiting plate is difficult to move on a winding roller, so that the winding roller is difficult to wind dust-free paper with various widths, and the practicability of the rewinding machine is poor.
In order to solve the problems of the prior art, the utility model discloses a dust-free paper rewinding machine which is beneficial to quickly removing paper scraps, and the dust-free paper rewinding machine comprises:
a body;
the dust removal assembly is arranged at the upper end of the inner side of the machine body and comprises a dust removal frame and a dust collector;
the dust removing frame is fixed at the left upper end of the inner side of the machine body and is communicated with the front and the back;
the dust collector is connected to the right end of the dust removal frame, the left side of the dust collector and the upper and lower ends of the dust removal frame are communicated with dust collection pipes, the inner side of each dust collection pipe is communicated with a plurality of dust collection covers which are sequentially arranged from left to right, the inner ends of the dust collection covers penetrate into the inner side of the dust removal frame, and the dust collection covers are used for adsorbing dust such as paper scraps on dust-free paper;
the winding assembly is arranged at the middle end of the inner side of the machine body and comprises a winding roller, a right limiting plate and a left limiting plate;
the winding roller is arranged at the middle end of the inner side of the machine body, the right limiting plate is arranged at the right end of the winding roller, the left limiting plate is sleeved at the left end of the periphery of the winding roller in a sliding mode, and the left limiting plate and the right limiting plate are used for preventing dust-free paper from sliding when the periphery of the winding roller is wound.
Furthermore, the upper end in the inner side of the dust removal frame is rotatably connected with two upper limiting rollers which are distributed front and back, and the dust hood at the upper end is positioned above the space between the two upper limiting rollers.
Furthermore, the lower extreme rotates in the dust removal frame inboard and is connected with two and be the lower spacing roller that distributes around being, go up spacing roller with lower spacing roller is upper and lower symmetric distribution, the lower extreme the suction hood is located two below between the lower spacing roller.
Furthermore, a rotating motor is fixed at the front part of the middle end of the inner side of the machine body, a partition plate is connected to the right end of the output end of the rotating motor, and the winding roller is connected to the middle part of the right end of the partition plate.
Furthermore, the front end of the winding roller is carved with scale marks taking centimeters as units, the front end of the left limiting plate is in threaded connection with a locking rod, and the tail end of the locking rod is in contact with the front end of the winding roller.
Furthermore, the right end of the winding roller is provided with a thread groove, the middle part of the left end of the right limiting plate is connected with a threaded rod, and the threaded rod is in threaded connection with the thread groove.
Compared with the prior art, the utility model has the following beneficial effects:
the dust-free paper is inserted into and passes through the dust removing frame from back to front, the upper limiting roller and the lower limiting roller are respectively positioned at the upper end and the lower end of the dust-free paper, then the upper end surface and the lower end surface of the dust-free paper are adsorbed by the dust hood, dust such as paper scraps at the upper end and the lower end of the dust-free paper can be favorably adsorbed, the quality of the dust-free paper after being rolled is ensured, the dust-free paper is vertically limited by the upper limiting roller and the lower limiting roller, the dust-free paper is prevented from being adsorbed into the dust hood, the dust-free paper is prevented from being stuck in the dust removing frame by combining the rotation of the upper limiting roller and the lower limiting roller, the smoothness of the dust-free paper during rolling is ensured, the dust-free paper is rolled by the rolling roller, the left limiting plate and the right limiting plate are combined to carry out left and right limiting, the dust-free paper is prevented from sliding on the rolling roller from left and right, when the dust-free paper with other widths needs to be rolled, the left limiting plate and the left limiting plate are pulled from left and right limiting plate are adjusted in distance between the left limiting plate and the rolling roller, then be convenient for through the dustless paper of the equal rolling multiple width of rolling this moment, guaranteed the practicality of rewinding machine.
Drawings

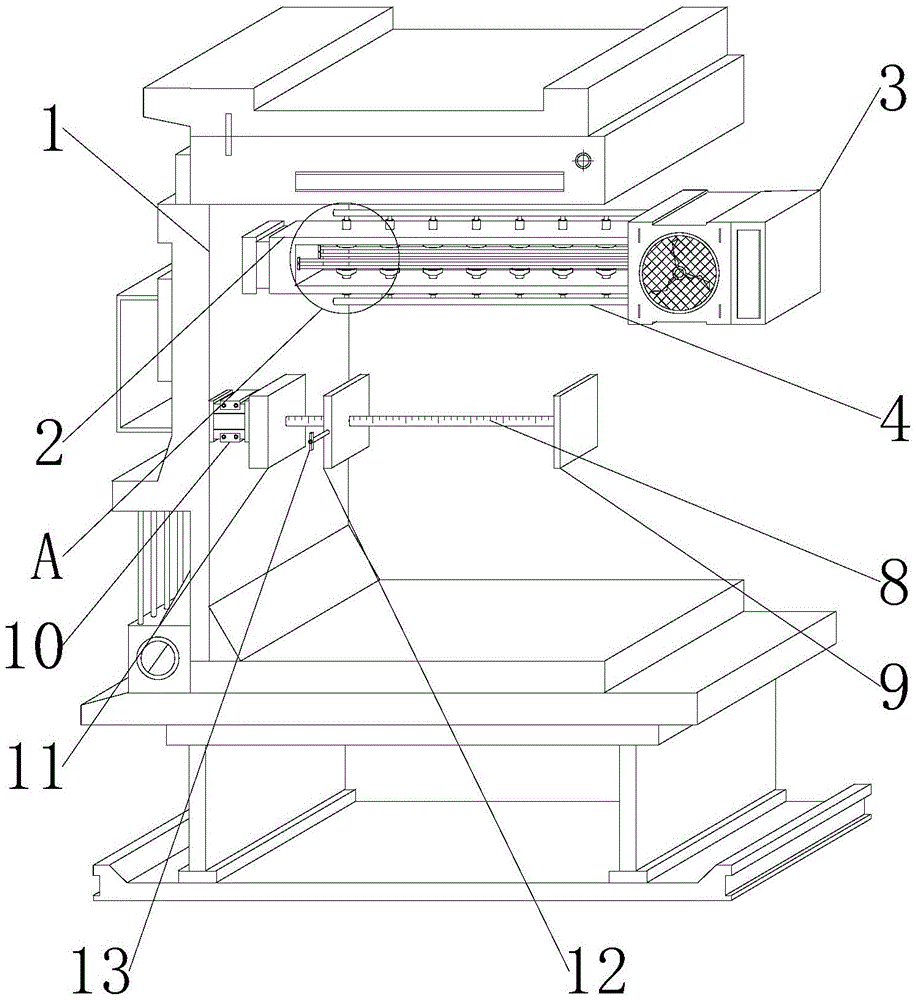

FIG. 1 is a schematic view of the overall structure of the present invention;
FIG. 2 is an enlarged partial structural view of the utility model A;
FIG. 3 is a schematic view of the overall plan structure of the present invention;
fig. 4 is a schematic diagram of a partial enlarged structure B of the present invention.
In FIGS. 1-4: the dust collector comprises a machine body 1, a dust removing frame 2, a dust collector 3, a dust collecting pipe 4, a dust collecting cover 5, an upper limiting roller 6, a lower limiting roller 7, a winding roller 8, a right limiting plate 9, a rotating motor 10, a partition plate 11, a left limiting plate 12, a locking rod 13, a threaded rod 14 and a threaded groove 15.
Detailed Description
Please refer to fig. 1 to 4:
a dust-free paper rewinding machine facilitating quick removal of paper scraps comprises:
the dust collection device comprises a machine body 1 and a dust collection assembly, wherein the dust collection assembly is arranged at the upper end of the inner side of the machine body 1 and comprises a dust collection frame 2 and a dust collector 3, the dust collection frame 2 is fixed at the upper left end of the inner side of the machine body 1, the dust collection frame 2 is communicated in the front and back direction, the dust collector 3 is connected with the right end of the dust collection frame 2, dust collection pipes 4 are communicated with the left side of the dust collector 3 and positioned at the upper end and the lower end of the dust collection frame 2, a plurality of dust collection covers 5 which are sequentially arranged from left to right are communicated with the inner side of each dust collection pipe 5, the inner ends of the dust collection covers 5 penetrate into the inner side of the dust collection frame 2, and the dust collection covers 5 are used for adsorbing dust such as paper scraps on dust-free paper;
specifically, through inserting the dust removal frame 2 with dustless paper from back to front and passing, then start dust catcher 3, when dustless paper is continuous to pass dust cage 5 of upper and lower extreme, rethread dust cage 5 adsorbs the up end and the lower terminal surface of dustless paper, do benefit to and adsorb dust such as wastepaper upper end and the lower extreme, and dust such as wastepaper then enters into dust catcher 3 through dust absorption pipe 4 in, dust such as wastepaper on the reduction dustless paper, the quality of dustless paper after the rolling has been guaranteed.
The middle upper end of the inner side of the dust removing frame 4 is rotatably connected with two upper limiting rollers 6 which are distributed front and back, the upper end of the dust hood 5 is positioned above the space between the two upper limiting rollers 6, the middle lower end of the inner side of the dust removing frame 4 is rotatably connected with two lower limiting rollers 7 which are distributed front and back, the upper limiting rollers 6 and the lower limiting rollers 7 are symmetrically distributed up and down, and the lower end of the dust hood 5 is positioned below the space between the two lower limiting rollers 7;
further, when the dust-free paper passes through the dust removing frame 2, the upper limiting roller 6 and the lower limiting roller 7 are respectively positioned at the upper end and the lower end of the dust-free paper, and the dust-free paper is limited up and down through the upper limiting roller 6 and the lower limiting roller 7, when the dust-free paper is close to the dust hood 5 due to suction, the upper limiting roller 6 and the lower limiting roller 7 can block the dust-free paper to be limited, the dust-free paper is prevented from being adsorbed into the dust hood 5, and the dust-free paper is combined with the rotation of the upper limiting roller 6 and the lower limiting roller 7, so that the dust-free paper is prevented from being stuck in the dust removing frame 2, and the smoothness of the dust-free paper during rolling is ensured.
The winding component is arranged at the middle end of the inner side of the machine body 1 and comprises a winding roller 8, a right limiting plate 9 and a left limiting plate 12, the wind-up roll 8 is arranged at the middle end of the inner side of the machine body 1, the right limit plate 9 is arranged at the right end of the wind-up roll 8, the left limit plate 12 is sleeved at the left end of the periphery of the wind-up roll 8 in a sliding manner, the left limit plate 12 and the right limit plate 9 are used for preventing the dust-free paper from sliding when being wound at the periphery of the wind-up roll 8, a rotating motor 11 is fixed at the front part of the middle end of the inner side of the machine body 1, the right end of the output end of the rotating motor 11 is connected with a clapboard 11, the winding roller 8 is connected with the middle part of the right end of the clapboard 11, the front end of the winding roller 8 is carved with scale marks taking centimeters as units, the front end of the left limit plate 12 is in threaded connection with a locking rod 13, and the tail end of the locking rod 13 is in contact with the front end of the wind-up roll 8;
furthermore, the rotating motor 10 is started and drives the partition plate 11 and the winding roller 8 to rotate, when the winding roller 8 winds the dust-free paper, the left limiting plate 12 and the right limiting plate 9 are combined to limit the dust-free paper left and right, the dust-free paper is prevented from sliding left and right on the winding roller 8, when the dust-free paper with other widths needs to be wound, the locking rod 13 is loosened and the locking rod 13 is not contacted with the winding roller 8 any more, then the left limiting plate 12 is pulled left and right, the distance between the left limiting plate 12 and the right limiting plate 9 is adjusted, the scale mark with centimeter as unit on the winding roller 8 is combined, the distance between the left limiting plate 12 and the right limiting plate 9 is favorably and accurately adjusted, the effect is better when the left limiting plate 12 and the right limiting plate 9 limit the dust-free paper left and right, after the adjustment is finished, the locking rod 13 is screwed, the tail end of the locking rod 13 is contacted with the winding roller 8, and the left limiting plate 12 is not slid along the winding roller 8 any more, then be convenient for through the dustless paper of the equal rolling multiple width of rolling this moment, guaranteed the practicality of rewinding machine.
A thread groove 15 is formed in the right end of the winding roller 8, a threaded rod 14 is connected to the middle of the left end of the right limiting plate 9, and the threaded rod 14 is in threaded connection with the thread groove 15;
further, after the winding roller 8 finishes winding the dust-free paper, the right limiting plate 9 is screwed, the threaded rod 14 is separated from the threaded groove 15, then the locking rod 13 is loosened, the left limiting plate 12 pushes the wound dust-free paper rightwards, the winding roller 8 is favorable for rapidly pushing the wound dust-free paper rightwards, and subsequent use of the winding roller 8 is facilitated.
Claims (6)
1. The utility model provides a do benefit to dustless paper rewinding machine of quick removal wastepaper which characterized in that includes:
a body (1);
the dust removal assembly is arranged at the upper end of the inner side of the machine body (1), and comprises a dust removal frame (2) and a dust collector (3);
the dust removing frame (2) is fixed at the upper left end of the inner side of the machine body (1), and the dust removing frame (2) is communicated in the front and back direction;
the dust collector (3) is connected to the right end of the dust removal frame (2), dust collection pipes (4) are communicated with the left side of the dust collector (3) and the upper end and the lower end of the dust removal frame (2), a plurality of dust collection covers (5) which are sequentially arranged from left to right are communicated with the inner side of each dust collection pipe (4), the inner ends of the dust collection covers (5) penetrate through the inner side of the dust removal frame (2), and the dust collection covers (5) are used for adsorbing dust such as paper scraps on dust-free paper;
the winding assembly is arranged at the middle end of the inner side of the machine body (1) and comprises a winding roller (8), a right limiting plate (9) and a left limiting plate (12);
wind-up roll (8) are located organism (1) inboard middle-end, right limiting plate (9) install in the right-hand member of wind-up roll (8), left side limiting plate (12) slide cup joint in the peripheral left end of wind-up roll (8), left side limiting plate (12) with right side limiting plate (9) are used for preventing that dustless paper from producing when wind-up roll (8) peripheral rolling from sliding.
2. The dust-free paper rewinding machine facilitating quick removal of paper scraps as claimed in claim 1, wherein: the upper end in the dust removal frame (2) inboard rotates and is connected with two upper limiting rollers (6) that are front and back and distribute, and the upper end suction hood (5) is located two the top between upper limiting roller (6).
3. The dust-free paper rewinding machine facilitating quick removal of paper scraps as claimed in claim 2, wherein: the lower extreme rotates in dust removal frame (2) inboard to be connected with two and is lower spacing roller (7) that distribute around, go up spacing roller (6) with spacing roller (7) are upper and lower symmetric distribution down, and the lower extreme suction hood (5) are located two below between spacing roller (7) down.
4. The dust-free paper rewinding machine facilitating quick removal of paper scraps as claimed in claim 1, wherein: the front part of the middle end of the inner side of the machine body (1) is fixed with a rotating motor (10), the right end of the output end of the rotating motor (10) is connected with a partition plate (11), and the winding roller (8) is connected to the middle part of the right end of the partition plate (11).
5. The dust-free paper rewinding machine facilitating quick removal of paper scraps as claimed in claim 1, wherein: the winding roller is characterized in that scale marks with centimeters as units are carved at the front end of the winding roller (8), a locking rod (13) is in threaded connection with the front end of the left limiting plate (12), and the tail end of the locking rod (13) is in contact with the front end of the winding roller (8).
6. The dust-free paper rewinding machine facilitating quick removal of paper scraps as claimed in claim 1, wherein: the winding roller (8) right-hand member opens there is thread groove (15), right side limiting plate (9) left end middle part has connect threaded rod (14) mutually, threaded rod (14) with thread groove (15) threaded connection.
