The utility model relates to the technical field of dies and discloses a rapid forming die for producing a dust removal cloth bag framework, which comprises a base, wherein a lower die is fixedly arranged at the top of the base, an annular cooling plate is fixedly arranged in an inner cavity of the lower die, a conveying pipe is fixedly arranged in the inner cavity of the annular cooling plate, and a water inlet pipe which penetrates through the lower die and extends into the inner cavity of the annular cooling plate to be communicated with the conveying pipe is fixedly arranged on the left side wall of the lower die. This quick forming die is used in production of dust removal sack skeleton, through connecing the water inlet pipe mouth to high pressure water source, the water outlet pipe mouth connects the storage water tank, through annotating the liquid mouth with the metal liquid injection forming die in, in water passes through the inlet tube and gets into the conveyer pipe, the heat absorption in the annular cooling plate will forming die, flow through water takes away the heat, finally discharges through the outlet pipe, the louvre plays supplementary radiating effect simultaneously, realizes rapid cooling, has reached rapid prototyping's purpose.
Description
Technical Field
The utility model relates to the technical field of dies, in particular to a rapid forming die for producing a dust removal cloth bag framework.
Background
The dust removal cloth bag framework is a frame of a cloth bag, the dust removal cloth bag framework is applied to dust collectors in the industries of chemical industry, metallurgy, building materials, steel, cement, thermal power generation and the like, the quality of the cloth bag framework directly influences the service life of a dust removal filter bag and the dust removal effect of the filter bag dust collector, and the cloth bag framework is one of important accessories in the dust collectors.
The dust removal sack skeleton is the frame of dust removal sack, and generally is the metal product, can cast the shaping through the mould, but current forming die can not carry out rapid prototyping, need wait the molten metal shaping cooling back in the mould, just can carry out the drawing of patterns, and refrigerated process needs a large amount of time, influences the efficiency of production, so proposes a dust removal sack skeleton production and uses rapid prototyping mould to solve above-mentioned problem.
SUMMERY OF THE UTILITY MODEL
Technical problem to be solved
Aiming at the defects of the prior art, the utility model provides a rapid forming die for producing a dust removal cloth bag framework, which has the advantages of rapid forming and the like, and solves the problems that the conventional forming die cannot perform rapid forming, demolding can be performed only after metal liquid in the die is formed and cooled, and the production efficiency is influenced due to the fact that a large amount of time is required in the cooling process.
(II) technical scheme
In order to achieve the purpose of rapid forming, the utility model provides the following technical scheme: a quick forming die for producing a dust removal cloth bag framework comprises a base, wherein a lower die is fixedly mounted at the top of the base, an annular cooling plate is fixedly mounted in an inner cavity of the lower die, a conveying pipe is fixedly mounted in an inner cavity of the annular cooling plate, a water inlet pipe penetrating through the lower die and extending to the inner cavity of the annular cooling plate and communicated with the conveying pipe is fixedly mounted on the left side wall of the lower die, a water inlet pipe communicated with the water inlet pipe is fixedly mounted on the left side wall of the lower die, a water outlet pipe penetrating through the lower die and extending to the inner cavity of the annular cooling plate and communicated with the conveying pipe is fixedly mounted on the right side wall of the lower die, a water outlet pipe communicated with the water outlet pipe is fixedly mounted on the right side wall of the lower die, heat dissipation holes positioned above the water inlet pipe and the water outlet pipe are formed in the left side wall and the right side wall of the lower die, a forming die positioned in the inner cavity of the annular cooling plate is fixedly mounted at the top of the lower die, the top movable mounting of bed die has the last mould with annular cooling plate and forming die swing joint, the top of going up the mould has been seted up and has been annotated the liquid mouth, the top fixed mounting of base has the backup pad that is located the bed die both sides, two the equal fixed mounting of opposite face of backup pad has the diaphragm, the top fixed mounting of diaphragm has quantity for two and all runs through the diaphragm and extend to with last mould fixed connection's pneumatic cylinder.
Preferably, the water inlet pipe is communicated with the conveying pipe through a three-way pipe, and the water outlet pipe is communicated with the conveying pipe through a three-way pipe.
Preferably, the liquid injection port penetrates through the upper die and extends to be communicated with the top of the forming die.
Preferably, the number of the heat dissipation holes is not less than four, and the heat dissipation holes are uniformly distributed on four side walls of the lower die.
Preferably, the top of the inner cavity of the upper mold is tightly attached to the annular cooling plate and the forming mold.
Preferably, the annular cooling plate is tightly attached to the forming mold, and the annular cooling plate is a heat absorbing plate.
(III) advantageous effects
Compared with the prior art, the utility model provides a rapid forming die for producing a dust cloth bag framework, which has the following beneficial effects:
this quick forming die is used in production of dust removal sack skeleton, through connecing the water inlet pipe mouth to high pressure water source, the water outlet pipe mouth connects the storage water tank, through annotating the liquid mouth with the metal liquid injection forming die in, in water passes through the inlet tube and gets into the conveyer pipe, the heat absorption in the annular cooling plate will forming die, flow through water takes away the heat, finally discharges through the outlet pipe, the louvre plays supplementary radiating effect simultaneously, realizes rapid cooling, has reached rapid prototyping's purpose.
Drawings

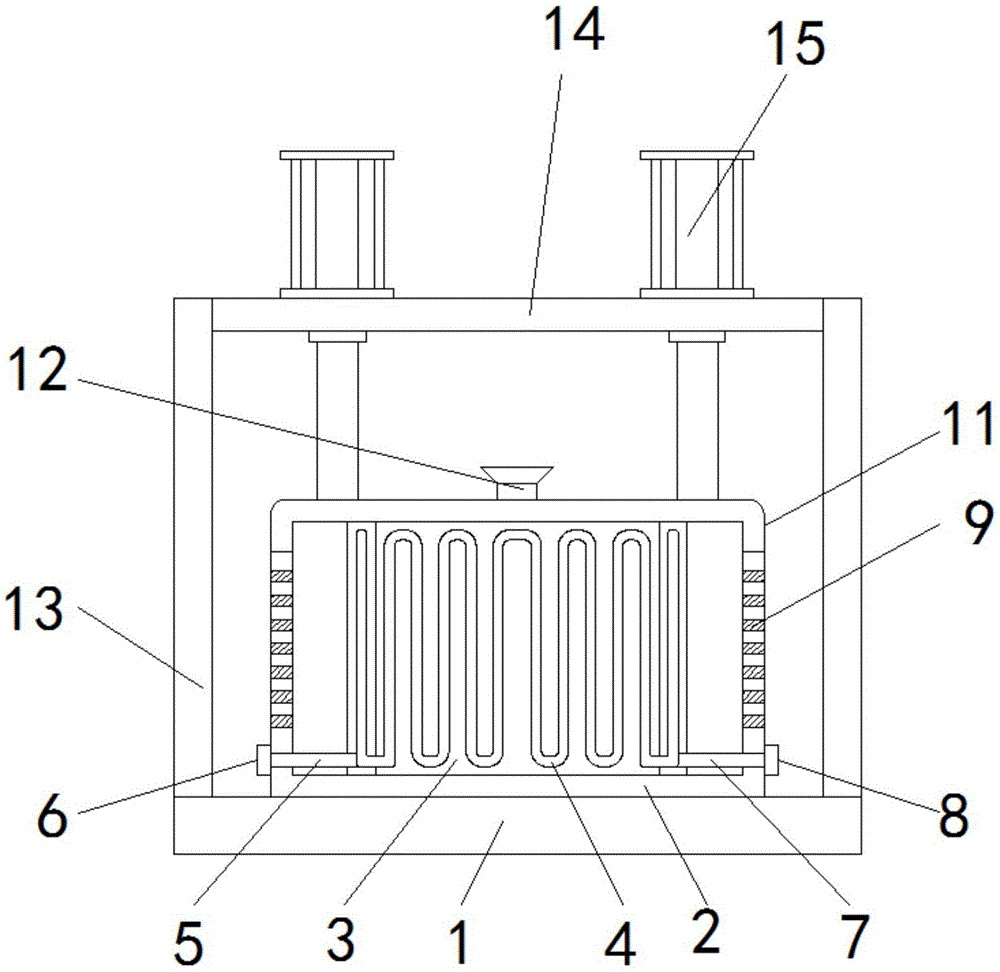

FIG. 1 is a cross-sectional view of the present invention;
FIG. 2 is a right side cross-sectional view of the present invention;
fig. 3 is a top cross-sectional view of the present invention.
In the figure: the device comprises a base 1, a lower die 2, an annular cooling plate 3, a conveying pipe 4, a water inlet pipe 5, a water inlet pipe opening 6, a water outlet pipe 7, a water outlet pipe opening 8, heat dissipation holes 9, a forming die 10, an upper die 11, a liquid injection opening 12, a supporting plate 13, a transverse plate 14 and a hydraulic cylinder 15.
Detailed Description
The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only a part of the embodiments of the present invention, and not all of the embodiments. All other embodiments, which can be derived by a person skilled in the art from the embodiments given herein without making any creative effort, shall fall within the protection scope of the present invention.
Referring to fig. 1-3, a rapid forming die for producing a dust removal cloth bag framework comprises a base 1, a lower die 2 is fixedly installed at the top of the base 1, an annular cooling plate 3 is fixedly installed in an inner cavity of the lower die 2, the annular cooling plate 3 is tightly attached to a forming die 10, the annular cooling plate 3 is a heat absorbing plate, a conveying pipe 4 is fixedly installed in the inner cavity of the annular cooling plate 3, a water inlet pipe 5 which penetrates through the lower die 2 and extends to the inner cavity of the annular cooling plate 3 to be communicated with the conveying pipe 4 is fixedly installed on the left side wall of the lower die 2, the water inlet pipe 5 is communicated with the conveying pipe 4 through a three-way pipe, a water inlet pipe orifice 6 which is communicated with the water inlet pipe 5 is fixedly installed on the left side wall of the lower die 2, a water outlet pipe 7 which penetrates through the lower die 2 and extends to the inner cavity of the annular cooling plate 3 to be communicated with the conveying pipe 4 is fixedly installed on the right side wall of the lower die 2, the water outlet pipe 7 is communicated with the conveying pipe 4 through a three-way pipe, a water outlet pipe opening 8 communicated with a water outlet pipe 7 is fixedly arranged on the right side wall of the lower die 2, heat dissipation holes 9 positioned above the water inlet pipe 5 and the water outlet pipe 7 are respectively arranged on the left side wall and the right side wall of the lower die 2, the number of the heat dissipation holes 9 is not less than four, and the heat dissipation holes are uniformly distributed on the four side walls of the lower die 2, a forming die 10 positioned in an inner cavity of the annular cooling plate 3 is fixedly arranged on the top of the lower die 2, an upper die 11 movably connected with the annular cooling plate 3 and the forming die 10 is movably arranged on the top of the lower die 2, the top of the inner cavity of the upper die 11 is tightly attached to the annular cooling plate 3 and the forming die 10, a liquid injection opening 12 is arranged on the top of the upper die 11, the liquid injection opening 12 penetrates through the upper die 11 and extends to be communicated with the top of the forming die 10, supporting plates 13 positioned on the two sides of the lower die 2 are fixedly arranged on the top of the base 1, transverse plates 14 are fixedly arranged on the opposite surfaces of the two supporting plates 13, the top of the horizontal plate 14 is fixedly provided with two hydraulic cylinders 15 which penetrate through the horizontal plate 14 and extend to the upper die 11.
To sum up, this dust removal sack skeleton production is with quick forming die, through connecting water inlet 6 with high-pressure water source, water outlet 8 connects the storage water tank, through annotating liquid mouth 12 with the molten metal injection forming die 10 in, water passes through in inlet tube 5 gets into transport pipe 4, annular cooling plate 3 absorbs the heat in with forming die 10, flow through water takes away the heat, finally discharge through outlet pipe 7, louvre 9 plays supplementary radiating effect simultaneously, realize rapid cooling, the purpose of rapid prototyping has been reached, current forming die has been solved, rapid prototyping can not carry out, need wait the molten metal shaping cooling back in the mould, just can carry out the drawing of patterns, and the refrigerated process needs plenty of time, influence the problem of the efficiency of production.
It is to be noted that the terms "comprises," "comprising," or any other variation thereof, are intended to cover a non-exclusive inclusion, such that a process, method, article, or apparatus that comprises a list of elements does not include only those elements but may include other elements not expressly listed or inherent to such process, method, article, or apparatus. Without further limitation, an element defined by the phrase "comprising an … …" does not exclude the presence of other identical elements in a process, method, article, or apparatus that comprises the element.
Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the utility model, the scope of which is defined in the appended claims and their equivalents.
Claims (6)
1. The utility model provides a dust removal sack skeleton production is with quick forming die, includes base (1), its characterized in that: the top of the base (1) is fixedly provided with a lower die (2), the inner cavity of the lower die (2) is fixedly provided with an annular cooling plate (3), the inner cavity of the annular cooling plate (3) is fixedly provided with a conveying pipe (4), the left side wall of the lower die (2) is fixedly provided with a water inlet pipe (5) which penetrates through the lower die (2) and extends to the inner cavity of the annular cooling plate (3) and the conveying pipe (4), the left side wall of the lower die (2) is fixedly provided with a water inlet pipe orifice (6) which is communicated with the water inlet pipe (5), the right side wall of the lower die (2) is fixedly provided with a water outlet pipe orifice (7) which penetrates through the lower die (2) and extends to the inner cavity of the annular cooling plate (3) and the conveying pipe (4), the right side wall of the lower die (2) is fixedly provided with a water outlet pipe orifice (8) which is communicated with the water outlet pipe (7), the left side wall and the right side wall of the lower die (2) are both provided with heat dissipation holes (9) which are positioned above the water inlet pipe (5) and the water outlet pipe (7), the top of the lower die (2) is fixedly provided with a forming die (10) positioned in the inner cavity of the annular cooling plate (3), the top of the lower die (2) is movably provided with an upper die (11) which is movably connected with the annular cooling plate (3) and the forming die (10), the top of the upper die (11) is provided with a liquid injection port (12), the top of the base (1) is fixedly provided with support plates (13) positioned at two sides of the lower die (2), the opposite surfaces of the two support plates (13) are fixedly provided with transverse plates (14), the top fixed mounting of diaphragm (14) has quantity to be two and all runs through diaphragm (14) and extend to and last mould (11) fixed connection's pneumatic cylinder (15).
2. The rapid prototyping die for producing a dust removal cloth bag framework as recited in claim 1, wherein: the water inlet pipe (5) is communicated with the conveying pipe (4) through a three-way pipe, and the water outlet pipe (7) is communicated with the conveying pipe (4) through a three-way pipe.
3. The rapid prototyping die for producing a dust removal cloth bag framework as recited in claim 1, wherein: the liquid injection port (12) penetrates through the upper die (11) and extends to be communicated with the top of the forming die (10).
4. The rapid prototyping die for producing a dust removal cloth bag framework as recited in claim 1, wherein: the number of the heat dissipation holes (9) is not less than four, and the heat dissipation holes are uniformly distributed on four side walls of the lower die (2).
5. The rapid prototyping die for producing a dust removal cloth bag framework as recited in claim 1, wherein: the top of the inner cavity of the upper die (11) is tightly attached to the annular cooling plate (3) and the forming die (10).
6. The rapid prototyping die for producing a dust removal cloth bag framework as recited in claim 1, wherein: the annular cooling plate (3) is tightly attached to the forming mold (10), and the annular cooling plate (3) is a heat absorbing plate.
