CN215303396U

CN215303396U - A kind of breathable female heel shoe foot bed and female heel shoe

Info

Publication number: CN215303396U
Application number: CN202120741758.6U
Authority: CN
Inventors: 王珍
Original assignee: Individual
Current assignee: Individual
Priority date: 2021-04-12
Filing date: 2021-04-12
Publication date: 2021-12-28
Anticipated expiration: 2031-04-12

Abstract

The invention discloses a breathable foot bed for women's heels, belonging to the technical field of women's heels. The breathable footbed for women's heels is mainly composed of a porous soft layer main body and upper and lower layers with ventilation holes; the The thickness of the main body of the porous soft layer is 2-15mm; the upper and lower layers are covered with ventilation holes; when walking, the action of lifting the foot and landing is cyclical and reciprocating, and the air is repeatedly trapped in the gaps of the main body of the porous soft layer The piston movement is carried out, fresh air enters under the feet and is discharged, and the original exhaust gas is purified. The invention solves the technical problems of insufficient pressure absorption and air permeability of women's heel shoes in the prior art, and at least achieves one of the technical effects of improving air permeability and relieving foot pressure. The present application also discloses a female heel shoe.

Description

Breathable heel-of-woman shoe foot bed and heel-of-woman shoes

Technical Field

The invention relates to a woman heel shoe technology, in particular to a breathable woman heel shoe and foot bed, and particularly relates to a breathable woman heel shoe and foot bed and a woman heel shoe.

Background

A high-heeled shoe is a shoe with a particularly high heel, so that the heel of the person wearing the shoe is significantly higher than the toes. High-heeled shoes have many different styles, especially on the change of heels, such as thin heels, thick heels, wedge-shaped heels, nail-shaped heels, mallet-shaped heels, knife-shaped heels and the like. In addition to increasing height, a more important factor is the increased female temptation. High-heeled shoes can change women's shank proportion to because wear high-heeled shoes after the people's weight heart move backward, the shank is just corresponding straight, and cause buttock shrink, chest to go straight before, the stride reduces, thereby makes women's standing appearance, the appearance of walking all be rich in the verve, the image that upwards is beautiful and the lasting grows. China has high-heeled shoes in all directions, and according to relevant records, the ceremony worn by women in all directions is a round-head high-sole shoe which is called as an ancient high-heeled shoe by the Chinese nation.

People can see the situation of wearing the high-heeled shoes in both formal occasions and non-commercial occasions. However, in the process of implementing the technical solution in the prior art, the applicant finds that the following technical problems exist in the technical solution in the prior art:

the women heel shoes have large pressure on feet, are uncomfortable after being worn for a long time, and are not beneficial to foot health. In addition, the problem of poor ventilation effect of the heel shoes for women still exists.

Disclosure of Invention

The invention aims to provide a breathable heeled shoe and foot bed, solves the technical problems of insufficient pressure absorption and ventilation of heeled shoes in the prior art, and at least achieves one of the technical effects of improving the ventilation effect and relieving the foot pressure.

In order to solve the technical problems, the technical scheme of the invention is as follows:

a breathable foot bed for female heels shoes mainly comprises a porous soft layer main body, an upper adhesive layer and a lower adhesive layer, wherein the upper adhesive layer and the lower adhesive layer are provided with vent holes; the thickness of the porous soft layer main body is 2-15 mm; the upper adhesive layer and the lower adhesive layer are fully distributed with vent holes; when walking, the foot lifting and landing actions are repeated circularly, air carries out piston motion for many times in the gaps of the porous soft layer main body, fresh air enters the part below the sole of the foot and is exhausted, and the original waste gas is purified.

Preferably, the thickness of the porous soft layer main body is 5-8 mm. The thickness of the breathable women heel shoe-foot bed is determined by calculation according to the height of the heel and the weight of a human body.

More preferably, the porous soft layer body incorporates an antibacterial aromatic substance so that air touching the sole of the foot has a reduced bacterial content and is scented.

Particularly preferably, the porous soft layer main body is sponge.

In another aspect, the invention provides a pair of women's heel shoes: comprises the breathable women heel footbed, a midsole and an outsole which are provided with ventilation holes.

Preferably, the breathable heel footbed is of a front-mounted type or a rear-mounted type. Wherein the front-mounted type is a overshoe.

Preferably, the rear half of the midsole is a supporting part, and the front half of the midsole is a hollow part, so that the midsole part below the forefoot is hollow; the rear half of the middle sole is intercepted with a vent hole.

More preferably, the rear half of the midsole is nested with a keel to provide support.

Particularly preferably, the outsole is provided with ventilating concave positions which are fully distributed with ventilating holes, and a waterproof and breathable layer is attached to the concave positions to prevent water from entering the shoe from the lower part to the upper part.

One or more technical solutions provided by the present application have at least the following technical effects or advantages:

according to the technical scheme, the porous soft layer mainly comprises a porous soft layer main body, an upper adhesive layer and a lower adhesive layer, wherein the upper adhesive layer and the lower adhesive layer are provided with air holes; the thickness of the porous soft layer main body is 2-15 mm; the upper adhesive layer and the lower adhesive layer are fully distributed with vent holes and other technical means, so that when walking, the foot lifting and landing actions are circularly repeated, air carries out piston motion in gaps of the porous soft layer main body for multiple times, fresh air enters under the soles and is exhausted, and original waste gas is purified. In addition, the thickness of the sponge can be utilized as a medium for absorbing pressure to cushion and relieve shock and give the foot a sense of pressure. Effectively solved the not enough and big technical problem of foot pressure of wearing of woman's heel shoes ventilation effect among the prior art, and then realized improving woman's heel shoes air permeability and reducing foot pressure's technical effect.

In addition, aromatic antibacterial substances are combined in the porous soft layer main body, so that the bacterium content of air can be reduced, aromatic gas can reach the soles of feet, and the foot health is further improved.

In addition, the waterproof breathable layer can allow air to pass through but prevent water from passing through, so that water can be prevented from entering the female heel shoes from the soles upwards, and the wearing comfort is further improved.

Drawings

FIG. 1 is a schematic structural view of the present invention;

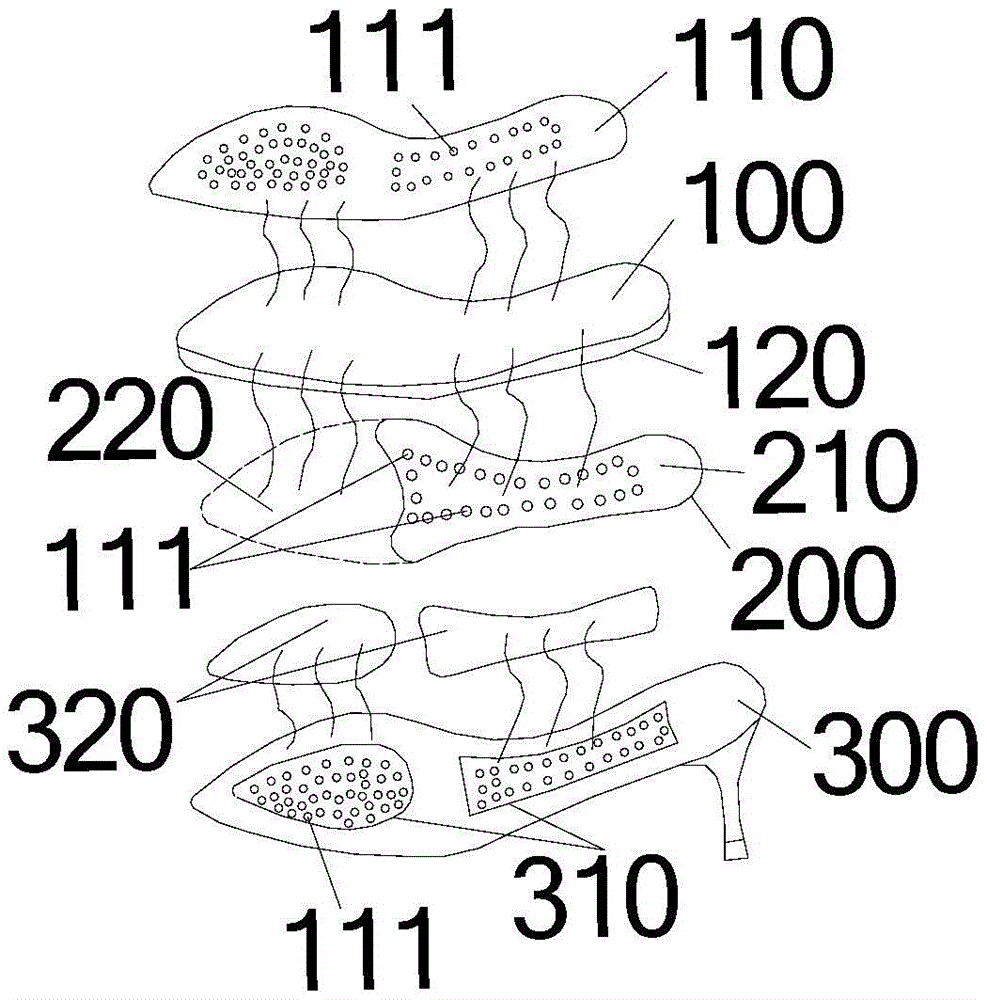

FIG. 2 is an exploded view of the present invention as an embodiment of a female heel shoe;

FIG. 3 is a schematic structural view of a midsole of the present invention;

FIG. 4 is a schematic view of the structure of the outsole of the present invention;

fig. 5 is a schematic structural view of an embodiment of the outsole of the present invention using a waterproof and breathable design.

In the figure, 100-porous soft layer main body, 110-upper layer, 111-vent hole, 120-lower layer, 200-middle sole, 201-upper cover layer, 203-lower cover layer, 210-supporting part, 220-hollow part, 240-keel, 300-outsole, 310-vent concave position and 320-waterproof breathable layer.

Detailed Description

The following further describes embodiments of the present invention with reference to the drawings. It should be noted that the description of the embodiments is provided to help understanding of the present invention, but the present invention is not limited thereto. In addition, the technical features involved in the embodiments of the present invention described below may be combined with each other as long as they do not conflict with each other.

In order to make the user more comfortable when wearing the heel counter, the heel counter is typically incorporated into the foot bed portion. However, the addition of a heel counter may relieve some of the stress, but may affect the ventilation properties and thus the health of the foot. It can be seen that the ventilation effect and pressure relief of the heel shoes for women are urgently needed to reach a balance point.

The technical scheme of this application embodiment is through providing a ventilative female with shoes foot bed of women, has solved among the prior art female with shoes foot bed and has been unfavorable for ventilative and alleviate the not enough problem of pressure effect, has realized effectively ventilating and pressure absorption's beneficial effect under the footbed main part that 2-15mm is thick combines the air vent.

The general idea of the embodiment of the invention for solving the technical problems is as follows:

a foot bed is composed of a porous soft layer main body 100 with the thickness of 2-15mm and upper and lower veneers with vent holes 111, wherein the soft layer of the main body is preferably sponge material. The circular action of squeezing the sponge and recovering the sponge when a person lifts the foot and lands is utilized, and the effect of sucking and exhausting air is generated by the porous characteristic of the sponge. When the user walks in each step, fresh air is synchronously sucked into the soles to purify air on the soles. Thereby enhancing the air-permeable and refreshing degree of the foot to enhance the wearing experience and foot health. The thickness of the sponge can also be simultaneously utilized as a medium for absorbing pressure, so that the effect of reducing the pressure of the foot is achieved.

Specifically, the antibacterial aromatic substance is fused into the porous soft layer, preferably into the sponge material, so that when the fresh air passes through the sponge material containing the antibacterial aromatic substance, the bacteria in the air are diluted and absorb the aromatic odor, thereby further improving the ventilation and health care effects on the feet.

In order to better understand the technical solution, the technical solution will be described in detail with reference to the drawings and the specific embodiments.

Example 1

As shown in FIG. 1, the present embodiment provides a breathable women's heel footbed which is mainly composed of a porous soft layer main body 100, and upper and lower attached

layers

110 and 120 having ventilation holes 111. Wherein, the porous soft layer main body 100 is made of sponge. The optimal thickness of the porous soft layer main body 100 is 5-8 mm.

The breathable foot bed of the female heel shoes can be placed in the female heel shoes in a rear-mounted mode or in a front-mounted mode. When the front-mounted type shoe sole bed is adopted, the breathable heel shoe sole bed is generally manufactured to be a part of the bag and integrally formed with the bag.

When in use, the foot is firstly contacted with the breathable heel, the shoe and the foot bed of the woman. When walking one step, the foot steps on the breathable heel footbath and lifts the foot. When walking all the time, lift the foot and fall to the ground the action circulation reciprocal, select for use the porous soft layer main part 100 of sponge material to be extrudeed repeatedly and recover, the air carries out piston motion many times in the space as the sponge of porous soft layer main part 100, and fresh air gets into under the sole and gets rid of, purifies original waste gas. The upper and

lower sheets

110 and 120 with the vent holes 111 facilitate the circulation of gas.

In addition, the thickness of the porous soft layer body 100 itself provides a space for facilitating air discharge and entrance, and also absorbs the pressure of the foot.

Example 2

The new and old air enters the sole of the foot through the breathable heeled shoe and foot bed of the woman and is continuously exchanged, so that the effect of improving the ventilation of the foot can be achieved. However, the outside air may itself contain certain bacteria, and if the outside air contains bacteria in excess of a certain concentration, it is not necessarily beneficial to foot health, especially in humid climates, where the bacteria content of the gas increases.

In order to further improve the health care function of the foot, antibacterial aromatic substances are added into the porous soft layer main body 100 of the breathable heel footbed. When air flows through the porous soft layer main body 100 containing the antibacterial aromatic substance, bacteria in the air are diluted, and the air on the sole is reduced in bacteria content and has fragrance. This improves comfort and foot health.

Example 3

When the breathable heel shoe footbed is adopted by the heel shoe for women, the foot health can be improved. In order to further improve the ventilation function of the female heel shoe using the ventilated female heel footbed, as shown in fig. 2 to 4, the midsole 200 and the outsole 300 of the female heel shoe are designed to be filled with ventilation holes 111, so that air can penetrate from the sole of the shoe to the sole of the foot without being blocked. The outsole 300 is provided with a ventilation recess 310, and the ventilation holes 111 are distributed on the ventilation recess 310.

To improve the support of the midsole 200, keels 240 are provided in the rear half of the midsole 200 to improve the structural rigidity.

The more flexible the heel of a woman, the less pressure on the foot, and in order to increase the flexibility of the heel of a woman, the midsole 200 may be designed to have a structure having only a rear half, wherein the rear half of the midsole 200 is a support portion 210 and the front half thereof is a hollow portion 220, so that the midsole 200 below the forefoot is partially hollow. The rear half of the midsole 200 retains the ventilation holes 111. On the one hand, the softness degree of the heel shoes for women is strengthened, so that the heel shoes can be folded upwards and downwards, on the other hand, the materials are saved, and the production cost is reduced.

In order to improve the comfort of the women's heel shoes, an upper covering layer 201 and a lower covering layer 203 can be respectively added above and below the midsole, and the covering layers 201 and the lower covering layers 203 are made of breathable materials.

Example 4

The air holes 111 are arranged on the foot bed, the middle sole 200 and the big sole 300 of the heel shoes of the women to solve the problem of foot ventilation, however, when water passes through the places with water, the water can enter the bottom of the foot along with air, and the wearing comfort is affected. If the porous soft layer body 100 is provided with the antibacterial fragrant substance, the entrance of water may destroy the efficacy of the antibacterial fragrant substance.

In order to prevent moisture from entering the inside of the heel of the woman, it is necessary to provide a barrier layer which prevents the passage of water but allows the passage of air. As shown in fig. 5, a waterproof and breathable layer 320 is attached to the outsole 300 in the venting recess 310. When walking, air can pass through the waterproof breathable layer 320 to reach the sole, and water can be blocked outside the waterproof breathable layer 320.

The embodiments of the present invention have been described in detail with reference to the accompanying drawings, but the present invention is not limited to the described embodiments. It will be apparent to those skilled in the art that various changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, and the scope of protection is still within the scope of the invention.

Claims

1. a breathable female heel foot bed is characterized in that: mainly consists of a porous soft layer main body and an upper sticking layer and a lower sticking layer with ventilation holes; the thickness of the porous soft layer main body is 2-15mm ; The upper and lower layers are covered with ventilation holes; when walking, the action of lifting the foot and landing cyclically reciprocates, and the air performs piston motion for many times in the gap of the main body of the porous soft layer, and fresh air enters under the sole of the foot and is discharged , purify the original exhaust gas.

2 . The breathable foot bed for women's heel shoes according to claim 1 , wherein the thickness of the main body of the porous soft layer is 5-8 mm. 3 .

3 . The breathable foot bed for women's heel shoes according to claim 1 , wherein the main body of the porous soft layer is integrated with antibacterial and aromatic substances, so that the air touching the soles of the feet can reduce the bacterial content and have a fragrance. 4 .

4. The breathable footbed for women's heel shoes according to any one of claims 1-3, wherein the main body of the porous soft layer is a sponge.

5. A women's heel shoe, characterized in that it comprises the breathable women's heel shoe foot bed as claimed in any one of claims 1-4, and a midsole and an outsole provided with air holes.

6 . The women's heel shoe according to claim 5 , wherein the breathable women's heel shoe foot bed is a front type or a rear type. 7 .

7. The women's heel shoe according to claim 5, wherein the rear half of the midsole is a support portion, and the front half of the midsole is a blank portion, so that the midsole portion below the forefoot is left blank; The rear half of the midsole is provided with ventilation holes.

8. The women's heel shoe according to claim 6 or 7, wherein a keel is embedded in the rear half of the midsole to provide support.

9 . The women's heel shoe according to claim 6 , wherein the outsole is provided with a ventilation recess, the ventilation recess is full of ventilation holes, and a waterproof and breathable layer is affixed in the recess to block the ventilation holes. 10 . Water enters the shoe from the bottom up.
