CN215303387U - A kind of flat casual shoes

Info

Publication number: CN215303387U
Application number: CN202121770234.6U
Authority: CN
Inventors: 林剑兴; 陈美娥; 陈鸿盛; 郑月芳
Original assignee: Bestwolf Sports Goods Co ltd
Current assignee: Bestwolf Sports Goods Co ltd
Priority date: 2021-08-02
Filing date: 2021-08-02
Publication date: 2021-12-28
Anticipated expiration: 2031-08-02

Abstract

The utility model relates to the field of shoes, and discloses a flat-bottomed casual shoe, which comprises a shoe upper, a shoe tongue is sewn on the top of the middle part of the shoe upper, and elastic elastic bands are symmetrically sewn on both sides of the shoe tongue. Both sides of the rear end of the upper are symmetrically sewn with a shoe upper, the other side of the shoe upper is sewn with a heel, and the bottom of the shoe upper is provided with ventilation holes, so that the air permeability is improved. The bottom end of the heel is bonded with a sole, the upper outer surface of the sole is provided with an insole, the front end of the sole is provided with a placing interlayer, the rear end of the sole is provided with a shock-absorbing air cushion, and the lower part of the sole is provided with a cushion. Anti-skid bumps and drainage grooves are added on the outer surface, and straight protruding stripes are added on the toe cap and heel of the lower outer surface of the sole, which can better fit the focal point of the sole and heel during walking and increase the walking process. The friction between the midsole 8 and the ground ensures the anti-skid performance.

Description

Flat-bottom leisure shoes

Technical Field

The utility model relates to the field of shoes, in particular to a pair of flat-bottom leisure shoes.

Background

Flat shoes refer to shoes with slopes on the soles, the soles of which are not necessarily completely flat but are basically flat, which is relatively healthy in high-heeled shoes and wedge-heel shoes, and shoes such as flat shoes, bean shoes and roll shoes also belong to the flat shoes. The leisure shoes are mainly characterized in that the leisure shoes have a simple and comfortable design concept, and meet the wearing requirements of people in daily life. The concept, connotation and function of the casual shoe are closely related to the ideal and style of this new life. People can decorate and show themselves by means of the shape, the brand and the connotation of the leisure shoes, and obtain an aesthetic pleasure and symbolic spirit satisfaction from the decoration and the display.

The existing flat-bottom leisure shoes mostly do not have a damping structure, the wearing comfort is affected, even the body is damaged, and besides sandals, the ventilation performance of the common flat-bottom leisure shoes is poor, the shoes are easy to generate foot sweat and smell after being worn for a long time, and the skid resistance stability is low, so that the safety is affected.

SUMMERY OF THE UTILITY MODEL

Technical problem to be solved

Aiming at the defects of the prior art, the utility model provides a pair of flat-bottom leisure shoes which have the advantages of high-efficiency air permeability, shock absorption, skid resistance and the like, and solves the problems that the existing flat-bottom leisure shoes generally do not have shock absorption structures, are poor in air permeability, low in skid resistance stability and cannot meet the working requirements of the flat-bottom leisure shoes.

(II) technical scheme

In order to achieve the purposes of comfort, ventilation, shock absorption and skid resistance, the utility model provides the following technical scheme: a flat-bottom leisure shoe, which comprises a vamp, wherein a rubber protective layer is additionally arranged at the toe cap at the front end of the vamp, the top end of the middle part of the vamp is sewed with a tongue, the two sides of the tongue are symmetrically sewed with elastic bands, the other side of the elastic band is sewed on the vamp, both sides of the rear end of the vamp are symmetrically sewed with the upper, the other side of the upper is sewed with a heel, the bottom of the upper is provided with an air hole, the bottom ends of the vamp, the upper and the heel are adhered with soles, the upper outer surface of the sole is additionally provided with an insole, the front end of the sole is provided with a placing interlayer, the rear end of the sole is additionally provided with a shock absorption air cushion, the anti-skidding shoes are characterized in that anti-skidding lugs and drainage grooves are additionally arranged on the lower outer surface of the shoe sole, linear protruding stripes are additionally arranged at the toe part and the heel part of the lower outer surface of the shoe sole, and a label area is arranged in the middle of the lower outer surface of the shoe sole.

Preferably, said upper is composed of a 2-3 layer breathable net structure.

Preferably, the heel is made of skin-friendly cloth, and sponge is filled in the heel.

Preferably, the number of the air holes is 2-4 groups, and the air holes are uniformly and symmetrically arranged on two sides of the upper.

Preferably, a welt is arranged at the seam joint of the upper and the heel.

Preferably, the insole consists of a sponge layer and an activated carbon layer, and the sponge layer covers the activated carbon layer.

Preferably, the placing interlayer is arranged at the front end of the sole and positioned below the joint between the toe cap and the vamp and the upper, and the inner cavity of the placing interlayer is filled with the damping sponge.

Preferably, the number of the shock absorption air cushions is 2, the shock absorption air cushions are embedded at the rear end of the sole and are positioned below the space between the connection part of the vamp and the upper and the heel.

Preferably, semicircular grooves are formed in two sides of the label area.

(III) advantageous effects

Compared with the prior art, the utility model provides a pair of flat-bottom leisure shoes, which has the following beneficial effects:

1. according to the flat-bottom leisure shoe, the vamp with the net structure and the air holes are combined, so that the air permeability of the flat-bottom leisure shoe is improved, the insole with multiple functions is additionally arranged, the insole has good moisture absorption performance and can efficiently absorb foot sweat, people feel soft but not stiff, the comfort is improved, and the built-in activated carbon can absorb the smell of the foot sweat, so that the aim of deodorization is fulfilled;

2. the flat-bottom leisure shoes adopt the multiple-buffering damping design of the damping sponge and the damping air cushion, so that the damping performance is greatly improved, the vibration caused by daily movement can be absorbed, the wearing foot feeling is better, and the comfort is further improved;

3. this flat leisure shoes adopts sharp salient stripe around the sole, the impetus of agreeing with walking in-process sole and heel that its form can be better, greatly increased the frictional force between walking in-process sole and the ground, guaranteed anti-skidding performance to add and be equipped with skid proof block and water drainage tank, further promoted anti-skidding performance.

Drawings

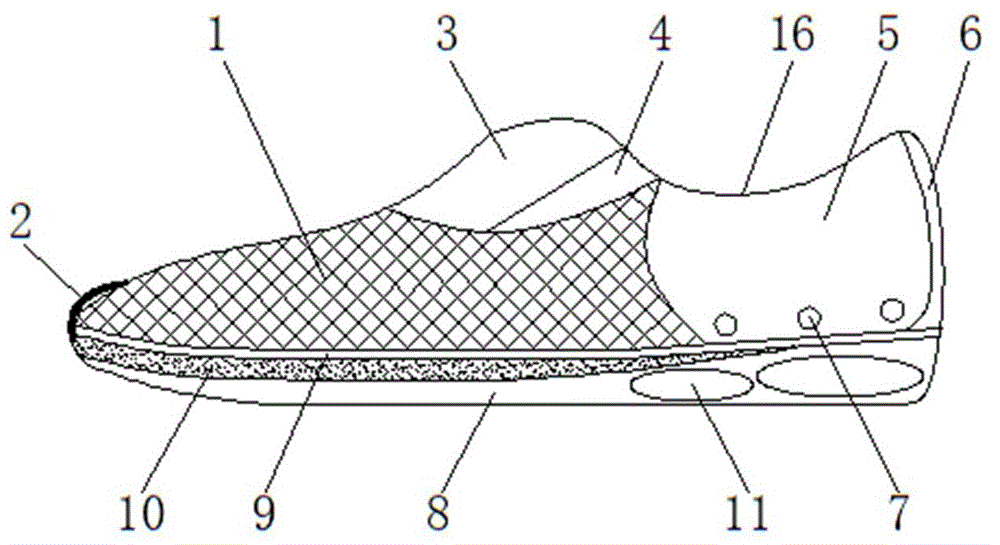

FIG. 1 is a schematic cross-sectional view of the present invention;

FIG. 2 is a schematic cross-sectional view of the sole of the present invention;

fig. 3 is a schematic view of the structure of the lower outer surface of the sole of the present invention.

In the figure: 1. a shoe upper; 2. a rubber protective layer; 3. a tongue; 4. elastic bands; 5. an upper; 6. a heel; 7. air holes are formed; 8. a sole; 9. shoe-pad; 10. placing the interlayer; 11. a shock-absorbing air cushion; 12. an anti-slip bump; 13. a water discharge tank; 14. linearly projecting stripes; 15. a label area; 16. a shoe collar; 17. a sponge layer; 18. an activated carbon layer; 19. a semicircular groove.

Detailed Description

The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only a part of the embodiments of the present invention, and not all of the embodiments. All other embodiments, which can be derived by a person skilled in the art from the embodiments given herein without making any creative effort, shall fall within the protection scope of the present invention.

Referring to fig. 1, the present invention provides a technical solution, a flat leisure shoe, comprising a shoe upper 1, the shoe upper 1 is composed of 2-3 layers of air permeable net structure, which greatly improves the air permeability of the flat leisure shoe, a rubber protective layer 2 is additionally arranged at the front toe cap of the shoe upper 1 to protect the toe cap position, so that the possibility of injury due to puncture and injury due to the contact of toes with hard objects is reduced for the wearer, a shoe tongue 3 is sewed at the top end of the middle part of the shoe upper 1, elastic bands 4 are symmetrically sewed at both sides of the shoe tongue 3, and the other side of the elastic band 4 is sewed at the shoe upper 1, the shoe lace is replaced by adopting the combination of the shoe tongue 3 and the elastic bands 4, so that the shoe wearing is more convenient, meanwhile, the elasticity of the elastic bands 4 is moderate, the wearer does not have a sense of constraint under the condition of ensuring that the shoe is not loosened, and shoe uppers 5 are symmetrically sewed at both sides of the rear end of the shoe upper 1, upper of a shoe 5 plays reinforcement vamp 1 and improves the effect of foot feel, the opposite side seam of upper of a shoe 5 has connect heel 6, close skin cloth is selected for use to heel 6, and inside packing has the sponge, promote the comfort level of wearing, avoid the heel to cause the damage because of the friction, upper of a shoe 5 encloses with heel 6 and establishes the seam department and be equipped with welt 16, bleeder vent 7 has been seted up to the bottom of upper of a shoe 5, the quantity of bleeder vent 7 is 2-4 groups, even symmetry is seted up in the both sides of upper of a shoe 5, this flat leisure shoes's gas permeability has further been strengthened, also make the molding more pleasing to the eye simultaneously, vamp 1, the bottom bonding of upper of a shoe 5 and heel 6 has sole 8.

The utility model provides a technical scheme, a pair of flat-bottom leisure shoes comprises soles 8, insoles 9 are additionally arranged on the upper outer surfaces of the soles 8, each insole 9 consists of a sponge layer 17 and an activated carbon layer 18, the sponge layer 17 covers the activated carbon layer 18, the sponge layer 17 has good hygroscopicity, can absorb foot sweat efficiently and enables people to feel soft but not stiff, the activated carbon layer 18 can absorb the smell of the foot sweat in the sponge layer 17 so as to achieve the purpose of deodorization, a placing interlayer 10 is arranged at the front end of each sole 8, the placing interlayer 10 is arranged at the front end of each sole 8 and is positioned below the joint between a toe cap and a vamp 1 and an upper 5, a damping sponge is filled in an inner cavity of the placing interlayer 10, damping air cushions 11 are additionally arranged at the rear end of each sole 8, the damping air cushions 11 are 2 groups and are embedded at the rear end of each sole 8 and are positioned below the joint between the heels 1 and the upper 5, the multiple buffering shock attenuation design can absorb the vibrations that daily motion brought, has greatly promoted and has dressed the feel.

Referring to fig. 3, the present invention provides a technical solution, a flat-bottom leisure shoe, comprising a sole 8, wherein an anti-slip bump 12 and a drainage groove 13 are additionally provided on the lower outer surface of the sole 8, the anti-slip bump 12 plays an anti-slip role and has a certain height, so that accumulated water can be prevented from permeating into the shoe along the sole 8, the drainage groove 13 can increase the drainage capacity of the lower outer surface of the sole 8, so as to further improve the anti-slip performance, a linear protruding stripe 14 is additionally provided at the toe and heel of the lower outer surface of the sole 8, the form of the linear protruding stripe 14 can better match the acting point of the sole and the heel in the walking process, so as to increase the friction between the sole 8 and the ground in the walking process, so as to ensure the anti-slip performance, a label area 15 is provided in the middle of the lower outer surface of the sole 8, so as to print information such as LOGO, semicircular grooves 19 are provided on both sides of the label area 15, so as to reduce the dead weight of the sole 8, the wearing is more portable.

The working principle of the device is as follows: the vamp 1 is composed of 2-3 layers of breathable net structures, the breathability of the flat leisure shoe is greatly improved, the added rubber protective layer 2 can effectively protect the position of a toe cap, a wearer can reduce the possibility of puncture injury and injury caused by the fact that toes touch hard objects, shoelaces are replaced by a mode of combining the tongue 3 and the elastic bands 4, the flat leisure shoe is convenient to wear, meanwhile, the elasticity of the elastic bands 4 is moderate, the wearer cannot feel bound under the condition that the shoe cannot be loosened, the breathability of the flat leisure shoe is further enhanced through the breathable holes 7 formed in the bottom of the upper 5, meanwhile, the shape is more attractive, the sponge layer 17 has good hygroscopicity and can efficiently absorb foot sweat, people can feel soft and not stiff, the active carbon layer 18 can absorb the smell of the foot sweat in the sponge layer 17, and the purpose of deodorization is achieved, the shock absorption sponge filled in the inner cavity of the interlayer 10 and the rear end of the sole 8 are placed, the shock absorption air cushion 11 is additionally arranged at the rear end of the sole 8, the shock absorption air cushion can absorb the shock caused by daily movement, the anti-skid lugs 12 play an anti-skid role and have a certain height, accumulated water can be prevented from permeating into the shoe along the sole 8 highly, the drainage grooves 13 can increase the drainage capacity of the lower outer surface of the sole 8, the anti-skid performance is further improved, the form of the linear protruding stripes 14 can better fit the acting points of the sole and the heel in the walking process, the friction force between the sole 8 and the ground in the walking process is increased, and the anti-skid performance is ensured.

It is noted that, herein, relational terms such as first and second, and the like may be used solely to distinguish one entity or action from another entity or action without necessarily requiring or implying any actual such relationship or order between such entities or actions. Also, the terms "comprises," "comprising," or any other variation thereof, are intended to cover a non-exclusive inclusion, such that a process, method, article, or apparatus that comprises a list of elements does not include only those elements but may include other elements not expressly listed or inherent to such process, method, article, or apparatus.

Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the utility model, the scope of which is defined in the appended claims and their equivalents.

Claims

1. A flat-bottomed casual shoe, comprising an upper (1), characterized in that: a rubber protective layer (2) is added at the front toe of the upper (1), and a middle part of the upper (1) is provided with a rubber protective layer (2). A shoe tongue (3) is sewn on the top, and elastic elastic bands (4) are symmetrically sewn on both sides of the shoe tongue (3), and the other side of the elastic elastic band (4) is sewn on the upper (1), A shoe upper (5) is symmetrically sewn on both sides of the rear end of the shoe upper (1), a heel (6) is sewn on the other side of the shoe upper (5), and a bottom of the shoe upper (5) is opened There are ventilation holes (7), the bottom ends of the upper (1), the upper (5) and the heel (6) are bonded with a sole (8), and the upper outer surface of the sole (8) is provided with an insole (9), the front end of the sole (8) is provided with a placing interlayer (10), the rear end of the sole (8) is provided with a shock-absorbing air cushion (11), and the lower outer surface of the sole (8) is provided with an air cushion (11). Anti-skid bumps (12) and drainage grooves (13) are provided, straight protruding stripes (14) are added on the toe cap and heel of the lower outer surface of the sole (8), and the lower outer surface of the sole (8) A label area (15) is opened in the middle of the surface.

2 . The flat-bottomed casual shoe according to claim 1 , wherein the shoe upper ( 1 ) is composed of 2-3 layers of air-permeable mesh structures. 3 .

3 . The flat-bottomed casual shoe according to claim 1 , wherein the heel ( 6 ) is made of skin-friendly fabric and filled with sponge. 4 .

4 . The flat-bottomed casual shoe according to claim 1 , wherein the number of the ventilation holes ( 7 ) is 2-4 groups, which are evenly and symmetrically opened on both sides of the upper ( 5 ). 5 .

5 . The flat-bottomed casual shoe according to claim 1 , wherein a shoe opening ( 16 ) is provided around the seam between the upper ( 5 ) and the heel ( 6 ). 6 .

6 . The flat-bottomed casual shoe according to claim 1 , wherein the insole ( 9 ) is composed of a sponge layer ( 17 ) and an activated carbon layer ( 18 ), and the sponge layer ( 17 ) is covered on the activated carbon layer ( 6 . 18) above.

7. A flat-bottomed casual shoe according to claim 1, characterized in that: the placement interlayer (10) is provided at the front end of the sole (8), and is located from the toe cap to the upper (1) and the upper (5) Below between the joints, the inner cavity where the interlayer (10) is placed is filled with shock-absorbing sponge.

8 . The flat-bottomed casual shoe according to claim 1 , wherein the number of the shock-absorbing air cushions ( 11 ) is 2 groups, which are embedded in the rear end of the sole ( 8 ) and located on the upper ( 1 ). 9 . ) and the upper part (5) to the bottom between the heel (6).

9 . The flat-bottomed casual shoe according to claim 1 , wherein semicircular grooves ( 19 ) are opened on both sides of the label area ( 15 ). 10 .
