Abstract
本实用新型涉及手提包领域，尤其是涉及一种塑胶制多功能手提包，包括袋体，袋体前后两侧的上方均设置有手提带，袋体的前侧设置有第一侧袋，袋体的上方设置有袋口，袋口上设置有第一拉链，第一拉链的长度大于袋体的宽度，袋体的下部设置有第二拉链，第二拉链的上部与下部之间相互间隔设置。本实用新型的有益效果是：通过在袋体的下端设置有第二拉链，能够自由调节手提袋的内部空间；通过在袋体底部的边缘设置有第四拉链，能够更方便的将较大的物品放入或取出，能够提高手提袋的实用性。
The utility model relates to the field of handbags, in particular to a multifunctional handbag made of plastic. The top of the body is provided with a pocket opening, the pocket opening is provided with a first zipper, the length of the first zipper is greater than the width of the bag body, the lower part of the bag body is provided with a second zipper, and the upper part and the lower part of the second zipper are spaced apart from each other. The beneficial effects of the utility model are: by arranging the second zipper at the lower end of the bag body, the inner space of the handbag can be adjusted freely; by arranging the fourth zipper on the edge of the bottom of the bag body, the larger Items can be put in or taken out, which can improve the practicality of the tote bag.
Description
Technical Field
The utility model relates to a handbag field especially relates to a multi-functional handbag of plastic system.
Background
Handbag, gift bag are an indispensable part in daily life, often can show one's taste. The design of the handbag is increasingly becoming an advertisement carrier for promoting sales of merchants and is also one of means for advertising of various clothing brands. Because of its portability and practicality, handbags are used more and more widely in daily life, and need to be used both in office work and home shopping.
However, the existing portable design is not optimized enough and the practicability is not high.
SUMMERY OF THE UTILITY MODEL
The utility model discloses an it is not enough to overcome above-mentioned condition, provides a technical scheme that can solve above-mentioned problem.
The utility model provides a multi-functional handbag of plastic system, includes the bag body, and the top of both sides all is provided with the hand-strap around the bag body, and the front side of the bag body is provided with first side bag, and the top of the bag body is provided with the sack, is provided with first zip fastener on the sack, and the length of first zip fastener is greater than the width of the bag body, and the lower part of the bag body is provided with the second zip fastener, and the mutual interval sets up between the upper portion of second zip fastener and the lower part.
As a further aspect of the present invention: the rear side of the bag body is provided with a second side bag.
As a further aspect of the present invention: the inner side of the bag body is provided with an interlayer.
As a further aspect of the present invention: the upper parts of the first side bag, the second side bag and the interlayer are respectively provided with a third zipper.
As a further aspect of the present invention: the edge of the bottom of the bag body is provided with a fourth zipper.
As a further aspect of the present invention: the bag body is made of plastic.
Compared with the prior art, the beneficial effects of the utility model are that: the second zipper is arranged at the lower end of the bag body, so that the inner space of the handbag can be freely adjusted; the fourth zipper is arranged at the edge of the bottom of the bag body, so that larger objects can be more conveniently put in or taken out, and the practicability of the handbag can be improved.
Additional aspects and advantages of the invention will be set forth in part in the description which follows and, in part, will be obvious from the description, or may be learned by practice of the invention.
Drawings
In order to more clearly illustrate the embodiments of the present invention or the technical solutions in the prior art, the drawings used in the description of the embodiments or the prior art will be briefly described below, and it is obvious that the drawings in the following description are only some embodiments of the present invention, and for those skilled in the art, other drawings can be obtained according to these drawings without creative efforts.

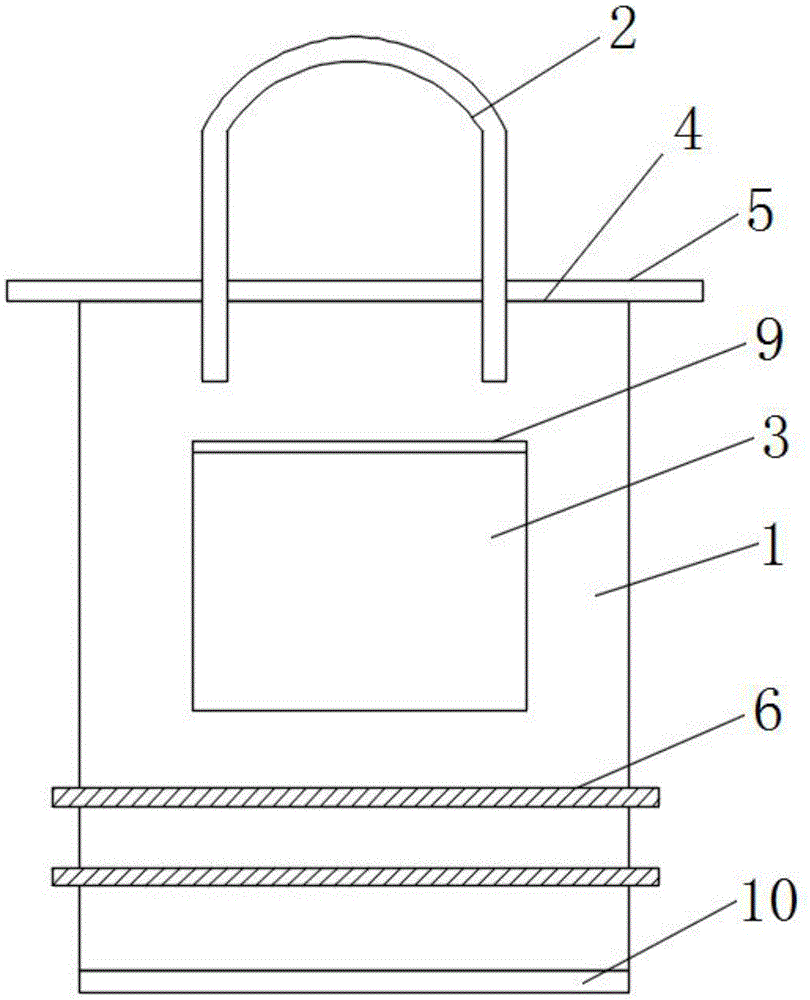

Fig. 1 is a front view of the present invention.
Fig. 2 is a right side view of the present invention.
Shown in the figure: 1. a bag body; 2. a hand strap; 3. a first side pocket; 4. a bag opening; 5. a first zipper; 6. a second zipper; 7. a second side pocket; 8. an interlayer; 9. a third zipper; 10. and a fourth zipper.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
Referring to fig. 1-2, a plastic multifunctional handbag includes a bag body 1, wherein hand straps 2 are disposed above the front and rear sides of the bag body 1, a first side bag 3 is disposed on the front side of the bag body 1, a bag opening 4 is disposed above the bag body 1, a first zipper 5 is disposed on the bag opening 4, the length of the first zipper 5 is greater than the width of the bag body 1, a second zipper 6 is disposed on the lower portion of the bag body 1, and the upper portion and the lower portion of the second zipper 6 are spaced from each other. The second zipper 6 is provided at the lower end of the bag body 1, so that the inner space of the bag body 1 can be freely adjusted.
As a further aspect of the present invention: the rear side of the bag body 1 is provided with a second side bag 7.
As a further aspect of the present invention: the inner side of the bag body 1 is provided with an interlayer 8.
As a further aspect of the present invention: the upper parts of the first side bag 3, the second side bag 7 and the interlayer 8 are respectively provided with a third zipper 9.
As a further aspect of the present invention: the edge of the bottom of the bag body 1 is provided with a fourth zipper 10. Can more conveniently put in or take out larger articles and can improve the practicability of the hand bag.
As a further aspect of the present invention: the bag body 1 is made of plastic. Can reduce the cost and improve the value.
It is obvious to a person skilled in the art that the invention is not restricted to details of the above-described exemplary embodiments, but that it can be implemented in other specific forms without departing from the spirit or essential characteristics of the invention. The present embodiments are therefore to be considered in all respects as illustrative and not restrictive, the scope of the invention being indicated by the appended claims rather than by the foregoing description, and all changes which come within the meaning and range of equivalency of the claims are therefore intended to be embraced therein. Any reference sign in a claim should not be construed as limiting the claim concerned.
Claims (6)
1. The utility model provides a multi-functional handbag of plastic system, includes the bag body, its characterized in that: the portable belt is arranged above the front side and the rear side of the bag body, the first side bag is arranged on the front side of the bag body, the bag opening is arranged above the bag body, the first zipper is arranged on the bag opening, the length of the first zipper is larger than the width of the bag body, the second zipper is arranged on the lower portion of the bag body, and the upper portion and the lower portion of the second zipper are arranged at intervals.
2. The multi-purpose handbag made of plastic according to claim 1, characterized in that: the rear side of the bag body is provided with a second side bag.
3. The multi-purpose handbag made of plastic according to claim 2, characterized in that: the inner side of the bag body is provided with an interlayer.
4. The multi-purpose handbag made of plastic according to claim 3, characterized in that: the upper parts of the first side bag, the second side bag and the interlayer are respectively provided with a third zipper.
5. The multi-purpose handbag made of plastic according to claim 1, characterized in that: the edge of the bottom of the bag body is provided with a fourth zipper.
6. The multi-purpose handbag made of plastic according to claim 1, characterized in that: the bag body is made of plastic.
