CN215267102U - Quick-release structure of internal baffle of outdoor box-type substation

Info

Publication number: CN215267102U
Application number: CN202120815602.8U
Authority: CN
Inventors: 胡奭; 林飞; 吴限; 胡清
Original assignee: Sichuan Tengkai Power Group Co ltd
Current assignee: Sichuan Tengkai Power Group Co ltd
Priority date: 2021-04-20
Filing date: 2021-04-20
Publication date: 2021-12-21
Anticipated expiration: 2031-04-20

Abstract

The utility model discloses a quick-release structure of an internal baffle of an outdoor box-type substation, which belongs to the technical field of box-type substations, and the technical proposal thereof comprises a device body, wherein the top part of the front side of the inner wall of the device body is movably connected with a first baffle, the bottom part of the front side of the inner wall of the device body is movably connected with a second baffle, both sides of the bottom part of the inner wall of the device body are fixedly connected with a limiting mechanism, one side of the limiting mechanism, which is close to the second baffle, extends to the inside of the second baffle, the top part of the right side of the device body is fixedly connected with a fixed plate, the right side of the top part of the fixed plate is fixedly connected with a supporting plate, and the left side of the supporting plate is fixedly connected with a connecting mechanism, thereby solving the problems that the existing baffle dismounting mode is excessively complicated, the maintenance work is not facilitated, the work efficiency is reduced, and the baffle is generally a whole body, when only a certain position is maintained, the baffle plates must be integrally disassembled, thereby influencing the maintenance work.

Description

Quick-release structure of internal baffle of outdoor box-type substation

Technical Field

The utility model relates to a box-type substation technical field, in particular to quick detach structure of outdoor box-type substation internal baffle.

Background

The box type transformer substation, also called a prefabricated substation or a prefabricated substation, is a high-voltage switch equipment, a distribution transformer and a low-voltage distribution device, is a factory prefabricated indoor and outdoor compact distribution equipment which is integrated according to a certain wiring scheme, namely, the functions of transformer voltage reduction, low-voltage distribution and the like are organically combined together and installed in a moisture-proof, rust-proof, dust-proof, rat-proof, fire-proof, anti-theft, heat-insulating, totally-closed and movable steel structure box, is particularly suitable for urban network construction and transformation, and is a brand-new transformer substation which is built up after a civil transformer substation.

Box-type substation is applicable to the mine, the factory enterprise, oil gas field and wind power generation station, it has replaced original civil engineering power distribution room, the distribution substation, become neotype complete set transformer distribution equipment, inside at box-type substation is provided with the baffle, its effect is protected the inside electric elements of box-type substation, current baffle dismouting mode is too loaded down with trivial details, be unfavorable for maintenance work, work efficiency has been reduced, and the baffle is a whole usually, when only overhauing certain position, must wholly dismantle the baffle, consequently, be unfavorable for maintenance work.

SUMMERY OF THE UTILITY MODEL

The utility model provides a quick detach structure of outdoor box-type substation inside baffle aims at solving current baffle dismouting mode and too loaded down with trivial details, is unfavorable for maintenance work, has reduced work efficiency, and the baffle is a whole usually, when only overhauing certain position, must dismantle the baffle is whole to the problem of maintenance work is overhauld in the influence.

The utility model is realized in such a way that the quick-dismantling structure of the internal baffle plate of the outdoor box-type substation comprises a device body, the top of the front side of the inner wall of the device body is movably connected with a first baffle, the bottom of the front side of the inner wall of the device body is movably connected with a second baffle, the two sides of the bottom of the inner wall of the device body are fixedly connected with limiting mechanisms, one side of each limiting mechanism, which is close to the second baffle plate, extends to the inside of the second baffle plate, the top of the right side of the device body is fixedly connected with a fixed plate, the right side of the top of the fixed plate is fixedly connected with a supporting plate, the left side of the supporting plate is fixedly connected with a connecting mechanism, the left side of the connecting mechanism is fixedly connected with a limiting rod, the left side of gag lever post runs through the device body and extends to the inside of first baffle, the front side fixedly connected with first in command of first baffle, the front side fixedly connected with second in command of second baffle.

In order to reach the spacing effect of second baffle, as the utility model discloses an outdoor box-type substation internal baffle's quick detach structure is preferred, stop gear includes spacing spring, one side and device body fixed connection that spacing spring is close to device body inner wall, one side fixedly connected with spacer pin that device body inner wall was kept away from to spacing spring, one side that the spacer pin is close to the second baffle extends to the inside of second baffle, the surface cover of spacing spring is equipped with the sleeve pipe, the sleeve pipe is close to the inner wall fixed connection of one side of device body inner wall and device body.

For the convenient effect that drives the stop lever and fix first baffle, conduct the utility model discloses an outdoor box-type substation internal baffle's quick detach structure is preferred, coupling mechanism includes the connecting block, the first telescopic link of right side fixedly connected with of connecting block, the surface cover of first telescopic link is equipped with the second telescopic link, the right side of second telescopic link and the left side fixed connection of backup pad, the surface cover of first telescopic link is equipped with reset spring, reset spring's left side and the right side fixed connection of connecting block, reset spring's right side and the left side fixed connection of backup pad.

For the effect that coupling mechanism removed, as the utility model discloses an outdoor box-type substation internal baffle's rapid disassembly structure is preferred, the shifting chute has been seted up at the top of fixed plate, the bottom fixedly connected with locating lever of connecting block, the bottom fixedly connected with slider of locating lever, the surface of slider and the inner wall contact of shifting chute.

In order to make things convenient for the inside effect of second baffle business turn over device body, as the utility model discloses an outdoor box-type substation internal baffle's quick detach structure is preferred, the standing groove that uses with the cooperation of second baffle has been seted up to the front side of device body inner wall bottom, the equal fixedly connected with second connecting rod in both sides of second baffle, the surface cover of second connecting rod is equipped with the second pulley, and the spacing groove that uses with the spacer pin cooperation has all been seted up to the bottom of second baffle both sides, the second spout that uses with the cooperation of second pulley has all been seted up to the both sides of device body inner wall bottom, the spread groove has all been seted up to the bottom of device body inner wall both sides, one side and the second spout intercommunication that the spread groove is close to the second spout.

For the convenient inside effect of first baffle business turn over device body, as the utility model discloses an outdoor box-type substation internal baffle's quick detach structure is preferred, the fixed slot that uses with the gag lever post cooperation is seted up at the top on first baffle right side, the equal fixedly connected with head rod in both sides of first baffle, the surface cover of head rod is equipped with first pulley, the first spout that uses with the cooperation of first pulley is all seted up to the both sides at device body inner wall top.

In order to carry out spacingly to coupling mechanism, conveniently carry out the effect of other operations, as the utility model discloses an outdoor box-type substation internal baffle's quick detach structure is preferred, the top fixedly connected with dead lever of connecting block, the surface cover of dead lever is equipped with the movable sleeve, the top fixedly connected with limiting plate of dead lever, the right side fixedly connected with L shape pole of movable sleeve, the top fixedly connected with of backup pad and the square pole that L shape pole cooperation was used.

Compared with the prior art, the beneficial effects of the utility model are that:

this quick detach structure of inside baffle of outdoor box-type substation, top and bottom through the inside front side at the device body set up first baffle and second baffle, can protect the inside electrical elements of device body, and separately install through first baffle and second baffle, can conveniently only overhaul somewhere position, can need not dismantle wholly, work efficiency has been improved, working strength is reduced, then drive the gag lever post through coupling mechanism and remove the fixed to first baffle, then through the first in command, can dismantle first baffle, drive the second baffle through the second in command and remove afterwards, remove the spacing to the second baffle through stop gear, can make the second baffle shift out from the inside of device body, can conveniently overhaul the work of examining and repairing the device body.

Drawings

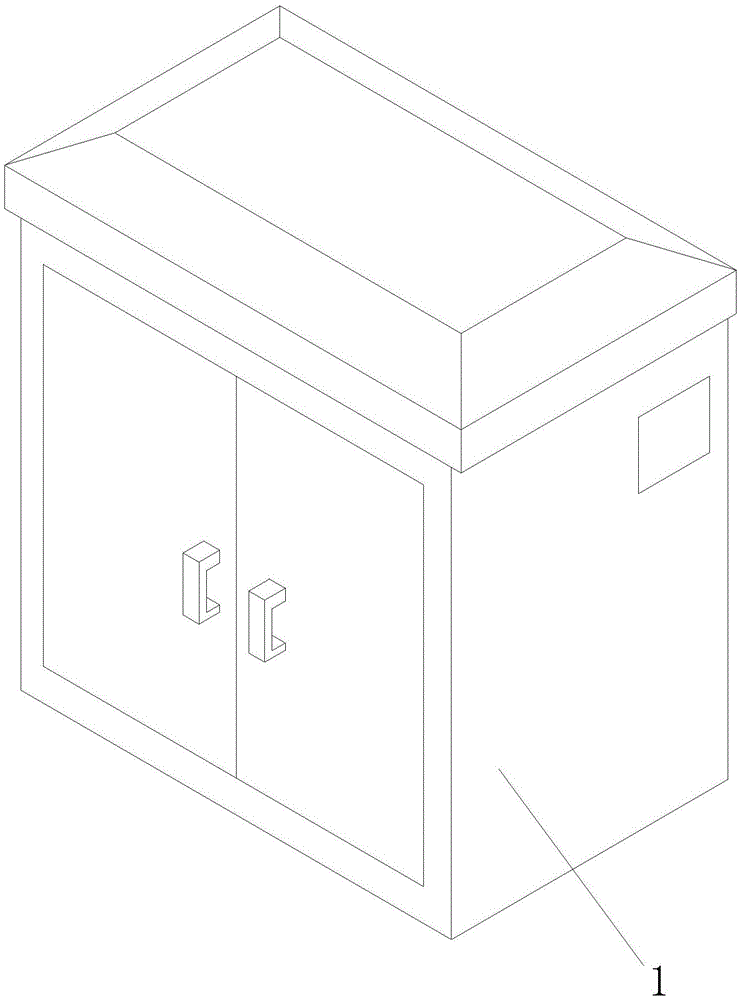

Fig. 1 is an overall structural view of a quick release structure of an internal baffle plate of an outdoor box-type substation;

FIG. 2 is a structural diagram of the device body of the present invention;

FIG. 3 is a view showing the structure of the inside of the device body of the present invention;

fig. 4 is a cross-sectional view of the device body of the present invention;

FIG. 5 is a view showing a structure of a first baffle of the present invention;

FIG. 6 is a structural view of a second baffle of the present invention;

FIG. 7 is an enlarged view of the portion A of FIG. 2 according to the present invention;

FIG. 8 is a structural diagram of the connecting block of the present invention;

fig. 9 is an enlarged view of the point B in fig. 4 according to the present invention.

In the figure, 1, an apparatus body; 2. a first baffle plate; 3. a first handle; 4. a second baffle; 5. a second handle; 6. a fixing plate; 7. a support plate; 8. a limiting rod; 9. a first connecting rod; 10. a first pulley; 11. a second connecting rod; 12. a second pulley; 13. a first chute; 14. a second chute; 15. connecting grooves; 16. a moving groove; 17. positioning a rod; 18. a slider; 19. fixing the rod; 20. a movable sleeve; 21. a limiting plate; 22. an L-shaped rod; 23. a square bar; 24. a limiting groove; 25. fixing grooves; 26. a limiting mechanism; 2601. a limiting spring; 2602. a spacing pin; 2603. a sleeve; 27. a connecting mechanism; 2701. connecting blocks; 2702. a first telescopic rod; 2703. a second telescopic rod; 2704. a return spring; 28. and (6) placing the groove.

Detailed Description

In order to make the objects, technical solutions and advantages of the present invention more clearly understood, the present invention is further described in detail below with reference to the accompanying drawings and embodiments. It should be understood that the specific embodiments described herein are merely illustrative of the invention and are not intended to limit the invention.

In the description of the present invention, it is to be understood that the terms "length", "width", "upper", "lower", "front", "rear", "left", "right", "vertical", "horizontal", "top", "bottom", "inner", "outer", and the like indicate orientations or positional relationships based on those shown in the drawings, and are merely for convenience of description and simplicity of description, and do not indicate or imply that the device or element being referred to must have a particular orientation, be constructed and operated in a particular orientation, and thus, should not be construed as limiting the present invention. In addition, in the description of the present invention, "a plurality" means two or more unless specifically limited otherwise.

Referring to fig. 1-9, the present invention provides a technical solution: the utility model provides a quick detach structure of outdoor box-type substation inside baffle, including device body 1, the top swing joint of the 1 inner wall front side of device body has first baffle 2, the bottom swing joint of the 1 inner wall front side of device body has second baffle 4, the equal fixedly connected with stop gear 26 in both sides of the 1 inner wall bottom of device body, stop gear 26 is close to the inside that one side of second baffle 4 extends to second baffle 4, top fixedly connected with fixed plate 6 on device body 1 right side, the right side fixedly connected with backup pad 7 at 6 tops of fixed plate, the left side fixedly connected with coupling mechanism 27 of backup pad 7, the left side fixedly connected with gag lever post 8 of coupling mechanism 27, the left side of gag lever post 8 runs through device body 1 and extends to the inside of first baffle 2, the front side fixedly connected with first in command 3 of first baffle 2, the front side fixedly connected with second in command 5 of second baffle 4.

In this embodiment: set up first baffle 2 and second baffle 4 through top and bottom at the inside front side of device body 1, can protect the electric elements of device body 1 inside, and separately install through first baffle 2 and second baffle 4, can conveniently only overhaul somewhere position, can need not dismantle wholly, work efficiency has been improved, working strength is reduced, then drive gag lever post 8 through coupling mechanism 27 and relieve the fixed to first baffle 2, then through the first in command 3, can dismantle first baffle 2, drive second baffle 4 through second in command 5 and remove afterwards, relieve the spacing to second baffle 4 through stop gear 26, can make second baffle 4 shift out from the inside of device body 1, can conveniently overhaul the work of going on overhauing to device body 1.

As the utility model discloses a technical optimization scheme, stop gear 26 includes spacing spring 2601, one side and device body 1 fixed connection that spacing spring 2601 is close to device body 1 inner wall, one side fixedly connected with spacer pin 2602 of device body 1 inner wall is kept away from to spacing spring 2601, one side that spacer pin 2602 is close to second baffle 4 extends to the inside of second baffle 4, the surface cover of spacing spring 2601 is equipped with sleeve pipe 2603, sleeve pipe 2603 is close to one side and device body 1's inner wall fixed connection of device body 1 inner wall.

In this embodiment: move through second baffle 4 and extrude spacer pin 2602, move and extrude spacing spring 2601 through spacer pin 2602, make spacing spring 2601 drive spacer pin 2602 and follow the inside of second baffle 4 and shift out, then establish the sleeve pipe 2603 on spacing spring 2601 surface through the cover, can restrict the removal of spacing spring 2601, stability when increasing the removal, shift out the inside of second baffle 4 through spacer pin 2602, then take out second baffle 4 through second handle 5.

As a technical optimization scheme of the utility model, coupling mechanism 27 includes connecting block 2701, the first telescopic link 2702 of right side fixedly connected with of connecting block 2701, the surface cover of first telescopic link 2702 is equipped with second telescopic link 2703, the right side of second telescopic link 2703 and the left side fixed connection of backup pad 7, the surface cover of first telescopic link 2702 is equipped with reset spring 2704, reset spring 2704's left side and connecting block 2701's right side fixed connection, reset spring 2704's right side and the left side fixed connection of backup pad 7.

In this embodiment: move at the top of fixed plate 6 through connecting block 2701 to drive first telescopic link 2702 and move in the inside of second telescopic link 2703, then extrude reset spring 2704 through connecting block 2701, can drive gag lever post 8 and follow the inside of first baffle 2 and shift out, thereby remove the fixed to first baffle 2, then take out first baffle 2 through first handle 3.

As a technical optimization scheme of the utility model, the shifting chute 16 has been seted up at the top of fixed plate 6, connecting block 2701's bottom fixedly connected with locating lever 17, locating lever 17's bottom fixedly connected with slider 18, slider 18's the surface and the inner wall contact of shifting chute 16.

In this embodiment: the positioning rod 17 is fixedly arranged at the bottom of the connecting block 2701, the sliding block 18 is fixedly arranged at the bottom of the positioning rod 17, and the sliding block 18 moves in the moving groove 16 at the top of the fixing plate 6, so that the connecting block 2701 can conveniently move and the moving track of the connecting block is limited.

As a technical optimization scheme, the standing groove 28 that uses with the cooperation of second baffle 4 has been seted up to the front side of device 1 inner wall bottom, the equal fixedly connected with second connecting rod 11 in both sides of second baffle 4, the surface cover of second connecting rod 11 is equipped with second pulley 12, spacing groove 24 that uses with the cooperation of spacer pin 2602 has all been seted up to the bottom of second baffle 4 both sides, second spout 14 that uses with the cooperation of second pulley 12 has all been seted up to the both sides of device 1 inner wall bottom, spread groove 15 has all been seted up to the bottom of device 1 inner wall both sides, spread groove 15 is close to one side and the 14 intercommunication of second spout 14 of second spout.

In this embodiment: through seting up spacing groove 24 in the both sides of second baffle 4, can make things convenient for spacer pin 2602 to carry on spacingly to second baffle 4, through second spout 14 and spread groove 15 intercommunication, can make things convenient for second pulley 12 to remove, then through standing groove 28, can put into the inside bottom of device body 1 with second baffle 4, reach the guard action.

As a technical optimization scheme, the fixed slot 25 that uses with the cooperation of gag lever post 8 is seted up at the top on 2 right sides of first baffle, the equal fixedly connected with head rod 9 in both sides of first baffle 2, and the surface cover of head rod 9 is equipped with first pulley 10, and first spout 13 that uses with the cooperation of first pulley 10 is all seted up to the both sides at 1 inner wall top of device body.

In this embodiment: through set up fixed slot 25 at the top on first baffle 2 right side, can make things convenient for gag lever post 8 to carry on spacingly to first baffle 2, prevent that first baffle 2 from removing, influence the safeguard effect, then remove to the inside of device body 1 through first pulley 10 in first spout 13, can conveniently remove first baffle 2.

As a technical optimization scheme of the utility model, connecting block 2701's top fixedly connected with dead lever 19, the surface cover of dead lever 19 is equipped with movable sleeve 20, the top fixedly connected with limiting plate 21 of dead lever 19, the right side fixedly connected with L shape pole 22 of movable sleeve 20, the top fixedly connected with of backup pad 7 and the square pole 23 that L shape pole 22 cooperation was used.

In this embodiment: after the connecting mechanism 27 drives the limiting rod 8 to release the limitation of the first baffle 2, the movable sleeve 20 rotates on the surface of the fixed rod 19 and drives the L-shaped rod 22 to move, so that the inner wall of the L-shaped rod 22 is in contact with the surface of the square rod 23, the limitation of the connecting mechanism 27 can be completed, and a user can conveniently move the first baffle 2.

The working principle is as follows: firstly, the first baffle 2 and the second baffle 4 are arranged at the top and the bottom of the front side in the device body 1, so that the electric elements in the device body 1 can be protected, the first baffle 2 and the second baffle 4 are separately arranged, so that the maintenance can be conveniently carried out only on a certain position, the whole device does not need to be disassembled, the working efficiency is improved, the working strength is reduced, then the limiting rod 8 can be driven to move out from the inside of the first baffle 2 by moving the sliding block 18 at the bottom of the connecting block 2701 in the moving groove 16 at the top of the fixing plate 6 and driving the first telescopic rod 2702 to move in the second telescopic rod 2703, then the reset spring 2704 is extruded by the connecting block 2701, so that the fixing of the first baffle 2 is released, the L-shaped rod 22 is driven to move by rotating the movable sleeve 20 on the surface of the fixing rod 19, and the inner wall of the L-shaped rod 22 is enabled to be contacted with the surface of the square rod 23, can accomplish spacing to coupling mechanism 27, can the person of facilitating the use go to remove first baffle 2, then remove in first spout 13 through first pulley 10, can take out first baffle 2 from the inside of device body 1 through first handle 3, drive second baffle 4 through second handle 5 afterwards and remove extrusion gag pin 2602 through second baffle 4, remove and extrude spacing spring 2601 through gag pin 2602, make spacing spring 2601 drive gag pin 2602 and remove from the inside of second baffle 4, then through the sleeve pipe 2603 of cover establishing on spacing spring 2601 surface, can restrict the removal of spacing spring 2601, stability when increasing the removal, then remove to second spout 14 and remove the inside of device body 1 from spread groove 15 through second pulley 12, alright afterwards in order to carry out the maintenance work to device body 1.

The above description is only exemplary of the present invention and should not be construed as limiting the present invention, and any modifications, equivalents and improvements made within the spirit and principles of the present invention are intended to be included within the scope of the present invention.

Claims

1. The utility model provides an outdoor box-type substation inside baffle's rapid disassembly structure, includes device body (1), its characterized in that: the device comprises a device body (1), wherein the top of the front side of the inner wall of the device body (1) is movably connected with a first baffle (2), the bottom of the front side of the inner wall of the device body (1) is movably connected with a second baffle (4), both sides of the bottom of the inner wall of the device body (1) are fixedly connected with limiting mechanisms (26), one side of each limiting mechanism (26), which is close to the second baffle (4), extends into the second baffle (4), the top of the right side of the device body (1) is fixedly connected with a fixing plate (6), the right side of the top of the fixing plate (6) is fixedly connected with a supporting plate (7), the left side of each supporting plate (7) is fixedly connected with a connecting mechanism (27), the left side of each connecting mechanism (27) is fixedly connected with a limiting rod (8), and the left side of each limiting rod (8) penetrates through the device body (1) and extends into the first baffle (2), the front side of the first baffle (2) is fixedly connected with a first handle (3), and the front side of the second baffle (4) is fixedly connected with a second handle (5).

2. The quick release structure of the internal baffle plate of the outdoor box-type substation of claim 1, is characterized in that: limiting mechanism (26) include limiting spring (2601), one side and device body (1) fixed connection that limiting spring (2601) is close to device body (1) inner wall, one side fixedly connected with spacer pin (2602) of device body (1) inner wall is kept away from in limiting spring (2601), one side that spacer pin (2602) are close to second baffle (4) extends to the inside of second baffle (4), the surface cover of limiting spring (2601) is equipped with sleeve pipe (2603), sleeve pipe (2603) are close to one side of device body (1) inner wall and the inner wall fixed connection of device body (1).

3. The quick release structure of the internal baffle plate of the outdoor box-type substation of claim 1, is characterized in that: coupling mechanism (27) includes connecting block (2701), the first telescopic link of right side fixedly connected with (2702) of connecting block (2701), the surface cover of first telescopic link (2702) is equipped with second telescopic link (2703), the right side of second telescopic link (2703) and the left side fixed connection of backup pad (7), the surface cover of first telescopic link (2702) is equipped with reset spring (2704), the left side of reset spring (2704) and the right side fixed connection of connecting block (2701), the right side of reset spring (2704) and the left side fixed connection of backup pad (7).

4. The quick release structure of the internal baffle plate of the outdoor box-type substation of claim 3 is characterized in that: the top of the fixing plate (6) is provided with a moving groove (16), the bottom of the connecting block (2701) is fixedly connected with a positioning rod (17), the bottom of the positioning rod (17) is fixedly connected with a sliding block (18), and the surface of the sliding block (18) is in contact with the inner wall of the moving groove (16).

5. The quick release structure of the internal baffle plate of the outdoor box-type substation of claim 2 is characterized in that: the device body (1) inner wall front side of bottom is opened and is equipped with standing groove (28) that uses with second baffle (4) cooperation, the equal fixedly connected with second connecting rod (11) in both sides of second baffle (4), the surface cover of second connecting rod (11) is equipped with second pulley (12), and spacing groove (24) that use with spacer pin (2602) cooperation are all seted up to the bottom of second baffle (4) both sides, second spout (14) that use with second pulley (12) cooperation are all seted up to the bottom of device body (1) both sides, spread groove (15) have all been seted up to the both sides of device body (1) inner wall bottom, one side and second spout (14) intercommunication that spread groove (15) are close to second spout (14).

6. The quick release structure of the internal baffle plate of the outdoor box-type substation of claim 1, is characterized in that: fixed slot (25) of using with gag lever post (8) cooperation are seted up at the top on first baffle (2) right side, the equal fixedly connected with head rod (9) in both sides of first baffle (2), the surface cover of head rod (9) is equipped with first pulley (10), first spout (13) of using with first pulley (10) cooperation are all seted up to the both sides at device body (1) inner wall top.

7. The quick release structure of the internal baffle plate of the outdoor box-type substation of claim 3 is characterized in that: the top fixedly connected with dead lever (19) of connecting block (2701), the surface cover of dead lever (19) is equipped with movable sleeve (20), the top fixedly connected with limiting plate (21) of dead lever (19), the right side fixedly connected with L shape pole (22) of movable sleeve (20), the top fixedly connected with of backup pad (7) and the square pole (23) of L shape pole (22) cooperation use.
