CN215267088U

CN215267088U - Power distribution cabinet

Info

Publication number: CN215267088U
Application number: CN202120759564.9U
Authority: CN
Inventors: 陈太伟
Original assignee: Suzhou Tengao Electric Co ltd
Current assignee: Suzhou Tengao Electric Co ltd
Priority date: 2021-04-14
Filing date: 2021-04-14
Publication date: 2021-12-21
Anticipated expiration: 2031-04-14

Abstract

The utility model discloses a power distribution cabinet, which comprises a vertical winding displacement structure, a box body and a box body upper cover, wherein the vertical winding displacement structure comprises a vertical winding displacement plate, a first winding displacement groove and a second winding displacement groove are arranged in the vertical winding displacement plate, the first winding displacement groove and the second winding displacement groove are equidistantly distributed in the vertical winding displacement plate, a part plate is fixedly arranged in the box body, a moving assembly is arranged on the lower surface of the box body, and a braking assembly is arranged on one side outside the moving assembly; according to the position that actually needs used, drive the switch board through removing the subassembly and remove, remove to the assigned position after, it is fixed with the switch board to go on through control brake assembly, and then realized the effect that the switch board can carry out work under different environment, sliding connection through slide and spout for the vertical row winding displacement board is convenient for install in dismantling, and vertical row winding displacement board inside is equipped with first winding displacement groove and the second winding displacement groove of a plurality of differences in size, is more convenient for carry out the inside circuit connection of switch board.

Description

Power distribution cabinet

Technical Field

The utility model relates to a switch board technical field specifically is a switch board.

Background

The power distribution cabinet is divided into a power distribution cabinet, a lighting power distribution cabinet and a metering cabinet, and is a final-stage device of a power distribution system, the final-stage device provides protection, monitoring and control for loads, and carries out all-around monitoring on power quality such as voltage, current, frequency, useful power, useless power, electric energy and the like, and the final-stage power distribution device is generally called as a lighting power distribution cabinet; the power distribution cabinet is used in the occasions with dispersed loads and less loops; the motor control center is used for occasions with concentrated loads and more loops; they distribute the power of a certain circuit of the upper-level power distribution equipment to the nearby loads; this level of equipment should provide protection, monitoring and control of the load.

Although the existing power distribution cabinet has realized the functions of a control circuit and the like, the existing power distribution cabinet still has some defects in practical use, and due to the difference of use environments, the existing power distribution cabinet is difficult to place and use on the uneven ground, so that the application range of the existing power distribution cabinet is limited, and the practicability is not strong.

SUMMERY OF THE UTILITY MODEL

The utility model aims to provide a power distribution cabinet, which is provided with a moving assembly and a braking assembly; the problem that the existing power distribution cabinet is difficult to place and use on uneven ground due to different use environments in the background technology is solved.

In order to achieve the above object, the utility model provides a following technical scheme: a power distribution cabinet comprises a vertical arrangement structure, a box body and a box body upper cover, wherein the vertical arrangement structure comprises a vertical arrangement line board, the first wire arranging groove and the second wire arranging groove are arranged in the vertical wire arranging plate and are distributed in the vertical wire arranging plate at equal intervals, the vertical line boards are symmetrically arranged on two sides of the inner wall of the box body, the box body is internally and fixedly provided with the component boards, the lower surface of the box body is provided with a moving component, one side of the outer part of the moving component is provided with a braking component, the brake component comprises an electric push rod and a sucker, the top end of the electric push rod is fixedly inserted at the two sides of the lower surface of the box body, the sucker is fixedly sleeved at the tail end of the electric push rod, the sucker is integrally in a conical structure, a protective cover is arranged above the upper cover of the box body, the protective cover is characterized in that a placing groove is formed in two sides of the lower end of the interior of the protective cover, and two sides of the upper surface of the upper cover of the box body are connected to the inside of the placing groove in a sliding mode.

Preferably, through holes are formed in two sides of the interior of the box body, and the through holes are uniformly distributed in two sides of the interior of the box body.

Preferably, the moving assembly comprises a connecting rod, a pulley and a push plate, the top end of the connecting rod is fixedly inserted into the lower surface of the box body, and the pulley is movably connected to the tail end of the connecting rod.

Preferably, grooves are formed in two sides of the interior of the box body, a push plate is inserted into the grooves in a sliding mode, the push plate is integrally of an inclined structure, and an avoiding groove is formed in the upper end of the interior of the push plate.

Preferably, the upper surface of the interior of the box body is provided with a threaded hole, the interior of the upper cover of the box body is provided with a counter bore, and the counter bore is matched with the threaded hole.

Compared with the prior art, the beneficial effects of the utility model are that:

1. the utility model discloses be equipped with removal subassembly and brake assembly, when the actual need uses, according to the position that actual need used, drive the switch board through the removal subassembly and remove, remove to the assigned position after, fix the switch board through controlling the brake assembly, and then realized the effect that the switch board can carry out work under different environment, solved because the difference of service environment, the problem that current switch board is difficult to place and use on uneven ground;

2. the utility model discloses be equipped with the spout and erect the winding displacement board, through the sliding connection of slide with the spout for erect the winding displacement board and be convenient for install in dismantling, and erect inside first winding displacement groove and the second winding displacement groove that is equipped with a plurality of differences in size of winding displacement board, be more convenient for carry out the inside circuit connection of switch board.

Drawings

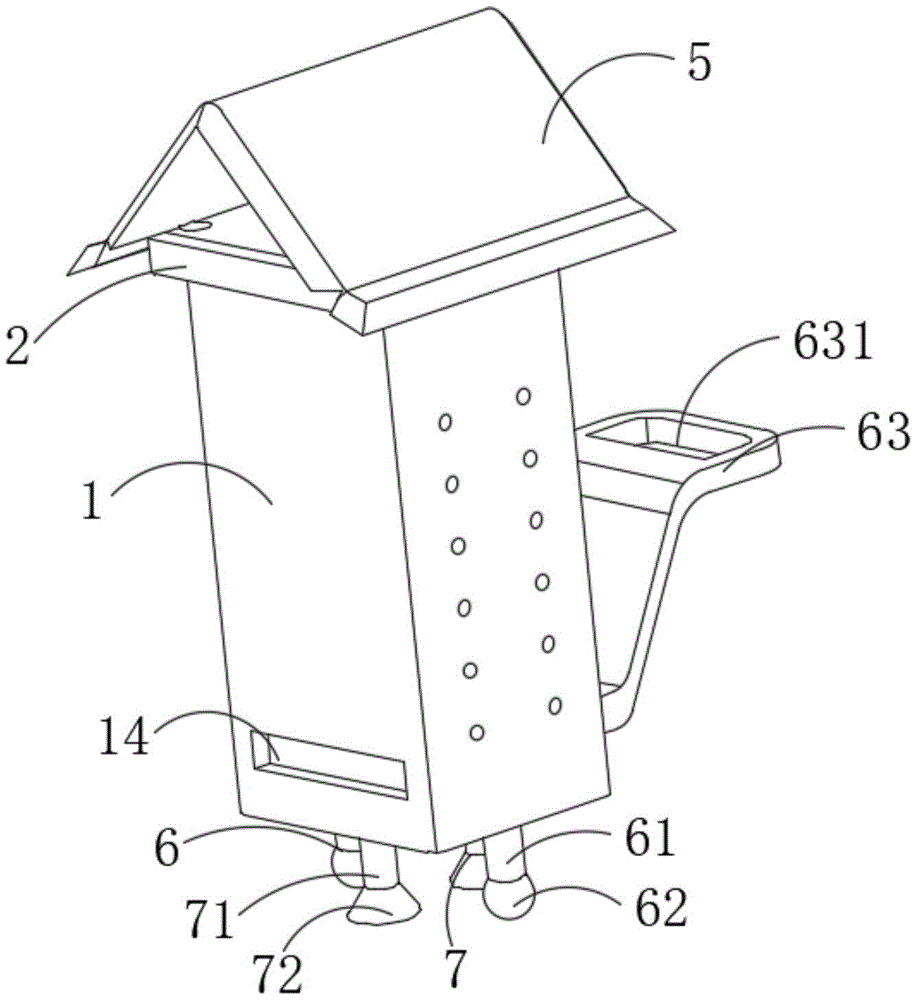

FIG. 1 is a schematic view of the main structure of the present invention;

FIG. 2 is a schematic top view of the present invention;

FIG. 3 is a schematic view of the internal structure of the box body of the present invention;

FIG. 4 is a schematic view of the main structure of the case body of the present invention;

FIG. 5 is a schematic view of the main structure of the vertical winding displacement plate of the present invention;

FIG. 6 is a schematic view of the main structure of the protective cover of the present invention;

fig. 7 is a schematic view of the main structure of the upper cover of the box body.

In the figure: 1. a box body; 2. the box body is covered; 3. a parts board; 4. a vertically arranged wire arranging plate; 5. a protective cover; 6. A moving assembly; 7. a brake assembly; 11. a threaded hole; 12. a chute; 13. a through hole; 14. a groove; 21. A countersunk hole; 41. a slide plate; 42. a first wire arrangement groove; 43. a second wire arrangement groove; 51. a placement groove; 61. A connecting rod; 62. a pulley; 63. pushing the plate; 71. an electric push rod; 72. a suction cup; 631. avoiding the groove.

Detailed Description

The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.

Referring to fig. 1 to 7, the present invention provides a technical solution: the utility model provides a power distribution cabinet, including erecting winding displacement structure and box 1 and box upper cover 2, erect winding displacement structure and include erecting winding displacement board 4, erect winding displacement board 4 inside first winding displacement 42 and the second winding displacement 43 of having seted up, first winding displacement 42 and second winding displacement 43 equidistance distribute inside erecting winding displacement board 4, erect winding displacement board 4 symmetry and set up in 1 inner wall both sides of box, erect inside first winding displacement 42 and the second winding displacement 43 that are equipped with a plurality of variation in size of winding displacement board 4, relevant staff can choose first winding displacement 42 or second winding displacement 43 to carry out circuit connection according to the specification of actual electric wire for use.

1 inside fixed mounting of box has

part board

3, 2 tops of box upper cover are equipped with protection casing 5, standing groove 51 has been seted up to 5 inside lower extreme both sides of protection casing, 2 upper surface both sides sliding connection of box upper cover are inside standing groove 51, through-hole 13 has been seted up to 1 inside both sides of box, through-hole 13 evenly distributed is in 1 inside both sides of box, through setting up protection casing 5, the realization is to the 1 outside dustproof rainproof effect that carries out of box, the rainwater can fall to ground along the slope structure of 5 both sides of protection casing, fine play the effect of protection switch board, during actual installation, place protection casing 5 in 2 upper surface both sides of box upper cover through standing groove 51 can, can be for the 1 inside heat dissipation that trades the wind of box through-hole 13, prevent that 1 inside continuous operating temperature of box is too high.

Spout 12 has been seted up to 1 inner wall both sides of box, and the outside one side fixed mounting of vertical row line board 4 has slide 41, and slide 41 sliding connection is inside spout 12, through setting up spout 12 for the direction that vertical row line board 4 can follow slide 41 slides along spout 12 is inside, and then realizes the installation to vertical row line board 4.

Threaded hole 11 has been seted up to the inside upper surface of box 1, countersunk hole 21 has been seted up to box upper cover 2 inside, countersunk hole 21 matches the setting with threaded hole 11, threaded hole 11 and countersunk hole 21 are provided with four groups altogether, through setting up threaded hole 11 and countersunk hole 21 and realize the threaded connection of box upper cover 2 and box 1, be convenient for install and dismantle box upper cover 2, through dismantling the work such as maintenance and maintenance of being convenient for to the spare part of box 1 inside to box upper cover 2.

Remove subassembly 6 including connecting rod 61, pulley 62 and push pedal 63, fixed grafting in the 1 lower surface of box on connecting rod 61 top, pulley 62 swing joint is terminal in connecting rod 61, recess 14 has been seted up to the 1 inside both sides of box, the inside slip grafting of recess 14 has push pedal 63, push pedal 63 is whole to the slope structure, push pedal 63 has seted up on the inside upper end and has dodged groove 631, in the time of the actual need removal switch board, according to the direction that actually needs removed, slide the grafting at recess 14 inside push pedal 63, relevant staff is dodging inside groove 631 through holding, it can make the switch board follow pulley 62's rotation and remove to promote push pedal 63, it can to slide push pedal 63 after the assigned position and take out.

Brake assembly 7 includes electric putter 71 and sucking disc 72, fixed the pegging graft in box 1 lower surface both sides in electric putter 71 top, sucking disc 72 is fixed cup joints in electric putter 71 end, sucking disc 72 is whole to be the toper structure, move the switch board to suitable position after, can carry out the position of fixed switch board through brake assembly 7, stretch through electric putter 71, and then drive sucking disc 72 and remove downwards, it takes place elastic deformation to move down the atress until sucking disc 72 contacts ground and continuously, and then adsorb on ground, the effect of carrying out the braking has been realized, and the sucking disc 72 of both sides moves down and adsorbs ground in-process, realized can also can fixed effect to carrying out the during operation on the ground at the unevenness, when needing to remove the accessory cabinet, only need control electric putter 71 shrink, it makes sucking disc 72 no longer contact ground can to drive sucking disc 72 to move up.

Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.

Claims

1. The utility model provides a power distribution cabinet, is including erecting row winding displacement structure and box (1) and box upper cover (2), erect row winding displacement structure and including erecting row line board (4), its characterized in that: the improved vertical winding displacement device is characterized in that a first winding displacement groove (42) and a second winding displacement groove (43) are formed in the vertical winding displacement plate (4), the first winding displacement groove (42) and the second winding displacement groove (43) are distributed in the vertical winding displacement plate (4) in an equal distance mode, the vertical winding displacement plate (4) is symmetrically arranged on two sides of the inner wall of the box body (1), a part plate (3) is fixedly arranged in the box body (1), a moving assembly (6) is arranged on the lower surface of the box body (1), a braking assembly (7) is arranged on one side of the outer portion of the moving assembly (6), the braking assembly (7) comprises an electric push rod (71) and a sucker (72), the top end of the electric push rod (71) is fixedly inserted into two sides of the lower surface of the box body (1), the sucker (72) is fixedly sleeved on the tail end of the electric push rod (71), the sucker (72) is integrally of a conical structure, a protective cover (5) is arranged above the upper cover (2) of the box body, the protective cover is characterized in that placing grooves (51) are formed in two sides of the lower end of the interior of the protective cover (5), and two sides of the upper surface of the upper cover (2) of the box body are connected to the inside of the placing grooves (51) in a sliding mode.

2. A switch board according to claim 1, characterized in that: through-holes (13) are formed in two sides of the interior of the box body (1), and the through-holes (13) are uniformly distributed in two sides of the interior of the box body (1).

3. A switch board according to claim 1, characterized in that: the moving assembly (6) comprises a connecting rod (61), a pulley (62) and a push plate (63), the top end of the connecting rod (61) is fixedly inserted into the lower surface of the box body (1), and the pulley (62) is movably connected to the tail end of the connecting rod (61).

4. A switch board according to claim 1, characterized in that: the box (1) inside both sides are seted up flutedly (14), recess (14) inside slip is pegged graft there is push pedal (63), push pedal (63) wholly is the slope structure, push pedal (63) inside upper end has been seted up and has been dodged groove (631).

5. A switch board according to claim 1, characterized in that: threaded holes (11) are formed in the upper surface of the interior of the box body (1), counter bores (21) are formed in the interior of the box body upper cover (2), and the counter bores (21) are matched with the threaded holes (11).
