CN215243028U - Multi-station automatic rubber sole forming machine

Info

Publication number: CN215243028U
Application number: CN202120804321.2U
Authority: CN
Inventors: 苏承训
Original assignee: Dongguan Senhong New Material Technology Co ltd
Current assignee: Dongguan Senhong New Material Technology Co ltd
Priority date: 2021-04-20
Filing date: 2021-04-20
Publication date: 2021-12-21
Anticipated expiration: 2031-04-20

Abstract

The utility model discloses a multi-station automatic rubber sole forming machine, which comprises a base, a circular processing table and a rotating table, a round processing table is arranged on the base, a rack is arranged on the inner side surface of the rotating table, a round groove A is arranged on the outer side surface of the rotating table, an L-shaped buckle is inserted and arranged in the round groove A and is fixed on the round processing table through a fixing screw, a rotary motor is arranged on the inner side of the circular processing table, a gear is arranged on an output shaft of the rotary motor, and the gear is connected with the rack in a meshing manner, two stand columns are installed on the left side of the base, mounting plates are fixed to the upper ends of the two stand columns, a hydraulic device is installed in the middle of the upper end of each mounting plate, a hydraulic column is arranged at the lower end of each hydraulic device, a lower pressing plate is fixed to the lower end of each hydraulic column, two ends of each lower pressing plate are slidably installed on the two stand columns, and an injection molding machine is installed on the right side of the base. The utility model discloses a multistation disc type sole make-up machine alleviates workman intensity of labour, has improved production efficiency greatly.

Description

Multi-station automatic rubber sole forming machine

Technical Field

The utility model relates to a shoes shaping technical field specifically is a rubber sole automatic molding machine of multistation.

Background

Under the large environment of the current market, particularly after WTO is added in china, enterprises are increasingly facing global competition, and in order to continue to survive in the modern competitive market environment, the enterprises must improve their competitiveness. At present, the competitive theme of the Chinese manufacturing industry enters the era of comprehensive technology competition such as yield, quality, cost and the like, the production speed of the processing and manufacturing industry is faster and faster, and a plurality of manufacturers adopt a multi-station forming machine to replace the original single-station forming machine.

The traditional single-station forming machine is operated by manpower, the labor intensity is high, the next double-sole manufacturing can be carried out only by taking out the first double-sole after cooling, workers need to wait for the time of cooling the shoe mold, the time is wasted, and the production efficiency is low.

SUMMERY OF THE UTILITY MODEL

An object of the utility model is to provide a rubber sole automatic molding machine of multistation, the multistation preparation that possesses need not to wait for the cooling of shoe mold, directly carries out a pair of sole preparation advantage down, has solved the problem of mentioning in the background art.

In order to achieve the above object, the utility model provides a following technical scheme: a multi-station automatic rubber sole forming machine, which comprises a base, a circular processing table and a rotating table, a round processing table is arranged on the base and fixed on the base through a support column, the inner side surface of the rotating platform is provided with a rack, the outer side surface of the rotating platform is provided with a circular groove A, an L-shaped buckle is inserted and installed in the circular groove A, the L-shaped buckle is fixed on the circular processing platform through a fixing screw, a rotary motor is arranged on the inner side of the circular processing table, a gear is arranged on an output shaft of the rotary motor, and the gear is connected with the rack in a meshing manner, two stand columns are installed on the left side of the base, mounting plates are fixed to the upper ends of the two stand columns, a hydraulic device is installed in the middle of the upper end of each mounting plate, a hydraulic column is arranged at the lower end of each hydraulic device, a lower pressing plate is fixed to the lower end of each hydraulic column, two ends of each lower pressing plate are slidably installed on the two stand columns, and an injection molding machine is installed on the right side of the base.

Preferably, eight pairs of rectangular grooves are formed in the upper surface of the circular processing table in an annular array, and a steel ball is placed in each rectangular groove.

Preferably, twelve sole molds are mounted on the upper surface of the rotating platform in an annular array, and two circular grooves B matched with the rectangular grooves are formed in the lower surface of the rotating platform.

Preferably, the feed hopper is installed to the injection molding machine upper end, and inside is equipped with the pay-off motor, and the conveying pipeline is installed to the injection molding machine outer end.

Preferably, the outlet end of the material conveying pipe is positioned beside the hydraulic device and directly faces the lower sole mold.

Preferably, a control console is arranged on one side of the base.

Compared with the prior art, the beneficial effects of the utility model are as follows:

1. the utility model discloses a circular processing platform upper surface is ring array and has seted up eight pairs of rectangle recesses, and all placed the steel ball in every rectangle recess, the revolving stage medial surface is equipped with the rack, circular recess A has been seted up to the revolving stage lateral surface, insert in the circular recess A and install L shape buckle, L shape buckle 1 is fixed on circular processing platform through the fixed screw, two circular recess B identical with the rectangle recess are seted up to the revolving stage lower surface, the rotating electrical machines is installed to circular processing platform inboard, install the gear on the rotating electrical machines output shaft, and wheel and rack toothing are connected, can realize that the rotating electrical machines rotates and drive the stable rotation at circular processing bench of revolving stage.

2. The utility model discloses a revolving stage upper surface is annular array and installs twelve sole moulds, the feeding motor of its inside installation of injection molding machine work start-up moulds plastics the sizing material to individual sole mould through conveying pipeline 15, after moulding plastics, the rotating electrical machines rotates and drives the revolving stage and rotate, make the sole mould after moulding plastics rotatory to hydraulic means below, hydraulic means drives holding down plate downwardly moving, sole mould after moulding plastics pushes down and makes its shaping, in the time of pushing down, the injection molding machine continues to annotate the material to next sole mould, after pushing down, hydraulic means retrieves, make the holding down plate break away from sole mould, the rotating electrical machines rotates and makes second sole mould enter into hydraulic means below and push down the shaping, realize the processing of the rubber sole of a multistation, high efficiency.

Drawings

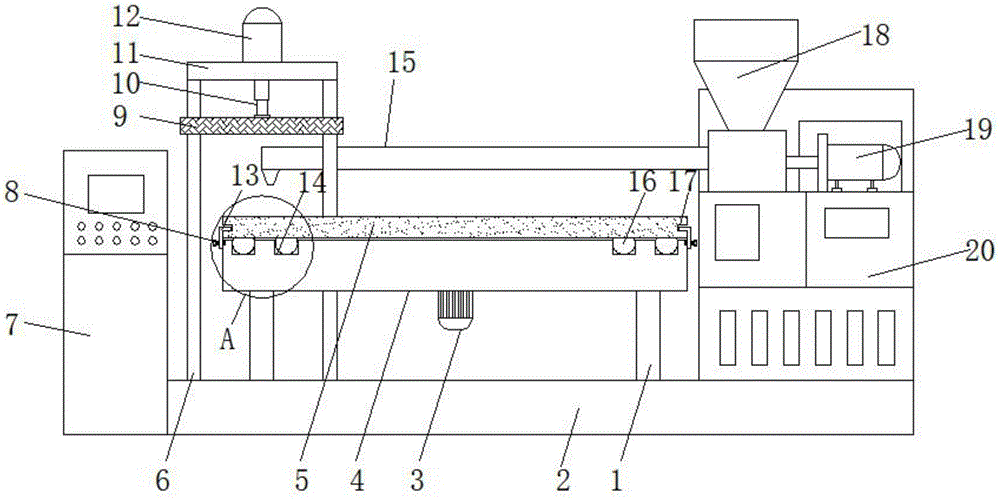

FIG. 1 is a schematic structural view of the present invention;

fig. 2 is a top view of the present invention;

FIG. 3 is a top view of the circular processing table of the present invention;

FIG. 4 is a rear view of the turntable of the present invention;

fig. 5 is an enlarged schematic structural diagram of a in fig. 1 according to the present invention.

In the figure: 1. a support pillar; 2. a base; 3. a rotating electric machine; 4. a circular processing table; 5. a rotating table; 6. a column; 7. a console; 8. fixing screws; 9. a lower pressing plate; 10. a hydraulic column; 11. mounting a plate; 12. a hydraulic device; 13. an L-shaped buckle; 14. a rectangular groove; 15. a delivery pipe; 16. a steel ball; 17. a circular groove A; 18. a feed hopper; 19. a feeding motor; 20. an injection molding machine; 21. a sole mold; 22. a rack; 23. a gear; 24. and a circular groove B.

Detailed Description

The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.

Referring to fig. 1 to 5, the present invention provides a multi-station rubber sole automatic forming machine, which comprises: a multi-station automatic rubber sole forming machine comprises a base 2, a circular processing table 4 and a rotating table 5, wherein a control table 7 is arranged on one side of the base 2; the console 7 controls the start and stop of the hydraulic device 12, the rotating motor 3, and the injection molding machine 20. A round processing table 4 is mounted on the base 2, the round processing table 4 is fixed on the base 2 through a support column 1, eight pairs of rectangular grooves 14 are formed in the upper surface of the round processing table 4 in an annular array, a steel ball 16 is placed in each rectangular groove 14, a rack 22 is arranged on the inner side surface of the rotary table 5, a round groove A17 is formed in the outer side surface of the rotary table 5, an L-shaped buckle 13 is inserted into the round groove A17, and the L-shaped buckle 13 is fixed on the round processing table 4 through a fixing screw 8; the rotating table 5 can stably rotate on the circular processing table 4 without retreating and separating. Twelve sole molds 21 are arranged on the upper surface of the rotating platform 5 in an annular array, two circular grooves B24 matched with the rectangular grooves 14 are formed in the lower surface of the rotating platform 5, the rotating motor 3 is arranged on the inner side of the circular processing platform 4, a gear 23 is arranged on an output shaft of the rotating motor 3, and the gear 23 is meshed with the rack 22; the upper surface of the round processing table 4 is provided with eight pairs of rectangular grooves 14 in an annular array, steel balls 16 are placed in the eight pairs of rectangular grooves 14, the lower surface of the rotating table 5 is provided with two round grooves B24 matched with the rectangular grooves 14, friction force is reduced when the rotating table 5 rotates, and the rotating table is easier to rotate.

Two upright posts 6 are arranged on the left side of the base 2, mounting plates 11 are fixed at the upper ends of the two upright posts 6, a hydraulic device 12 is arranged in the middle of the upper end of each mounting plate 11, a hydraulic column 10 is arranged at the lower end of each hydraulic device 12, a lower pressing plate 9 is fixed at the lower end of each hydraulic column 10, and two ends of each lower pressing plate 9 are slidably mounted with the two upright posts 6; the hydraulic device 12 works to enable the hydraulic column 10 to descend, the hydraulic column 10 descends to drive the lower pressing plate 9 to move downwards along the two upright posts 6, and the injection molded sole mold 21 is pressed downwards to be molded.

An injection molding machine 20 is arranged on the right side of the base 2, a feed hopper 18 is arranged at the upper end of the injection molding machine 20, a feeding motor 19 is arranged in the injection molding machine 20, a feed delivery pipe 15 is arranged at the outer end of the injection molding machine 20, and the outlet end of the feed delivery pipe 15 is positioned beside the hydraulic device 12 and directly faces a lower sole mold 21; the rubber material enters an injection molding machine 20 through a feed hopper 18, and a feeding motor 19 works to inject the rubber material into a sole mold 21 through a feed delivery pipe 15.

The utility model discloses all motors choose for use small-size servo motor-14 HS2408 model to design, and this model motor only refers to as affiliated technical field personnel and chooses for use, and affiliated technical field personnel can carry out the motor of matching the same parameter and function according to the actual production needs and install the debugging and use, the utility model discloses do not describe repeatedly.

The working principle is as follows: when the utility model is used, an external power supply is connected firstly, after the control console 7 is electrified, the running time parameters among the components are input, the injection molding machine 20, the rotating motor 3 and the hydraulic device 12 are started, the injection molding machine 20 starts the feeding motor 19 arranged in the injection molding machine, the feeding motor 19 works to inject the sizing material into the sole mold 21 through the material conveying pipe 15, after the injection molding is finished, the rotating motor 3 rotates to drive the rotating platform 5 to rotate, the injection molded sole mold 21 rotates below the hydraulic device 12, the hydraulic device 12 works to lower the hydraulic column 10, the hydraulic column 10 descends to drive the lower pressure plate 9 to move downwards along the two upright columns 6, the injection molded sole mold 21 is pressed downwards to be molded, when the injection molding machine 20 continues to inject the next sole mold 21, after the pressing is finished, the hydraulic device 12 is recovered, the lower pressure plate 9 is separated from the sole mold 21, the rotating motor 3 rotates to enable the second sole mold 21 to enter the lower portion of the hydraulic device 12 to be pressed and molded, the actions are repeated, and after the sole in the sole mold 21 is cooled, a worker takes out the sole.

Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.

Claims

1. The utility model provides a rubber sole automatic molding machine of multistation, includes base (2), circular processing platform (4) and revolving stage (5), its characterized in that: install circular processing platform (4) on base (2), circular processing platform (4) are fixed on base (2) through support column (1), revolving stage (5) medial surface is equipped with rack (22), and circular recess A (17) have been seted up to revolving stage (5) lateral surface, and insert in circular recess A (17) and install L shape buckle (13), and L shape buckle (13) are fixed on circular processing platform (4) through fixed screw (8), rotating electrical machines (3) are installed to circular processing platform (4) inboard, install gear (23) on rotating electrical machines (3) output shaft, and gear (23) and rack (22) meshing are connected, two stands (6) are installed to the left side on base (2), and two stand (6) upper ends are fixed with mounting panel (11), install hydraulic means (12) in the middle of mounting panel (11) upper end is positive, hydraulic means (12) lower extreme is equipped with hydraulic column (10), and hydraulic column (10) lower extreme is fixed with holding down plate (9), and holding down plate (9) both ends and two stand (6) slidable mounting, injection molding machine (20) are installed on the right side on base (2).

2. The multi-station automatic rubber sole molding machine according to claim 1, characterized in that: eight pairs of rectangular grooves (14) are formed in the upper surface of the circular processing table (4) in an annular array, and a steel ball (16) is placed in each rectangular groove (14).

3. The multi-station automatic rubber sole molding machine according to claim 1, characterized in that: twelve sole molds (21) are installed on the upper surface of the rotating platform (5) in an annular array, and two circular grooves B (24) matched with the rectangular grooves (14) are formed in the lower surface of the rotating platform (5).

4. The multi-station automatic rubber sole molding machine according to claim 1, characterized in that: the feeding hopper (18) is installed at the upper end of the injection molding machine (20), the feeding motor (19) is arranged in the feeding hopper, and the conveying pipe (15) is installed at the outer end of the injection molding machine (20).

5. The multi-station automatic rubber sole molding machine according to claim 4, characterized in that: the outlet end of the material conveying pipe (15) is positioned beside the hydraulic device (12) and directly faces the sole mould (21) below.

6. The multi-station automatic rubber sole molding machine according to claim 1, characterized in that: base (2) one side is equipped with control cabinet (7), and control cabinet (7) control hydraulic means (12), rotating electrical machines (3) and injection molding machine (20) start-stop.
