CN215237251U - Door trim mould convenient to equipment - Google Patents
Door trim mould convenient to equipment Download PDFInfo
- Publication number
- CN215237251U CN215237251U CN202121340612.7U CN202121340612U CN215237251U CN 215237251 U CN215237251 U CN 215237251U CN 202121340612 U CN202121340612 U CN 202121340612U CN 215237251 U CN215237251 U CN 215237251U
- Authority
- CN
- China
- Prior art keywords
- lower die
- base
- door trim
- die holder
- assembly
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Active
Links
Images
Abstract
The utility model discloses a door trim mould convenient to equipment, including bed die assembly and drawing of patterns subassembly, the bed die assembly includes: a base; the threaded holes are formed in the middle of the left side and the right side of the base; the lower die base is arranged at the upper end of the base, and connecting bolts are connected to the middle parts of the left side and the right side of the lower die base; the buffer blocks are mounted at the upper ends of the front side and the rear side of the lower die holder; the demolding component is arranged in the middle of the base; the stripper assembly comprises: a connecting seat; the ejector rod is connected to the upper end of the connecting seat, a spring is arranged on the outer side of the lower part of the ejector rod, and the upper end of the ejector rod is connected with a supporting head; and the air rod is arranged in the middle of the connecting seat. This door trim mould convenient to equipment is provided with the chaplet to under the connection of ejector pin, made things convenient for and the die holder between pressfitting and separation, thereby with the ornamental strip jack-up after the shaping, made things convenient for the quick drawing of patterns of ornamental strip.
Description
Technical Field
The utility model relates to a door trim mould technical field specifically is a door trim mould convenient to equipment.
Background
The present invention relates to a door decoration strip, and more particularly to a mold, various molds and tools for obtaining a desired product by injection molding, blow molding, extrusion, die casting or forging molding, smelting, stamping and the like in industrial production.
At present, the door trim strip mold on the market is inconvenient in assembly and connection of parts, is not provided with a demolding structure, and is not beneficial to rapid demolding after molding of the trim strip.
SUMMERY OF THE UTILITY MODEL
An object of the utility model is to provide a door trim mould convenient to equipment to solve the present door trim mould on the market that proposes in the above-mentioned background art, the assembly and connection between its part is inconvenient, and does not set up demoulding structure, is unfavorable for the problem of the quick drawing of patterns after the ornamental strip shaping.
In order to achieve the above object, the utility model provides a following technical scheme: a door trim mold facilitating assembly, comprising:
a lower die assembly;
the lower die assembly includes:
a base;
the threaded holes are formed in the middle of the left side and the right side of the base;
the lower die base is arranged at the upper end of the base, and connecting bolts are connected to the middle parts of the left side and the right side of the lower die base;
the buffer blocks are mounted at the upper ends of the front side and the rear side of the lower die holder;
the demolding component is arranged in the middle of the base;
the stripper assembly comprises:
a connecting seat;
the ejector rod is connected to the upper end of the connecting seat, a spring is arranged on the outer side of the lower part of the ejector rod, and the upper end of the ejector rod is connected with a supporting head;
and the air rod is arranged in the middle of the connecting seat.
Preferably, the lower die holder is connected with the base in a clamping manner, and the connecting bolt is movably connected with the lower die holder.
Preferably, the buffer blocks are fixedly connected with the lower die holder, and six buffer blocks are arranged.
Preferably, the lower mold assembly further comprises:
the through hole is formed in the outer portion of the inner side of the lower die base, and a die groove is formed in the middle of the inner side of the lower die base;
preferably, the method further comprises the following steps:
the upper die assembly is arranged on the upper side of the lower die base;
the upper die assembly includes:
a connecting plate;
the lining plate is connected to the middle part of the lower end of the connecting plate, and an upper die head is mounted at the bottom of the lining plate;
the guide post is arranged on the outer side of the lower end of the connecting plate, and a small circular groove is formed in the outer side of the guide post.
Preferably, the upper die head is fixedly connected with the lining plate, and the lining plate is fixedly connected with the connecting plate.
Preferably, the small circular grooves are distributed on the outer sides of the guide columns in a matrix shape, the guide columns are fixedly connected with the connecting plate, and the number of the guide columns is four.
Preferably, the supporting head and the ejector rod are of an integrated structure, and the ejector rod and the lower die base form a movable structure through a spring.
Preferably, the ejector rod is fixedly connected with the connecting seat, and the connecting seat and the lower die seat form a movable structure through the air rod.
The utility model provides a door trim mould convenient to equipment possesses following beneficial effect: the lower die part of the die adopts a combined structure and is assembled and connected in a clamping mode, the operation is simple and convenient, a buffer structure is further arranged, the abrasion to the die strip during stamping is reduced, meanwhile, the middle part of the lower die is further provided with a demoulding mechanism, and the ejector rod is controlled to move up and down in a pneumatic mode, so that the demoulding of the formed decorative strip is facilitated.
1. The utility model facilitates the positioning and assembly of the lower die assembly through the clamping connection between the lower die holder and the base, and facilitates the fixation of the lower die assembly after the assembly through the connection of the connecting bolt and the arrangement of the threaded hole, thereby improving the overall mechanical strength; simultaneously, the buffer blocks are made of rubber materials, and through the arrangement of the six buffer blocks, a better buffer effect can be achieved when the connecting plate is pressed downwards, and damage to the decorative strip during stamping is prevented.
2. The utility model can play a certain protection role to the connecting plate through the connection of the lining plates; through the setting of four guide posts to combine the setting of through-hole, provide the effect of direction for the pressfitting of this mould, thereby security when having improved its punching press, and through the little circular slot that the matrix form distributes, made things convenient for the storage of lubricating oil, thereby guaranteed this guide structure's lubricity.
3. The utility model, through the setting of the supporting head, under the control of the ejector rod, the pressing and the separation between the supporting head and the lower die holder are facilitated, so that the formed decoration strip is jacked up, the rapid demoulding of the decoration strip is facilitated, and the supporting head can be automatically kept to be attached to the lower die holder under the condition of losing external force through the connection of the spring; through the setting of connecting seat, made things convenient for the interlock of many ejector pins to through the setting of gas pole, provide drive power for reciprocating of ejector pin, thereby made things convenient for the accurate control to the chaplet.
Drawings

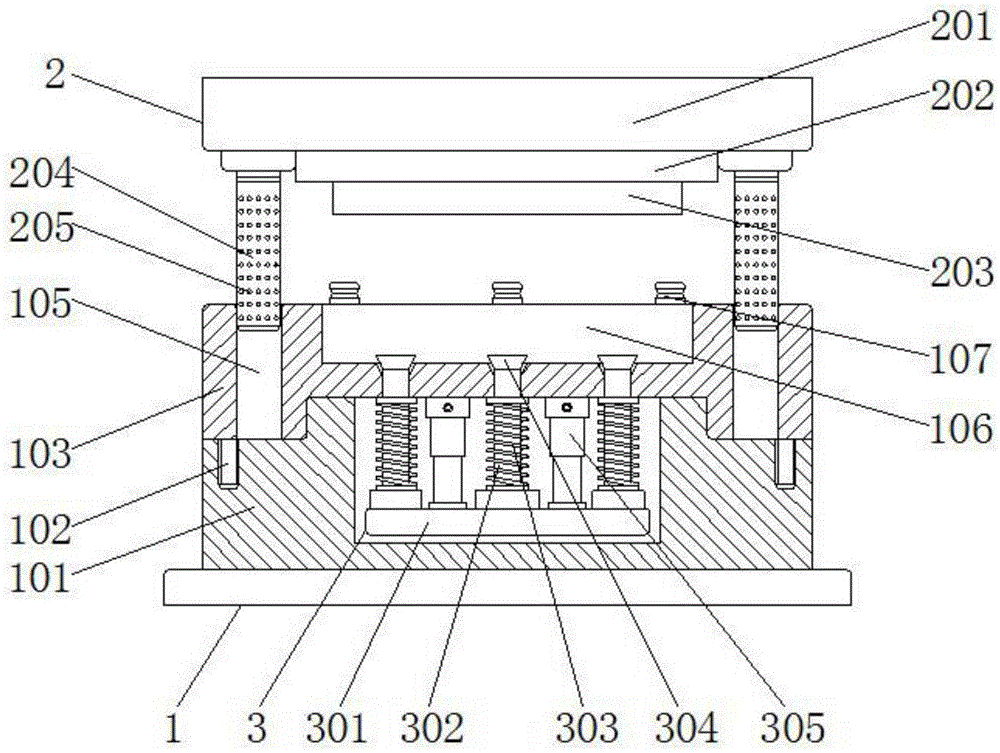

Fig. 1 is a schematic view of the overall structure of the present invention;
fig. 2 is a schematic side structure view of the present invention;
fig. 3 is the perspective view of the lower mold base of the present invention.
In the figure: 1. a lower die assembly; 101. a base; 102. a threaded hole; 103. a lower die holder; 104. a connecting bolt; 105. a through hole; 106. a die cavity; 107. a buffer block; 2. an upper die assembly; 201. a connecting plate; 202. a liner plate; 203. an upper die head; 204. a guide post; 205. a small circular groove; 3. a demolding component; 301. a connecting seat; 302. a top rod; 303. a spring; 304. supporting a head; 305. and (4) an air rod.
Detailed Description
As shown in fig. 1-2, a door trim mold facilitating assembly, includes: a lower mold assembly 1; the lower die assembly 1 includes: a base 101; threaded holes 102 opened in the middle of the left and right sides of the base 101; a lower die base 103 disposed at an upper end of the base 101; the demolding component 3 is arranged in the middle of the base 101; the stripper assembly 3 comprises: a connecting socket 301; a top rod 302 connected to the upper end of the connecting seat 301, a spring 303 arranged on the outer side of the lower part of the top rod 302, and a supporting head 304 connected to the upper end of the top rod 302; an air rod 305 installed at the middle of the coupling seat 301; the lower die base 103 is connected with the base 101 in a clamping manner, the connecting bolt 104 is movably connected with the lower die base 103, the lower die assembly 1 is conveniently positioned and assembled through the clamping connection between the lower die base 103 and the base 101, and the lower die assembly 1 is conveniently fixed after being assembled through the connection of the connecting bolt 104 and the arrangement of the threaded hole 102, so that the integral mechanical strength of the lower die assembly is improved; an upper die assembly 2 disposed on an upper side of the lower die base 103; the upper die assembly 2 includes: a connecting plate 201; a lining plate 202 connected to the middle of the lower end of the connecting plate 201, wherein the bottom of the lining plate 202 is provided with an upper die head 203; a guide column 204 arranged outside the lower end of the connecting plate 201, wherein a small circular groove 205 is formed outside the guide column 204; the upper die head 203 is fixedly connected with the lining plate 202, the lining plate 202 is fixedly connected with the connecting plate 201, the connecting plate 201 can be protected to a certain extent by the connection of the lining plate 202, and the mechanical strength of the upper die head 203 is improved by the fixed connection of the upper die head 203; the small circular grooves 205 are distributed on the outer sides of the guide columns 204 in a matrix shape, the guide columns 204 are fixedly connected with the connecting plate 201, four guide columns 204 are arranged, and the four guide columns 204 are arranged and combined with the arrangement of the through holes 105 to provide a guiding effect for the pressing of the die, so that the safety of the die during stamping is improved, and the small circular grooves 205 distributed in the matrix shape facilitate the storage of lubricating oil, so that the lubrication degree of the guide structure is ensured; the supporting head 304 and the ejector rod 302 are of an integrated structure, the ejector rod 302 and the lower die holder 103 form a movable structure through the spring 303, the supporting head 304 is arranged under the control of the ejector rod 302, and the pressing and the separation between the supporting head 304 and the lower die holder 103 are facilitated, so that the formed decorative strip is jacked up, the demoulding of the decorative strip is facilitated, and the supporting head 304 can be automatically kept attached to the lower die holder 103 under the condition that the external force is lost through the connection of the spring 303; for fixed connection between ejector pin 302 and connecting seat 301, connecting seat 301 passes through gas pole 305 and constitutes active structure with lower die holder 103, through the setting of connecting seat 301, has made things convenient for many ejector pins 302's interlock to through the setting of gas pole 305, provide drive power for reciprocating of ejector pin 302, thereby made things convenient for the accurate control to chaplet 304.
As shown in fig. 3, the middle parts of the left and right sides of the lower die holder 103 are connected with connecting bolts 104; a buffer block 107 mounted on the front and rear upper ends of the lower die base 103; the lower die assembly 1 further includes: a through hole 105 which is opened at the outer part of the inner side of the lower die holder 103, and a die cavity 106 is arranged at the middle part of the inner side of the lower die holder 103; for fixed connection between buffer block 107 and the die holder 103, and buffer block 107 is provided with six, and buffer block 107 is made for the rubber material, through the setting of six buffer blocks 107, can play better cushioning effect when connecting plate 201 pushes down, has prevented the damage that causes the ornamental strip when the punching press.
In summary, when the door trim mold convenient to assemble is used, the top rod 302 penetrates into the lower die base 103 from the mold cavity 106, the spring 303 is arranged on the outer side of the lower part of the top rod 302, the top rod 302 is fixedly connected with the connecting base 301, at this time, under the action of the spring 303, the top rod 302 has a downward force, so that the support head 304 at the upper end of the top rod is tightly attached to the mold cavity 106, then the two ends of the air rod 305 are respectively fixed on the upper side of the connecting base 301 and the bottom of the lower die base 103, then the lower die base 103 is clamped and connected with the base 101, the connecting bolt 104 is connected, the lower mold assembly 1 is fixed after being assembled by combining the arrangement of the threaded hole 102, then the four guide posts 204 are fixed at set positions on the connecting plate 201, then the connecting plate 201, the lining plate 202 and the upper die head 203 are sequentially and fixedly connected, and then the connecting plate 201 and the base 101 are respectively fixedly connected with the upper end and the lower end of the stamping device, the connecting plate 201 is moved downwards under the control of the stamping equipment, the guide column 204 is connected with the through hole 105 to provide a guide function for the pressing of the die, after the pressing, the raw material is subjected to punch forming under the matching of the upper die head 203 and the die cavity 106, then the upper die head 203 is lifted upwards, the connecting seat 301 and the ejector rod 302 are moved upwards through controlling the air rod 305, and then the formed decorative strip is jacked up through the supporting head 304.
Claims (9)
1. A door trim mold facilitating assembly, comprising:
a lower die assembly (1);
the method is characterized in that:
the lower die assembly (1) comprises:
a base (101);
the threaded holes (102) are formed in the middle of the left side and the right side of the base (101);
the lower die holder (103) is arranged at the upper end of the base (101), and connecting bolts (104) are connected to the middle parts of the left side and the right side of the lower die holder (103);
a buffer block (107) which is arranged at the upper end of the front side and the rear side of the lower die holder (103);
the demolding component (3) is arranged in the middle of the base (101);
the stripper assembly (3) comprises:
a connecting seat (301);
the top rod (302) is connected to the upper end of the connecting seat (301), a spring (303) is arranged on the outer side of the lower part of the top rod (302), and the upper end of the top rod (302) is connected with a supporting head (304);
an air lever (305) mounted to a middle portion of the connection seat (301).
2. The door trim strip mold convenient to assemble according to claim 1, wherein the lower die holder (103) is connected with the base (101) in a clamping manner, and the connecting bolt (104) is movably connected with the lower die holder (103).
3. The door trim strip mold convenient to assemble as claimed in claim 1, wherein the buffer blocks (107) are fixedly connected with the lower die holder (103), and six buffer blocks (107) are provided.
4. A door trim mold facilitating assembly according to claim 1, wherein the lower mold assembly (1) further comprises:
the through hole (105) is formed in the outer portion of the inner side of the lower die holder (103), and a die cavity (106) is formed in the middle of the inner side of the lower die holder (103).
5. A door trim mold for easy assembly according to claim 1, further comprising:
an upper die assembly (2) arranged on the upper side of the lower die holder (103);
the upper mold assembly (2) comprises:
a connecting plate (201);
the lining plate (202) is connected to the middle of the lower end of the connecting plate (201), and an upper die head (203) is mounted at the bottom of the lining plate (202);
and the guide post (204) is arranged on the outer side of the lower end of the connecting plate (201), and a small circular groove (205) is formed on the outer side of the guide post (204).
6. A door trim mold facilitating assembly according to claim 5, wherein the upper mold head (203) is fixedly connected with the lining plate (202), and the lining plate (202) is fixedly connected with the connecting plate (201).
7. The door trim strip mold convenient to assemble according to claim 5, wherein the small circular grooves (205) are distributed on the outer side of the guide columns (204) in a matrix shape, the guide columns (204) are fixedly connected with the connecting plate (201), and four guide columns (204) are arranged.
8. The door trim strip mold convenient to assemble according to claim 1, wherein the supporting head (304) and the top rod (302) are integrated, and the top rod (302) and the lower die holder (103) form a movable structure through a spring (303).
9. The door trim mold convenient to assemble as claimed in claim 1, wherein the top rod (302) is fixedly connected with the connecting seat (301), and the connecting seat (301) and the lower die seat (103) form a movable structure through the air rod (305).
