Abstract
本实用新型公开了一种知识产权工程师专用工作平台，包括柜体，所述柜体一侧设置有挂钩，所述柜体正面上方设置有抽屉，所述抽屉下方设置有抽屉隔板，所述抽屉隔板下方设置有柜子，所述抽屉一侧设置有置物板，所述置物板下方设置有中间隔板，所述中间隔板下方设置有资料柜，所述柜体上方设置有桌面，所述桌面一侧设置有接线口，所述接线口一侧设置有若干固定槽，所述接线孔另一侧在桌面上开设有印章槽，所述桌面下方固定连接有桌腿本实用新型桌面设置有若干个固定槽，固定槽上设置有可以随时取放的资料夹，方便财会人员进行对票据的取放，并且在资料柜上也设置有固定槽，可以将整理过的票据进行分类存储，资料柜、抽屉、柜子上设置有安全锁，防止票据丢失。
The utility model discloses a special working platform for intellectual property engineers, which comprises a cabinet body, a hook is arranged on one side of the cabinet body, a drawer is arranged above the front of the cabinet body, and a drawer partition is arranged below the drawer. A cabinet is arranged under the drawer partition, a storage board is arranged on one side of the drawer, a middle partition is arranged below the storage plate, a data cabinet is arranged under the middle partition, and a table top is arranged above the cabinet body, so One side of the desktop is provided with a wiring port, one side of the wiring port is provided with a number of fixing slots, the other side of the wiring hole is provided with a stamp slot on the desktop, and a table leg is fixedly connected to the bottom of the desktop. There are several fixed slots, and the fixed slots are provided with folders that can be picked up and placed at any time, which is convenient for accounting personnel to pick and place the bills, and there are also fixed slots on the data cabinet, which can classify and store the sorted bills. Cabinets, drawers and cabinets are provided with safety locks to prevent bills from being lost.
Description
Technical Field
The utility model belongs to the official working field relates to a work platform, concretely relates to special work platform of intellectual property engineer.
Background
In the scientific and technical information consulting service industry, an intellectual property engineer involves a large amount of study or reference documents and a large number of tools such as bills, inkpad boxes, data and the like. Moreover, the work security of intellectual property engineers is very strong, the existing common office table can meet common office conditions, but the office table is often disordered, the work of accounting is not only facilitated, the speed of searching various appliances is low, the work efficiency is influenced, and the safety factor is low.
SUMMERY OF THE UTILITY MODEL
To the weak point that prior art exists, the utility model aims to provide an intellectual property engineer dedicated work platform.
The purpose of the utility model is realized through the following technical scheme:
the utility model provides a special work platform of intellectual property engineering teachers, includes the cabinet body, cabinet body one side is provided with the couple, the cabinet body openly top is provided with the drawer, the drawer below is provided with the drawer baffle, drawer baffle below is provided with the cupboard, drawer one side is provided with puts the thing board, it is provided with intermediate bottom to put thing board below, the intermediate bottom below is provided with the data cabinet, cabinet body top is provided with the desktop, desktop one side is provided with the wiring mouth, wiring mouth one side is provided with a plurality of fixed slots, the seal groove has been seted up on the desktop to wiring hole opposite side, desktop below fixedly connected with table leg.
Furthermore, the fixed slot comprises a first cover plate and a first spring, the first cover plate is horizontally consistent with the desktop, one end of the first spring is connected to the first cover plate, the other end of the first spring is connected to the fixed slot, and at least one first spring is arranged.
Further, the fixed slot top is provided with the file folder, the file folder includes casing, support bar, regulation strip, second spring, casing one side fixedly connected with support bar, regulation strip sliding connection is on the support bar, regulation strip and the middle fixedly connected with second spring of casing top surface, the second spring has one at least.
Further, the seal groove includes the second apron, deposits the mouth, the seal groove is "concave" style of calligraphy, seal groove one side is provided with the breach, seal groove bottom is provided with a plurality of circular mouths of depositing, second apron hinge connection is on the desktop, second apron thickness and seal groove breach highly uniform, the desktop is provided with the recess with seal groove junction, recess thickness is less than seal breach height, the recess has one at least.
Furthermore, a plurality of fixing grooves are formed in the surface of the data cabinet, and a safety lock and a handle are arranged on the front faces of the data cabinet, the drawer and the cabinet.
Compared with the prior art, the utility model, have following advantage and beneficial effect: the utility model discloses the desktop is provided with a plurality of fixed slot, be provided with the file data folder that can get at any time and put on the fixed slot, conveniently go on getting of file or data and put, and also be provided with the fixed slot at the data are cashier's office in a shop, can carry out classified storage with the data of putting in order, the data cabinet, the drawer, be provided with the safety lock on the cupboard, prevent that the data from losing, set up the wiring mouth on the desk surface, make things convenient for work platform's modernization repacking, be provided with hidden seal groove on the workstation desktop moreover, can make things convenient for depositing of individual seal, accomplish to take along with depositing.
Drawings

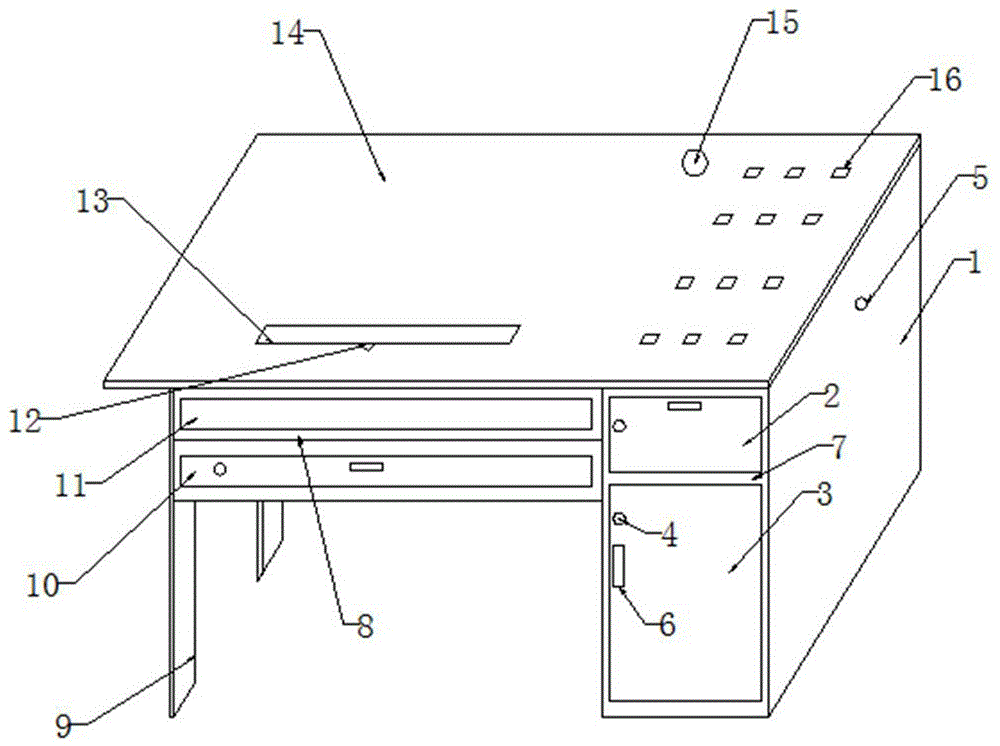

Fig. 1 is a schematic perspective view of the present invention.
Fig. 2 is a schematic view of the structure of the fixing groove of the present invention.
FIG. 3 is a schematic view of the document folder structure of the present invention.
Fig. 4 is a top view of the stamp groove of the present invention.
Figure 5 is the seal groove cross-sectional view of the utility model
In the figure: 1. a cabinet body; 2. a drawer; 3. a cabinet; 4. a safety lock; 5. hooking; 6. a handle; 7. a drawer partition plate; 8. a middle partition plate; 9. desk legs; 10. a data cabinet; 11. a storage plate; 12. a groove; 13. a stamp slot; 14. a desktop; 15. a wiring port; 16. fixing grooves; 161. a data folder; 162. an adjustment bar; 163. a supporting strip; 164. a housing; 165. a second spring; 167. a first cover plate; 168. a first spring; 131. a second cover plate; 132. a storage port.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
As shown in fig. 1 to 5, a professional work platform of intellectual property engineer, including the cabinet body 1, 1 one side of the cabinet body is provided with couple 5, 1 positive tops of the cabinet body are provided with drawer 2, 2 below of drawer are provided with drawer baffle 7, 7 below of drawer baffle are provided with cupboard 3, 2 one sides of drawer are provided with puts thing board 11, it is provided with intermediate bottom plate 8 to put thing board 11 below, 8 below of intermediate bottom plate are provided with data cabinet 10, 1 top of the cabinet body is provided with desktop 14, 14 one side of desktop is provided with wiring mouth 15, 15 one side of wiring mouth is provided with a plurality of fixed slots 16, seal groove 13 has been seted up on desktop 14 to 15 opposite side of wiring mouth, 14 below fixedly connected with table leg 9 of desktop.
In this embodiment, the fixing groove 16 includes a first cover 167 and a first spring 168, the first cover 167 is horizontally consistent with the table top 14, the first cover 167 is hinged to one side of the top of the fixing groove 16, one end of the first spring 168 is connected to the first cover 167, the other end of the first spring 168 is connected to the fixing groove 16, at least one first spring 168 is provided, and a cavity formed between the first cover 167 and the fixing groove 16 can be used for storing sundries.
In this embodiment, a plurality of data folders 161 are arranged above the desktop 14, each data folder 161 includes a casing 164, a support bar 163, an adjusting bar 162 and a second spring 165, the adjusting bar 162 is slidably connected to the support bar 163, the second spring 165 is fixedly connected between the adjusting bar 162 and the data folder 161, and at least one second spring 165 is provided.
In this example, seal groove 13 includes second apron 131, deposits mouthful 132, seal groove 13 is "concave" style of calligraphy, seal groove 13 one side is provided with the breach, seal groove 13 bottom is provided with a plurality of circular mouths 132 of depositing, second apron 131 hinge connection is on desktop 14, second apron 131 thickness and seal groove 13 breach highly uniform, desktop 14 is provided with recess 12 with seal groove 13 junction, recess 12 thickness is less than seal breach height, recess 12 has at least one.
In this embodiment, the cabinet 10 has a plurality of fixing slots 16 on the surface thereof, and the cabinet 10, the drawer 2 and the cabinet 3 have a safety lock 4 and a handle 6 on the front surface thereof.
Use the utility model discloses the time, this work platform for intellectual property company financial accounting, including the cabinet body 1, 1 one side of the cabinet body is provided with safety lock 5, is used for hanging the parcel or inserts the row, and the cabinet body 1 openly is provided with drawer 2, and 2 below drawers are provided with cupboard 3, are used for depositing article and computer machine case. 2 one side of drawer is provided with puts thing board 11, can place the keyboard on putting thing board 11, it is provided with intermediate bottom 8 to put thing board 11 below, intermediate bottom 8 below is provided with data cabinet 10, and data cabinet 10 is used for depositing the data put in order, 1 top of the cabinet body is provided with desktop 14, desktop 14 one side is provided with wiring mouth 15, and wiring mouth 15 can be used for crossing the line, wiring mouth 15 one side is provided with a plurality of fixed slots 16, fixed slot 16 top is provided with data clamp 161, is used for arrangement and collection data, seal groove 13 has been seted up to wiring hole opposite side on desktop 14, and seal groove 13 is used for depositing commonly used seal, desktop 14 below fixedly connected with table leg 9.
Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.
Claims (5)
1. The utility model provides an intellectual property engineering special work platform, includes the cabinet body (1), its characterized in that: the utility model discloses a cabinet, including the cabinet body, cabinet body (1), drawer (2) are provided with to cabinet body (1) one side, drawer (2) below is provided with drawer baffle (7), drawer baffle (7) below is provided with cupboard (3), drawer (2) one side is provided with puts thing board (11), it is provided with intermediate bottom (8) to put thing board (11) below, intermediate bottom (8) below is provided with data cabinet (10), cabinet body (1) top is provided with desktop (14), desktop (14) one side is provided with wiring mouth (15), wiring mouth (15) one side is provided with a plurality of fixed slots (16), wiring mouth (15) opposite side has seted up seal groove (13) on desktop (14), desktop (14) below fixedly connected with seal table leg (9).
2. The intellectual property engineer dedicated work platform of claim 1, wherein: the fixing groove (16) comprises a first cover plate (167) and first springs (168), the first cover plate is horizontally consistent with the table top (14), one end of each first spring (168) is connected to the first cover plate (167), the other end of each first spring (168) is connected to the fixing groove (16), and at least one first spring (168) is arranged.
3. The intellectual property engineer dedicated work platform of claim 2, wherein: fixed slot (16) top is provided with data folder (161), data folder (161) include casing (164), regulation strip (162), second spring (165), data folder (161) one side fixedly connected with support bar (163), regulation strip (162) sliding connection is on support bar (163), regulation strip (162) and data folder (161) top surface middle fixedly connected with second spring (165), second spring (165) have at least one.
4. The intellectual property engineer dedicated work platform of claim 1, wherein: seal groove (13) include second apron (131), deposit mouthful (132), seal groove (13) are "concave" style of calligraphy, seal groove (13) one side is provided with the breach, seal groove (13) bottom is provided with a plurality of circular mouthful (132) of depositing, second apron (131) hinge connection is on desktop (14), second apron (131) thickness and seal groove (13) breach highly uniform, desktop (14) are provided with recess (12) with seal groove (13) junction, recess (12) thickness is less than seal breach height, recess (12) have at least one.
5. The intellectual property engineer dedicated work platform of claim 1, wherein: the surface of the data cabinet (10) is provided with a plurality of fixing grooves (16), and the front surfaces of the data cabinet (10), the drawer (2) and the cabinet (3) are provided with a safety lock (4) and a handle (6).
