Abstract
The utility model provides a medical disinfection garbage bin, including bung, staving and interlayer subassembly, the bung is articulated with the staving, the interlayer subassembly with the staving is connected, the interlayer subassembly will the appearance lumen of staving divide into and holds the chamber and hold the chamber down, the interlayer subassembly is equipped with the fretwork hole, the internal face of bung is equipped with a degassing unit. The utility model discloses utilize interlayer subassembly to fall into the inside solute chamber of staving and hold chamber and lower appearance chamber, wherein go up and hold the chamber and be used for depositing solid waste, hold the chamber down and be used for depositing liquid waste, the fretwork hole on the interlayer subassembly is used for supplying liquid waste to flow to holding the chamber down, and with solid waste spaced above that, realize solid-liquid separation, utilize the first degassing unit of bung internal face department simultaneously, disinfect rubbish, guarantee refuse treatment's health nature and security, prevent that the waste material from producing the toxic material after mixing, improve the refuse treatment effect.
Description
Technical Field
The utility model belongs to the technical field of refuse collection handles, especially, relate to a medical disinfection garbage bin.
Background
The trash can is widely applied to various industries, such as daily trash placement in household places, industrial waste placement in industrial places, and medical waste placement in medical places, wherein in some use scenes with high requirements on trash disposal, solid-liquid separation of trash is needed, and trash needs to be disinfected.
In the medical industry in particular, a large amount of medical waste is generated in daily operation of hospitals, and the medical waste refers to the pollution waste produced by the hospitals after contacting blood, flesh and the like of patients. Such as used cotton balls, gauze, tape, waste water, disposable medical devices, post-operative waste, expired drugs, and the like. According to the medical detection report of the national health department, the harmfulness of the virus and the germ of the medical garbage is dozens, hundreds or even thousands of times of that of the common household garbage because the medical garbage has the characteristics of space pollution, acute infection, latent pollution and the like. If the treatment is improper, serious pollution to the environment can be caused, and the treatment can also become a source of epidemic disease.
Therefore, there is a need for a medical disinfection trash can that can collect and disinfect two solid and liquid wastes of medical trash that has two solid and liquid states at the same time.
SUMMERY OF THE UTILITY MODEL
An object of the utility model is to overcome the not enough of above-mentioned prior art existence, provide a medical disinfection garbage bin, solved the unable processing requirement that adapts to medical industry among the prior art to medical waste high hygiene nature, high security.
The utility model provides a medical disinfection garbage bin, including bung, staving and interlayer subassembly, the bung is articulated with the staving, the interlayer subassembly with the staving is connected, the interlayer subassembly will the appearance lumen of staving divide into and holds the chamber and hold the chamber down, the interlayer subassembly is equipped with the fretwork hole, the internal face of bung is equipped with a degassing unit.
In some embodiments, the partition assembly comprises a partition plate, the partition plate is provided with a hollow hole, and the bottom of the partition plate is provided with a second disinfection device.
In some embodiments, the first and second disinfection devices are LED uv disinfection light strips.
In some embodiments, the barrel cover is provided with a pressing device, the barrel body is provided with a reset switch, the power supply device is electrically connected with the first disinfection device and the second disinfection device respectively, the power supply device is connected with the reset switch, the reset switch is used for controlling the power supply of the first disinfection device and/or the second disinfection device to be switched on and off, and the pressing device is used for switching the on-off state of the reset switch along with the opening and closing state of the barrel cover.
In some embodiments, the power supply device is disposed on the outer back surface of the barrel body, the outer back surface is a side surface of the barrel cover hinged to the barrel body, the presser is disposed on one side of the barrel cover close to the outer back surface, and the reset switch is disposed on the outer back surface of the barrel body.
In some embodiments, a water storage container is arranged in the lower cavity, the barrel body is provided with a drawing opening, and the water storage container is connected to the drawing opening in a sliding mode.
In some embodiments, the inner wall of the barrel body is provided with a sliding rail, the outer wall of the water storage container is provided with a guide part matched with the sliding rail, and the guide part is connected with the sliding rail in a sliding manner.
In some embodiments, the device further comprises a foot pedal device, wherein the foot pedal device comprises a foot pedal and a transmission mechanism, the foot pedal is connected to the barrel body, and the foot pedal is connected with the barrel cover through the transmission mechanism.
In some embodiments, a clamping groove is formed in the inner wall surface of the barrel body, and the partition plate is clamped in the clamping groove.
In some embodiments, the interlayer assembly further comprises an inner barrel body, a bottom plate of the inner barrel body is a partition plate, and the inner barrel body is clamped on the upper edge of the barrel body.
The utility model has the advantages that:
therefore, according to the embodiment of the disclosure, the solute cavity inside the barrel body is divided into the upper containing cavity and the lower containing cavity by the interlayer component, wherein the upper containing cavity is used for storing solid waste, the lower containing cavity is used for storing liquid waste, the hollow hole in the interlayer component is used for allowing the liquid waste to flow to the lower containing cavity, and the solid waste is spaced above the hollow hole, so that solid-liquid separation is realized, meanwhile, the garbage is disinfected by the first disinfection device on the inner wall surface of the barrel cover, the sanitation and the safety of garbage disposal are ensured, toxic substances are prevented from being generated after the waste is mixed, and the garbage disposal effect is improved.
Drawings
The present invention is further explained by using the drawings, but the embodiments in the drawings do not constitute any limitation to the present invention, and for those skilled in the art, other drawings can be obtained according to the following drawings without any inventive work.

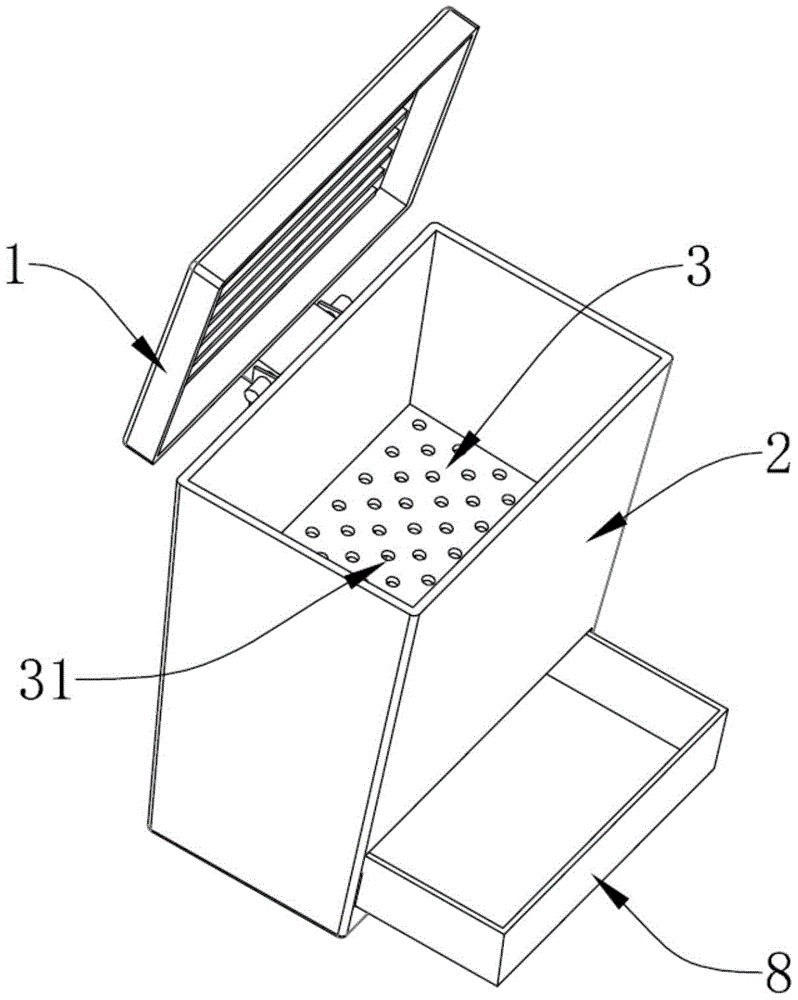

Fig. 1 is a schematic view of the overall structure of a medical disinfection trash can in a state that a can cover is opened.
Fig. 2 is a schematic view of the overall structure of the medical disinfection trash can in the state of pulling the water storage container open.
Fig. 3 is a schematic view of the overall structure of a medical disinfection trash can at a viewing angle.
Fig. 4 is a front view of a medical disinfection trash can disclosed by the utility model.
Fig. 5 is a cross-sectional view taken along line a-a of the front view of fig. 4.
Detailed Description
The technical solution of the present invention will be described clearly and completely with reference to the accompanying drawings, and obviously, the described embodiments are some, but not all embodiments of the present invention. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
In the description of the present invention, it should be noted that the terms "center", "upper", "lower", "left", "right", "vertical", "horizontal", "inner", "outer", and the like indicate orientations or positional relationships based on the orientations or positional relationships shown in the drawings, and are only for convenience of description and simplification of description, but do not indicate or imply that the device or element referred to must have a specific orientation, be constructed and operated in a specific orientation, and thus, should not be construed as limiting the present invention. Furthermore, the terms "first," "second," and "third" are used for descriptive purposes only and are not to be construed as indicating or implying relative importance.
In the description of the present invention, when it is described that a specific device is located between a first device and a second device, an intervening device may or may not be present between the specific device and the first device or the second device. When a particular device is described as being coupled to other devices, that particular device may be directly coupled to the other devices without intervening devices or may be directly coupled to the other devices with intervening devices.
Techniques, methods, and apparatus known to those of ordinary skill in the relevant art may not be discussed in detail but are intended to be part of the specification where appropriate.
The applicant researches and discovers that:
in the medical industry, a large amount of medical waste is generated in daily operation of hospitals, and the medical waste refers to the pollution waste produced by the hospitals after contacting blood, flesh and the like of patients. Such as used cotton balls, gauze, tape, waste water, disposable medical devices, post-operative waste, expired drugs, and the like. According to the medical detection report of the national health department, the harmfulness of the virus and the germ of the medical garbage is dozens, hundreds or even thousands of times of that of the common household garbage because the medical garbage has the characteristics of space pollution, acute infection, latent pollution and the like. If the treatment is improper, serious pollution to the environment can be caused, and the treatment can also become a source of epidemic disease. Moreover, the liquid waste and the solid waste in the medical waste are mixed together for a long time to generate toxic substances which may exist in a gaseous state, and once the medical waste is not treated in time, medical personnel or cleaning personnel can inhale harmful gas, so that the medical waste is very easy to infect infectious diseases.
In view of this, referring to fig. 1 to 5, the present disclosure provides a medical disinfection trash can, which includes a can lid 1, a can body 2, and a partition assembly, where the can lid 1 is hinged to the can body 2, the can lid 1 can be opened or closed along one hinged side, the partition assembly is connected to the can body 2, the partition assembly divides a material containing cavity of the can body 2 into an upper containing cavity 21 and a lower containing cavity 22, the partition assembly is provided with a hollow hole 31, through which a liquid waste material can flow from the upper containing cavity 21 to the lower containing cavity 22, an inner wall surface of the can lid 1 is provided with a first disinfection device 41, in a use process, a water-leaking trash bag is sleeved in the upper containing cavity 21, the trash bag is not completely sealed, the bottom of the trash bag is provided with a plurality of fine through holes, the solid waste material cannot leak from the fine through holes, but the liquid waste material can leak into the lower containing cavity 22 from there, so as to realize solid-liquid separation, and the first disinfection device 41 is located inside the can be provided in the can, the garbage in the barrel body 2 is integrally disinfected, so that the garbage in the barrel body 2 is prevented from being accumulated for a long time and generating toxic substances, and particularly in the medical industry, the treatment effect of the medical garbage is improved, and the safety and the sanitation are improved.
Referring to fig. 2 and 5, in this embodiment, the partition assembly includes a partition plate 3, the partition plate 3 is provided with a hollow hole 31, the partition plate 3 is located at a middle-lower position of the barrel body 2, the partition plate 3 may be integrally formed with the barrel body 2 or may be an assembly installed at the rear side, a second disinfection device 42 is provided at the bottom of the partition plate 3, and preferably, the first disinfection device 41 and the second disinfection device 42 are LED ultraviolet disinfection lamp strips, and a plurality of LED lamps are distributed on the lamp strips and emit ultraviolet rays together for disinfection.
The structural form of the barrier layer assembly can be divided into the following two embodiments.
As an implementation mode, the inner wall surface of the barrel body 2 is provided with a clamping groove, the partition plate 3 is clamped in the clamping groove, the partition plate 3 is a single plate and is detachably connected in the clamping groove, and then the partition plate 3 is connected with the barrel body 2.
As another kind of embodiment, the interlayer subassembly still includes the inlayer staving, and the bottom plate of inlayer staving is the division board, and the upper edge of staving 2 is located to the inlayer staving card, is equivalent to two staving promptly, and outside staving 2 is bigger, and inside staving volume is little, but inlayer staving upper end opening part and the upper edge looks joint of outside staving 2, from last down card back of going into the inlayer staving, utilize the division board of inlayer staving bottom, realized solid-liquid separation equally.
Referring to fig. 3 and 5, in this embodiment, the barrel cover further includes a power supply device 5, the barrel cover 1 is provided with a pressing device 6, the barrel body 2 is provided with a reset switch 7, the power supply device 5 is electrically connected to the first disinfecting device 41 and the second disinfecting device 42, the power supply device 5 is connected to the reset switch 7, the reset switch 7 is used for controlling the power on/off of the first disinfecting device 41 and/or the second disinfecting device 42, and the pressing device 6 is used for switching the on/off state of the reset switch 7 along with the opening and closing state of the barrel cover 1.
It should be noted that the power supply device 5 may be a built-in battery, or may be an external mains supply, and simultaneously provides power to the first sterilizing device 41 and the second sterilizing device 42, wherein the reset switch 7 plays a role in controlling the power on/off of the first sterilizing device 41 and/or the second sterilizing device 42 in the power supply, and as the barrel cover 1 is opened and closed, the pressing device 6 and the reset switch 7 have two connection states, i.e., a contact state and a non-contact state, and when the connection state of the pressing device 6 and the reset switch 7 changes, the power on/off state of the first sterilizing device 41 and/or the second sterilizing device 42 changes accordingly.
As an implementation mode, the power supply device 5 is arranged on the outer back surface of the barrel body 2, the outer back surface is a side surface of the barrel cover 1 hinged to the barrel body 2, the presser 6 is arranged on one side of the barrel cover 1 close to the outer back surface, and the reset switch 7 is arranged on the outer back surface of the barrel body 2, when the barrel cover 1 is opened, the presser 6 on one side of the outer back surface moves downwards and touches the reset switch 7, at this time, the reset switch 7 disconnects the power supply of the first sterilizing device 41 and/or the second sterilizing device 42, so that when the barrel cover 1 is opened, the first sterilizing device 41 and/or the second sterilizing device 42 are not electrified any more, but when the barrel cover 1 is closed, the presser 6 and the reset switch 7 are loosened to be in a non-contact state, at this time, the first sterilizing device 41 and/or the second sterilizing device 42 are electrified again, and normal sterilization continues; of course, when the reset switch 7 switches the state, the first disinfection device 41 or the second disinfection device 42 may be controlled individually, or the first disinfection device 41 and the second disinfection device 42 may be controlled together.
As another embodiment, the presser and the reset switch may be disposed on the opened side of the barrel cover 1, that is, when the barrel cover 1 is closed, the presser and the reset switch are connected, and at this time, the first sterilizing device 41 and the second sterilizing device 42 are both in the power-on state, and when the barrel cover is opened, the presser and the reset switch are in the non-contact state, and at this time, the first sterilizing device 41 and/or the second sterilizing device 42 are no longer powered on.
In this embodiment, a water storage container 8 is disposed in the lower chamber 22, the barrel body 2 is provided with a drawing opening 9, the water storage container 8 is slidably connected to the drawing opening 9, the water storage container 8 can be pushed in or pulled out from the drawing opening 9, and the upper end of the water storage container 8 is open and corresponds to the hollow hole 31 on the interlayer component to receive the liquid waste flowing down from above.
As an implementation mode, the inner wall of the barrel body 2 is provided with a sliding rail, the outer wall of the water storage container 8 is provided with a guide part matched with the sliding rail, the guide part is connected with the sliding rail in a sliding mode, and the guide part and the sliding rail are used for supporting the water storage container 8 and facilitating the drawing of the water storage container 8.
As an implementation mode, the garbage bin further comprises a foot stepping device, the foot stepping device comprises a pedal and a transmission mechanism, the pedal is connected to the bin body 2 and connected with the bin cover 1 through the transmission mechanism, and a user steps on the pedal through a foot to further drive the transmission mechanism to pull the bin cover 1, so that the bin cover 1 is opened, and the user can conveniently take out hands to process garbage.
Compared with the prior art, the utility model provides a medical disinfection garbage bin utilizes interlayer subassembly to fall into 2 inside solutes chamber of staving and holds chamber 21 and lower chamber 22, wherein go up and hold chamber 21 and be used for depositing solid waste, hold chamber 22 down and be used for depositing liquid waste, hollow hole 31 on the interlayer subassembly is used for supplying liquid waste to hold chamber 22 down to the flow direction, and with solid waste interval above that, realize solid-liquid separation, utilize the first degassing unit 41 of 1 internal face department of bung simultaneously, disinfect rubbish, guarantee refuse treatment's health nature and security, prevent to produce toxic substance after the waste material mixes, the effect of refuse treatment is improved.
Finally, it should be emphasized that the present invention is not limited to the above-described embodiments, but only to the preferred embodiments of the invention, and is not limited to the embodiments, and any modifications, equivalent substitutions, improvements, etc. made within the spirit and principle of the present invention should be included within the scope of the present invention.
Claims (10)
1. The medical disinfection garbage can is characterized by comprising a can cover, a can body and an interlayer component, wherein the can cover is hinged to the can body, the interlayer component is connected with the can body, a containing cavity of the can body is divided into an upper containing cavity and a lower containing cavity by the interlayer component, the interlayer component is provided with a hollow hole, and a first disinfection device is arranged on the inner wall surface of the can cover.
2. The medical sterilizing trash can of claim 1, wherein the partition assembly comprises a partition plate, the partition plate is provided with a hollow hole, and a second sterilizing device is arranged at the bottom of the partition plate.
3. The medical sterilizing trash can of claim 2, wherein the first sterilizing device and the second sterilizing device are LED ultraviolet sterilizing light strips.
4. The medical disinfection trash can of claim 3, further comprising a power supply device, wherein the can cover is provided with a pressing device, the can body is provided with a reset switch, the power supply device is electrically connected with the first disinfection device and the second disinfection device respectively, the power supply device is connected with the reset switch, the reset switch is used for controlling the power supply of the first disinfection device and/or the second disinfection device to be switched on and off, and the pressing device is used for switching the on and off state of the reset switch along with the opening and closing state of the can cover.
5. The medical disinfection trash can of claim 4, wherein the power supply device is arranged on the outer back surface of the can body, the outer back surface is a side surface of the can cover hinged to the can body, the presser is arranged on one side of the can cover close to the outer back surface, and the reset switch is arranged on the outer back surface of the can body.
6. The medical sterilizing garbage bin as claimed in any one of claims 1 to 5, wherein a water storage container is arranged in the lower cavity, the bin body is provided with a drawing opening, and the water storage container is slidably connected with the drawing opening.
7. The medical disinfection trash can of claim 6, wherein the inner wall of the can body is provided with a slide rail, the outer wall of the water storage container is provided with a guide part matched with the slide rail, and the guide part is slidably connected with the slide rail.
8. The medical sterilizing garbage bin of any one of claims 1 to 5, further comprising a foot pedal device, wherein the foot pedal device comprises a foot pedal and a transmission mechanism, the foot pedal is connected to the bin body, and the foot pedal is connected to the bin cover through the transmission mechanism.
9. The medical disinfection trash can of claim 2, wherein the inner wall surface of the can body is provided with a clamping groove, and the partition plate is clamped in the clamping groove.
10. The medical disinfection trash can of claim 2, wherein the interlayer component further comprises an inner-layer can body, a bottom plate of the inner-layer can body is a partition plate, and the inner-layer can body is clamped on the upper edge of the can body.
