Abstract
The utility model provides a but many slots BTB connector of positive and negative plug and terminal, including the connector housing, the left and right sides symmetry of connector housing be provided with corresponding slot, the slot in be provided with a plurality of terminals, every the equal symmetry in left and right sides of terminal is provided with first contact jaw of matched with and second contact jaw, and one of them first contact jaw and second contact jaw be located one of them slot, and another first contact jaw and second contact jaw be located another slot. The utility model has simple structure and strong applicability, and can realize the wrong insertion prevention while realizing the left-right insertion and extraction by symmetrically arranging the slots on the connector shell and arranging the first terminal and the second terminal with the same structure in the two slots; the utility model discloses a fixing portion of 4 contact jaw sharings to the card inserts the back respectively about guaranteeing, the seesaw problem can not appear pressing, makes to peg graft and touches more reliably.
Description
Technical Field
The utility model belongs to the technical field of the connector technique and specifically relates to a but many slots BTB connector of positive and negative plug and terminal.
Background
The BTB connector is mainly used for connecting PCBs inside mobile phones and notebook computers with signals such as Bluetooth, hard disk flat cables and touch mouse boards, belongs to a high-precision multi-contact connector, and has specifications of 0.5mm, 0.8mm, 1.0mm, 1.27mm, 2.0mm, 2.5mm spacing and the like on the market at present.
Currently, BTB connectors produced by BTB connector manufacturers generally include a pair of male and female terminals, and the male and female terminals are usually in a single blanking structure.
The blanking structure is that when the terminal is processed, a piece of hardware plate is subjected to plane shearing, unnecessary plates are dug out, and male and female terminals required by molding are manufactured.
Therefore, in the whole processing process of the terminal, no stretching and bending treatment is carried out on the hardware material, and the elastic force of the terminal formed in a blanking mode is poor.
The existing BTB connector has a male terminal and a female terminal of a blanking structure, and a male body and a female body for assembling and fixing the male terminal and the female terminal respectively. The two longitudinal sides of the male end main body are respectively provided with a terminal fixing hole and a terminal positioning groove for riveting a male end terminal; the female end body is provided with a groove for butt joint insertion of the male end body, and the female end body is provided with a plurality of terminal fixing holes (not marked) and terminal positioning grooves for riveting the female end terminals relative to the longitudinal two sides of the other surface of the groove. The male terminal is in a shape of a horizontal F, and each male terminal has three ends, wherein two ends of each terminal form a notch, and a contact area is formed on the outermost end. The male terminal and the female terminal are respectively clamped in the terminal fixing holes and the positioning grooves formed in the male terminal main body and the female terminal main body by the notches to assemble a male terminal and a female terminal of the BTB connector (or integrally injection molding). During the mating operation, the male end is pressed into the recess in the female end body, so that the terminal contact area forms a close connection.
For example, patent CN109346860A discloses a terminal of BTB connector and a BTB connector, which comprises a holder having a first card strip, a placement slot and a PIN slot, and a spring piece having a spring piece head, an elastic piece and a fixing piece, which is inserted into the holder through the placement slot; the head of the elastic sheet is inserted into the PIN slot hole and exposed out of the fixed seat; the fixing piece comprises a spring plate clamping hook meshed with the first clamping strip; the elastic member includes at least one elastic portion.
Patent CN109950716A discloses a floating BTB connector, which is composed of a male socket part and a female socket part that are inserted into each other, wherein the male socket part includes a male socket insulator, a male socket cover and a male socket terminal; the male seat insulator is of a cavity structure, and a plurality of male seat clamping grooves are uniformly distributed on the front inner side wall and the rear inner side wall of the male seat insulator and used for inserting the male seat terminals; the female seat part comprises a female seat insulator and a female seat terminal; a plurality of female seat clamping grooves are uniformly distributed on the female seat insulator; the female seat clamping groove is used for inserting the female seat terminal and corresponds to the male seat terminal in position one to one, the male seat terminal is a bent elastic piece and sequentially consists of a lower PCB welding part, a male seat insulator inserting part matched with the male seat clamping groove, an elastic bending part and a male seat insulator supporting part, and correspondingly, an inserting part matched with the male seat insulator supporting part is arranged on the male seat cover; the male seat cover is sleeved in the cavity of the male seat insulator, is not in contact with the male seat insulator completely, and is supported only by the male seat insulator supporting part; when the male seat part is inserted relative to the female seat part, the position of the male seat cover relative to the male seat insulator can be finely adjusted in the X direction and/or the Y direction by means of the elastic bending part, so that the male seat terminal has a correct inserting position relative to the female seat terminal.
However, the BTB connector disclosed in the above patent has a problem that the card can be inserted only from one end, and has no function of preventing erroneous insertion, and is very inconvenient to use, and the card may be damaged during the erroneous insertion.
Disclosure of Invention
To the deficiency of the prior art, the utility model provides a but many slots BTB connector of positive and negative plug, and terminal
The connector can be plugged in and pulled out left and right, and can also be plugged in and pulled out left and right.
The technical scheme of the utility model is that: the utility model provides a but many slots BTB connector of positive and negative plug, includes the connector housing, the left and right sides symmetry of connector housing be provided with corresponding slot, the slot in be provided with a plurality of terminals, every the equal symmetry in left and right sides of terminal is provided with first contact jaw and the second contact jaw of matched with.
Preferably, the two slots are internally provided with clamping grooves for mounting terminals, and the clamping grooves are distributed on the connector shells at the upper end and the lower end of the slots.
Preferably, a partition board is arranged between the two slots, the two slots are separated by the partition board, corresponding clamping grooves are also formed in the partition board, and the clamping grooves in the partition board are communicated with the clamping grooves in the slots.
Preferably, each of the terminals includes a first terminal and a second terminal having the same structure and fitting with each other, and the first terminal and the second terminal are connected by a holding portion.
Preferably, the first terminal includes a first connecting arm, the left and right ends of the first connecting arm are symmetrically provided with corresponding first contact ends, and the two first contact ends have the same structure and are respectively located in the two slots of the connector housing.
Preferably, the second terminal includes a second connecting arm, the left and right ends of the second connecting arm are symmetrically provided with corresponding second contact ends, and the two second contact ends have the same structure and are respectively located in the two slots of the connector housing.
Preferably, the holding part is provided with a notch, and an elastic clamping block is arranged in the notch.
The utility model also provides a terminal, the terminal includes the same and first terminal and the second terminal of mutually supporting of structure, first terminal and second terminal between connect through a fixing portion.
Preferably, the first terminal comprises a first connecting arm, the left end and the right end of the first connecting arm are symmetrically provided with corresponding first contact ends, and the two first contact ends have the same structure.
Preferably, the second terminal comprises a second connecting arm, the left and right ends of the second connecting arm are symmetrically provided with corresponding second contact ends, and the two second contact ends have the same structure.
Preferably, the holding part is provided with a notch, and an elastic clamping block is arranged in the notch.
The utility model has the advantages that:
1. the utility model has simple structure and strong applicability, and can realize the wrong insertion prevention while realizing the left-right insertion and extraction by symmetrically arranging the slots on the connector shell and arranging the first terminal and the second terminal with the same structure in the two slots;
2. the utility model discloses a fixing portion of 4 contact jaw sharings to the card inserts the back respectively about guaranteeing, the seesaw problem can not appear pressing, makes to peg graft and touches more reliably.
Drawings

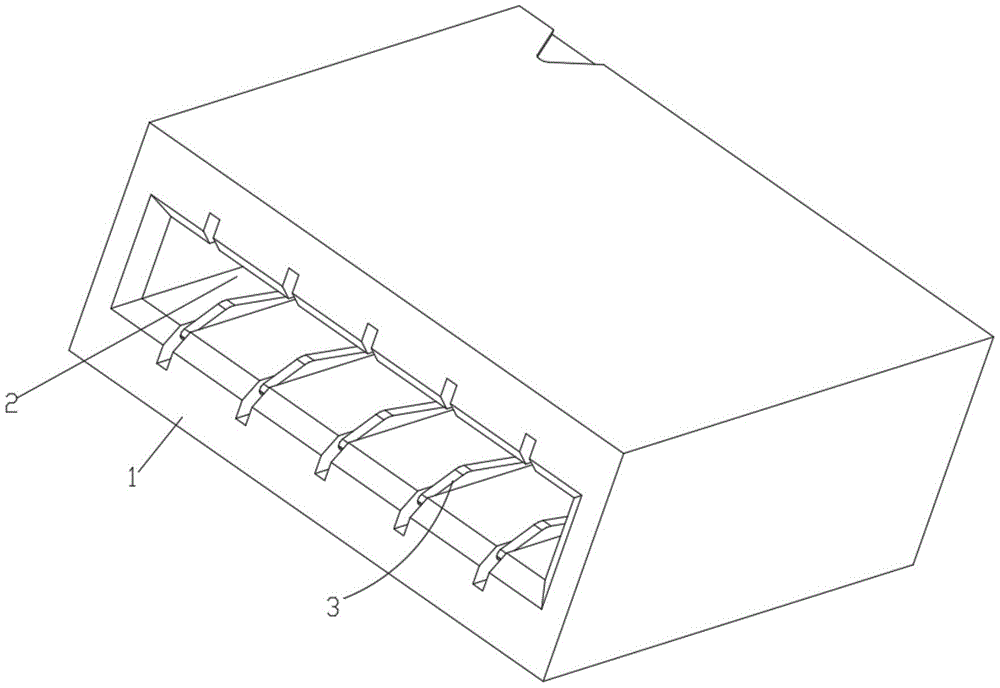

Fig. 1 is a schematic structural view of the present invention;
fig. 2 is a schematic structural view of the other side of the connector of the present invention;
fig. 3 is a schematic structural diagram of the connector housing of the present invention;
fig. 4 is a schematic structural view of the terminal of the present invention;
in the figure, 1-connector shell, 2-slot, 3-terminal, 4-clapboard, 5-clamping groove, 6-first terminal, 7-second terminal, 8-holding part, 9-first contact end, 10-second contact end, 11-notch, 12-elastic clamping block, 13-first connecting arm and 14-second connecting arm.
Detailed Description
The following description of the embodiments of the present invention will be made with reference to the accompanying drawings:
as shown in fig. 1 and fig. 2, the present embodiment provides a multi-slot BTB connector capable of being plugged in and unplugged from, and includes a connector housing 1, corresponding slots 2 are symmetrically disposed on left and right sides of the connector housing 1, a plurality of terminals 3 are disposed in the slots 2, a first contact end 9 and a second contact end 10 which are matched with each other are symmetrically disposed on left and right sides of each terminal 3, one of the first contact end 9 and the second contact end 10 is located in one of the slots 2, and the other of the first contact end 9 and the second contact end 10 is located in the other slot 2. Therefore, the left and right slots 2 are identical in structure, left and right insertion and extraction can be achieved, and each slot 2 can achieve positive and negative insertion and extraction.
As shown in fig. 3, preferably, two slots 2 are provided with card slots 5 for mounting terminals 3, and the card slots 5 are distributed on the connector housing 1 at the upper and lower ends of the slots 2.
Preferably, in this embodiment, a partition plate 4 is disposed between the two slots 2, the two slots 2 are separated by the partition plate 4, and corresponding slots 5 are also disposed on the partition plate 4, and the slots 5 on the partition plate 4 are communicated with the slots 5 in the slots 2.
Preferably, as shown in fig. 4, each of the terminals 3 includes a first terminal 6 and a second terminal 7 which are identical in structure and are mutually matched, and the first terminal 6 and the second terminal 7 are connected through a holding portion 8.
Preferably, in this embodiment, the first terminal 6 includes a first connecting arm 13, the left and right ends of the first connecting arm 13 are symmetrically provided with corresponding first contact ends 9, and the two first contact ends 9 have the same structure and are respectively located in the two slots 2 of the connector housing 1.
Preferably, in this embodiment, the second terminal 7 includes a second connecting arm 14, the left and right ends of the second connecting arm 14 are symmetrically provided with corresponding second contact ends 10, and the two second contact ends 10 have the same structure and are respectively located in the two slots 2 of the connector housing 1.
Preferably, the holding portion 8 is provided with a notch 11, and an elastic latch 12 is disposed in the notch 11.
The utility model discloses still provide a terminal, it is shown with reference to fig. 4, terminal 2 includes the same and first terminal 6 and the second terminal 7 of mutually supporting of structure, first terminal 6 and second terminal 7 between connect through a fixing portion 8.
Preferably, the first terminal 6 includes a first connecting arm 13, the left and right ends of the first connecting arm 13 are symmetrically provided with corresponding first contact ends 9, and the two first contact ends 9 have the same structure.
Preferably, the second terminal 7 includes a second connecting arm 14, the left and right ends of the second connecting arm 14 are symmetrically provided with corresponding second contact ends 10, and the two second contact ends 10 have the same structure.
Preferably, the holding portion 8 is provided with a notch 11, and an elastic latch 12 is disposed in the notch 11.
The foregoing embodiments and description have been provided to illustrate the principles and preferred embodiments of the present invention, and various changes and modifications may be made without departing from the spirit and scope of the invention, which fall within the scope of the invention as claimed.
Claims (10)
1. The utility model provides a but many slots BTB connector of positive and negative plug which characterized in that, includes connector housing (1), the left and right sides symmetry of connector housing (1) be provided with corresponding slot (2), slot (2) in be provided with a plurality of terminal (3), every the left and right sides of terminal (3) all symmetry is provided with first contact jaw (9) and second contact jaw (10) of matched with, and one of them first contact jaw (9) and second contact jaw (10) be located one of them slot (2), and another first contact jaw (9) and second contact jaw (10) be located another slot (2).
2. A reversible multi-slot BTB connector according to claim 1, wherein: the two slots (2) are internally provided with clamping grooves (5) used for mounting the terminals (3), and the clamping grooves (5) are distributed on the connector shell (1) at the upper end and the lower end of the slots (2).
3. A reversible multi-slot BTB connector according to claim 2, wherein: a partition plate (4) is arranged between the two slots (2), the two slots (2) are separated by the partition plate (4), corresponding clamping grooves (5) are also arranged on the partition plate (4), and the clamping grooves (5) on the partition plate (4) are communicated with the clamping grooves (5) in the slots (2).
4. A reversible multi-slot BTB connector according to claim 2, wherein: each terminal (3) comprises a first terminal (6) and a second terminal (7) which are identical in structure and are matched with each other, and the first terminal (6) and the second terminal (7) are connected through a holding part (8).
5. A reversible multi-slot BTB connector according to claim 4, characterized in that: the first terminal (6) comprises a first connecting arm (13), corresponding first contact ends (9) are symmetrically arranged at the left end and the right end of the first connecting arm (13), and the two first contact ends (9) are identical in structure and are respectively located in two slots (2) of the connector shell (1).
6. A reversible multi-slot BTB connector according to claim 4, characterized in that: the second terminal (7) comprises a second connecting arm (14), corresponding second contact ends (10) are symmetrically arranged at the left end and the right end of the second connecting arm (14), and the two second contact ends (10) are identical in structure and are respectively located in the two slots (2) of the connector shell (1).
7. A reversible multi-slot BTB connector according to claim 4, characterized in that: the fixing part (8) is provided with a notch (11), and an elastic clamping block (12) is arranged in the notch (11).
8. A terminal is characterized in that the terminal comprises a first terminal (6) and a second terminal (7) which are identical in structure and are matched with each other, and the first terminal (6) and the second terminal (7) are connected through a holding part (8).
9. A terminal according to claim 8, characterized in that the first terminal (6) comprises a first connecting arm (13), the left and right ends of the first connecting arm (13) are symmetrically provided with corresponding first contact ends (9), and the two first contact ends (9) have the same structure;
the second terminal (7) comprises a second connecting arm (14), corresponding second contact ends (10) are symmetrically arranged at the left end and the right end of the second connecting arm (14), and the two second contact ends (10) are identical in structure.
10. A terminal according to claim 8, wherein the holding portion (8) is formed with a notch (11), and an elastic latch (12) is disposed in the notch (11).
