Abstract
The utility model discloses an adjustable door leaf hinge mounting structure convenient for mounting, which comprises a rotating connecting piece body, wherein one end of the rotating connecting piece body is hinged with a door frame, the other end is provided with a connecting part connected with a door leaf, and the connecting part is provided with a limit fixing groove; a door leaf hinge mounting seat is connected to the corresponding door leaf, a mounting cavity is arranged on the door leaf hinge mounting seat, a fixed connecting hole is formed in the bottom wall of the mounting cavity, and the connecting part is connected with the fixed connecting hole through a fixing assembly; the door leaf is fixed on the door leaf through the fixing component, and fine adjustment can be conveniently carried out on the door body in all directions when the door leaf is installed through the limiting groove, so that the door leaf is convenient to install accurately; simple structure, simple to operate, connection strength is big after connecting.
Description
Technical Field
The utility model belongs to the technical field of the hinge, concretely relates to adjustable door leaf hinge mount structure convenient to installation.
Background
The hinge as a connecting piece has the characteristics of firm connection and convenient use, and is widely applied to mechanical products and daily necessities; the hinge among the prior art is of a lot of kinds, especially in recent years, along with the rapid development of door industry, is applied to the hinge of door body connection and constantly emerges new technology, like chinese patent a novel hidden hinge, the application number is: 200720091872.9, discloses including hiding casing and rotation connecting piece, its characterized in that: the hinge also comprises a rotating shaft and a slideway locking plate; the slideway locking plate is provided with a positioning shaft hole and a slideway, an opening at one end of the slideway is communicated with the positioning shaft hole, and an opening at the other end of the slideway is arranged on one side of the slideway locking plate; the width of an opening of the slide way communicated with the positioning shaft hole is smaller than the diameter of the positioning shaft hole; an upper slideway locking plate and a lower slideway locking plate are fixed in the hidden shell; the rotating shaft comprises a main shaft body, an upper end part and a lower end part, wherein the upper end diameter of the upper end part is larger than the lower end diameter of the upper end part, and the upper end diameter of the lower end part is larger than the lower end diameter of the lower end part; the upper end part and the lower end part of the rotating shaft are respectively arranged in positioning shaft holes of the upper slideway lock position plate and the lower slideway lock position plate; one end of the rotating connecting piece is fixedly connected to the side surface of the main shaft body of the rotating shaft; the above structure has drawbacks in that: after the installation, the hinge is connected with the door body through a fixed screw hole, and cannot be adjusted; and the installation is cumbersome.
SUMMERY OF THE UTILITY MODEL
An object of the utility model is to provide an adjustable door leaf hinge mount structure convenient to installation to solve the problem that proposes among the above-mentioned background art.
In order to achieve the above object, the utility model provides a following technical scheme:
an adjustable door leaf hinge mounting structure convenient to mount comprises a rotating connecting piece body, wherein one end of the rotating connecting piece body is hinged with a door frame, a connecting part connected with a door leaf is arranged at the other end of the rotating connecting piece body, and a limiting fixing groove is formed in the connecting part; the corresponding door leaf is connected with a door leaf hinge mounting seat, the door leaf hinge mounting seat is provided with a mounting cavity, the bottom wall of the mounting cavity is provided with a fixed connecting hole, and the connecting part is connected with the fixed connecting hole through a fixing component.
Preferably, the connecting part forms a plane structure relative to the rotating connecting piece body, two ends of the connecting part are recessed inwards to form concave grooves, and the limiting fixing groove is arranged on the middle part of the connecting part.
Preferably, the limiting fixing groove is of a square structure, and corners of the limiting fixing groove are in fillet transition.
Preferably, the fixing device further comprises a fixing locking plate and a fixing bolt, wherein the fixing locking plate is provided with at least one locking hole, and the fixing bolt penetrates through the locking hole and the limiting fixing groove to fixedly connect the connecting part with the bottom wall of the mounting cavity.
Preferably, an adjusting gap is formed between the periphery of the fixing bolt and the inner wall of the limiting groove.
Compared with the prior art, the beneficial effects of the utility model are that:
the rotating connecting piece body is fixed on the door leaf through the fixing component, and meanwhile, fine adjustment can be conveniently carried out on the door body in all directions when the rotating connecting piece body is installed through the limiting groove, so that the door leaf can be conveniently and accurately installed; simple structure, simple to operate, connection strength is big after connecting.
Drawings
Fig. 1 is a schematic structural view of the present invention;
fig. 2 is a schematic view of the split structure of the present invention;
FIG. 3 is a schematic view of the structure of the fixing locking plate of the present invention;
fig. 4 is a schematic structural view of the door leaf hinge mounting seat of the present invention;

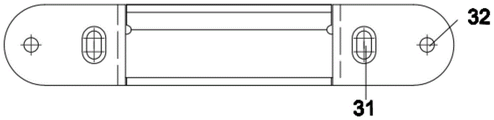

fig. 5 is a schematic view of the cover plate structure of the present invention.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
The utility model provides an adjustable door leaf hinge installation structure convenient for installation, as shown in figures 1-5, which comprises a rotary connecting piece body 1, wherein one end of the rotary connecting piece body is hinged with a door frame 2, the other end is provided with a connecting part 3 connected with a door leaf 4, and the connecting part is provided with a limit fixing groove 5; a door leaf hinge mounting seat is connected to the corresponding door leaf, a mounting cavity is arranged on the door leaf hinge mounting seat, a fixed connecting hole 6 is formed in the bottom wall of the mounting cavity, and the connecting part is connected with the fixed connecting hole through a fixing assembly; the door leaf hinge mounting structure further comprises a cover plate 30, wherein the cover plate is connected to the door leaf hinge mounting seat; the door leaf hinge mounting seat is provided with a limiting adjusting hole 31 for adjusting the position of the door leaf hinge mounting seat connected with the door leaf, and is also provided with a first fixing hole 32, correspondingly, the cover plate is provided with a second fixing hole 33, and the first fixing hole and the second fixing hole are connected through screws to connect the cover plate to the door leaf hinge mounting seat; wherein, spacing regulation hole is located the both sides of installation cavity, is oval structure.
Connecting portion for rotate the connecting piece body and form planar structure, the both ends indent of connecting portion forms concave groove 7, spacing fixed slot set up in on the middle part of connecting portion, spacing fixed slot is square structure, and its corner is the fillet transition, still includes fixed locking plate 8 and fixing bolt 9, and it has an at least lockhole 10 to open on the fixed locking plate, through fixing bolt passes lockhole and spacing fixed slot are with connecting portion and installation cavity diapire fixed connection, are formed with the regulation clearance between fixing bolt's periphery and the spacing inslot wall.
Finally, it should be noted that: although the present invention has been described in detail with reference to the foregoing embodiments, it will be apparent to those skilled in the art that modifications and variations can be made in the embodiments or in part of the technical features of the embodiments without departing from the spirit and the scope of the invention.
Claims (5)
1. The utility model provides an adjustable door leaf hinge mount structure convenient to installation which characterized in that: the door frame comprises a rotating connecting piece body, wherein one end of the rotating connecting piece body is hinged with a door frame, the other end of the rotating connecting piece body is provided with a connecting part connected with a door leaf, and a limiting fixing groove is formed in the connecting part; the corresponding door leaf is connected with a door leaf hinge mounting seat, the door leaf hinge mounting seat is provided with a mounting cavity, the bottom wall of the mounting cavity is provided with a fixed connecting hole, and the connecting part is connected with the fixed connecting hole through a fixing component.
2. An adjustable door leaf hinge mounting structure for easy installation according to claim 1, wherein: the connecting part forms a plane structure relative to the rotating connecting piece body, two ends of the connecting part are recessed inwards to form concave grooves, and the limiting fixing grooves are formed in the middle of the connecting part.
3. An adjustable door leaf hinge mounting structure for easy installation according to claim 1, wherein: the limiting fixing groove is of a square structure, and corners of the limiting fixing groove are in fillet transition.
4. An adjustable door leaf hinge mounting arrangement for facilitating mounting according to any of claims 1-3, wherein: the fixing device is characterized by further comprising a fixing locking plate and a fixing bolt, wherein at least one locking hole is formed in the fixing locking plate, and the fixing bolt penetrates through the locking hole and the limiting fixing groove to fixedly connect the connecting part with the bottom wall of the mounting cavity.
5. An adjustable door leaf hinge mounting structure for easy installation according to claim 4, wherein: an adjusting gap is formed between the periphery of the fixing bolt and the inner wall of the limiting groove.
