The utility model aims at solving the poor problem of current wallboard water-proof effects, a vertical waterproof construction of assembled compound incubation external wall panel is disclosed, including external wall panel, external wall panel back mid-mounting has the mounting bracket, the even welding in mounting bracket surface has the connecting block, install fastening screw between connecting block and the external wall panel, mounting bracket middle part fixed mounting has the battery, the external wall panel back is evenly installed all around and is installed the installation pole, the inside heating piece that evenly installs of installation pole, be connected with the wire between installation pole and the battery, external wall panel back periphery cover has the sealing washer. The utility model discloses a heating piece is to the sealing washer heating, through with the sealing washer inflation, further can increase the laminating nature between the externally-hung wallboard to improve water-proof effects.
Description
Technical Field
The utility model relates to an externally-hung wallboard waterproof field especially relates to a vertical waterproof construction of assembled compound incubation externally-hung wallboard.
Background
The outer wall board joint is waterproof, and the outer wall board of building is influenced by solar radiation, temperature and humidity change, aggressive medium in the atmosphere, etc., and because horizontal bending of building, uneven settlement of foundation and the performance change of joint material itself bring unfavorable factor, make the joint become the waterproof weak link of wallboard, therefore must take measures, guarantee the waterproof efficiency of wall body.
The edges of the wall panel are made waterproof and easy to connect. The outer wall joint has two kinds of horizontal seam and vertical seam, and the water-proofing method is mainly applicable to horizontal seam, and generally adopts the form of "high-low seam", i.e. the edge of wall plate is made into projection, and its upward side is equipped with drainage slope and water-retaining table, and its lower side is made into seam-covering flange cover water, so that the rainwater can not be infiltrated into the seam, and can be drained along the notch to the exterior of wall. The method has the advantages of good effect, simple and convenient construction and wide application, but the convex part is easy to be damaged and needs to be protected in transportation and construction. The waterproof method of vertical seam structure is to make the edge of wall plate into tenon or groove for water-proofing, but its manufacturing and installation process is complex and less. Pressure balance cavity waterproof method: by utilizing the principle of pressure balance, a cavity is formed in the joint and communicated with the outside atmosphere, so that the balance of the internal pressure and the external pressure is kept, the suction phenomenon is avoided, and rainwater cannot infiltrate into the joint. The specific method for vertical seams is the "double waterproof" method: a rain shield and a wind shield (or a wind shield layer) are arranged in the seam in layers, and a cavity is formed in the middle. The rain shield can be made of metal sheet or plastic sheet, and is embedded in the groove of the vertical seam by the transverse thrust generated by the elasticity of the rain shield. The wind shield can be jointed by a felt strip or a rubber strip, the inside of the wind shield is used as a heat-insulating layer, and the joint is filled with concrete. The cavity also plays a role of a groove, and the infiltrated rainwater is guided into a drainage guide pipe or a drainage baffle arranged at the cross seam crossing the horizontal seam and is discharged out of the wall. The method is suitable for wider seams or seams with larger errors, has excellent effect on buildings in cold regions, but has higher manufacturing cost. When the cavity waterproof method is applied to a horizontal joint, the difference of the horizontal joint waterproof in the same structural waterproof method is that cement mortar or factice is additionally embedded outside a high-low joint so as to form a cavity with mortar at the inner side. The method arranges a drainage port at a certain distance to circulate air inside and outside the cavity, keep pressure balance and quickly drain rainwater seeped into the cavity. The material flashing method employs a caulk or gasket material that is resilient and adherent to close the joint to accommodate the deformation of the wallboard. There are two categories that can be distinguished depending on the nature of the material: caulking of plastic materials. Such as waterproof ointment and plaster, has the properties of large plasticity, no flow at high temperature, no brittle fracture at low temperature, difficult aging and capability of being bonded with concrete, mortar and the like. The consistency can be determined according to the construction requirements. The caulk may be filled with a filler material such as foam rubber, fiber slack, or asphalt hemp, to limit the depth of insertion to prevent excessive penetration of the caulk into the seam. ② caulking the elastic section bar. The elastic seam-embedding belt and the sealing gasket are elastic and fixed in shape, and can adapt to deformation of a seam. Such as polyvinyl chloride sponge strips, neoprene profiles, metal profile cover-seam strips, and the like. The section of the caulking sectional material can be tubular or sheet-shaped, and can be processed into a hose with a wing sheet or a hose with a mushroom cap according to the requirement so as to adapt to the uneven surface of the gap. When the metal section material seam covering plate is adopted, the flange of the seam covering plate covers the seam, and the inside of the seam covering plate is firmly clamped by a spring so as to achieve the sealing effect.
Although waterproof mode has a lot of, but can not avoid the influence of temperature basically, and rubber seal has expend with heat and contract with cold's principle, and in chilly winter, because rubber seal's shrink, can make sealed between the wallboard receive the influence, influence the sealed effect of sealing washer to the wallboard to influence water-proof effects, be difficult for controlling according to the temperature condition, consequently, the not enough of prior art is solved to the vertical waterproof construction of assembled compound heat preservation externally-hanging wallboard of urgent need design.
SUMMERY OF THE UTILITY MODEL
The utility model aims at solving the deficiencies of the prior art and providing a vertical waterproof construction of assembled compound incubation external wallboard.
The utility model discloses a realize through following technical scheme:
the utility model provides a vertical waterproof construction of assembled compound incubation external wall panel, includes external wall panel, external wall panel back mid-mounting has the mounting bracket, the even welding in mounting bracket surface has the connecting block, install fastening screw between connecting block and the external wall panel, mounting bracket middle part fixed mounting has the battery, the external wall panel back is evenly installed all around and is installed the installation pole, the inside evenly installed heating piece of installation pole, be connected with the wire between installation pole and the battery, external wall panel back periphery cover has the sealing washer.
As the utility model discloses a preferred technical scheme, the sealing washer is made for rubber materials, and the outside border of sealing washer is along the outside parallel and level with external wallboard.
As the preferred technical scheme of the utility model, the installation pole is hollow structure.
As the utility model discloses an optimized technical scheme, establish ties between the heating piece, the heating piece is made for copper material and inside cover is equipped with the resistance wire.
As the utility model discloses a preferred technical scheme, wire and battery and heating piece electric connection.
Compared with the prior art, the beneficial effects of the utility model are that:
the utility model discloses a setting of sealing washer, can seal up the gap between two external wallboard, it is waterproof through sealed, prevent that the rainwater from permeating to the wall body in, thereby protect the wall body, through the battery power supply, recycle the heating of heating piece, use expend with heat and contract with cold's principle to heat the sealing washer, will increase the extrusion force between the adjacent sealing washer after the sealing washer thermal expansion, increase the compactness of sealing washer, also can play good sealed effect under chilly weather, improve sealed effect, strengthen the waterproof between the wallboard. The utility model discloses a heating piece is to the sealing washer heating, through with the sealing washer inflation, further can increase the laminating nature between the externally-hung wallboard to improve water-proof effects.
Drawings

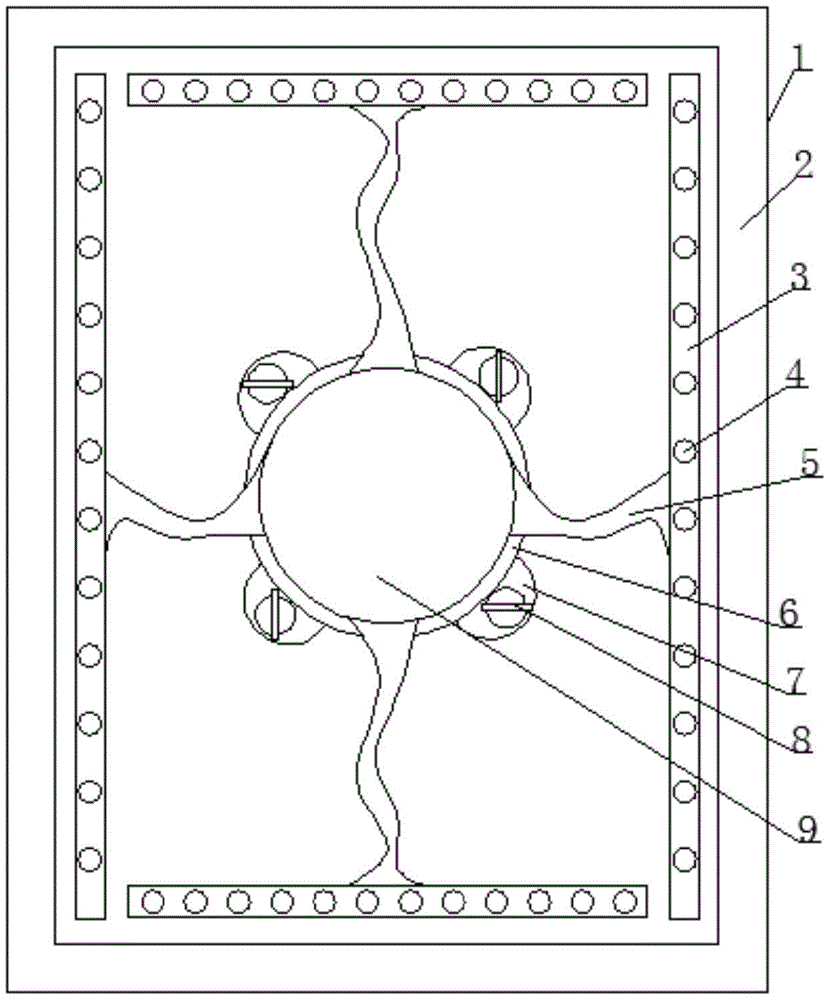

Fig. 1 is a schematic structural diagram of the present invention.
Fig. 2 is a schematic view of the connection of the external wall panel of the present invention.
In the figure: 1. the external wall panel comprises an external wall panel body 2, a sealing ring 3, an installation rod 4, a heating block 5, a conducting wire 6, an installation frame 7, a connecting block 8, a fastening screw 9 and a storage battery.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
Referring to fig. 1-2, the present invention provides a technical solution:
the utility model provides a vertical waterproof construction of assembled compound incubation external wall panel, includes external wall panel 1, 1 back mid-mounting of external wall panel has mounting bracket 6, the even welding in mounting bracket 6 surface has connecting block 7, install fastening screw 8 between connecting block 7 and the external wall panel 1, 6 middle part fixed mounting of mounting bracket has battery 9, evenly install installation pole 3 around 1 back of external wall panel, the inside evenly installed of installation pole 3 has heating piece 4, be connected with wire 5 between installation pole 3 and the battery 9, 1 back periphery cover of external wall panel has sealing washer 2.
The sealing ring 2 is made of rubber materials, and the outer edge of the sealing ring 2 is flush with the outer edge of the external wall panel 1.
The mounting rod 3 is of a hollow structure.
The heating blocks 4 are connected in series, and the heating blocks 4 are made of copper materials and are internally sleeved with resistance wires.
The lead 5 is electrically connected with the storage battery 9 and the heating block 4.
The working principle is as follows: in order to increase the sealing performance of the gap at the joint of the external wall board 1, the storage battery 9 is charged in the partition time, when the temperature is normal at ordinary times, water proofing is realized through the sealing of the sealing ring 2, but when the temperature drops, due to the principle of expansion with heat and contraction with cold, the distance between the sealing rings 2 is increased, the sealing rings 2 are contracted, at the moment, the heating block 4 is powered on, the heating block 4 is subjected to heating treatment, the sealing rings 2 are heated, the sealing rings 2 expand after being heated, the principle of expansion with heat and contraction with cold is also utilized, the laminating force between the adjacent sealing rings 2 can be increased, the sealing effect of the sealing rings 2 on the external wall board 1 is further increased, and through the arrangement of the device, the splicing seam of the external wall board 1 is subjected to high-efficiency water proofing, and is not influenced by weather.
Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.
Claims (5)
1. The utility model provides a vertical waterproof construction of assembled compound incubation externally-hung wallboard, includes externally-hung wallboard (1), its characterized in that: the wall-hung type building external wall board is characterized in that a mounting rack (6) is mounted in the middle of the back of the wall-hung type wall board, a fastening screw (8) is mounted between the connecting block (7) and the wall-hung type wall board (1), a storage battery (9) is fixedly mounted in the middle of the mounting rack (6), an installation rod (3) is uniformly mounted around the back of the wall-hung type wall board (1), a heating block (4) is mounted inside uniformly mounted by a heating block (3), a wire (5) is connected between the mounting rack (3), and a wire (3) is connected between the mounting rack (3), and the installation rod (3) is connected with the periphery between the mounting type wall-hung type.
2. The vertical waterproof structure of an assembled composite heat-insulating externally-hung wallboard according to claim 1, characterized in that: the sealing ring (2) is made of rubber materials, and the outer edge of the sealing ring (2) is flush with the outer edge of the external wall-hanging plate (1).
3. The vertical waterproof structure of an assembled composite heat-insulating externally-hung wallboard according to claim 1, characterized in that: the mounting rod (3) is of a hollow structure.
4. The vertical waterproof structure of an assembled composite heat-insulating externally-hung wallboard according to claim 1, characterized in that: the heating blocks (4) are connected in series, and the heating blocks (4) are made of copper materials and are internally sleeved with resistance wires.
5. The vertical waterproof structure of an assembled composite heat-insulating externally-hung wallboard according to claim 1, characterized in that: the lead (5) is electrically connected with the storage battery (9) and the heating block (4).
