CN215159623U

CN215159623U - Film raw material flat pressing flat die-cutting machine

Info

Publication number: CN215159623U
Application number: CN202023351135.2U
Authority: CN
Inventors: 刘瑞平
Original assignee: Dongguan Ruiyang Packaging Products Co ltd
Current assignee: Dongguan Ruiyang Packaging Products Co ltd
Priority date: 2020-12-31
Filing date: 2020-12-31
Publication date: 2021-12-14
Anticipated expiration: 2030-12-31

Abstract

The utility model belongs to the flat die cutting machine field, in particular to a flat die cutting machine for film raw materials, which aims at the problem that the prior flat die cutting machine is inconvenient to cut objects after straightening and easily causes deviation, and the proposal is provided that comprises a base, wherein the top of the base is fixedly connected with a fixed frame, the bottom of the fixed frame is fixedly connected with a hydraulic cylinder, an output shaft of the hydraulic cylinder is fixedly connected with a movable plate, the bottom of the movable plate is fixedly connected with a supporting plate, the bottom of the supporting plate is fixedly connected with a plurality of annular cutters, one side of the movable plate is fixedly connected with a fixed block, one side of the fixed block is rotatably connected with a rotating rod, one end of the rotating rod is rotatably connected with a slide block, one side of the movable plate is fixedly connected with a stop block, one side of the stop block is contacted with one side of the rotating rod, the other side of the movable plate is fixedly connected with a supporting frame, the utility model discloses be convenient for cut the object after straightening, reduce the deviation and easy operation.

Description

Film raw material flat pressing flat die-cutting machine

Technical Field

The utility model relates to a flat die cutting machine technical field especially relates to a film raw materials flat die cutting machine that flattens.

Background

The die cutting process is the most commonly used process for packaging printed matters, namely, a die cutting plate is combined by a die cutting knife according to the design requirements of products, and the printed matters or other ring-packed blanks are rolled and cut into required shapes or cut marks under the action of pressure.

The existing flat die-cutting machine is not convenient for cutting objects after the objects are straightened, and deviation is easily caused, so that the flat die-cutting machine for the film raw materials is provided.

SUMMERY OF THE UTILITY MODEL

The utility model aims at solving the problem that the prior art is inconvenient to cut an object after being straightened, and is easy to cause the occurrence of deviation defects, and provides a flat die-cutting machine for film raw materials.

In order to achieve the above purpose, the utility model adopts the following technical scheme:

a film raw material flat-pressing flat-die cutting machine comprises a base, wherein the top of the base is fixedly connected with a fixed frame, the bottom of the fixed frame is fixedly connected with a hydraulic cylinder, a moving plate is fixedly connected to an output shaft of the hydraulic cylinder, a supporting plate is fixedly connected to the bottom of the moving plate, a plurality of annular cutters are fixedly connected to the bottom of the supporting plate, one side of the moving plate is fixedly connected with a fixed block, one side of the fixed block is rotatably connected with a rotating rod, one end of the rotating rod is rotatably connected with a sliding block, one side of the moving plate is fixedly connected with a stop block, one side of the stop block is contacted with one side of the rotating rod, the other side of the moving plate is fixedly connected with a support frame, a clamping block is arranged below the support frame, and the top of the clamping block is provided with a chute, a first spring is fixedly connected in the chute, and one end of the first spring is fixedly connected with one end of the support frame.

Preferably, the top fixedly connected with workstation of base, two small openings have been seted up at the top of workstation, and two small openings correspond with a plurality of annular cutters.

Preferably, the top of the base is provided with a falling groove and a discharge hole, the falling groove is communicated with the discharge hole, and the top of the falling groove corresponds to the bottoms of the two leakage holes.

Preferably, two first fixed columns are fixedly connected to the top of the base, grooves are formed in the tops of the two first fixed columns, second springs are fixedly connected to the inner portions of the two grooves, moving blocks are fixedly connected to the tops of the two second springs, connecting blocks are fixedly connected to one sides of the two moving blocks, and one side of each connecting block is rotatably connected with the same roller.

Preferably, the top fixedly connected with second fixed column of base, the rotatory piece of one side fixedly connected with of second fixed column, one side of rotatory piece is rotated and is connected with the turning block, a plurality of support columns of one side fixedly connected with of turning block, and the top of base is equipped with the reel, and a plurality of fixed slots have been seted up to one side of reel, and a plurality of fixed slots clamp with a plurality of support columns mutually.

In the utility model, the film raw material flat pressing and flat die cutting machine has the beneficial effects;

when the film needs to be processed, the fixed groove on one side of the winding drum corresponds to the support column, the support column is inserted into the fixed groove to complete the fixing of the winding drum, then the film is pulled to drive the winding drum to rotate, the film passes through the bottom of the roller and extends to the workbench, then the hydraulic cylinder is opened, the hydraulic cylinder drives the movable plate to move downwards, the movable plate drives the support plate, the fixed block and the support frame to move downwards, when the support frame drives the clamping block to move downwards to move the extrusion roller, the support frame extrudes the first spring, the clamping block drives the roller to move downwards to press the film and extrude the second spring, then the fixed block drives the rotating rod and the sliding block to move downwards to be contacted with the film, when the movable plate moves downwards again, the sliding block is driven to move leftwards and drive the film to move leftwards, at the moment, the sliding block stretches the film to be straightened leftwards, the film is convenient to process, then the support plate drives the plurality of annular cutters to cut downwards, the cut waste materials enter the falling groove from the two leakage holes, then enter the discharging port from the falling groove and finally slide out outwards, so that the waste materials are convenient to collect;

the utility model discloses be convenient for cut the object after straightening, reduce the deviation and easy operation.

Drawings

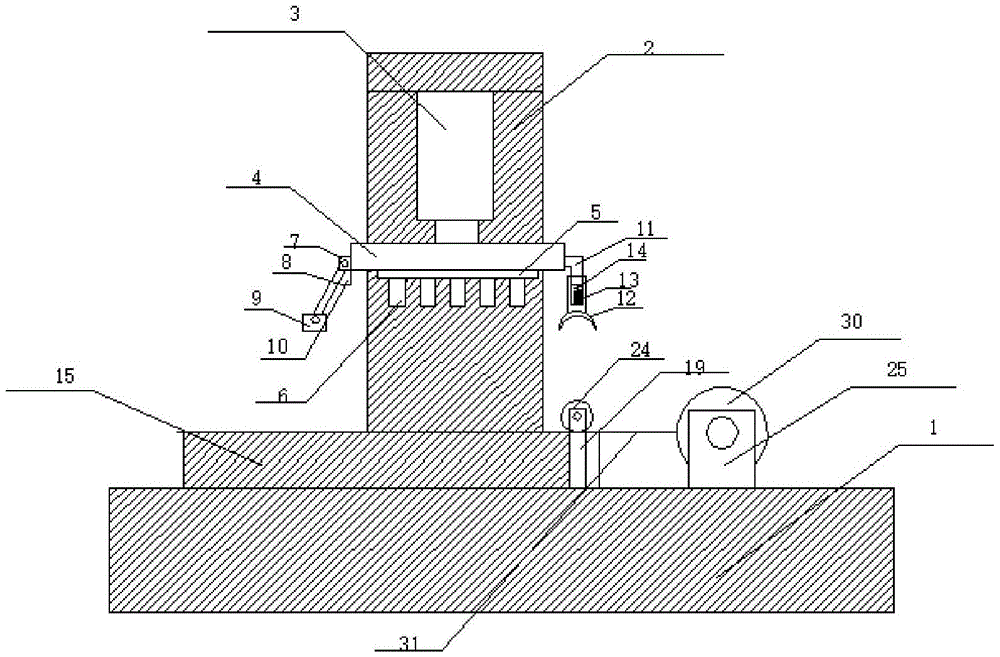

Fig. 1 is a schematic structural view of a film raw material platen die-cutting machine according to the present invention;

fig. 2 is a schematic side view of a film raw material platen die-cutting machine according to the present invention;

fig. 3 is a schematic view of a top view structure of a base of a film raw material flat pressing and flat die cutting machine according to the present invention;

fig. 4 is the utility model provides a side view structure schematic diagram of a first fixed column of film raw materials platen die-cutting machine.

In the figure: the device comprises a base 1, a fixed frame 2, a hydraulic cylinder 3, a movable plate 4, a supporting plate 5, an annular cutter 6, a fixed block 7, a rotating rod 8, a sliding block 9, a blocking block 10, a supporting frame 11, a clamping block 12, a sliding groove 13, a first spring 14, a workbench 15, a leakage hole 16, a drop groove 17, a discharge hole 18, a first fixed column 19, a groove 20, a second spring 21, a moving block 22, a connecting block 23, a roller 24, a second fixed column 25, a rotating block 26, a rotating block 27, a supporting column 28, a fixed groove 29 and a winding drum 30.

Detailed Description

The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments.

Referring to fig. 1-4, a film raw material flat-pressing flat die cutting machine comprises a base 1, a fixed frame 2 fixedly connected to the top of the base 1, a hydraulic cylinder 3 fixedly connected to the bottom of the fixed frame 2, a movable plate 4 fixedly connected to the output shaft of the hydraulic cylinder 3, a support plate 5 fixedly connected to the bottom of the movable plate 4, a plurality of annular cutters 6 fixedly connected to the bottom of the support plate 5, a fixed block 7 fixedly connected to one side of the movable plate 4, a rotating rod 8 rotatably connected to one side of the fixed block 7, a sliding block 9 rotatably connected to one end of the rotating rod 8, a stop block 10 fixedly connected to one side of the movable plate 4, a support frame 11 fixedly connected to the other side of the movable plate 4, a clamping block 12 arranged below the support frame 11, a sliding groove 13 arranged at the top of the clamping block 12, and a first spring 14 fixedly connected to the inside the sliding groove 13, and one end of the first spring 14 is fixedly connected with one end of the support frame 11.

The utility model discloses in, base 1's top fixedly connected with workstation 15, two small openings 16 have been seted up at workstation 15's top, and two small openings 16 are corresponding with a plurality of annular cutter 6, and small opening 16 cooperatees with a plurality of annular cutter 6.

The utility model discloses in, the top of base 1 has been seted up and has been fallen groove 17 and discharge gate 18, and the groove 17 that falls is linked together with discharge gate 18, and the top of the groove 17 that falls is corresponding with the bottom of two small openings 16, and the groove 17 that falls cooperatees with discharge gate 18.

The utility model discloses in, two first fixed columns 19 of base 1's top fixedly connected with, recess 20 has all been seted up at the top of two first fixed columns 19, the equal fixedly connected with second spring 21 in two recess 20, the equal fixedly connected with movable block 22 in top of two second springs 21, the equal fixedly connected with connecting block 23 in one side of two movable blocks 22, one side of two connecting blocks 23 is rotated and is connected with same cylinder 24, cylinder 24 plays fixed auxiliary action.

The utility model discloses in, base 1's top fixedly connected with second fixed column 25, one side fixedly connected with rotatory piece 26 of second fixed column 25, one side of rotatory piece 26 is rotated and is connected with turning block 27, a plurality of support columns 28 of one side fixedly connected with of turning block 27, and base 1's top is equipped with reel 30, and a plurality of fixed slots 29 have been seted up to one side of reel 30, and a plurality of fixed slots 29 clamp with a plurality of support columns 28 mutually, and support column 28 plays the fixed action.

In the utility model, when the film is required to be processed, the fixing groove 29 on one side of the winding drum 30 is corresponding to the supporting column 28, the supporting column 28 is inserted into the fixing groove 29 to fix the winding drum 30, then the film is pulled to drive the winding drum 30 to rotate, the film passes through the bottom of the roller 24 and extends to the worktable 15, then the hydraulic cylinder 3 is opened, the hydraulic cylinder 3 drives the moving plate 4 to move downwards, the moving plate 4 drives the supporting plate 5, the fixing block 7 and the supporting frame 11 to move downwards, when the supporting frame 11 drives the clamping block 12 to move downwards to move the extrusion roller 24, the supporting frame 11 extrudes the first spring 13, the clamping block 12 drives the roller 24 to move downwards to press the film and extrude the second spring 21, then the fixing block 7 drives the rotating rod 8 and the sliding block 9 to move downwards to contact with the film, when the moving plate 4 moves downwards again, the sliding block drives the sliding block 9 to move leftwards and drives the film to move leftwards, at the moment, the film is stretched and stretched leftwards by the sliding block 9, the film is convenient to process and process, then the supporting plate 5 drives the annular cutters 6 to cut downwards, the cut waste materials enter the falling groove 17 from the two leakage holes 15, then enter the discharge hole 18 from the falling groove 17 and finally slide outwards, and collection is facilitated.

The above, only be the concrete implementation of the preferred embodiment of the present invention, but the protection scope of the present invention is not limited thereto, and any person skilled in the art is in the technical scope of the present invention, according to the technical solution of the present invention and the utility model, the concept of which is equivalent to replace or change, should be covered within the protection scope of the present invention.

Claims

1. The utility model provides a flat die-cutting machine that flattens of film raw materials, includes base (1), its characterized in that, top fixedly connected with mount (2) of base (1), the bottom fixedly connected with pneumatic cylinder (3) of mount (2), fixedly connected with movable plate (4) on the output shaft of pneumatic cylinder (3), the bottom fixedly connected with backup pad (5) of movable plate (4), a plurality of annular cutters (6) of bottom fixedly connected with of backup pad (5), one side fixedly connected with fixed block (7) of movable plate (4), one side rotation of fixed block (7) is connected with dwang (8), the one end rotation of dwang (8) is connected with slider (9), one side fixedly connected with of movable plate (4) blocks piece (10), blocks one side of piece (10) and contacts with one side of dwang (8), the opposite side fixedly connected with support frame (11) of movable plate (4), a clamping block (12) is arranged below the support frame (11), a sliding groove (13) is formed in the top of the clamping block (12), a first spring (14) is fixedly connected in the sliding groove (13), and one end of the first spring (14) is fixedly connected with one end of the support frame (11).

2. The flat die cutting machine according to claim 1, characterized in that a workbench (15) is fixedly connected to the top of the base (1), two leak holes (16) are formed in the top of the workbench (15), and the two leak holes (16) correspond to the plurality of annular cutters (6).

3. The flat die cutting machine for the film raw materials according to claim 1, wherein a drop groove (17) and a discharge hole (18) are formed in the top of the base (1), the drop groove (17) is communicated with the discharge hole (18), and the top of the drop groove (17) corresponds to the bottoms of the two through holes (16).

4. The flat die cutting machine for the film raw materials according to claim 1, characterized in that the top of the base (1) is fixedly connected with two first fixed columns (19), the tops of the two first fixed columns (19) are respectively provided with a groove (20), the insides of the two grooves (20) are respectively and fixedly connected with a second spring (21), the tops of the two second springs (21) are respectively and fixedly connected with a movable block (22), one side of each of the two movable blocks (22) is respectively and fixedly connected with a connecting block (23), and one side of each of the two connecting blocks (23) is rotatably connected with the same roller (24).

5. The flat die cutting machine for the film raw materials according to claim 1, wherein a second fixing column (25) is fixedly connected to the top of the base (1), a rotating block (26) is fixedly connected to one side of the second fixing column (25), a rotating block (27) is rotatably connected to one side of the rotating block (26), a plurality of supporting columns (28) are fixedly connected to one side of the rotating block (27), a winding drum (30) is arranged above the base (1), a plurality of fixing grooves (29) are formed in one side of the winding drum (30), and the plurality of fixing grooves (29) are clamped with the plurality of supporting columns (28).
