Abstract

The utility model discloses a wrapping and folding integrated box, which comprises an upper sealing plate and a bottom plate, a connecting side plate connecting the upper sealing plate and the bottom plate, and upper sealing side plates arranged on both sides of the upper sealing plate, and two side plates arranged on the bottom plate. The bottom side plate on the side, the inclined side plate arranged on both sides of the connecting side plate, and the front sealing plate arranged at one end of the upper sealing plate, the connection between the front sealing plate and the upper sealing plate is provided with a fixing hole and a fixing card One end of the bottom plate is provided with a front buckle plate. Since the structure of the traditional aircraft box is abandoned, the packaging can be placed on the upper sealing plate while being folded, and packed together with the packaging box, which reduces the packaging process and improves the packaging efficiency; The clasp strip passing through the fixing hole, the middle of the fold of the clasp strip is provided with a hole for the insertion of the fixed clasp, and the double clasp fixing makes the package firmer; the new structure is adopted, which saves a lot of money compared with the traditional aircraft box. It saves the material and occupies a smaller area during transportation, which is convenient for transportation.

Description

Bag-folding integrated box

Technical Field

The utility model relates to a package and roll over integrative box.

Background

In the packaging art, there is often a need to provide consumers with a package that includes multiple primary product containers, such multiple packages being needed for shipping and distribution and displaying promotional information. In order to consider cost and environment, the paper box or the carrier needs to be made of materials as few as possible, the materials for forming the paper box or the carrier are as few as possible, waste is avoided, glue and the like need to be used in the existing paper box assembly, the paper box does not have recoverability after the paper box is unfolded, after a consumer takes out a package in the box, the box is directly discarded, resource waste is caused, the traditional packaging box is very inconvenient to fold, the package can be placed after the folding is finished, and a process is added.

SUMMERY OF THE UTILITY MODEL

The utility model discloses solve the technical problem that prior art exists to a simple structure is provided, and is folding simple and convenient, and the packing material is folded along with the packing carton, and the transportation is convenient, and the integrative box of package book that saves labour economize the material.

The above technical problem of the present invention can be solved by the following technical solutions:

the utility model provides an integrative box of package book, includes last shrouding and bottom plate, and connects the connection curb plate of going up shrouding and bottom plate, and sets up in the last curb plate of going up the shrouding both sides, and set up in the bottom surface curb plate of bottom plate both sides, and set up in the oblique curb plate of connecting the curb plate both sides, and set up in the preceding shrouding of last shrouding one end, preceding shrouding and last shrouding junction are provided with fixed jack and fixed buckle, bottom plate one end is provided with preceding buckle board, preceding buckle board top is provided with the buckle strip that can pass fixed jack, be provided with the hole that the fixed buckle of being convenient for alternates in the middle of the folding department of buckle strip.

Preferably, one end of the bottom side plate extends with a folding strip.

Preferably, the upper sealing plate and the bottom plate are the same in size, and the front sealing plate, the connecting side plate, the bottom side plate and the upper sealing side plate are the same in width.

Preferably, the whole folded and wrapped integrated box is integrally formed.

Preferably, the folding integrated box is made of corrugated paper, single powder paper, double copper paper or pitted paper.

The utility model discloses beneficial effect of integrative box is rolled over in package: because the wrapping and folding integrated box abandons the structure of the traditional aircraft box, the packaging box can be folded and placed on the upper sealing plate, and is packaged together with the packaging box, so that the packaging procedures are reduced, and the packaging efficiency is improved; the top of the front buckle plate is provided with a buckle strip capable of penetrating through the fixed insertion hole, a hole facilitating the penetration of the fixed buckle is formed in the middle of the folding position of the buckle strip, and the double buckles are fixed, so that the package is firmer; adopt novel structure, compared with traditional aircraft box saved the material greatly, it is littleer to take up an area of in the transportation, the transportation of being convenient for.

Drawings

In order to more clearly illustrate the embodiments of the present invention or the technical solutions in the prior art, the drawings used in the description of the embodiments or the prior art will be briefly described below, it is obvious that the drawings in the following description are only some embodiments of the present invention, and for those skilled in the art, other drawings can be obtained according to these drawings without creative efforts.

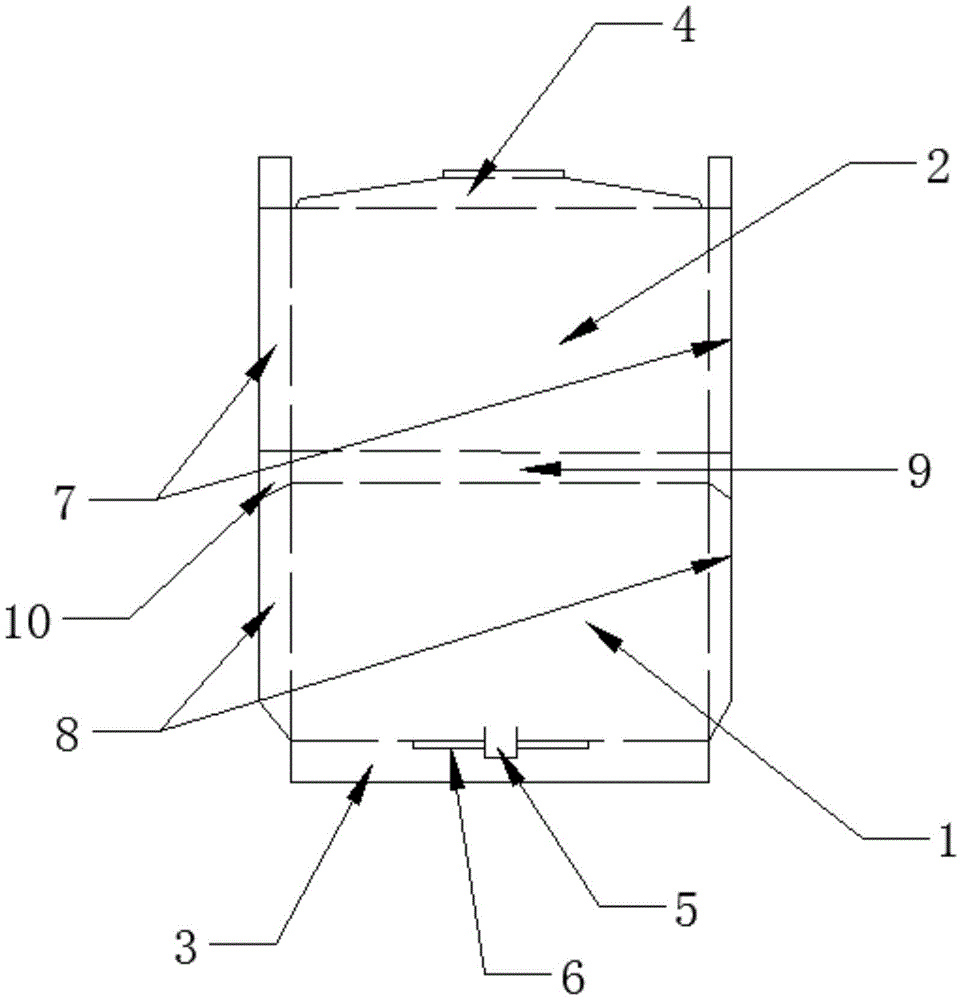

FIG. 1 is a schematic structural view of a folding box of the utility model;

FIG. 2 is a view showing a state of the utility model of a folding box;

in the figure: 1. an upper sealing plate; 2. a base plate; 3. a front closing plate; 4. a front snap plate; 5. fixing the buckle; 6. fixing the jack; 7. a bottom side plate; 8. an upper sealing side plate; 9. connecting the side plates; 10. and an inclined side plate.

Detailed Description

The preferred embodiments of the present invention will be described in detail below with reference to the accompanying drawings, so that the advantages and features of the present invention can be more easily understood by those skilled in the art, and the scope of the present invention can be more clearly and clearly defined.

Referring to fig. 1 to 2, the present invention adopts the following technical solutions: the utility model provides an integrative box of package book, includes last shrouding 1 and bottom plate 2, and connects connection curb plate 9 of going up shrouding 1 and bottom plate 2, and sets up in the last curb plate 8 of going up 1 both sides of shrouding, and sets up in the bottom surface curb plate 7 of 2 both sides of bottom plate, and sets up in the oblique curb plate 10 of connecting 9 both sides of curb plate, and sets up in the preceding shrouding 3 of going up 1 one end of shrouding, preceding shrouding 3 is provided with fixed jack 6 and fixed buckle 5 with 1 junction of last shrouding, 2 one ends of bottom plate are provided with preceding buckle board 4, preceding buckle board 4 top is provided with the buckle strip (not shown in the figure) that can pass fixed jack 6, be provided with the hole (not shown in the middle of the folding department of buckle strip that fixed buckle 5 of being convenient for alternates.

A folding strip (not shown) extends from one end of the bottom side plate 7.

The upper sealing plate 1 and the bottom plate 2 are identical in size, and the front sealing plate 3, the connecting side plate 9, the bottom side plate 7 and the upper sealing side plate 8 are identical in width.

The whole wrapping and folding integrated box is integrally formed.

The packing and folding integrated box is made of corrugated paper, single powder paper, double copper paper or pit paper.

Keep flat the packing material on last shrouding 1, then shrouding 3 before, go up and seal curb plate 8, bottom surface curb plate 7 is folding up with preceding buckle board 4, hold packing material and last shrouding 1 fifty percent discount together to bottom plate 2 top, make and seal curb plate 8 and be located bottom surface curb plate 7 inboardly, folding strip becomes and passes preceding shrouding 3 and last and seal curb plate 8 after 90 degrees are folding and forms the gap, buckle strip on preceding buckle board 4 passes fixed jack 6, then fixed buckle 5 passes from the hole again, make the packing of whole packing carton more firm, the packing material is placed on last shrouding together, packaging process has been reduced, packaging efficiency has been improved.

The utility model discloses beneficial effect of integrative box is rolled over in package: because the wrapping and folding integrated box abandons the structure of the traditional aircraft box, the packaging box can be folded and placed on the upper sealing plate, and is packaged together with the packaging box, so that the packaging procedures are reduced, and the packaging efficiency is improved; the top of the front buckle plate is provided with a buckle strip capable of penetrating through the fixed insertion hole, a hole facilitating the penetration of the fixed buckle is formed in the middle of the folding position of the buckle strip, and the double buckles are fixed, so that the package is firmer; adopt novel structure, compared with traditional aircraft box saved the material greatly, it is littleer to take up an area of in the transportation, the transportation of being convenient for.

The above description is only for the specific embodiments of the present invention, but the scope of the present invention is not limited thereto, and any changes or substitutions that are not thought of through the creative work should be covered within the scope of the present invention. Therefore, the protection scope of the present invention should be subject to the protection scope defined by the claims.

Claims (5)

1. An integrated box for wrapping and folding, characterized in that: comprising an upper sealing plate and a bottom plate, and a connecting side plate connecting the upper sealing plate and the bottom plate, and an upper sealing side plate arranged on both sides of the upper sealing plate, and being arranged on the bottom plate The bottom side plates on both sides, the inclined side plates arranged on both sides of the connecting side plates, and the front sealing plate arranged at one end of the upper sealing plate, the connection between the front sealing plate and the upper sealing plate is provided with fixing holes and fixing holes Buckle, one end of the bottom plate is provided with a front buckle plate, the top of the front buckle plate is provided with a buckle strip that can pass through the fixing hole, and the middle of the folded part of the buckle strip is arranged to facilitate the insertion of the fixed buckle of holes. 2 . The integrated package and foldable box according to claim 1 , wherein a folding strip extends from one end of the bottom side plate. 3 . 3. An integrated box for wrapping and folding according to claim 1, wherein the upper sealing plate and the bottom plate are of the same size, and the widths of the front sealing plate, the connecting side plate, the bottom side plate and the upper sealing side plate are the same. same. 4 . The integrated wrapping and folding box according to claim 1 , wherein the entire wrapping and folding integrated box is integrally formed. 5 . 5 . The wrapping and folding integrated box according to claim 1 , wherein the wrapping and folding integrated box is made of corrugated paper, single powder paper, double copper paper or pit paper. 6 .
