Abstract
本实用新型公开了一种防晒服生产用透气型防紫外线面料，包括基布层和防紫外线层，所述基布层设置为腈纶纤维基布层，所述基布层和防紫外线层之间设置有绵层，所述绵层包括下绵层、中心层和上棉层，所述中心层设置于下绵层与上棉层之间，所述绵层设置为平纹棉布绵层，所述下绵层底面与基布层贴合，所述上棉层顶面贴合设置有第一透气层，所述第一透气层顶面贴合设置有防水层，所述防水层上均匀涂抹有AC涂胶，所述防水层顶面与防紫外线层贴合，所述防紫外线层顶面贴合设置第二透气层，增加基布层，增加紫外线涂层的保护力度，清洗时防紫外线的涂胶不易脱落，更加柔软，透气性强，提升了面料品质，做成衣服之后穿着更加舒适。
The utility model discloses an air-permeable ultraviolet-proof fabric for the production of sunscreen clothing, which comprises a base fabric layer and an ultraviolet-proof layer. The base fabric layer is set as an acrylic fiber base fabric layer; A cotton layer is provided, the cotton layer includes a lower cotton layer, a center layer and an upper cotton layer, the center layer is arranged between the lower cotton layer and the upper cotton layer, the cotton layer is set as a plain cotton layer, the The bottom surface of the lower cotton layer is attached to the base fabric layer, the top surface of the upper cotton layer is attached and provided with a first air-permeable layer, the top surface of the first air-permeable layer is attached and provided with a waterproof layer, and the waterproof layer is evenly coated with AC gluing, the top surface of the waterproof layer and the anti-ultraviolet layer are attached, and the top surface of the anti-ultraviolet layer is attached to a second breathable layer, adding a base fabric layer, increasing the protection strength of the ultraviolet coating, and preventing ultraviolet rays during cleaning. The glue is not easy to fall off, it is softer and has strong air permeability, which improves the quality of the fabric and makes it more comfortable to wear after being made into clothes.
Description
Technical Field
The utility model relates to an ultraviolet protection surface fabric technical field specifically is a production of sun-proof clothes is with ventilative type ultraviolet protection surface fabric.
Background
In the world of clothes, the fabric of the clothes is various, and is different day by day, but on the whole, the high-quality and high-grade fabric has the characteristics of comfort in wearing, sweat absorption, air permeability, stiff and smooth suspension, noble vision, soft and beautiful touch and the like, the modern society pursues free and close to natural life, people often perform outdoor activities and receive the irradiation of sunlight, and the proper sunlight irradiation is good for the body, but if the clothes are used for long-term outdoor activities, ultraviolet rays in the sunlight can also cause certain damage to the body, such as wrinkles caused by skin aging, spots generated, rough skin, dermatitis, even skin cancer and the like, so that the clothes are required to have the ultraviolet-proof function when the people perform the outdoor activities;
the ultraviolet-proof fabric is a protective material for preventing excessive ultraviolet radiation of human bodies. Common fabrics include polyester-silk, pongee and five satins. Use this surface fabric can prevent human skin sunburn ageing, and current look is knitted surface fabric ultraviolet resistance ability and is relatively weak to do not have the protection of base cloth layer when wasing, lose anti ultraviolet's ability easily, lead to the cloth can not repeated washing use, cause the cost to increase the scheduling problem, the look is knitted the surface fabric when using, need satisfy soft, close skin and have certain gas permeability, makes the clothes and wears to increase the comfort level on one's body.
SUMMERY OF THE UTILITY MODEL
An object of the utility model is to provide a production of sun-proof clothes is with ventilative type ultraviolet resistance surface fabric increases the base cloth layer, increases ultraviolet coating's protection dynamics, and ultraviolet resistance's rubber coating is difficult for droing during the washing, and is softer more, and the gas permeability is strong, has promoted the surface fabric quality, and it is more comfortable to wear after making the clothes to solve the problem that proposes in the above-mentioned background art.
In order to achieve the above object, the utility model provides a following technical scheme: the utility model provides a production of sun-proof clothes is with ventilative type anti ultraviolet surface fabric, includes base cloth layer and anti ultraviolet layer, be provided with a cotton layer between base cloth layer and the anti ultraviolet layer, cotton layer includes cotton layer, centre layer and last cotton layer down, cotton layer bottom surface and base cloth layer laminating down, it is provided with first ventilative layer to go up cotton layer top surface laminating, first ventilative layer top surface laminating is provided with the waterproof layer, waterproof layer top surface and anti ultraviolet layer laminating, anti ultraviolet layer top surface laminating sets up the ventilative layer of second.
Preferably, the base cloth layer is an acrylic fiber base cloth layer, and the whole thickness of the base cloth layer is 1-2 mm.
Preferably, the central layer is arranged between the lower cotton layer and the upper cotton layer, the cotton layer is a plain cotton layer, and the overall thickness of the cotton layer is 1-2 mm.
Preferably, the waterproof layer is uniformly coated with AC glue.
Preferably, the ultraviolet-proof layer coating is a nano titanium dioxide coating or an acrylic coating, and the whole thickness of the ultraviolet-proof layer is 2-2.75 mm.
Preferably, the first breathable layer and the second breathable layer are uniformly distributed with air holes at equal intervals, and the overall thickness of the first breathable layer and the second breathable layer is 0.5-0.75 mm.
Compared with the prior art, the beneficial effects of the utility model are that:
1. the utility model can prevent the fabric from being worn too fast when in use through the arranged base cloth layer, can prolong the service life, can improve the ultraviolet-proof capability of the fabric through the ultraviolet-proof layer, has long service life, can be repeatedly cleaned along with the fabric, and can prevent water from passing through when ventilating because the waterproof layer is a component made of hydrophobic material;
2. the softness of the fabric is increased due to the arrangement of the cotton layer, the air holes are uniformly distributed in the first air permeable layer and the second air permeable layer at equal intervals, the air permeability of the whole fabric is increased, the quality of the fabric is improved, and the wearing comfort of the ready-made clothes is high.
Drawings

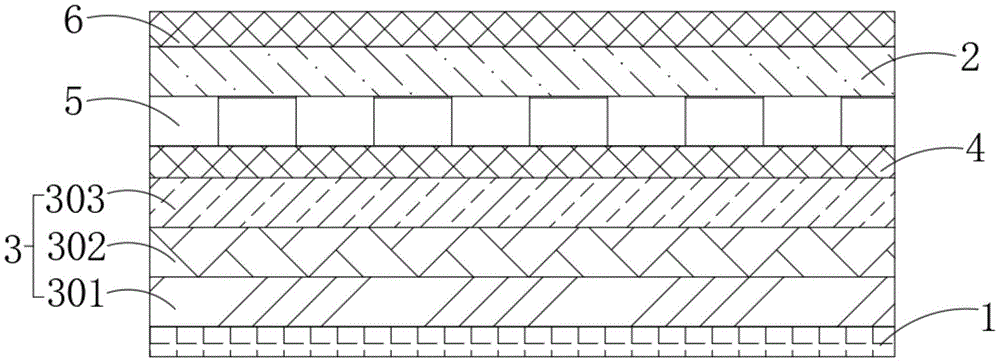

Fig. 1 is a schematic sectional view of a top view structure of the present invention;
fig. 2 is a schematic bottom view of the present invention;
fig. 3 is a schematic view of the front view structure of the present invention.
In the figure: 1. a base cloth layer; 2. an ultraviolet-proof layer; 3. a cotton layer; 301. a cotton layer is arranged; 302. a center layer; 303. a cotton layer is arranged; 4. a first breathable layer; 5. a waterproof layer; 6. a second gas permeable layer.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
Referring to fig. 1-3, the present invention provides a technical solution: a breathable ultraviolet-proof fabric for producing sun-blocking clothes comprises a base cloth layer 1 and an ultraviolet-proof layer 2, the base cloth layer 1 has a protection effect on the whole fabric, the fabric is not easy to deform and wear during washing, the fabric can be prevented from being worn too fast during use, the service life can be prolonged, the base cloth layer 1 is an acrylic fiber base cloth layer, and the whole thickness of the base cloth layer 1 is 1-2 mm;
a cotton layer 3 is arranged between the base cloth layer 1 and the ultraviolet-proof layer 2, the cotton layer 3 comprises a lower cotton layer 301, a central layer 302 and an upper cotton layer 303, the central layer 302 is arranged between the lower cotton layer 301 and the upper cotton layer 303, the cotton layer 3 is a plain cotton layer, the overall thickness of the cotton layer 3 is 1-2mm, the flexibility of the fabric is increased due to the arrangement of the cotton layer 3, the bottom surface of the lower cotton layer 301 is attached to the base cloth layer 1, a first breathable layer 4 is attached to the top surface of the upper cotton layer 303, a waterproof layer 5 is attached to the top surface of the first breathable layer 4, AC glue is uniformly coated on the waterproof layer 5, the waterproof layer is a component made of hydrophobic materials, water can be prevented from passing through during ventilation, and the top surface of the waterproof layer 5 is attached to the ultraviolet-proof layer 2;
the ultraviolet-proof layer 2 coating is a nano titanium dioxide coating or an acrylic coating, the ultraviolet-proof layer 2 can increase the ultraviolet-proof capacity of the fabric, the service life is long, the fabric can be repeatedly cleaned along with the fabric, the ultraviolet-proof layer 2 is a composite fabric, the whole thickness of the ultraviolet-proof layer 2 is 2-2.75mm, the top surface of the ultraviolet-proof layer 2 is provided with the second breathable layer 6 in a laminating manner, the breathable holes are uniformly distributed on the first breathable layer 4 and the second breathable layer 6 at equal intervals, the whole thickness of the first breathable layer 4 and the second breathable layer 6 is 0.5-0.75mm, the breathable holes are uniformly distributed on the first breathable layer 4 and the second breathable layer 6 at equal intervals, the breathability of the whole fabric is increased, the quality of the fabric is improved, and the wearing comfort of the finished garment is high.
The working principle is as follows: during the use, wholly play the guard effect to the surface fabric through base cloth layer 1, non-deformable wearing and tearing during the washing, the setting of cotton layer 3 has increased the compliance of surface fabric, prevent that ultraviolet layer 2 coating is nanometer titanium dioxide coating or acrylic acid coating, prevent that ultraviolet layer 2 can increase surface fabric anti ultraviolet's ability, and long service life, can wash repeatedly along with the surface fabric, evenly distributed equidistance is provided with the bleeder vent on first ventilative layer 4 and the ventilative layer 6 of second, the gas permeability of whole surface fabric has been increased, promote the quality of surface fabric.
Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.
Claims (6)
1. The utility model provides a production of sun-proof clothes is with ventilative type anti ultraviolet surface fabric, includes base cloth layer (1) and anti ultraviolet layer (2), its characterized in that: be provided with cotton layer (3) between base cloth layer (1) and anti ultraviolet layer (2), cotton layer (3) are including cotton layer (301), centre layer (302) and last cotton layer (303) down, cotton layer (301) bottom surface and base cloth layer (1) laminating down, it is provided with first ventilative layer (4) to go up cotton layer (303) top surface laminating, first ventilative layer (4) top surface laminating is provided with waterproof layer (5), waterproof layer (5) top surface and anti ultraviolet layer (2) laminating, anti ultraviolet layer (2) top surface laminating sets up ventilative layer of second (6).
2. The breathable ultraviolet-proof fabric for producing sun-blocking clothes according to claim 1, which is characterized in that: the base cloth layer (1) is an acrylic fiber base cloth layer, and the overall thickness of the base cloth layer (1) is 1-2 mm.
3. The breathable ultraviolet-proof fabric for producing sun-blocking clothes according to claim 1, which is characterized in that: the cotton-padded mattress is characterized in that the central layer (302) is arranged between the lower cotton layer (301) and the upper cotton layer (303), the cotton layer (3) is a plain cotton layer, and the overall thickness of the cotton layer (3) is 1-2 mm.
4. The breathable ultraviolet-proof fabric for producing sun-blocking clothes according to claim 1, which is characterized in that: and the waterproof layer (5) is uniformly coated with AC glue.
5. The breathable ultraviolet-proof fabric for producing sun-blocking clothes according to claim 1, which is characterized in that: the coating of the ultraviolet-proof layer (2) is a nano titanium dioxide coating or an acrylic coating, and the whole thickness of the ultraviolet-proof layer (2) is 2-2.75 mm.
6. The breathable ultraviolet-proof fabric for producing sun-blocking clothes according to claim 1, which is characterized in that: the first breathable layer (4) and the second breathable layer (6) are uniformly distributed with breathable holes at equal intervals, and the overall thickness of the first breathable layer (4) and the second breathable layer (6) is 0.5-0.75 mm.
Priority Applications (1)
| Application Number | Priority Date | Filing Date | Title |
|---|---|---|---|
| CN202120257907.1U CN215152695U (en) | 2021-01-29 | 2021-01-29 | Breathable ultraviolet-proof fabric for producing sun-proof clothes |
Applications Claiming Priority (1)
| Application Number | Priority Date | Filing Date | Title |
|---|---|---|---|
| CN202120257907.1U CN215152695U (en) | 2021-01-29 | 2021-01-29 | Breathable ultraviolet-proof fabric for producing sun-proof clothes |
Publications (1)
| Publication Number | Publication Date |
|---|---|
| CN215152695U true CN215152695U (en) | 2021-12-14 |
Family
ID=79408583
Family Applications (1)
| Application Number | Title | Priority Date | Filing Date |
|---|---|---|---|
