Abstract
本实用新型公开了一种用于在普通铣床上加工长条状工件斜面的工装，包括设于虎钳夹口的两侧的左夹板、右夹板，所述左夹板上设有左支承台阶，所述右夹板上设有右支承台阶，所述左支承台阶的顶端设有支撑工件的第一定位斜面，所述右支承台阶的顶端设有与所述第一定位斜面相适应的第二定位斜面。本实用新型的用于在普通铣床上加工长条状工件斜面的工装，属于铣床加工技术领域，拆装方便，通过左夹板、右夹板对工件进行夹紧、支撑，使原本工件顶面的斜面结构处于水平状态，通过普通铣床上的铣刀即可对工件斜面进行加工，能保质保量的在普通铣床上快速加工长条状工件的长度较长的角度，无须使用三轴数控加工中心加工，节约加工成本，安全快速高效。
The utility model discloses a tooling used for machining the inclined surface of a long workpiece on a common milling machine, which comprises a left clamping plate and a right clamping plate arranged on both sides of a jaw of a vice, wherein the left clamping plate is provided with a left supporting step, The right clamping plate is provided with a right support step, the top end of the left support step is provided with a first positioning slope for supporting the workpiece, and the top end of the right support step is provided with a second positioning surface adapted to the first positioning slope bevel. The tooling of the utility model is used for processing the inclined surface of a long workpiece on a common milling machine, belonging to the technical field of milling machine processing, and is convenient for disassembly and assembly. The structure is in a horizontal state, and the inclined surface of the workpiece can be processed by the milling cutter on the ordinary milling machine, which can quickly process the long angle of the long workpiece on the ordinary milling machine with high quality and quantity, without using a three-axis CNC machining center. , save processing cost, safe, fast and efficient.
Description
Technical Field
The utility model relates to a milling machine processing technology, more specifically say, it relates to a frock that is used for processing rectangular form work piece inclined plane on ordinary milling machine.
Background
In the process of processing the inclined plane of the long-strip-shaped workpiece on a common milling machine, the length of the processed inclined plane reaches more than 1000mm, and the swing angle of the milling head cannot be processed. Generally, only the cushion block can enable the machined workpiece and the cutting tool to form a proper angle for machining, but clamping is difficult due to the adoption of the method. According to the conventional machining method, the machining efficiency is low, and the workpiece is easily damaged.
SUMMERY OF THE UTILITY MODEL
The to-be-solved technical problem of the utility model is not enough to the above-mentioned of prior art, the utility model aims at providing a be used for processing the frock on long banding work piece inclined plane on ordinary milling machine convenient to processing work piece inclined plane.
In order to achieve the above object, the utility model provides a frock for processing rectangular form work piece inclined plane on ordinary milling machine, including left splint, the right splint of the both sides of locating vice grip, be equipped with left supporting step on the splint of a left side, be equipped with right supporting step on the splint of the right side, the top of left side supporting step is equipped with the first location inclined plane that supports the work piece, the top of right side supporting step be equipped with the second location inclined plane that first location inclined plane suited.
Furthermore, two positioning pressing plates are arranged on two sides of the jaw vice clamping opening, positioning bosses protruding inwards are arranged at the bottoms of the positioning pressing plates, and positioning notches matched with the positioning bosses are arranged on the outer sides of the bottoms of the left clamping plate and the right clamping plate.
Furthermore, the inner side surface of the positioning pressing plate is provided with a sliding groove which extends transversely, and the outer side surfaces of the left clamping plate and the right clamping plate are provided with sliding strips which are matched with the sliding groove.
Furthermore, the cross section of the sliding groove is T-shaped, and the cross section of the sliding strip is T-shaped.
Furthermore, the left clamping plate and the right clamping plate are provided with counter bores connected with the positioning pressing plate.
As a further improvement, the inner side surface of the top of the left clamping plate and the first positioning inclined surface are provided with a first yielding groove, and the inner side surface of the top of the right clamping plate and the second positioning inclined surface are provided with a second yielding groove.
Furthermore, the inner side surfaces of the tops of the left clamping plate and the right clamping plate are provided with extrusion pads.
Further, the pressing pad is of a rubber structure.
Advantageous effects
Compared with the prior art, the utility model discloses a beneficial effect that is used for processing frock on ordinary milling machine long banding work piece inclined plane as follows: the utility model discloses a frock for processing rectangular form work piece inclined plane on ordinary milling machine, through left splint, right splint support the work piece, left splint, the first location inclined plane on the splint of right side, the laminating of the bottom surface of second location inclined plane and work piece, the inclined plane structure that makes original work piece top surface is in the horizontality, milling cutter through on the ordinary milling machine can process the work piece inclined plane, the longer angle of length of the rectangular form work piece of rapid processing on ordinary milling machine of ability quality and quality guarantee, need not use triaxial numerical control machining center to process, practice thrift the processing cost, it is safe high-efficient.
Drawings

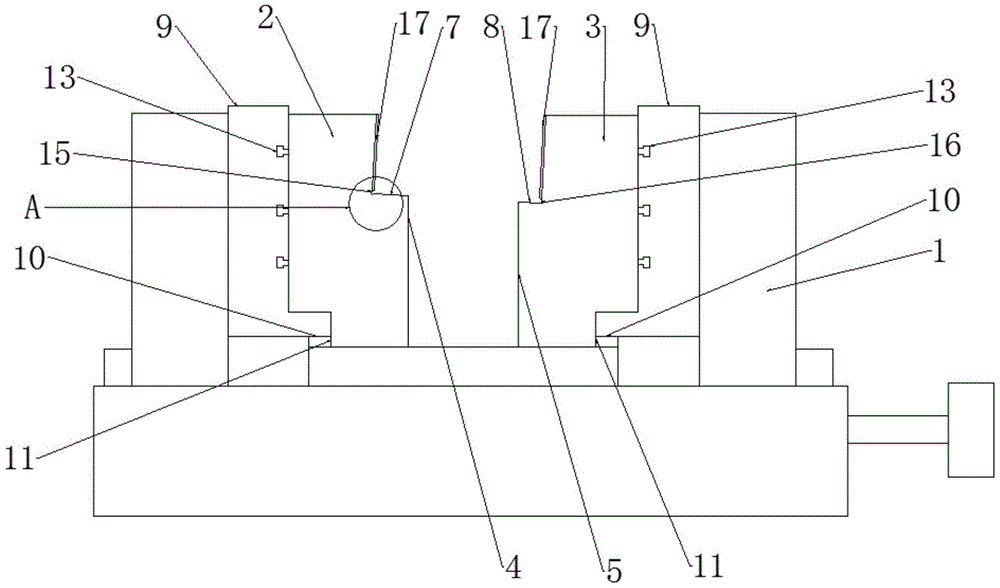

Fig. 1 is a front view of the structure of the tool for processing the inclined surface of the long-strip-shaped workpiece on a common milling machine according to the present invention;
fig. 2 is a schematic structural assembly diagram of the tool for machining the inclined surface of the long-strip-shaped workpiece on a common milling machine according to the present invention;
FIG. 3 is a schematic structural view of the left splint according to the present invention;
FIG. 4 is a schematic structural view of a positioning pressing plate of the present invention;
fig. 5 is an enlarged schematic view of the structure at a in fig. 1.
In the figure: 1. a vise; 2. a left splint; 3. a right splint; 4. a left support step; 5. a right support step; 6. a workpiece; 7. a first positioning inclined plane; 8. a second positioning slope; 9. positioning a pressing plate; 10. positioning the boss; 11. positioning the notch; 12. a chute; 13. a slide bar; 14. a counter bore; 15. a first abdicating groove; 16. a second abdicating groove; 17. the mat is pressed.
Detailed Description
The following detailed description of the present invention is provided in conjunction with the accompanying drawings, but it should be understood that the scope of the present invention is not limited by the following detailed description.
The specific implementation manner of the utility model is as follows: as shown in fig. 1-5, a tool for processing a long strip workpiece inclined plane on a common milling machine includes a left clamping plate 2 and a right clamping plate 3 which are arranged at two sides of a clamping opening of a vice 1, a left supporting step 4 is arranged on the left clamping plate 2, a right supporting step 5 is arranged on the right clamping plate 3, a first positioning inclined plane 7 for supporting a workpiece 6 is arranged at the top end of the left supporting step 4, a second positioning inclined plane 8 adapted to the first positioning inclined plane 7 is arranged at the top end of the right supporting step 5, and the inclination direction and inclination angle of the second positioning inclined plane 8 are the same as those of the first positioning inclined plane 7. This a frock for processing rectangular form work piece inclined plane on ordinary milling machine, through left splint 2, right splint 3 supports work piece 6, left splint 2, first location inclined plane 7 on the right splint 3, the laminating of second location inclined plane 8 and work piece 6's bottom surface, the inclined plane structure that makes 6 top surfaces of original work piece is in the horizontality, milling cutter on the ordinary milling machine can be processed the work piece inclined plane, the longer angle of length of the rectangular form work piece 6 of rapid processing on ordinary milling machine of ability quality assurance volume, need not use triaxial numerical control machining center to process, and the machining cost is saved, safety is high efficiency.
The tool for processing the inclined plane of the long-strip-shaped workpiece on the common milling machine effectively solves the problem that the inclined plane of the long-strip-shaped workpiece 6 on the common milling machine is difficult to process.
This a frock for processing rectangular form work piece inclined plane on ordinary milling machine, fine utilization the stable quick function of clamping of general vice, make work piece 6 form the required angle of processing under the centre gripping of left and right splint, course of working safety, high efficiency.
In this embodiment, two positioning pressing plates 9 are disposed on two sides of the clamping opening of the vise 1, a positioning boss 10 protruding inward is disposed at the bottom of the positioning pressing plate 9, and a positioning notch 11 adapted to the positioning boss 10 is disposed on the outer sides of the bottoms of the left clamping plate 2 and the right clamping plate 3. The positioning pressing plate 9 is fixed on two sides of the clamping opening of the vice 1 through bolts, the inner side surfaces of the two positioning pressing plates 9, the upper end surface of the positioning boss 10 and the side surfaces position and support the left clamping plate 2 and the right clamping plate 3, then the left clamping plate 2 and the right clamping plate 3 are supported through the positioning boss 10, and the left clamping plate 2 and the right clamping plate 3 are firmly installed on the positioning pressing plates 9.
In this embodiment, be equipped with the spout 12 that horizontal extension set up on the medial surface of positioning pressure plate 9, be equipped with on the lateral surface of left splint 2 and right splint 3 with the draw runner 13 of spout 12 looks adaptation, through draw runner 13 and spout 12 cooperation, make left splint 2 and right splint 3 install fast on positioning pressure plate 9, easy dismounting, the equipment of the frock of being convenient for saves time.
In the present embodiment, the cross section of the chute 12 is "T" shaped, and the cross section of the slide 13 is "T" shaped.
In this embodiment, the left clamping plate 2 and the right clamping plate 3 are provided with counter bores 14 connected with the positioning pressing plate 9, the left clamping plate 2 and the right clamping plate 3 penetrate through the counter bores 14 through bolts to be connected with the positioning pressing plate 9, and the positioning pressing plate 9 and the vice 1 are locked through the bolts.
In this embodiment, be equipped with first recess 15 of stepping down between the medial surface at 2 tops of left splint and first location inclined plane 7, be equipped with the second recess 16 of stepping down between the medial surface at 3 tops of right splint and second location inclined plane 8, when left splint 2 and right splint 3 slowly shrink tightly work piece 6, the first recess 15 of stepping down, the second recess 16 of stepping down can step down the turning of work piece 6 bottom, avoid stepping down the base angle structure of work piece 6 and receive to collide with and damage.
In this embodiment, the inner side surface of the top of the left splint 2 is an extrusion inclined surface structure which is perpendicular to the first positioning inclined surface 7; the inner side surface of the top of the right clamping plate 3 is an extrusion inclined surface structure which is perpendicular to the second positioning inclined surface 8. The extrusion slope structure is attached to two side faces of the workpiece 6, so that the workpiece 6 is clamped and is prevented from loosening.
In this embodiment, the inner side surface of the top of the left clamping plate 2 and the right clamping plate 3 is provided with a pressing pad 17, and the pressing pad 17 is arranged on the pressing inclined surface structure. The provision of the pressing pads 17 serves to cushion and increase the friction force, prevent collision against the workpiece 6, and further clamp the workpiece 6.
In the present embodiment, the pressing pad 17 is of a rubber structure and can be elastically deformed; the pressing pad 17 is arranged above the first and second relief grooves 15 and 16.
The above is only a preferred embodiment of the present invention, and it should be noted that for those skilled in the art, without departing from the structure of the present invention, several modifications and improvements can be made, which will not affect the utility of the invention and the utility of the patent.
Claims (8)
1. The utility model provides a frock for processing rectangular form work piece inclined plane on ordinary milling machine, its characterized in that, including left splint (2), right splint (3) of locating vice (1) clamp mouth both sides, be equipped with left supporting step (4) on left splint (2), be equipped with right supporting step (5) on right splint (3), the top of left side supporting step (4) is equipped with first location inclined plane (7) that support work piece (6), the top of right side supporting step (5) be equipped with second location inclined plane (8) that first location inclined plane (7) suited.
2. The tooling for machining the inclined surface of the long-strip-shaped workpiece on the common milling machine according to claim 1 is characterized in that two positioning pressing plates (9) are arranged on two sides of a clamping opening of the vice (1), positioning bosses (10) protruding inwards are arranged at the bottoms of the positioning pressing plates (9), and positioning notches (11) matched with the positioning bosses (10) are arranged on the outer sides of the bottoms of the left clamping plate (2) and the right clamping plate (3).
3. The tooling for machining the inclined surface of the long-strip-shaped workpiece on the common milling machine according to claim 2 is characterized in that sliding grooves (12) which extend transversely are formed in the inner side surface of the positioning pressing plate (9), and sliding strips (13) which are matched with the sliding grooves (12) are formed in the outer side surfaces of the left clamping plate (2) and the right clamping plate (3).
4. A tooling for machining the inclined surface of a long workpiece on a common milling machine according to claim 3, characterized in that the cross section of the sliding chute (12) is T-shaped, and the cross section of the sliding bar (13) is T-shaped.
5. The tooling for machining the inclined surface of the long-strip-shaped workpiece on the common milling machine according to claim 4, characterized in that the left clamping plate (2) and the right clamping plate (3) are provided with counter bores (14) connected with the positioning pressing plate (9).
6. The tooling for machining the inclined surface of the long-strip-shaped workpiece on the common milling machine according to claim 4, is characterized in that a first abdicating groove (15) is arranged between the inner side surface of the top of the left clamping plate (2) and the first positioning inclined surface (7), and a second abdicating groove (16) is arranged between the inner side surface of the top of the right clamping plate (3) and the second positioning inclined surface (8).
7. The tooling for machining the inclined surface of the long-strip-shaped workpiece on the common milling machine according to claim 6 is characterized in that the inner side surfaces of the tops of the left clamping plate (2) and the right clamping plate (3) are provided with pressing pads (17).
8. A tooling for machining the inclined surface of an elongated workpiece on a common milling machine according to claim 7, characterized in that the extrusion pad (17) is of a rubber structure.
