Abstract

The utility model relates to a roll-type cold rolling make-up machine technical field specifically is a roll-type cold rolling make-up machine's roll-in mechanism in succession for CZ shaped steel processing, including platform, installation mechanism and moulding mechanism, installation mechanism is including support, mounting bar, lead screw, valve, mounting groove and bearing. The utility model discloses a set up installation mechanism and moulding mechanism, during the use, install this supporting on the make-up machine, when needs are moulding through moulding mechanism, two cleaning rollers of installing at support top and bottom can erase first compression roller and the remaining dust in second compression roller surface and piece in step, piece and dust fall down on the recess, the rethread recess is toward the position landing of waste discharge opening, collect through waste discharge opening is concentrated at last, through cleaning roller with first compression roller and second compression roller clearance back, can avoid the material to add man-hour, lead to surface damage, thereby can improve the production quality of product.

Description

Roll-in mechanism of continuous roll type cold rolling forming machine for C/Z section steel processing

Technical Field

The utility model relates to a roll-type cold rolling make-up machine technical field specifically is a roll-type cold rolling make-up machine's roll-type mechanism in succession for the processing of CZ shaped steel.

Background

The roller type cold rolling forming machine is a machine for rolling and flattening products, is widely applied to the field of metal product processing, has the most obvious flattening treatment effect on the products, rolls the products through the compression roller arranged in the roller type cold rolling forming machine, and enables the products to reach the thickness required by processing through multiple times of rolling.

Common roll squeezer mechanism is not convenient for install when using, and after equipment was shut down, dust and granule can be remained on the compression roller surface, and when the use of starting again, can leave the pot hole on the material surface during the suppression, consequently need carry out clearance in step to the compression roller when using to guarantee the processingquality of material.

SUMMERY OF THE UTILITY MODEL

An object of the utility model is to provide a roll-type mechanism of cold rolling make-up machine of continuous roll formula is used in processing of C/Z shaped steel to solve the problem that provides among the above-mentioned background art.

In order to achieve the above object, the utility model provides a following technical scheme:

a roll pressing mechanism of a continuous roll type cold rolling forming machine for processing C/Z section steel comprises a platform, an installation mechanism and a shaping mechanism, wherein the installation mechanism comprises a support, an installation strip, a screw rod, a valve, an installation groove and a bearing;

through the scheme, through setting up installation mechanism and moulding mechanism, during the use, install this supporting on the make-up machine, when needs are moulding through moulding mechanism, two cleaning rollers of installing at support top and bottom can erase first compression roller and second compression roller surface remaining dust and piece in step, piece and dust fall down on the recess, rethread recess toward the position landing of wasting discharge mouth, collect through wasting discharge mouth is concentrated at last, through cleaning roller with first compression roller and second compression roller clearance back, can avoid the material to add man-hour, lead to surface damage, thereby can improve the production quality of product.

Preferably, a plurality of supports are fixedly arranged on both sides of the platform, mounting strips are fixedly arranged between the tops of the supports, the insides of the mounting strips are movably connected with a screw rod, a valve is fixedly arranged on the top of the screw rod, mounting grooves are formed in the tops and the bottoms of the supports, and bearings are arranged inside the mounting grooves on both sides;

through the scheme, by arranging the supports, when the equipment is installed, the second compression roller and the second installation blocks arranged at two ends are firstly placed between the bottoms of the two supports, then the first installation block arranged at the bottom of the screw rod and the first compression roller are placed between the tops of the supports, then the installation strip arranged at the top of the screw rod is erected between the tops of the two supports, then the height of the first installation block is adjusted through a rotary valve, then the cleaning roller is installed in the installation grooves formed in the tops and the bottoms of the supports through the connecting rod, two ends of the connecting rod are sleeved in the installation grooves through the bearing sleeves, and finally the transmission shafts at two ends of the first compression roller and the second compression roller are connected with an external transmission mechanism, so that the effect of facilitating installation is achieved;

preferably, a first mounting block is arranged at the bottom of the screw rod, second mounting blocks are fixedly mounted on two sides of the bottom of the support, a first press roller is movably mounted between the first mounting blocks on two sides, a second press roller is movably mounted between the second mounting blocks on two sides, first plastic grooves are formed in two sides of the first press roller, limiting grooves are formed in two sides of the first plastic grooves, second plastic grooves are formed in two sides of the second press roller, and guide discs are arranged on two sides of the second plastic grooves;

through the scheme, the first plastic groove and the second plastic groove are arranged, the top and the bottom of the material are machined through the first plastic groove on the first compression roller and the second plastic groove on the second compression roller during machining, and the limiting grooves arranged on two sides of the first plastic groove are clamped on the guide discs on two sides of the second plastic groove to slide during machining, so that the displacement during machining is avoided, and the purpose of facilitating guiding is achieved;

preferably, the bottom of the platform is provided with a groove, and the middle part of the groove is provided with a waste discharge port;

through the scheme, the groove and the waste discharge port are arranged, the groove inclines to the position of the waste discharge port, and the scraps can slide down through the groove and enter the position of the waste discharge port, and are finally collected through the waste discharge port in a centralized manner, so that the effect of facilitating waste discharge is achieved;

preferably, cleaning rollers are arranged at the top and the bottom of the support, the cleaning rollers are movably arranged in the mounting grooves at two sides through bearings, and cleaning sponges are arranged outside the cleaning rollers;

through the scheme, the cleaning roller is arranged, the cleaning sponge is arranged on the cleaning roller, the cleaning sponge rubs the surfaces of the first pressing roller and the second pressing roller to remove garbage on the surfaces, and the cleaning sponge can be replaced for reuse after long-term use, so that the effect of convenience in cleaning is achieved;

preferably, an inclined angle is formed between the groove and the waste discharge port;

through the scheme, the waste collecting cylinder can be placed at the position of the waste discharging port in the waste discharging process by arranging the waste discharging port, and generated scraps are collected, so that the effect of facilitating discharging is achieved;

preferably, transmission shafts are arranged on the two sides of the bracket of the first pressing roller and the second pressing roller;

through the scheme, the transmission shafts are arranged, and the transmission shafts arranged at the two ends of the first compression roller and the second compression roller can be provided with the gears, so that the equipment can be driven to operate through the transmission mechanism conveniently, and the purpose of facilitating transmission is achieved;

preferably, the cleaning rollers on the two sides are respectively and movably connected with a first pressing roller and a second pressing roller;

through the scheme, the cleaning roller is attached between the first pressing roller and the second pressing roller, the first pressing roller and the second pressing roller on two sides can be cleaned conveniently by using a single cleaning roller, and therefore the purpose of saving cost is achieved.

Compared with the prior art, the beneficial effects of the utility model are that:

1. this roll-in mechanism of continuous roll-type cold rolling make-up machine is used in C/Z shaped steel processing, through setting up installation mechanism and moulding mechanism, in using, install this supporting on the make-up machine, when needs are moulding through moulding mechanism, install two cleaning rollers in support top and bottom can wipe off first compression roller and the remaining dust in second compression roller surface with the piece in step, piece and dust fall down on the recess, rethread recess is toward the position landing of wasting discharge opening, collect through wasting discharge opening is concentrated at last, through cleaning roller with first compression roller and second compression roller clearance back, can avoid the material to add man-hour, lead to surface damage, thereby can improve the production quality of product.

2. This kind of roll-type cold rolling make-up machine's in succession roller type for C/Z shaped steel processing roller presses mechanism, through setting up the support, when installing this equipment, at first place the second compression roller between the bottom of two supports with the second installation piece that both ends set up, then will install the first installation piece of lead screw bottom and place between the top of support together with first compression roller, erect the installation strip of lead screw top installation between the top of two supports after that, then adjust the height of first installation piece through the rotary valve, install the cleaning roller in the mounting groove that support top and bottom set up through the connecting rod after that, the bearing housing is passed through at the both ends of connecting rod and is established in the mounting groove, connect outside drive mechanism with the transmission shaft at first compression roller and second compression roller both ends at last, thereby reach the effect of being convenient for the installation.

Drawings

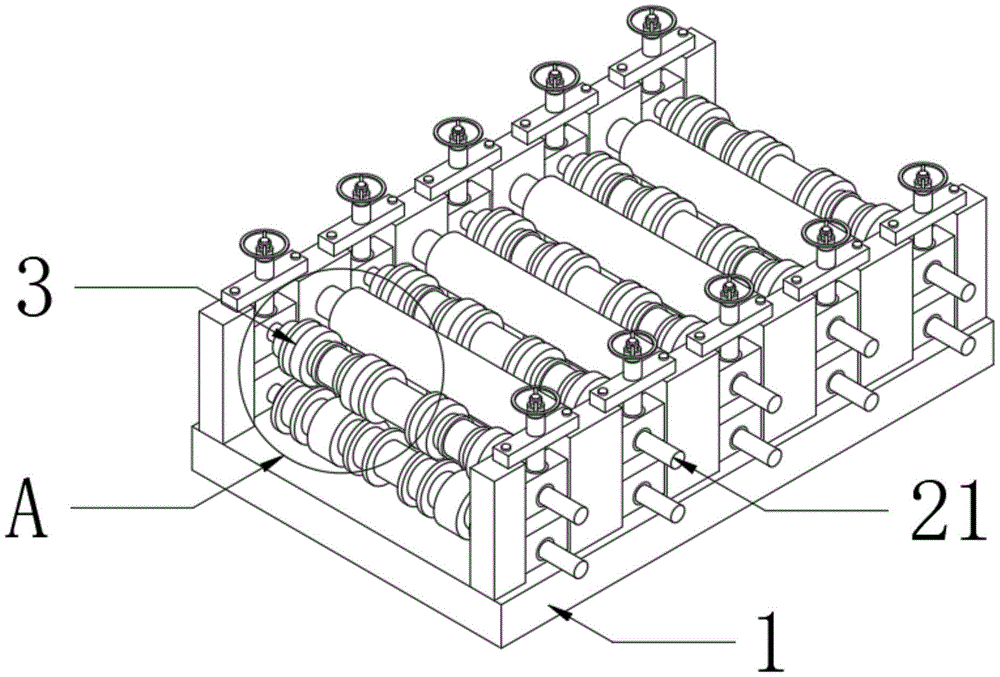

Fig. 1 is a schematic view of the overall structure of the present invention;

FIG. 2 is a schematic view of the mounting mechanism of the present invention;

FIG. 3 is a schematic view of the waste discharge port mounting structure of the present invention;

FIG. 4 is an enlarged schematic view of the present invention at A in FIG. 1;

fig. 5 is an enlarged schematic view of the present invention at B in fig. 2.

In the figure: 1. a platform; 2. an installation mechanism; 3. a shaping mechanism; 4. a support; 5. mounting a bar; 6. a screw rod; 7. a valve; 8. mounting grooves; 9. a bearing; 10. a first mounting block; 11. a second mounting block; 12. a first press roll; 13. a second press roll; 14. a first plastic-shaped groove; 15. a second plastic-shaped groove; 16. a limiting groove; 17. a guide plate; 18. a cleaning roller; 19. a groove; 20. a waste discharge port; 21. a drive shaft.

Detailed Description

The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.

In the description of the present invention, it is to be understood that the terms "top", "bottom", "inner", "outer", and the like refer to orientations or positional relationships based on those shown in the drawings, and are used only for convenience of description and simplicity of description, and do not indicate or imply that the device or element referred to must have a particular orientation, be constructed and operated in a particular orientation, and thus should not be construed as limiting the present invention.

In the description of this patent, it is noted that unless otherwise specifically stated or limited, the terms "mounted," "connected," and "disposed" are to be construed broadly and can include, for example, fixedly connected, disposed, detachably connected, disposed, or integrally connected and disposed. The specific meaning of the above terms in this patent may be understood by those of ordinary skill in the art as appropriate.

Furthermore, the terms "first", "second" and "first" are used for descriptive purposes only and are not to be construed as indicating or implying relative importance or implicitly indicating the number of technical features indicated. Thus, a feature defined as "first" or "second" may explicitly or implicitly include one or more of that feature. In the description of the present invention, "a plurality" means two or more unless specifically limited otherwise.

Referring to fig. 1-5, the present invention provides a technical solution:

a roll pressing mechanism of a continuous roll type cold rolling forming machine for processing C/Z section steel comprises a platform 1, an installation mechanism 2 and a shaping mechanism 3, wherein the installation mechanism 2 comprises a support 4, an installation strip 5, a screw 6, a valve 7, an installation groove 8 and a bearing 9, and the shaping mechanism 3 comprises a first installation block 10, a second installation block 11, a first press roll 12, a second press roll 13, a first plastic groove 14, a second plastic groove 15, a limiting groove 16, a guide disc 17 and a cleaning roll 18;

through the scheme, through setting up installation mechanism 2 and moulding mechanism 3, during the use, install this supporting on the make-up machine, when needs are moulding through moulding mechanism 3, install two cleaning rollers 18 at 4 tops of support and bottom and can wipe off first compression roller 12 and the remaining dust in second compression roller 13 surface and piece in step, piece and dust down fall into on recess 19, rethread recess 19 is toward the position landing of waste discharge opening 20, collect through waste discharge opening 20 is concentrated at last, through cleaning roller 18 with first compression roller 12 and the clearance back of second compression roller 13, can avoid the material to add man-hour, lead to surface damage, thereby can improve the production quality of product.

In the embodiment, preferably, a plurality of supports 4 are fixedly mounted on both sides of the platform 1, mounting bars 5 are fixedly mounted between the tops of the supports 4, a lead screw 6 is movably connected inside the mounting bar 5, a valve 7 is fixedly mounted on the top of the lead screw 6, mounting grooves 8 are formed in the tops and the bottoms of the supports 4, and bearings 9 are arranged inside the mounting grooves 8 on both sides;

through the scheme, by arranging the supports 4, when the equipment is installed, firstly, the second compression roller 13 and the second installation blocks 11 arranged at two ends are placed between the bottoms of the two supports 4, then the first installation block 10 arranged at the bottom of the screw rod 6 and the first compression roller 12 are placed between the tops of the supports 4, then the installation strip 5 arranged at the top of the screw rod 6 is erected between the tops of the two supports 4, then the height of the first installation block 10 is adjusted through the rotary valve 7, then the cleaning roller 18 is installed in the installation grooves 8 arranged at the top and the bottom of the supports 4 through the connecting rod, two ends of the connecting rod are sleeved in the installation grooves 8 through the bearings 9, and finally the transmission shafts 21 at two ends of the first compression roller 12 and the second compression roller 13 are connected with an external transmission mechanism, so that the effect of convenience in installation is achieved;

in this embodiment, preferably, a first mounting block 10 is arranged at the bottom of the screw rod 6, second mounting blocks 11 are fixedly mounted on two sides of the bottom of the bracket 4, a first press roller 12 is movably mounted between the first mounting blocks 10 on two sides, a second press roller 13 is movably mounted between the second mounting blocks 11 on two sides, first plastic grooves 14 are respectively arranged on two sides of the first press roller 12, limiting grooves 16 are respectively arranged on two sides of the first plastic grooves 14, second plastic grooves 15 are respectively arranged on two sides of the second press roller 13, and guide discs 17 are respectively arranged on two sides of the second plastic grooves 15;

through the scheme, the first plastic groove 14 and the second plastic groove 15 are arranged, the top and the bottom of the material are processed through the first plastic groove 14 on the first compression roller 12 and the second plastic groove 15 on the second compression roller 13 during processing, and the limiting grooves 16 arranged on two sides of the first plastic groove 14 are clamped on the guide discs 17 on two sides of the second plastic groove 15 to slide during processing, so that the displacement during processing is avoided, and the purpose of facilitating guiding is achieved;

in the embodiment, preferably, the bottom of the platform 1 is provided with a groove 19, and the middle part of the groove 19 is provided with a waste discharge port 20;

through the scheme, the groove 19 and the waste discharge port 20 are arranged, the groove 19 inclines towards the position of the waste discharge port 20, and the scraps can slide down to enter the position of the waste discharge port 20 through the groove 19 and are finally collected through the waste discharge port 20 in a centralized manner, so that the effect of facilitating waste discharge is achieved;

in the embodiment, preferably, cleaning rollers 18 are arranged at the top and the bottom of the bracket 4, the cleaning rollers 18 are movably arranged in the mounting grooves 8 at two sides through bearings 9, and cleaning sponge is arranged outside the cleaning rollers 18;

through the scheme, the cleaning roller 18 is arranged, the cleaning sponge is arranged on the cleaning roller 18, the cleaning sponge rubs the surfaces of the first pressing roller 12 and the second pressing roller 13 to remove garbage on the surfaces, and the cleaning sponge can be replaced and reused after being used for a long time, so that the effect of convenience in cleaning is achieved;

in this embodiment, it is preferable that the groove 19 and the waste discharge port 20 form an inclined angle therebetween;

through the scheme, the waste collecting cylinder can be placed at the position of the waste discharge port 20 in the waste discharge process by arranging the waste discharge port 20, and generated scraps are collected, so that the effect of facilitating discharging is achieved;

in this embodiment, it is preferable that the transmission shafts 21 are disposed on both sides of the bracket 4 of the first pressing roller 12 and the second pressing roller 13;

through the scheme, the transmission shaft 21 is arranged, and the transmission shafts 21 arranged at the two ends of the first compression roller 12 and the second compression roller 13 can be provided with gears, so that the equipment is driven to operate through a transmission mechanism conveniently, and the purpose of facilitating transmission is achieved;

in this embodiment, preferably, the cleaning rollers 18 on both sides are movably connected with the first pressing roller 12 and the second pressing roller 13 respectively;

through the scheme, the cleaning roller 18 is attached between the first pressing roller 12 and the second pressing roller 13, the first pressing roller 12 and the second pressing roller 13 on two sides can be conveniently cleaned by using the single cleaning roller 18, and therefore the purpose of saving cost is achieved.

When the rolling mechanism of the continuous roller type cold rolling forming machine for processing the C/Z section steel is used, the installation mechanism 2 and the shaping mechanism 3 are arranged, the matched machine is installed on the forming machine when the C/Z section steel is used, when the C/Z section steel needs to be shaped by the shaping mechanism 3, the two cleaning rollers 18 installed at the top and the bottom of the support 4 can synchronously wipe off the dust and the scraps remained on the surfaces of the first pressing roller 12 and the second pressing roller 13, the scraps and the dust fall down onto the groove 19 and then slide down to the position of the waste discharge port 20 through the groove 19, finally, the dust and the scraps are collected through the waste discharge port 20 in a centralized way, after the first pressing roller 12 and the second pressing roller 13 are cleaned through the cleaning rollers 18, the surface damage caused during the processing of materials can be avoided, the production quality of products can be improved, by arranging the support 4, when the equipment is installed, the second pressing roller 13 and the second installation blocks 11 arranged at two ends are firstly placed between the bottoms of the two supports 4, then will install the first installation piece 10 in the lead screw 6 bottom and place between the top of support 4 together with first compression roller 12, erect the mounting bar 5 of lead screw 6 top installation between the top of two supports 4 after that, then through the height of the first installation piece 10 of rotary valve 7 adjustment, install cleaning roller 18 in the mounting groove 8 that support 4 top and bottom set up through the connecting rod after that, the both ends of connecting rod are established in mounting groove 8 through bearing 9 cover, connect outside drive mechanism with the transmission shaft 21 at first compression roller 12 and the second compression roller 13 both ends at last, thereby reach the effect of being convenient for install.

The foregoing shows and describes the general principles, essential features, and advantages of the invention. It should be understood by those skilled in the art that the present invention is not limited by the above embodiments, and the description in the above embodiments and the description is only preferred examples of the present invention, and is not intended to limit the present invention, and that the present invention can have various changes and modifications without departing from the spirit and scope of the present invention, and these changes and modifications all fall into the scope of the claimed invention. The scope of the invention is defined by the appended claims and equivalents thereof.

Claims (8)

1. The utility model provides a roll-in mechanism of continuous roll type cold rolling make-up machine for C/Z shaped steel processing, includes platform (1), installation mechanism (2) and moulding mechanism (3), its characterized in that: installation mechanism (2) is including support (4), mounting bar (5), lead screw (6), valve (7), mounting groove (8) and bearing (9), moulding mechanism (3) are including first installation piece (10), second installation piece (11), first compression roller (12), second compression roller (13), first plastic groove (14), second plastic groove (15), spacing groove (16), deflector (17) and cleaning roller (18).

2. The rolling mechanism of the continuous roll cold rolling mill for processing C/Z section steel according to claim 1, wherein: the utility model discloses a platform, including platform (1), equal fixed mounting bar (5) between the top of a plurality of supports of both sides (4), a plurality of support of both sides equal fixed mounting (4), the inside swing joint lead screw (6) of mounting bar (5), the top fixed mounting valve (7) of lead screw (6), mounting groove (8) are all seted up to the top and the bottom of support (4), both sides the inside of mounting groove (8) all sets up bearing (9).

3. The rolling mechanism of the continuous roll cold rolling mill for processing C/Z section steel according to claim 1, wherein: the bottom of lead screw (6) sets up first installation piece (10), support (4) bottom both sides fixed mounting second installation piece (11), both sides first compression roller (12) of movable mounting between first installation piece (10), both sides movable mounting second compression roller (13) between second installation piece (11), the both sides of first compression roller (12) all set up first plastic groove (14), the both sides of first plastic groove (14) all set up spacing groove (16), the both sides of second compression roller (13) all set up second plastic groove (15), the both sides of second plastic groove (15) all set up positioning disk (17).

4. The rolling mechanism of the continuous roll cold rolling mill for processing C/Z section steel according to claim 1, wherein: the bottom of the platform (1) is provided with a groove (19), and the middle part of the groove (19) is provided with a waste discharge port (20).

5. The rolling mechanism of the continuous roll cold rolling mill for processing C/Z section steel according to claim 1, wherein: cleaning rollers (18) are arranged at the top and the bottom of the support (4), the cleaning rollers (18) are movably mounted in the mounting grooves (8) through bearings (9), and cleaning sponge is arranged outside the cleaning rollers (18).

6. The rolling mechanism of the continuous roll cold rolling mill for processing C/Z section steel according to claim 4, wherein: an inclined angle is formed between the groove (19) and the waste discharge port (20).

7. The rolling mechanism of the continuous roll cold rolling mill for processing C/Z section steel according to claim 1, wherein: and transmission shafts (21) are arranged on two sides of the bracket (4) of the first pressing roller (12) and the second pressing roller (13).

8. The rolling mechanism of the continuous roll cold rolling mill for processing C/Z section steel according to claim 1, wherein: the cleaning rollers (18) on the two sides are respectively and movably connected with the first pressing roller (12) and the second pressing roller (13).
