Abstract
The utility model discloses a general mobile phone shell flatness shaping mechanism, which comprises an upper die and a lower die, wherein the upper die comprises an upper die base, an upper die fixing plate and an upper die plate which are detachably and fixedly connected in sequence from top to bottom, and an upper shaping piece is movably connected on the upper die plate; the lower mould is from supreme lower bolster, lower mould fixed plate, the lower bolster of linking firmly including dismantling in proper order down, and swing joint has lower shaping piece on the lower bolster, and the locating piece of a plurality of activities is equipped with along X on the lower mould fixed plate to and Y. The utility model can adjust the Z-direction size of products with different sizes and specifications by arranging the adjustable upper shaping piece and the adjustable lower shaping piece on the upper template and the lower template; the products with different sizes and specifications can be stably fixed on the lower die by arranging a plurality of movable positioning blocks and adjusting pieces on the lower die along the X direction and the Y direction; the upper die is matched with the lower die, so that products with different sizes and specifications can be positioned in the XYZ three directions, and the purposes of leveling workpieces and improving the flatness of the products are achieved.
Description
Technical Field
The utility model relates to a plane degree plastic tool technical field, in particular to general type cell phone case plane degree plastic mechanism.
Background
In industrial production, some products with large length-width-height ratio or soft material are easy to generate plastic deformation due to uneven distribution of processing stress, such as the shell of a mobile phone, and the deformation not only affects the appearance, but also affects the assembly of the finished product, and even causes the function failure of part of the finished product, so that the finished product becomes a defective product. Therefore, after the production of this type of product, contour shaping, i.e. flatness shaping, is generally required. The flatness shaping jig on the market is mostly a special product, and products of different sizes need to use different shaping jigs. Although the special jig is convenient to use and good in shaping effect, the product changing speed is faster and faster along with the change of market demands, and the manpower, material resources and management cost of a production enterprise are rapidly increased by a large number of special jigs.
SUMMERY OF THE UTILITY MODEL
To the problem that exists among the above-mentioned prior art, the utility model provides a general type cell phone case plane degree plastic mechanism can carry out the location in the three side of XYZ to the product of different size specifications, reaches the flattening work piece, promotes the purpose of product plane degree.
In order to solve the technical problem, the utility model discloses a technical scheme as follows:
a general mobile phone shell flatness shaping mechanism comprises an upper die and a lower die which are matched, wherein the upper die is in transmission connection with a driving mechanism of a shaping jig, the lower die is fixedly arranged below the upper die, the upper die can move downwards along Z direction under the driving of the driving mechanism, and the upper die is matched with the lower die to perform flatness shaping on a product placed on the lower die; wherein,
the upper die sequentially comprises an upper die base, an upper die fixing plate and an upper die plate which are detachably and fixedly connected from top to bottom, the upper die base is in transmission connection with the driving mechanism, the upper die plate is movably connected with a plurality of upper shaping pieces, and each upper shaping piece can move on the upper die plate along the Z direction;
the lower die sequentially comprises a lower die base, a lower die fixing plate and a lower die plate which are detachably and fixedly connected from bottom to top, a plurality of lower shaping pieces are movably connected to the lower die plate, and each lower shaping piece can move on the lower die plate along the Z direction; the lower die fixing plate is provided with a plurality of sliding chutes extending along the X direction and the Y direction respectively, each sliding chute is internally provided with a positioning block, and each positioning block is provided with an adjusting piece; the adjusting piece can be adjusted to drive the positioning blocks to slide in the sliding grooves, and the positioning blocks can act together to adjust the distance between the positioning blocks in the X direction and the Y direction.
As a further elaboration of the above technical solution:
in the above technical solution, each of the upper shaping member and the lower shaping member includes a first screw and an elastic cap fixed at one end thereof.
In the technical scheme, the cap is a high-strength rubber cap.
In the above technical scheme, a plurality of first threaded holes capable of being adapted to the first screw are arranged on the upper template and the lower template.
In the technical scheme, each positioning block is an L-shaped positioning block, an I-shaped sliding structure is formed at the end part matched with the lower template fixing plate, and a plurality of second threaded holes capable of being matched with the adjusting pieces are formed in the sliding structure.
In the above technical scheme, each of the inner walls of the sliding grooves is provided with a protrusion adapted to the sliding structure.
In the above technical solution, each of the adjusting members includes a second screw and an adjusting cap sleeved thereon.
In the technical scheme, a plurality of first guide posts are symmetrically arranged on the upper die base, and a plurality of first guide sleeves matched with the lower die base one by one are arranged on the lower die base in a matching manner; and a return spring is sleeved on the first guide column between the upper die base and the lower die base.
In the above technical scheme, the upper die fixing plate is provided with a plurality of second guide posts and third guide sleeves, and the lower die fixing plate is provided with a plurality of second guide sleeves matched with the second guide posts one by one and third guide posts matched with the third guide sleeves one by one.
Compared with the prior art, the beneficial effects of the utility model reside in that: the adjustable upper shaping piece and the adjustable lower shaping piece are arranged on the upper template and the lower template, so that the Z-direction sizes of products with different sizes and specifications can be adjusted; the products with different sizes and specifications can be stably fixed on the lower die by arranging a plurality of movable positioning blocks and adjusting pieces on the lower die along the X direction and the Y direction; the upper die is matched with the lower die, so that products with different sizes and specifications can be positioned in the XYZ three directions, and the purposes of leveling workpieces and improving the flatness of the products are achieved.
Drawings

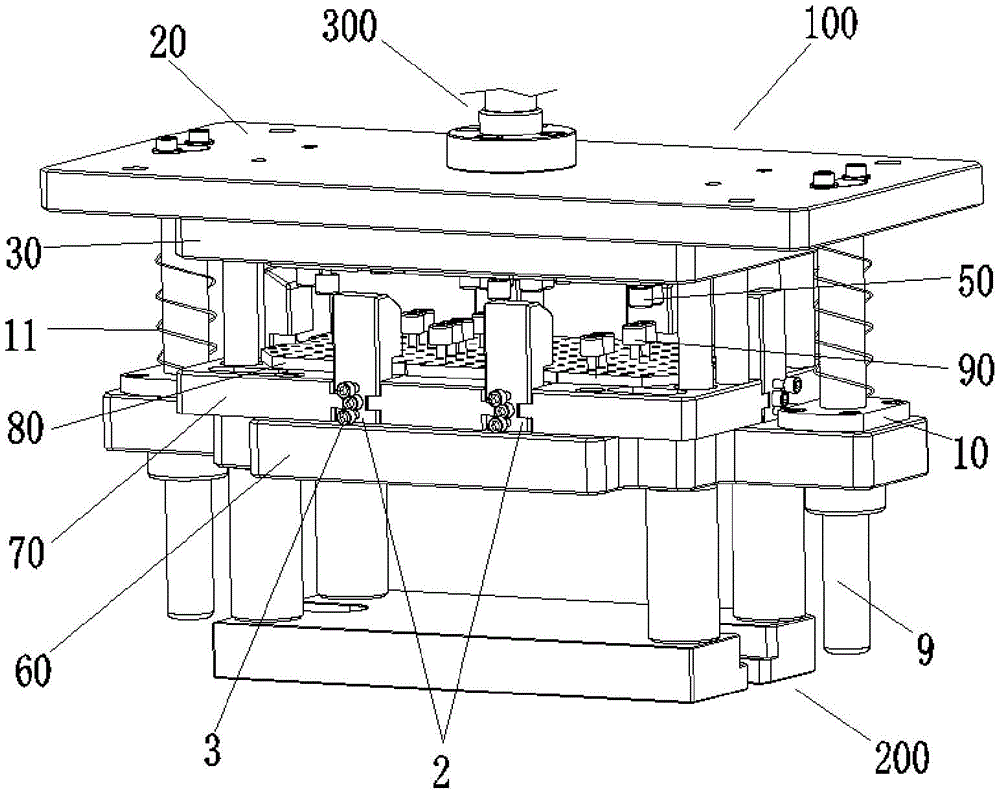

Fig. 1 is a schematic structural diagram of the present invention;
fig. 2 is a schematic structural view of another view angle of the present invention;
FIG. 3 is a schematic perspective view of the lower mold plate in this embodiment;
FIG. 4 is a schematic perspective view of a slider in the present embodiment;
FIG. 5 is a schematic perspective view of the upper mold plate in the present embodiment;
FIG. 6 is a perspective view of the adjusting member of the present embodiment;
fig. 7 is a perspective view of the upper and lower shaping members of this embodiment.
In the figure: 100. an upper die; 200. a lower die; 300. a drive mechanism; 20. an upper die holder; 30. an upper die fixing plate; 40. mounting a template; 50. an upper shaping member; 60. a lower die holder; 70. a lower die fixing plate; 80. a lower template; 90. a lower shaping member; 1. a chute; 2. positioning blocks; 3. an adjustment member; 301. a second screw; 302. an adjusting cap; 4. a first screw; 5. capping; 6. a sliding structure; 7. a second threaded hole; 8. a protrusion; 9. a first guide post; 10. a first guide sleeve; 11. a return spring; 12. a second guide post; 13. a second guide sleeve; 14. a third guide sleeve; 15. a third guide post; 16. a first threaded hole.
Detailed Description
The present invention will be described in further detail with reference to the accompanying drawings.
The embodiments described by referring to the drawings are exemplary and intended to be used for explaining the present application and are not to be construed as limiting the present application. In the description of the present application, it is to be understood that the terms "center," "longitudinal," "lateral," "length," "width," "thickness," "upper," "lower," "front," "rear," "left," "right," "vertical," "horizontal," "top," "bottom," "inner," "outer," "clockwise," "counterclockwise," and the like are used in the orientations and positional relationships indicated in the drawings for convenience in describing the present application and for simplicity in description, and are not intended to indicate or imply that the referenced devices or elements must have a particular orientation, be constructed in a particular orientation, and be operated in a particular manner, and thus should not be considered limiting. Furthermore, the terms "first", "second" and "first" are used for descriptive purposes only and are not to be construed as indicating or implying relative importance or implicitly indicating the number of technical features indicated. Thus, a feature defined as "first" or "second" may explicitly or implicitly include one or more of that feature. In the description of the present application, "a plurality" means two or more unless specifically limited otherwise. In this application, unless expressly stated or limited otherwise, the terms "mounted," "connected," "secured," and the like are to be construed broadly and can include, for example, fixed connections, removable connections, or integral connections; can be mechanically or electrically connected; they may be connected directly or indirectly through intervening media, or they may be interconnected between two elements. The specific meaning of the above terms in the present application can be understood by those of ordinary skill in the art as appropriate. In this application, unless expressly stated or limited otherwise, the first feature "on" or "under" the second feature may comprise direct contact of the first and second features, or may comprise contact of the first and second features not directly but through another feature in between. Also, the first feature being "on," "above" and "over" the second feature includes the first feature being directly on and obliquely above the second feature, or merely indicating that the first feature is at a higher level than the second feature. A first feature being "under," "below," and "beneath" a second feature includes the first feature being directly above and obliquely above the second feature, or simply meaning that the first feature is at a lesser level than the second feature.
As shown in fig. 1-7, a general mobile phone shell flatness shaping mechanism includes an upper die 100 and a lower die 200, which are matched with each other, the upper die 100 is in transmission connection with a driving mechanism 300 of a shaping jig, the lower die 200 is fixedly arranged below the upper die 100, the upper die 100 can move downwards along Z under the driving of the driving mechanism 300, and the lower die 200 is matched to perform flatness shaping on a product placed on the lower die 200; wherein,
the upper die 100 sequentially comprises an upper die base 20, an upper die fixing plate 30 and an upper die plate 40 which are detachably and fixedly connected from top to bottom, the upper die base 20 is in transmission connection with a driving mechanism 300, the upper die plate 40 is movably connected with a plurality of upper shaping pieces 50, and each upper shaping piece 50 can move on the upper die plate 40 along the Z direction;
the lower die 200 sequentially comprises a lower die base 60, a lower die fixing plate 70 and a lower die plate 80 which are detachably and fixedly connected from bottom to top, a plurality of lower shaping pieces 90 are movably connected to the lower die plate 80, and each lower shaping piece 90 can move on the lower die plate 80 along the Z direction; a plurality of sliding chutes 1 extending along the X direction and the Y direction are arranged on the lower die fixing plate 70, a positioning block 2 is arranged in each sliding chute 1, and an adjusting piece 3 is arranged on each positioning block 2; the adjusting and adjusting piece 3 can drive the positioning blocks 2 to slide in the sliding chute 1, and the positioning blocks 2 can act together to adjust the distance between the positioning blocks in the X direction and the Y direction.
The utility model can adjust the Z-direction size of the product by arranging the adjustable shaping pieces on the upper template and the lower template; the lower die is provided with a plurality of movable positioning blocks and adjusting pieces along the X direction and the Y direction, so that products with different sizes and specifications can be stably fixed on the lower die; the upper die is matched with the lower die, so that different products can be positioned in the XYZ three directions, and the purposes of leveling the workpieces and improving the flatness of the products are achieved.
As a further elaboration of the above technical solution:
in the above solution, each of the upper and lower shaping members 50 and 90 includes a first screw rod 4 and an elastic cap 5 fixed to one end thereof.
In the above technical solution, the cap 5 is a cap made of acrylic rubber.
The super rubber is an excellent elastic material, and has the rigidity of plastic and the elasticity of rubber. In this embodiment, the cap 5 is fixed to the end of the first screw 4, and the Z-direction flatness of the product is shaped by using the excellent performance of the acrylic rubber.
In the above technical solution, the upper mold plate 40 and the lower mold plate 80 are both arranged with a plurality of first threaded holes 16 capable of being adapted to the first screws 4.
During the application, can be according to the structure setting and the flattening demand of different products, the position of shaping piece at cope match-plate pattern 40 and lower bolster 80 about the reasonable setting makes it match with the product of different dimensions.
In the above technical scheme, each positioning block 2 is an L-shaped positioning block, an i-shaped sliding structure 6 is formed at the end matched with the lower template fixing plate 70, and a plurality of second threaded holes 7 capable of being matched with the adjusting pieces 3 are formed in the sliding structure 6.
In the above technical solution, the inner wall of each sliding chute 1 is provided with a protrusion 8 adapted to the sliding structure 6.
In the above technical solution, each adjusting member 3 includes a second screw 301 and an adjusting cap 302 sleeved thereon.
During operation, one end of the second screw 301 passes through the second threaded hole 7, the tail end of the second screw abuts against the inner wall of the sliding chute 1, the pressure applied to the positioning block 2 can be adjusted by rotating the adjusting cap 302, and then the relative position of the positioning hole 2 on the lower die fixing plate 70 is adjusted, so that positioning of products of different specifications is realized.
In the technical scheme, a plurality of first guide posts 9 are symmetrically arranged on the upper die base 20, and a plurality of first guide sleeves 10 matched with the lower die base 60 one by one are arranged on the lower die base in a matching manner; a return spring 11 is sleeved on the first guide column 9 between the upper die holder 20 and the lower die holder 60.
In the above technical solution, the upper mold fixing plate 30 is provided with a plurality of second guide posts 12 and third guide sleeves 14, and the lower mold fixing plate 70 is provided with a plurality of second guide sleeves 13 matched with the second guide posts 12 one by one and third guide posts 15 matched with the third guide sleeves 14 one by one.
The utility model discloses before the work, earlier according to the structure of product and the concrete requirement of flattening adjust lower bolster 80 and cope match-plate pattern 40: installing a suitable lower shaping member 90 on the lower die plate 80 and rotating the cap 5 thereof so that the top end portion of the cap 5 matches the lower end portion of the workpiece; putting the product, rotating each adjusting cap 302, pushing the positioning blocks 2 in the X direction and the Y direction to be close to the product, completing debugging of the lower template 80, and assembling the lower die 200; similarly, the upper die plate 40 is fitted with an appropriate upper shaping member 50, the cap 5 is rotated to match the top end portion of the cap 5 with the upper end portion of the workpiece, the fitting of the upper die plate 40 is completed, and the upper die 100 is assembled. After the shaping is completed, the upper die 100 and the lower die 200 are respectively arranged on the jig, the driving mechanism 300 is communicated, the product is placed on the lower die plate 80, and the driving mechanism is started, so that the plane of the product can be shaped through the die assembly of the upper die and the lower die.
In the mold closing process, the first guide post, the second guide post and the third guide post are respectively matched with the first guide sleeve, the second guide sleeve and the third guide sleeve so as to guide the upper mold 100 and the lower mold 200; the return spring 11 helps the upper and lower molds to be separated after the mold closing is completed, and reduces the load of the driving mechanism 300.
The above is not intended to limit the technical scope of the present invention, and any modifications, equivalent changes and modifications made to the above embodiments according to the technical spirit of the present invention are all within the scope of the technical solution of the present invention.
Claims (9)
1. A general mobile phone shell flatness shaping mechanism is characterized by comprising an upper die and a lower die which are matched, wherein the upper die is in transmission connection with a driving mechanism of a shaping jig, the lower die is fixedly arranged below the upper die, the upper die can move downwards along Z direction under the driving of the driving mechanism, and the upper die is matched with the lower die to carry out flatness shaping on a product placed on the lower die; wherein,
the upper die sequentially comprises an upper die base, an upper die fixing plate and an upper die plate which are detachably and fixedly connected from top to bottom, the upper die base is in transmission connection with the driving mechanism, the upper die plate is movably connected with a plurality of upper shaping pieces, and each upper shaping piece can move on the upper die plate along the Z direction;
the lower die sequentially comprises a lower die base, a lower die fixing plate and a lower die plate which are detachably and fixedly connected from bottom to top, a plurality of lower shaping pieces are movably connected to the lower die plate, and each lower shaping piece can move on the lower die plate along the Z direction; the lower die fixing plate is provided with a plurality of sliding chutes extending along the X direction and the Y direction respectively, each sliding chute is internally provided with a positioning block, and each positioning block is provided with an adjusting piece; the adjusting piece can be adjusted to drive the positioning blocks to slide in the sliding grooves, and the positioning blocks can act together to adjust the distance between the positioning blocks in the X direction and the Y direction.
2. The mechanism of claim 1, wherein each of the upper and lower shaping members comprises a first threaded rod and a resilient cap secured to an end thereof.
3. The universal mobile phone shell flatness shaping mechanism according to claim 2, wherein said cap is a super glue cap.
4. The general mobile phone shell flatness shaping mechanism according to claim 2, wherein a plurality of first threaded holes capable of being matched with the first screw rods are arranged on the upper template and the lower template.
5. The general mobile phone shell flatness shaping mechanism according to claim 1, wherein each positioning block is an L-shaped positioning block, an I-shaped sliding structure is formed at an end part matched with the lower template fixing plate, and a plurality of second threaded holes capable of being matched with the adjusting pieces are formed in the sliding structure.
6. The mechanism of claim 5, wherein a protrusion adapted to the sliding structure is disposed on an inner wall of each sliding slot.
7. The mechanism as claimed in claim 5, wherein each of the adjusting members comprises a second screw and an adjusting cap fitted thereon.
8. The universal mobile phone shell flatness shaping mechanism according to claim 1, wherein a plurality of first guide posts are symmetrically arranged on the upper die holder, and a plurality of first guide sleeves matched with the lower die holder one by one are arranged on the lower die holder in a matching manner; and a return spring is sleeved on the first guide column between the upper die base and the lower die base.
9. The mechanism as claimed in claim 1, wherein the upper mold fixing plate has a plurality of second guide posts and third guide sleeves, and the lower mold fixing plate has a plurality of second guide sleeves matching the second guide posts one by one and third guide posts matching the third guide sleeves one by one.
