Abstract
本实用新型公开了一种口腔器械回收盒，具体包括：箱体，箱体内水平设置有分隔面板；干燥仓，干燥仓设置在分隔面板的上方，干燥仓内设置有置物格栅，置物格栅用于分类放置口腔器械；保湿仓，保湿仓设置在分隔面板的下方，保湿仓内设置有抽拉柜，拉柜内设置有浸泡盒，抽拉柜和浸泡盒用于盛装保湿液。本实用新型通过在箱体中设置分隔面板，将箱体分为干燥仓和保湿仓，干燥仓中通过置物格栅可分类放置需要干燥处理的不同种类和不同材质的口腔器械，保湿仓中的抽拉柜和浸泡盒中盛放保湿液，可放置需要保湿处理的不易清洗的口腔器械，本实用新型结构简单，能够满足医务人员合理回收口腔器械的需求，提高工作效率。
The utility model discloses an oral appliance recovery box, which specifically comprises: a box body, a partition panel is horizontally arranged in the box body; a drying bin, the drying bin is arranged above the partition panel, and the drying bin is provided with an object storage grille, which is provided with an object storage grille. It is used for classifying and placing oral instruments; the moisturizing bin, the moisturizing bin is arranged under the partition panel, the moisturizing bin is provided with a pull-out cabinet, and the pull-out cabinet is provided with a soaking box, and the pull-out cabinet and the soaking box are used to hold the moisturizing liquid. The utility model divides the box body into a drying chamber and a moisturizing chamber by arranging a partition panel in the box body. The drying chamber can be classified and placed with different types and different materials of oral appliances that need to be dried through the storage grille. The pull-out cabinet and the soaking box hold the moisturizing liquid, and can place the oral instruments that need moisturizing treatment and are not easy to clean.
Description
Technical Field
The utility model relates to the technical field of medical auxiliary equipment, especially, relate to a box is retrieved to oral cavity instrument.
Background
With the rapid development of science and technology, medical technology makes great progress, and medical staff can realize rapid and effective treatment and nursing of patients through various medical instruments, so that more convenient services are provided for the patients.
The oral cavity instruments of each large comprehensive hospital are subjected to centralized disinfection and sterilization treatment by a disinfection supply center, the instruments need to be recycled and placed from the end of oral treatment to the transportation of the instruments to the disinfection supply center, and the oral cavity instruments need to be classified and placed according to the requirements of the national people's republic of China sanitary industry standard WS506-2016 (standards for oral cavity instrument disinfection and sterilization technology) according to the material, function and treatment method of the instruments during recycling. The method comprises the following specific steps: a) oral cavity instruments (such as small dental instruments, curettes and the like) with complex structures and difficult cleaning are suitable for being placed in a moisture-preserving way, and the moisture-preserving liquid can be selected from drinking water or enzyme cleaning agents. B) Dental handpieces, electric dental scalpels and electric scalpels should be initially decontaminated and stored in dry recycling containers.
However, the prior art lacks a container specially used for recycling oral instruments, which can be placed in a classified way according to drying and moisture retention and can be placed in a classified way according to different types and materials of the instruments. Storage tool among the prior art, the apparatus mixes puts, and is precious and non-precious not to divide, and is not wet futilely to lead to that precious apparatus is easy to be damaged, the apparatus clearance that needs the processing of moisturizing is not clean enough and directly influences disinfection effect.
Accordingly, the prior art is yet to be improved and developed.
SUMMERY OF THE UTILITY MODEL
In order to solve the problem that different oral instruments in the prior art are mixed to put and lead to that expensive instrument damages easily and disinfection effect is not good, the utility model provides a box is retrieved to oral instrument.
The utility model discloses a following technical scheme realizes:
an oral instrument retrieval cartridge, wherein the oral instrument retrieval cartridge comprises:
the box body is internally and horizontally provided with a separation panel;
the drying bin is arranged above the separation panel, and the drying bin is internally provided with object placing grids for placing oral cavity instruments in a classified manner;
the moisture preserving bin is arranged below the separating panel, a drawing cabinet is arranged in the moisture preserving bin, a soaking box is arranged in the drawing cabinet, and the drawing cabinet and the soaking box are used for containing moisture preserving liquid.
The oral cavity apparatus retrieves box, wherein, put the thing grid and include:
the first limiting plate is arranged on one side of the opening surface of the box body;
the second limiting plate is parallel to the first limiting plate and arranged on the inner side of the drying bin;
the partition plate is provided with a plurality of, and a plurality of the partition plate is connected first limiting plate with on the second limiting plate.
The oral appliance recovery box, wherein the partition plate comprises:
the first partition plate comprises a long plate and a short plate, two ends of the long plate are respectively and fixedly arranged on the first limiting plate and the second limiting plate, one end of the short plate is fixedly connected with the long plate, and the other end of the short plate is fixedly arranged on the side wall of the drying bin;
the sliding partition plate is provided with a plurality of sliding partition plates, and the two ends of each sliding partition plate are connected with the first limiting plate and the second limiting plate in a sliding mode respectively.
The oral cavity apparatus retrieves box, wherein, the first limiting plate is improved level and is provided with first spout, the second limiting plate is improved level and is provided with the second spout, the last position that corresponds with first spout with the second spout of slide division board is provided with first slider and second slider, first slider slip gomphosis is in the first spout, second slider slip gomphosis is in the second spout.
The oral cavity apparatus retrieves box, wherein, the height of putting the thing grid is the third of dry storehouse height.
The oral cavity instrument recovery box comprises a first soaking box and a second soaking box, wherein the first soaking box is detachably arranged on one side in the pull cabinet, and the second soaking box is detachably arranged on the other side in the pull cabinet.
The oral cavity apparatus recycling box is characterized in that a groove is formed in the central position of one side of the opening face of the box body on the drawing cabinet, and the groove is used for drawing the drawing cabinet open.
The oral cavity instrument recovery box is characterized in that a side sliding door is arranged on the box body, a rotating shaft is arranged on the side sliding door, and the rotating shaft is arranged on the left side of the opening surface of the box body;
the side sliding door is provided with a first magnetic attraction component, a second magnetic attraction component is arranged on the box body and corresponds to the first magnetic attraction component, and the first magnetic attraction component is magnetically attracted with the second magnetic attraction component and is connected with the second magnetic attraction component.
The oral cavity apparatus recycling box is characterized in that a handle is arranged on one side of the box body facing the box body, and the handle is rotatably connected with the box body.
The oral cavity instrument recovery box is characterized in that one side, facing the drying bin, of the separation panel is provided with a flexible material layer.
The beneficial effects of the utility model reside in that: the utility model discloses a set up the partition panel in the box, divide into dry storehouse and the storehouse of moisturizing with the box, through putting the oral cavity apparatus that the different types that thing grid classifiable placed needs drying process and different materials in the dry storehouse, hold the moisturizing liquid in the pull cabinet in the storehouse of moisturizing and the soaking box, can place the difficult abluent oral cavity apparatus that needs the moisturizing process, the utility model discloses simple structure can satisfy the demand that medical staff rationally retrieved oral cavity apparatus, improves work efficiency.
Drawings

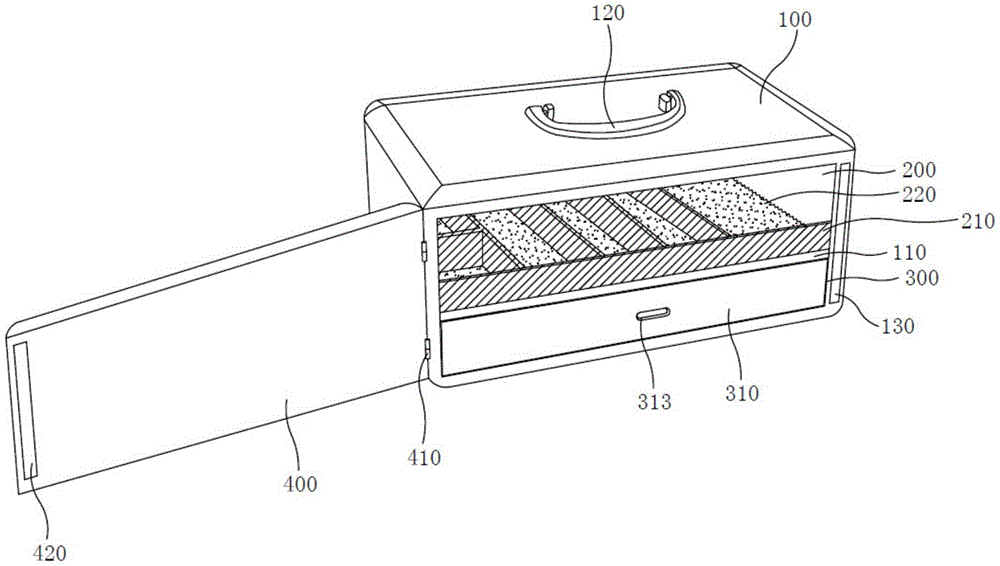

FIG. 1 is a perspective view of the oral cavity instrument recovery box of the present invention;
FIG. 2 is a schematic view of the structure of the grid for placing objects in the oral cavity instrument recycling box of the present invention;
FIG. 3 is a schematic structural view of the node A in the oral cavity instrument recycling box of the present invention;
fig. 4 is a schematic structural view of the drawing cabinet in the oral appliance recycling box of the present invention.
In fig. 1 to 4: 100. a box body; 110. a partition panel; 120. a handle; 130. a second magnetically attractive member; 200. a drying bin; 210. placing a grid; 211. a first limit plate; 212. a second limiting plate; 212a, a second chute; 213. positioning the partition plate; 213a, long plate; 213b, short plates; 214. a slide partition plate; 214a, a second slider; 220. a layer of flexible material; 300. a moisturizing bin; 310. a pull cabinet; 311. a first immersion tank; 312. a second immersion tank; 313. a groove; 400. a side sliding door; 410. a rotating shaft; 420. a first magnetically attractive member.
Detailed Description
In order to make the objects, technical solutions and effects of the present invention clearer and clearer, the following description of the present invention will refer to the accompanying drawings and illustrate embodiments. It should be understood that the specific embodiments described herein are for purposes of illustration only and are not intended to limit the invention.
It should be noted that, if directional indications (such as upper, lower, left, right, front and rear … …) are involved in the embodiment of the present invention, the directional indications are only used to explain the relative position relationship between the components, the motion situation, etc. in a specific posture (as shown in the drawings), and if the specific posture is changed, the directional indications are changed accordingly.
In addition, if there is a description of "first", "second", etc. in the embodiments of the present invention, the description of "first", "second", etc. is for descriptive purposes only and is not to be construed as indicating or implying relative importance or implicitly indicating the number of technical features indicated. Thus, a feature defined as "first" or "second" may explicitly or implicitly include at least one of the feature. In addition, the technical solutions in the embodiments may be combined with each other, but it must be based on the realization of those skilled in the art, and when the technical solutions are contradictory or cannot be realized, the combination of the technical solutions should not be considered to exist, and is not within the protection scope of the present invention.
According to the requirements of the national health industry standard WS506-2016 (Standard for oral Instrument Disinfection and Sterilization), oral instruments are classified according to different materials, functions and treatment methods when being recycled. The method comprises the following specific steps: a) oral cavity instruments (such as small dental instruments, curettes and the like) with complex structures and difficult cleaning are suitable for being placed in a moisture-preserving way, and the moisture-preserving liquid can be selected from drinking water or enzyme cleaning agents. B) Dental handpieces, electric dental scalpels and electric scalpels should be initially decontaminated and stored in dry recycling containers.
However, the prior art lacks a container specially used for recycling oral instruments, which can be placed in a classified way according to drying and moisture retention and can be placed in a classified way according to different types and materials of the instruments. Storage tool among the prior art, the apparatus mixes puts, and is precious and non-precious not to divide, and is not wet futilely to lead to that precious apparatus is easy to be damaged, the apparatus clearance that needs the processing of moisturizing is not clean enough and directly influences disinfection effect.
Based on the above-mentioned problem among the prior art, the utility model provides a box is retrieved to oral cavity instrument, as shown in fig. 1, this box is retrieved to oral cavity instrument includes: a box body 100, wherein a partition panel 110 is horizontally arranged in the box body 100; the drying chamber 200 is arranged above the partition panel 110, an object placing grid 210 is arranged in the drying chamber 200, and the object placing grid 210 is used for placing different types of oral cavity instruments in a classified manner; the moisture preserving bin 300 is arranged below the partition panel 110, a drawing cabinet 310 is arranged in the moisture preserving bin 300, and a soaking box 311 is arranged in the drawing cabinet 310 and is used for containing moisture preserving liquid.
The utility model discloses a set up partition panel 110 in box 100, divide into dry storehouse 200 and moisturizing storehouse 300 with box 100, hold moisturizing liquid through putting the oral cavity apparatus that thing grid 210 classifiable places the different types that need dry processing and different materials in dry storehouse 200, pull cabinet 310 in the storehouse 300 of moisturizing and soaking in the box, can place the difficult abluent oral cavity apparatus that needs moisturizing processing, the utility model discloses simple structure can satisfy the reasonable demand of retrieving oral cavity apparatus of medical staff, improves work efficiency.
In the above embodiment, the box 100 is set as a rectangular parallelepiped to place the oral cavity instrument recovery box, and one side on the box 100 is provided with an opening surface, and one side at the opening surface is provided with the side-sliding door 400, and the side-sliding door 400 is provided with the rotating shaft 410. in an implementation mode of the present invention, as shown in fig. 1, the rotating shaft 410 is set on the left side of the opening surface on the box 100, that is, when the oral cavity instrument recovery box is opened by medical staff, the side-sliding door 400 is opened to the left side, and the reason for this setting is that medical staff is used to right hand to take instruments when recovering instruments, and the left side opens the side-sliding door 400 to the left side to make the medical staff more convenient to operate in the treatment process.
Based on the above embodiment, in order to facilitate the medical staff to open the side sliding door 400, in an implementation manner of the present invention, as shown in fig. 1, a first magnetic attraction member 420 is disposed on the side sliding door 400, and correspondingly, a second magnetic attraction member 130 is disposed on the box body 100 at a position corresponding to the first magnetic attraction member 420, and the first magnetic attraction member 420 and the second magnetic attraction member 130 are connected in a magnetic attraction manner to realize the closed fixation of the side sliding door 400.
When the magnetic attraction structure is specifically arranged, the first magnetic attraction member 420 and the second magnetic attraction member 130 can be both made of permanent magnet materials, or can be made of permanent magnet materials, and the other magnetic attraction structure is made of original magnet materials, so that the effect of mutual attraction, fitting and fixation between the first magnetic attraction member 420 and the second magnetic attraction member 130 can be realized.
Inside the box 100, a horizontal partition panel 110 is provided, and the partition panel 110 divides the internal space of the box 100 into a drying chamber 200 and a moisturizing chamber 300, wherein the drying chamber 200 is used for containing oral appliances to be dried and preserved, and the moisturizing chamber 300 is used for containing oral appliances to be moisturized.
Specifically, the drying chamber 200 is disposed above the partition panel 110, and the drying chamber 200 is further provided with an object placing grid 210, wherein the object placing grid 210 is used for placing oral instruments in a classified manner, so as to avoid collision among the oral instruments; moisturizing bin 300 sets up in the below of dividing panel 110, be provided with pull cabinet 310 in the inside of moisturizing bin 300, the inside of pull cabinet 310 is provided with soaks the box, medical staff can empty moisturizing liquid in pull cabinet 310 and the inside of soaking the box, and soak oral cavity apparatus that need disinfect in moisturizing liquid, thereby realize the effect of the processing of moisturizing, the height of soaking the box is the same with the height of moisturizing bin 300 in this embodiment, consequently, the upside opening of soaking the box is sealed after closing pull cabinet 310, thereby realize avoiding the condition emergence that moisturizing liquid spills, but still set up block, the sealed lid of dismantlement at the last mouthful of soaking the box, further guarantee the leakproofness of soaking the box.
More specifically, in the above embodiment, the storage grille 210 includes: first limiting plate 211, second limiting plate 212 and a plurality of division board.
The first limiting plate 211 is disposed on the partition panel 110, on one side of the opening surface of the box body 100, and is perpendicular to the partition panel 110, so as to block the oral cavity instruments on the partition panel 110; the second limiting plate 212 and the first limiting plate 211 are parallel to each other and are arranged at the inner side of the drying chamber 200, and the first limiting plate 211 and the second limiting plate 212 form accommodating spaces with the left and right side walls of the drying chamber 200 on the box body 100 to accommodate oral instruments; between first limiting plate 211 and second limiting plate 212, be provided with a plurality of division board, a plurality of division board further divides the region between first limiting plate 211 and the second limiting plate 212 into a plurality of subregion to realize the categorised placing of multiple oral cavity apparatus.
In an embodiment of the present invention, as shown in fig. 2, the partition plate further includes: positioning divider plate 213 and slide divider plate 214.
Wherein, the positioning partition plate 213 comprises a long plate 213a and a short plate 213b, the long plate 213a and the short plate 213b are spliced with each other to form a "T" shaped structure, two sides of the long plate 213a are respectively and fixedly arranged on the first limiting plate 211 and the second limiting plate 212, one end of the short plate 213b is arranged on the long plate 213a, and the other end is arranged on the side wall of the drying chamber 200, so as to divide the position of the positioning partition plate 213 into two independent cells, so as to place oral appliances with smaller area, such as a car shake frame/file frame, etc.
The number of the sliding separation plates 214 is several, in this embodiment, as shown in fig. 2, the number of the sliding separation plates 214 is 3, two ends of the sliding separation plates 214 are slidably connected with the first limiting plate 211 and the second limiting plate 212, respectively, and a user can adjust the sliding separation plates 214 according to actual use requirements, so as to obtain enough space to accommodate oral appliances with a large area, such as rubber baffles/facebow, and the like.
Further, the first stopper plate 211 is horizontally provided with a first slide groove (not shown, refer to the second slide groove 212a), the second stopper plate 212 is horizontally provided with a second slide groove 212a, and as shown in fig. 2 and 3, the slide partition plate 214 is correspondingly provided with a first slider (refer to the second slider 214a) and a second slider 214a, the first slider is slidably fitted in the first slide groove, the second slider 214a is slidably fitted in the second slide groove 212a, and when the medical staff moves the slide partition plate 214, the first slider slides in the first slide groove, and simultaneously, the second slider 214a slides in the second slide groove 212a, thereby realizing the position adjustment.
In the above embodiment, the height of the storage grid 210 is preferably set to be one third of the height of the drying chamber 200, which is advantageous in that the separation function is achieved and at the same time, the medical staff can conveniently insert the hands into the drying chamber 200 to place and grasp the oral appliance.
Based on the above embodiment, in another possible implementation manner of the present invention, as shown in fig. 1, a flexible material layer 220 is further disposed on one side of the separation panel 110 facing the drying chamber 200, and the flexible material layer 220 may be made of materials such as artificial fur or latex, so as to achieve a protection effect on the placing process of the oral cavity device.
In the drawing cabinet 310 in the moisture-keeping bin 300, the two soaking boxes are arranged, namely, the first soaking box 311 and the second soaking box 312, as shown in fig. 4, the first soaking box 311 is arranged on one side of the drawing cabinet 310, the second soaking box 312 is arranged on the other side of the drawing cabinet 310, and medical staff can realize the classified recovery of different oral cavity instruments by filling different moisture-keeping solutions.
In the above embodiment, first soaking box 311 and second soaking box 312 can be dismantled and set up in the inside of pull cabinet 310, specifically can set up sunken draw-in groove with the position that first soaking box 311 and second soaking box 312 correspond on pull cabinet 310 to the realization is to the fixed of first soaking box 311 and second soaking box 312, the utility model discloses a in other can the embodiment, still can set up annular buckle in the inside of pull cabinet 310, set up the buckle of bending in the position that first soaking box 311 and second soaking box 312 correspond, be connected through the plug of buckle and annular buckle of bending, fix first soaking box 311 and second soaking box 312 in the inside of pull cabinet 310. The advantage of this arrangement is that the medical staff can get the first soaking box 311 and the second soaking box 312 at any time, so that the medical staff can operate according to the situation of the treatment site.
In other embodiments of the present invention, as shown in fig. 1, a handle 120 is further disposed on one side of the top of the box 100, the handle 120 is convenient for medical staff to move the oral cavity instrument retrieving box, and when actually disposed, the handle 120 is rotatably connected to the box 100, so that the medical staff can operate the oral cavity instrument retrieving box.
To sum up, the utility model provides a box is retrieved to oral cavity apparatus, this box is retrieved to oral cavity apparatus includes: the box body is internally and horizontally provided with a separation panel; the drying bin is arranged above the separation panel, and the drying bin is internally provided with object placing grids for placing oral cavity instruments in a classified manner; the moisture preserving bin is arranged below the separating panel, a drawing cabinet is arranged in the moisture preserving bin, a soaking box is arranged in the drawing cabinet, and the drawing cabinet and the soaking box are used for containing moisture preserving liquid. The utility model discloses a set up the partition panel in the box, divide into dry storehouse and the storehouse of moisturizing with the box, through putting the oral cavity apparatus that the different types that thing grid classifiable placed needs drying process and different materials in the dry storehouse, hold the moisturizing liquid in the pull cabinet in the storehouse of moisturizing and the soaking box, can place the difficult abluent oral cavity apparatus that needs the moisturizing process, the utility model discloses simple structure can satisfy the demand that medical staff rationally retrieved oral cavity apparatus, improves work efficiency.
It is to be understood that the invention is not limited to the above-described embodiments, and that modifications and variations may be made by those skilled in the art in light of the above teachings, and all such modifications and variations are intended to be included within the scope of the invention as defined in the appended claims.
Claims (10)
1. An oral instrument retrieval cartridge, comprising:
the box body is internally and horizontally provided with a separation panel;
the drying bin is arranged above the separation panel, and the drying bin is internally provided with object placing grids for placing oral cavity instruments in a classified manner;
the moisture preserving bin is arranged below the separating panel, a drawing cabinet is arranged in the moisture preserving bin, a soaking box is arranged in the drawing cabinet, and the drawing cabinet and the soaking box are used for containing moisture preserving liquid.
2. The oral device retrieval box of claim 1, wherein the storage grid comprises:
the first limiting plate is arranged on one side of the opening surface of the box body;
the second limiting plate is parallel to the first limiting plate and arranged on the inner side of the drying bin;
the partition plate is provided with a plurality of, and a plurality of the partition plate is connected first limiting plate with on the second limiting plate.
3. The oral instrument retrieval cassette of claim 2, wherein the divider plate comprises:
the first partition plate comprises a long plate and a short plate, two ends of the long plate are respectively and fixedly arranged on the first limiting plate and the second limiting plate, one end of the short plate is fixedly connected with the long plate, and the other end of the short plate is fixedly arranged on the side wall of the drying bin;
the sliding partition plate is provided with a plurality of sliding partition plates, and the two ends of each sliding partition plate are connected with the first limiting plate and the second limiting plate in a sliding mode respectively.
4. The oral instrument recovery box according to claim 3, wherein a first sliding groove is horizontally formed in the first limiting plate, a second sliding groove is horizontally formed in the second limiting plate, a first sliding block and a second sliding block are arranged on the sliding separation plate at positions corresponding to the first sliding groove and the second sliding groove, the first sliding block is slidably fitted in the first sliding groove, and the second sliding block is slidably fitted in the second sliding groove.
5. The oral device retrieval box of claim 1, wherein the storage grate has a height that is one-third of the height of the drying bin.
6. The oral appliance retrieval cartridge of claim 1, wherein the soak cartridge includes a first soak cartridge and a second soak cartridge, the first soak cartridge being removably disposed on one side within the pull cabinet and the second soak cartridge being removably disposed on another side within the pull cabinet.
7. The oral appliance recycling box according to claim 1, wherein a groove is formed in a central portion of the drawer cabinet facing a side of the opening of the box body, and the groove is used for pulling the drawer cabinet open.
8. The oral appliance recycling box according to claim 1, wherein the box body is provided with a side sliding door, the side sliding door is provided with a rotating shaft, and the rotating shaft is arranged at the left side of the opening surface of the box body;
the side sliding door is provided with a first magnetic attraction component, a second magnetic attraction component is arranged on the box body and corresponds to the first magnetic attraction component, and the first magnetic attraction component is magnetically attracted with the second magnetic attraction component and is connected with the second magnetic attraction component.
9. The oral device recovery case of claim 1 wherein the case has a handle disposed on a side thereof facing the case, the handle being pivotally connected to the case.
10. The oral instrument retrieval cassette of claim 1, wherein the partition panel is provided with a layer of flexible material on a side facing the drying cartridge.
