Abstract
The utility model discloses an electric toothbrush, which comprises a toothbrush body and a toothbrush seat arranged below the toothbrush body, wherein a connecting pipeline is arranged between the toothbrush body and the toothbrush seat, one end of the connecting pipeline is inserted into the toothbrush seat, the other end is inserted into the rear part of the toothbrush body, a toothbrush mounting groove is arranged on the toothbrush seat, the toothbrush body is inserted into the toothbrush mounting groove to form clamping fit, a switch button is arranged in the middle of the toothbrush body, a toothbrush head is arranged at the top of the toothbrush body, the toothbrush head comprises a rotatable brush body and a spray head, and the spray head is arranged at the middle position of the rotatable brush body; the electric toothbrush can be matched with the toothbrush seat in a connecting way, can supply water while brushing teeth, and is convenient to use and high in practicability.
Description
Technical Field
The utility model relates to an electric toothbrush.
Background
With the rapid development of science and technology and medicine, the living standard of people is greatly improved, the prevention health care consciousness is continuously improved, and people pay more and more attention to the self health care of the oral cavity. Research shows that self-care is the most promising and potential health care in three major health care categories, namely professional health care, social health care and self-care. The most important self-care method for removing dental plaque on the tooth surface and keeping the oral cavity clean and sanitary is tooth brushing.
The electric toothbrush head has three moving modes: one is that the brush head makes reciprocating linear motion, the other is that it makes rotary motion, and also a complete set of electric toothbrush with two kinds of brush heads. The bristles of the toothbrush head are made of soft plastic fibers, and the bristle ends are all processed into balls, so that teeth and a gum are not damaged, and the tooth brushing effect is not influenced. Not only can clean each tooth, but also has the function of massaging the gum. The toothbrush handle is provided with a strong and weak switching mode switch, so that the movement speed of the toothbrush head can be selected according to personal needs.
Overseas reports, over the past few years, a significant number of dentists have begun recommending powered toothbrushes for their patients. The electric toothbrush is a tool for cleaning teeth, and consists of rechargeable dry battery, miniature DC motor, battery box, toothbrush head, metal guard plate and sleeve; a dry battery as a power supply of the direct current motor and the direct current motor are arranged in a battery box, and the battery box is provided with a manual switch for controlling the on-off of the power supply of the direct current motor; the direct current motor rotating shaft extends out of the battery box, the toothbrush head and the metal guard plate are sleeved on the direct current motor rotating shaft, and a sleeve is arranged outside the toothbrush head and the metal guard plate. The electric toothbrush can be suitable for various users by being matched with toothbrush heads with different models.
The existing electric toothbrush is mostly used as an independent brush body instead of being carried with a toothbrush seat, so that water injection operation cannot be carried out while the electric toothbrush is used, a water cup needs to be carried for combined use, and the problems of low practicability and inconvenient use exist.
SUMMERY OF THE UTILITY MODEL
To the deficiency in the prior art, the utility model aims at providing an electric toothbrush that can be carried with the toothbrush seat and cooperate, can brush teeth and supply water simultaneously, convenient to use, the practicality is strong.
The utility model provides a technical scheme that its technical problem adopted is:
the utility model provides an electric toothbrush, including the toothbrush body, and install in the toothbrush seat of toothbrush body below, be provided with connecting tube between toothbrush body and the toothbrush seat, connecting tube's one end inserts in the toothbrush seat, and the other end inserts in the rear portion of toothbrush body, be equipped with the toothbrush mounting groove on the toothbrush seat, the toothbrush body inserts and forms the card in the toothbrush mounting groove and hold the cooperation, the middle part of toothbrush body is equipped with shift knob, the top of toothbrush body is equipped with the toothbrush head, the toothbrush head is including rotatable brush body and shower nozzle, the shower nozzle sets up in the middle part position of rotatable brush body.
Preferably, the switch button comprises a toothbrush starting switch for controlling the rotation of the rotatable brush body and a spray head starting switch for controlling the opening and closing of the spray head, and the toothbrush starting switch and the spray head starting switch are vertically arranged.
Preferably, the nozzle is communicated with the connecting pipeline, a switch valve body is arranged in the toothbrush body, and the switch valve body is linked with the nozzle starting switch.
Preferably, a rotating motor is arranged in the toothbrush body, the toothbrush starting switch is electrically connected with the rotating motor, and a rechargeable power supply driven by the rotating motor is further arranged in the toothbrush body.
Preferably, a charging plug is arranged in the toothbrush mounting groove, a charging jack matched with the charging plug is arranged at the bottom of the toothbrush body, and the charging jack is electrically connected with a rechargeable power supply.
Preferably, a toothpaste mounting groove is further formed in the toothbrush holder, the toothpaste mounting groove is a rectangular groove body and is formed in the side face of the charging jack, and the depth of the toothpaste mounting groove is smaller than the height of the toothbrush holder.
Preferably, the bottom of the toothbrush seat is provided with a water pipe connecting hole, the water pipe connecting hole is a hole body with an annular bayonet, and the water pipe connecting hole is communicated with the connecting pipeline.
Preferably, the outer side surface of the water connection hole is provided with an outer sealing rubber plug, the inner side surface of the water connection hole is provided with an inner sealing rubber plug, and the outer sealing rubber plug and the inner sealing rubber plug are connected through integral forming.
Preferably, the connecting pipe is a rubber pipe body with ductility, one end of the connecting pipe is fixedly connected with the toothbrush body, and the other end of the connecting pipe is inserted into the toothbrush holder and is movably matched with the toothbrush holder.
Preferably, the toothbrush mounting groove, the toothpaste mounting groove and the water pipe connecting hole are distributed in a staggered mode in the vertical position of the toothbrush seat, the toothpaste mounting groove is located in the lateral position of the toothbrush mounting groove and the water pipe connecting hole, and the toothbrush mounting groove and the water pipe connecting hole are located on the same side.
The utility model has the advantages that:
carry out the connection between toothbrush seat and the toothbrush body through adopting the connecting tube, carry out the water injection via the inside water pipe connection hole of toothbrush seat, and the toothbrush body then carries out the operation of draining of shower nozzle via connecting tube cooperation shift knob, the operation of brushing teeth of the rotatable brush body of cooperation is washed, compare in traditional no water injection formula electric toothbrush, this electric toothbrush with water injection effect obviously uses more conveniently, in addition still collocation has the charging plug to come to charge when placing, and the toothpaste mounting groove of having arranged in pairs of sorts is convenient for place toothpaste, whole practicality is stronger.
Drawings

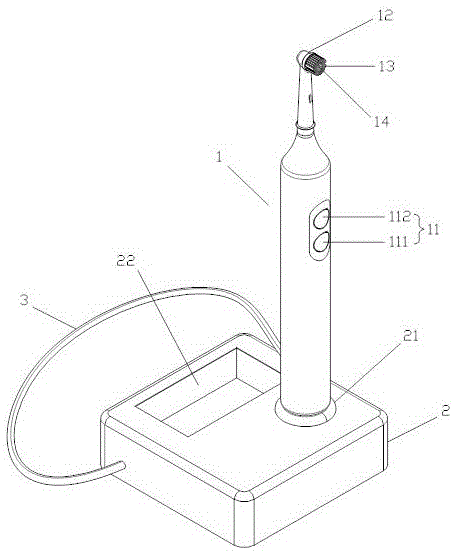

Fig. 1 is a schematic view of an electric toothbrush according to the present invention;
fig. 2 is a schematic bottom structure view of the electric toothbrush of the present invention.
Detailed Description
The present invention will be further described with reference to the accompanying drawings and specific embodiments so that those skilled in the art can better understand the present invention and can implement the present invention, but the embodiments are not to be construed as limiting the present invention.
Examples
Referring to fig. 1-2, an electric toothbrush comprises a toothbrush body 1 and a toothbrush holder 2 installed below the toothbrush body 1, wherein a connecting pipe 3 is arranged between the toothbrush body 1 and the toothbrush holder 2, one end of the connecting pipe 3 is inserted into the toothbrush holder 2, the other end of the connecting pipe is connected to the rear part of the toothbrush body 1, a toothbrush mounting groove 21 is formed in the toothbrush holder 2, the toothbrush body 1 is inserted into the toothbrush mounting groove 21 to form a clamping fit, a switch button 11 is arranged in the middle of the toothbrush body 1, a toothbrush head 12 is arranged at the top of the toothbrush body 1, the toothbrush head 12 comprises a rotatable brush body 13 and a nozzle 14, and the nozzle 14 is arranged in the middle of the rotatable brush body 13.
The switch button 11 comprises a toothbrush starting switch 111 for controlling the rotation of the rotatable brush body 13 and a nozzle starting switch 112 for controlling the opening and closing of the nozzle 14, the toothbrush starting switch 111 and the nozzle starting switch 112 are vertically arranged, the nozzle 14 is communicated with the connecting pipeline 3, a switch valve body is arranged in the toothbrush body 1 and linked with the nozzle starting switch 112, and the toothbrush starting switch 111 and the nozzle starting switch 112 are adopted to respectively control the starting of the rotatable brush body 13 and the opening and closing of cleaning water liquid in the nozzle 14, so that different operation modes of only brushing teeth and not brushing teeth, or only washing and not brushing teeth, or washing and brushing teeth at the same time are realized, the switch button is flexible and convenient, and has stronger functionality.
The utility model discloses a toothbrush, including toothbrush body, toothbrush starting switch 111, toothbrush mounting groove 21, but toothbrush body 1 is equipped with the rotation motor, toothbrush starting switch 111 and rotation motor electric connection, still be equipped with in the toothbrush body 1 and supply to rotate motor drive's chargeable call, be equipped with charging plug in the toothbrush mounting groove 21, toothbrush body 1 bottom is equipped with the jack that charges with charging plug matched with, but the jack that charges and chargeable call electric connection realize its rotation through the structural design who adopts the rotatable brush body 13 of miniature rotation motor cooperation, belong to current electric toothbrush's conventional setting, and its inside chargeable call is the lithium cell, carries out the power supply operation that charges via charging plug.
Still be equipped with toothpaste mounting groove 22 on toothbrush seat 2, toothpaste mounting groove 22 is the cell body of a rectangle, and sets up in the side of the jack that charges, toothpaste mounting groove 22's the degree of depth is less than toothbrush seat 2's height, toothbrush seat 2's bottom is equipped with water pipe connection hole 23, water pipe connection hole 23 is for the hole body that has annular bayonet socket, water pipe connection hole 23 and connecting tube 3 intercommunication carry out placing of toothpaste through adopting toothpaste mounting groove 22, and this toothpaste mounting groove 22's shape length degree of depth all can be adjusted as required, generally adopts general rectangular structure, but also can adopt cylindrical cell body to place with the toothpaste of the unnecessary type of adaptation.
The lateral surface that water pipe connects the hole 23 is equipped with the external seal plug, the medial surface that water pipe connects the hole 23 is equipped with the inner seal plug, adopt integrated into one piece to be connected between external seal plug and the inner seal plug, connecting tube 3 is a rubber tube body that has ductility, the one end and the toothbrush body 1 of connecting tube 3 form fixed connection, the other end insert in toothbrush seat 2 and with toothbrush seat 2 between form clearance fit, the design through sealed plug carries out the water liquid seepage between the water pipe, avoids the water liquid seepage of junction, and this sealed plug structure is detachable design.
The utility model has the advantages that:
carry out the connection between toothbrush seat and the toothbrush body through adopting the connecting tube, carry out the water injection via the inside water pipe connection hole of toothbrush seat, and the toothbrush body then carries out the operation of draining of shower nozzle via connecting tube cooperation shift knob, the operation of brushing teeth of the rotatable brush body of cooperation is washed, compare in traditional no water injection formula electric toothbrush, this electric toothbrush with water injection effect obviously uses more conveniently, in addition still collocation has the charging plug to come to charge when placing, and the toothpaste mounting groove of having arranged in pairs of sorts is convenient for place toothpaste, whole practicality is stronger.
The above embodiments of the present invention are not right the utility model discloses the limited protection scope, the utility model discloses an embodiment is not limited to this, all kinds of basis according to the above-mentioned of the utility model discloses an under the above-mentioned basic technical thought prerequisite of the utility model, right according to ordinary technical knowledge and the conventional means in this field the modification, replacement or the change of other multiple forms that above-mentioned structure made all should fall within the protection scope of the utility model.
Claims (10)
1. The utility model provides an electric toothbrush, including toothbrush body, and install the toothbrush seat in toothbrush body below, its characterized in that: be provided with the connecting tube between toothbrush body and the toothbrush seat, the one end of connecting tube inserts in the toothbrush seat, and the other end inserts in the rear portion of toothbrush body, be equipped with the toothbrush mounting groove on the toothbrush seat, the toothbrush body inserts and forms the card in the toothbrush mounting groove and hold the cooperation, the middle part of toothbrush body is equipped with shift knob, the top of toothbrush body is equipped with the toothbrush head, the toothbrush head is including rotatable brush body and shower nozzle, the shower nozzle sets up in the middle part position of rotatable brush body.
2. The electric toothbrush of claim 1, wherein: the switch button comprises a toothbrush starting switch for controlling the rotation of the rotatable brush body and a sprayer starting switch for controlling the sprayer to be opened and closed, and the toothbrush starting switch and the sprayer starting switch are vertically arranged.
3. The electric toothbrush of claim 2, wherein: the spray head is communicated with the connecting pipeline, a switch valve body is arranged in the toothbrush body, and the switch valve body is linked with the spray head starting switch.
4. The electric toothbrush of claim 3, wherein: the toothbrush is characterized in that a rotating motor is arranged in the toothbrush body, the toothbrush starting switch is electrically connected with the rotating motor, and a rechargeable power supply for driving the rotating motor is further arranged in the toothbrush body.
5. The electric toothbrush of claim 4, wherein: the toothbrush is characterized in that a charging plug is arranged in the toothbrush mounting groove, a charging jack matched with the charging plug is arranged at the bottom of the toothbrush body, and the charging jack is electrically connected with a rechargeable power supply.
6. The powered toothbrush as defined in claim 5, wherein: the toothbrush holder is characterized in that a toothpaste mounting groove is further formed in the toothbrush holder, the toothpaste mounting groove is a rectangular groove body and is formed in the side face of the charging jack, and the depth of the toothpaste mounting groove is smaller than the height of the toothbrush holder.
7. The powered toothbrush as defined in claim 6, wherein: the toothbrush holder is characterized in that a water pipe connecting hole is formed in the bottom of the toothbrush holder, the water pipe connecting hole is a hole body with an annular bayonet, and the water pipe connecting hole is communicated with a connecting pipeline.
8. The powered toothbrush as defined in claim 7, wherein: the outer side of the water pipe connecting hole is provided with an outer sealing rubber plug, the inner side of the water pipe connecting hole is provided with an inner sealing rubber plug, and the outer sealing rubber plug and the inner sealing rubber plug are connected through integral forming.
9. The powered toothbrush as defined in claim 8, wherein: the connecting pipeline is a rubber pipe body with ductility, one end of the connecting pipeline is fixedly connected with the toothbrush body, and the other end of the connecting pipeline is inserted into the toothbrush seat and is movably matched with the toothbrush seat.
10. The powered toothbrush as defined in claim 7, wherein: the toothbrush mounting groove, the toothpaste mounting groove and the water pipe connecting hole are distributed in a staggered mode in the vertical position of the toothbrush seat, the toothpaste mounting groove is located in the lateral position of the toothbrush mounting groove and the water pipe connecting hole, and the toothbrush mounting groove and the water pipe connecting hole are located on the same side.
