Edible oil processing discharging device

Technical Field

The utility model belongs to the technical field of discharging device, specifically indicate an edible oil processing discharging device.

Background

Edible oil, also known as "edible oil," refers to animal or vegetable fats and oils used in the manufacture of food products, which are liquid at room temperature. Due to the source of raw materials, processing technology, quality and other reasons, common edible oils are mostly vegetable oils and fats, including millet oil, peanut oil, hemp seed oil, corn oil, olive oil, camellia oil, palm oil, canola oil, sunflower oil, soybean oil, sesame oil, linseed oil, grape seed oil, walnut oil, peony seed oil and the like.

When the edible oil is prepared by the squeezing method, the spiral squeezing method is used, but when the edible oil is squeezed out, residues inside the box body can be attached to the filtering holes, and the conventional edible oil processing and discharging device lacks a filtering hole cleaning device, so that the filtering holes are blocked, the oil outlet speed is influenced, and the working efficiency is further influenced.

SUMMERY OF THE UTILITY MODEL

To the above circumstances, for overcoming prior art's defect, the utility model provides an edible oil processing discharging device, the effectual defect of traditional edible oil processing discharging device most simple function, simple and crude structure in having solved present market, when having guaranteed basic edible oil ejection of compact and having collected the effect, can also filter the edible oil and absorb the clearance of filter residue, further improved the use flow of whole device, be a very practical edible oil processing discharging device.

The utility model adopts the following technical scheme: the utility model relates to an edible oil processing and discharging device, which comprises a support column, a discharging main body, a charging hole, a thread plate, a movable groove, a movable block, a thread motor, a threaded rod, a limiting plate, a connecting column, a filter screen, a scraper blade, a storage box, a delivery pipe, an extraction pump, a transmission pipe, a suction port, a stirring motor, a driving shaft, a stirring rod, an observation window, a discharge port and an electric valve, wherein the discharging main body is arranged on the support column, the charging hole is arranged at the top of the discharging main body, the thread plate is arranged at the bottom of the top wall of the discharging main body, the movable groove is arranged at the bottom of the top wall of the discharging main body, the movable block is arranged on the movable groove, the thread motor runs through the discharging main body and is arranged on the thread plate, the threaded rod runs through the movable block and is arranged on the thread motor, the limiting plate is arranged at the bottom of the top wall of the discharging main body and is arranged at one side far away from the thread plate, the connecting column is arranged at the bottom of the top wall of the discharging main body, the spliced pole bottom is located to the filter screen, movable block bottom is located to scraper blade one end, the filter screen top is located to the scraper blade other end, the bin is located on ejection of compact main part lateral wall, the bin bottom is located to the contact tube, the storage tank top is located to the extraction pump, the transmission pipe is located on the extraction pump, the absorption mouth is located transmission pipe below, agitator motor locates on the ejection of compact main part lateral wall, on agitator motor was located to the drive shaft, the puddler was located in the drive shaft, the observation window is located in the ejection of compact main part, ejection of compact main part bottom is located to the discharge gate, electric valve locates on the discharge gate, the scraper blade plays the effect that drives the filter residue and remove to extraction mouth below.

Further, the drive shaft is arranged between the filter screen and the discharge hole, the storage box is arranged between the extraction pump and the delivery pipe, and the threaded rod is arranged between the threaded plate and the limiting plate.

Further, thread plate and limiting plate are parallel arrangement, activity groove and threaded rod are parallel arrangement, bin and ejection of compact main part are perpendicular setting.

Further, the discharge gate is the setting of cuboid opening form, the observation window is the setting of cuboid platelike, the threaded rod is the setting of cylinder screw thread form.

Adopt above-mentioned structure the utility model discloses the beneficial effect who gains as follows: this scheme edible oil processing discharging device, the effectual defect of traditional edible oil processing discharging device most simple functions, simple and crude structure in having solved present market, when having guaranteed basic edible oil ejection of compact and collecting the effect, can also filter the edible oil and absorb the clearance of filter residue, further improved the use flow of whole device, be a very practical edible oil processing discharging device of a section.

Drawings

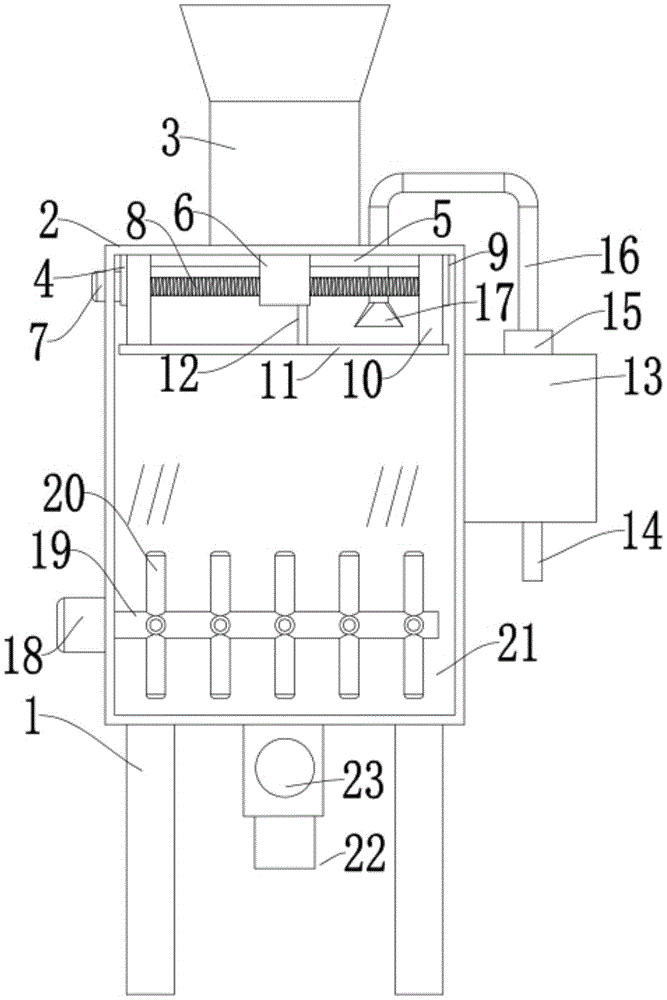

Fig. 1 is the overall structure schematic diagram of the edible oil processing and discharging device of the utility model.

The device comprises a support column 1, a support column 2, a discharge main body 3, a feed inlet 4, a thread plate 5, a movable groove 6, a movable block 7, a thread motor 8, a threaded rod 9, a limiting plate 10, a connecting column 11, a filter screen 12, a scraper plate 13, a storage tank 14, a delivery pipe 15, an extraction pump 16, a transmission pipe 17, a suction port 18, a stirring motor 19, a driving shaft 20, a stirring rod 21, an observation window 22, a discharge port 23 and an electric valve.

The accompanying drawings are included to provide a further understanding of the invention, and are incorporated in and constitute a part of this specification, illustrate embodiments of the invention, and together with the description serve to explain the invention and not to limit the invention.

Detailed Description

The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments; based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.

As shown in figure 1, the utility model relates to an edible oil processing and discharging device, which comprises a support pillar 1, a discharging main body 2, a charging opening 3, a thread plate 4, a movable groove 5, a movable block 6, a thread motor 7, a threaded rod 8, a limit plate 9, a connecting column 10, a filter screen 11, a scraper 12, a storage tank 13, a delivery pipe 14, an extraction pump 15, a transmission pipe 16, an absorption opening 17, a stirring motor 18, a driving shaft 19, a stirring rod 20, an observation window 21, a discharge opening 22 and an electric valve 23, wherein the discharging main body 2 is arranged on the support pillar 1, the charging opening 3 is arranged at the top of the discharging main body 2, the thread plate 4 is arranged at the bottom of the top wall of the discharging main body 2, the movable groove 5 is arranged at the bottom of the top wall of the discharging main body 2, the movable block 6 is arranged on the movable groove 5, the thread motor 7 is arranged on the thread plate 4 by penetrating through the discharging main body 2, the threaded rod 8 is arranged on the thread motor 7 by penetrating the movable block 6, the limiting plate 9 is arranged at the bottom of the top wall of the discharging main body 2 and at one side far away from the thread plate 4, the connecting column 10 is arranged at the bottom of the top wall of the discharging main body 2, the filter screen 11 is arranged at the bottom of the connecting column 10, one end of the scraper 12 is arranged at the bottom of the movable block 6, the other end of the scraper 12 is arranged at the top of the filter screen 11, the storage box 13 is arranged on the side wall of the discharging main body 2, the delivery pipe 14 is arranged at the bottom of the storage tank 13, the extraction pump 15 is arranged at the top of the storage tank 13, the transmission pipe 16 is arranged on the extraction pump 15, the suction port 17 is arranged below the transmission pipe 16, the stirring motor 18 is arranged on the side wall of the discharging main body 2, the driving shaft 19 is arranged on the stirring motor 18, the stirring rod 20 is arranged on the driving shaft 19, the observation window 21 is arranged on the discharging main body 2, the discharge port 22 is arranged at the bottom of the discharge main body 2, and the electric valve 23 is arranged on the discharge port 22.

The drive shaft 19 is arranged between the filter screen 11 and the discharge hole 22, the storage box 13 is arranged between the extraction pump 15 and the delivery pipe 14, and the threaded rod 8 is arranged between the threaded plate 4 and the limiting plate 9.

Threaded plate 4 and limiting plate 9 are parallel arrangement, activity groove 5 and threaded rod 8 are parallel arrangement, bin 13 and ejection of compact main part 2 are perpendicular setting.

Discharge gate 22 is the setting of cuboid opening form, observation window 21 is the setting of cuboid platelike, threaded rod 8 is the setting of cylinder screw thread form.

When the edible oil discharging device is used specifically, a user firstly adds edible oil needing to be discharged into the discharging main body 2 through the feeding port 3, solid filter residues are left on the filter screen 11 by the edible oil through the filter screen 11, then clean edible oil enters the bottom of the discharging main body 2, at the moment, the user can open the stirring motor 18 to drive the driving shaft 19 to rotate, the driving shaft 19 drives the stirring rod 20 to rotate, the added edible oil is stirred at the same time, the edible oil is prevented from precipitating during discharging, convenience is provided for guiding the edible oil, after the whole discharging and filtering are finished, the user can open the electric valve 23 to guide the edible oil out through the discharging port 22, at the moment, the user can open the threaded motor 7 to drive the threaded rod 8 to rotate, the movable block 6 cannot rotate together with the threaded rod 8 due to the limiting effect of the movable groove 5, but can horizontally move along the movable groove 5, the user can utilize movable block 6 and scraper blade 12 to remove the filter residue to extraction mouth below, then open draw-out pump 15 and take out the filter residue to bin 13 inside through extraction mouth and transmission pipe 16, and the user can utilize contact tube 14 to derive the filter residue of collecting at any time and handle, above be just whole edible oil processing discharging device's use flow.

It is noted that, herein, relational terms such as first and second, and the like may be used solely to distinguish one entity or action from another entity or action without necessarily requiring or implying any actual such relationship or order between such entities or actions. Also, the terms "comprises," "comprising," or any other variation thereof, are intended to cover a non-exclusive inclusion, such that a process, method, article, or apparatus that comprises a list of elements does not include only those elements but may include other elements not expressly listed or inherent to such process, method, article, or apparatus.

Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.

The present invention and the embodiments thereof have been described above, but the description is not limited thereto, and the embodiment shown in the drawings is only one of the embodiments of the present invention, and the actual structure is not limited thereto. In summary, those skilled in the art should understand that they should not be limited to the embodiments described above, and that they can design the similar structure and embodiments without departing from the spirit of the invention.

Claims

1. The utility model provides an edible oil processing discharging device which characterized in that: comprises a support column, a discharge main body, a feed inlet, a thread plate, a movable groove, a movable block, a thread motor, a thread rod, a limit plate, a connecting column, a filter screen, a scraper blade, a storage box, a discharge tube, an extraction pump, a transmission tube, a suction port, a stirring motor, a driving shaft, a stirring rod, an observation window, a discharge port and an electric valve, wherein the discharge main body is arranged on the support column, the feed inlet is arranged at the top of the discharge main body, the thread plate is arranged at the bottom of the top wall of the discharge main body, the movable groove is arranged at the bottom of the top wall of the discharge main body, the movable block is arranged on the movable groove, the thread motor penetrates through the discharge main body and is arranged on the thread plate, the thread rod penetrates through the movable block and is arranged on the thread motor, the limit plate is arranged at the bottom of the top wall of the discharge main body and is arranged at one side far away from the thread plate, the connecting column is arranged at the bottom of the discharge main body, the adjustable scraper blade is characterized in that the movable block bottom is arranged at one end of the scraper blade, the top of the filter screen is arranged at the other end of the scraper blade, the storage box is arranged on the side wall of the discharging main body, the bottom of the storage box is arranged on the delivery pipe, the top of the storage box is arranged on the delivery pump, the delivery pipe is arranged on the delivery pump, the lower part of the delivery pipe is arranged on the suction port, the stirring motor is arranged on the side wall of the discharging main body, the driving shaft is arranged on the stirring motor, the stirring rod is arranged on the driving shaft, the observation window is arranged on the discharging main body, the bottom of the discharging main body is arranged on the discharging port, and the electric valve is arranged on the discharging port.

2. The edible oil processing and discharging device of claim 1, wherein: the drive shaft is arranged between the filter screen and the discharge hole, the storage box is arranged between the extraction pump and the delivery pipe, and the threaded rod is arranged between the threaded plate and the limiting plate.

3. The edible oil processing and discharging device of claim 2, wherein: the thread plate and the limiting plate are arranged in parallel, the movable groove and the threaded rod are arranged in parallel, and the storage box and the discharging main body are arranged vertically.

4. The edible oil processing and discharging device of claim 3, wherein: the discharge gate is the setting of cuboid opening form, the observation window is the setting of cuboid platelike, the threaded rod is the setting of cylinder screw thread form.
