Abstract
The utility model provides a lead line collector, including receiving the line box, the inside fixed mounting who receives the line box has a plurality of to receive the line shell, and a plurality of receives the inside of line shell and is provided with receives the line inner shell, and the inside block of receiving the line inner shell has a receipts line spring, and the inside interlude of receiving the line box is connected with the cable, and the cable is established through receiving the outside cover of line shell and receiving the line inner shell and is connected, and the one end fixed mounting of cable has the concentrator, and the bottom fixed mounting who receives the line box has fixed establishment, the beneficial effects of the utility model are that: receive the line shell and receive the interact between the line inner shell through the setting to make many bunches of cables independently receive and release respectively, and receive the line spring through the setting, make the cable continue to drag the cable after stretching out and realize withdrawing, thereby avoid leading line intercrossing to tie a knot, and holistic structure neatly more beautifully and facilitate the use, still receive the line box through the setting and receive the whole effect of receiving and releasing of cable, greatly reduced the book damage of cable circuit.
Description
Technical Field
The utility model belongs to the technical field of machinery, concretely relates to lead line collector.
Background
The ECG monitor and the ECG machine are practical precise medical instruments in hospitals, are used for monitoring the dynamic change of vital signs of patients, provide objective and reasonable data for medical personnel, and play an important role in early detection of changes of illness states and guarantee of safety of patients. In clinical work, the chest lead wires are long in service time, the lead wires are crossed and knotted, and then the wires are broken, so that the cost of departments is increased, inconvenience is brought to clinical work, time and labor are wasted particularly when patients are rescued, once precious rescue time is delayed, hidden dangers are brought to the safety of the patients, and medical disputes are caused.
SUMMERY OF THE UTILITY MODEL
An object of the utility model is to provide a lead line collector aims at solving prior art in clinical work, and chest lead line live time is one long, appears the lead line cross knot then the condition of circuit book damage, increases the administrative or technical offices expense, the problem of bringing inconvenience for clinical work again.
In order to achieve the above object, the utility model provides a following technical scheme: the utility model provides a lead line collector, includes and receives the line box, the inside fixed mounting who receives the line box has a plurality of to receive line shell, a plurality of receive the inside of line shell and be provided with and receive the line inner shell, the inside block of receiving the line inner shell has and receives the line spring, the inside interlude of receiving the line box is connected with the cable, the cable is established through receiving the outside cover of line shell and receiving the line inner shell and is connected, the one end fixed mounting of cable has the concentrator, the bottom fixed mounting who receives the line box has fixed establishment.
In order to make the collector more be convenient for fix, as the utility model relates to an it is preferred, fixed establishment include with receipts line box bottom fixed mounting have unable adjustment base, a plurality of sliding tray, a plurality of have been seted up to unable adjustment base's bottom the equal sliding connection in inside both sides of sliding tray has solid fixed ring, two gu the equal fixed mounting in fixed ring both sides has electric telescopic handle.
In order to make holistic collector be convenient for accomodate, conduct the utility model relates to an it is preferred, the top of receiving the line box is attached to have a receipts roll strip, one side of receiving the line box is attached to have a first sticky strip, the opposite side of receipts roll strip is attached to have a second sticky strip.
In order to make the concentrator can obtain better fixed, as the utility model discloses an it is preferred, the strip of rolling up is made by dacron surface fabric.
In order to make holistic collector be convenient for fix and use, conduct the utility model relates to an it is preferred, one side fixed mounting of receipts line box has flush mounting plate of switch, flush mounting plate of switch's fixed surface installs the electric telescopic handle switch, electric telescopic handle passes through electric telescopic handle switch and external power supply electric connection.
Compared with the prior art, the beneficial effects of the utility model are that:
1) through the interaction between the arranged take-up outer shell and the take-up inner shell, the multi-strand cable can be respectively and independently taken up and down, and the take-up spring is arranged, so that the multi-strand cable can be withdrawn by continuously pulling the cable after the cable is stretched out, the cross knotting of the lead wires is avoided, the integral structure is neat and attractive, the use is convenient, the take-up box is used for taking up and releasing the whole cable, the breakage of the cable line is greatly reduced, the service life is prolonged, and the cost is reduced;
2) through the solid fixed ring and the electric telescopic handle that set up for holistic collector is more convenient for put in place that can be rapid carrying out rescue process in, thereby protection patient's safety in the at utmost, still through the coiling strip that sets up, make the concentrator be more convenient for fix, thereby be more convenient for accomodate the collector is whole, improved the device's result of use.
Drawings
The accompanying drawings are included to provide a further understanding of the invention, and are incorporated in and constitute a part of this specification, illustrate embodiments of the invention, and together with the description serve to explain the invention and not to limit the invention. In the drawings:

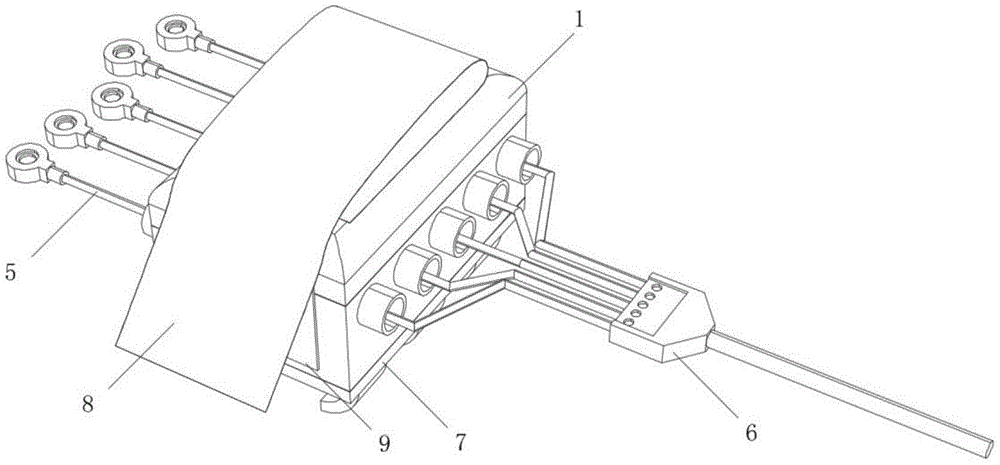

fig. 1 is a schematic view of the overall structure of the present invention;
FIG. 2 is a schematic view of the overall top structure of the present invention;
FIG. 3 is a schematic view of the rolling strip structure of the present invention;
FIG. 4 is a schematic view of the internal structure of the wire-rewinding box of the present invention;
FIG. 5 is a schematic view of the structure of the take-up housing of the present invention;
fig. 6 is a schematic view of the structure of the inner winding shell of the present invention.
In the figure: 1. a wire rewinding box; 2. a wire take-up housing; 3. taking up the inner shell; 4. a wire take-up spring; 5. a cable; 6. a hub; 7. a fixing mechanism; 71. a fixed base; 72. a sliding groove; 73. a fixing ring; 74. an electric telescopic rod; 8. rolling up the strip; 9. a first adhesive strip; 10. and a second adhesive strip.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
Referring to fig. 1-6, the present invention provides the following technical solutions:
the utility model provides a lead line collector, includes and receives line box 1, and the inside fixed mounting who receives line box 1 has a plurality of to receive line shell 2, and a plurality of receives the inside of line shell 2 and is provided with receives line inner shell 3, and the inside block of receiving line inner shell 3 has receives line spring 4, and the inside interlude of receiving line box 1 is connected with cable 5, and cable 5 establishes through receiving line shell 2 and the outside cover of receiving line inner shell 3 to be connected, and the one end fixed mounting of cable 5 has concentrator 6, and the bottom fixed mounting who receives line box 1 has fixed establishment 7.
When the electrocardio monitoring device is used specifically, when a patient needs to be subjected to electrocardio monitoring operation, firstly, the wire collecting box 1 is fixed at a nursing bed or other suitable positions through the fixing mechanism 7, then the cable 5 can be pulled, so that the multiple cables 5 in the wire collecting box 1 can be respectively extended, when the cable 5 is pulled, the wire collecting inner shell 3 in the cable 5 rotates, so that the cable 5 wound outside the wire collecting inner shell 3 is discharged, meanwhile, the wire collecting spring 4 rotates along with the rotation of the wire collecting inner shell, the cable 5 is extended from the inside of the wire collecting outer shell 2 after the cable 5 is extended, the cable 5 still keeps tension, so that the crossing knotting of the lead wires is avoided, the convenience and the practicability in clinical use are better, when the cable 5 needs to be collected, the cable 5 can be continuously pulled, so that the wire collecting inner shell 3 is rotated through the action of the wire collecting spring 4, withdraw cable 5 to reduced the lead wire and exposed the damage of knoing outward for a long time, then greatly reduced the replacement cost after the lead wire breaks down, prolonged life.
In this embodiment: fixed establishment 7 includes and receives line box 1 bottom fixed mounting has unable adjustment base 71, and a plurality of sliding tray 72 has been seted up to unable adjustment base 71's bottom, and the equal sliding connection in inside both sides of a plurality of sliding tray 72 has solid fixed ring 73, and the equal fixed mounting in two solid fixed ring 73 both sides has electric telescopic handle 74.
During the specific use, when wholly installing the fixed to the collector, accessible electric telescopic handle switch is to electric telescopic handle 74's control to make solid fixed ring 73 slide in sliding tray 72 is inside, fix unable adjustment base 71 and receipts line box 1 then and use in suitable position, thereby accelerated patient's rescue speed, the safety of patient has been protected to the at utmost.
In this embodiment: the top of the take-up box 1 is attached with a take-up strip 8, one side of the take-up box 1 is attached with a first adhesive strip 9, and the other side of the take-up strip 8 is attached with a second adhesive strip 10.
During the specific use, when accomodating receipts line box 1, accessible receipts strip 8 is fixed the concentrator 6 in the top position of receiving line box 1, and the first strip 9 of gluing of rethread glues the interactive relation between the strip 10 with the second to more fixing rolling strip 8 and receipts line box 1, then accomodate the processing to concentrator 6, be more convenient for to accomodating and depositing of whole collector.
In this embodiment: the rolling strip 8 is made of polyester fabric.
During the specific use, dacron surface fabric makes the strip 8 of rolling up possess certain elasticity to when fixed concentrator 6, can not cause the damage to the cable body.
In this embodiment: one side fixed mounting of receipts line box 1 has flush mounting plate of switch, flush mounting plate of switch has the electric telescopic handle switch, and electric telescopic handle 74 passes through electric telescopic handle switch and external power supply electric connection.
During specific use, the electric telescopic rod 74 is controlled through the electric telescopic rod switch, so that the collector is more convenient to operate when being fixed at a proper position.
Finally, it should be noted that: although the present invention has been described in detail with reference to the foregoing embodiments, it will be apparent to those skilled in the art that modifications may be made to the embodiments described in the foregoing embodiments, or equivalents may be substituted for elements thereof. Any modification, equivalent replacement, or improvement made within the spirit and principle of the present invention should be included in the protection scope of the present invention.
Claims (5)
1. The utility model provides a lead line collector, is including receiving line box (1), its characterized in that, the inside fixed mounting who receives line box (1) has a plurality of to receive line shell (2), a plurality of the inside of receiving line shell (2) is provided with receives line inner shell (3), the inside block of receiving line inner shell (3) has receives line spring (4), the inside interlude of receiving line box (1) is connected with cable (5), the outside cover of cable (5) through receiving line shell (2) and receiving line inner shell (3) is established and is connected, the one end fixed mounting of cable (5) has concentrator (6), the bottom fixed mounting of receiving line box (1) has fixed establishment (7).
2. The lead wire collector of claim 1, wherein: fixed establishment (7) include with receipts line box (1) bottom fixed mounting have unable adjustment base (71), a plurality of sliding tray (72), a plurality of have been seted up to the bottom of unable adjustment base (71) the equal sliding connection in inside both sides of sliding tray (72) has solid fixed ring (73), two gu the equal fixed mounting in fixed ring (73) both sides has electric telescopic handle (74).
3. The lead wire collector of claim 1, wherein: a coiling strip (8) is attached to the top of the coiling box (1), a first adhesive strip (9) is attached to one side of the coiling box (1), and a second adhesive strip (10) is attached to the other side of the coiling strip (8).
4. The lead wire collector of claim 3, wherein: the rolling strip (8) is made of polyester fabric.
5. The lead wire collector of claim 2, wherein: one side fixed mounting of receipts line box (1) has flush mounting plate of switch, flush mounting plate of switch has the electric telescopic handle switch, electric telescopic handle (74) pass through electric telescopic handle switch and external power source electric connection.
