Abstract
The application discloses grain is raw materials for oil processing washs edulcoration device, when the in-service use, through the inlet tube to wash jar body water injection, pour the raw materials into the unloading pipe in succession, the effect through the stock guide is with the height of raw materials to the filter screen, start vibrating motor simultaneously and drive the filter screen vibration, discharge through the trash removal pipe after sieving out big debris such as stone, leather and shell, the raw materials after filtering the edulcoration can fall into the washing jar body behind the filter screen, carry out cleaning treatment to the raw materials in the washing jar body through the mode that starts agitator motor drive puddler and stirring vane, after the washing, open first control valve, discharge the back through the drainage pipe after finishing washing earlier, through the mode of taking out first drainage filter screen that takes out, the raw materials after the washing through the drainage pipe discharge collection, can realize filtering the edulcoration and wash the integration, the operation is simple, The method is convenient, the labor intensity is low, and the working efficiency is higher.
Description
Technical Field
The application relates to the field of grain and oil processing and preparation, in particular to a raw material cleaning and impurity removing device for grain and oil processing.
Background
The grain and oil is a general name for grains, beans and other grains and oil materials and processed finished products and semi-finished products thereof, and is a necessity in the life of people. In the processing and production of grain and oil, the corresponding raw materials are usually subjected to impurity removal, namely impurities such as stones, shells and the like in the raw materials are removed, and then the raw materials are cleaned to ensure the quality and the taste of the grain and oil.
However, the existing raw material impurity removal and cleaning processes are separately carried out, the operation process is complicated and complicated, and the impurity removal and cleaning processes are high in manual participation, high in labor intensity and low in working efficiency.
SUMMERY OF THE UTILITY MODEL
The application provides a raw materials washs edulcoration device for grain and oil processing has solved the loaded down with trivial details complicacy of traditional grain and oil raw materials edulcoration cleaning process among the prior art, and the hand labor is slightly big, problem that work efficiency is low.
In order to solve the technical problem, the application provides a grain oil processing is with raw materials washing edulcoration device, includes:
the cleaning tank comprises a cleaning tank body, wherein a supporting rod is arranged at the bottom of the cleaning tank body, a mounting plate is arranged on the supporting rod, a stirring motor is arranged on the mounting plate, an output shaft of the stirring motor is fixedly connected with a stirring rod, the stirring rod penetrates through the bottom of the cleaning tank body and extends into the cleaning tank body, stirring blades are arranged on the stirring rod, a blanking pipe is communicated with the top of the cleaning tank body, a material guide plate and a filter screen are obliquely arranged in the blanking pipe from top to bottom in sequence, a vibrating motor fixedly connected with one end of the filter screen is arranged on the outer side of the blanking pipe through a supporting plate, an impurity discharging pipe is communicated with a position corresponding to the discharge end of the filter screen, a water inlet pipe is communicated with one side of the upper end of the cleaning tank body, and a drainage discharging pipe is communicated with one side of the bottom of the cleaning tank body, the drainage is arranged the pipe with the position department pull of washing jar body contact is provided with first drainage filter screen just be provided with first control valve on the drainage is arranged the pipe.
Preferably, the other side of the bottom of the cleaning tank body is further communicated with a circulating pipe, one end of the circulating pipe is communicated with one side of the upper end of the cleaning tank body, a second drainage filter screen is arranged at the position where the circulating pipe is contacted with the bottom of the cleaning tank body, and a second control valve and a water pump are arranged on the circulating pipe.
Preferably, a dust hood is further arranged above the feeding hole of the blanking pipe and is communicated with a dust collecting box through a dust removing pipe, one side of the dust collecting box is communicated with a suction fan, and the dust collecting box and the suction fan are fixedly arranged at the upper end position of the cleaning tank body.
Preferably, the method further comprises the following steps:
and the impurity collecting box body is fixed at the position, close to the blanking pipe, of the cleaning tank body, and one end of the impurity discharging pipe extends into the impurity collecting box body.
Preferably, one end of the water inlet pipe is also screwed with a pipe cap.
Preferably, the feeding pipe is a horn-shaped feeding pipe.
Preferably, the bottom of the support rod is also provided with a bottom plate.
Compared with the prior art, the raw material cleaning and impurity removing device for processing the grain and oil comprises a cleaning tank body, wherein a supporting rod is arranged at the bottom of the cleaning tank body, a mounting plate is arranged on the supporting rod, a stirring motor is arranged on the mounting plate, a stirring rod is fixedly connected with an output shaft of the stirring motor, the stirring rod penetrates through the bottom of the cleaning tank body and extends into the cleaning tank body, stirring blades are arranged on the stirring rod, a discharging pipe is communicated with the top of the cleaning tank body, a guide plate and a filter screen are sequentially arranged in the discharging pipe from top to bottom in an inclined manner, a vibrating motor fixedly connected with one end of the filter screen is arranged on the outer side of the discharging pipe through the supporting plate, a impurity removing pipe is communicated with the position of the discharging end of the filter screen, a water inlet pipe is communicated with one side of the upper end of the cleaning tank body, and a water discharging pipe is communicated with one side of the bottom of the cleaning tank body, the position department pull that the pipe was arranged in the drainage and the contact of the washing jar body is provided with first drainage filter screen and drainage and is arranged and be provided with first control valve on the pipe.
Therefore, when the cleaning and impurity removing device is used, water is injected into a cleaning tank body through a water inlet pipe during actual use, then raw materials are poured into a discharging pipe, the raw materials are guided to the height of a filter screen through the action of a guide plate, a vibration motor is started to drive the filter screen to vibrate at the same time, so that large impurities such as stones and shells are screened out and then discharged out through an impurity discharging pipe, the raw materials after filtering and impurity removing fall into the cleaning tank body after passing through the filter screen, the raw materials in the cleaning tank body are cleaned by driving a stirring rod and stirring blades through the starting of the stirring motor, after cleaning is finished, a first control valve is opened, the cleaned raw materials are discharged and collected through a water discharging pipe in a mode of taking out a first water discharging filter screen through pumping, the integration of filtering and impurity removing and cleaning can be realized, the operation process is simple and convenient, the labor intensity is low, the working efficiency is higher.
Drawings
In order to more clearly explain the technical solution of the present application, the drawings needed to be used in the embodiments are briefly described below, and it is obvious to those skilled in the art that other drawings can be obtained according to the drawings without making any inventive changes.

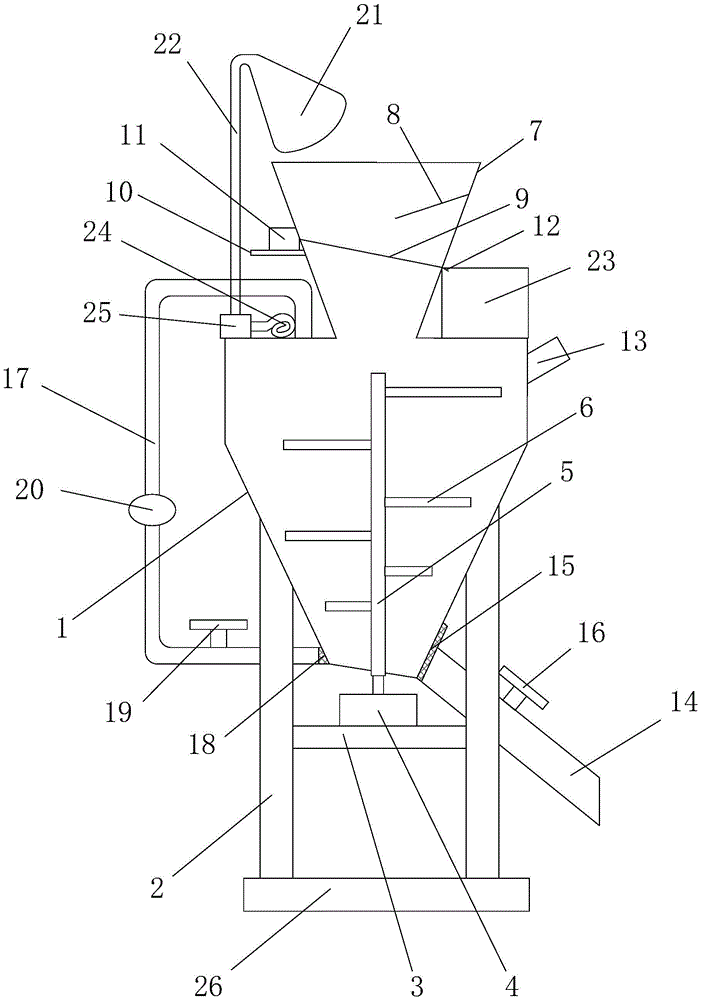

Fig. 1 is a schematic structural view of a raw material cleaning and impurity removing device for grain and oil processing provided by an embodiment of the present invention;
in the figure, 1 a cleaning tank body, 2 supporting rods, 3 mounting plates, 4 stirring motors, 5 stirring rods, 6 stirring blades, 7 blanking pipes, 8 guide plates, 9 filter screens, 10 supporting plates, 11 vibration motors, 12 impurity discharge pipes, 13 water inlet pipes, 14 water discharge and discharge pipes, 15 first water discharge filter screens, 16 first control valves, 17 circulating pipes, 18 second water discharge filter screens, 19 second control valves, 20 water pumps, 21 dust hoods, 22 dust removal pipes, 23 dust collection boxes, 24 suction fans, 25 impurity collection boxes and a bottom plate 26.
Detailed Description
In order to make those skilled in the art better understand the technical solutions in the present application, the technical solutions in the embodiments of the present application will be described clearly and completely with reference to the accompanying drawings.
The core of this application is to provide a raw materials washs edulcoration device for grain and oil processing, can solve among the prior art traditional grain and oil raw materials edulcoration cleaning process loaded down with trivial details complicacy, the problem that artifical work is slightly big, work efficiency is low.
Fig. 1 is the embodiment of the utility model provides a grain oil processing is with raw materials washing edulcoration device schematic structure, as shown in fig. 1, the device includes:
a cleaning tank body 1, a support rod 2 is arranged at the bottom of the cleaning tank body 1, a mounting plate 3 is arranged on the support rod 2, a stirring motor 4 is arranged on the mounting plate 3, a stirring rod 5 is fixedly connected with an output shaft of the stirring motor 4, the stirring rod 5 penetrates through the bottom of the cleaning tank body 1 and extends into the cleaning tank body 1, a stirring blade 6 is arranged on the stirring rod 5, a blanking pipe 7 is communicated with the top of the cleaning tank body 1, a material guide plate 8 and a filter screen 9 are sequentially arranged in the blanking pipe 7 from top to bottom in an inclined manner, a vibrating motor 11 fixedly connected with one end of the filter screen 9 is arranged on the outer side of the blanking pipe 7 through a support plate 10, an impurity discharging pipe 12 is communicated with the position of the blanking pipe 7 corresponding to the discharge end of the filter screen 9, a water inlet pipe 13 is communicated with one side of the upper end of the cleaning tank body 1, and a water discharging pipe 14 is communicated with one side of the bottom of the cleaning tank body 1, a first drainage filter screen 15 is arranged at the position where the drainage pipe 14 contacts with the cleaning tank body 1 in a drawing way, and a first control valve 16 is arranged on the drainage pipe 14.
Specifically, the shape and the size of the cleaning tank body 1 can be determined according to actual conditions, and the bottom of the cleaning tank body 1 can be set to be an inclined structure during design, so that discharging is facilitated. The bracing piece 2 is located the bottom position department of the washing jar body 1 for support fixedly to the washing jar body 1, during the design, can support fixedly through two or four bracing pieces 2 to the washing jar body 1. In order to improve the operational stability of the cleaning tank 1, a bottom plate 26 is preferably provided at the bottom of the support bar 2. Mounting panel 3 is fixed between two bracing pieces 2, support fixedly agitator motor 4 through mounting panel 3, agitator bar 5 runs through the output shaft fixed connection that sets up and its lower extreme and agitator motor 4 of the washing tank body 1, be provided with a plurality of stirring vane 6 on agitator bar 5, each stirring vane 6 all is located the washing tank body 1, during the use, can drive agitator bar 5 and stirring vane 6 through the mode that starts agitator motor 4 and rotate, and then stir the washing to the raw materials in the washing tank body 1.
The blanking pipe 7 is communicated with the top of the cleaning tank 1, and in order to improve the convenience of blanking, the blanking pipe 7 may be a horn-shaped blanking pipe as a preferred embodiment. Guide plate 8 and filter screen 9 set gradually in unloading pipe 7 from last to down, when actually designing, can set up the mounting groove at unloading pipe 7's inside wall, with filter screen 9 installation axle in the mounting groove, then drive filter screen 9 through the vibrating motor 11 that sets up in the unloading pipe 7 outside and vibrate, the setting up of mounting groove need with the in-process of vibrating at filter screen 9, do not shake out from the mounting groove as accurate. The backup pad 10 is fixed in the outside position department of unloading pipe 7 for support vibrating motor 11 fixedly, arrange miscellaneous pipe 12 intercommunication and set up in one side of unloading pipe 7, and arrange miscellaneous pipe 12 corresponding with the discharge end of filter screen 9, need guarantee through the great impurity such as the stone of filter screen 9 sifting out, the leather sheath smoothly through arranging miscellaneous pipe 12 and discharge, impurity after getting rid of can handle in real time. In order to facilitate timely collection of discharged impurities and improve convenience in use, as a preferred embodiment, the method further includes: be fixed in and wash impurity collection box 25 that jar body 1 is close to unloading pipe 7 position department, arrange in impurity pipe 12's one end extends to impurity collection box 25, impurity collection box 25's setting needs use the use that does not influence inlet tube 13 as the standard. The mesh size of the filter screen 9 needs to be larger than the size of the raw material and smaller than the size of larger impurities such as stones, shells and the like.
The water inlet pipe 13 is provided at a position of one side of the upper end of the washing tub 1, and washing water may be injected into the washing tub 1 through the water inlet pipe 13, and in order to prevent dust from entering the washing tub 1 through the water inlet pipe 13 or water from flowing backward through the water inlet pipe 13 during the agitation washing, as a preferred embodiment, a cap is further screwed to one end of the water inlet pipe 13, and the cap is not shown in the drawing. The drainage and discharge pipe 14 is communicated with and arranged at one side position of the bottom of the cleaning tank body 1, a first drainage filter screen 15 is arranged at the position where the drainage and discharge pipe 14 is contacted with the cleaning tank body 1 in a drawing mode, a first control valve 16 is arranged on the drainage and discharge pipe 14, when the cleaning tank is used, raw materials screened by the filter screen 9 fall into the cleaning tank body 1, the raw materials are cleaned by starting a stirring motor 4 to drive a stirring rod 5 and a stirring blade 6 to rotate, the first control valve 16 needs to be closed in the cleaning process, after the cleaning is finished, the first control valve 16 is opened, the cleaning water is discharged outside through the filtering action of the first drainage filter screen 15, the mesh size of the first drainage filter screen 15 needs to be smaller than that of the raw materials, only the cleaning water needs to pass through, after the cleaning water is discharged, the first drainage filter screen 15 is taken out from the position where the drainage and discharge pipe 14 is contacted with the cleaning tank body 1, discharging the cleaned raw materials for collection.
In order to save water and improve the cleaning efficiency, as a preferred embodiment, a circulating pipe 17 is further communicated and arranged at the other side of the bottom of the cleaning tank body 1, one end of the circulating pipe 17 is communicated and arranged with one side of the upper end of the cleaning tank body 1, a second drainage filter net 18 is arranged at the position where the circulating pipe 17 contacts with the bottom of the cleaning tank body 1, and a second control valve 19 and a water pump 20 are arranged on the circulating pipe 17. In the cleaning process, the second control valve 19 is opened, the cleaning water is circulated and reused through the circulating pipe 17 by the water pump 20, the second drainage filter screen 18 is fixedly arranged at the contact position of the circulating pipe 17 and the bottom of the cleaning tank body 1, the mesh size of the second drainage filter screen 18 needs to be smaller than that of the raw material, only water is required to pass through, the raw material can be prevented from entering the circulating pipe 17 by the second drainage filter screen 18, and the second control valve 19 is in a closed state in the operation process of the first control valve 16.
In order to absorb dust in the raw material and ensure a good processing environment, as a preferred embodiment, a dust hood 21 is further arranged above the feeding hole of the feeding pipe 7, the dust hood 21 is communicated with a dust collection box 23 through a dust collection pipe 22, one side of the dust collection box 23 is communicated with a suction fan 24, and the dust collection box 23 and the suction fan 24 are both fixedly arranged at the upper end position of the cleaning tank body 1. When the materials are discharged into the discharging pipe 7, the suction fan 24 is opened to generate negative pressure so as to collect the dust generated in the raw materials into the dust collecting box 23 after passing through the dust hood 21 and the dust removing pipe 22, thereby achieving the purpose of removing the dust. The dust collecting box 23 and the suction fan 24 are required to be arranged so as not to interfere with the installation of the circulation duct 17.
Other embodiments of the present application will be apparent to those skilled in the art from consideration of the specification and practice of the application disclosed herein. This application is intended to cover any variations, uses, or adaptations of the invention following, in general, the principles of the application and including such departures from the present disclosure as come within known or customary practice in the art to which the invention pertains. It is intended that the specification and examples be considered as exemplary only, with a true scope of the disclosure being indicated by the following claims.
It will be understood that the present application is not limited to the precise arrangements described above and shown in the drawings and that various modifications and changes may be made without departing from the scope thereof. The above-described embodiments of the present application do not limit the scope of the present application.
Claims (7)
1. The utility model provides a grain and oil processing is with raw materials washing edulcoration device which characterized in that includes:
the cleaning tank comprises a cleaning tank body, wherein a supporting rod is arranged at the bottom of the cleaning tank body, a mounting plate is arranged on the supporting rod, a stirring motor is arranged on the mounting plate, an output shaft of the stirring motor is fixedly connected with a stirring rod, the stirring rod penetrates through the bottom of the cleaning tank body and extends into the cleaning tank body, stirring blades are arranged on the stirring rod, a blanking pipe is communicated with the top of the cleaning tank body, a material guide plate and a filter screen are obliquely arranged in the blanking pipe from top to bottom in sequence, a vibrating motor fixedly connected with one end of the filter screen is arranged on the outer side of the blanking pipe through a supporting plate, an impurity discharging pipe is communicated with a position corresponding to the discharge end of the filter screen, a water inlet pipe is communicated with one side of the upper end of the cleaning tank body, and a drainage discharging pipe is communicated with one side of the bottom of the cleaning tank body, the drainage is arranged the pipe with the position department pull of washing jar body contact is provided with first drainage filter screen just be provided with first control valve on the drainage is arranged the pipe.
2. The raw material cleaning and impurity removing device for grain and oil processing as claimed in claim 1, wherein a circulation pipe is further communicated with the other side of the bottom of the cleaning tank body, one end of the circulation pipe is communicated with one side of the upper end of the cleaning tank body, a second drainage filter screen is arranged at the position where the circulation pipe contacts with the bottom of the cleaning tank body, and a second control valve and a water pump are arranged on the circulation pipe.
3. The raw material cleaning and impurity removing device for grain and oil processing according to claim 1, characterized in that a dust hood is further arranged above the feeding hole of the blanking pipe, the dust hood is communicated with a dust collecting box through a dust removing pipe, one side of the dust collecting box is communicated with a suction fan, and the dust collecting box and the suction fan are both fixedly arranged at the upper end of the cleaning tank body.
4. The raw material cleaning and impurity removing device for grain and oil processing according to claim 1, further comprising:
and the impurity collecting box body is fixed at the position, close to the blanking pipe, of the cleaning tank body, and one end of the impurity discharging pipe extends into the impurity collecting box body.
5. The raw material cleaning and impurity removing device for grain and oil processing as claimed in claim 1, wherein a pipe cap is further screwed at one end of the water inlet pipe.
6. The raw material cleaning and impurity removing device for grain and oil processing as claimed in claim 1, wherein the feeding pipe is a horn-shaped feeding pipe.
7. The raw material cleaning and impurity removing device for grain and oil processing according to any one of claims 1 to 6, wherein a bottom plate is further arranged at the bottom of the supporting rod.
