CN214964294U

CN214964294U - Double-opening kettle

Info

Publication number: CN214964294U
Application number: CN202120794097.3U
Authority: CN
Inventors: 鲁从强
Original assignee: Zhejiang Tuopu Daily Necessities Co ltd
Current assignee: Zhejiang Tuopu Daily Necessities Co ltd
Priority date: 2021-04-16
Filing date: 2021-04-16
Publication date: 2021-12-03
Anticipated expiration: 2031-04-16

Abstract

The utility model belongs to the technical field of kettles, and relates to a double-mouthed kettle, comprising a kettle body, a kettle lid and an outer flip cover. The kettle lid is threadedly connected with the upper end of the kettle body. One side of the lid is provided with a straight drinking spout, and the other side is provided with a bendable suction nozzle, the suction nozzle is communicated with the suction pipe in the kettle body through a sealing gasket, and the opposite sides of the kettle body are provided with useful Curved groove in hand. The double-mouth water bottle provided by the utility model has the advantages of simple structure, convenient carrying and use, good sealing performance and more hygiene.

Description

Double-opening kettle

Technical Field

The utility model belongs to the technical field of the kettle, a two port kettle is related to.

Background

Most of the conventional kettles (water cups) have only one water outlet, such as a straight drinking hole for directly drinking water or a straw drinking hole for drinking water by using a straw. In order to preserve the direct drinking function while drinking water by using the suction pipe, double-mouth kettles appear on the market. For example, chinese utility model patent CN105877366A discloses a two port children's drinking cup, the kettle body of this drinking cup is equipped with the pot lid, the pot lid is equipped with two delivery ports, and a delivery port is the straw delivery port, and another delivery port is the lid delivery port, but the both sides of pot lid are located to its suction nozzle and lid delivery port branch, and the lid delivery port is outside protruding for the holistic axial height of drinking cup and radial width increase, and the volume increase is used and is carried inconvenient not.

SUMMERY OF THE UTILITY MODEL

The utility model provides a double-mouth kettle aiming at the defects of the prior art, which has simple structure, convenient carrying and use, good sealing performance and more sanitation.

In order to solve the above technical problem, the purpose of the present invention can be achieved by the following technical solutions:

a double-opening kettle comprises a kettle body, a kettle cover and an outer flip cover, wherein the kettle cover is in threaded connection with the upper end of the kettle body, the outer flip cover is buckled on the kettle cover, a straight drinking nozzle is arranged on one side of the kettle cover, a bendable suction nozzle is arranged on the other side of the kettle cover, the suction nozzle is communicated with a suction pipe in the kettle body through a sealing gasket, and arc-shaped grooves used for holding are oppositely arranged on two sides of the kettle body.

In the above-mentioned double-opening kettle, be provided with the holding tank that holds suction nozzle and seal gasket on the pot lid, be provided with the articulated shaft on the outer wall of suction nozzle rear end, the articulated shaft articulates in the holding tank, seal gasket is located the holding tank bottom.

In the above-mentioned double-mouth kettle, the outer wall of the suction nozzle is vertically provided with a wrench capable of wrenching the suction nozzle, and the suction nozzle is switched between the horizontal position in the containing groove and the vertical position for water absorption.

In the above dual-opening kettle, the sealing gasket is an annular elastic member with a through hole, when the suction nozzle is in a horizontal position in the holding tank, the sealing gasket is in sealing connection with the outer wall of the suction nozzle, when the suction nozzle is in a vertical position for water absorption, the upper end and the lower end of the sealing gasket are respectively communicated with the suction nozzle and the suction pipe, the suction pipe is sleeved at a corresponding position of the lower end of the kettle cover, and the rear end of the suction nozzle and the upper end of the sealing gasket are both arc surfaces.

In the above-mentioned double-port kettle, one side of outer flip articulates on the pot lid through the articulated shaft, and the opposite side passes through buckle and pot lid looks joint.

In foretell two port kettle, the side of pot lid is provided with the buckle mount pad, the buckle articulates in the buckle mount pad, and the upper end of buckle is provided with the dop, and outer flip is provided with the draw-in groove with the dop joint, be provided with reset spring between the lower extreme of buckle and the buckle mount pad.

In foretell two port kettles, it has the retaining member to articulate on the buckle mount pad, locking outer flip's locking end after the retaining member upset, the retaining member is the semi-ring structure, and the inboard of retaining member is contradicted with the outside of locking end and is connected the formation locking after the upset.

In the above-mentioned double-port kettle, the outer flip cover is embedded with the sealing plug sheet made of elastic material, and the sealing plug sheet seals the straight drinking nozzle after the outer flip cover is fastened with the kettle lid. The sealing plug is preferably silica gel.

In the double-opening kettle, the convex block which protrudes out of the bottom of the arc-shaped groove is arranged in the arc-shaped groove, and when the kettle is held by a hand, the convex block provides a better acting point for fingers.

Compared with the prior art, the utility model, following beneficial effect has:

the utility model discloses be provided with two mouthful structures on the pot lid to satisfy the dual demand of directly drinking and suction nozzle, use outer flip to provide better sealed effect and more sanitary service environment simultaneously. The utility model discloses still be provided with the arc recess on the pot lid for the kettle body is held more easily, and further set up the lug in the arc recess, provides better impetus for the finger when gripping.

Drawings

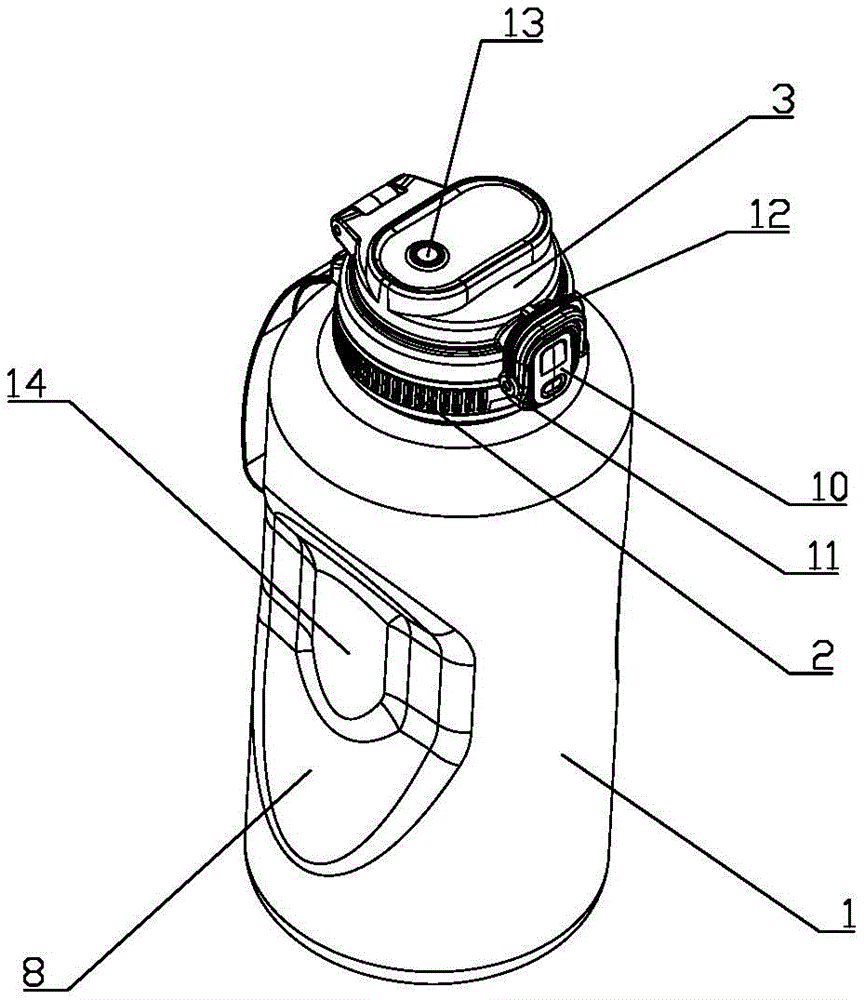

Fig. 1 is a perspective view of the present invention;

FIG. 2 is a perspective view of the pot lid of the present invention;

fig. 3 is a cross-sectional view of the present invention;

fig. 4 is a sectional view of the pot lid of the present invention;

reference numerals: 1. a kettle body; 2. a pot lid; 3. an outer flip cover; 4. a direct drinking spout; 5. a suction nozzle; 6. sealing gaskets; 7. a straw; 8. an arc-shaped groove; 9. a wrench; 10. buckling; 11. a buckle mounting seat; 12. a locking member; 13. sealing the blocking piece; 14. and (4) a bump.

Detailed Description

The invention will be further described in the following with reference to specific embodiments thereof, with reference to the accompanying drawings, in which figures 1 to 3:

a double-opening kettle comprises a kettle body 1, a kettle cover 2 and an outer flip cover 3, wherein the kettle cover 2 is in threaded connection with the upper end of the kettle body 1, the outer flip cover 3 is buckled on the kettle cover 2, a straight drinking nozzle 4 is arranged on one side of the kettle cover 2, a bendable suction nozzle 5 is arranged on the other side of the kettle cover, the suction nozzle 5 is communicated with a suction pipe 7 in the kettle body 1 through a sealing gasket 6, and arc-shaped grooves 8 used for holding are oppositely arranged on two sides of the kettle body 1.

Compare fig. 2 and fig. 4, the utility model discloses a suction nozzle 5 structure of buckling is: the pot lid 2 is provided with an accommodating groove for accommodating the suction nozzle 5 and the sealing gasket 6, an articulated shaft is arranged on the outer wall of the rear end of the suction nozzle 5, the articulated shaft is articulated in the accommodating groove, and the sealing gasket 6 is positioned at the bottom of the accommodating groove.

Furthermore, a wrench 9 capable of wrenching the suction nozzle 5 is vertically arranged on the outer wall of the suction nozzle 5, the suction nozzle 5 is switched between a horizontal position in the accommodating groove and a vertical position for water absorption, and the wrench 9 is favorable for switching.

Further, referring to fig. 3 and fig. 4, the sealing gasket 6 is an annular elastic member with a through hole, when the suction nozzle 5 is in a horizontal position in the accommodating groove, the sealing gasket 6 is in sealing connection with the outer wall of the suction nozzle 5, when the suction nozzle 5 is in a vertical position for absorbing water, the upper end and the lower end of the sealing gasket 6 are respectively communicated with the suction nozzle 5 and the suction pipe 7, the suction pipe 7 is sleeved at a corresponding position of the lower end of the pot lid 2, the rear end of the suction nozzle 5 and the upper end of the sealing gasket 6 are both arc-shaped surfaces, preferably spherical surfaces, so that the rear end of the suction nozzle 5 is always in close contact with the sealing gasket 6 when the suction nozzle 5 is pulled.

Referring to the attached drawing 1, one side of the outer flip cover 3 is hinged on the pot lid 2 through a hinge shaft, and the opposite side is clamped with the pot lid 2 through a buckle 10.

The specific clamping structure is as follows: the side of pot lid 2 is provided with buckle mount pad 11, buckle 10 articulates in buckle mount pad 11, and the upper end of buckle 10 is provided with the dop, and outer flip 3 is provided with the draw-in groove with the dop joint, be provided with reset spring between the lower extreme of buckle 10 and the buckle mount pad 11, reset spring drive dop gets into the draw-in groove and accomplishes the joint, presses buckle 10 lower part when opening outer flip 3, makes buckle 10 rotate around the articulated shaft, and the dop breaks away from the draw-in groove, and pot lid 2 separates with outer flip 3.

Furthermore, a torsional spring is arranged at the hinged position of the kettle cover 2 and the outer flip cover 3, and the outer flip cover 3 automatically bounces after the kettle cover 2 is separated from the outer flip cover 3.

Further, it has retaining member 12 to articulate on the buckle mount pad 11, the locking end of locking outer flip 3 after 12 upsets of retaining member, retaining member 12 is the semi-ring structure, and the inboard of 12 of retaining members of back upsets is contradicted with the outside of locking end and is connected and form the locking, presses down behind the locking that buckle 10 can't make pot lid 2 and outer flip 3 separation.

In order to make the mouth of directly drinking have better leakproofness, it has the sealed closure piece 13 that elastic material made to inlay in the outer flip 3, and outer flip 3 is sealed the straight mouth of drinking 4 with the closure back sealing closure piece 13 of pot lid 2 lock. The sealing plug 13 is preferably silica gel.

In order to more conveniently hold the water cup, the convex block 14 protruding out of the bottom of the arc-shaped groove 8 is arranged in the arc-shaped groove 8, when the water cup is held by hand, the convex block 14 provides a better acting point for fingers, and it is noted that the whole convex block 14 is positioned in the arc-shaped groove 8 and is only slightly higher than the bottom of the arc-shaped groove 8, for example, higher by 0.1-1.0 cm.

The above-mentioned embodiment is only the preferred embodiment of the present invention, and does not limit the protection scope of the present invention according to this, so: all equivalent changes made according to the structure, shape and principle of the utility model are covered within the protection scope of the utility model.

Claims

1. A double-mouthed kettle, comprising a kettle body (1), a kettle lid (2) and an outer flip cover (3), wherein the kettle lid (2) is threadedly connected with the upper end of the kettle body (1), and the outer flip lid ( 3) buckled on the pot cover (2), characterized in that, one side of the pot cover (2) is provided with a straight drinking spout (4), and the other side is provided with a bendable suction nozzle (5), The suction nozzle (5) is communicated with the suction pipe (7) in the kettle body (1) through the sealing gasket (6), and the two sides of the kettle body (1) are oppositely provided with arc-shaped grooves for holding by hand. (8).

2 . The double-mouthed kettle according to claim 1 , wherein the lid ( 2 ) is provided with an accommodating groove for accommodating a suction nozzle ( 5 ) and a sealing gasket ( 6 ), and the suction nozzle (5) A hinge shaft is provided on the outer wall of the rear end, the hinge shaft is hinged in the accommodating groove, and the sealing gasket (6) is located at the bottom of the accommodating groove.

3. A double-mouthed water bottle according to claim 2, characterized in that, a wrench (9) capable of pulling the suction nozzle (5) is vertically arranged on the outer wall of the suction nozzle (5), and the suction nozzle (5) ) to switch between the horizontal position in the holding tank and the vertical position for water absorption.

4. A double-mouthed water bottle according to claim 1, characterized in that, one side of the outer flip cover (3) is hinged on the pot cover (2) through a hinge shaft, and the opposite side is connected by a buckle ( 10) Connect with the pot cover (2).

5. A double-mouthed kettle according to claim 4, characterized in that, a buckle mounting seat (11) is provided on the side of the lid (2), and the buckle (10) is hinged on the buckle In the mounting seat (11), the upper end of the buckle (10) is provided with a clamping head, the outer cover (3) is provided with a clamping slot for clamping with the clamping head, and the lower end of the buckle (10) is connected with the buckle mounting seat ( 11) A return spring is provided between.

6 . The double-mouth water bottle according to claim 4 , wherein a locking member ( 12 ) is hinged on the buckle mounting seat ( 11 ), and the locking member ( 12 ) is locked after being turned over. 7 . The locking end of the outer flap (3).

7. A double-mouthed kettle according to claim 1, characterized in that, a sealing blocking piece (13) made of an elastic material is inlaid in the outer flip cover (3), and the outer flip cover (3) and the pot cover ( 2) After snapping, the sealing plug seals the straight drinking spout (4).

8 . The double-mouthed kettle according to claim 1 , wherein a convex block ( 14 ) protruding from the bottom of the arc-shaped groove ( 8 ) is provided in the arc-shaped groove ( 8 ). 9 .
