Abstract
本实用新型适用于货架技术领域，提供了一种便于分隔物品且方便整理的超市货架，包括支撑框架、储物板、隔板，所述储物板包括储物板本体、螺纹杆，所述储物板本体内开设有多个空腔，每个所述空腔内转动均设置有所述螺纹杆，多个所述螺纹杆独立转动，所述所述隔板包括隔板本体、移动块、连接杆，通过在支撑框架两侧内壁开设多个滑槽，可以根据需要对相邻的两个储物板之间的距离进行调整，从而适应不同高度的物品摆放，并且不会浪费空间，通过设置所述多个空腔、螺纹杆、移动块、连接杆和隔板本体，使得隔板本体可以在储物板本体下方进行移动，使得相邻的两个隔板之间的距离可以调节，从而可以适应不同大小的物品的摆放，同时节约空间。
The utility model is applicable to the technical field of shelves, and provides a supermarket shelf which is convenient for separating items and convenient for organizing, comprising a support frame, a storage board and a partition, wherein the storage board comprises a storage board body and a threaded rod. The storage board body is provided with a plurality of cavities, the threaded rods are arranged in each of the cavities to rotate, and the plurality of the threaded rods rotate independently. The partition plate includes a partition plate body and a moving block. , connecting rod, by opening a plurality of chutes on the inner walls of both sides of the support frame, the distance between two adjacent storage boards can be adjusted according to needs, so as to adapt to the placement of items of different heights, and will not waste space , by arranging the plurality of cavities, threaded rods, moving blocks, connecting rods and the bulkhead body, so that the bulkhead body can move under the storage board body, so that the distance between two adjacent bulkheads can be Adjustable, so that it can adapt to the placement of items of different sizes, while saving space.
Description
Technical Field
The utility model belongs to the technical field of goods shelves, especially, relate to a supermarket goods shelves convenient to separate article and convenient arrangement.
Background
In a supermarket, in order to place various articles as much as possible and ensure that customers can see various goods at a glance, the goods are often placed through a shelf, and often various goods need to be placed on the same layer.
SUMMERY OF THE UTILITY MODEL
The utility model provides a supermarket shelf convenient to separate article and convenient arrangement aims at solving the technical problem that exists at present.
The utility model discloses a realize like this, a supermarket goods shelves convenient to separate article and convenient arrangement, including braced frame, storing board, baffle.
The inner walls of the two sides of the supporting frame are provided with a plurality of sliding chutes in sliding fit with the storage plates.
The storing board is provided with a plurality ofly, and is a plurality of the storing board slides and sets up in the spout.
The baffle is provided with a plurality ofly, and is a plurality of the baffle activity sets up the storing board lower surface, and is a plurality of be provided with the interval between the baffle.
Preferably, the lower surface of the sliding groove is provided with a limiting groove.
The lower surface of the storage plate is provided with a limiting block matched with the limiting groove.
Preferably, the storage plate comprises a storage plate body and a threaded rod.
A plurality of cavities are formed in the storage plate body, each cavity is internally and rotatably provided with the threaded rod, and the threaded rods rotate independently.
Preferably, the partition plate comprises a partition plate body, a moving block and a connecting rod.
The moving block is sleeved on the outer surface of the threaded rod and is in threaded connection with the threaded rod, one end of a connecting rod is fixedly connected to the lower surface of the moving block, and the other end of the connecting rod is fixedly connected with the partition board body.
Preferably, the storage plate is provided with a plurality of air holes.
The air holes are uniformly distributed on the storage plate.
Preferably, the lower surface of the supporting frame is provided with universal wheels.
The universal wheels are four and are respectively arranged at four corners of the lower surface of the supporting frame.
The universal wheel is provided with a brake.
Compared with the prior art, the beneficial effects of the utility model are that: the utility model discloses a supermarket goods shelves convenient to separate article and convenient arrangement, through set up a plurality of spouts at braced frame both sides inner wall, can adjust the distance between two adjacent storing boards as required to adapt to not article of co-altitude are put, and can not waste space, through setting up a plurality of cavitys, threaded rod, movable block, connecting rod and baffle body make the baffle body can remove in storing board body below, make the distance between two adjacent baffles can be adjusted, thereby can adapt to putting of not equidimension article, practice thrift the space simultaneously, because the storing board can slide dismantlement and installation, thereby make things convenient for the staff to clear up and sweep.
Drawings

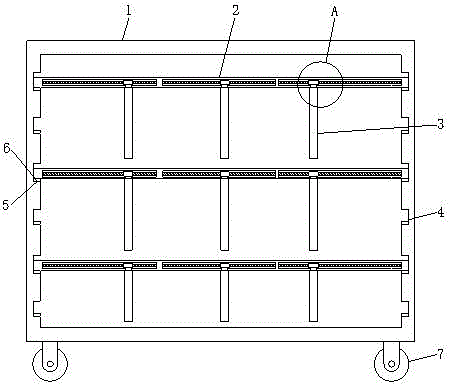

Fig. 1 is a schematic view of the overall structure of the present invention;
FIG. 2 is a side view of the storage board of the present invention;
FIG. 3 is a top view of the storage plate of the present invention;
fig. 4 is an enlarged view of the structure at a of the present invention.
In the figure: 1. a support frame; 2. a storage plate; 21. a storage plate body; 22. a threaded rod; 23. a cavity; 24. air holes are formed; 3. a partition plate; 31. a separator body; 32. a moving block; 33. a connecting rod; 4. a chute; 5. a limiting groove; 6. a limiting block; 7. a universal wheel.
Detailed Description
In order to make the objects, technical solutions and advantages of the present invention more clearly understood, the present invention is further described in detail below with reference to the accompanying drawings and embodiments. It should be understood that the specific embodiments described herein are merely illustrative of the invention and are not intended to limit the invention.
Referring to fig. 1-4, the present invention provides a supermarket shelf with convenient article separation and arrangement, which comprises: comprises a supporting frame 1, a storage plate 2 and a clapboard 3.
A plurality of chutes 4 which are in sliding fit with the storage plates 2 are formed in the inner walls of the two sides of the supporting frame 1, the storage plates 2 are arranged in a plurality of manners, the storage plates 2 are arranged in the chutes 4 in a sliding manner, the partition plates 3 are arranged in a plurality of manners, the partitions 3 are movably arranged on the lower surfaces of the storage plates 2, and intervals are arranged among the partitions 3.
Limiting groove 5 has been seted up to 4 lower surfaces of spout, and stopper 6 with limiting groove 5 mutually supporting is seted up to storage plate 2 lower surface.
The staff can pull storing board 2, takes it out from spout 4, then with the storing board 2 slidable mounting who takes out to other spouts 4 in to change the distance between two adjacent storing boards 2, thereby place the not co-altitude and give article.
Referring to fig. 1, 2 and 4, the storage plate 2 includes a storage plate body 21 and a threaded rod 22, a plurality of cavities 23 are formed in the storage plate body 21, the threaded rod 22 is rotatably disposed in each cavity 23, and the plurality of threaded rods 22 independently rotate.
The partition board 3 comprises a partition board body 31, a moving block 32 and a connecting rod 33, wherein the moving block 32 is sleeved on the outer surface of the threaded rod 22 and is in threaded connection with the threaded rod 22, one end of the connecting rod 33 is fixedly connected to the lower surface of the moving block 32, and the other end of the connecting rod 33 is fixedly connected with the partition board body 31.
Rotate threaded rod 22, threaded rod 22 drives movable block 32 and removes, movable block 32 drives connecting rod 33 and removes, baffle body 31 moves along with the removal of connecting rod 33, thereby change the distance between two adjacent baffles 3, thereby can place the not article of equidimension, can set up the motor in the one end of threaded rod 22, it is rotatory to drive threaded rod 22 through the motor, it is more intelligent, and is convenient, baffle body 31's size can be according to the distance setting of two adjacent spout 4, baffle body 31's height equals with the distance between two adjacent spout 4.
Further, a limiting groove 5 is formed in the lower surface of the sliding groove 4, and a limiting block 6 matched with the limiting groove 5 is formed in the lower surface of the storage plate 2.
Through the cooperation between spacing groove 5 and the stopper 6, can be fixed storing board 2 and spout 4, prevent that storing board 2 from sliding to drop and causing the loss of property and the injury of personnel's personal safety.
Wherein, a plurality of air holes 24 are arranged on the storage plate 2, and the air holes 24 are uniformly distributed on the storage plate 2.
The air holes 24 on the storage plate 2 enable the air permeability of the storage plate 2 to be better, and the phenomenon that articles are damped and mildewed due to the fact that the articles are not purchased by people for a long time is avoided.
In addition, the lower surface of the supporting frame 1 is provided with four universal wheels 7, the four universal wheels 7 are respectively arranged at four corners of the lower surface of the supporting frame 1, and the universal wheels 7 are provided with brakes.
The universal wheels 7 can more conveniently support the movement of the frame 1, so that the goods shelf is more convenient and labor-saving in the transportation and movement process, the brake on the universal wheels 7 can fix the goods shelf when the goods shelf is moved to a proper position, and the goods shelf is prevented from moving and carelessly colliding with consumers and workers.
The utility model discloses a theory of operation and use flow: the staff can pull storing board 2, takes it out from spout 4, then with the storing board 2 slidable mounting who takes out to other spouts 4 in to change the distance between two adjacent storing boards 2, thereby place the not co-altitude and give article.
Rotate threaded rod 22, threaded rod 22 drives movable block 32 and removes, movable block 32 drives connecting rod 33 and removes, baffle body 31 moves along with the removal of connecting rod 33, thereby change the distance between two adjacent baffles 3, thereby can place the not article of equidimension, can set up the motor in the one end of threaded rod 22, it is rotatory to drive threaded rod 22 through the motor, it is more intelligent, and is convenient, baffle body 31's size can be according to the distance setting of two adjacent spout 4, baffle body 31's height equals with the distance between two adjacent spout 4.
The above description is only exemplary of the present invention and should not be taken as limiting the scope of the present invention, as any modifications, equivalents, improvements and the like made within the spirit and principles of the present invention are intended to be included within the scope of the present invention.
Claims (6)
1. The utility model provides a supermarket goods shelves convenient to separate article and convenient arrangement which characterized in that: comprises a supporting frame (1), a storage plate (2) and a clapboard (3);
the inner walls of the two sides of the supporting frame (1) are provided with a plurality of sliding chutes (4) which are in sliding fit with the storage plates (2);
the storage plates (2) are arranged in plurality, and the storage plates (2) are arranged in the sliding grooves (4) in a sliding manner;
the storage plate is characterized in that a plurality of partition plates (3) are arranged, the partition plates (3) are movably arranged on the lower surface of the storage plate (2), and intervals are arranged among the partition plates (3).
2. A supermarket shelf for facilitating separation and sorting of articles according to claim 1, wherein: the lower surface of the sliding chute (4) is provided with a limiting groove (5);
the lower surface of the storage plate (2) is provided with a limiting block (6) which is matched with the limiting groove (5).
3. A supermarket shelf for facilitating separation and sorting of articles according to claim 1, wherein: the storage plate (2) comprises a storage plate body (21) and a threaded rod (22);
a plurality of cavities (23) are formed in the storage plate body (21), each cavity (23) rotates in the corresponding threaded rod (22), and the threaded rods (22) rotate independently.
4. A supermarket shelf for facilitating separation and sorting of articles according to claim 3, wherein: the partition plate (3) comprises a partition plate body (31), a moving block (32) and a connecting rod (33);
the moving block (32) is sleeved on the outer surface of the threaded rod (22) and is in threaded connection with the threaded rod (22), one end of a connecting rod (33) is fixedly connected to the lower surface of the moving block (32), and the other end of the connecting rod (33) is fixedly connected with the partition plate body (31).
5. A supermarket shelf for facilitating separation and sorting of articles according to claim 3, wherein: a plurality of air holes (24) are formed in the storage plate (2);
the air holes (24) are uniformly distributed on the storage plate (2).
6. A supermarket shelf for facilitating separation and sorting of articles according to claim 1, wherein: the lower surface of the supporting frame (1) is provided with a universal wheel (7);
four universal wheels (7) are arranged and are respectively arranged at four corners of the lower surface of the supporting frame (1);
the universal wheel (7) is provided with a brake.
