CN214922826U - Grinding machine is used in cutter production convenient to overhaul - Google Patents
Grinding machine is used in cutter production convenient to overhaul Download PDFInfo
- Publication number
- CN214922826U CN214922826U CN202121135277.7U CN202121135277U CN214922826U CN 214922826 U CN214922826 U CN 214922826U CN 202121135277 U CN202121135277 U CN 202121135277U CN 214922826 U CN214922826 U CN 214922826U
- Authority
- CN
- China
- Prior art keywords
- fixing
- plate
- threaded rod
- base
- motor
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Active
Links
Images
Landscapes
- Finish Polishing, Edge Sharpening, And Grinding By Specific Grinding Devices (AREA)
Abstract
The utility model provides a cutter production grinding machine convenient to overhaul, which relates to the field of numerical control cutter production, and comprises a base and a protective frame, wherein the protective frame is covered above the base, the front side of the base is provided with a fixing component, the fixing component fixes a cutter, the rear side of the base is provided with a first supporting plate, the top of the first supporting plate is provided with a first fixing plate, the first fixing plate is provided with a driving component, a polishing component is arranged below the driving component, and the polishing component polishes the cutter; the utility model discloses a first threaded rod of first motor drive rotates, and the nut cover removes and drives the hinge bar and promote the articulated slab and rotate to adjust the angle of the wheel of polishing, through drive assembly and fixed subassembly, can carry out grinding of diversified, multi-angle to the cutter, the effect of polishing is better.
Description
Technical Field
The utility model relates to a numerical control cutter production technical field especially relates to a grinding machine is used in cutter production convenient to overhaul.
Background
The numerical control grinding machine is a machine tool for grinding the surface of a workpiece by utilizing a grinding tool through a numerical control technology, most grinding machines carry out grinding processing by utilizing a grinding wheel rotating at a high speed, and the minority of the grinding machines carry out processing by utilizing other grinding tools such as oilstones, abrasive belts and the like and free grinding materials, such as a honing machine, an ultra-precision processing machine tool, an abrasive belt grinding machine, a polishing machine and the like;
but the current angle of grinding wheel can't be adjusted with the grinding machine to utensil production, can't carry out diversified polishing, consequently the utility model provides a cutter production is with grinding machine in order to solve the problem that exists among the prior art convenient to overhaul.
SUMMERY OF THE UTILITY MODEL
To the problem, the utility model provides a grinding machine is used in cutter production convenient to overhaul, this grinding machine is used in cutter production convenient to overhaul rotates through the first threaded rod of first motor drive, and the nut cover removes to drive the hinge bar and promotes the articulated slab and rotate to adjust the angle of polishing wheel.
For realizing the purpose of the utility model, the utility model discloses a following technical scheme realizes: a grinding machine convenient to overhaul for cutter production comprises a base and a protective frame, wherein the protective frame covers the base, a fixing assembly is arranged on the front side of the base and used for fixing a cutter, a first supporting plate is arranged on the rear side of the base, a first fixing plate is arranged at the top of the first supporting plate, a driving assembly is arranged on the first fixing plate, a grinding assembly is arranged below the driving assembly, and the grinding assembly is used for grinding the cutter;
the polishing assembly comprises a first mounting plate, a hinged plate, a mounting bin, a first threaded rod, a hinged rod and a polishing wheel, wherein the hinged plate is hinged to one end of the bottom of the mounting plate, the other end of the mounting plate is provided with the mounting bin, the inside of the mounting bin is provided with the first threaded rod, the first threaded rod is driven by a first motor, a nut sleeve is arranged on the first threaded rod and is connected with the mounting bin in a sliding mode, the hinged rod is hinged between the nut sleeve and the hinged plate, a second mounting plate is arranged on the hinged plate, the polishing wheel is arranged on the second mounting plate, and the polishing wheel is driven by the first motor.
The further improvement lies in that: the fixed subassembly includes second backup pad, second threaded rod, fixed platform, gag lever post, second fixed plate, first fixing base and second fixing base, the second backup pad is equipped with two sets ofly, and is two sets of the second backup pad is located the both ends at base top respectively, and is two sets of be equipped with the second threaded rod between the second backup pad, the second threaded rod passes through second motor drive, the second threaded rod runs through fixed platform's one end, one side of second threaded rod is equipped with the gag lever post, the gag lever post runs through fixed platform's the other end, fixed platform's top symmetry has the second fixed plate, and is a set of one side of second fixed plate is equipped with first fixing base, and another group one side of second fixed plate is equipped with the second fixing base.
The further improvement lies in that: the fixing device comprises a first fixing seat, wherein one end of the first fixing seat is provided with a fixing clamp, the fixing clamp is a flexible component, a fixing cap and a set of second motor are installed on the fixing clamp in a rotating mode, one side of a second fixing plate is provided with the second motor, and the other end of the first fixing seat is connected with the output end of the second motor through a rotating shaft.
The further improvement lies in that: the second fixing seat is of a hollow structure, fixing rods are symmetrically arranged on two sides of the second fixing seat, a conical block is inserted into the second fixing seat, and the conical block is fixed through the fixing rods.
The further improvement lies in that: the drive assembly includes third motor, carousel and pneumatic cylinder, the top of first fixed plate is equipped with the third motor, the bottom of first fixed plate is equipped with the carousel, the carousel is connected through the pivot with the third motor, the bottom of carousel is equipped with the pneumatic cylinder, the output and the first mounting panel of pneumatic cylinder are connected.
The further improvement lies in that: the surface of the protective frame is provided with a bin door, and a handle is arranged on the bin door.
The utility model has the advantages that: the utility model discloses a first threaded rod of first motor drive rotates, and the nut cover removes and drives the hinge bar and promote the articulated slab and rotate to adjust the angle of polishing wheel, through drive assembly and fixed subassembly, can carry out grinding of diversified, multi-angle to the cutter, the effect of polishing is better, can carry out better fixed to the cutter through first fixing base cooperation second fixing base, and it is convenient to dismantle simultaneously, is convenient for install and change, sets up the door on the surface of protecting frame simultaneously, is convenient for overhaul this device.
Drawings

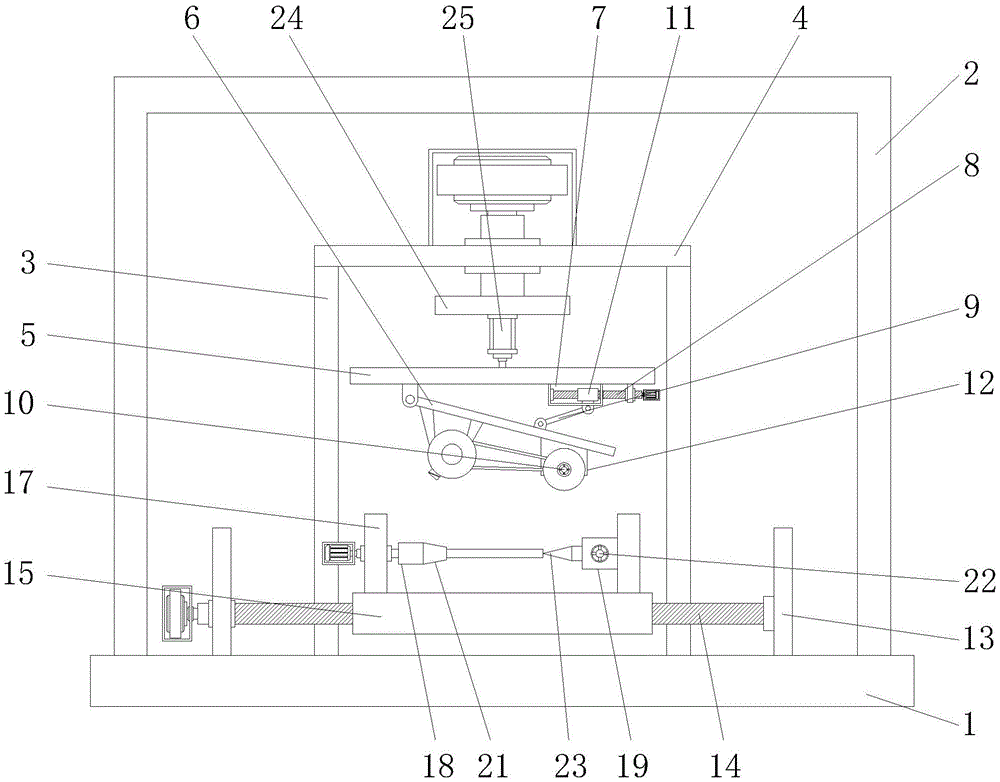

Fig. 1 is a front view of the present invention.
Fig. 2 is a cross-sectional view of the present invention.
Fig. 3 is a left side view of the present invention.
Fig. 4 is a schematic view of the first fixing base of the present invention.
Fig. 5 is a schematic view of a second fixing base of the present invention.
Wherein: 1. a base; 2. a protective frame; 3. a first support plate; 4. a first fixing plate; 5. a first mounting plate; 6. a hinge plate; 7. installing a bin; 8. a first threaded rod; 9. a hinged lever; 10. grinding the wheel; 11. a nut sleeve; 12. a second mounting plate; 13. a second support plate; 14. a second threaded rod; 15. a fixed platform; 16. a limiting rod; 17. a second fixing plate; 18. a first fixed seat; 19. a second fixed seat; 20. fixing the card; 21. a fixing cap; 22. fixing the rod; 23. a conical block; 24. a turntable; 25. a pneumatic cylinder; 26. a bin gate.
Detailed Description
In order to deepen the understanding of the present invention, the following embodiments will be combined to make the present invention do further details, and the present embodiment is only used for explaining the present invention, and does not constitute the limitation of the protection scope of the present invention.
According to the drawings of fig. 1, 2, 3, 4 and 5, the embodiment provides a grinding machine for producing a cutter, which is convenient to overhaul, and comprises a base 1 and a protective frame 2, wherein the protective frame 2 covers the base 1, a fixing component is arranged on the front side of the base 1 and used for fixing the cutter, a first supporting plate 3 is arranged on the rear side of the base 1, a first fixing plate 4 is arranged at the top of the first supporting plate 3, a driving component is arranged on the first fixing plate 4, a grinding component is arranged below the driving component, and the grinding component is used for grinding the cutter;
the grinding assembly comprises a first mounting plate 5, a hinged plate 6, an installation bin 7, a first threaded rod 8, a hinged rod 9 and a grinding wheel 10, one end of the bottom of the first mounting plate 5 is hinged to the hinged plate 6, the other end of the first mounting plate is provided with the installation bin 7, the inside of the installation bin 7 is provided with the first threaded rod 8, the first threaded rod 8 is driven by a first motor, a nut sleeve 11 is arranged on the first threaded rod 8, the nut sleeve 11 is connected with the installation bin 7 in a sliding mode, the hinged rod 9 is hinged between the nut sleeve 11 and the hinged plate 6, a second mounting plate 12 is arranged on the hinged plate 6, a grinding wheel 10 is arranged on the second mounting plate 12, and the grinding wheel 10 is driven by a first motor.
Fixed subassembly includes second backup pad 13, second threaded rod 14, fixed platform 15, gag lever post 16, second fixed plate 17, first fixing base 18 and second fixing base 19, second backup pad 13 is equipped with two sets ofly, and is two sets of second backup pad 13 is located the both ends at 1 top of base respectively, and is two sets of be equipped with second threaded rod 14 between the second backup pad 13, second threaded rod 14 passes through second motor drive, second threaded rod 14 runs through fixed platform 15's one end, one side of second threaded rod 14 is equipped with gag lever post 16, gag lever post 16 runs through fixed platform 15's the other end, fixed platform 15's top symmetry has second fixed plate 17, and is a set of one side of second fixed plate 17 is equipped with first fixing base 18, another group one side of second fixed plate 17 is equipped with second fixing base 19.
One end of first fixing base 18 is equipped with fixing clip 20, fixing clip 20 is flexible component, rotate on the fixing clip 20 and install locking cap 21, a set of the opposite side of second fixed plate 17 is equipped with the second motor, the other end of first fixing base 18 is connected with the output of second motor through the pivot.
The second fixing seat 19 is of a hollow structure, fixing rods 22 are symmetrically arranged on two sides of the second fixing seat 19, a conical block 23 is inserted into the second fixing seat 19, and the conical block 23 is fixed through the fixing rods 22.
Drive assembly includes third motor, carousel 24 and pneumatic cylinder 25, the top of first fixed plate 4 is equipped with the third motor, the bottom of first fixed plate 4 is equipped with carousel 24, be connected through the pivot between carousel 24 and the third motor, the bottom of carousel 24 is equipped with pneumatic cylinder 25, pneumatic cylinder 25's output and first mounting panel 5 are connected.
The surface of the protective frame 2 is provided with a bin door 26, and the bin door 26 is provided with a handle.
When the multi-angle polishing machine is used, one end of a cutter is inserted into the fixing clamp 20, the fixing cap 21 is rotated to fix one end of the cutter, the conical block 23 is inserted into the second fixing seat 19, the conical block 23 fixes the other end of the cutter, the fixing rod 22 is rotated to fix the conical block 23, the first motor is started, the first threaded rod 8 is rotated, the nut sleeve 11 is moved to drive the hinge rod 9 to push the hinge plate 6 to rotate, so that the angle of the polishing wheel 10 is adjusted, the first motor is started to drive the polishing wheel 10 to rotate, the pneumatic cylinder 25 is started to adjust the height of the polishing wheel 10, the third motor is started to drive the rotary table 24 to rotate, so that the polishing wheel 10 is driven to rotate, the cutter is polished at multiple angles, the second motor is started, the second threaded rod 14 is rotated, the fixing platform 15 is moved to drive the cutter to move, the second motor is started to drive the cutter to rotate, so that different positions of the cutter can be polished, the components inside the protective frame 2 can be serviced by opening the door 26.
This grinding machine is used in cutter production convenient to overhaul rotates through first motor drive first threaded rod 8, nut cover 11 removes and drives hinge bar 9 and promote articulated slab 6 and rotate, thereby adjust the angle of wheel 10 of polishing, through drive assembly and fixed subassembly, can carry out diversely to the cutter, the polishing of multi-angle, the effect of polishing is better, can carry out better fixed to the cutter through first fixing base 18 cooperation second fixing base 19, it is convenient to dismantle simultaneously, be convenient for install and change, set up door 26 on the surface of protective frame 2 simultaneously, be convenient for overhaul this device.
The foregoing illustrates and describes the principles, general features, and advantages of the present invention. It will be understood by those skilled in the art that the present invention is not limited to the above embodiments, and that the foregoing embodiments and descriptions are provided only to illustrate the principles of the present invention without departing from the spirit and scope of the present invention. The scope of the invention is defined by the appended claims and equivalents thereof.
Claims (6)
1. The utility model provides a cutter production is with grinding machine convenient to overhaul, includes base (1) and protective frame (2), its characterized in that: the protective frame (2) is covered above the base (1), a fixing component is arranged on the front side of the base (1) and used for fixing the cutter, a first supporting plate (3) is arranged on the rear side of the base (1), a first fixing plate (4) is arranged at the top of the first supporting plate (3), a driving component is arranged on the first fixing plate (4), a polishing component is arranged below the driving component, and the polishing component polishes the cutter;
the grinding assembly comprises a first mounting plate (5), a hinged plate (6), a mounting bin (7), a first threaded rod (8), a hinged rod (9) and a grinding wheel (10), one end of the bottom of the first mounting plate (5) is hinged with a hinged plate (6), the other end is provided with a mounting bin (7), a first threaded rod (8) is arranged in the mounting bin (7), the first threaded rod (8) is driven by a first motor, a nut sleeve (11) is arranged on the first threaded rod (8), the nut sleeve (11) is connected with the mounting bin (7) in a sliding way, a hinged rod (9) is hinged between the nut sleeve (11) and the hinged plate (6), the hinge plate (6) is provided with a second mounting plate (12), the second mounting plate (12) is provided with a grinding wheel (10), and the grinding wheel (10) is driven by a first motor.
2. The grinder for producing a tool convenient to overhaul according to claim 1, characterized in that: the fixing component comprises a second supporting plate (13), a second threaded rod (14), a fixing platform (15), limiting rods (16), a second fixing plate (17), a first fixing seat (18) and a second fixing seat (19), the second supporting plate (13) is provided with two groups, the two groups of second supporting plates (13) are respectively positioned at two ends of the top of the base (1), the second threaded rod (14) is arranged between the two groups of second supporting plates (13), the second threaded rod (14) is driven by a second motor, the second threaded rod (14) penetrates through one end of the fixing platform (15), the limiting rods (16) are arranged on one side of the second threaded rod (14), the limiting rods (16) penetrate through the other end of the fixing platform (15), the top of the fixing platform (15) is symmetrically provided with the second fixing plate (17), the first fixing seat (18) is arranged on one side of the second fixing plate (17), and a second fixed seat (19) is arranged on one side of the second fixed plate (17) of the other group.
3. The grinder for producing a tool convenient to overhaul according to claim 2, characterized in that: the one end of first fixing base (18) is equipped with fixing clip (20), fixing clip (20) are flexible member, it installs locking cap (21), a set of to rotate on fixing clip (20) the opposite side of second fixed plate (17) is equipped with the second motor, the other end of first fixing base (18) is connected with the output of second motor through the pivot.
4. The grinder for producing a tool convenient to overhaul according to claim 2, characterized in that: the second fixing seat (19) is of a hollow structure, fixing rods (22) are symmetrically arranged on two sides of the second fixing seat (19), a conical block (23) is inserted into the second fixing seat (19), and the conical block (23) is fixed through the fixing rods (22).
5. The grinder for producing a tool convenient to overhaul according to claim 1, characterized in that: drive assembly includes third motor, carousel (24) and pneumatic cylinder (25), the top of first fixed plate (4) is equipped with the third motor, the bottom of first fixed plate (4) is equipped with carousel (24), be connected through the pivot between carousel (24) and the third motor, the bottom of carousel (24) is equipped with pneumatic cylinder (25), the output and the first mounting panel (5) of pneumatic cylinder (25) are connected.
6. The grinder for producing a tool convenient to overhaul according to claim 1, characterized in that: the surface of the protective frame (2) is provided with a bin door (26), and the bin door (26) is provided with a handle.
