Abstract
本实用新型提供一种裁剪涂胶设备。所述裁剪涂胶设备包括操作台；放卷架，所述放卷架固定安装在所述操作台上；第一支架，所述第一支架固定安装在所述操作台上；裁切辊，所述裁切辊转动安装在所述第一支架上；两个切刀，两个所述切刀固定安装在所述裁切辊上，且两个切刀呈环形；第一输送辊，所述第一输送辊转动安装在所述操作台上，且所述第一输送辊与所述裁切辊相对应；第二支架，所述第二支架固定安装在所述操作台上；第二输送辊，所述第二输送辊转动安装在所述第二支架上。本实用新型提供的裁剪涂胶设备具有使用方便、可以使裁切和涂胶同时进行，操作简单，提高加工效率的优点。
The utility model provides a cutting and gluing equipment. The cutting and gluing equipment includes an operating table; an unwinding stand, which is fixedly installed on the operating table; a first bracket, which is fixedly installed on the operating table; a cutting roller, The cutting roller is rotatably mounted on the first support; two cutting knives are fixedly mounted on the cutting roller, and the two cutting knives are annular; the first conveying roller, the The first conveying roller is rotatably installed on the operating table, and the first conveying roller is corresponding to the cutting roller; the second support, the second support is fixedly installed on the operating table; the second support A conveying roller, the second conveying roller is rotatably mounted on the second bracket. The cutting and gluing equipment provided by the utility model has the advantages of convenient use, simultaneous cutting and gluing, simple operation and improved processing efficiency.
Description
Technical Field
The utility model relates to a fibre wheel production technical field especially relates to a tailor rubber coating equipment.
Background
The fibre wheel is adding man-hour in production, need paste the magic subsides on the fibre wheel, and the magic is pasted and is made by the nylon material usually, among the prior art, need cut into with the fibre wheel the same size with the magic subsides earlier, then pastes the glue-spreading to the magic that cuts, pastes through the manual work after having scribbled glue.
However, in the prior art, cutting and gluing are performed separately, so that the operation is complex, and the processing efficiency is reduced.
Therefore, it is necessary to provide a new cutting and gluing device to solve the above technical problems.
SUMMERY OF THE UTILITY MODEL
The utility model provides a technical problem provide a convenient to use, can make cut and go on simultaneously with the rubber coating, easy operation improves the rubber coating equipment of tailorring of machining efficiency.
For solving the technical problem, the utility model provides a tailor rubber coating equipment includes: an operation table; the unwinding frame is fixedly arranged on the operating platform; the first bracket is fixedly arranged on the operating table; the cutting roller is rotatably arranged on the first bracket; the two cutters are fixedly arranged on the cutting roller and are annular; the first conveying roller is rotatably arranged on the operating platform and corresponds to the cutting roller; the second bracket is fixedly arranged on the operating table; the second conveying roller is rotatably arranged on the second bracket; the glue spreader is rotatably arranged on the operating platform; the glue box is fixedly arranged at the bottom of the operating platform, and the glue spreader extends into the glue box; the threaded sleeve is rotatably arranged on the rubber box; the threaded rod is installed in the threaded sleeve in a threaded mode, and the top end of the threaded rod extends into the rubber box; the sealing plate is installed in the rubber box in a sliding sealing mode and fixedly connected with the threaded rod.
Preferably, a first bevel gear is fixedly mounted on the threaded sleeve, a rotating shaft is rotatably mounted at the bottom of the rubber box, a second bevel gear is fixedly mounted at one end of the rotating shaft, and the second bevel gear is meshed with the first bevel gear.
Preferably, the cutting roller, the first conveying roller, the second conveying roller and the glue spreader are all fixedly provided with straight gears, and the two corresponding straight gears are meshed.
Preferably, first belt pulleys are fixedly mounted on the first conveying roller and the glue spreader, and the same first belt is sleeved on the two first belt pulleys.
Preferably, equal fixed mounting has the second belt pulley in glue spreader and the pivot, overlaps on two second belt pulleys and is equipped with same second belt.
Preferably, two notches are symmetrically arranged on each of the two cutters.
Preferably, be equipped with the inlet pipe on the gluey case, be equipped with the tube cap on the inlet pipe.
Compared with the prior art, the utility model provides a tailor rubber coating equipment has following beneficial effect:
the utility model provides a cutting and gluing device, wherein the unwinding frame is fixedly arranged on the operating platform and can unwind the magic tape; the cutting roller is rotatably arranged on the first support, the two cutters are fixedly arranged on the cutting roller and are annular, the first conveying roller is rotatably arranged on the operating platform and corresponds to the cutting roller, and the magic tape can be continuously cut; the glue spreader is rotatably arranged on the operating platform and can spread glue on the bottom of the magic tape; the threaded rod is installed in the threaded sleeve in a threaded manner, the top end of the threaded rod extends into the glue box, the sealing plate is installed in the glue box in a sliding and sealing manner, the sealing plate is fixedly connected with the threaded rod, and glue in the glue box can be upwards pushed to be always in contact with the glue spreader.
Drawings

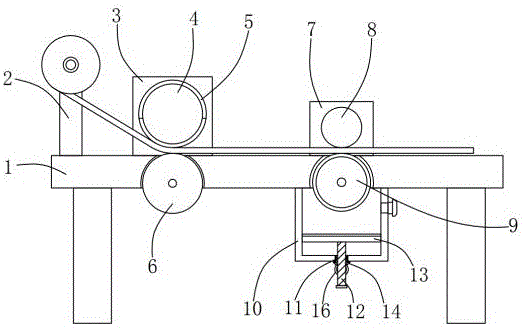

Fig. 1 is a schematic structural diagram of a preferred embodiment of the cutting and gluing device provided by the present invention;
FIG. 2 is a schematic rear view of the structure shown in FIG. 1;
FIG. 3 is a side view of a portion of the structure shown in FIG. 1;
FIG. 4 is a schematic view of an unfolded configuration of the cutting roll;
fig. 5 is a schematic structural view of the first conveying roller.
Reference numbers in the figures: 1. an operation table; 2. unwinding the frame; 3. a first bracket; 4. a cutting roller; 5. a cutter; 6. a first conveying roller; 7. a second bracket; 8. a second conveying roller; 9. glue spreading roller; 10. a glue box; 11. a threaded bushing; 12. a threaded rod; 13. a sealing plate; 14. a first bevel gear; 15. a rotating shaft; 16. a second bevel gear; 17. a spur gear; 18. a first pulley; 19. a first belt; 20. a second pulley; 21. a second belt; 22. and (4) a notch.
Detailed Description
The present invention will be further described with reference to the accompanying drawings and embodiments.
Referring to fig. 1-5, the cutting and gluing apparatus includes: an operation table 1; the unreeling frame 2 is fixedly arranged on the operating platform 1; the first bracket 3 is fixedly arranged on the operating table 1; the cutting roller 4 is rotatably arranged on the first bracket 3; the two cutters 5 are fixedly arranged on the cutting roller 4, and the two cutters 5 are annular; the first conveying roller 6 is rotatably arranged on the operating platform 1, and the first conveying roller 6 corresponds to the cutting roller 4; the second bracket 7, the second bracket 7 is fixedly installed on operation panel 1; the second conveying roller 8 is rotatably arranged on the second bracket 7; the glue spreader 9, the glue spreader 9 is installed on operation panel 1 rotatably; the glue box 10 is fixedly arranged at the bottom of the operating platform 1, and the glue spreader 9 extends into the glue box 10; the threaded sleeve 11 is rotatably arranged on the rubber box 10; the threaded rod 12 is installed in the threaded sleeve 11 in a threaded mode, and the top end of the threaded rod 12 extends into the glue box 10; and the sealing plate 13 are arranged in the rubber box 10 in a sliding and sealing mode, and the sealing plate 13 is fixedly connected with the threaded rod 12.
A first bevel gear 14 is fixedly installed on the threaded sleeve 11, a rotating shaft 15 is rotatably installed at the bottom of the rubber box 10, a second bevel gear 16 is fixedly installed at one end of the rotating shaft 15, and the second bevel gear 16 is meshed with the first bevel gear 14.
The glue spreader 9 and the rotating shaft 15 are fixedly provided with second belt wheels 20, and the two second belt wheels 20 are sleeved with the same second belt 21.
Two notches 22 are symmetrically arranged on the two cutters 5.
The glue box 10 is provided with a feed pipe, and the feed pipe is provided with a pipe cover.
The utility model provides a tailor rubber coating equipment's theory of operation as follows:
the device is also provided with a motor, and an output shaft of the motor is fixedly connected with the first conveying roller 6;
when the magic tape cutting device is used, the magic tape roll is arranged on the unwinding frame 2, the magic tape roll is positioned between the cutting roller 4 and the first conveying roller 6, and between the second conveying roller 8 and the glue coating roller 9, the motor is started, the motor drives the first conveying roller 6 to rotate, the cutting roller 4 and the first conveying roller 6 synchronously rotate in the reverse direction under the action of the straight gear 17, the first belt pulley 18, the first belt 19, the second belt pulley 20 and the second belt 21, and the magic tape can be continuously cut; meanwhile, the second conveying roller 8 and the glue spreader 9 synchronously rotate in the reverse direction, so that the glue spreader 9 can dip the glue in the glue box 10 for gluing; a second belt pulley 20 drives the rotating shaft 15 to rotate, the rotating shaft 15 drives the second bevel gear 16 to rotate, the second bevel gear 16 drives the first bevel gear 14 to rotate, the first bevel gear 14 drives the threaded sleeve 11 to rotate, the threaded sleeve 11 drives the threaded rod 12 to move upwards, and then the sealing plate 13 pushes the glue to move upwards, so that the glue is always in contact with the glue spreading roller 9;
through the breach that sets up on the cutter 5, can make and leave the string point when cutting, and then realize cutting in succession and the rubber coating, hang the point and can slightly drag the disconnection through manual.
Compared with the prior art, the utility model provides a tailor rubber coating equipment has following beneficial effect:
the utility model provides a cutting and gluing device, wherein an unwinding frame 2 is fixedly arranged on an operation table 1 and can unwind a magic tape; the cutting roller 4 is rotatably arranged on the first support 3, the two cutters 5 are fixedly arranged on the cutting roller 4, the two cutters 5 are annular, the first conveying roller 6 is rotatably arranged on the operating platform 1, the first conveying roller 6 corresponds to the cutting roller 4, and the magic tape can be continuously cut; the glue spreader 9 is rotatably arranged on the operating platform 1 and can spread glue on the bottom of the magic tape; threaded rod 12 screw thread is installed in threaded sleeve 11, and the top of threaded rod 12 extends to in gluing case 10, and closing plate 13 sliding seal installs in gluing case 10, and closing plate 13 and threaded rod 12 fixed connection can upwards promote the glue in gluing case 10, makes it contact with glue spreader 9 all the time.
The above only is the embodiment of the present invention, not limiting the scope of the present invention, all the equivalent structures or equivalent processes of the present invention are used in the specification and the attached drawings, or directly or indirectly applied to other related technical fields, and the same principle is included in the protection scope of the present invention.
Claims (7)
1. The utility model provides a tailor rubber coating equipment which characterized in that includes:
an operation table;
the unwinding frame is fixedly arranged on the operating platform;
the first bracket is fixedly arranged on the operating table;
the cutting roller is rotatably arranged on the first bracket;
the two cutters are fixedly arranged on the cutting roller and are annular;
the first conveying roller is rotatably arranged on the operating platform and corresponds to the cutting roller;
the second bracket is fixedly arranged on the operating table;
the second conveying roller is rotatably arranged on the second bracket;
the glue spreader is rotatably arranged on the operating platform;
the glue box is fixedly arranged at the bottom of the operating platform, and the glue spreader extends into the glue box;
the threaded sleeve is rotatably arranged on the rubber box;
the threaded rod is installed in the threaded sleeve in a threaded mode, and the top end of the threaded rod extends into the rubber box;
the sealing plate is installed in the rubber box in a sliding sealing mode and fixedly connected with the threaded rod.
2. The cutting and gluing equipment according to claim 1, wherein a first bevel gear is fixedly mounted on the threaded sleeve, a rotating shaft is rotatably mounted at the bottom of the glue box, a second bevel gear is fixedly mounted at one end of the rotating shaft, and the second bevel gear is meshed with the first bevel gear.
3. The cutting and gluing device according to claim 1, wherein spur gears are fixedly mounted on the cutting roller, the first conveying roller, the second conveying roller and the glue spreader, and two corresponding spur gears are meshed.
4. The cutting and gluing equipment according to claim 1, wherein the first conveying roller and the glue spreader are both fixedly provided with first belt pulleys, and the two first belt pulleys are sleeved with the same first belt.
5. The cutting and gluing equipment according to claim 2, wherein the glue spreader and the rotating shaft are both fixedly provided with second belt pulleys, and the two second belt pulleys are sleeved with the same second belt.
6. The cutting and gluing device according to claim 1, wherein two notches are symmetrically provided on each of the two cutting knives.
7. The cutting and gluing equipment according to claim 1, wherein a feed pipe is arranged on the glue box, and a pipe cover is arranged on the feed pipe.
