Abstract

The utility model discloses a dehydrating unit for block terminal, including box and chamber door, the internally mounted of box has the dehumidification box, the lower extreme of frame plate is located the inside fixedly connected with joint cover body of dehumidification box, the bottom fixedly connected with screen panel of the joint cover body, the downside that the inside of dehumidification box is located the screen panel rotates and is connected with two sets of fan blades, two sets of fan blade pivoted driving motor of cooperation are installed to the outer end of box. The utility model discloses in, at first, the opening that will be used for the calcium chloride granule of dehumidification to pass through the frame plate is put in and is got into the screen panel, calcium chloride granule in the screen panel is sustainable promptly dehumidifies the air, guarantee the inside dry environment that is in of box, secondly, the fan blade can be with during moist air inhales the dehumidification box through the hole groove at the pivoted in-process, when the circulation of air after being dry is when the position department to the fan blade, the fan blade blows dry air to the box again through the hole groove in again, thereby realize carrying out the effect of high-efficient dehumidification to the humid air of box inside.

Description

Dehumidification device for distribution box
Technical Field
The utility model relates to a block terminal technical field especially relates to a dehydrating unit for block terminal.
Background
The distribution box is a mass parameter on data, generally forms a low-voltage forest according to electrical wiring, requires to assemble switch equipment, measuring instruments, protective electrical appliances and auxiliary equipment in a closed or semi-closed metal cabinet or on a screen to form the low-voltage distribution box, and can be switched on or switched off by a manual or automatic switch in normal operation.
In some cities that southern moisture is great, the block terminal is in the in-process that outdoor installation used, and moist air sees through the inside that the louvre of block terminal got into the block terminal easily, however does not possess the dehumidification structure in the current block terminal mostly, and the moisture connects the electricity to the circuit in the block terminal easily and causes the influence to influence the normal use of block terminal.
SUMMERY OF THE UTILITY MODEL
The utility model aims to provide a: in order to solve the problems in reality, the dehumidification device for the distribution box is provided.
In order to achieve the above purpose, the utility model adopts the following technical scheme: the utility model provides a dehydrating unit for block terminal, includes the box and installs the chamber door on the box, the internally mounted of box has the dehumidification box, the frame plate has been put to the upper end frame of dehumidification box, the lower extreme of frame plate is located the inside fixedly connected with joint cover body of dehumidification box, the bottom fixedly connected with screen panel of the joint cover body, the inside downside that is located the screen panel of dehumidification box rotates and is connected with two sets of fan blades, two sets of fan blade pivoted driving motor of cooperation are installed to the outer end of box.
As a further description of the above technical solution:
the frame plate and the clamping sleeve body are of an upper opening structure and a lower opening structure.
As a further description of the above technical solution:
the opening of the mesh enclosure faces upwards.
As a further description of the above technical solution:
the upper end of the frame plate is fixedly connected with two groups of handles which are symmetrically distributed.
As a further description of the above technical solution:
the inside of dehumidification box runs through and is seted up ten groups and be the hole groove of array distribution.
As a further description of the above technical solution:
five groups of the hole grooves are opposite to the net cover, and the other five groups of the hole grooves are opposite to the fan blades.
To sum up, owing to adopted above-mentioned technical scheme, the beneficial effects of the utility model are that:
1. the utility model discloses in, be equipped with the dehumidification box in the box, be equipped with the frame plate in the dehumidification box, be equipped with the joint cover body on the frame plate, be equipped with the screen panel on the joint cover body, the staff need be used for the calcium chloride granule of dehumidification to put in the entering screen panel through the opening of frame plate in, closes the chamber door, and the calcium chloride granule in the screen panel is sustainable inside air to the box and dehumidifies promptly, ensures the inside dry environment that is in of box to improve the safety and stability that the block terminal used.
2. The utility model discloses in, be equipped with hole groove and fan blade in the dehumidification box, be equipped with driving motor on the box, start driving motor and drive the fan blade rotation, the fan blade can pass through the hole groove with moist air in the pivoted in-process and inhale the dehumidification box, the calcium chloride granule will absorb the moisture in the air, when the circulation of air after by the drying is when the position department to the fan blade, the fan blade blows dry air to the box again through the hole groove in to the realization carries out the effect of high-efficient dehumidification to the moist air of box inside.
Drawings

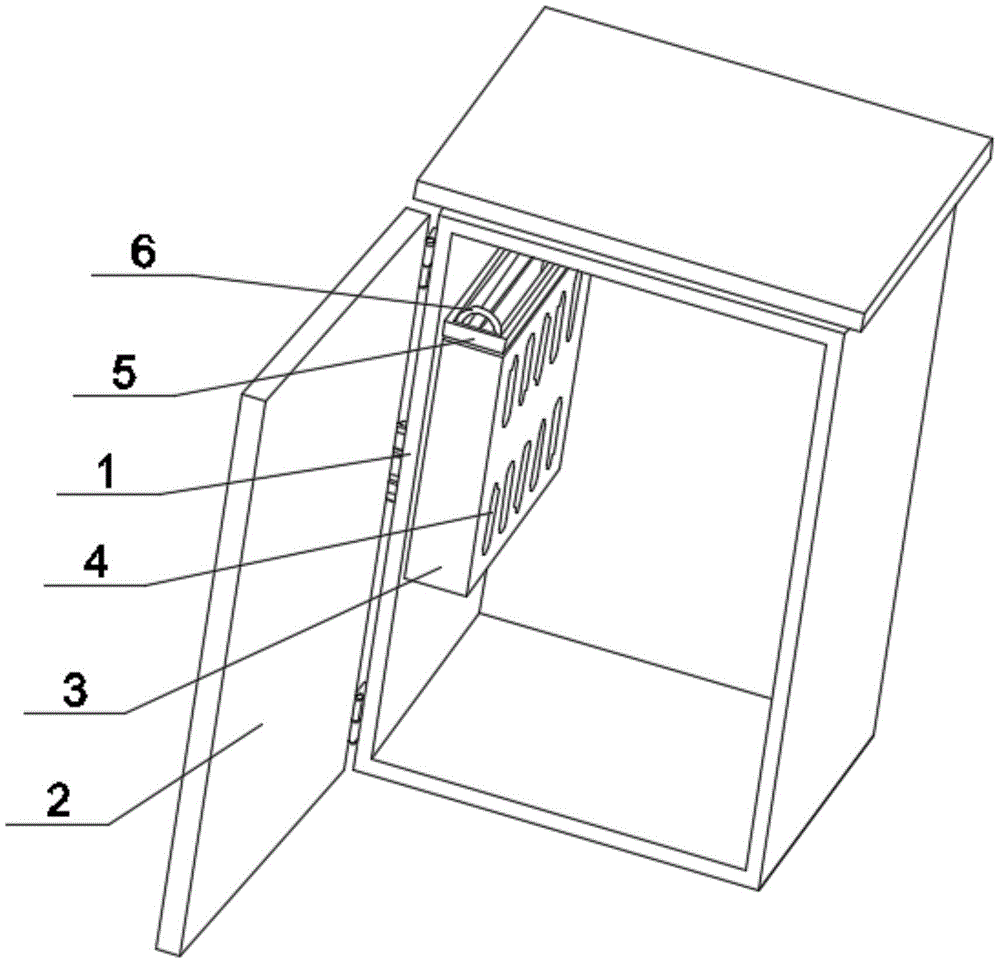

Fig. 1 shows a perspective view provided according to an embodiment of the present invention;
figure 2 illustrates a top view of a dehumidification cassette provided in accordance with an embodiment of the present invention;
fig. 3 shows an internal structure schematic diagram of a dehumidification box provided by the embodiment of the present invention.
Illustration of the drawings:
1. a box body; 2. a box door; 3. a dehumidification box; 4. a hole groove; 5. a frame plate; 6. a handle; 7. clamping the sleeve body; 8. a mesh enclosure; 9. a fan blade; 10. the motor is driven.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments of the present invention, all other embodiments obtained by a person of ordinary skill in the art without creative efforts belong to the protection scope of the present invention.
Referring to fig. 1-3, the present invention provides a technical solution: the utility model provides a dehydrating unit for block terminal, include box 1 and install chamber door 2 on box 1, the internally mounted of box 1 has dehumidification box 3, frame plate 5 has been put on the upper end frame of dehumidification box 3, the lower extreme of frame plate 5 is located the inside fixedly connected with joint cover body 7 of dehumidification box 3, the bottom fixedly connected with screen panel 8 of joint cover body 7, the inside downside that is located screen panel 8 of dehumidification box 3 rotates and is connected with two sets of fan blades 9, two sets of fan blade 9 pivoted driving motor 10 of cooperation are installed to the outer end of box 1, during the use, the staff need be used for the calcium chloride granule of dehumidification to put in the entering screen panel 8 through the opening of frame plate 5, close chamber door 2, calcium chloride granule in the screen panel 8 is sustainable inside air to box 1 and dehumidifies promptly, guarantee 1 inside is in dry environment, thereby improve the safety and stability that the block terminal used.
Specifically, as shown in fig. 1-3, the frame plate 5 and the clamping sleeve 7 are of an upper-lower opening structure, the mesh enclosure 8 is open upward, two groups of handles 6 are fixedly connected to the upper end of the frame plate 5, the two groups of handles are symmetrically distributed, and a worker can lift the frame plate 5, the clamping sleeve 7 and the mesh enclosure 8 out of the dehumidification box 3 through the handles 6 to replace calcium chloride particles put into the mesh enclosure 8.
Specifically, as shown in fig. 1-3, ten sets of holes 4 distributed in an array are formed in the dehumidifying box 3 in a penetrating manner, wherein five sets of holes 4 are opposite to the mesh enclosure 8, the other five sets of holes 4 are opposite to the fan blade 9, the driving motor 10 installed at the outer end of the box body 1 is started to drive the fan blade 9 to rotate, the fan blade 9 can suck humid air into the dehumidifying box 3 through the holes 4 opposite to the mesh enclosure 8 in the rotating process, calcium chloride particles in the mesh enclosure 8 can absorb moisture in the air, when the dried air flows to the position of the fan blade 9, the fan blade 9 blows the dry air into the box body 1 again through the holes 4, and therefore the effect of efficiently dehumidifying the humid air inside the box body 1 is achieved.
The above, only be the concrete implementation of the preferred embodiment of the present invention, but the protection scope of the present invention is not limited thereto, and any person skilled in the art is in the technical scope of the present invention, according to the technical solution of the present invention and the utility model, the concept of which is equivalent to replace or change, should be covered within the protection scope of the present invention.

Claims (6)

1. The utility model provides a dehydrating unit for block terminal, includes box (1) and installs chamber door (2) on box (1), its characterized in that, the internally mounted of box (1) has dehumidification box (3), frame plate (5) have been put to the upper end frame of dehumidification box (3), the lower extreme of frame plate (5) is located the inside fixedly connected with joint cover body (7) of dehumidification box (3), the bottom fixedly connected with screen panel (8) of joint cover body (7), the downside that the inside of dehumidification box (3) is located screen panel (8) is rotated and is connected with two sets of fan blades (9), two sets of fan blade (9) pivoted driving motor (10) of cooperation are installed to the outer end of box (1).
2. The dehumidifying device of claim 1 wherein the frame plate (5) and the clamping sleeve body (7) are of an upper and lower opening structure.
3. The dehumidifying device for electric box as claimed in claim 1, wherein the mesh cover (8) has an opening facing upward.
4. A dehumidifier device according to claim 2 wherein two sets of handles (6) are attached to the upper end of said shelf (5) and are symmetrically disposed.
5. The dehumidification device for the distribution box according to claim 1, wherein ten sets of holes (4) are formed in the dehumidification box (3) in an array.
6. The dehumidifier device according to claim 5, wherein five sets of said holes (4) are opposite to the net cover (8), and the other five sets of said holes (4) are opposite to the fan blade (9).
