CN214896608U - Portable english translator

Info

Publication number: CN214896608U
Application number: CN202120163154.8U
Authority: CN
Inventors: 宁杰
Original assignee: Individual
Current assignee: Individual
Priority date: 2021-01-21
Filing date: 2021-01-21
Publication date: 2021-11-26
Anticipated expiration: 2031-01-21

Abstract

The utility model discloses a portable english translator, including translator body B, be equipped with the display screen above translator body B's the surface, the below of display screen is equipped with volume key, processor unit, volume reduction key, speaker in proper order, processor unit's left side is equipped with english mode button, processor unit's right side is equipped with chinese mode button, translator body B's left side is seted up the recess, the embedding has automatic spooler in the recess, it has the charging wire to twine on the automatic spooler, the input of battery is connected to one end of charging wire, through combining parts such as setting up english mode button, chinese mode button, processor unit, has realized chinese translation english or english-chinese, has satisfied the use object of different languages, and accomodates the charging wire through automatic spooler, has made things convenient for carrying and use, the charging wire is prevented from being carried by a user, and convenience is provided for the user.

Description

Portable english translator

Technical Field

The utility model relates to an english translation equipment technical field specifically is a portable english translator.

Background

In the existing life, the application range of English is very wide at present, the English is a communication bridge facing the cultural economy communication between the international, along with the rapid development of social economy and the acceleration of the international cooperation process, particularly the world trade is strengthened increasingly, all trades are gradually connected with the world, all trades can involve the communication with the foreign friends, in the work, a plurality of literature materials are foreign languages, and if the English level of a user is limited, the English translator is needed at the moment.

However, the currently used english translators have some disadvantages, such as single function, most of them only have chinese-to-english translation function, and limited use objects, and when general english translators are used, they need to adjust a proper angle to be satisfied, but sometimes, when they are used, they often forget to carry an additional angle adjusting device, which is inconvenient to adjust the angle of the translator, and can be conveniently used only by holding the translator by hand, thus causing great inconvenience to users.

SUMMERY OF THE UTILITY MODEL

An object of the utility model is to provide a portable english translator to solve the problem that proposes in the above-mentioned background art.

In order to achieve the above object, the utility model provides a following technical scheme:

a portable English translator comprises a translator body B, wherein a power key is arranged on the upper portion of the left side of the translator body B, a clamping groove used for installing a storage card is formed in the lower portion of the right side of the translator body B, a display screen is arranged above the surface of the translator body B, an volume adding key used for increasing the volume, a processor unit, a volume reducing key used for reducing the volume and a loudspeaker are sequentially arranged below the display screen, an English mode button used for translating Chinese into English is arranged on the left side of the processor unit, a Chinese mode button used for translating English into Chinese is arranged on the right side of the processor unit, language input holes convenient for inputting sound are formed in the lower portions of the English mode button and the Chinese mode button, a battery groove is connected to the lower end of the translator body B, a battery is arranged inside the battery groove, and the output end of the battery is connected with the translator body B, an earphone storage box convenient for containing earphones is arranged on the right side of the battery jar, a groove is formed in the left side of the translator body B, an automatic wire rewinding device is embedded in the groove, a charging wire is wound on the automatic wire rewinding device, one end of the charging wire is connected with the input end of a battery, a storage card in the clamping groove is communicated with the processor unit, and the processor unit is respectively communicated with a display screen, an English mode button, a Chinese mode button, a sound adding quantity key, a sound reducing quantity key, a loudspeaker and a language input hole;

a box body is arranged on the outer side of the translator body B, buffer components for preventing the box body from being broken are arranged at the four corners of the box body, a fixing rod is arranged on the left side of the inner cavity of the box body, a placing plate for placing the translator body B is connected above the fixing rod through a rotating shaft, the two sides of the placing plate are provided with clamping components for clamping and fixing the translator body B, an adjusting component for adjusting the angle of the placing plate is arranged below the placing plate, the adjusting component comprises a threaded hole arranged on the right side of the box body, the threaded hole is internally threaded with a threaded rod, the left side of the threaded rod is connected with a fixed rod through a thread, the right side of the threaded rod passes through a threaded hole to be connected with a turntable which is convenient for rotating the threaded rod, the top threaded connection of threaded rod has the slider, the lower extreme of articulated mast is connected through the pivot in the upper end of slider, the lower extreme middle part of placing the board is connected through the pivot in the upper end of articulated mast.

As a further aspect of the present invention: the clamping assembly comprises fixing blocks arranged on two sides of the placing plate, a first spring is arranged on one side, opposite to the fixing blocks, of each fixing block, and a clamp used for clamping the translator body B is arranged at one end, far away from the fixing blocks, of each first spring.

As a further aspect of the present invention: the buffer assembly comprises movable holes arranged at four corners of the box body, movable rods are movably arranged in the movable holes, one ends of the movable rods far away from the box body are provided with protective blocks, the other ends of the movable rods are provided with limit blocks for preventing the movable rods from being separated from the movable holes, a mounting plate is fixedly arranged in the box body, and a second damping spring is fixedly connected between the mounting plate and the limit blocks.

As a further aspect of the present invention: the top cooperation of box body is equipped with and is used for preventing that the dust from falling into the inside lid of box body, the box body is connected through the pivot with the lid.

As a further aspect of the present invention: the port department of box body is equipped with first magnet piece, the relative position of lid is equipped with the second magnet piece that attracts each other with first magnet piece.

As a further aspect of the present invention: the lower surface of box body is equipped with first fixed band and the second fixed band of portable translator body B, the length size homogeneous phase of first fixed band and second fixed band equals.

As a further aspect of the present invention: the lower extreme of first fixed band is equipped with sub-magic subsides, the lower extreme of second fixed band is equipped with the female magic subsides with sub-magic subsides matched with.

Compared with the prior art, the beneficial effects of the utility model are that:

the utility model discloses be equipped with adjusting part, through mutually supporting between threaded rod, slider, the hinge bar for place the board angle regulation of being convenient for, thereby make the viewing angle of translator body be convenient for adjust, the person of facilitating the use uses the translator body, avoids the manual unnecessary trouble that holds the translator body and bring of user, easy operation is convenient, and the practicality is strong.

The utility model discloses be equipped with the centre gripping subassembly, through mutually supporting between fixed block, first spring, the anchor clamps for the translator body centre gripping of being convenient for is fixed, prevents the unnecessary loss that the landing of translator body caused, simultaneously, through first spring, makes the interval between the anchor clamps adjustable, is applicable to fixed not unidimensional translator body, extensive applicability.

The utility model discloses a combine to set up parts such as english mode button, chinese mode button, processor unit, realized chinese translation english or english translation chinese, endowed its multiple functions, satisfied the use object of different languages, and accomodate the charging wire through automatic spooler, convenient to carry and use, when needing to charge, only need to pull out the charging wire from the recess and can charge; after charging, automatic spooler is automatic accomodate the charging wire, has avoided the user to need hand-carry the charging wire, provides convenient for the user.

Drawings

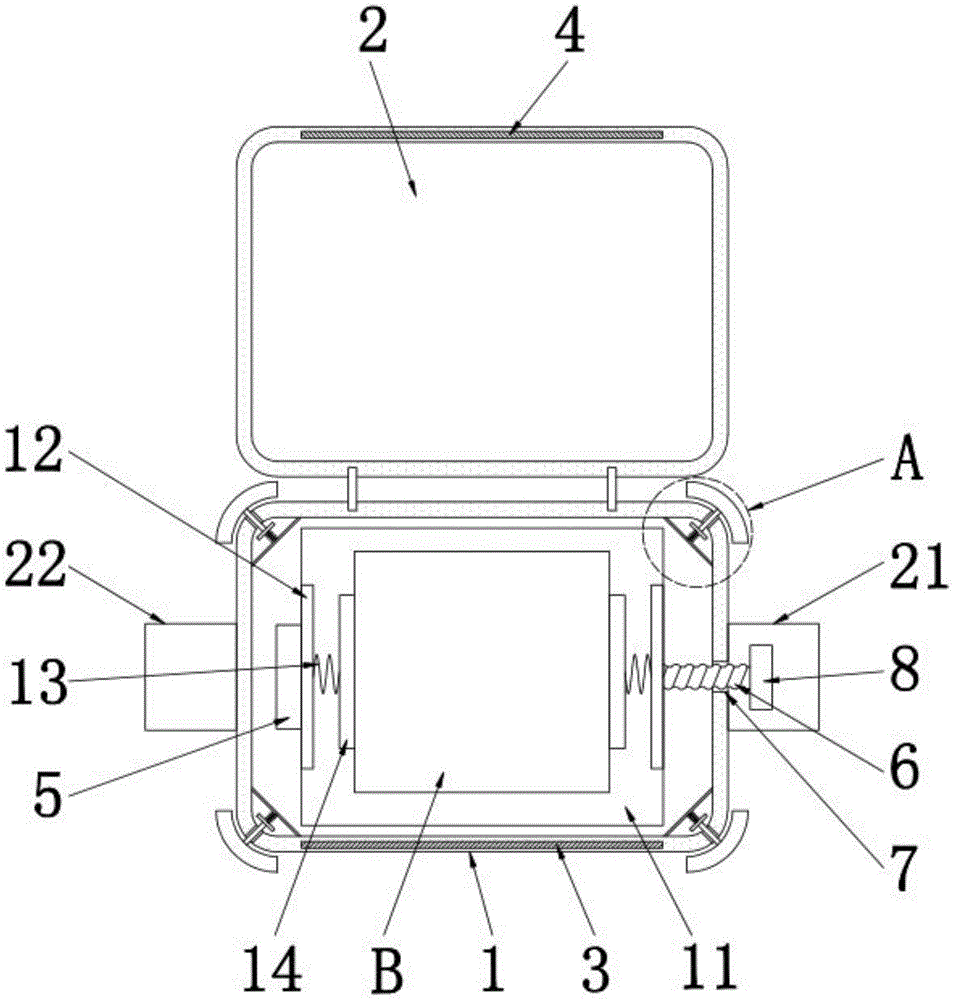

Fig. 1 is a schematic structural diagram of the present invention.

Fig. 2 is a schematic structural diagram of the middle adjusting assembly of the present invention.

Fig. 3 is an enlarged schematic structural view of a portion a in fig. 1 according to the present invention.

Fig. 4 is a schematic structural view of the first fixing band and the second fixing band of the present invention.

Fig. 5 is a schematic structural diagram of the middle protection block of the present invention.

Fig. 6 is a schematic structural diagram of the middle translator body according to the present invention.

Wherein: 1. a box body; 2. a box cover; 3. a first magnet block; 4. a second magnet block; 5. fixing the rod; 6. A threaded rod; 7. a threaded hole; 8. a turntable; 9. a slider; 10. a hinged lever; 11. placing the plate; 12. a fixed block; 13. a first spring; 14. a clamp; 15. a protection block; 16. a movable hole; 17. a movable rod; 18. mounting a plate; 19. a limiting block; 20. a second spring; 21. a first securing strap; 22. a second securing strap; 23. A sub-magic tape; 24. female magic tape; 25. a display screen; 26. a processor unit; 27. an English mode button; 28. a Chinese mode button; 29. a language input aperture; 30. a volume adding key; 31. a volume reduction key; 32. A speaker; 33. a self-service wire-rewinding device; 34. a charging wire; 35. a battery case; 36. a battery; 37. an earphone storage box; 38. a card slot; 39. a power key.

Detailed Description

In the description of the present invention, it is to be understood that the terms "center", "longitudinal", "lateral", "up", "down", "front", "back", "left", "right", "vertical", "horizontal", "top", "bottom", "inner", "outer", and the like, indicate orientations or positional relationships based on the orientations or positional relationships shown in the drawings, and are used merely for convenience of description and for simplicity of description, and do not indicate or imply that the device or element being referred to must have a particular orientation, be constructed and operated in a particular orientation, and therefore, should not be construed as limiting the present invention. Furthermore, the terms "first", "second", etc. are used for descriptive purposes only and are not to be construed as indicating or implying relative importance or implicitly indicating the number of technical features indicated. Thus, a feature defined as "first," "second," etc. may explicitly or implicitly include one or more of that feature. In the description of the present invention, "a plurality" means two or more unless otherwise specified.

In the description of the present invention, it is to be noted that, unless otherwise explicitly specified or limited, the terms "mounted," "connected," and "connected" are to be construed broadly, and may be, for example, fixedly connected, detachably connected, or integrally connected; can be mechanically or electrically connected; they may be connected directly or indirectly through intervening media, or they may be interconnected between two elements. The specific meaning of the above terms in the present invention can be understood by those of ordinary skill in the art through specific situations.

The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.

Referring to fig. 1-6, in an embodiment of the present invention, a portable english translator includes a translator body B, a power key 39 is disposed on an upper portion of a left side of the translator body B, a slot 38 for installing a memory card is disposed on a lower portion of a right side of the translator body B, a display screen 25 is disposed above a surface of the translator body B, a volume increasing key 30 for increasing a volume, a processor unit 26, a volume decreasing key 31 for decreasing a volume, and a speaker 32 are sequentially disposed below the display screen 25, an english mode button 27 for translating chinese into english is disposed on a left side of the processor unit 26, a chinese mode button 28 for translating english into chinese is disposed on a right side of the processor unit 26, language input holes 29 for inputting sounds are disposed below the chinese mode button 27 and the chinese mode button 28, a battery slot 35 is connected to a lower end of the translator body B, the internally mounted of battery jar 35 has battery 36, translator body B is connected to battery 36's output, the right side of battery jar 35 is equipped with the earphone receiver 37 that is convenient for accomodate the earphone, has avoided the user to need hand-carry the earphone, and it is convenient for the user to provide, translator body B's left side is seted up flutedly, the embedding has automatic spooler 33 in the recess, automatic spooler 33 goes up the winding has charging wire 34, the input of battery 36 is connected to the one end of charging wire 34, just the memory card in the draw-in groove 38 with processor unit 26 communicates, processor unit 26 communicates with display screen 25, english mode button 27, chinese mode button 28, volume of adding key 30, volume of subtracting key 31, speaker 32, language input hole 29 respectively, sets up english mode button 27 through combining, The Chinese mode button 28, the processor unit 26 and other components realize Chinese translation English or English translation Chinese, are endowed with multiple functions, meet the use objects of different languages, and the charging wire 34 is stored through the automatic wire rewinding device 33, so that the carrying and the use are convenient, and when the charging is needed, the charging wire 34 can be charged only by pulling out the charging wire from the groove; after the charging is finished, the automatic wire rewinding device 33 automatically retracts the charging wire 34, so that the situation that a user needs to carry the charging wire 34 is avoided, and convenience is brought to the user;

the outer side of the translator body B is provided with a box body 1, four corners of the box body 1 are respectively provided with a buffer component for preventing the box body 1 from being broken, the left side of an inner cavity of the box body 1 is provided with a fixed rod 5, a placing plate 11 for placing the translator body B is connected above the fixed rod 5 through a rotating shaft, two sides of the placing plate 11 are provided with clamping components for clamping and fixing the translator body B, an adjusting component for adjusting the angle of the placing plate 11 is arranged below the placing plate 11, the adjusting component comprises a threaded hole 7 arranged on the right side of the box body 1, the threaded hole 7 is internally connected with a threaded rod 6, the left side of the threaded rod 6 is in threaded connection with the fixed rod 5, the right side of the threaded rod 6 passes through the threaded hole 7 to be connected with a rotary table 8 convenient for rotating the threaded rod 6, the upper part of the threaded rod 6 is in threaded connection with a sliding block 9, and the upper end of the sliding block 9 is connected with the lower end of a hinge rod 10 through the rotating shaft, the upper end of hinge rod 10 is connected the lower extreme middle part of placing board 11 through the pivot, through the mutually supporting between threaded rod 6, slider 9, the hinge rod 10 for place board 11 angle regulation of being convenient for, thereby make translator body B's viewing angle be convenient for adjust, the person of facilitating the use uses translator body B, it is troublesome to avoid the user to manually support the unnecessary that translator body B brought, easy operation is convenient, and the practicality is strong.

Centre gripping subassembly is including setting up fixed block 12 placing 11 both sides of board, two one side that fixed block 12 is relative all is equipped with first spring 13, first spring 13 all is equipped with the anchor clamps 14 that are used for centre gripping translator body B in the one end of keeping away from fixed block 12, through fixed block 12, first spring 13, mutually supporting between anchor clamps 14 for translator body B is convenient for the centre gripping fixed, prevents the unnecessary loss that translator body B landing caused, and simultaneously, through first spring 13, make the interval between anchor clamps 14 adjustable, be applicable to fixed not unidimensional translator body B, extensive applicability.

Buffer unit is including setting up the movable hole 16 in 1 four corners of box body department, the equal activity in inside of movable hole 16 is equipped with movable rod 17, movable rod 17 all is equipped with protective block 15 in the one end of keeping away from box body 1, movable rod 17's the other end all is equipped with prevents that movable rod 17 breaks away from stopper 19 of movable hole 16, the fixed mounting panel 18 that is equipped with in inside of box body 1, equal fixedly connected with is used for absorbing second spring 20 between mounting panel 18 and the stopper 19, when translator body B landing to subaerial, protective block 15 at first with ground contact, through second spring 20, guarantee that protective block 15 plays the cushioning effect to the end angle of box body 1, guarantee that the damage can not appear in the end angle of box body 1, improve translator body B's anti ability of falling.

The cooperation of the top of box body 1 is equipped with and is used for preventing that the dust from falling into box body 1 inside lid 2, box body 1 is connected through the pivot with lid 2, through the setting of lid 2, prevents that the non return city from falling into box body 1's inside, has guaranteed that box body 1's inside is clean and tidy.

The port department of box body 1 is equipped with first magnet piece 3, the relative position of lid 2 is equipped with the second magnet piece 4 with 3 inter attraction of first magnet piece, through being equipped with first magnet piece 3 and second magnet piece 4 for the leakproofness of box body 1 and lid 2 is better.

The lower surface of box body 1 is equipped with first fixed band 21 and second fixed band 22 of portable translator body B, first fixed band 21 equals with second fixed band 22's length size, through first fixed band 21 and second fixed band 22, fixes translator body B in wrist department, and convenient to use person carries translator body B.

The lower extreme of first fixed band 21 is equipped with sub-magic subsides 23, the lower extreme of second fixed band 22 is equipped with and pastes 23 matched with female magic subsides 24 with sub-magic, pastes 23 and makes first fixed band 21 better with the fixed effect of second fixed band 22 with female magic subsides 24 through sub-magic.

The utility model discloses a theory of operation is:

when the utility model is used, firstly, the power key 39 is pressed, the mode key is selected according to the language to be translated, for example, Chinese is translated into English, namely, the English mode button 27 is selected to be pressed, then speaking is carried out towards the translator body B to realize the input of the content to be translated through the voice input hole 29, the voice input hole 29 receives the voice information and then transmits the voice information to the processor unit 26, the processor unit 26 directly translates the voice information to complete the translation, then the output is realized through the loudspeaker hole 32, and simultaneously the translated language information is displayed on the display screen 25, namely, the translation process is completed; similarly, English is translated into Chinese, namely, the Chinese mode button 28 is selected to be pressed, and then the same operation is carried out, when translation data is required to be collected and consulted afterwards, the memory card arranged in the clamping groove 38 can be directly taken out to be led into a computer, so that the use is convenient, the storage and the collection of data are realized, when the charging is required, the charging can be carried out only by pulling out the charging wire 34 from the groove, the connector of the charging wire 34 is pulled out after the charging is finished, the automatic wire rewinding device 33 automatically takes in the charging wire 34, the inconvenience of a user caused by the fact that the user needs to carry the charging wire 34 with him or her is avoided, meanwhile, the earphone is convenient to take in the earphone through the earphone storage box 37, the inconvenience of the user caused by the fact that the user needs to carry the earphone with him or her is avoided, the clamp 14 is shifted to fixedly hold the translator body B through the compression first spring 13, when in use, the translator body B does not need to be held by hands, the translator body B can be quickly fixed on the arm by connecting the first fixing belt 21 and the second fixing belt 22 through the sub magic tape 23 and the mother magic tape 24 by utilizing the first fixing belt 21 and the second fixing belt 22, the translator body B is conveniently and quickly worn, the turntable 8 is rotated to drive the threaded rod 6 to rotate, the threaded rod 6 drives the sliding block 9 to move, so that the sliding block 9 drives the hinge rod 10 to rotate, the angle of the placing plate 11 is adjusted to be an appropriate angle, the translator body B is convenient to use by a user, when the translator body B slides to the ground, the protective block 15 is firstly contacted with the ground, the protective block 15 pushes the movable rod 17 to move towards the inside of the box body 1 in the movable hole 16, the movable rod 17 can drive the limiting block 19 to extrude the second spring 20, and the second spring 20 has a buffering effect, thereby guarantee that the dynamics that protection piece 15 produced the end angle of box body 1 reduces, guarantee that the end angle of box body 1 can not appear damaging, when need not use translator body B, rotate lid 2, make lid 2 and box body 1 inter attraction through first magnet piece 3 and second magnet piece 4, make its leakproofness good, prevent that dust etc. from falling into inside the box body 1, keep the clean and tidy of 1 inside of box body, the next use of being convenient for.

It is obvious to a person skilled in the art that the invention is not restricted to details of the above-described exemplary embodiments, but that it can be implemented in other specific forms without departing from the spirit or essential characteristics of the invention. The present embodiments are therefore to be considered in all respects as illustrative and not restrictive, the scope of the invention being indicated by the appended claims rather than by the foregoing description, and all changes which come within the meaning and range of equivalency of the claims are therefore intended to be embraced therein. Any reference sign in a claim should not be construed as limiting the claim concerned.

Furthermore, it should be understood that although the present description refers to embodiments, not every embodiment may contain only a single embodiment, and such description is for clarity only, and those skilled in the art should integrate the description, and the embodiments may be combined as appropriate to form other embodiments understood by those skilled in the art.

Claims

1. A portable English translator comprises a translator body B, a power key (39) is arranged on the upper portion of the left side of the translator body B, a clamping groove (38) used for installing a storage card is arranged on the lower portion of the right side of the translator body B, a display screen (25) is arranged above the surface of the translator body B, an adding volume key (30) used for increasing the volume, a processor unit (26), a reducing volume key (31) used for reducing the volume and a loudspeaker (32) are sequentially arranged below the display screen (25), an English mode button (27) used for translating Chinese into English is arranged on the left side of the processor unit (26), a Chinese mode button (28) used for translating English into Chinese is arranged on the right side of the processor unit (26), language input holes (29) used for inputting sound are formed in the positions below the English mode button (27) and the Chinese mode button (28), the lower extreme of translator body B is connected with battery jar (35), the internally mounted of battery jar (35) has battery (36), translator body B is connected to the output of battery (36), the right side of battery jar (35) is equipped with earphone receiver (37) of being convenient for accomodate the earphone, the left side of translator body B is seted up flutedly, the embedding has automatic spooler (33) in the recess, the winding has charging wire (34) on automatic spooler (33), the input of battery (36) is connected to the one end of charging wire (34), just storage card in draw-in groove (38) with processor unit (26) intercommunication, processor unit (26) respectively with display screen (25), mode button (27), chinese mode button (28), add volume key (30), subtract volume key (31), speaker (32), The language input hole (29) is communicated;

the translator is characterized in that a box body (1) is arranged on the outer side of the translator body B, buffering components for preventing the box body (1) from being broken are arranged at four corners of the box body (1), a fixing rod (5) is arranged on the left side of an inner cavity of the box body (1), a placing plate (11) for placing the translator body B is connected above the fixing rod (5) through a rotating shaft, clamping components for clamping and fixing the translator body B are arranged on two sides of the placing plate (11), an adjusting component for adjusting the angle of the placing plate (11) is arranged below the placing plate (11), the adjusting component comprises a threaded hole (7) formed in the right side of the box body (1), a threaded rod (6) is connected in the threaded hole (7), the left side of the threaded rod (6) is connected with the fixing rod (5) in a threaded manner, the right side of the threaded rod (6) penetrates through the threaded hole (7) to be connected with a turntable (8) convenient to rotate the threaded rod (6), the top threaded connection of threaded rod (6) has slider (9), the lower extreme of articulated mast (10) is connected through the pivot in the upper end of slider (9), the lower extreme middle part of placing board (11) is connected through the pivot in the upper end of articulated mast (10).

2. The portable english translator according to claim 1, characterized in that the clamping assembly comprises fixed blocks (12) disposed on both sides of the placing plate (11), a first spring (13) is disposed on each of two opposite sides of the fixed blocks (12), and a clamp (14) for clamping the translator body B is disposed on each of the first springs (13) at an end far from the fixed blocks (12).

3. The portable english translator of claim 1, characterized in that, the buffering subassembly is including setting up movable hole (16) in box body (1) four corners department, the equal activity in inside of movable hole (16) is equipped with movable rod (17), movable rod (17) all is equipped with protection piece (15) in the one end of keeping away from box body (1), the other end of movable rod (17) all is equipped with stopper (19) that prevent movable rod (17) break away from movable hole (16), the inside of box body (1) is fixed and is equipped with mounting panel (18), equal fixedly connected with is used for absorbing second spring (20) between mounting panel (18) and stopper (19).

4. The portable English translator of claim 1, wherein a box cover (2) for preventing dust from falling into the box body (1) is arranged above the box body (1) in a matching manner, and the box body (1) is connected with the box cover (2) through a rotating shaft.

5. A portable English translator according to claim 4, wherein the box body (1) is provided with a first magnet (3) at a port, and the box cover (2) is provided with a second magnet (4) at a position opposite to the first magnet (3) for attracting the first magnet.

6. The portable English translator according to claim 1, wherein the lower surface of the box body (1) is provided with a first fixing strap (21) and a second fixing strap (22) which are convenient for carrying the translator body B, and the length of the first fixing strap (21) is equal to that of the second fixing strap (22).

7. The portable English translator of claim 6, wherein the lower end of the first fixing strap (21) is provided with a sub magic tape (23), and the lower end of the second fixing strap (22) is provided with a female magic tape (24) matched with the sub magic tape (23).
