Abstract
The utility model discloses a trapezoidal aluminum box used outside a glass curtain wall, which comprises a plurality of aluminum veneer modeling boxes and aluminum alloy section bar line boxes; the aluminum veneer molding boxes are positioned on two sides of the aluminum alloy section bar line box and are connected through aluminum alloy section bar plug connectors; the glass curtain wall comprises an aluminum alloy cross beam, an aluminum alloy upright post and hollow toughened glass; the aluminum alloy upright post is fixed at the bottom of the aluminum alloy beam, and the toughened glass is fixed at the bottom of the aluminum alloy upright post through a fixing piece; the aluminum alloy section bar line box is connected with the fixing piece through a bolt group and a bolt; the aluminum veneer modeling box comprises a first aluminum veneer, a second aluminum veneer, a third aluminum veneer, a fourth aluminum veneer and a fifth aluminum veneer which are mutually connected, wherein the first aluminum veneer and the fourth aluminum veneer are mutually parallel, the second aluminum veneer and the fifth aluminum veneer are mutually parallel, and an included angle of 30-45 degrees is formed between the third aluminum veneer and the first aluminum veneer. The manufacturing is convenient, the inserting installation method is low in cost, the construction is convenient, the use amount of steel is not required, the electric welding operation is not required, the labor is saved, and the environment is protected.
Description
Technical Field
The utility model relates to an architectural decoration engineering technical field especially relates to a trapezoidal aluminium box for outside glass curtain wall.
Background
CN209457219U discloses a mounting structure for aluminum plate curtain wall, which comprises: the L-shaped connecting pieces are oppositely arranged on the building wall, one part of each L-shaped connecting piece is attached to the building wall in parallel, and the other part of each L-shaped connecting piece is perpendicular to the building wall; the aluminum plate is attached to one side, perpendicular to the building wall, of the L-shaped connecting piece, and the other part of the aluminum plate is parallel to the building wall; the aluminum plates are oppositely arranged at the opposite sides of the two L-shaped connecting pieces; and one part of the elastic component clamped between the aluminum plates is abutted against one side, opposite to the aluminum plates, of the other part of the elastic component clamped on the aluminum plates. But the operation method has the advantages of framework quality control, large installation difficulty of the aluminum plate, long construction period, large electric welding workload, waste of work efficiency and low economic benefit.
Disclosure of Invention
In order to overcome the defects, the utility model aims to provide a trapezoidal aluminium box for outside glass curtain wall to reach the preparation convenience, the grafting mounting method is with low costs, the construction of being convenient for does not have the steel use amount, saves artifically, green's effect.
In order to achieve the above purpose, the utility model adopts the following technical scheme:
a trapezoidal aluminum box used outside a glass curtain wall comprises a plurality of aluminum veneer modeling boxes and aluminum alloy profile line boxes; the aluminum veneer molding boxes are positioned on two sides of the aluminum alloy section bar line box and are connected through aluminum alloy section bar plug connectors; the glass curtain wall comprises an aluminum alloy cross beam, an aluminum alloy upright post and hollow toughened glass; the aluminum alloy upright posts are fixed at the bottom of the aluminum alloy beam, and the toughened glass is fixed at the bottom of the aluminum alloy upright posts through fixing pieces; the aluminum alloy section bar line box is connected with the fixing piece through a bolt group and a bolt; the aluminum veneer modeling box comprises a first aluminum veneer, a second aluminum veneer, a third aluminum veneer, a fourth aluminum veneer and a fifth aluminum veneer which are connected with each other, wherein the first aluminum veneer and the fourth aluminum veneer are parallel to each other, the second aluminum veneer and the fifth aluminum veneer are parallel to each other, and an included angle of 30-45 degrees is formed between the third aluminum veneer and the first aluminum veneer.
Optionally, the aluminum alloy profile connectors include a first aluminum alloy profile connector, a second aluminum alloy profile connector, a third aluminum alloy profile connector and a fourth aluminum alloy profile connector, the lengths of the connectors are 150mm, and the connectors are respectively provided with 3 phi 6 holes.
Optionally, the aluminum single plate molding box includes a first aluminum single plate molding box and a second aluminum single plate molding box; the second aluminum alloy section plug connector is fixed below the back face of the first aluminum veneer box through 3M 6 × 20mm bolt groups, the first aluminum alloy section plug connector is fixed at a corresponding position on the upper portion of the aluminum alloy section line box through 3M 6 × 20mm bolt groups, and an ethylene-propylene-diene monomer adhesive tape is wrapped at the end portion of the first aluminum alloy section plug connector and is connected with the second aluminum alloy section plug connector through M6 × 35mm bolt group jackscrews; the third aluminum alloy section plug connector is fixed on the upper side of the back face of the second aluminum single plate molding box through 3M 6 × 20mm bolt groups, the fourth aluminum alloy section plug connector is fixed at the corresponding position on the lower portion of the aluminum alloy section line box through 3M 6 × 20mm bolt groups, and an ethylene-propylene-diene monomer adhesive tape is arranged at the end portion of the third aluminum alloy section plug connector in a wrapping mode and connected with the fourth aluminum alloy section plug connector.
Optionally, the distance between the second aluminum alloy profile plug connector and the end of the first aluminum veneer box is 75 mm; and the distance between the third aluminum alloy section plug connector and the end part of the second aluminum veneer box is 75 mm.
Optionally, the thicknesses of the first aluminum single plate, the second aluminum single plate, the third aluminum single plate, the fourth aluminum single plate and the fifth aluminum single plate are all 3 mm; and aluminum veneer reinforcing ribs fixed through bolts are arranged in the middle of the inner side surfaces of the first aluminum veneer and the third aluminum veneer.
Optionally, the first aluminum alloy profile plug connector is L-shaped and comprises two mutually perpendicular flat plates, wherein a convex arc surface is arranged at the end of one flat plate and is used for matching with an ethylene propylene diene monomer rubber strip; the second aluminum alloy profile plug connector comprises a first flat plate, a second flat plate, a third flat plate and a fourth flat plate, the second flat plate is connected with the end part of the first flat plate and is mutually vertical, the third flat plate and the fourth flat plate are positioned on the outer side of the second flat plate and are mutually vertical, the first flat plate is connected with the first aluminum single plate molding box through bolts, and M6 x 35mm bolt group jackscrews penetrate through the second flat plate, are positioned between the third flat plate and the fourth flat plate and are connected with the ethylene propylene diene monomer adhesive tape; the third aluminum alloy section plug connector comprises a fifth flat plate, a sixth flat plate and a seventh flat plate which are connected with each other, one side of the sixth flat plate is connected with and vertical to the fifth flat plate, and the other side of the sixth flat plate is connected with and vertical to the seventh flat plate; the fourth aluminum alloy section plug connector comprises a reinforcing plate, a first L-shaped plate and a second L-shaped plate; the first L-shaped plate is connected with one end of the second L-shaped plate, corresponding edges of the first L-shaped plate and the second L-shaped plate are parallel to each other, and the reinforcing plate is connected with the parallel edges of the first L-shaped plate and the second L-shaped plate; the first L-shaped plate is fixedly connected with the lower part of the aluminum alloy section bar line box through a bolt, an ethylene-propylene-diene monomer adhesive tape is arranged between the second L-shaped plate and the reinforcing plate, the ethylene-propylene-diene monomer adhesive tape is connected with the seventh flat plate, and the fifth flat plate is fixed on the second aluminum single plate molding box through an M6 x 20mm bolt group.
The utility model discloses an actively beneficial effect: the manufacturing is convenient, the inserting installation method is low in cost, the construction is convenient, the use amount of steel is not required, the electric welding operation is not required, the labor is saved, and the environment is protected.
Drawings

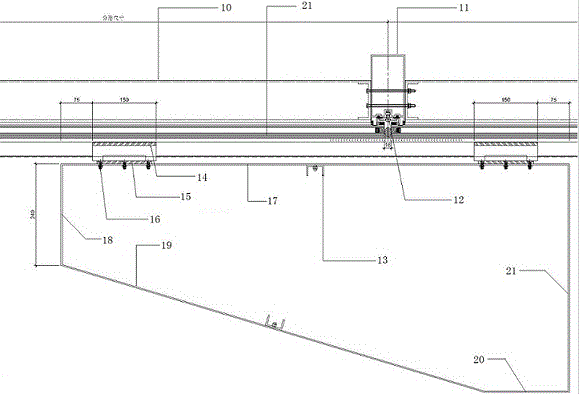

Fig. 1 is a schematic diagram of a plug-in section structure of a trapezoidal aluminum box for a glass curtain wall according to embodiment 1 of the present invention;
fig. 2 is a schematic structural view of a plug-in joint of a trapezoidal aluminum box for a glass curtain wall according to embodiment 1 of the present invention;
fig. 3 is a schematic structural view of a first aluminum alloy profile connector according to embodiment 1 of the present invention;
FIG. 4 is a schematic structural view of a second aluminum alloy profile connector according to example 1 of the present invention;
FIG. 5 is a schematic structural view of a third aluminum alloy profile plug connector according to example 1 of the present invention;
fig. 6 is a schematic structural view of a fourth aluminum alloy profile plug connector according to embodiment 1 of the present invention.
Detailed Description
The present invention will be further described with reference to some embodiments.
Example 1
As shown in fig. 1 and 6, a trapezoidal aluminum box for a glass curtain wall comprises a plurality of aluminum single plate molding boxes and aluminum alloy profile wire boxes 29; the aluminum veneer molding boxes are positioned on two sides of the aluminum alloy section bar box 29 and are connected through aluminum alloy section bar plug connectors; the glass curtain wall comprises an aluminum alloy beam 10, an aluminum alloy upright post 11 and hollow toughened glass 25; the aluminum alloy upright post 11 is fixed at the bottom of the aluminum alloy beam 10, and the toughened glass 25 is fixed at the bottom of the aluminum alloy upright post 11 through a fixing piece 12; the aluminum alloy section bar line box 29 is connected with the fixing piece through a bolt group and a bolt; the aluminum veneer modeling box comprises a first aluminum veneer 17, a second aluminum veneer 18, a third aluminum veneer 19, a fourth aluminum veneer 20 and a fifth aluminum veneer 21 which are connected with each other, the first aluminum veneer 17 and the fourth aluminum veneer 20 are in a trapezoidal shape, the second aluminum veneer 18 and the fifth aluminum veneer 21 are in parallel, and an included angle of 30-45 degrees is formed between the third aluminum veneer 19 and the first aluminum veneer 17.
With the pursuit of designers on the modeling style of the external curtain wall, the three-dimensional modeling box is used for representing various external facades. The conventional implementation method for embodying the gradual-change special-shaped model by adopting the aluminum veneer needs to weld a steel keel framework base layer, and the conventional construction operation method has the advantages of framework quality control, large installation difficulty of the aluminum plate, longer construction period, large electric welding workload, atmosphere pollution, work efficiency waste and low economic benefit. The trapezoidal aluminum plate box is convenient to manufacture, low in cost of the inserting and mounting method, convenient to construct, free of steel consumption, free of electric welding operation, labor-saving, green and environment-friendly, and remarkable in effect. The trapezoidal aluminum plate box inserting installation method is easy to popularize, strong in practicability and good in economic and social benefits.
Specifically, referring to fig. 3 to 6, the aluminum alloy profile connectors include a first aluminum alloy profile connector 27, a second aluminum alloy profile connector 26, a third aluminum alloy profile connector 14, and a fourth aluminum alloy profile connector 15, the lengths of which are 150mm, and the openings with a diameter of 3 phi 6 are respectively provided. The aluminum single plate molding box comprises a first aluminum single plate molding box 22 and a second aluminum single plate molding box 23, and the thickness of the aluminum single plate molding box is 3 mm; the second aluminum alloy section plug connector 26 is fixed below the back face of the first aluminum veneer 17 box through 3M 6 × 20mm bolt groups 16, the first aluminum alloy section plug connector 27 is fixed at a corresponding position on the upper portion of the aluminum alloy section line box 29 through 3M 6 × 20mm bolt groups 16, and the end portion of the first aluminum alloy section plug connector 27 is coated with an ethylene propylene diene monomer rubber strip 24 and is connected with the second aluminum alloy section plug connector 26 through an M6 × 35mm bolt group jackscrew 28; the third aluminum alloy section plug connector 14 is fixed on the back of the second aluminum veneer modeling box 23 through 3M 6-20 mm bolt groups 16, the fourth aluminum alloy section plug connector is fixed at the corresponding position of the lower part of the aluminum alloy section line box 29 through 3M 6-20 mm bolt groups 16, the end part of the third aluminum alloy section plug connector 14 is coated with an ethylene propylene diene monomer rubber strip 24 and is connected with the fourth aluminum alloy section plug connector 15, and the ethylene propylene diene monomer rubber strip 24 can avoid noise generated by metal friction under the action of external force.
Further, the first aluminum alloy section connector 27 is L-shaped and is composed of two mutually perpendicular flat plates, wherein a convex arc surface is arranged at the end of one flat plate, the diameter of the convex arc surface is about 6mm, and the convex arc surface is used for being matched with the ethylene propylene diene monomer rubber strip 24, wherein one short side plate is 22.6mm long, and the long side plate is 40mm long; the second aluminum alloy profile plug-in connector 26 comprises a first plate 30, a second plate 31, a third plate 32 and a fourth plate 33, wherein the second plate 31 is connected with the end of the first plate 30 and is perpendicular to the first plate, the third plate 32 and the fourth plate 33 are positioned on the outer side of the second plate 31 and are perpendicular to the second plate, the first plate 30 is connected with the first aluminum single plate molding box 22 through bolts, M6 mm bolt group top threads 28 penetrate through the second plate 31 and are positioned between the third plate 32 and the fourth plate 33 and are connected with the ethylene propylene diene monomer rubber strip 24, the first plate 30 is 24mm long, the second plate 31 is 25.85mm long, and the third plate 33 and the fourth plate 33 are 20mm long; the third aluminum alloy profile plug connector 14 comprises a fifth plate 34, a sixth plate 35 and a seventh plate 36 which are connected with each other, one side of the sixth plate 35 is connected with and perpendicular to the fifth plate 34, the other side of the sixth plate 35 is connected with and perpendicular to the seventh plate 36, wherein the fifth plate 34 is 16mm long, the sixth plate 35 is 14.1mm long, and the seventh plate 36 is 29mm long; the fourth aluminium alloy profile plug connector 15 comprises a reinforcing plate 39, a first L-shaped plate 37 and a second L-shaped plate 38, the first L-shaped plate 37 being larger than the second L-shaped plate 38; the first L-shaped plate 37 is connected with one end of the second L-shaped plate 38, the corresponding edges are parallel to each other, the reinforcing plate 39 is connected with one edge of the first L-shaped plate 37 which is parallel to the second L-shaped plate 38, wherein the first L-shaped plate 37 is 75.3mm long, 53.75mm wide, the second L-shaped plate 38 is 30.5mm long and 21.3mm wide, and the reinforcing plate 39 is 75.3mm long and consistent with the first L-shaped plate 37; first L template 37 pass through the bolt with aluminum alloy ex-trusions line box 29 lower part position fixed connection, second L template 38 with be provided with ethylene-propylene-diene monomer adhesive tape 24 between the reinforcing plate 39, it is 10mm to hold the width, ethylene-propylene-diene monomer adhesive tape 24 with seventh flat board 36 is connected, fifth flat board 34 is fixed through M6 20mm bolt group 16 on second aluminum veneer model box 23, and the thick 3mm that is thick of first aluminum alloy ex-trusions plug connector 27, second aluminum alloy ex-trusions plug connector 26, third aluminum alloy ex-trusions plug connector 14 and fourth aluminum alloy ex-trusions plug connector 15 also all is.
The distance between the second aluminum alloy section plug connector 26 and the end part of the first aluminum veneer 17 box is 75 mm; the third aluminum alloy profile plug 14 is 75mm away from the box end of the second aluminum veneer 18. The thicknesses of the first aluminum single plate 17, the second aluminum single plate 18, the third aluminum single plate 19, the fourth aluminum single plate 20 and the fifth aluminum single plate 21 are all 3 mm; and the middle parts of the inner side surfaces of the first aluminum veneer 17 and the third aluminum veneer 19 are provided with aluminum veneer reinforcing ribs 13 fixed through bolts, so that the strength is improved.
Finally, the above embodiments are only used for illustrating the technical solutions of the present invention and not for limiting, and other modifications or equivalent replacements made by the technical solutions of the present invention by those of ordinary skill in the art should be covered within the scope of the claims of the present invention as long as they do not depart from the spirit and scope of the technical solutions of the present invention.
Claims (6)
1. A trapezoidal aluminum box used outside a glass curtain wall is characterized by comprising a plurality of aluminum single plate molding boxes and aluminum alloy profile line boxes; the aluminum veneer molding boxes are positioned on two sides of the aluminum alloy section bar line box and are connected through aluminum alloy section bar plug connectors; the glass curtain wall comprises an aluminum alloy cross beam, an aluminum alloy upright post and hollow toughened glass; the aluminum alloy upright posts are fixed at the bottom of the aluminum alloy beam, and the toughened glass is fixed at the bottom of the aluminum alloy upright posts through fixing pieces; the aluminum alloy section bar line box is connected with the fixing piece through a bolt group and a bolt; the aluminum veneer modeling box comprises a first aluminum veneer, a second aluminum veneer, a third aluminum veneer, a fourth aluminum veneer and a fifth aluminum veneer which are connected with each other, wherein the first aluminum veneer and the fourth aluminum veneer are parallel to each other, the second aluminum veneer and the fifth aluminum veneer are parallel to each other, and an included angle of 30-45 degrees is formed between the third aluminum veneer and the first aluminum veneer.
2. The trapezoidal aluminum box for the outside of the glass curtain wall as claimed in claim 1, wherein the aluminum alloy section connectors comprise a first aluminum alloy section connector, a second aluminum alloy section connector, a third aluminum alloy section connector and a fourth aluminum alloy section connector, the lengths of the first aluminum alloy section connector, the second aluminum alloy section connector, the third aluminum alloy section connector and the fourth aluminum alloy section connector are 150mm, and the first aluminum alloy section connector, the second aluminum alloy section connector, the third aluminum alloy section connector and the fourth aluminum alloy section connector are respectively provided with 3 holes with the diameter of phi 6.
3. A trapezoidal aluminum box for a glass curtain wall as in claim 2, wherein said aluminum veneer profile box comprises a first aluminum veneer profile box and a second aluminum veneer profile box; the second aluminum alloy section plug connector is fixed below the back face of the first aluminum veneer box through 3M 6 × 20mm bolt groups, the first aluminum alloy section plug connector is fixed at a corresponding position on the upper portion of the aluminum alloy section line box through 3M 6 × 20mm bolt groups, and an ethylene-propylene-diene monomer adhesive tape is wrapped at the end portion of the first aluminum alloy section plug connector and is connected with the second aluminum alloy section plug connector through M6 × 35mm bolt group jackscrews; the third aluminum alloy section plug connector is fixed on the upper side of the back face of the second aluminum single plate molding box through 3M 6 × 20mm bolt groups, the fourth aluminum alloy section plug connector is fixed at the corresponding position on the lower portion of the aluminum alloy section line box through 3M 6 × 20mm bolt groups, and an ethylene-propylene-diene monomer adhesive tape is arranged at the end portion of the third aluminum alloy section plug connector in a wrapping mode and connected with the fourth aluminum alloy section plug connector.
4. A trapezoidal aluminum box for a glass curtain wall as in claim 3, wherein said second aluminum alloy profile connector is 75mm from said first aluminum veneer box end; and the distance between the third aluminum alloy section plug connector and the end part of the second aluminum veneer box is 75 mm.
5. The trapezoidal aluminum box for the outside of a glass curtain wall as claimed in claim 2, wherein the first aluminum veneer, the second aluminum veneer, the third aluminum veneer, the fourth aluminum veneer and the fifth aluminum veneer are all 3mm thick; and aluminum veneer reinforcing ribs fixed through bolts are arranged in the middle of the inner side surfaces of the first aluminum veneer and the third aluminum veneer.
6. The trapezoidal aluminum box for the outside of the glass curtain wall as in claim 3, wherein the first aluminum alloy profile plug connector is L-shaped and is composed of two mutually perpendicular flat plates, wherein the end of one flat plate is provided with a convex cambered surface for matching with an ethylene propylene diene monomer rubber strip; the second aluminum alloy profile plug connector comprises a first flat plate, a second flat plate, a third flat plate and a fourth flat plate, the second flat plate is connected with the end part of the first flat plate and is mutually vertical, the third flat plate and the fourth flat plate are positioned on the outer side of the second flat plate and are mutually vertical, the first flat plate is connected with the first aluminum single plate molding box through bolts, and M6 x 35mm bolt group jackscrews penetrate through the second flat plate, are positioned between the third flat plate and the fourth flat plate and are connected with the ethylene propylene diene monomer adhesive tape; the third aluminum alloy section plug connector comprises a fifth flat plate, a sixth flat plate and a seventh flat plate which are connected with each other, one side of the sixth flat plate is connected with and vertical to the fifth flat plate, and the other side of the sixth flat plate is connected with and vertical to the seventh flat plate; the fourth aluminum alloy section plug connector comprises a reinforcing plate, a first L-shaped plate and a second L-shaped plate; the first L-shaped plate is connected with one end of the second L-shaped plate, corresponding edges of the first L-shaped plate and the second L-shaped plate are parallel to each other, and the reinforcing plate is connected with the parallel edges of the first L-shaped plate and the second L-shaped plate; the first L-shaped plate is fixedly connected with the lower part of the aluminum alloy section bar line box through a bolt, an ethylene-propylene-diene monomer adhesive tape is arranged between the second L-shaped plate and the reinforcing plate, the ethylene-propylene-diene monomer adhesive tape is connected with the seventh flat plate, and the fifth flat plate is fixed on the second aluminum single plate molding box through an M6 x 20mm bolt group.
