Abstract

The utility model provides a distributed intelligence complete set sewage treatment device relates to the sewage treatment field, including the filtering ponds, the inside fixed mounting of filtering ponds has the filter, and filter fixed surface installs the baffle, and the both ends and the filtering ponds inner wall fixed connection of baffle, and the baffle is located the quarter department of filter, and the both sides of baffle are equipped with cylinder and scraper blade respectively, and cylinder fixed mounting is on the filter surface, and the inside telescopic link tip of cylinder runs through baffle and scraper blade fixed connection, and scraper blade and filter sliding fit. Adopt the filtering ponds, the filtering ponds are collected the rubbish that produces when filtering through mechanical mechanism, and telescopic link and the scraper blade through the cylinder are fixed, and scraper blade of two telescopic link simultaneous control, scraper blade and filter are hugged closely, set for the operating interval of cylinder in the control system of integrated device, and the timing drive scraper blade scrapes the rubbish on filtering plate surface to the inside collection of storing jar, and simple structure and effective can realize the filtration to big particulate matter in the sewage.

Description

Distributed intelligent complete sewage treatment equipment
Technical Field
The utility model relates to a sewage treatment technical field especially relates to distributed intelligent complete sets sewage treatment device.
Background
With the rapid development of economic society and the acceleration of industrialization process, the water demand is increasing day by day, and water resources become important factors restricting the social development. At present, most towns in China basically realize effective collection and centralized treatment of domestic sewage, but the construction and operation management conditions of sewage treatment facilities in rural and small-town areas in China are not ideal, so that the current situation is caused by that on one hand, the sewage treatment facilities are distributed in rural and small-town areas and are not suitable for being collected and treated by adopting a pipe network in a unified way, and on the other hand, professional sewage treatment stations are difficult to operate continuously in rural and small-town areas due to lack of professional operation managers. Therefore, the integrated small-sized sewage treatment device which can be suitable for the treatment of the distributed sewage is very important for sewage treatment in rural areas and small town areas.
Solid waste or insoluble waste, such as plastic bags, is usually present in domestic sewage, and the water pipes are blocked by the plastic bags which are not easy to crush.
SUMMERY OF THE UTILITY MODEL
The utility model aims at solving the defects existing in the prior art and providing a distributed intelligent complete set of sewage treatment equipment.
In order to achieve the above purpose, the utility model adopts the following technical scheme: distributed intelligent complete set sewage treatment device, including the filtering ponds, the inside fixed mounting of filtering ponds has the filter, filter plate fixed mounting has the baffle, and the both ends and the filtering ponds inner wall fixed connection of baffle, and the baffle is located the quarter department of filter, the both sides of baffle are equipped with cylinder and scraper blade respectively, cylinder fixed mounting is on the filter surface, and the inside telescopic link tip of cylinder runs through baffle and scraper blade fixed connection, and scraper blade and filter sliding fit.
Preferably, the filtering tank side is equipped with the spout, and spout fixed mounting avoids at the filtering tank, and the tip and the filter of spout link to each other, and spout and the inside intercommunication of filtering tank, be equipped with the storing jar under the spout, and storing jar and filtering tank are on same horizontal plane.
Preferably, an anoxic tank is arranged on the side surface of the filtering tank, a connecting pipe is arranged between the anoxic tank and the filtering tank, the filtering tank and the anoxic tank are communicated through the connecting pipe, an electromagnetic valve is arranged on the surface of the connecting pipe, and the electromagnetic valve is connected with the connecting pipe through a flange.
Preferably, the inside guide way that is equipped with of filtering ponds, and the cross-section of guide way is down trapezoidal, and guide way fixed mounting is in the inside bottom surface of filtering ponds, guide way bottom center is equipped with the sludge pipe, and the sludge pipe runs through the filtering ponds bottom and extends to inside the guide way.
Preferably, the oxygen deficiency pond side is fixed with the good oxygen pond, and is equipped with the baffle between oxygen deficiency pond and the good oxygen pond, good oxygen pond top fixed mounting has the backup pad, backup pad fixed mounting has the motor, the output shaft of motor runs through the backup pad and extends to inside the good oxygen pond, motor output shaft bottom is equipped with aeration equipment.
Preferably, the side surface of the filtering tank is provided with a water inlet, the end part of the water inlet is positioned inside the filtering tank, the side surface of the aerobic tank is provided with a water outlet, and the end part of the water outlet is positioned inside the aerobic tank.
Preferably, filter surface fixed has the liquid level detection appearance, and the liquid level detection appearance is located between two cylinders, and the tip of liquid level detection appearance runs through the filter and extends to inside the filtering ponds, and liquid level detection appearance and solenoid valve electric connection.
Advantageous effects
The utility model discloses in, adopt the filtering ponds, the filtering ponds pass through mechanical mechanism and collect the rubbish that produces when filtering, set up the baffle on the surface of filter, one side drive, one side is filtered, telescopic link and the scraper blade through the cylinder are fixed, scraper blade of two telescopic link simultaneous control, scraper blade and filter are hugged closely, set for the operating interval of cylinder in the control system of integrated device, the timing drive scraper blade is scraped to the rubbish on filtering plate surface to the inside collection of storing jar, moreover, the steam generator is simple in structure and effective, can realize the filtration to big particulate matter in the sewage.
The utility model discloses in, set up the sludge pipe, add the flocculating agent in the filtering ponds, be provided with the guide way in the filtering ponds, the cross-section of guide way is down trapezoidal, because domestic sewage is not many, and not can all produce constantly, therefore intelligent control among the integrated device need not start always, detect the water yield in the filtering ponds through the liquid level detector, when reaching the rated quantity, pass through the connecting tube with the supernatant in the sewage and flow to the oxygen deficiency pond in, the mud of sediment can flow through the sludge pipe, in advance sewage separation, there is bigger help to the processing at back.
Drawings

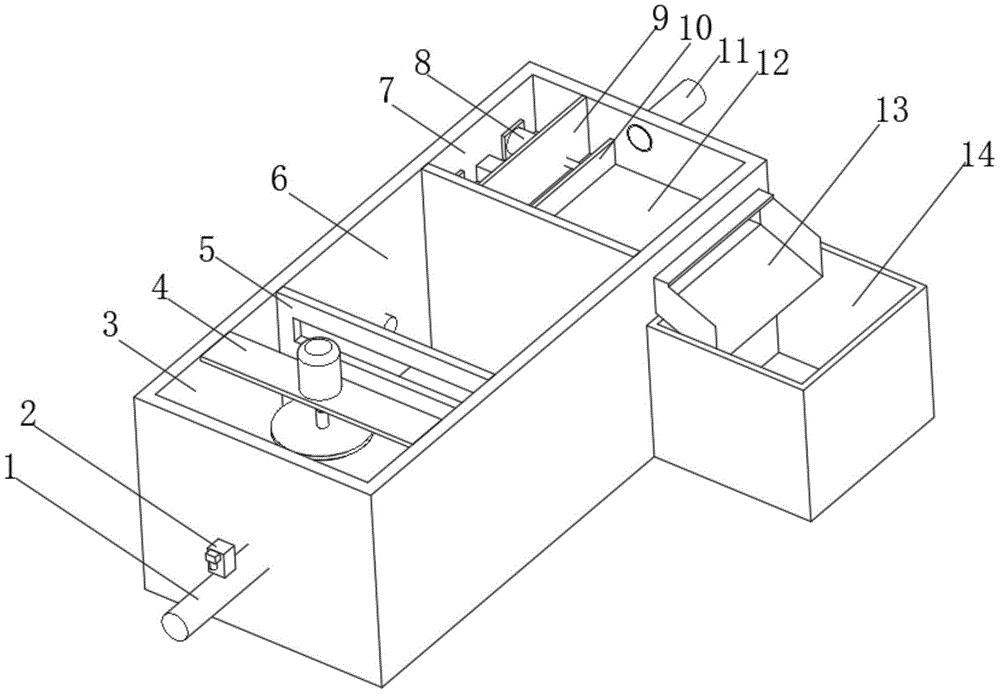

Fig. 1 is an isometric view of the present invention;
fig. 2 is a top view of the present invention;
fig. 3 is a top cross-sectional view of the present invention;
fig. 4 is a side view of the present invention.
Illustration of the drawings:
1. a water outlet; 2. an electromagnetic valve; 3. an aerobic tank; 4. a support plate; 5. a baffle plate; 6. an anoxic tank; 7. a filtration tank; 8. a cylinder; 9. a partition plate; 10. a squeegee; 11. a water inlet; 12. a filter plate; 13. a chute; 14. a storage tank; 15. a connecting pipe; 16. a guide groove; 17. a sludge pipe; 18. a motor; 19. an aeration device; 20. liquid level detector.
Detailed Description
In order to make the technical means, the creation features, the achievement purposes and the functions of the present invention easy to understand, the present invention will be further explained below with reference to the following embodiments and the accompanying drawings, but the following embodiments are only the preferred embodiments of the present invention, and not all embodiments are included. Based on the embodiments in the implementation, other embodiments obtained by those skilled in the art without any creative work belong to the protection scope of the present invention.
Specific embodiments of the present invention will be described below with reference to the accompanying drawings.
The specific embodiment is as follows:
referring to fig. 1-4, a distributed intelligent complete set of sewage treatment equipment comprises a filtering tank 7, a filtering plate 12 is fixedly installed inside the filtering tank 7, a partition plate 9 is fixedly installed on the surface of the filtering plate 12, two ends of the partition plate 9 are fixedly connected with the inner wall of the filtering tank 7, the partition plate 9 is positioned at one quarter of the filtering plate 12, two sides of the partition plate 9 are respectively provided with a cylinder 8 and a scraping plate 10, the cylinder 8 is fixedly installed on the surface of the filtering plate 12, the end part of a telescopic rod inside the cylinder 8 penetrates through the partition plate 9 and is fixedly connected with the scraping plate 10, the scraping plate 10 is in sliding fit with the filtering plate 12, the surface of the filtering plate 12 is fixedly provided with a liquid level detector 20, the liquid level detector 20 is positioned between the two cylinders 8, the end part of the liquid level detector 20 penetrates through the filtering plate 12 and extends into the filtering tank 7, the liquid level detector 20 is electrically connected with an electromagnetic valve 2, a guide groove 16 is arranged inside the filtering tank 7, and the cross-section of the guide groove 16 is in a reverse trapezoid shape, the guide groove 16 is fixedly arranged on the bottom surface inside the filter tank 7, a sludge pipe 17 is arranged at the center of the bottom of the guide groove 16, and the sludge pipe 17 penetrates through the bottom of the filter tank 7 and extends into the guide groove 16.
The side of the filtering tank 7 is provided with a sliding chute 13, the sliding chute 13 is fixedly arranged on the wall surface of the filtering tank 7, the end part of the sliding chute 13 is connected with the filtering plate 12, the sliding chute 13 is communicated with the inside of the filtering tank 7, a storage tank 14 is arranged right below the sliding chute 13, and the storage tank 14 and the filtering tank 7 are on the same horizontal plane.
Adopt filtering ponds 7, filtering ponds 7 collects the rubbish that produces when filtering through mechanical mechanism, set up baffle 9 on the surface of filter 12, one side drive, one side is filtered, telescopic link and scraper blade 10 through cylinder 8 are fixed, scraper blade 10 of two telescopic link simultaneous control, scraper blade 10 and filter 12 are hugged closely, set for the operating interval of cylinder 8 in the control system of integrated device, regularly drive scraper blade 10 and scrape to the surperficial rubbish of filter 12 and collect to 14 inside storing jars, moreover, the steam generator is simple in structure and effective, can realize the filtration to big particulate matter in the sewage. Set up sludge pipe 17, add the flocculating agent in the filtering ponds 7, be provided with guide way 16 in filtering ponds 7, the cross-section of guide way 16 is trapezoidal, because domestic sewage is not many, and not all can produce constantly, consequently intelligent control among the integrated device need not start always, detect the water yield in the filtering ponds 7 through liquid level detector 20, when reaching the rated quantity, flow the supernatant in the sewage to the oxygen deficiency pond 6 through connecting pipe 15, the mud of sediment can flow out through sludge pipe 17, the separation of sewage in advance, there is bigger help to the processing of back.
The side of the filtering tank 7 is provided with an anoxic tank 6, a connecting pipe 15 is arranged between the anoxic tank 6 and the filtering tank 7, the filtering tank 7 and the anoxic tank 6 are communicated with each other through the connecting pipe 15, the surface of the connecting pipe 15 is provided with an electromagnetic valve 2, the electromagnetic valve 2 is connected with the connecting pipe 15 in a flange mode, the side of the anoxic tank 6 is fixedly provided with an aerobic tank 3, a baffle 5 is arranged between the anoxic tank 6 and the aerobic tank 3, the top of the aerobic tank 3 is fixedly provided with a supporting plate 4, the surface of the supporting plate 4 is fixedly provided with a motor 18, an output shaft of the motor 18 penetrates through the supporting plate 4 and extends into the aerobic tank 3, the bottom end of an output shaft of the motor 18 is provided with an aeration device 19, the side of the filtering tank 7 is provided with a water inlet 11, the end of the water inlet 11 is positioned inside the filtering tank 7, the side of the aerobic tank 3 is provided with a water outlet 1, and the end of the water outlet 1 is positioned inside the aerobic tank 3.
By adopting the inverted umbrella-shaped aeration device 19, sewage is thrown out from the edge of the impeller under the rotating and propelling action of the impeller to form a water curtain to wrap a large amount of air; the impeller expands in a cone shape from bottom to top, sewage flows circularly up and down, the sewage is fully mixed, and the liquid level is continuously updated; the impeller bottom and the back form negative pressure because of the flow of water, inhale the air, so sewage can carry out the large tracts of land with the air and mix, and oxygen is fast dissolved in the sewage, accomplishes the oxygenation effect to sewage, and then has waited to reach purifying effect, and simultaneously, powerful power has driven a large amount of water to flow to realize pushing away the effect of flowing.
It is expressly intended that the first feature "on" or "under" the second feature may include both the first and second features being in direct contact, and that the first and second features may be in contact, not directly, but through additional features therebetween. Also, the first feature being "on," "above" and "over" the second feature includes the first feature being directly on and obliquely above the second feature, or merely indicating that the first feature is at a higher level than the second feature. A first feature being "under," "below," and "beneath" a second feature includes the first feature being directly under and obliquely below the second feature, or simply meaning that the first feature is at a lesser elevation than the second feature.
The foregoing shows and describes the general principles, essential features, and advantages of the invention. It should be understood by those skilled in the art that the present invention is not limited by the above embodiments, and the description in the above embodiments and the description is only preferred examples of the present invention, and is not intended to limit the present invention, and that the present invention can have various changes and modifications without departing from the spirit and scope of the present invention, and these changes and modifications all fall into the scope of the claimed invention. The scope of the invention is defined by the appended claims and equivalents thereof.

Claims (7)

1. Distributed intelligent complete sewage treatment equipment comprises a filter tank (7) and is characterized in that: the utility model discloses a filter plate, including filtering ponds (7), filter (12), baffle (9), cylinder (8) and scraper blade (10), the inside fixed mounting of filtering ponds (7) has filter (12), filter (12) fixed surface installs baffle (9), and the both ends and filtering ponds (7) inner wall fixed connection of baffle (9), and baffle (9) are located the quarter department of filter (12), the both sides of baffle (9) are equipped with cylinder (8) and scraper blade (10) respectively, cylinder (8) fixed mounting is on filter (12) surface, and the telescopic link tip of cylinder (8) inside runs through baffle (9) and scraper blade (10) fixed connection, and scraper blade (10) and filter (12) sliding fit.
2. The decentralized intelligent integrated wastewater treatment plant according to claim 1, wherein: the filter tank is characterized in that a sliding groove (13) is formed in the side face of the filter tank (7), the sliding groove (13) is fixedly installed on the wall face of the filter tank (7), the end portion of the sliding groove (13) is connected with the filter plate (12), the sliding groove (13) is communicated with the interior of the filter tank (7), a storage tank (14) is arranged under the sliding groove (13), and the storage tank (14) and the filter tank (7) are located on the same horizontal plane.
3. The decentralized intelligent integrated wastewater treatment plant according to claim 1, wherein: the filter tank (7) side is equipped with oxygen deficiency pond (6), be equipped with connecting pipe (15) between oxygen deficiency pond (6) and filter tank (7), and filter tank (7) and oxygen deficiency pond (6) are through connecting pipe (15) intercommunication, connecting pipe (15) surface is equipped with solenoid valve (2), and solenoid valve (2) and connecting pipe (15) flange joint.
4. The decentralized intelligent integrated wastewater treatment plant according to claim 1, wherein: inside guide way (16) of being equipped with of filtering ponds (7), and the cross-section of guide way (16) is down trapezoidal, and guide way (16) fixed mounting is in the inside bottom surface of filtering ponds (7), guide way (16) bottom center is equipped with sludge pipe (17), and inside sludge pipe (17) run through filtering ponds (7) bottom and extend to guide way (16).
5. The decentralized intelligent integrated sewage treatment plant according to claim 3, wherein: oxygen deficiency pond (6) side is fixed with good oxygen pond (3), and is equipped with baffle (5) between oxygen deficiency pond (6) and good oxygen pond (3), good oxygen pond (3) top fixed mounting has backup pad (4), backup pad (4) fixed surface installs motor (18), the output shaft of motor (18) runs through backup pad (4) and extends to inside good oxygen pond (3), motor (18) output shaft bottom is equipped with aeration equipment (19).
6. The decentralized intelligent integrated wastewater treatment plant according to claim 5, wherein: the side of the filtering tank (7) is provided with a water inlet (11), the end part of the water inlet (11) is positioned inside the filtering tank (7), the side of the aerobic tank (3) is provided with a water outlet (1), and the end part of the water outlet (1) is positioned inside the aerobic tank (3).
7. The decentralized intelligent integrated wastewater treatment plant according to claim 1, wherein: filter (12) fixed surface has liquid level detection appearance (20), and liquid level detection appearance (20) are located between two cylinders (8), and the tip of liquid level detection appearance (20) runs through filter (12) and extend to inside filtering ponds (7), and liquid level detection appearance (20) and solenoid valve (2) electric connection.
