Abstract
本实用新型公开了一种日用百货用的多功能置物架结构，涉及置物架技术领域。包括支撑座，支撑座的顶部固定设置有连接座，连接座的底部固定设置有底板，底板的上表面固定设置有第一立柱和第二立柱，第一立柱和第二立柱之间设置有置物板，第一立柱和第二立柱的正面均开设有导向槽，导向槽内壁的顶部和底部之间固定设置有导向杆。该日用百货用的多功能置物架结构，通过设置第一立柱和第二立柱，导向槽、导向杆、连接块以及插孔的设置，在贯穿槽、插杆、限位块、限位槽以及伸缩弹簧的配合使用下，便于根据使用需求对置物板的高度进行调节，同时便于对该置物架进行拼装和拆分，从而在运输时，可以将其拆分开来，达到方便运输的效果。
The utility model discloses a multifunctional rack structure for daily necessities, which relates to the technical field of racks. Including a support seat, the top of the support seat is fixed with a connection seat, the bottom of the connection seat is fixed with a bottom plate, the upper surface of the bottom plate is fixed with a first column and a second column, and an object is arranged between the first column and the second column The front side of the first upright column and the second upright column are provided with guide grooves, and a guide rod is fixedly arranged between the top and the bottom of the inner wall of the guide groove. The multifunctional rack structure for daily necessities, through the arrangement of the first column and the second column, the guide groove, the guide rod, the connecting block and the insertion hole, can be placed in the through groove, the insertion rod, the limit block, and the limit groove. With the use of the telescopic spring, it is convenient to adjust the height of the storage board according to the needs of use, and at the same time, it is convenient to assemble and disassemble the storage rack, so that it can be disassembled during transportation to achieve the effect of convenient transportation. .
Description
Technical Field
The utility model relates to a supporter technical field specifically is a multi-functional supporter structure that daily department goods used.
Background
The commodity shelf is a shelf for placing sundries, which is formed by combining a bottom plate and a support column, is supported by a strip-shaped bracket and is supported by the bottom plate, has unique shape, flexible design, simple and convenient assembly and disassembly, cleanness and beauty, and is an open design, so that the stored commodities can be seen at a glance.
But present supporter is mostly formed through the welding, and the volume is great, and inconvenient transportation has increased the cost of transportation, and simultaneously at the in-process that uses, the high regulation of placing of putting the thing board is not convenient for according to the specification of placing object article to reduce the result of use of supporter, for this reason, we have proposed the multi-functional supporter structure that a daily general goods were used and have solved above-mentioned problem.
SUMMERY OF THE UTILITY MODEL
The utility model provides a multi-functional supporter structure that daily department goods were used possesses and is convenient for adjust and improve advantages such as placement effect according to the user demand height of putting the thing board to solve the general problem of current multi-functional supporter result of use.
For the realization be convenient for according to user demand highly adjust and improve purposes such as placement effect the thing board, the utility model provides a following technical scheme: a multifunctional commodity shelf structure for daily commodities comprises a supporting seat, wherein a connecting seat is fixedly arranged at the top of the supporting seat, a bottom plate is fixedly arranged at the bottom of the connecting seat, a first upright column and a second upright column are fixedly arranged on the upper surface of the bottom plate, a storage plate is arranged between the first upright column and the second upright column, guide grooves are respectively formed in the front surfaces of the first upright column and the second upright column, a guide rod is fixedly arranged between the top and the bottom of the inner wall of each guide groove, and a connecting block is arranged on the surface of each guide rod in a sliding manner;
the connecting block is internally provided with a through groove and a limiting groove, an inserting rod is movably inserted in the through groove, the surface of the inserting rod is fixedly provided with a limiting block, one end of the limiting block, which is far away from the inserting rod, is movably arranged in the limiting groove, and one end of the inserting rod is movably inserted in one side face of the object placing plate.
As an optimal technical scheme of the utility model, the inserted bar is kept away from the one end of putting the thing board and is run through the groove and extend to the outside of connecting block, and the fixed drawing piece that is provided with of the other end of inserted bar.
As a preferred technical scheme of the utility model, the quantity of putting the thing board is two, two put the both sides face of thing board and all seted up the jack, the one end activity of inserted bar is pegged graft in the inside of jack.
As a preferred technical scheme of the utility model, the quantity of spacing groove is two, two one side of spacing inslot wall is the fixed expanding spring that is provided with all, and expanding spring's the other end and the fixed setting in a side of stopper.
As a preferred technical scheme of the utility model, the quantity of connecting block is four, four the connecting block divide into two sets ofly, and is a set of the connecting block activity sets up in the front of first stand, another group the connecting block activity sets up in the front of second stand.
As an optimized technical scheme of the utility model, the bottom of supporting seat is provided with the universal wheel.
Compared with the prior art, the utility model provides a multi-functional supporter structure that daily department goods were used possesses following beneficial effect:
1. this multi-functional supporter structure of daily general merchandise usefulness, through setting up first stand and second stand, the guide way, the guide bar, the setting of connecting block and jack, under the cooperation that runs through groove, inserted bar, the stopper, spacing groove and expanding spring is used, be convenient for highly adjust putting the thing board according to the user demand, be convenient for assemble and the split to this supporter simultaneously, thereby when the transportation, can come its split, reach the effect of convenient transportation and guaranteed this multi-functional supporter structure of daily general merchandise usefulness's use effect.
2. This multi-functional supporter structure of daily general merchandise usefulness through setting up supporting seat and connecting seat, has improved the steadiness of this supporter structure in the use, and the in-process of being convenient for using is removed in the setting of universal wheel simultaneously to the result of use has further been improved and the practicality of this multi-functional supporter structure has been improved.
Drawings

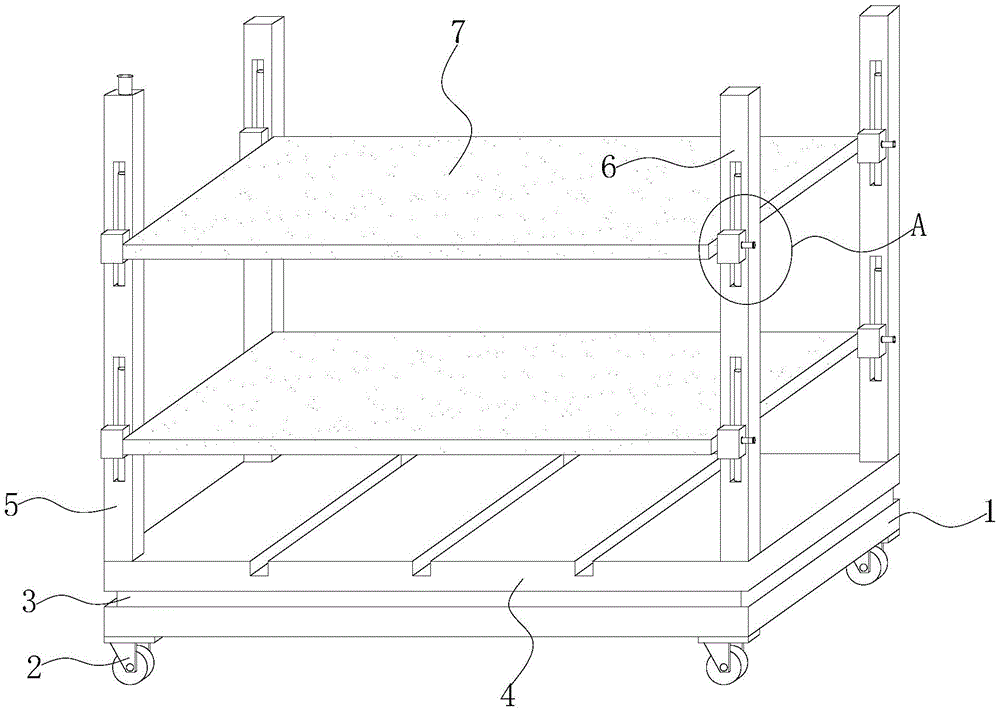

Fig. 1 is a schematic structural view of the present invention;
FIG. 2 is a schematic view of a partially enlarged structure of the portion A in FIG. 1 according to the present invention;
FIG. 3 is a schematic view of the connecting block structure of the present invention;
fig. 4 is a schematic view of the structure of the jack of the present invention.
In the figure: 1. a supporting seat; 2. a universal wheel; 3. a connecting seat; 4. a base plate; 5. a first upright post; 6. a second upright post; 7. a storage plate; 71. a jack; 8. a guide groove; 9. a guide bar; 10. connecting blocks; 11. a through groove; 12. inserting a rod; 121. a limiting block; 13. a limiting groove; 131. a telescoping spring.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
Referring to fig. 1-4, the utility model discloses a multifunctional shelf structure for daily use general merchandise, which comprises a support base 1, the top of the supporting seat 1 is fixedly provided with a connecting seat 3, the bottom of the connecting seat 3 is fixedly provided with a bottom plate 4, a first upright post 5 and a second upright post 6 are fixedly arranged on the upper surface of the bottom plate 4, an object placing plate 7 is arranged between the first upright post 5 and the second upright post 6, the front surfaces of the first upright post 5 and the second upright post 6 are both provided with a guide groove 8, a guide rod 9 is fixedly arranged between the top and the bottom of the inner wall of the guide groove 8, the surface of the guide rod 9 is provided with four connecting blocks 10 in a sliding manner, the four connecting blocks 10 are divided into two groups, one group of connecting blocks 10 is movably arranged on the front surface of the first upright post 5, and the other group of connecting blocks 10 is movably arranged on the front surface of the second upright post 6;
the connecting block 10 is internally provided with a through groove 11 and a limiting groove 13, the inside of the through groove 11 is movably inserted with an insertion rod 12, the surface of the insertion rod 12 is fixedly provided with a limiting block 121, one end of the limiting block 121 far away from the insertion rod 12 is movably arranged inside the limiting groove 13, and one end of the insertion rod 12 is movably inserted with one side surface of the object placing plate 7.
Specifically, one end of the insertion rod 12, which is far away from the object placing plate 7, penetrates through the through groove 11 and extends to the outer side of the connecting block 10, and the other end of the insertion rod 12 is fixedly provided with a pull block.
In the present embodiment, the matching of the pulling block and the inserting rod 12 facilitates the operation when adjusting the height of the object plate 7.
Specifically, the number of the object placing plates 7 is two, two insertion holes 71 are formed in two side faces of each of the two object placing plates 7, and one end of the insertion rod 12 is movably inserted into the insertion holes 71.
In this embodiment, the insertion hole 71 and the insertion rod 12 are used in cooperation, so that the object placing plate 7 is fixed conveniently.
Specifically, the number of the limiting grooves 13 is two, two one side of the inner wall of the limiting groove 13 is fixedly provided with an extension spring 131, and the other end of the extension spring 131 is fixedly arranged with one side of the limiting block 121.
In this embodiment, the arrangement of the extension spring 131 and the limiting block 121 further improves the stability of the object placing plate 7 in the using process.
Specifically, the bottom of the supporting seat 1 is provided with a universal wheel 2.
In this embodiment, the setting of universal wheel 2 is convenient for remove this supporter structure.
The utility model discloses a theory of operation and use flow: when using, supporting seat 1 and connecting seat 3, this supporter structure has improved the steadiness in the use, the setting of universal wheel 2, be convenient for remove at the in-process of using, when needs are to the height of putting thing board 7 adjust, adjust the height that connecting block 10 is located the guide bar 9 surface, through pulling inserted bar 12, make stopper 121 move in the inside of spacing groove 13, expanding spring 131 carries out concertina movement in the inside of spacing groove 13, when adjusting suitable height, draw the piece through the pulling, peg graft inserted bar 12 in jack 71, realize behind the altitude mixture control that thing board 7 is put fixed, thereby be convenient for realize putting the installation of thing board 7.
In summary, the multifunctional shelf structure for daily general merchandise is provided with the first upright post 5 and the second upright post 6, the guide groove 8, the guide rod 9, the connecting block 10 and the jack 71, and under the matching use of the through groove 11, the inserting rod 12, the limiting block 121, the limiting groove 13 and the telescopic spring 131, the height of the shelf 7 can be conveniently adjusted according to the use requirement, and meanwhile, the shelf can be conveniently assembled and disassembled, so that the shelf can be disassembled during transportation, the effect of convenient transportation is achieved, and the use effect of the multifunctional shelf structure for daily general merchandise is ensured; through setting up supporting seat 1 and connecting seat 3, improved the steadiness of this supporter structure in the use, the in-process of being convenient for using is removed in the setting of universal wheel 2 simultaneously to result of use has further been improved and the practicality of this multi-functional supporter structure has been improved.
It should be noted that, in this document, terms such as "comprises," "comprising," or any other variation thereof, are intended to cover a non-exclusive inclusion, such that a process, method, article, or apparatus that comprises a list of elements does not include only those elements but may include other elements not expressly listed or inherent to such process, method, article, or apparatus. Without further limitation, an element defined by the phrase "comprising an … …" does not exclude the presence of other identical elements in a process, method, article, or apparatus that comprises the element.
Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.
Claims (6)
