CN214807369U - Infusion support is used in oncology nursing

Info

Publication number: CN214807369U
Application number: CN202120288268.5U
Authority: CN
Inventors: 何词词
Original assignee: Central Hospital of Wuhan
Current assignee: Central Hospital of Wuhan
Priority date: 2021-02-02
Filing date: 2021-02-02
Publication date: 2021-11-23
Anticipated expiration: 2031-02-02

Abstract

The utility model discloses an oncology nurses with infusion support belongs to medical equipment technical field, including a support section of thick bamboo, erect groove, transverse groove, bottom bracket, interior pole, lead and act as go-between, heater and arm cover, wherein vertically seted up on the barrel of a support section of thick bamboo and erected the groove, erect a plurality of transverse grooves of groove side equidistance having arranged, support bobbin base portion is central symmetry and installs four group's bottom brackets, and support section of thick bamboo inside slidable mounting has interior pole, and interior pole top is connected with and leads and acts as go-between, is provided with a plurality of heaters on the tractive line, and the end-to-end connection that leads is used for the arm cover of fixed patient's cantilever. The utility model discloses a bottom bracket that is equipped with elastic connection bottom a support section of thick bamboo, not only make things convenient for medical staff to go on the medicine of getting on and changing dressings, the cooperation poker rod enables patient's more easy one hand and adjusts the support height simultaneously to be connected with on the support and lead the line, can not only heat for the transfer line, the arm cover that utilizes the end-to-end connection of leading to the line simultaneously can prevent that external force from leading to the syringe needle accident to drop, improves the security of infusion.

Description

Infusion support is used in oncology nursing

Technical Field

The utility model relates to the technical field of medical equipment, in particular to an infusion support for oncology nursing.

Background

The infusion is a large dose of injection liquid infused into a body by intravenous drip, the dropping speed is adjusted by an infusion apparatus when the infusion is used, the infusion liquid continuously and stably enters a vein to replenish body fluid, electrolyte or provide nutrient substances, and most departments in hospitals need of providing medicine and nutrient supply for patients by infusion.

Because the disease of oncology needs to be for a long time, the ration infuses, at the infusion in-process, inject into the liquid medicine through the back of the hand and just need external infusion support to hang the medicine, discharge the liquid medicine from the medicine bag through pressure, current infusion support has the effect that single physics hung basically, to these oncology patients that need the long-time infusion, not only adjust the support inconvenient, inconvenient removal in addition, the transfer line lacks the protection simultaneously, lead to the syringe needle to drop when the patient removes the accident easily.

Therefore, it is required to provide an infusion support for nursing in oncology department, aiming at solving the problems.

SUMMERY OF THE UTILITY MODEL

To the deficiency that prior art exists, the embodiment of the utility model provides an infusion support is used in nursing of oncology to solve the problem among the above-mentioned background art.

In order to achieve the above object, the utility model provides a following technical scheme:

the utility model provides an infusion support is used in oncology nursing, including a support section of thick bamboo, erect groove, cross slot, end support, interior pole, lead and act as go-between, heater and arm cover, wherein vertically seted up on the barrel of a support section of thick bamboo and erected the groove, erect a plurality of cross slots of groove side equidistance having arranged, support bobbin base portion is central symmetry and installs four group's end supports, the inside slidable mounting of a support section of thick bamboo has interior pole, interior pole top is connected with leads, be provided with a plurality of heaters that are used for heating the transfer line on the drawing line, the end-to-end connection that leads is used for the arm cover of fixed patient's wrist.

As a further scheme of the utility model, the barrel bottom of erecting the groove is provided with the battery tray, and the battery tray links to each other with the heater electrical property, is provided with the poker rod on the outer wall of interior pole, poker rod and erect groove and cross slot slip nestification.

As a further scheme of the utility model, the end support inboard is provided with reset spring, and the end support passes through reset spring and a support section of thick bamboo elasticity and links to each other, and the bottom movable mounting of end support has the gyro wheel, is provided with the horizontally footboard on the outer terminal surface of end support.

As a further proposal of the utility model, the arm sleeve comprises an upper cover ring, a lower cover ring, a shaft pin and a pipe barrel, wherein the upper cover ring and the lower cover ring are connected through the rotation of the shaft pin, and the top of the upper cover ring is provided with the pipe barrel.

As a further proposal of the utility model, the pipe barrel is arranged at the far end position away from the left end surface of the upper cover ring, and one side of the pipe barrel is provided with a pipe groove which is vertically arranged.

To sum up, compared with the prior art, the embodiment of the utility model has the following beneficial effects:

the utility model discloses a bottom bracket that is equipped with elasticity swing joint bottom a support section of thick bamboo, not only make things convenient for medical staff to go on the medicine change, the cooperation poker rod enables patient's more easy one hand and adjusts the support height simultaneously to be connected with on the support and lead the line, can not only heat for the transfer line, the arm cover that utilizes the end-to-end connection of leading to the external force simultaneously can prevent that the syringe needle from accidentally dropping, improves the security of infusion.

To illustrate the structural features and functions of the present invention more clearly, the present invention will be described in detail with reference to the accompanying drawings and specific embodiments.

Drawings

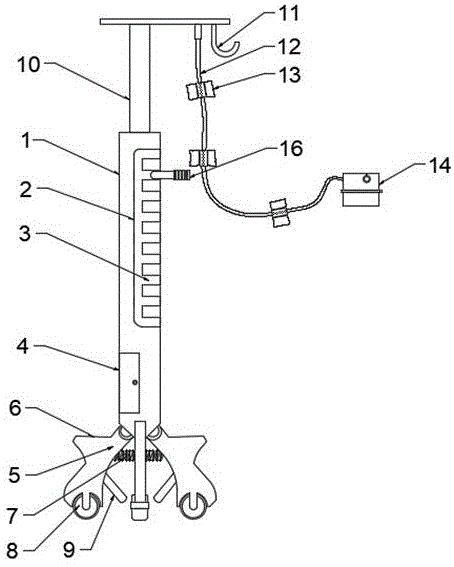

Fig. 1 is a schematic structural view of an embodiment of the present invention;

fig. 2 is a schematic structural view of an inner rod in an embodiment of the present invention;

FIG. 3 is a schematic structural view of an arm sleeve in an embodiment of the present invention;

fig. 4 is a schematic structural view of embodiment 2 of the present invention.

Reference numerals: 1-support cylinder, 2-vertical groove, 3-horizontal groove, 4-charging port, 5-bottom support, 6-pedal, 7-reset spring, 8-roller, 9-brace rod, 10-inner rod, 11-hook, 12-pulling line, 13-heater, 14-arm sleeve, 15-battery seat, 16-pulling rod, 17-upper cover ring, 18-lower cover ring, 19-shaft pin, 20-pipe barrel, 21-pipe groove, 22-sliding rail, 23-sliding block and 24-spring.

Detailed Description

In order to make the objects, technical solutions and advantages of the present invention more clearly understood, the present invention is further described in detail below with reference to the accompanying drawings and embodiments. It should be understood that the specific embodiments described herein are merely illustrative of the invention and are not intended to limit the invention.

The following detailed description is provided for the specific embodiments of the present invention.

Example 1

Referring to fig. 1-3, an infusion support for oncology nursing comprises a support barrel 1, vertical slots 2, transverse slots 3, a bottom support 5, an inner rod 10, a traction wire 12, heaters 13 and an arm sleeve 14, wherein the barrel of the support barrel 1 is longitudinally provided with the vertical slots 2, the side edges of the vertical slots 2 are equidistantly distributed with a plurality of transverse slots 3, the bottom of the support barrel 1 is centrally and symmetrically provided with four groups of bottom supports 5, the inner rod 10 is slidably arranged in the support barrel 1, the traction wire 12 is connected above the inner rod 10, the traction wire 12 is provided with a plurality of heaters 13 for heating infusion tubes, the tail end of the traction wire 12 is connected with the arm sleeve 14 for fixing the wrist arm of a patient, the bottom of the barrel of the vertical slot 2 is provided with a battery holder 15, the battery holder 15 is electrically connected with the heaters 13, the outer wall of the inner rod 10 is provided with a poking rod 16, the poking rod 16 is slidably nested with the vertical slots 2 and the transverse slots 3, the inner side of the bottom support 5 is provided with a return spring 7, the bottom bracket 5 is elastically connected with the bracket barrel 1 through a return spring 7, the bottom of the bottom bracket 5 is movably provided with a roller 8, and the outer end surface of the bottom bracket 5 is provided with a horizontal pedal 6.

The arm sleeve 14 comprises an upper cover ring 17, a lower cover ring 18, a shaft pin 19 and a pipe barrel 20, wherein the upper cover ring 17 and the lower cover ring 18 are rotatably connected through the shaft pin 19, the pipe barrel 20 is arranged at the top of the upper cover ring 17, the pipe barrel 20 is arranged at a far end position away from the left end face of the upper cover ring 17, and one side of the pipe barrel 20 is provided with a pipe groove 21 which is longitudinally arranged.

The utility model discloses a theory of operation is: when the nursing infusion support for oncology department is needed to be used, firstly, when medical staff transfuses and hangs medicine for a patient, the medical staff can tread the pedal 6 at the upper end of the bottom support 5 below, when the pedal 6 is pressed downwards, the whole support barrel 1 is shifted downwards, so that the height of the inner rod 10 above the support barrel 1 is lowered, the medical staff can conveniently hang a transfusion bottle on the hook 11, when the patient needs to hold the support to move, due to the unequal heights of the patients, the patient can tread the pedal 6 on the end surface of the bottom support 5 at the moment, so that the support rod 9 at the lower end of the bottom support 5 is pressed on the ground, a larger friction force is formed between the bottom support 5 and the ground, at the moment, the patient can rotate the poking rod 16 on the outer barrel wall of the support barrel 1, adjust the height of the transverse groove 3 where the poking rod 16 is positioned, so that the inner rod 10 is moved to the position suitable for the height of the patient, and the operation process can be completed by only one hand, the arm of a patient receiving medicine cannot be influenced, when the patient conducts transfusion, a transfusion tube is connected below a transfusion bottle, the transfusion tube is coated in the transfusion tube through a heater 13 on a traction line 12, the medicine liquid is heated and heated in the transfusion process, pain relieving feeling caused by over-low temperature of a transfusion needle of the patient is reduced, the tail end of the traction line 12 is fixedly connected to an arm sleeve 14, the transfusion tube penetrates through a tube barrel 20 after passing through a tube groove 21, an upper cover ring 17 and a lower cover ring 18 are respectively embedded at the upper end and the lower end of the arm receiving medicine, the transfusion tube penetrates out from the front end position between the upper cover ring 17 and the lower cover ring 18 after passing through the tube barrel 20 and is connected to the back of the hand, when the patient moves, if the transfusion tube is not carefully pulled to the transfusion tube, the traction line 12 and the arm sleeve 14 can play a role in buffering, so that the needle cannot accidentally fall off, and meanwhile, as a bottom support 5 at the bottom of a support barrel 1 is elastically connected through a return spring 7, therefore under the support is pulled suddenly by external force, can not topple over easily because the focus is too high, and bottom support 5 of bottom movable mounting can play good cushioning effect, when needs charge for battery holder 15, only need open the mouth 4 that charges on the outer wall of a support section of thick bamboo 1 and can charge.

The advantage of this embodiment lies in, through the end support 5 that is equipped with elasticity swing joint in a support section of thick bamboo 1 bottom, not only makes things convenient for medical staff to go up the medicine and change dressings, cooperates simultaneously to dial the pole 16 and enables the patient more easy one hand to adjust the support height to be connected with on the support and pulling line 12, can not only heat for the transfer line, utilize the arm cover 14 of pulling line 12 end-to-end connection simultaneously can prevent that external force from leading to the syringe needle to unexpected drop, improve the security of infusion.

Example 2

Referring to fig. 4, a main structure of an infusion support for nursing in oncology department is the same as that of embodiment 1, an inner rod 10 is improved, a slide rail 22 is arranged on an inner wall of a support barrel 1, a slide block 23 is slidably mounted on the slide rail 22, and a spring 24 is elastically connected between the slide block 23 and a poke rod 16.

The utility model discloses a theory of operation is: when a user drives the poke rod 16 to transversely slide in the transverse groove 3 by rotating the poke rod 16, the poke rod 16 extrudes the spring 24 to enable the spring 24 to be in a compressed energy storage state, when the sliding poke rod 16 longitudinally moves in the transverse groove 3, the sliding block 23 synchronously slides in the sliding rail 22 along with the poke rod 16, after the poke rod 16 is loosened, the spring 24 presses the poke rod 16 again to enter the transverse groove 3, the limiting and fixing of the poke rod are completed, and the shaking caused by the accidental sliding of the inner rod 10 in the infusion process is prevented.

In the description of the present invention, it is to be understood that the terms "left side", "bottom", "right side", "top", "upper", "one side", "inner", etc. indicate orientations or positional relationships based on the orientations or positional relationships shown in the drawings, and are only for convenience of description and simplicity of description, and do not indicate or imply that the device or element being referred to must have a particular orientation, be constructed and operated in a particular orientation, and thus, should not be construed as limiting the present invention.

Furthermore, it should be noted that unless otherwise expressly specified or limited, the terms "disposed," "mounted," "connected," and "connected" are to be construed broadly and can include, for example, fixed connections, removable connections, or integral connections; can be mechanically or electrically connected; the term "connected" refers to a connection between two elements or an interaction between two elements, and unless otherwise specifically defined, the term is used in the present invention to refer to the specific meaning of the term in the present invention.

The above description is only exemplary of the present invention and should not be taken as limiting the scope of the present invention, as any modifications, equivalents, improvements and the like made within the spirit and principles of the present invention are intended to be included within the scope of the present invention.

Claims

1. The utility model provides an infusion support is used in oncology nursing, includes a support section of thick bamboo (1), erects groove (2), horizontal groove (3), end support (5), interior pole (10), draws line (12), heater (13) and arm cover (14), its characterized in that, vertically seted up on the barrel of a support section of thick bamboo (1) and erected groove (2), erect a plurality of horizontal grooves (3) of groove (2) side equidistance having arranged, a support section of thick bamboo (1) bottom is central symmetry and installs four group end supports (5), a support section of thick bamboo (1) inside slidable mounting has interior pole (10), interior pole (10) top is connected with and draws line (12), is provided with a plurality of heaters (13) that are used for heating the transfer line on drawing line (12), and draw line (12) end-to-end connection has arm cover (14) that are used for fixed patient's cantilever.

2. The infusion support for nursing in oncology department according to claim 1, wherein a battery seat (15) is arranged at the bottom of the cylinder body of the vertical groove (2), the battery seat (15) is electrically connected with the heater (13), a poking rod (16) is arranged on the outer wall of the inner rod (10), and the poking rod (16) is slidably nested with the vertical groove (2) and the transverse groove (3).

3. The transfusion support for nursing in oncology department according to claim 1, wherein a return spring (7) is arranged on the inner side of the bottom support (5), the bottom support (5) is elastically connected with the support cylinder (1) through the return spring (7), a roller (8) is movably arranged at the bottom of the bottom support (5), and a horizontal pedal (6) is arranged on the outer end surface of the bottom support (5).

4. The infusion support for nursing in oncology department according to claim 1, wherein the arm sleeve (14) comprises an upper cover ring (17), a lower cover ring (18), a shaft pin (19) and a pipe barrel (20), wherein the upper cover ring (17) and the lower cover ring (18) are rotatably connected through the shaft pin (19), and the pipe barrel (20) is arranged on the top of the upper cover ring (17).

5. The transfusion stand for nursing in oncology department according to claim 4, characterized in that the tube barrel (20) is arranged at a far end position away from the left end surface of the upper cover ring (17), and one side of the tube barrel (20) is provided with a tube groove (21) which is longitudinally arranged.
