Abstract
本实用新型公开了一种用于印刷机油墨快速干燥装置，涉及干燥设备技术领域，包括干燥仓和输送装置，所述输送装置的侧面顶端与干燥仓的内侧底端固定连接，所述干燥仓的底部固定安装有支撑腿。本实用新型通过预热灯管对印刷物上的油墨进行预热，配合吸风管道将外界空气吸入，利用空气加热器进行加热，再配合热风输送管将空气加热器加热的空气输送至热风储存板中，利用喷气头喷出，对油墨进烘干，同时配合滤网对空气中的灰尘进行过滤，避免了自然风干不仅需要浪费较长时间，而且在风干时，外界灰尘沾染在印刷物的油墨上，导致设备的生产效率降低，干燥效果较差的问题，从而达到了提升干燥效果，提高设备的生产效率的效果。
The utility model discloses a rapid drying device for printing ink, which relates to the technical field of drying equipment, comprising a drying bin and a conveying device. The top side of the conveying device is fixedly connected with the inner bottom end of the drying bin, and the drying bin is The bottom is fixedly installed with support legs. The utility model preheats the ink on the printed matter through the preheating lamp, cooperates with the suction pipe to inhale the outside air, uses the air heater to heat, and then cooperates with the hot air conveying pipe to convey the air heated by the air heater to the hot air storage plate In the process, the ink is sprayed by the air jet head to dry the ink, and the dust in the air is filtered with the filter screen, which avoids the natural air-drying that not only takes a long time, but also contaminates the external dust on the ink of the printed matter during air-drying. , resulting in the reduction of the production efficiency of the equipment and the poor drying effect, thereby achieving the effect of improving the drying effect and improving the production efficiency of the equipment.
Description
Technical Field
The utility model relates to a drying device relates to drying equipment technical field, concretely relates to be used for printing machine printing ink quick drying device.
Background
Printing is also used in which an original such as a character, a picture, a photograph, or forgery prevention is subjected to processes such as plate making, inking, and pressing, and ink is transferred onto a surface of a material such as paper, fabric, plastic, or leather, and the contents of the original are copied in bulk.
The following problems exist in the prior art:
1. after printing is finished by using a printing machine, the printed matter is generally dried in a natural air drying mode, and the natural air drying not only wastes a long time, but also causes the problems that the production efficiency of equipment is reduced and the drying effect is poor because external dust is stained on the printing ink of the printed matter during air drying;
2. when carrying out the drying to the printing ink on the printed matter, the inside chemical composition of printing ink volatilizees and can produce harmful gas, and harmful gas directly discharges, not only can the polluted environment, can influence workman's healthy moreover, leads to the feature of environmental protection of equipment to reduce, the problem that the practicality reduces.
SUMMERY OF THE UTILITY MODEL
The utility model provides a printing ink quick drying device for a printing machine, which aims to have the capability of quick drying, and solves the problems that natural air drying not only wastes a long time, but also external dust is stained on the printing ink of printed matters during air drying, so that the production efficiency of equipment is reduced and the drying effect is poor; the other purpose is to solve the problem that the chemical components inside the printing ink volatilize to generate harmful gas, and the harmful gas is directly discharged to pollute the environment and influence the physical health of workers, so that the environmental protection performance of the equipment is reduced, and the practicability is reduced, thereby achieving the effect of improving the environmental protection performance and the practicability of the equipment.
In order to solve the technical problem, the utility model discloses the technical scheme who adopts is:
the utility model provides a be used for printing machine printing ink rapid draing device, includes dry storehouse and conveyor, conveyor's side top and the inboard bottom fixed connection in dry storehouse, the bottom fixed mounting in dry storehouse has the supporting leg, the top fixed mounting in dry storehouse has preheating device, the top fixed mounting in dry storehouse has the drying device who sets up at the preheating device back, the left side fixed mounting in dry storehouse has air purification device, preheating device is including preheating the fluorescent tube, preheating the fluorescent tube setting in conveyor's top, drying device include with the drying cabinet, the bottom of drying cabinet and the top fixed connection in dry storehouse, air purification device is including the install bin, the side of install bin and the side fixed connection in dry storehouse.
The utility model discloses technical scheme's further improvement lies in: the utility model discloses a hot-blast storage device of drying cabinet, including drying cabinet, inner chamber bottom fixed mounting of drying cabinet has air heater, the top fixedly connected with air suction pipeline of drying cabinet, air suction pipeline's bottom extend to the inside of drying cabinet and with air heater fixed connection, air heater's bottom fixed mounting has hot-blast conveyer pipe, hot-blast conveyer pipe's bottom extend to the inside in dry storehouse and with dry storehouse fixed connection, the inner chamber top fixed mounting in dry storehouse has hot-blast storage board, the one end of hot-blast conveyer pipe extend to the inside of hot-blast storage board and with hot-blast storage board fixed connection, the bottom fixed mounting of hot-blast storage board has the air jet, air jet evenly distributed is on the bottom surface of hot-blast storage board, air suction pipeline's top swing joint has the filter screen, the filter screen can be dismantled.
The utility model discloses technical scheme's further improvement lies in: the utility model discloses a drying chamber, including install bin, air suction plate, install bin, air suction hole, exhaust pipe, install bin, install.
The utility model discloses technical scheme's further improvement lies in: preheat the both sides fixedly connected with connecting rod of fluorescent tube, the top fixedly connected with fly leaf of connecting rod, the inner chamber side swing joint of fly leaf and dry storehouse, the top swing joint of fly leaf has the threaded rod, the inner chamber top fixed mounting in dry storehouse has the thread bush, threaded rod and thread bush swing joint, the top of threaded rod extend to the outside in dry storehouse and with dry storehouse swing joint, the top fixedly connected with mount in dry storehouse, the inboard fixedly connected with fixed plate of mount, the top of threaded rod run through fixed plate and mount and with fixed plate and mount swing joint, the top fixedly connected with of threaded rod changes the handle.
The utility model discloses technical scheme's further improvement lies in: the conveying device comprises a support frame, the side face of the support frame is fixedly connected with the bottom end of the inner side of the drying bin, and a conveying belt is movably connected to the top end of the inner side of the support frame.
The utility model discloses technical scheme's further improvement lies in: the both ends fixed mounting of fly leaf has the gyro wheel, the spout has been seted up to the inner chamber side in dry storehouse, gyro wheel and spout sliding connection.
The utility model discloses technical scheme's further improvement lies in: the thread that matches with the threaded rod is seted up to the inside of thread bush, thread bush and threaded rod thread cup joint.
Owing to adopted above-mentioned technical scheme, the utility model discloses relative prior art, the technological progress who gains is:
1. the utility model provides a printing ink quick drying device for a printing machine, which adopts the matching of a preheating lamp tube, an air suction pipeline, an air heater, a hot air conveying pipe, a hot air storage plate, a jet head and a filter screen, the printing ink on the printed matter is preheated by the preheating lamp tube, the external air is sucked by matching with the air suction pipeline, the air is heated by the air heater, the air heated by the air heater is conveyed to the hot air storage plate by matching with the hot air conveying pipe and is sprayed out by the air nozzle, the printing ink is dried, and the dust in the air is filtered by matching with a filter screen, so that the phenomenon that the natural air drying wastes a long time is avoided, and when air-drying, external dust is infected with on the printing ink of printed matter, leads to the production efficiency of equipment to reduce, the relatively poor problem of drying effect to reach the effect that promotes drying effect, improve equipment's production efficiency.
2. The utility model provides a be used for printing machine printing ink quick drying device, adopt the clarifier, the blast pipe, the breathing pipe, the cooperation of air suction plate and suction hole, harmful gas after with the printing ink drying through the suction hole absorbs into the air suction plate, the cooperation breathing pipe purifies in carrying gas to the clarifier, recycle the air discharge after the blast pipe will purify, harmful gas direct emission has been avoided, can the polluted environment not only, and can influence workman's healthy, the feature of environmental protection that leads to equipment reduces, the problem that the practicality reduces, thereby the effect of the feature of environmental protection and the practicality of improve equipment has been reached.
3. The utility model provides a be used for printing machine printing ink rapid draing device adopts the cooperation of changeing handle, threaded rod, thread bush and fly leaf, changes the handle through rotating for the threaded rod rotates on the thread bush, recycles the swing joint of fly leaf and threaded rod, drives the rising and the decline of fly leaf, and the height of fluorescent tube is preheated in the adjustment, has avoided preheating the problem that the effect was preheated in the high influence of fluorescent tube, thereby has reached the effect of preheating effect and the work efficiency of heightening equipment.
Drawings

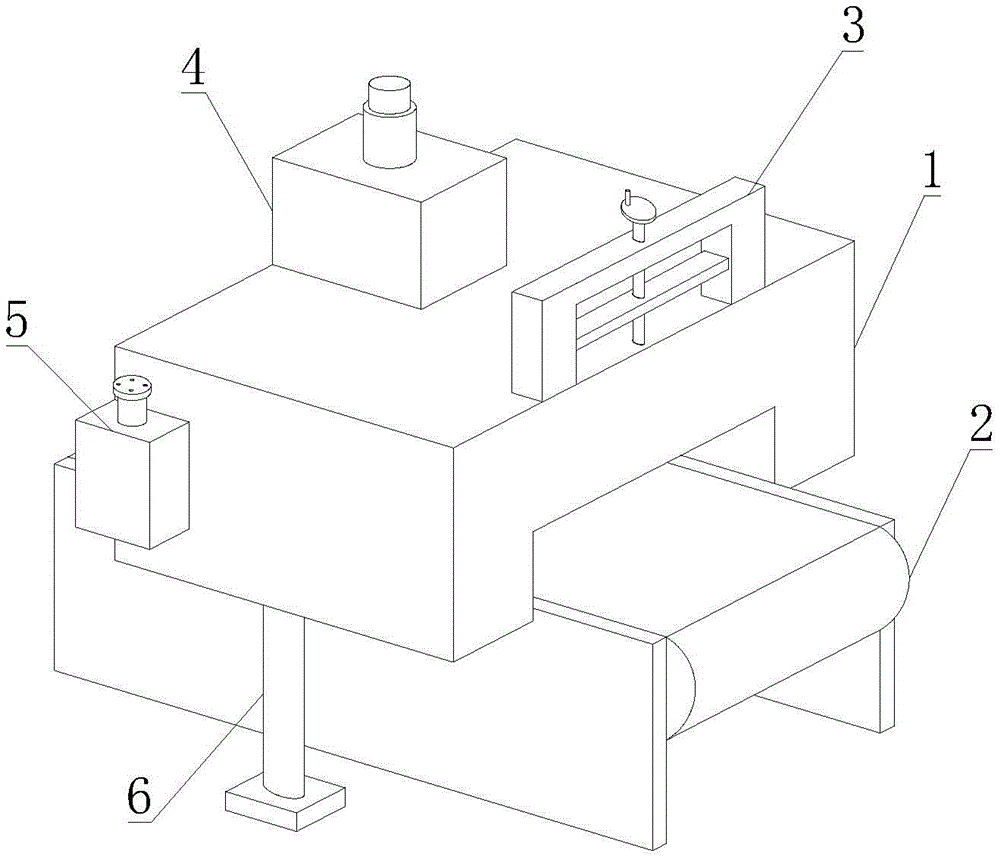

Fig. 1 is a schematic structural view of the present invention;
FIG. 2 is a schematic view of the back side of the structure of the present invention;
FIG. 3 is a schematic front sectional view of the structure of the present invention;
fig. 4 is an enlarged schematic view of the structure a of the present invention.
In the figure: 1. a drying bin; 2. a conveying device; 21. a conveyor belt; 22. a support frame; 3. a preheating device; 31. a fixed mount; 32. a fixing plate; 33. turning a handle; 34. a threaded rod; 35. a threaded sleeve; 36. a movable plate; 361. a roller; 37. a connecting rod; 38. preheating the lamp tube; 4. a drying device; 41. a drying oven; 411. an air suction pipeline; 42. an air heater; 421. a hot air delivery pipe; 43. a hot air storage plate; 431. a gas showerhead; 44. filtering with a screen; 5. an air purification device; 51. installing a box; 52. a purifier; 521. an exhaust pipe; 522. an air intake duct; 53. a gas suction plate; 531. a suction hole; 6. and (5) supporting legs.
Detailed Description
The present invention will be described in further detail with reference to the following examples:
example 1
As shown in FIGS. 1-4, the utility model provides a printing ink rapid drying device for a printing machine, which comprises a drying chamber 1 and a conveying device 2, the top end of the side surface of the conveying device 2 is fixedly connected with the bottom end of the inner side of the drying chamber 1, the bottom of the drying chamber 1 is fixedly provided with a supporting leg 6, the top of the drying chamber 1 is fixedly provided with a preheating device 3, the top of the drying chamber 1 is fixedly provided with a drying device 4 arranged at the back of the preheating device 3, the left side of the drying chamber 1 is fixedly provided with an air purifying device 5, the preheating device 3 comprises a preheating lamp tube 38, the preheating lamp tube 38 is arranged above the conveying device 2, the drying device 4 comprises a drying box 41, the bottom of the drying box 41 is fixedly connected with the top of the drying chamber 1, the air purifying device 5 comprises an installation box 51, the side surface of the installation box 51 is fixedly connected with the side surface of the drying chamber 1, the bottom of the inner cavity of the drying box 41 is fixedly provided with an air heater 42, the top fixedly connected with air suction pipe 411 of drying cabinet 41, the bottom of air suction pipe 411 extend to the inside of drying cabinet 41 and with air heater 42 fixed connection, air heater 42's bottom fixed mounting has hot-blast conveyer pipe 421, the bottom of hot-blast conveyer pipe 421 extend to the inside of drying storehouse 1 and with drying storehouse 1 fixed connection, the inner chamber top fixed mounting of drying storehouse 1 has hot-blast storage board 43, the one end of hot-blast conveyer pipe 421 extends to the inside of hot-blast storage board 43 and with hot-blast storage board 43 fixed connection, the bottom fixed mounting of hot-blast storage board 43 has jet 431, jet 431 evenly distributed is on the bottom surface of hot-blast storage board 43, the top swing joint of air suction pipe 411 has filter screen 44, filter screen 44 can dismantle.
In this embodiment, the combination of the preheating lamp 38, the air suction duct 411, the air heater 42, the hot air delivery pipe 421, the hot air storage plate 43, the air nozzle 431 and the filter screen 44 is adopted, the ink on the printed matter is preheated by the preheating lamp 38, the external air is sucked by matching with the air suction pipeline 411, the air heater 42 is used for heating, the air heated by the air heater 42 is conveyed to the hot air storage plate 43 by matching with the hot air conveying pipe 421, the air is sprayed out by the air nozzle 431, the printing ink is dried, and meanwhile, the filter screen 44 is matched for filtering dust in the air, so that the phenomenon that the natural air drying not only wastes a long time is avoided, and when air-drying, external dust is infected with on the printing ink of printed matter, leads to the production efficiency of equipment to reduce, the relatively poor problem of drying effect to reach the effect that promotes drying effect, improve equipment's production efficiency.
As shown in fig. 1-4, in this embodiment, preferably, the conveying device 2 includes a support frame 22, a side surface of the support frame 22 is fixedly connected to an inner bottom end of the drying bin 1, and a conveyor belt 21 is movably connected to an inner top end of the support frame 22, so that the conveying of the printed matter is more convenient and faster, the stability is better, and the use efficiency and the practicability of the apparatus are further improved.
As shown in fig. 1-4, preferably, both sides of the preheating lamp 38 are fixedly connected with a connecting rod 37, the top end of the connecting rod 37 is fixedly connected with a movable plate 36, the movable plate 36 is movably connected with the side surface of the inner cavity of the drying chamber 1, the top of the movable plate 36 is movably connected with a threaded rod 34, the top of the inner cavity of the drying chamber 1 is fixedly provided with a threaded sleeve 35, the threaded rod 34 is movably connected with the threaded sleeve 35, the top end of the threaded rod 34 extends to the outside of the drying chamber 1 and is movably connected with the drying chamber 1, the top of the drying chamber 1 is fixedly connected with a fixed frame 31, the inner side of the fixed frame 31 is fixedly connected with a fixed plate 32, the top end of the threaded rod 34 penetrates through the fixed plate 32 and the fixed frame 31 and is movably connected with the fixed plate 32 and the fixed frame 31, the top end of the threaded rod 34 is fixedly connected with a rotating handle 33, the inside of the threaded sleeve 35 is provided with a thread matched with the threaded rod 34, the threaded sleeve 35 is in a threaded sleeve, the cooperation of rotating the handle 33, the threaded rod 34, the threaded sleeve 35 and the movable plate 36 is adopted, the rotating handle 33 is rotated, so that the threaded rod 34 rotates on the threaded sleeve 35, the movable connection between the movable plate 36 and the threaded rod 34 is reused to drive the movable plate 36 to ascend and descend, the height of the preheating lamp tube 38 is adjusted, the problem that the preheating effect is influenced by the height of the preheating lamp tube 38 is avoided, and the preheating effect and the working efficiency of the heightening device are achieved.
Example 2
As shown in fig. 1-4, on the basis of embodiment 1, the utility model provides a technical solution: preferably, a purifier 52 is fixedly installed inside the installation box 51, an exhaust pipe 521 is fixedly installed on the top of the purifier 52, the top end of the exhaust pipe 521 extends to the outside of the installation box 51 and is fixedly connected with the installation box 51, an air suction pipe 522 is fixedly installed at the bottom end of the purifier 52, an air suction plate 53 is fixedly installed on the side surface of the inner cavity of the drying bin 1, one end of the air suction pipe 522 extends to the inside of the drying bin 1 and is fixedly connected with the air suction plate 53, an air suction hole 531 is formed in the side surface of the air suction plate 53, the air suction holes 531 are uniformly distributed on the side surface of the air suction plate 53, the purifier 52, the exhaust pipe 521, the air suction pipe 522, the air suction plate 53 and the air suction hole 531 are matched, harmful gas after drying ink is absorbed into the air suction plate 53 through the air suction hole 531, the air is conveyed into the purifier 52 for purification by matching with the air suction pipe 522, and the purified air is discharged by the exhaust pipe 521, the direct emission of harmful gas is avoided, the environment can be polluted, the physical health of workers can be influenced, the environmental protection performance of equipment is reduced, and the practicability is reduced, so that the environmental protection performance and the practicability of the equipment are improved.
Example 3
As shown in fig. 1-4, on the basis of embodiment 1, the utility model provides a technical solution: preferably, the rollers 361 are fixedly mounted at two ends of the movable plate 36, the side surface of the inner cavity of the drying bin 1 is provided with a sliding groove, the rollers 361 are slidably connected with the sliding groove, and the movable plate 36 is more labor-saving in the ascending and descending processes through the design of the rollers 361, so that the time of workers is further saved, and the functionality of the equipment is improved.
The working principle of the device for rapidly drying the printing ink of the printing machine is described in detail below.
In use, as shown in figures 1-4, the knob 33 is first rotated, causing the threaded rod 34 to rotate on the threaded sleeve 35, then, the movable plate 36 is movably connected with the threaded rod 34 to drive the movable plate 36 to ascend and descend, the height of the preheating lamp 38 is adjusted to adapt to the height of the printed matter, then the printed matter is placed on the conveyor belt 21, then the conveyor belt 21 is used for conveying the printed matter to the lower part of the preheating lamp tube 38 for preheating, after the preheating is finished, the printed matter is continuously conveyed to the lower part of the hot air storage plate 43, then, the external air is sucked through the air suction duct 411, and is heated by the air heater 42, the air heated by the air heater 42 is then transferred into the hot air storage plate 43 by means of the hot air transfer pipe 421, spraying hot air to the printed matter through the air nozzle 431, drying, and storing the printed matter after drying;
as shown in fig. 1 to 4, when the ink is dried and harmful gas is generated, firstly, the harmful gas is absorbed into the air suction plate 53 through the air suction hole 531, then the gas is conveyed to the purifier 52 to be purified by matching with the air suction pipe 522, and finally, the purified air is discharged through the air discharge pipe 521.
The present invention has been described in detail with reference to the above general description, but it will be apparent to one of ordinary skill in the art that modifications and improvements can be made to the invention. Therefore, modifications or improvements without departing from the spirit of the invention are within the scope of the invention.
Claims (7)
