CN214714689U

CN214714689U - Sewage treatment device convenient to clearance filter

Info

Publication number: CN214714689U
Application number: CN202120646121.9U
Authority: CN
Inventors: 张金
Original assignee: Jiangsu Kelang Environmental Protection Technology Co ltd
Current assignee: Jiangsu Kelang Environmental Protection Technology Co ltd
Priority date: 2021-03-30
Filing date: 2021-03-30
Publication date: 2021-11-16
Anticipated expiration: 2031-03-30

Abstract

The utility model relates to a sewage treatment technical field specifically is a sewage treatment plant convenient to clearance filter, including the sewage treatment plant main part, the inside of sewage treatment plant main part is provided with clearance mechanism, the surface of sewage treatment plant main part is provided with extrusion mechanism, extrusion mechanism includes first fixed frame, the first fixed frame of both sides fixedly connected with of sewage treatment plant main part, and the fixed frame of fixed surface of first fixed frame is connected with the second, fixed bull stick is installed through the bearing to the fixed frame inside of second. The utility model discloses be provided with fixed rotating shaft and first filter plate, through the rotation of fixed rotating shaft, can make four group's clearance poles rotate in the inside of sewage treatment plant main part, at this moment can filter the rubbish in the sewage through first filter plate to the rotation through four group's clearance poles can clear up the rubbish on first filter plate surface, thereby can be effectively the surface blockage of first filter plate.

Description

Sewage treatment device convenient to clearance filter

Technical Field

The utility model relates to a sewage treatment technical field specifically is a sewage treatment plant convenient to clearance filter.

Background

Sewage treatment is a process of purifying sewage to meet the requirement of discharging the sewage into a certain water body or reusing the sewage, and the sewage treatment is widely applied to various fields of buildings, agriculture, traffic, energy, petrifaction, environmental protection, urban landscape, medical treatment, catering and the like, and is also increasingly used in daily life of common people.

Present sewage treatment plant filters the department with the rubbish in the sewage when using, but filter equipment is when filtering, and inside filter screen is blockked up by rubbish easily, causes the filter effect relatively poor, can adsorb a large amount of moisture in the rubbish that filters simultaneously to can lead to rubbish post processing inconvenient, we have provided a sewage treatment plant who is convenient for clear up the filter for this reason and solve above-mentioned problem.

SUMMERY OF THE UTILITY MODEL

An object of the utility model is to provide a sewage treatment plant convenient to clearance filter to the inside filter screen of proposing is blockked up by rubbish easily in solving above-mentioned background art, causes the filter effect relatively poor and can adsorb a large amount of moisture problems in the rubbish that filters off.

In order to achieve the above object, the utility model provides a following technical scheme: a sewage treatment device convenient for cleaning a filter plate comprises a sewage treatment device main body, wherein a cleaning mechanism is arranged inside the sewage treatment device main body, an extrusion mechanism is arranged on the surface of the sewage treatment device main body and comprises a first fixing frame, the two sides of the sewage treatment device main body are fixedly connected with the first fixing frame, the surface of the first fixing frame is fixedly connected with a second fixing frame, a fixed rotating rod is arranged inside the second fixing frame through a bearing, a guide block is inserted inside the fixed rotating rod, one end of the guide block, far away from the fixed rotating rod, is fixedly connected with a push rod, one end of the push rod, far away from the guide block, is welded with a spring, one end of the spring, far away from the push rod, is welded with a loop bar, one end of the loop bar, far away from the push rod, is fixedly connected with an extrusion plate, the inner wall of the first fixing frame is fixedly connected with a flow guide block, and the bottom end of the flow guide block is fixedly connected with a second filter plate.

Preferably, clearance mechanism includes the motor, the top surface mounting of sewage treatment plant main part has the motor, and the output of motor is connected with fixed rotating shaft, fixed rotating shaft's top surface mounting has the drive belt, fixed rotating shaft's bottom fixed surface is connected with the clearance pole, the inside at first filter plate is passed through the bearing to the one end that fixed rotating shaft kept away from the motor.

Preferably, the cleaning rods are cylindrical, and four groups of cleaning rods are arranged on the surface of the fixed rotating shaft at equal intervals.

Preferably, the fixed rotating rod is cylindrical, a sliding groove is formed in the inner wall of the fixed rotating rod, the guide block is cylindrical, one end, away from the pushing rod, of the guide block is semicircular, and the size of the inner wall of the sliding groove formed in the inner wall of the fixed rotating rod is matched with the surface size of the guide block.

Preferably, the catch bar sets up to cylindrical, and the catch bar keeps away from the one end fixedly connected with disc of guide block, catch bar one end fixedly connected's disc surface size of a dimension and the inner wall size looks adaptation of loop bar.

Preferably, two sets of the flow guide blocks are symmetrically arranged in the first fixed frame, and inclined planes are arranged on the surfaces of the two sets of the flow guide blocks.

Compared with the prior art, the beneficial effects of the utility model are that:

the device is provided with the fixed rotating shaft and the first filter plate, and the four groups of cleaning rods can rotate in the sewage treatment device main body through the rotation of the fixed rotating shaft, so that garbage in sewage can be filtered through the first filter plate, and the garbage on the surface of the first filter plate can be cleaned through the rotation of the four groups of cleaning rods, so that the surface blockage of the first filter plate can be effectively realized;

the device can make the catch bar reciprocate inside through being provided with fixed bull stick and stripper plate, through the rotation of fixed bull stick, when the catch bar is when removing, can drive the stripper plate and reciprocate in the inside of first fixed frame to can extrude the inside rubbish of first fixed frame, effectual with absorbent sewage discharge in the rubbish, make things convenient for the processing of rubbish.

Description of the drawings:

in order to more clearly illustrate the embodiments of the present invention or the technical solutions in the prior art, the drawings used in the description of the embodiments or the prior art will be briefly described below, it is obvious that the drawings in the following description are only some embodiments of the present invention, and for those skilled in the art, other drawings can be obtained according to these drawings without creative efforts.

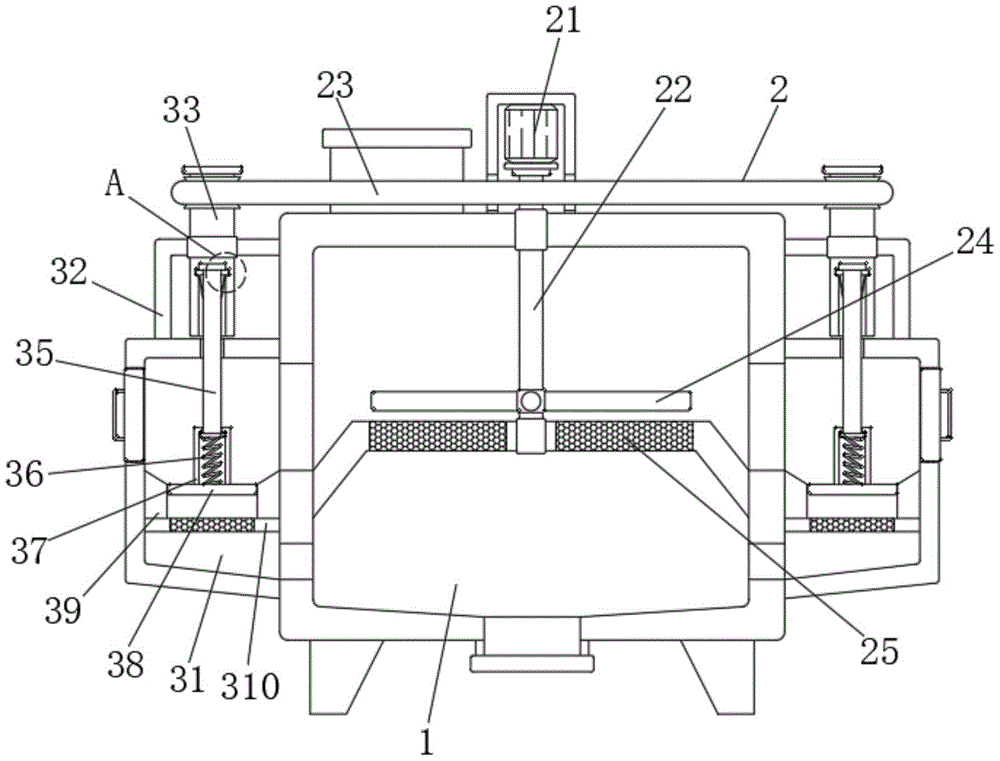

FIG. 1 is a schematic sectional view of the front view of the structure of the present invention;

FIG. 2 is a schematic top view of the structure of the present invention;

FIG. 3 is a schematic perspective sectional view of the structure of the extruding mechanism of the present invention;

fig. 4 is a schematic perspective sectional view of the fixed rotating rod structure of the present invention;

fig. 5 is an enlarged schematic view of a structure in fig. 1 according to the present invention.

In the figure: 1. a sewage treatment apparatus main body; 2. a cleaning mechanism; 21. a motor; 22. fixing the rotating shaft; 23. a transmission belt; 24. cleaning the rod; 25. a first filter plate; 3. an extrusion mechanism; 31. a first fixed frame; 32. a second fixed frame; 33. fixing the rotating rod; 34. a guide block; 35. a push rod; 36. a spring; 37. a loop bar; 38. a pressing plate; 39. a flow guide block; 310. a second filter plate.

The specific implementation mode is as follows:

the technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.

Referring to fig. 1-5, the present invention provides an embodiment: a sewage treatment device convenient for cleaning a filter plate comprises a sewage treatment device main body 1, a cleaning mechanism 2 is arranged inside the sewage treatment device main body 1, an extrusion mechanism 3 is arranged on the surface of the sewage treatment device main body 1, the extrusion mechanism 3 comprises a first fixing frame 31, the first fixing frame 31 is fixedly connected with two sides of the sewage treatment device main body 1, the surface of the first fixing frame 31 is fixedly connected with a second fixing frame 32, a fixed rotating rod 33 is arranged inside the second fixing frame 32 through a bearing, a guide block 34 is inserted inside the fixed rotating rod 33, one end of the guide block 34 far away from the fixed rotating rod 33 is fixedly connected with a push rod 35, one end of the push rod 35 far away from the guide block 34 is welded with a spring 36, one end of the spring 36 far away from the push rod 35 is welded with a loop bar 37, one end of the loop bar 37 far away from the push rod 35 is fixedly connected with an extrusion plate 38, the inner wall of the first fixing frame 31 is fixedly connected with a flow guide block 39, the bottom end of the flow guide block 39 is fixedly connected with a second filter plate 310;

further, clearance mechanism 2 includes motor 21, and the top surface mounting of sewage treatment plant main part 1 has motor 21, and motor 21's output is connected with fixed rotating shaft 22, and the top surface mounting of fixed rotating shaft 22 has drive belt 23, and the bottom fixed surface of fixed rotating shaft 22 is connected with clearance pole 24, and the one end that motor 21 was kept away from to fixed rotating shaft 22 is passed through the bearing and is installed the inside at first filter plate 25.

Further, the cleaning rods 24 are cylindrical, four groups of cleaning rods 24 are equidistantly arranged on the surface of the fixed rotating shaft 22, and the four groups of cleaning rods 24 can drive the four groups of cleaning rods 24 to rotate when the fixed rotating shaft 22 rotates, so that garbage on the surface of the first filter plate 25 can be cleaned, and the first filter plate 25 is prevented from being blocked.

Further, fixed bull stick 33 sets up to cylindrical, and the spout has been seted up to the inner wall of fixed bull stick 33, guide block 34 sets up to cylindrical, and the one end that catch bar 35 was kept away from to guide block 34 sets up to semi-circular, the spout inner wall size of a dimension that fixed bull stick 33 inner wall was seted up and the surface dimension looks adaptation of guide block 34, arc wall seted up through fixed bull stick 33 inner wall, can be when fixed bull stick 33 rotates, make guide block 34 slide in the arc wall is inside, thereby can make stripper plate 38 at the inside reciprocating motion of first fixed frame 31, play the inside absorbent sewage of extrusion rubbish, and set up to semi-circular through guide block 34 one end, can play the effect of reducing friction, improve the life of fixed bull stick 33.

Further, catch bar 35 sets up to be cylindrical, and catch bar 35 keeps away from the one end fixedly connected with disc of guide block 34, catch bar 35 one end fixed connection's disc surface dimension size and the inner wall size looks adaptation of loop bar 37, and through catch bar 35 one end fixed connection's disc, can make the disc block in the inside of loop bar 37, play the effect of spacing stripper plate 38.

Further, two sets of flow guide blocks 39 are symmetrically arranged inside the first fixing frame 31, and inclined planes are arranged on the surfaces of the two sets of flow guide blocks 39, so that the garbage can move to the surface of the second filter plate 310 through the inclined planes arranged on the surfaces of the two flow guide blocks 39.

The working principle is as follows: when the device is used, when sewage needs to be treated, according to the attached

drawings

1 and 2, the sewage is poured into the sewage treatment device main body 1, at this time, garbage in the sewage can be filtered through the first filter plate 25, the fixed rotating shaft 22 can be driven to rotate through the motor 21, when the fixed rotating shaft 22 rotates, the cleaning rod 24 can rotate in the sewage treatment device main body 1, so that the garbage on the surface of the first filter plate 25 can be cleaned, at this time, the garbage can slide in the first fixed frame 31, when the garbage contains moisture, according to the attached

drawings

1, 2, 3, 4 and 5, the fixed rotating rod 33 can rotate through the rotation of the motor 21, at this time, the guide block 34 can slide in the fixed rotating rod 33, so that the push rod 35 can stretch in the fixed rotating rod 33, and when the push rod 35 moves, can make loop bar 37 drive stripper plate 38 remove, can extrude the inside rubbish of first fixed frame 31 through stripper plate 38 this moment to can extrude the moisture in the rubbish, and through the elasticity of spring 36 self, can make stripper plate 38 extrude the rubbish of different thickness, it is above the utility model discloses a whole theory of operation.

It is obvious to a person skilled in the art that the invention is not restricted to details of the above-described exemplary embodiments, but that it can be implemented in other specific forms without departing from the spirit or essential characteristics of the invention. The present embodiments are therefore to be considered in all respects as illustrative and not restrictive, the scope of the invention being indicated by the appended claims rather than by the foregoing description, and all changes which come within the meaning and range of equivalency of the claims are therefore intended to be embraced therein. Any reference sign in a claim should not be construed as limiting the claim concerned.

Claims

1. The utility model provides a sewage treatment plant convenient to clearance filter, includes sewage treatment plant main part (1), its characterized in that: the inside of sewage treatment plant main part (1) is provided with clearance mechanism (2), the surface of sewage treatment plant main part (1) is provided with extrusion mechanism (3), extrusion mechanism (3) include first fixed frame (31), the both sides fixedly connected with first fixed frame (31) of sewage treatment plant main part (1), and the fixed frame (32) of fixed surface fixedly connected with second of first fixed frame (31), fixed bull stick (33) is installed through the bearing in the fixed frame (32) of second, and the inside of fixed bull stick (33) is inserted and is equipped with guide block (34), the one end fixedly connected with catch bar (35) that fixed bull stick (33) was kept away from to guide block (34) is led to catch bar (34), and the one end welding that guide block (34) was kept away from to catch bar (35) has spring (36), the welding that catch bar (35) was kept away from to spring (36) has one end loop bar (37), and the one end fixedly connected with stripper plate (38) of catch bar (35) is kept away from in loop bar (37), the inner wall fixedly connected with water conservancy diversion piece (39) of first fixed frame (31), and the bottom fixedly connected with second filter plate (310) of water conservancy diversion piece (39).

2. The sewage treatment apparatus of claim 1, wherein the filter plate is disposed in a space defined by the filter plate and the filter plate, and the filter plate is disposed in a space defined by the filter plate: clearance mechanism (2) are including motor (21), the top surface mounting of sewage treatment plant main part (1) has motor (21), and the output of motor (21) is connected with fixed rotating shaft (22), the top surface mounting of fixed rotating shaft (22) has drive belt (23), the bottom fixed surface of fixed rotating shaft (22) is connected with clearance pole (24), the inside at first filter plate (25) is passed through the bearing to the one end that motor (21) were kept away from in fixed rotating shaft (22).

3. The sewage treatment apparatus convenient for cleaning the filter plate according to claim 2, wherein: the cleaning rods (24) are cylindrical, and four groups of cleaning rods (24) are arranged on the surface of the fixed rotating shaft (22) at equal intervals.

4. The sewage treatment apparatus of claim 1, wherein the filter plate is disposed in a space defined by the filter plate and the filter plate, and the filter plate is disposed in a space defined by the filter plate: the fixed rotating rod (33) is cylindrical, a sliding groove is formed in the inner wall of the fixed rotating rod (33), the guide block (34) is cylindrical, one end, away from the push rod (35), of the guide block (34) is semicircular, and the size of the inner wall of the sliding groove formed in the inner wall of the fixed rotating rod (33) is matched with the surface size of the guide block (34).

5. The sewage treatment apparatus of claim 1, wherein the filter plate is disposed in a space defined by the filter plate and the filter plate, and the filter plate is disposed in a space defined by the filter plate: the push rod (35) is arranged to be cylindrical, a disc is fixedly connected to one end, far away from the guide block (34), of the push rod (35), and the surface size of the disc fixedly connected to one end of the push rod (35) is matched with the size of the inner wall of the loop bar (37).

6. The sewage treatment apparatus of claim 1, wherein the filter plate is disposed in a space defined by the filter plate and the filter plate, and the filter plate is disposed in a space defined by the filter plate: the guide blocks (39) are symmetrically arranged in two groups in the first fixing frame (31), and inclined planes are arranged on the surfaces of the two groups of guide blocks (39).
