Abstract
The utility model relates to a solar lamp field, concretely relates to microwave response solar lamp, its technical scheme is: including lamp body and solar panel, solar panel sets up lamp body upper end still includes: the lamp comprises a top cover and a lamp frame main body, wherein the top cover is arranged on the upper side of the lamp body, and the lamp frame main body is arranged on the lower side of the top cover; the utility model discloses a rechargeable battery, including top cap internally mounted rechargeable battery, rechargeable battery lower extreme installation battery preforming, side-mounting circuit board under the battery preforming, side-mounting LED lamp plate under the circuit board, side-mounting transparent lampshade under the LED lamp plate, rechargeable battery left side installation pole piece is negative, rechargeable battery right side installation pole piece is positive, self-tapping screw one and inflation micelle are connected to the top cap side, the beneficial effects of the utility model are that: the induction unit is arranged in the circuit board, so that the microwave induction of the solar lamp is protected.
Description
Technical Field
The utility model relates to a solar lamp field, concretely relates to microwave response solar lamp.
Background
The solar lamp is an electric lamp which is converted from a solar cell panel into electric energy, the solar cell panel can collect and store solar energy even in cloudy days, the solar lamp is a safe and environment-friendly new electric lamp, and is more and more emphasized, the solar lamp comprises a solar cell module, a part of LED lamps, a control box and a lamp post, the solar lamp can be widely used for decoration in occasions such as grasslands, squares, parks and the like, and belongs to the technical field of lamps, the solar lamp mainly adopts a lamp cover to be connected with a base, the cell panel is arranged in the lamp cover on a cell box, the cell box is arranged on the base, a light-emitting diode is arranged on the cell panel, the solar cell panel adopts a lead to be connected with a rechargeable battery and a control circuit, the utility model has the advantages of integrated, simplicity, compactness, no external power supply line, convenient use and installation and beautiful appearance, because the LED is arranged in the bottom support, the whole lamp body is illuminated after the LED emits light, the light sensation effect is better, all electrical elements are arranged in the LED lamp, and the LED lamp has good practicability and comprises a plurality of snakelike lamps, plate-type lamps, solar neon lamps, massage lamps and the like.
The prior art has the following defects: when the existing solar lamp is used for microwave induction illumination, the probe needs to be extended out for induction, and the probe is easy to damage.
Therefore, the microwave induction solar lamp is necessary to be invented.
SUMMERY OF THE UTILITY MODEL
Therefore, the utility model provides a microwave response solar lamp through built-in induction element on the circuit board to solve solar lamp microwave response illuminated time need stretch out the probe and respond to, damage the problem of probe easily.
In order to achieve the above object, the present invention provides the following technical solutions: microwave response solar lamp, including lamp body and solar panel, solar panel sets up lamp body upper end still includes: the lamp comprises a top cover and a lamp frame main body, wherein the top cover is arranged on the upper side of the lamp body, and the lamp frame main body is arranged on the lower side of the top cover;
the LED lamp comprises a top cover, and is characterized in that a rechargeable battery is mounted inside the top cover, a battery pressing sheet is mounted at the lower end of the rechargeable battery, a circuit board is mounted on the lower side of the battery pressing sheet, an LED lamp panel is mounted on the lower side of the circuit board, and a transparent lampshade is mounted on the lower side of the LED lamp panel.
Preferably, a pole piece negative is installed on the left side of the rechargeable battery.
Preferably, the positive pole piece is installed on the right side of the rechargeable battery.
Preferably, the first tapping screw and the expansion rubber particles are connected to the side end of the top cover.
Preferably, the lower end of the circuit board is connected with a waterproof silica gel sleeve.
Preferably, the lower end of the battery pressing sheet is detachably connected with a second self-tapping screw.
Preferably, a battery compartment is arranged on the inner side of the top cover, and the rechargeable battery is arranged on the inner side of the battery compartment.
Preferably, the lower end of the lamp frame main body is an inclined surface.
Preferably, the side end of the top cover is symmetrically provided with heat dissipation holes.
Preferably, the rechargeable battery is a 3.2V lithium battery.
The utility model has the advantages that:
a rechargeable battery is arranged in the top cover, the rechargeable battery has the function of supplying power to the LED lamp panel, a battery pressing sheet is arranged at the lower end of the rechargeable battery, the battery pressing sheet has the function of fixing the rechargeable battery, a circuit board is arranged on the lower side of the battery pressing sheet, the circuit board is provided with a switch, an induction unit is arranged on the circuit board, the circuit board has the function of controlling the microwave induction illumination of the solar lamp, the LED lamp panel is arranged on the lower side of the circuit board, the surface of the LED lamp panel is provided with an LED lamp, the LED lamp panel has the function of emitting light, a transparent lampshade is arranged on the lower side of the LED lamp panel, the transparent lampshade has the function of covering the LED lamp panel and performing safety protection on the LED lamp panel, a pole piece negative is arranged on the left side of the rechargeable battery, the pole piece negative has the function of transmitting current, a pole piece positive is arranged on the right side of the rechargeable battery, the pole piece has the function of transmitting current, a tapping screw I and an expansion colloidal particle are connected with the side end of the top cover, and the tapping screw I and the expansion colloidal particle have the function of conveniently fixing the lamp body, waterproof silica gel cover is connected to circuit board lower extreme, waterproof silica gel cover has carries out waterproof effect to the circuit board component, self-tapping screw two can be dismantled to battery preforming lower extreme and connect, self-tapping screw two has the effect of fixed battery preforming, the top cap inboard is equipped with the battery compartment, rechargeable battery installs in the battery compartment inboard, the battery compartment has the effect of installation rechargeable battery, establish to the inclined plane at rim main part lower extreme, the effect of solar lamp microwave response is convenient for on the inclined plane, the louvre is seted up to the top cap side symmetry, the louvre has the inside radiating effect to the lamp body, through built-in induction element on the circuit board, play the guard action to the microwave response of solar lamp.
Drawings

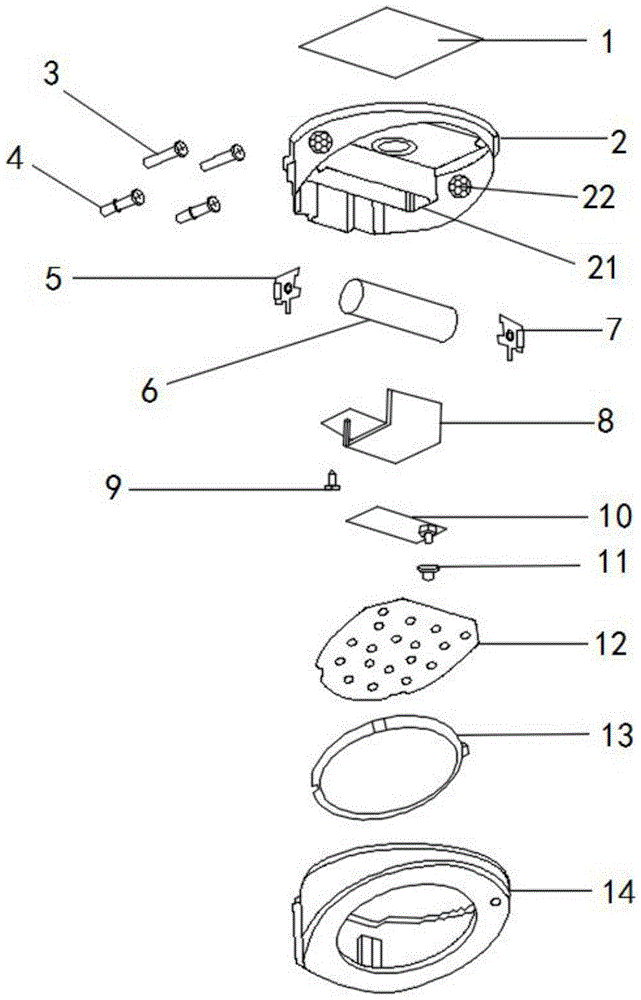

Fig. 1 is a structural diagram of a microwave induction solar lamp provided by the present invention;
fig. 2 is a perspective view of the microwave induction solar lamp provided by the present invention;
fig. 3 is a circuit diagram of the microwave induction solar lamp provided by the present invention.
In the figure: the solar panel comprises a solar panel 1, a top cover 2, a battery compartment 21, a heat dissipation hole 22, a first tapping screw 3, expansion colloidal particles 4, a negative pole piece 5, a rechargeable battery 6, a positive pole piece 7, a battery pressing sheet 8, a second tapping screw 9, a circuit board 10, a waterproof silica gel sleeve 11, an LED lamp panel 12, a transparent lampshade 13, a lamp frame main body 14 and a lamp body 15.
Detailed Description
The preferred embodiments of the present invention will be described in conjunction with the accompanying drawings, and it will be understood that they are presented herein only to illustrate and explain the present invention, and not to limit the present invention.
Referring to fig. 1-3, the present invention provides a microwave induction solar lamp, which includes a lamp body 15 and a solar panel 1;
further, solar panel 1 sets up lamp body 15 upper end still includes: the solar energy lamp comprises a top cover 2 and a lamp frame main body 14, wherein the top cover 2 is arranged on the upper side of a lamp body 15, the lamp frame main body 14 is arranged on the lower side of the top cover 2, specifically, the solar panel 1 has the function of charging the rechargeable battery 6, and the top cover 2 and the lamp frame main body 14 have the function of packaging internal elements of the lamp;
a rechargeable battery 6 is arranged inside the top cover 2, a battery pressing sheet 8 is arranged at the lower end of the rechargeable battery 6, a circuit board 10 is arranged on the lower side of the battery pressing sheet 8, an LED lamp panel 12 is arranged on the lower side of the circuit board 10, a transparent lampshade 13 is arranged on the lower side of the LED lamp panel 12, specifically, the rechargeable battery 6 has the function of supplying power to the LED lamp panel 12, the battery pressing sheet 8 has the function of fixing the rechargeable battery 6, the circuit board 10 is provided with a switch, an induction unit is arranged on the circuit board 10, the circuit board 10 has the function of controlling the microwave induction illumination of the solar lamp, an LED lamp is arranged on the surface of the LED lamp panel 12, the LED lamp panel 12 has the function of emitting light, and the transparent lampshade 13 has the function of covering the LED lamp panel 12 and carries out safety protection on the LED lamp panel 12;
further, a pole piece negative 5 is installed on the left side of the rechargeable battery 6, and specifically, the pole piece negative 5 has a function of transmitting current;
further, a positive pole piece 7 is installed on the right side of the rechargeable battery 6, and specifically, the positive pole piece 7 has a function of transmitting current;
further, the side end of the top cover 2 is connected with a tapping screw 3 and an expansion colloidal particle 4, specifically, the tapping screw 3 and the expansion colloidal particle 4 have the function of conveniently fixing the lamp body 15, the tapping screw 3 is a screw with a drill, construction is carried out through a special electric tool, drilling, tapping, fixing and locking are completed at one time, the tapping screw 3 has strong corrosion resistance, a rubber seal ring of the tapping screw can ensure that the screw is not seeped with water and has good corrosion resistance, the expansion colloidal particle 4 is also called an expansion screw, the expansion screw is fixed by utilizing wedge-shaped inclination to enable expansion to generate friction gripping force to achieve the fixing effect, one end of the screw is a screw thread, the other end of the screw is provided with a taper, an iron sheet is wrapped outside, a plurality of notches are arranged on one half of an iron sheet cylinder, the notches are plugged into a punched hole on a wall together, then a nut is locked, the nut pulls the screw outwards to pull the taper into the iron sheet cylinder, the iron sheet cylinder is expanded and then is tightly fixed on the wall;
further, the lower end of the circuit board 10 is connected with a waterproof silica gel sleeve 11, and specifically, the waterproof silica gel sleeve 11 has a waterproof effect on elements of the circuit board 10;
further, the lower end of the battery pressing piece 8 is detachably connected with a tapping screw II 9, and particularly, the tapping screw II 9 has the function of fixing the battery pressing piece 8;
further, a battery compartment 21 is arranged on the inner side of the top cover 2, the rechargeable battery 6 is mounted on the inner side of the battery compartment 21, and specifically, the battery compartment 21 has a function of mounting the rechargeable battery 6;
further, the lower end of the lamp frame main body 14 is provided with an inclined surface, and particularly, the inclined surface is convenient for the microwave induction of the solar lamp;
further, heat dissipation holes 22 are symmetrically formed at the side end of the top cover 2, and specifically, the heat dissipation holes 22 have a function of dissipating heat inside the lamp body 15;
further, rechargeable battery 6 adopts the 3.2V lithium cell, and is concrete, and LED lamp plate 12 is avoided damaging in adaptation.
The utility model discloses a use as follows: when the utility model is used, the solar panel 1 is arranged at the upper end of the lamp body 15, the solar panel 1 has the function of charging the rechargeable battery 6, the solar lamp also comprises a top cover 2 and a lamp frame main body 14, the top cover 2 and the lamp frame main body 14 have the function of packaging the internal elements of the lamp, the top cover 2 is arranged at the upper side of the lamp body 15, the lamp frame main body 14 is arranged at the lower side of the top cover 2, the rechargeable battery 6 is arranged inside the top cover 2, the rechargeable battery 6 has the function of supplying power to the LED lamp panel 12, the battery pressing sheet 8 is arranged at the lower end of the rechargeable battery 6, the battery pressing sheet 8 has the function of fixing the rechargeable battery 6, the circuit board 10 is arranged at the lower side of the battery pressing sheet 8, the circuit board 10 is provided with a switch, the induction unit is arranged on the circuit board 10, the induction probe does not need to extend out of the lamp body 15, the induction principle is the same as that of a radar, the circuit board 10 has the function of controlling the microwave induction and lighting of the microwave induction of the lamp, the LED lamp panel 12 is arranged at the lower side of the circuit board 10, the LED lamp panel 12 is provided with an LED lamp on the surface, the LED lamp panel 12 has the function of illuminating, a transparent lampshade 13 is arranged on the lower side of the LED lamp panel 12, the transparent lampshade 13 has the function of covering the LED lamp panel 12 and performing safety protection on the LED lamp panel 12, a pole piece negative 5 is arranged on the left side of a rechargeable battery 6 and has the function of transmitting current, a pole piece positive 7 is arranged on the right side of the rechargeable battery 6 and has the function of transmitting current, a top cover 2 is connected with a tapping screw I3 and an expansion colloidal particle 4 at the side end, the tapping screw I3 and the expansion colloidal particle 4 have the function of conveniently fixing a lamp body 15, a waterproof silica gel sleeve 11 is connected with the lower end of a circuit board 10, the waterproof silica gel sleeve 11 has the function of waterproofing on elements of the circuit board 10, a tapping screw II 9 is detachably connected with the lower end of a battery pressing sheet 8, the tapping screw II 9 has the function of fixing the battery pressing sheet 8, and a battery bin 21 is arranged on the inner side of the top cover 2, the rechargeable battery 6 is arranged at the inner side of the battery compartment 21, the battery compartment 21 has the function of installing the rechargeable battery 6, the lower end of the lamp frame main body 14 is arranged to be an inclined plane which is convenient for microwave induction of the solar lamp, heat dissipation holes 22 are symmetrically formed in the side end of the top cover 2, the heat dissipation holes 22 have the function of dissipating heat inside the lamp body 15, a power supply ground wire of the solar lamp is electrically connected with a relay K1, the relay K1 plays the roles of automatic adjustment, safety protection and circuit conversion in a circuit, the relay K1 can drive a device by using small electric power and current to enable a contact piece to bear large current, the relay K1 mainly plays the roles of circuit conversion, automatic adjustment and safety protection in the circuit, the relay K1 is electrically connected with a first triode Q1 which is used for amplifying output current, the first triode Q1 is electrically connected with a resistor R1 which is used for preventing the amplified current from overloading and damaging the circuit, and the resistor R1 is connected with the first LED lamp in series, the current is normally on after passing through a resistor R1, a first group of triodes Q1 is connected with a second group of LED lamps in parallel, the current is highlighted after induction, the first group of LED lamps and the second group of LED lamps are electrically connected with the second group of triodes Q2, a second group of triodes Q2 overcurrent protection circuit is conducted under normal conditions, when the current exceeds a set value, the voltage on R1 is increased, so that Q1 is conducted to lower the grid potential of Q2, Q2 is cut off to play a role in protection, the second group of triodes Q2 is electrically connected with resistors R2 and R3 and then electrically connected with a plug CON4 of a microwave sensor frame model, a proximity switch is electrically connected with a diode D1, a diode D1 is electrically connected with a capacitor C1 and a capacitor C2, a capacitor C2 is electrically connected with a plug CON4, a solar cell is electrically connected with a resistor R5 through the proximity switch, the solar cell is electrically connected with a solar cell management chip, and the charge and discharge management chip is electrically connected with the first group of triodes Q1.
The above description is only a preferred embodiment of the present invention, and any person skilled in the art may modify the present invention or modify it into an equivalent technical solution by using the technical solutions described above. Therefore, any simple modifications or equivalent replacements made according to the technical solution of the present invention belong to the scope of the claimed invention as far as possible.
Claims (10)
1. Microwave response solar lamp, including lamp body (15) and solar panel (1), solar panel (1) sets up lamp body (15) upper end, its characterized in that still includes: the lamp comprises a top cover (2) and a lamp frame main body (14), wherein the top cover (2) is arranged on the upper side of the lamp body (15), and the lamp frame main body (14) is arranged on the lower side of the top cover (2);
top cap (2) internally mounted rechargeable battery (6), rechargeable battery (6) lower extreme installation battery preforming (8), battery preforming (8) downside installation circuit board (10), circuit board (10) downside installation LED lamp plate (12), LED lamp plate (12) downside installation transparent lampshade (13).
2. A microwave induction solar powered light as claimed in claim 1 wherein: and a pole piece negative pole (5) is arranged on the left side of the rechargeable battery (6).
3. A microwave induction solar powered light as claimed in claim 1 wherein: and a positive pole piece (7) is arranged on the right side of the rechargeable battery (6).
4. A microwave induction solar powered light as claimed in claim 1 wherein: the side end of the top cover (2) is connected with a tapping screw I (3) and an expansion colloidal particle (4).
5. A microwave induction solar powered light as claimed in claim 1 wherein: the lower end of the circuit board (10) is connected with a waterproof silica gel sleeve (11).
6. A microwave induction solar powered light as claimed in claim 1 wherein: the lower end of the battery pressing sheet (8) is detachably connected with a second tapping screw (9).
7. A microwave induction solar powered light as claimed in claim 1 wherein: the inside of the top cover (2) is provided with a battery compartment (21), and the rechargeable battery (6) is arranged on the inside of the battery compartment (21).
8. A microwave induction solar powered light as claimed in claim 1 wherein: the lower end of the lamp frame main body (14) is provided with an inclined surface.
9. A microwave induction solar powered light as claimed in claim 1 wherein: the side end of the top cover (2) is symmetrically provided with heat dissipation holes (22).
10. A microwave induction solar powered light as claimed in claim 1 wherein: the rechargeable battery (6) adopts a 3.2V lithium battery.
