CN214664236U

CN214664236U - Connect firm coupling assembling

Info

Publication number: CN214664236U
Application number: CN202120844463.1U
Authority: CN
Inventors: 应有敏
Original assignee: Nanjing Zhimeichanghe Technology Exhibition Co ltd
Current assignee: Nanjing Zhimeichanghe Technology Exhibition Co ltd
Priority date: 2021-04-22
Filing date: 2021-04-22
Publication date: 2021-11-09
Anticipated expiration: 2031-04-22

Abstract

The utility model discloses a connect firm coupling assembling relates to lighting apparatus technical field. The novel lock catch is characterized by comprising a main body, wherein the outer wall of the main body is fixedly connected with four lock catch devices, the outer wall of the bottom of each lock catch device is provided with a buckle groove, the inner wall of each buckle groove is fixedly connected with a fixed column, the outer wall of each fixed column is rotatably connected with a rotating shaft, and the outer wall of each rotating shaft is fixedly connected with a clamping plate. The catching groove is formed in the bottom of the catching device, the fixing column is fixedly connected to the inside of the catching groove, the rotating shaft is connected to the outer wall of the fixing column in a rotating mode, meanwhile, the clamping plate is connected to the rotating shaft in the rotating shaft, the clamping plate is driven to rotate in the catching groove, the adjustable clamping plate is formed, the adjustable clamping plate is applicable to being embedded in light guide plate grooves of different sizes, the stability of light guide plate installation is guaranteed to a certain extent, the structure of the clamping plate is simple, operation is convenient, and installation efficiency is improved when cost is reduced.

Description

Connect firm coupling assembling

Technical Field

The utility model relates to a lighting apparatus technical field especially relates to a connect firm coupling assembling.

Background

The LED is a semiconductor light-emitting diode and is made of semiconductor materials so as to directly convert electric energy into light energy and convert an electric signal into a light signal; it features low power consumption, high brightness, gay colour, vibration resistance, long service life (8-10 ten thousand hours of normal light emission), and cold light source. The light decoration product using LED as light source will replace white fabric lamp in the future of 21 century and become the next revolution of human lighting. The LED lamp bead with the built-in IC chip is packaged in a mode that the IC chip and the light-emitting diode are arranged on the same surface of a circuit board at present. However, the following problems may occur: the device comprises a plurality of elements arranged on the same surface, and particularly small parts such as lamp beads, wherein the difficulty of the arrangement of the elements on the same surface is obviously higher; and the size of the IC chip and the size of the light-emitting diode have larger difference, and the IC chip and the light-emitting diode are on the same surface of the circuit board to cause the IC chip to influence the light-emitting visual angle of the light-emitting diode. And thirdly, the IC chip and the light-emitting diode are placed on the same surface, all elements are seriously gathered and heated, and the heat can not be efficiently dissipated, so that the service life of the lamp bead is influenced.

Conventional lighting devices, when in use:

1. because traditional light guide plate operates complicatedly when installing, is difficult for the installation, has leaded to the installation effectiveness slow and installation effect poor.

2. Because traditional light guide plate poor stability after installing has led to the device to take place to become flexible after long-time the use and has come off easily, causes economic loss.

3. Because traditional light guide plate makes the light guide plate difficult to dismantle through the securing device who sets up after installing, has leaded to equipment to take place to damage difficult dismantlement change maintenance.

SUMMERY OF THE UTILITY MODEL

An object of the utility model is to provide a connect firm coupling assembling, the light guide plate installation back of having solved uses easy not hard up technical problem that drops for a long time.

In order to achieve the above object, the utility model provides a following technical scheme: the utility model provides a connect firm coupling assembling, includes the main part, the outer wall fixedly connected with locking device of main part, locking device's quantity is four, the catching groove has been seted up to locking device's bottom outer wall, the inner wall fixedly connected with fixed column of catching groove, the outer wall of fixed column rotates and is connected with the pivot, the outer wall fixedly connected with joint board of pivot.

Preferably, one side outer wall fixedly connected with controller of locking device, the button groove has been seted up to the outer wall of controller, the inner wall fixedly connected with control spring in button groove, the outer wall fixedly connected with button of control spring, the outer wall fixedly connected with connecting plate of button, the bottom outer wall fixedly connected with slide of connecting plate, the spout has been seted up to one side outer wall of joint board, one side outer wall fixedly connected with cushion of joint board, one side outer wall fixedly connected with rubber frame and the compression spring of cushion, the outer wall fixedly connected with stripper plate of rubber frame and compression spring.

Preferably, the outer wall of the main body is provided with a light guide groove, the inner wall of the light guide groove is movably connected with a light guide plate, and the outer wall of the main body is fixedly connected with a first substrate and a second substrate.

Preferably, the outer wall of the button is movably connected with the inner wall of the button groove, and the controller is movably connected with the button through the button groove and the control spring.

Preferably, the extrusion plate is movably connected with the cushion block through a rubber frame and a compression spring, and the outer wall of the sliding plate is in sliding connection with the inner wall of the sliding groove.

Preferably, the bottom outer wall of the first substrate is fixedly connected with a first LED lamp bead, the top outer wall of the first substrate is fixedly connected with a supporting plate, and the outer wall of the supporting plate is provided with a screw mounting hole.

Preferably, the top outer wall of the supporting plate is fixedly connected with the bottom outer wall of the second substrate, and the top outer wall of the second substrate is fixedly connected with the second LED lamp beads.

Preferably, the outer wall of the top of the first substrate and the outer wall of the second substrate are movably connected with a honeycomb aluminum plate.

Compared with the prior art, the utility model provides a pair of connect firm coupling assembling has following beneficial effect:

1. the utility model provides a connect firm coupling assembling, the catching groove has been seted up through the bottom at locking device, inside fixedly connected with fixed column at the catching groove, rotate the pivot of connecting on the outer wall of fixed column, be connected with the joint board in the pivot simultaneously, through dialling the joint board, make the joint board even take the pivot to rotate in the catching groove, form adjustable joint board, it carries out the gomphosis in the light guide plate groove of different size and size to be applicable, the steadiness of light guide plate installation has been guaranteed to a certain extent, and the simple structure of joint board, and convenient for operation, installation effectiveness has more been improved in the time of reduce cost.

2. The utility model provides a connecting component with stable connection, a controller is arranged at the outer wall of a locking device, a button is arranged at the controller, after the button on the locking device is pressed, along with the pressing of the button, a control spring arranged in the button drive controller is pressed, a connecting plate fixed on the button drives a sliding plate to slide in a sliding groove arranged on a clamping plate, the outlet of the sliding groove is smooth, when the sliding plate is stressed, the sliding plate slides out of the sliding groove to collide with an extrusion plate, the extrusion plate is stressed to extrude a rubber frame and a compression spring, at the moment, the clamping plate can be lifted, along with the lifting of the clamping plate, the surface of the clamping plate is separated from a light guide groove, thereby facilitating the disassembly and the installation of the light guide plate, after the installation of the light guide plate is finished, then the button is released, because the pressure disappears, the clamping plate is clamped with the groove corresponding to the light guide plate, the stability of the light guide plate after the installation is ensured to a certain extent better, also guaranteed the convenience of light guide plate installation simultaneously, the effectual assurance is under permanent use, the phenomenon that the light guide plate also can not take place to become flexible and drop, the life of equipment has improved to a certain extent, simultaneously through the automatic joint board of the push type that sets up, the fastness of installation has been guaranteed and maintenance and change efficiency have been improved to a certain extent, light guide groove and the light guide plate through setting up dock, the agility of light guide plate installation has been guaranteed, the installation and the dismantlement of light guide plate have been made things convenient for, maintenance and change efficiency have been improved, economic cost is reduced, the problem of light guide plate dismantlement has been just made things convenient for when having solved light guide plate installation stable structure.

3. The utility model provides a connect firm coupling assembling, the light guide plate that adopts special setting carries out the joint with the light guide groove that the device bottom corresponds the setting, because the particularity of light guide plate, directly press the joint, the agility of light guide plate installation has been guaranteed, the installation and the dismantlement of light guide plate have been made things convenient for, simultaneously through the screw mounting hole that sets up, the honeycomb aluminum plate to the installation has been made things convenient for and has been locked, the fastness of installation has been guaranteed to a certain extent and maintenance and change efficiency have been improved, economic cost is reduced, the problem that light guide plate installation effectiveness is slow and the installation fastness is poor is solved.

Drawings

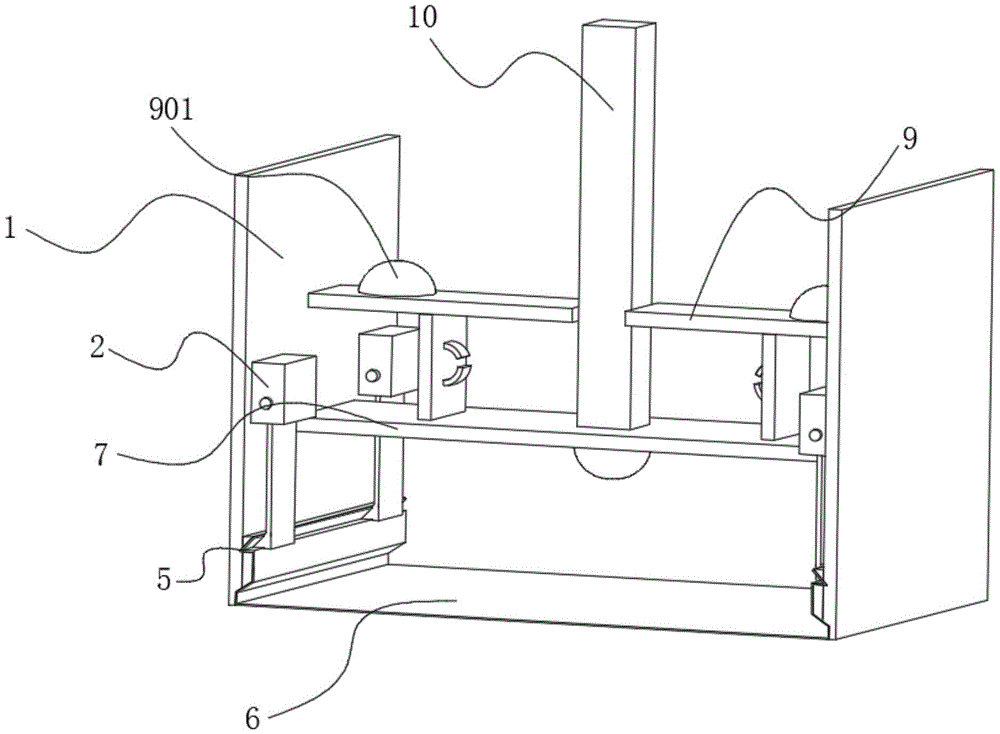

Fig. 1 is a schematic structural view of the present invention;

FIG. 2 is a schematic view of the structure of the supporting plate of the present invention;

FIG. 3 is a schematic view of the structure of the rotating shaft of the present invention;

fig. 4 is a schematic structural view of the fixing column of the present invention;

FIG. 5 is a schematic view of the structure of the connection plate of the present invention;

FIG. 6 is an enlarged view of the structure at A in the figure of the present invention;

FIG. 7 is an enlarged view of the structure at B in the figure of the present invention;

fig. 8 is an enlarged view of the structure at C in the figure of the present invention.

In the figure: 1. a main body; 2. a locking device; 201. buckling grooves; 202. fixing a column; 203. a rotating shaft; 204. a clamping and connecting plate; 3. a controller; 301. a button groove; 302. a control spring; 303. a button; 304. a connecting plate; 305. a slide plate; 306. A chute; 4. cushion blocks; 401. a rubber frame; 402. a compression spring; 403. a pressing plate; 5. a light guide groove; 6. a light guide plate; 7. a first substrate; 701. a first LED lamp bead; 8. a support plate; 801. a screw mounting hole; 9. a second substrate; 901. A second LED lamp bead; 10. a honeycomb aluminum plate.

The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments; based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.

The first embodiment is as follows:

referring to fig. 1 to 8, the present invention provides a technical solution: the utility model provides a connect firm coupling assembling, includes main part 1, its characterized in that: the outer wall of the main body 1 is fixedly connected with four locking devices 2, the outer wall of the bottom of each locking device 2 is provided with a locking groove 201, the inner wall of each locking groove 201 is fixedly connected with a fixed column 202, the outer wall of each fixed column 202 is rotatably connected with a rotating shaft 203, the outer wall of each rotating shaft 203 is fixedly connected with a clamping plate 204, the outer wall of one side of each locking device 2 is fixedly connected with a controller 3, the outer wall of each controller 3 is provided with a button groove 301, the inner wall of each button groove 301 is fixedly connected with a control spring 302, the outer wall of each control spring 302 is fixedly connected with a button 303, the outer wall of each button 303 is fixedly connected with a connecting plate 304, the outer wall of the bottom of each connecting plate 304 is fixedly connected with a sliding plate 305, the outer wall of one side of each clamping plate 204 is provided with a sliding groove 306, the outer wall of one side of each clamping plate 204 is fixedly connected with a cushion block 4, the outer wall of one side of each cushion block 4 is fixedly connected with a rubber frame 401 and a compression spring 402, the outer walls of the rubber frame 401 and the compression spring 402 are fixedly connected with an extrusion plate 403, the outer wall of the button 303 is movably connected with the inner wall of the button groove 301, the controller 3 is movably connected with the button 303 through the button groove 301 and the control spring 302, the extrusion plate 403 is movably connected with the cushion block 4 through the rubber frame 401 and the compression spring 402, and the outer wall of the sliding plate 305 is slidably connected with the inner wall of the sliding groove 306.

In the embodiment, the clamping is mostly completed by the clamping of the light guide groove 5 and the light guide plate 6 when in use, the clamping is easy to loose after long-term use, so that the dropping phenomenon is easy to occur, and economic loss is caused, in order to make the device not only convenient to install but also effectively fix the light guide plate 6, the locking device 2 is specially arranged on the outer wall of the main body 1, the locking groove 201 is arranged at the bottom of the locking device 2, the fixing column 202 is arranged inside the locking groove 201, the fixing column 202 is fixedly connected with the inner wall of the locking groove 201, the rotating shaft 203 is arranged on the fixing column 202, the rotating shaft 203 is rotatably connected with the fixing column 202, the clamping plate 204 is arranged on the rotating shaft 203, the inverted hook-shaped clamping plate 204 is arranged, the clamping plate 204 is driven by pulling the clamping plate 204 to rotate the rotating shaft 203 in the locking groove 201, and the angle-adjustable clamping plate 204 is formed, the light guide plate clamping device is suitable for being embedded in light guide plate 6 grooves with different sizes, the installation stability of the light guide plate 6 is guaranteed to a certain extent, the clamping plate 204 is simple in structure and convenient to operate, the cost is reduced, the installation efficiency is improved, meanwhile, the controller 3 is arranged on the outer wall of the locking device 2, the button 303 is arranged on the controller 3, after the button 303 on the locking device 2 is pressed, the button 303 drives the control spring 302 arranged inside the controller 3 to be pressed downwards along with the pressing of the button 303, meanwhile, the connecting plate 304 fixed on the button 303 drives the sliding plate 305 to slide in the sliding groove 306 arranged on the clamping plate 204 along with the pressing of the button 303, the outlet of the sliding groove 306 is smooth, after the sliding plate 305 is stressed, the sliding plate 305 slides out through the outlet of the sliding groove 306, the sliding groove 306 slides out to collide with the extrusion plate 403, the extrusion plate 403 is stressed to extrude the rubber frame 401 and the compression spring 402, at this moment joint board 204 can be lifted up, along with lifting up of joint board 204, the surface and the 5 separation in light guide groove of joint board 204, thereby be convenient for to the dismantlement and the installation of light guide plate 6, after the installation of light guide plate 6 is accomplished, then loosen button 303, because pressure disappears, joint board 204 descends and carries out the joint with the groove that light guide plate 6 corresponds, the stability of light guide plate 6 after the installation has been guaranteed to a certain extent is better, the convenience of light guide plate 6 installation has also been guaranteed simultaneously, the effectual assurance is under permanent use, the phenomenon that light guide plate 6 also can not take place not hard up and drop, the life of equipment has been improved to a certain extent, simultaneously through the automatic joint board 204 of the push type that sets up, the fastness of installation has been guaranteed to a certain extent and maintenance and replacement efficiency have been improved.

Example two:

referring to fig. 1-2, based on the first embodiment, the present invention provides a technical solution: light guide groove 5 has been seted up to main part 1's outer wall, light guide groove 5's inner wall swing joint has light guide plate 6, main part 1's first base plate 7 of outer wall fixedly connected with and second base plate 9, the first LED lamp pearl 701 of the bottom outer wall fixedly connected with of first base plate 7, the top outer wall fixedly connected with backup pad 8 of first base plate 7, backup pad 8's outer wall is provided with screw mounting hole 801, backup pad 8's top outer wall and second base plate 9's bottom outer wall fixed connection, second base plate 9's top outer wall fixedly connected with second LED lamp pearl 901, the top outer wall of first base plate 7 and the outer wall swing joint who is located second base plate 9 have aluminum honeycomb panel 10.

In the embodiment, the light guide groove 5 and the light guide plate 6 are butted, so that the installation rapidity of the light guide plate 6 is ensured, the installation and the disassembly of the light guide plate 6 are facilitated, the maintenance and the replacement efficiency are improved, the economic cost is reduced, the first substrate 7 and the second substrate 9 which are arranged at the same time are used for installing internal components such as lamps and the like, so that the internal equipment looks more laminar, the first LED lamp bead 701 is arranged at the first substrate 7, the supporting plate 8 is arranged at the substrate and is used for supporting the space between the first substrate 7 and the second substrate 9, the stability of the equipment is ensured, the second LED lamp bead 901 is arranged at the second substrate 9, the first LED lamp bead 701 and the second LED lamp bead 901 are arranged oppositely, the light guide plate 6 is arranged at the outer side of the lamp beads, the irradiation range of the lamp beads is wider, the multi-side luminous effect is formed, and the illumination effect is ensured to a certain extent, guaranteed the functional diversity of device simultaneously, the light guide plate 6 through special setting corresponds the light guide slot 5 that sets up with the device bottom and carries out the joint simultaneously, because the particularity of light guide plate 6, directly press the joint, the agility of light guide plate 6 installation has been guaranteed, the installation and the dismantlement of light guide plate 6 have been made things convenient for, be provided with screw mounting hole 801 simultaneously, screw mounting hole 801 through setting up has made things convenient for the honeycomb aluminum plate 10 to lock the installation, the fastness of installation has been guaranteed to a certain extent to honeycomb aluminum plate 10 of setting and has improved maintenance and change efficiency, economic cost is reduced, the problem that light guide plate 6 installation effectiveness is slow and the installation fastness is poor is solved.

The working principle is as follows: the utility model is mostly completed by the clamping connection of the light guide groove 5 and the light guide plate 6 when in use, the clamping connection mode is easy to generate the clamping connection looseness after long-term use, thereby the shedding phenomenon is easy to occur, and the economic loss is caused, in order to ensure that the device not only is convenient to install, but also can effectively fix the light guide plate 6, the locking device 2 is specially arranged on the outer wall of the main body 1, the bottom of the locking device 2 is provided with a buckling groove 201, the inside of the buckling groove 201 is provided with a fixed column 202, and the fixed column 202 is fixedly connected with the buckling groove 201, meanwhile, the fixed column 202 is provided with a rotating shaft 203, the rotating shaft 203 is provided with a clamping plate 204, the arranged inverted hook-shaped clamping plate 204, by stirring the clamping plate 204, the clamping plate 204 is connected with the rotating shaft 203 to rotate in the buckling groove 201, the angle-adjustable clamping plate 204 is formed, the device is suitable for the embedding in the light guide plates 6 grooves with different sizes, the installation stability of the light guide plate 6 is ensured to a certain degree, the structure of the clamping plate 204 is simple, the operation is convenient, the cost is reduced, the installation efficiency is improved, the controller 3 is arranged on the outer wall of the locking device 2, the button 303 is arranged on the controller 3, the button 303 drives the control spring 302 arranged in the controller 3 to press down along with the pressing of the button 303 after the button 303 on the locking device 2 is pressed, the connecting plate 304 fixed on the button 303 drives the sliding plate 305 to slide in the sliding groove 306 arranged on the clamping plate 204, the outlet of the sliding groove 306 is smooth, when the sliding plate 305 is stressed, the sliding plate 305 slides out of the sliding groove 306 to collide with the extrusion plate 403, the extrusion plate 403 is stressed to extrude the rubber frame 401 and the compression spring 402, at the moment, the clamping plate 204 can be lifted, along with the lifting of the clamping plate 204, the surface of the clamping plate 204 is separated from the light guide groove 5, so as to facilitate the dismounting and installation of the light guide plate 6, after the installation of the light guide plate 6 is completed, then the button 303 is loosened, the clamping plate 204 descends to clamp the groove corresponding to the light guide plate 6 due to the pressure loss, the stability of the light guide plate 6 after installation is ensured to a certain extent, the convenience of installation of the light guide plate 6 is ensured, the phenomenon that the light guide plate 6 does not loosen and fall off under long-term use is effectively ensured, the service life of the equipment is prolonged to a certain extent, meanwhile, the firmness of installation is ensured to a certain extent and the maintenance and replacement efficiency are improved through the arranged pressing type automatic clamping plate 204, the rapidness of installation of the light guide plate 6 is ensured through the butt joint of the arranged light guide groove 5 and the light guide plate 6, the installation and the disassembly of the light guide plate 6 are facilitated, the maintenance and the replacement efficiency are improved, the economic cost is reduced, and meanwhile, the arranged first substrate 7 and the second substrate 9 are used for installing internal components such as lamps and the like, the first substrate 7 is provided with a first LED lamp bead 701, the substrate is provided with a support plate 8 for supporting the space between the first substrate 7 and the second substrate 9, the screw mounting hole 801 is used for mounting equipment, the substrate is provided with a support plate 8 for supporting the space between the first substrate 7 and the second substrate 9, the second substrate 9 is provided with a second LED lamp bead 901, the specially arranged light guide plate 6 is clamped with the light guide groove 5 correspondingly arranged at the bottom of the device, the clamping is directly pressed due to the particularity of the light guide plate 6, the installation rapidness of the light guide plate 6 is ensured, the installation and the disassembly of the light guide plate 6 are convenient, meanwhile, the installed aluminum honeycomb plate 10 is conveniently locked through the screw mounting hole 801, the installation firmness is ensured to a certain extent, the maintenance and replacement efficiency is improved, and the economic cost is reduced, the problem of light guide plate 6 installation effectiveness slow and installation fastness poor is solved.

It is noted that, herein, relational terms such as first and second, and the like may be used solely to distinguish one entity or action from another entity or action without necessarily requiring or implying any actual such relationship or order between such entities or actions. Also, the terms "comprises," "comprising," or any other variation thereof, are intended to cover a non-exclusive inclusion, such that a process, method, article, or apparatus that comprises a list of elements does not include only those elements but may include other elements not expressly listed or inherent to such process, method, article, or apparatus.

Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.

Claims

1. A connect firm coupling assembling, includes main part (1), its characterized in that: the outer wall fixedly connected with locking device (2) of main part (1), the quantity of locking device (2) is four, catching groove (201) have been seted up to the bottom outer wall of locking device (2), the inner wall fixedly connected with fixed column (202) of catching groove (201), the outer wall of fixed column (202) rotates and is connected with pivot (203), the outer wall fixedly connected with joint board (204) of pivot (203).

2. A securely connected connecting assembly according to claim 1 wherein: one side outer wall fixedly connected with controller (3) of locking device (2), button groove (301) have been seted up to the outer wall of controller (3), inner wall fixedly connected with control spring (302) of button groove (301), outer wall fixedly connected with button (303) of control spring (302), the outer wall fixedly connected with connecting plate (304) of button (303), bottom outer wall fixedly connected with slide (305) of connecting plate (304), spout (306) have been seted up to one side outer wall of joint board (204), one side outer wall fixedly connected with cushion (4) of joint board (204), one side outer wall fixedly connected with rubber frame (401) and the compression of spring (402) of cushion (4), the outer wall fixedly connected with stripper plate (403) of rubber frame (401) and compression spring (402).

3. A securely connected connecting assembly according to claim 1 wherein: light guide groove (5) have been seted up to the outer wall of main part (1), the inner wall swing joint of light guide groove (5) has light guide plate (6), the outer wall fixedly connected with first base plate (7) and second base plate (9) of main part (1).

4. A securely connected connecting assembly according to claim 2 wherein: the outer wall of the button (303) is movably connected with the inner wall of the button groove (301), and the controller (3) is movably connected with the button (303) through the button groove (301) and the control spring (302).

5. A securely connected connecting assembly according to claim 4 wherein: the extrusion plate (403) is movably connected with the cushion block (4) through a rubber frame (401) and a compression spring (402), and the outer wall of the sliding plate (305) is in sliding connection with the inner wall of the sliding groove (306).

6. A securely connected connecting assembly according to claim 3 wherein: the LED lamp is characterized in that a first LED lamp bead (701) is fixedly connected to the outer wall of the bottom of the first substrate (7), a supporting plate (8) is fixedly connected to the outer wall of the top of the first substrate (7), and a screw mounting hole (801) is formed in the outer wall of the supporting plate (8).

7. A securely connected connecting assembly according to claim 6 wherein: the top outer wall of the supporting plate (8) is fixedly connected with the bottom outer wall of the second substrate (9), and the top outer wall of the second substrate (9) is fixedly connected with a second LED lamp bead (901).

8. A securely connected connecting assembly according to claim 7 wherein: the outer wall of the top of the first substrate (7) and the outer wall of the second substrate (9) are movably connected with a honeycomb aluminum plate (10).
