CN214663997U - Ceiling lamp with limiting light source - Google Patents
Ceiling lamp with limiting light source Download PDFInfo
- Publication number
- CN214663997U CN214663997U CN202120983397.6U CN202120983397U CN214663997U CN 214663997 U CN214663997 U CN 214663997U CN 202120983397 U CN202120983397 U CN 202120983397U CN 214663997 U CN214663997 U CN 214663997U
- Authority
- CN
- China
- Prior art keywords
- lamp
- light source
- shaped
- cavity
- lamp holder
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Active
Links
- 238000001179 sorption measurement Methods 0.000 claims abstract description 6
- 230000000994 depressogenic effect Effects 0.000 claims description 4
- 239000000463 material Substances 0.000 claims description 3
- 238000010521 absorption reaction Methods 0.000 claims 1
- 238000009434 installation Methods 0.000 abstract description 6
- 230000009286 beneficial effect Effects 0.000 abstract 1
- 230000001795 light effect Effects 0.000 abstract 1
- 241001465382 Physalis alkekengi Species 0.000 description 2
- 238000010586 diagram Methods 0.000 description 2
- 230000002349 favourable effect Effects 0.000 description 2
- 238000005286 illumination Methods 0.000 description 2
- 238000012986 modification Methods 0.000 description 2
- 230000004048 modification Effects 0.000 description 2
- 230000008092 positive effect Effects 0.000 description 1
Images
Landscapes
- Non-Portable Lighting Devices Or Systems Thereof (AREA)
Abstract
本实用新型公开了一种限位光源型吸顶灯，包括吸顶座，灯体结构包括灯座和灯罩，灯座的顶面开设有安装凹腔，灯座的底面中心开设有圆形灯腔，灯座的底面固定有至少三个限位凸柱，限位凸柱的底面镶嵌有吸附磁铁，还设置有框形发光光源，框形发光光源的顶面角处开设有限位凹陷区，限位凹陷区的顶面固定有配合磁铁，圆形灯腔的内壁上开设有L形的卡扣凹槽，圆形灯腔内设置有圆形灯头，圆形灯头的外壁上一体成型有卡扣凸块，圆形灯头通过卡扣凸块卡固在卡扣凹槽内。本实用新型的结构设置合理，其设置有限位凹陷区配合限位凸柱，可以保证安装的平稳性，并且采用框形发光光源配合圆形灯头，有利于提高照明的光效，适用性强且实用性好。
The utility model discloses a limit light source type ceiling lamp, comprising a ceiling seat, a lamp body structure comprising a lamp seat and a lamp shade, a mounting cavity is formed on the top surface of the lamp seat, and a circular lamp cavity is formed in the center of the bottom surface of the lamp seat The bottom surface of the lamp holder is fixed with at least three limiting convex pillars, the bottom surface of the limiting convex pillars is inlaid with adsorption magnets, and a frame-shaped light-emitting source is also provided. The top surface of the recessed area is fixed with a matching magnet, the inner wall of the circular lamp cavity is provided with an L-shaped buckle groove, the circular lamp cavity is provided with a circular lamp cap, and the outer wall of the circular lamp cap is integrally formed with a buckle Bump, the round lamp head is fastened in the clip groove through the clip bump. The structure of the utility model is reasonable, the limited concave area is arranged to cooperate with the limited convex column, which can ensure the stability of installation, and the frame-shaped light source is used to cooperate with the circular lamp cap, which is beneficial to improve the light effect of lighting, and has strong applicability and high applicability. Good practicality.
Description
Technical Field
The utility model belongs to the technical field of lamps and lanterns, concretely relates to spacing light source type ceiling lamp.
Background
Ceiling lamp is a common lamps and lanterns, and it mainly is by inhaling the footstock, fixes luminous light source and the lamp shade in inhaling the footstock bottom surface and constitutes, and it can satisfy the demand in market, but luminous light source not only the dismouting comparatively inconvenient, also is difficult to guarantee the stability of installation moreover, so suitability and practicality receive the restriction.
Disclosure of Invention
The utility model aims at providing a structure sets up reasonable and the strong spacing light source type ceiling lamp of suitability.
The technical scheme for realizing the purpose of the utility model is a limiting light source type ceiling lamp, which comprises a ceiling base and a lamp body structure connected on the ceiling base, wherein the lamp body structure comprises a lamp holder and a lamp shade, the top surface of the lamp holder is provided with an installation concave cavity, the center of the bottom surface of the lamp holder is provided with a circular lamp cavity, the bottom surface of the lamp holder is fixed with at least three limiting convex columns, the bottom surfaces of the limiting convex columns are embedded with an adsorption magnet and are also provided with a frame-shaped luminous source, the corners of the top surface of the frame-shaped luminous source are provided with limiting concave areas, the top surface of the limiting concave areas is fixed with a matching magnet, the inner wall of the circular lamp cavity is provided with an L-shaped buckle groove, a circular lamp holder is arranged in the circular lamp cavity, a buckle lug is integrally formed on the outer wall of the circular lamp holder, the circular lamp holder is clamped in the buckle groove through the buckle lug, the limiting convex column is clamped into the limiting concave area for limiting and is positioned through the adsorption magnet and the matching magnet, and the lampshade is in threaded connection with the lamp holder.
The bottom surface of the frame-shaped light-emitting source is fixed with a hemispherical lens bulge, the bottom surface of the lamp holder is also connected with a pressing piece through a pin shaft, and when the frame-shaped light-emitting source is installed, the pressing piece rotates by taking the pin shaft as the center and presses against the inner edge of the frame-shaped light-emitting source.
The outer wall of the ceiling base is integrally formed with at least three protruding pieces, the inner wall of the mounting cavity is provided with an L-shaped locking groove, and the protruding pieces of the ceiling base are clamped into the L-shaped locking groove to be fixed.
The pressing sheet is an insulating plastic material sheet.
The utility model discloses has positive effect: the utility model discloses a structure sets up rationally, and it not only can realize the dismouting operation fast, and it is provided with spacing depressed area cooperation spacing projection moreover, can guarantee the stationarity of installation to adopt the circular lamp holder of frame-shaped luminous source cooperation, be favorable to improving the light efficiency of illumination, the suitability is strong and the practicality is good.
Drawings
In order that the present invention may be more readily and clearly understood, the following detailed description of the present invention is provided in connection with the following specific embodiments, taken in conjunction with the accompanying drawings, in which:

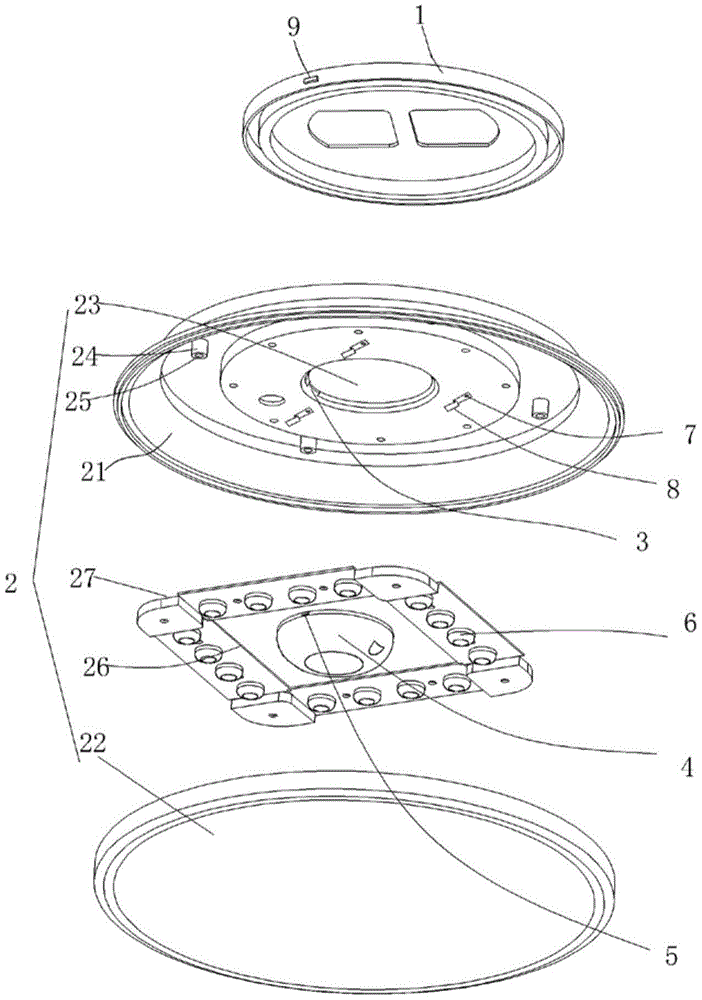

fig. 1 is a schematic structural diagram of the present invention.
Detailed Description
(example 1)
Fig. 1 shows a specific embodiment of the present invention, wherein fig. 1 is a schematic structural diagram of the present invention.
Referring to fig. 1, a limiting light source type ceiling lamp comprises a ceiling base 1 and a lamp body structure 2 connected to the ceiling base, wherein the lamp body structure 2 comprises a lamp holder 21 and a lamp shade 22, the top surface of the lamp holder is provided with an installation concave cavity which is not drawn and is of a conventional structure, the lamp holder is used for being installed with the ceiling base and is also used for installing a driving circuit, the center of the bottom surface of the lamp holder is provided with a circular lamp cavity 23, the bottom surface of the lamp holder is fixed with at least three limiting convex columns 24, the bottom surfaces of the limiting convex columns are embedded with adsorption magnets 25 and are also provided with a frame-shaped light-emitting source 26, the top surface corners of the frame-shaped light-emitting source are provided with limiting concave areas 27, the top surfaces of the limiting concave areas are fixed with matching magnets, the structure is not drawn but does not influence understanding and realization of technical personnel, attraction connection is realized through the principle that the opposite poles of the two magnets are attracted, the inner wall of the circular lamp cavity is provided with an L-shaped buckle groove 3, the round lamp is characterized in that a round lamp holder 4 is arranged in the round lamp cavity, a buckle lug 5 is integrally formed on the outer wall of the round lamp holder, the round lamp holder is clamped and fixed in the buckle groove through the buckle lug, the limit protruding column is clamped into the limit concave area for limiting, and is positioned through an adsorption magnet and a matching magnet, and the lampshade is in threaded connection with the lamp holder.
The bottom surface of the frame-shaped luminous light source is fixed with a hemispherical lens bulge 6, the bottom surface of the lamp holder is also connected with a pressing piece 8 through a pin shaft 7, in the embodiment, the pressing piece is Z-shaped, the height of the Z-shaped is the same as that of the frame-shaped luminous light source, and when the frame-shaped luminous light source is installed, the pressing piece rotates by taking the pin shaft as the center and presses against the inner edge of the frame-shaped luminous light source.
The outer wall of the ceiling base is integrally formed with at least three protruding pieces 9, the inner wall of the mounting cavity is provided with an L-shaped locking groove, and the protruding pieces of the ceiling base are clamped into the L-shaped locking groove to be fixed.
The pressing sheet is an insulating plastic material sheet.
The utility model discloses a structure sets up rationally, and it not only can realize the dismouting operation fast, and it is provided with spacing depressed area cooperation spacing projection moreover, can guarantee the stationarity of installation to adopt the circular lamp holder of frame-shaped luminous source cooperation, be favorable to improving the light efficiency of illumination, the suitability is strong and the practicality is good.
The standard parts used in the present embodiment can be purchased directly from the market, and the non-standard structural parts described in the specification can also be obtained directly by processing according to the common general knowledge of the prior art without any doubt, and the connection mode of the parts adopts the conventional means matured in the prior art, and the machines, parts and equipment adopt the conventional models in the prior art, so that the detailed description is not given here.
It is obvious that the above embodiments of the present invention are only examples for clearly illustrating the present invention, and are not limitations to the embodiments of the present invention. Other variations and modifications will be apparent to persons skilled in the art in light of the above description. And are neither required nor exhaustive of all embodiments. And such obvious changes and modifications which fall within the spirit of the invention are deemed to be covered by the present invention.
Claims (4)
1. The utility model provides a spacing light source type ceiling lamp, is including inhaling the footstock, connects inhale the lamp body structure on the footstock, its characterized in that: the lamp body structure comprises a lamp holder and a lamp shade, the top surface of the lamp holder is provided with a mounting concave cavity, the center of the bottom surface of the lamp holder is provided with a circular lamp cavity, at least three limiting convex columns are fixed on the bottom surface of the lamp holder, adsorption magnets are embedded on the bottom surfaces of the limiting convex columns, a frame-shaped luminous light source is also arranged, a limit depressed area is arranged at the corner of the top surface of the frame-shaped luminous light source, a matching magnet is fixed on the top surface of the limit depressed area, the inner wall of the circular lamp cavity is provided with an L-shaped buckle groove, a circular lamp holder is arranged in the circular lamp cavity, the outer wall of the round lamp holder is integrally provided with a buckle lug, the round lamp holder is clamped and fixed in the buckle groove through the buckle lug, the limit convex column is clamped in the limit concave area for limiting, and fix a position through absorption magnet and cooperation magnet, the lamp shade with lamp stand threaded connection.
2. The limit light source type ceiling lamp of claim 1, wherein: the bottom surface of the frame-shaped light-emitting source is fixed with a hemispherical lens bulge, the bottom surface of the lamp holder is also connected with a pressing piece through a pin shaft, and when the frame-shaped light-emitting source is installed, the pressing piece rotates by taking the pin shaft as the center and presses against the inner edge of the frame-shaped light-emitting source.
3. The limit light source type ceiling lamp of claim 2, wherein: the outer wall of the ceiling base is integrally formed with at least three protruding pieces, the inner wall of the mounting cavity is provided with an L-shaped locking groove, and the protruding pieces of the ceiling base are clamped into the L-shaped locking groove to be fixed.
4. The limit light source type ceiling lamp according to claim 3, wherein: the pressing sheet is an insulating plastic material sheet.
