CN214647101U

CN214647101U - A special folder for economic management

Info

Publication number: CN214647101U
Application number: CN202120186340.3U
Authority: CN
Inventors: 沈敬然; 刘蔼萱
Original assignee: Hebei GEO University
Current assignee: Hebei GEO University
Priority date: 2021-01-25
Filing date: 2021-01-25
Publication date: 2021-11-09
Anticipated expiration: 2031-01-25

Abstract

The utility model discloses a special folder for economic management, which relates to the field of stationery. The utility model comprises a front plate, a photo pocket is fixedly connected to the front left side of the front plate, and a magnetic strip is fixedly connected to the left edge of the photo pocket. , the front right side of the front plate is fixedly connected with a business card pocket, the front top of the front plate is fixedly connected with a fixing belt, the bottom end of the fixing belt is fixedly connected with a magnetic block, the front bottom right side of the front plate is fixedly connected A pencil bag is fixedly connected to the side, a calculator storage bag is fixedly connected to the left side of the front bottom of the front plate, a calculator is arranged inside the calculator storage bag, and a rear plate is fixedly connected to the right side of the front plate. The utility model has the function of accommodating calculators, pens, various cards and documents, not only can place documents on the front side of the partition board, but also can place documents on the reverse side of the partition board, and can also facilitate the classification and storage of documents, which is convenient for users Scroll through to find relevant content.

Description

Special file of economic management

Technical Field

The utility model relates to a stationery field especially relates to a special file of economic management.

Background

With the development of society, related files of economic management professions are classified more and more, students of economic management professions need to use a plurality of folders for classified processing, common folders can only clamp the files on the inner sides of the folders, and due to the fact that a clamping device is made of metal materials, wrinkles can be generated on the surfaces of the economic management files, information on the economic management files is abraded, and the use of the economic management files is influenced;

meanwhile, the common folder is single in function, inconvenient to store and search, incapable of meeting the use requirements of students and teachers in the profession, and brings much inconvenience to the learning of the students and the teachers and the management of files, so that the special folder for economic management is provided.

SUMMERY OF THE UTILITY MODEL

The utility model aims at solving the defects existing in the prior art and providing a special file folder for economic management.

In order to achieve the above purpose, the utility model adopts the following technical scheme:

a special file folder for economic management comprises a front plate, wherein a photo bag is fixedly connected to the left side of the front surface of the front plate, a magnetic stripe is fixedly connected to the left side edge of the photo bag, a name card bag is fixedly connected to the right side of the front surface of the front plate, a fixing band is fixedly connected to the top of the front surface of the front plate, a magnetic block is fixedly connected to the inner portion of the bottom end of the fixing band, a pen bag is fixedly connected to the right side of the front surface of the front plate, a calculator placing bag is fixedly connected to the left side of the front surface of the front plate, a calculator is arranged in the calculator placing bag, a rear plate is fixedly connected to the right side of the front plate, a fixing rod is fixedly connected to the left side of the front surface of the rear plate, a partition plate is rotatably connected to the outer ring of the fixing rod, a chute block is fixedly connected to the front surface and the back surface of the partition plate, a push rod is slidably connected to the inner portion of the chute block, and one end of the push rod is rotatably connected to a lock block, the equal fixedly connected with opening snap ring in front, the back of baffle, the locking piece joint is in the inside of opening snap ring, the other end of push rod rotates and is connected with the folding rod, the other end of folding rod rotates and is connected with the clamp plate, the inside rotation in bottom of clamp plate is connected with first connecting strip, the inside rotation in bottom of clamp plate is connected with the second connecting strip, the bottom of first connecting strip and second connecting strip all rotates and is connected with the bottom plate, bottom plate and baffle fixed connection, the back fixedly connected with layering of clamp plate.

Preferably, the baffle is provided with three, the right side of baffle fixedly connected with label card respectively, the label card is provided with three, and the dislocation set.

Preferably, the left side opening of photo bag is the arc, the magnetic stripe is the arc, and is located the left side opening part of photo bag, the front of front bezel is provided with the magnetic sheet that matches with magnetic stripe, magnetic path respectively.

Preferably, the split snap ring, the locking block, the push rod, the sliding groove block, the folding rod, the pressing plate, the first connecting strip, the second connecting strip, the bottom plate and the pressing strip are collectively called as clamping devices, and the clamping devices are symmetrically arranged on the front side, the back side, the top and the bottom of the partition plate.

Preferably, the top of the first connecting strip is provided with a clamping groove, and the second connecting strip is matched with the clamping groove of the first connecting strip.

Preferably, the pressing strip is made of rubber, and the top end of the locking block is Z-shaped.

The utility model has the advantages that:

1. the utility model discloses in, use through the cooperation of baffle, clamping device and tag card, not only can place the file in the front of baffle, can also place the file at the reverse side of baffle, enlarged the usage space of file pocket, the classification of the file of can being convenient for is deposited, through the design of label snap ring and baffle, has made things convenient for the user to browse and has seeked relevant content, and the layering of rubber material can avoid pressing out the fold with the file, has avoided losing of file information.

2. The utility model discloses in, through the design of photo bag, magnetic stripe, business card bag, fixed band for multiple card can be deposited to the file, and be difficult for dropping, has guaranteed the stability that the card was placed, has still combined the design of calculator placing bag, pen bag, and convenient to use person calculates or record information at any time.

Drawings

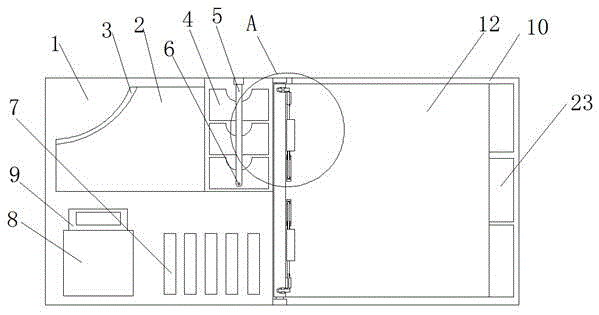

FIG. 1 is a schematic structural view of a folder dedicated for economic management according to the present invention;

FIG. 2 is a schematic view of the economic management dedicated folder according to the present invention, partially enlarged at A in FIG. 1;

FIG. 3 is a schematic structural view of a pressing plate and a first connecting strip of the document folder for economic management according to the present invention;

FIG. 4 is a schematic structural view of the snap ring and the fixing rod of the file folder for economic management according to the present invention;

FIG. 5 is a schematic structural view of a lock block of the economic management dedicated folder of the present invention;

reference numbers in the figures: 1. a front plate; 2. a photo bag; 3. a magnetic strip; 4. a business card bag; 5. fixing belts; 6. a magnetic block; 7. a pen bag; 8. a calculator placing bag; 9. a calculator; 10. a back plate; 11. fixing the rod; 12. a partition plate; 13. a split snap ring; 14. a locking block; 15. a push rod; 16. a chute block; 17. a folding bar; 18. pressing a plate; 19. a first connecting bar; 20. a second connecting strip; 21. a base plate; 22. layering; 23. and (4) label cards.

Detailed Description

The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments.

Referring to fig. 1-5, a special file folder for economic management comprises a front plate 1, a photo bag 2 fixedly connected to the left side of the front surface of the front plate 1, a magnetic stripe 3 fixedly connected to the left side edge of the photo bag 2, a business card bag 4 fixedly connected to the right side of the front surface of the front plate 1, a fixing band 5 fixedly connected to the top of the front surface of the front plate 1, a magnetic block 6 fixedly connected to the inside of the bottom end of the fixing band 5, a pen bag 7 fixedly connected to the right side of the bottom of the front surface of the front plate 1, a calculator placing bag 8 fixedly connected to the left side of the bottom of the front surface of the front plate 1, a calculator 9 arranged inside the calculator placing bag 8, so that the file folder can store various cards and is not easy to fall off, the stability of placing cards is ensured, a rear plate 10 is fixedly connected to the right side of the front plate 1, a fixing rod 11 is fixedly connected to the left side of the front surface of the rear plate 10, a partition plate 12 is rotatably connected to the outer ring of the fixing rod 11, the front and back of the partition board 12 are fixedly connected with a sliding groove block 16, the sliding groove block 16 is connected with a push rod 15 in a sliding manner, one end of the push rod 15 is rotatably connected with a locking block 14, the front and back of the partition board 12 are fixedly connected with an open snap ring 13, the locking block 14 is clamped in the open snap ring 13, the other end of the push rod 15 is rotatably connected with a folding rod 17, the other end of the folding rod 17 is rotatably connected with a pressing plate 18, the bottom end of the pressing plate 18 is rotatably connected with a first connecting strip 19, the bottom end of the pressing plate 18 is rotatably connected with a second connecting strip 20, the bottom ends of the first connecting strip 19 and the second connecting strip 20 are rotatably connected with a bottom plate 21, the bottom plate 21 is fixedly connected with the partition board 12, and the back of the pressing plate 18 is fixedly connected with a pressing strip 22;

the partition board 12 is provided with three labels 23, the right side of the partition board 12 is fixedly connected with the label cards 23 respectively, the labels can be conveniently classified and stored for reference, the labels 23 are arranged in a staggered mode, the left opening of the photo bag 2 is arc-shaped, the magnetic stripe 3 is arc-shaped and is positioned at the left opening of the photo bag 2, the front side of the front board 1 is provided with magnetic boards matched with the magnetic stripe 3 and the magnetic block 6 respectively, the opening clamping ring 13, the locking block 14, the push rod 15, the sliding groove block 16, the folding rod 17, the pressing board 18, the first connecting strip 19, the second connecting strip 20, the bottom board 21 and the pressing strip 22 are symmetrically arranged at the front side, the back side, the top and the bottom of the partition board 12, the documents can be placed on the front side of the partition board, the use space of the document bag is enlarged, the top of the first connecting strip 19 is provided with clamping grooves, the second connecting strip 20 is matched with the clamping grooves of the first connecting strip 19, the pressing strip 22 is made of rubber, and the top end of the locking block 14 is Z-shaped.

The working principle is as follows: firstly, the locking block 14 is pulled out from the snap ring 13 rightwards, the locking block 14 is held to move downwards, the locking block 14 drives the push rod 15 to move downwards, the push rod 15 slides downwards in the sliding groove block 16 and pushes the folding rod 17 to move downwards, the folding rod 17 is rotationally connected with the pressing plate 18, the pressing plate 18 is driven by the folding rod 17 to move forwards, the pressing plate 18 drives the first connecting strip 19 and the second connecting strip 20 to rotate, so that the pressing plate 18 is unfolded forwards, the pressing plate 18 drives the pressing strip 22 to move, the pressing strip 22 is separated from the partition plate and leaves a gap with the partition plate, then a document is placed on the surface of the partition plate 12, the document is placed in the gap between the pressing strip 22 and the partition plate 12 in a left-to-right alignment mode, then the locking block 14 is moved upwards, the locking block 14 drives the push rod 15 to drive the folding rod 17 to move upwards, the folding rod 17 drives the pressing plate 18 to move backwards, the pressing plate 18 drives the pressing strip 22 to gradually approach the document, when the locking block 14 moves to the uppermost end, the locking block 14 is rotated to the left, the locking block 14 is pressed, and is clamped in the split snap ring 13, at the moment, the first connecting strip 19, the second connecting strip 20 and the folding rod 17 are all in a horizontal state and are in contact with the partition plate 12, the second connecting strip 20 is clamped in an internal clamping groove of the first connecting strip 19, the pressing strip 22 clamps a file, and a label is written on a label card 23 on the side of the partition plate 12 where the file is placed so as to be consulted;

when business card or card are placed to needs, take up the magnetic path 6 of 5 bottoms of fixed band, insert business card or card in the business card bag 4, fix magnetic path 6 again on the magnetic sheet of front bezel 1, fixed band 5 fixes business card or card, prevent to drop, when placing photo or little paper, at first dial magnetic stripe 3 open, insert photo or little paper in photo bag 2, release magnetic stripe 3, magnetic stripe 3 receives magnetic force, adsorb on the magnetic sheet of front bezel 1, thereby fix photo or little paper, avoid dropping.

In the description of the present invention, it is to be understood that the terms "center", "longitudinal", "lateral", "length", "width", "thickness", "upper", "lower", "front", "rear", "left", "right", "vertical", "horizontal", "top", "bottom", "inner", "outer", "clockwise", "counterclockwise", and the like indicate orientations or positional relationships based on the orientations or positional relationships shown in the drawings, and are only for convenience of description and to simplify the description, but do not indicate or imply that the device or element referred to must have a particular orientation, be constructed and operated in a particular orientation, and therefore should not be construed as limiting the present invention.

Furthermore, the terms "first", "second" and "first" are used for descriptive purposes only and are not to be construed as indicating or implying relative importance or implicitly indicating the number of technical features indicated. Thus, a feature defined as "first" or "second" may explicitly or implicitly include one or more of that feature. In the description of the present invention, "a plurality" means two or more unless specifically limited otherwise.

The above, only be the concrete implementation of the preferred embodiment of the present invention, but the protection scope of the present invention is not limited thereto, and any person skilled in the art is in the technical scope of the present invention, according to the technical solution of the present invention and the utility model, the concept of which is equivalent to replace or change, should be covered within the protection scope of the present invention.

Claims

1. A special folder for economic management, comprising a front plate (1), characterized in that a photo bag (2) is fixedly connected to the front left side of the front plate (1), and the left side of the photo bag (2) is fixedly connected. A magnetic strip (3) is fixedly connected to the side edge, a business card pocket (4) is fixedly connected to the front right side of the front plate (1), and a fixing belt (5) is fixedly connected to the front top of the front plate (1). A magnetic block (6) is fixedly connected to the bottom end of the fixing belt (5), a pencil case (7) is fixedly connected to the bottom right side of the front side of the front plate (1), and the front side of the front plate (1) is fixedly connected. A calculator placing bag (8) is fixedly connected to the left side of the bottom, a calculator (9) is arranged inside the calculator placing bag (8), and a rear plate (10) is fixedly connected to the right side of the front plate (1). ), the front left side of the rear plate (10) is fixedly connected with a fixing rod (11), the outer ring of the fixing rod (11) is rotatably connected with a partition (12), and the front of the partition (12) , the back is fixedly connected with a chute block (16), the inside of the chute block (16) is slidably connected with a push rod (15), and one end of the push rod (15) is rotatably connected with a lock block (14), The front and back of the partition plate (12) are fixedly connected with an open snap ring (13), the lock block (14) is clamped inside the open snap ring (13), and the other side of the push rod (15) One end is rotatably connected with a folding rod (17), the other end of the folding rod (17) is rotatably connected with a pressure plate (18), and the bottom end of the pressure plate (18) is rotatably connected with a first connecting bar (19), so A second connecting bar (20) is rotatably connected to the bottom end of the pressing plate (18), and a bottom plate (21) is rotatably connected to the bottom ends of the first connecting bar (19) and the second connecting bar (20). The bottom plate (21) is fixedly connected to the partition plate (12), and a pressure strip (22) is fixedly connected to the back of the pressing plate (18).

2. A special folder for economic management according to claim 1, characterized in that, three partitions (12) are provided, and label cards (23) are respectively fixedly connected to the right side of the partition (12). ), the label card (23) is provided with three pieces, and they are arranged in dislocation.

3. A special folder for economic management according to claim 1, characterized in that the left opening of the photo bag (2) is arc-shaped, and the magnetic strip (3) is arc-shaped and located in the photo pocket (2). At the left opening of the bag (2), the front surface of the front plate (1) is provided with magnetic plates respectively matched with the magnetic strips (3) and the magnetic blocks (6).

4. A special folder for economic management according to claim 1, characterized in that the open snap ring (13), the lock block (14), the push rod (15), the chute block (16), the folding The rod (17), the pressing plate (18), the first connecting bar (19), the second connecting bar (20), the bottom plate (21) and the pressing bar (22) are collectively referred to as clamping devices, and the clamping devices are symmetrically arranged at the intervals. Front, back and top and bottom of the board (12).

5. A special folder for economic management according to claim 1, characterized in that a card slot is opened on the top of the first connecting bar (19), and the second connecting bar (20) is connected to the first connecting bar (19). Match the card slot of the strip (19).

6 . The special folder for economic management according to claim 1 , wherein the bead ( 22 ) is made of rubber, and the top of the lock block ( 14 ) is Z-shaped. 7 .
