CN214630897U

CN214630897U - Bill storage device for accounting

Info

Publication number: CN214630897U
Application number: CN202022384961.0U
Authority: CN
Inventors: 刘红云; 杨明珠; 李萃
Original assignee: Henan Polytechnic Institute
Current assignee: Henan Polytechnic Institute
Priority date: 2020-10-23
Filing date: 2020-10-23
Publication date: 2021-11-09
Anticipated expiration: 2030-10-23

Abstract

The utility model belongs to the technical field of the accounting, and a bill storage device for accounting is disclosed, the intelligent cabinet temperature adjusting device comprises a cabinet body, three standing groove has been seted up to the internal portion of cabinet, the drawer has been cup jointed in the inside activity of standing groove, the positive fixed mounting of drawer has the handle, three identical storing groove has been seted up to the inside of drawer, and is three the same and the joint groove that the interval equals of size has all been seted up to the inner wall in storing groove, the inside in storing groove has the division board through joint groove activity joint, the bill storage bag has been placed to the inside in storing groove. The utility model discloses a bag is accomodate to the bill collects the bill earlier, reaches the purpose that the timesharing was accomodate, accomodates the bag through the division board and separates in order with the bill to conveniently look for the staff afterwards and can collect the bill of same type fast according to the demand, this application is for prior art, has and separately according to the different grade type with the bill for the accounting, nevertheless convenient unified arrangement, accomodates the efficient advantage.

Description

Bill storage device for accounting

Technical Field

The utility model belongs to the technical field of the accounting, specifically a bill storage device for accounting.

Background

Accounting refers to the process of checking up accounting documents, financial accounts and financial statements and carrying out economic accounting and supervision according to the 'accounting law', the 'precalculation' and the 'statistical law', wherein money is used as a main metering unit, a special method is used for accounting and supervising the economic management work of one unit of economic activities, a plurality of bills are used in the accounting work, the bills mainly come from original documents (documents obtained by business managers from external units when business occurs or is completed, such as delivery tickets of supply units, bank cash register notices and the like) and self-made original documents (documents which are automatically made by units and filled by related departments or personnel, such as receipts, payroll, receipts, sales receipts, cost calculation sheets and the like), and the storage of the bills is greatly valued due to the importance.

The existing bill storage device for accountants is lack of a longitudinal classification function, when accounting is carried out, various types of bills can be transversely arranged and stored together according to the sequence relation of occurrence of events according to the advance of dates so as to check a cash flow table at the bottom of a month, but due to the fact that the bills of different types are different in size, the bills are not easy to arrange and store in the process of storage, in addition, when a company needs to check the bills of the same type but issued at different times, great troubles are brought to the accountants, the work is easy to make mistakes, and the efficiency is low.

Present bill storage device for accounting mostly is paper receiver and leaves in the cupboard, can't deposit in moist environment, makes the bill in the receiver damp and go mildy easily, damages the bill, brings the trouble for financial staff, and current improved generation bill storage device adopts the method of fan heating usually, and the structure is complicated, and the practicality is not high.

SUMMERY OF THE UTILITY MODEL

The utility model aims at the above problem, the utility model provides a bill storage device for accounting has categorised high efficiency and the good advantage of dehumidification nature.

In order to achieve the above object, the utility model provides a following technical scheme: the utility model provides a bill storage device for accounting, includes the cabinet body, three standing groove has been seted up to the internal portion of cabinet, the drawer has been cup jointed in the inside activity of standing groove, the positive fixed mounting of drawer has the handle, three identical storing groove has been seted up to the inside of drawer, it is three the same and the joint groove that the interval equals of size are all seted up to the inner wall in storing groove, the inside in storing groove has the division board through joint groove activity joint, the bag is accomodate to the bill has been placed to the inside in storing groove.

As a preferred technical scheme of the utility model, the inside of the cabinet body is seted up and is located threely the hole of placing at the standing groove top, just place hole and standing groove UNICOM, the spacing groove has all been seted up to the inner wall both sides of placing the hole, the top of placing the hole set up with place the spacing hole of hole UNICOM, and the diameter value in spacing hole is greater than the diameter value of placing the hole, the inside activity joint of placing the hole has the dehumidification bucket, the dehumidification hole that runs through to dehumidification bucket inner chamber is seted up to the surface of dehumidification bucket, the equal fixedly connected with stopper in both sides of dehumidification bucket, and the stopper be located the inside in spacing hole and with spacing hole activity joint.

As a preferred technical scheme of the utility model, the inner wall both sides fixed mounting of the cabinet body has the slider that is located the standing groove inside, the spout has all been seted up to the both sides of drawer, slider and spout shape looks adaptation.

As a preferred technical scheme of the utility model, four ventilation holes that run through to the back are seted up in the front of division board, the bill storage bag is including the bag body, the top border fixedly connected with parcel page or leaf of the bag body, the outer fixed surface of the bag body is connected with magnet No. two, the outer fixed surface of parcel page or leaf installs magnet No. one, magnet and magnet magnetism No. two are connected.

As an optimal technical scheme of the utility model, the bottom fixed mounting of dehumidification bucket has the rotation strip, the length value of rotation strip is less than the diameter value of dehumidification bucket.

As a preferred technical scheme of the utility model, the diameter value of dehumidification bucket is less than the diameter value of placing the hole.

Compared with the prior art, the beneficial effects of the utility model are as follows:

1. the utility model discloses an offer the storage place that provides the bill in the inside longitudinal distribution's of drawer three storing groove, put the bill of different grade type in the storing groove of difference and reach "vertically accomodate" to be about to the bill of the same date emergence but the different grade type separately accomodate, accomodate the bag through the bill and collect the bill earlier, reach the purpose that the timesharing was accomodate, it is separated in order to accomodate the bag with the bill through the division board, and it can collect the bill of same type fast according to the demand to look for the staff after the convenience, this application is for prior art, it separately to have the bill for the accounting according to the different grade type, nevertheless convenient unified arrangement, accomodate the efficient advantage.

2. The utility model discloses a dehumidification bucket that is located the internal portion of cabinet comes to deposit the environment in the cabinet body and reaches the purpose of dry dehumidification, wherein, the dehumidification bucket is equipped with the hollow circular cylinder of the no top cap in dehumidification hole for inside recoverable drier and surface set up, through getting into the inside of placing hole and spacing hole and reaching the purpose of fixed dehumidification bucket with the rotatory joint of dehumidification bucket, and because place the hole set up at the top of standing groove and with standing groove UNICOM, need not worry the problem of ventilation, in addition the bill accomodates the bag and finally reaches the deposit environment drying that keeps the bill to the preliminary protection of bill, protect the purpose of bill, this application is for prior art, has dehumidification effect and advantage with low costs.

Drawings

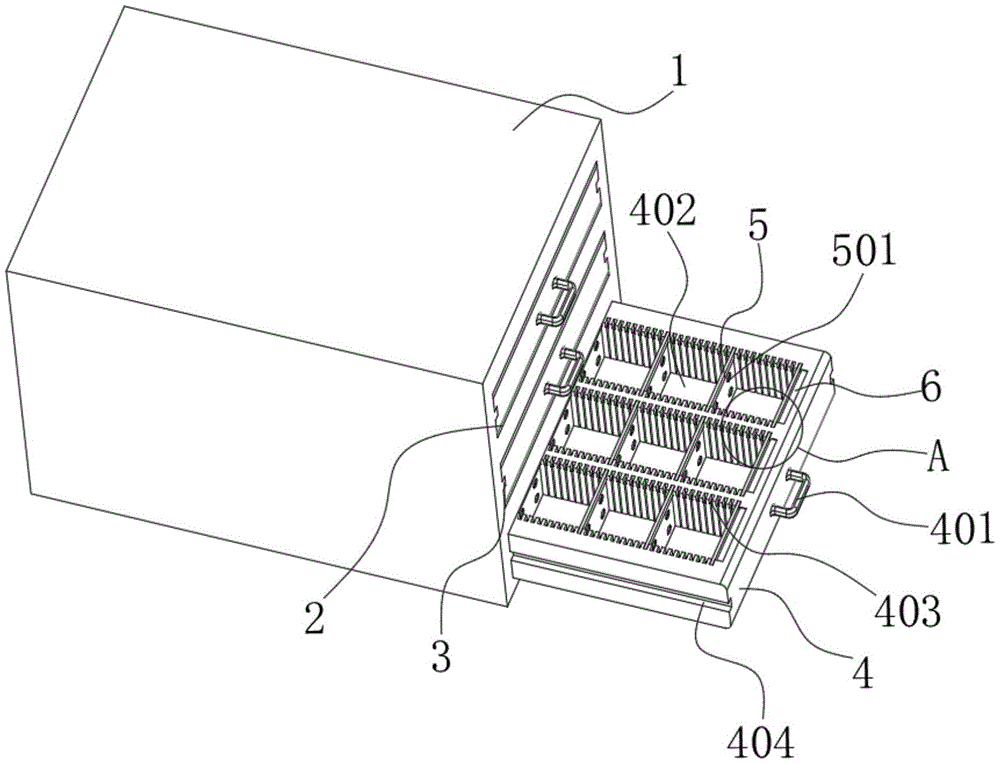

FIG. 1 is a schematic structural view of the present invention;

FIG. 2 is a front sectional view of the cabinet body of the present invention;

FIG. 3 is a partial perspective sectional view of the limiting hole and the limiting groove of the present invention;

FIG. 4 is a perspective view of the dehumidifying bucket of the present invention;

FIG. 5 is a perspective view of the partition board of the present invention;

FIG. 6 is a perspective view of the bill storage bag of the present invention;

FIG. 7 is a perspective view of the bill storage bag of the present invention;

FIG. 8 is an enlarged view of the structure at position A of the present invention;

fig. 9 is an enlarged view of the structure of the present invention at B.

In the figure: 1. a cabinet body; 2. a placement groove; 3. a slider; 4. a drawer; 401. a handle; 402. a storage tank; 403. a clamping groove; 404. a chute; 5. a separator plate; 501. a vent hole; 6. a note storage bag; 601. a wrapping sheet; 602. a first magnet; 603. a bag body; 604. a magnet II; 7. placing holes; 8. a limiting hole; 9. a limiting groove; 10. a dehumidification barrel; 11. a dehumidification hole; 12. rotating the strip; 13. and a limiting block.

Detailed Description

The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.

As shown in figures 1 to 9, the utility model provides a bill storage device for accountants, which comprises a cabinet body 1, three placing grooves 2 are arranged inside the cabinet body 1, wherein the three placing grooves 2 are longitudinally distributed from top to bottom, a drawer 4 is movably sleeved inside the placing grooves 2, a handle 401 is fixedly arranged on the front surface of the drawer 4, three identical storage grooves 402 are arranged inside the drawer 4, wherein, the drawer 4 is different from the traditional internal hollowed design, the three isolated storage grooves 402 are arranged inside the drawer 4, the inner walls of the three storage grooves 402 are all provided with clamping grooves 403 with the same size and the same interval, an isolation plate 5 is movably clamped inside the storage groove 402 through the clamping grooves 403, a bill storage bag 6 is arranged inside the storage groove 402, wherein, the isolation plate 5 can be clamped into any one of the clamping grooves 403, which is mainly determined according to the number and the thickness of the bill storage bags 6, when the bills need to be stored in the vertical direction (separately storing the bills with the same date but different types), the bills with different types are put into different bill storage bags 6, stored in different storage grooves 402 by taking the occurrence of the same date as a reference, and separated by a separation plate 5, so that the vertical storage is realized.

Wherein, the cabinet body 1 is internally provided with a placing hole 7 positioned at the top of the three placing grooves 2, the placing hole 7 is communicated with the placing grooves 2, both sides of the inner wall of the placing hole 7 are respectively provided with a limiting groove 9, the top of the placing hole 7 is provided with a limiting hole 8 communicated with the placing hole 7, the diameter value of the limiting hole 8 is larger than that of the placing hole 7, the inside of the placing hole 7 is movably clamped with a dehumidifying barrel 10, the outer surface of the dehumidifying barrel 10 is provided with a dehumidifying hole 11 penetrating to the inner cavity of the dehumidifying barrel 10, both sides of the dehumidifying barrel 10 are fixedly connected with limiting blocks 13, the limiting blocks 13 are positioned inside the limiting holes 8 and movably clamped with the limiting holes 8, the dehumidifying barrel 10 is a hollow cylindrical structure with a hole at the top and an inner cavity, and the inside can store recyclable drying agent (the main component of the drying agent is silica gel which is insoluble in water, and the moisture absorption capacity is recovered after drying, so can reuse), dehumidification hole 11 can keep the inside and outside circulation of air of dehumidification bucket 10, and because dehumidification hole 11 is seted up in dehumidification bucket 10 openly peripherally, needn't worry that the drier drops, the length value of stopper 13 is less than the horizontal depth value of spacing groove 9, makes stopper 13 can pass through the inside of spacing groove 9 rotatory card into spacing hole 8 smoothly.

Wherein, the inner wall both sides fixed mounting of the cabinet body 1 has the slider 3 that is located standing groove 2 inside, and spout 404 has all been seted up to drawer 4's both sides, slider 3 and spout 404 shape looks adaptation, and drawer 4 can be twitched in standing groove 2's inside and outside both sides along slider 3 through spout 404, and is more stable, has protected the bottom of drawer 4.

Wherein, four ventilation holes 501 that run through to the back are seted up to the front of division board 5, bag 6 is accomodate to the bill includes the bag body 603, the top border fixedly connected with parcel page or leaf 601 of the bag body 603, the outer fixed surface of the bag body 603 is connected with magnet 604 No. two, the outer fixed surface of parcel page or leaf 601 installs magnet 602 No. one, magnet 602 and magnet 604 magnetism are connected No. two, ventilation hole 501 can make the inside bill of storing groove 402 accomodate bag 6 air and keep circulating, the dry dehumidification effect of reinforcing, bag 6 is accomodate to the bill is supported by plastics, and can be according to the inside bill quantity of depositing change self thickness, can deposit the bill in a flexible way when protecting the bill, reach the purpose of enclosing bag 6 is accomodate to the bill through magnet 602 and magnet 604 magnetism No. two, and magnetism is connected convenient and fast.

Wherein, the bottom fixed mounting of dehumidification bucket 10 has rotation strip 12, and the length value of rotation strip 12 is less than the diameter value of dehumidification bucket 10, because dehumidification bucket 10 can get into the inside of placing hole 7, so it is very inconvenient with the hand, nevertheless rotation strip 12 can avoid the hand to get into the inside of placing hole 7, makes the finger by the inner space restriction of placing hole 7, makes depositing of dehumidification bucket 10 more convenient.

Wherein the dehumidifying tub 10 has a diameter value smaller than that of the placing hole 7, and the dehumidifying tub 10 is maintained in air-communication with the drawer 4 mainly through the dehumidifying hole 11, so that the outer surface of the dehumidifying tub 10 is spaced apart from the placing hole 7 for this purpose.

The utility model discloses a theory of operation and use flow:

firstly, placing bills to be stored in a bill storage bag 6, pulling a handle 401 outwards to drive a drawer 4 to move towards the outer side of a placing groove 2 along a sliding block 3, placing the bill storage bag 6 in a storage groove 402, then clamping an isolation plate 5 in a clamping groove 403 nearest to the bill storage bag 6 to complete the fixation of the bill storage bag 6, and then holding the handle 401 to push the drawer 4 reversely to reset the drawer 4;

when bills of different types but on the same date need to be classified, the bills of different types are respectively placed in different bill containing bags 6, then are placed in different storage grooves 402, and then are respectively fixed by the isolation plates 5, so that the purpose of classified containing can be achieved;

when the cabinet body 1 needs to be dried and dehumidified, the drawer 4 is pulled out of the placing groove 2 through the pulling handle 401, the rotating strip 12 is pinched by a hand to place the dehumidifying barrel 10 into the placing groove 2, then the dehumidifying barrel 10 is upwards pushed along the placing hole 7, the rotating strip 12 is rotated to enable the limiting block 13 to pass through the limiting groove 9 and enter the limiting hole 8, then the dehumidifying barrel 10 is continuously rotated to enable the limiting block 13 to be no longer located right above the limiting groove 9, the dehumidifying barrel 10 is fixed through limiting action and then the limiting hole 8 and the limiting groove 9 are formed in the inside, and then the drawer 4 is placed into the placing groove 2.

It is noted that, herein, relational terms such as first and second, and the like may be used solely to distinguish one entity or action from another entity or action without necessarily requiring or implying any actual such relationship or order between such entities or actions. Also, the terms "comprises," "comprising," or any other variation thereof, are intended to cover a non-exclusive inclusion, such that a process, method, article, or apparatus that comprises a list of elements does not include only those elements but may include other elements not expressly listed or inherent to such process, method, article, or apparatus.

Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.

Claims

1. The utility model provides a bill storage device for accounting, includes the cabinet body (1), its characterized in that: the utility model discloses a bill storage cabinet, including cabinet body (1), cabinet body (1) inside has seted up three standing groove (2), drawer (4) have been cup jointed in the inside activity of standing groove (2), the front fixed mounting of drawer (4) has handle (401), three identical storing groove (402) have been seted up to the inside of drawer (4), and is three the joint groove (403) that the size is the same and the interval equals are all seted up to the inner wall of storing groove (402), the inside of storing groove (402) has division board (5) through joint groove (403) movable joint, bag (6) are accomodate to the bill has been placed to the inside of storing groove (402).

2. The bill storage device for accountants as claimed in claim 1, wherein: the inside of the cabinet body (1) is provided with a placing hole (7) which is positioned at the top of the placing groove (2), the placing hole (7) is communicated with the placing groove (2), the two sides of the inner wall of the placing hole (7) are provided with limit grooves (9), the top of the placing hole (7) is provided with a limit hole (8) communicated with the placing hole (7), the diameter value of the limit hole (8) is larger than that of the placing hole (7), the inside movable joint of the placing hole (7) is provided with a dehumidifying barrel (10), the outer surface of the dehumidifying barrel (10) is provided with a dehumidifying hole (11) which runs through the inner cavity of the dehumidifying barrel (10), the two sides of the dehumidifying barrel (10) are fixedly connected with limit blocks (13), and the limit blocks (13) are positioned in the limiting hole (8) and movably connected with the limit holes (8).

3. The bill storage device for accountants as claimed in claim 1, wherein: the inner wall both sides fixed mounting of the cabinet body (1) has slider (3) that are located standing groove (2) inside, spout (404) have all been seted up to the both sides of drawer (4), slider (3) and spout (404) shape looks adaptation.

4. The bill storage device for accountants as claimed in claim 1, wherein: four ventilation holes (501) that run through to the back are seted up in the front of division board (5), bag (6) are accomodate to the bill is including the bag body (603), the top border fixedly connected with parcel page or leaf (601) of the bag body (603), magnet (604) No. two of the external fixed surface of the bag body (603), the external fixed surface of parcel page or leaf (601) installs magnet (602) No. one, magnet (602) and magnet (604) magnetism are connected No. two.

5. The bill storage device for accountants as claimed in claim 2, wherein: the bottom fixed mounting of dehumidification bucket (10) has runner bar (12), the length value of runner bar (12) is less than the diameter value of dehumidification bucket (10).

6. The bill storage device for accountants as claimed in claim 2, wherein: the diameter value of the dehumidification barrel (10) is smaller than that of the placing hole (7).
