CN214615344U

CN214615344U - A foldable fitment device for indoor decoration

Info

Publication number: CN214615344U
Application number: CN202120132164.5U
Authority: CN
Inventors: 罗孝武
Original assignee: Fujian Zhaishengsheng Decoration Engineering Co ltd
Current assignee: Fujian Zhaishengsheng Decoration Engineering Co ltd
Priority date: 2021-01-18
Filing date: 2021-01-18
Publication date: 2021-11-05
Anticipated expiration: 2031-01-18

Abstract

The utility model discloses a foldable fitment device for indoor decoration belongs to the fitment device field. When needing to accomodate, the artifical spacing sleeve that rotates for spacing sleeve no longer supports tight limiting plate, presses the control button afterwards and controls the output shaft shrink that drives actuating cylinder, thereby drives the limiting plate and moves towards the platen, and the inserted bar is taken out from spacing hole in the motion process, can accomplish the separation of limiting plate and extension board. After that, the support plate can be manually rotated to rotate the support plate towards the bedplate, so that folding and storage are finally completed. When needing to use, the extension board is rotated to manual work earlier, rotates the extension board along the direction of keeping away from the platen until extension board and link plate are laminated mutually, presses down control button afterwards and controls the output shaft extension that drives actuating cylinder to drive the limiting plate and move towards the inserted bar, establish to spacing downthehole until the inserted bar inserts. And finally, manually rotating the limiting sleeve until the limiting sleeve abuts against the limiting plate, so that the installation can be completed, and the structure is stable, so that a constructor can stand above the bedplate for construction.

Description

A foldable fitment device for indoor decoration

Technical Field

The utility model relates to a foldable fitment technical field especially relates to a foldable fitment device for indoor decoration.

Background

The folding type decoration device is an auxiliary tool for a constructor to stand to decorate high indoor places.

It includes platen and a pair of extension board, and the platen level sets up, and two extension boards are parallel to each other, and extension board and platen vertical setting, and the extension board passes through bolt fixed connection and is in the platen diapire, and the tip butt that the platen was kept away from to two extension boards is subaerial to the realization is to the support of platen 1, but platen and extension board fixed connection, be not convenient for dismantle or folding accomodating, wait to improve.

SUMMERY OF THE UTILITY MODEL

In order to overcome the defect that folding the accomodating of being not convenient for among the prior art, the utility model aims to solve the technical problem that a foldable fitment device for indoor decoration is proposed.

The application provides a foldable fitment device for indoor decoration adopts following technical scheme:

the utility model provides a foldable fitment device for indoor decoration, includes platen and a pair of extension board, the platen level sets up, two the extension board is all vertical to be set up and rotate with the platen and be connected, two the extension board all is located the platen below, the platen below still is provided with the limiting plate, the limiting plate runs through and has seted up spacing hole, the extension board is provided with the extension board towards the fixed of lateral wall of limiting plate, the extension board is located the limiting plate below, extension board top wall is fixed and is provided with the inserted bar, the vertical setting of inserted bar, the inserted bar adaptation is inserted and is established to spacing downthehole portion.

The utility model discloses preferred technical scheme lies in, inserted bar outside thread bush is equipped with limit sleeve, limit sleeve is located one side of limiting plate extension board dorsad, limit sleeve's end wall and limiting plate looks butt.

The utility model discloses preferred technical scheme lies in, limit sleeve is connected with the connection rope, the one end that limit sleeve was kept away from to the connection rope is connected with the limiting plate.

The utility model discloses preferred technical scheme lies in, connect the rope and keep away from the installation pole that spacing telescopic one end fixedly connected with was made by the rubber material, the mounting hole has been seted up towards one side of spacing sleeve to the limiting plate, the installation pole interference is inserted and is established to the mounting hole in.

The utility model discloses preferred technical scheme lies in, the fixed anticreep piece that is provided with of installation pole lateral wall, the inside wall of mounting hole is provided with the anticreep hole, anticreep piece adaptation is inserted and is established to the anticreep downthehole.

The utility model discloses preferred technical scheme lies in, the platen is fixed towards one side of limiting plate to be provided with and drives actuating cylinder, drive actuating cylinder's output shaft and limiting plate fixed connection.

The utility model discloses preferred technical scheme lies in, the platen is connected with the electric cabinet, be provided with on the electric cabinet and be used for control to drive the flexible control button of actuating cylinder.

The utility model discloses preferred technical scheme lies in, the both ends of platen are all fixed and are provided with the link plate, two the extension board all is located between the link plate, the extension board lateral wall is laminated with the link plate lateral wall mutually.

The utility model discloses preferred technical scheme lies in, the fixed a plurality of anti-skidding beads that are provided with in one side of platen back to extension board, a plurality of anti-skidding beads are parallel mutually and along platen length direction evenly distributed.

The utility model discloses preferred technical scheme lies in, the fixed supporting disk that is provided with of one end that the platen was kept away from to the extension board, the supporting disk level sets up.

The utility model has the advantages that:

the utility model aims to solve the technical problem that a foldable fitment device for indoor decoration is proposed belongs to foldable fitment device technical field. When needs accomodate, the spacing sleeve is rotated to manual work earlier for spacing sleeve no longer supports tight limiting plate, presses down the control button afterwards and controls the output shaft shrink that drives actuating cylinder, thereby drives the limiting plate and moves towards the platen, and the inserted bar is taken out from spacing hole in the motion process, can accomplish the separation of limiting plate and extension board. After that, the support plate can be manually rotated to rotate the support plate towards the bedplate, so that folding and storage are finally completed.

When needs use, the extension board is rotated to manual work earlier, rotates the extension board along the direction of keeping away from the platen until extension board and link plate are laminated mutually, presses down control button afterwards and controls the output shaft extension that drives actuating cylinder to drive the limiting plate and move towards the inserted bar, establish to spacing downthehole until the inserted bar inserts. And finally, manually rotating the limiting sleeve until the limiting sleeve abuts against the limiting plate, so that the installation can be completed, and the structure is stable, so that a constructor can stand above the bedplate for construction.

Drawings

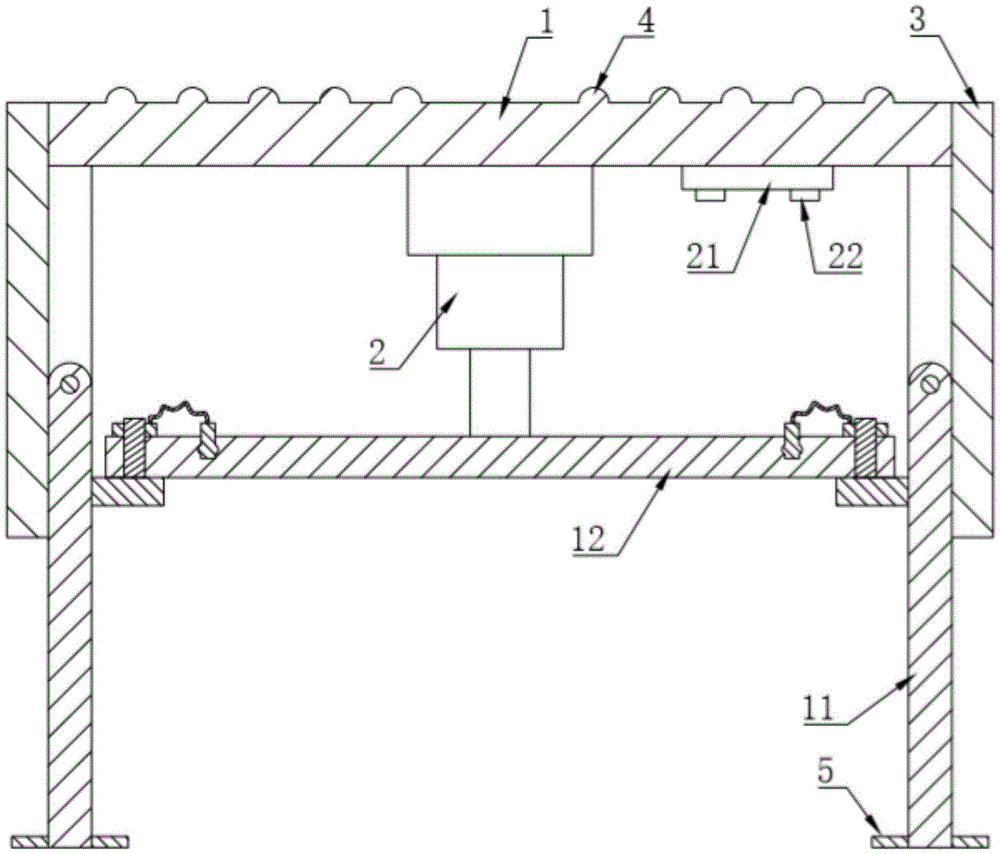

Fig. 1 is a schematic view of an overall structure of a folding type decoration device for indoor design according to an embodiment of the present invention;

fig. 2 is a schematic structural diagram of a foldable decoration device for indoor design according to an embodiment of the present invention for showing the connection relationship between a limiting plate and an insertion rod;

in the figure:

1. a platen; 11. a support plate; 12. a limiting plate; 120. a limiting hole; 13. an extension plate; 14. inserting a rod; 15. a limiting sleeve; 16. connecting ropes; 17. mounting a rod; 170. mounting holes; 18. an anti-drop block; 180. anti-drop holes; 2. a driving cylinder; 21. an electric cabinet; 22. a control key; 3. hanging the plate; 4. anti-slip ribs; 5. and (4) supporting the disc.

Detailed Description

The technical solution of the present invention is further explained by the following embodiments with reference to the accompanying drawings.

As shown in fig. 1-2, the utility model provides a pair of foldable fitment device for indoor decoration, including platen 1 and a pair of extension board 11, platen 1 level sets up, two equal vertical settings of extension board 11 just rotate with platen 1 and be connected, two extension boards 11 all are located platen 1 below, platen 1 below still is provided with limiting plate 12, limiting plate 12 runs through and has seted up spacing hole 120, extension board 11 is provided with extension board 13 towards the fixed extension board 13 that is provided with of lateral wall of limiting plate 12, extension board 13 is located limiting plate 12 below, extension board 13 roof is fixed and is provided with inserted bar 14, the vertical setting of inserted bar 14, inserted bar 14 adaptation is inserted and is established to spacing downthehole 120 inside.

Preferably, the outside of the inserted rod 14 is threaded and sleeved with a limiting sleeve 15, the limiting sleeve 15 is located on one side of the limiting plate 12, which faces away from the extending plate 13, and the end wall of the limiting sleeve 15 abuts against the limiting plate 12.

Preferably, the limiting sleeve 15 is connected with a connecting rope 16, and one end of the connecting rope 16 far away from the limiting sleeve 15 is connected with the limiting plate 12.

Preferably, one end of the connecting rope 16 far away from the limiting sleeve 15 is fixedly connected with a mounting rod 17 made of a rubber material, one side of the limiting plate 12 facing the limiting sleeve 15 is provided with a mounting hole 170, and the mounting rod 17 is inserted into the mounting hole 170 in an interference manner.

Preferably, the side wall of the mounting rod 17 is fixedly provided with the anti-drop block 18, the inner side wall of the mounting hole 170 is provided with an anti-drop hole 180, and the anti-drop block 18 is inserted into the anti-drop hole 180 in a matching manner.

Preferably, a driving cylinder 2 is fixedly arranged on one side of the bedplate 1 facing the limit plate 12, and an output shaft of the driving cylinder 2 is fixedly connected with the limit plate 12.

Preferably, the bedplate 1 is connected with an electric cabinet 21, and the electric cabinet 21 is provided with a control key 22 for controlling the extension and retraction of the driving cylinder 2.

Preferably, both ends of platen 1 are all fixed and are provided with link plate 3, and two extension boards 11 all are located between link plate 3, and the extension board 11 lateral wall is laminated with link plate 3 lateral wall mutually.

Preferably, a plurality of anti-slip ribs 4 are fixedly arranged on one side of the bedplate 1, which is opposite to the support plate 11, and the anti-slip ribs 4 are parallel to each other and are uniformly distributed along the length direction of the bedplate 1.

Preferably, one end of the support plate 11 far away from the bedplate 1 is fixedly provided with a support plate 5, and the support plate 5 is horizontally arranged.

The utility model provides a pair of an implementation principle that is used for indoor decoration's foldable fitment device does:

when needs accomodate, the spacing sleeve 15 is rotated by the manual work earlier for spacing sleeve 15 no longer supports tight limiting plate 12, presses control button 22 afterwards and controls the output shaft that drives actuating cylinder 2 and shrink, thereby drives limiting plate 12 and moves towards platen 1, and the inserted bar 14 is taken out from spacing hole 120 in the motion process, can accomplish the separation of limiting plate 12 and extension board 11. After that, the support plate 11 can be manually rotated to rotate the support plate 11 towards the bedplate 1, thereby finally completing the folding and the storage.

When the lifting table is required to be used, the support plate 11 is manually rotated, the support plate 11 is rotated along the direction away from the table plate 1 until the support plate 11 is attached to the hanging plate 3, and then the control key 22 is pressed to control the output shaft of the driving cylinder 2 to extend, so that the limiting plate 12 is driven to move towards the inserting rod 14 until the inserting rod 14 is inserted into the limiting hole 120. And finally, manually rotating the limiting sleeve 15 until the limiting sleeve 15 abuts against the limiting plate 12, so that the installation can be completed, and the structure is stable, so that a constructor can stand above the bedplate 1 for construction.

While the invention has been described with reference to a preferred embodiment, it will be understood by those skilled in the art that various changes may be made and equivalents may be substituted for elements thereof without departing from the spirit and scope of the invention. The present invention is not to be limited by the specific embodiments disclosed herein, and other embodiments that fall within the scope of the claims of the present application are intended to be within the scope of the present invention.

Claims

1. A foldable fitment device for indoor decoration which characterized in that:

the novel table plate is characterized by comprising a table plate (1) and a pair of support plates (11), wherein the table plate (1) is horizontally arranged, the two support plates (11) are vertically arranged and are rotatably connected with the table plate (1), the two support plates (11) are located below the table plate (1), limiting plates (12) are further arranged below the table plate (1), limiting holes (120) are formed in the limiting plates (12) in a penetrating mode, extension plates (13) are fixedly arranged on the side walls, facing the limiting plates (12), of the support plates (11), the extension plates (13) are located below the limiting plates (12), insertion rods (14) are fixedly arranged on the top walls of the extension plates (13), the insertion rods (14) are vertically arranged, and the insertion rods (14) are inserted into the limiting holes (120) in an adaptive mode.

2. The folding fitment apparatus for indoor design according to claim 1, wherein:

the inserted bar (14) outside screw thread cover is equipped with stop sleeve (15), stop sleeve (15) are located one side of limiting plate (12) extension board (13) dorsad, the end wall and the limiting plate (12) looks butt of stop sleeve (15).

3. The folding fitment apparatus for indoor design according to claim 2, wherein:

limiting sleeve (15) are connected with and connect rope (16), the one end of keeping away from limiting sleeve (15) of connecting rope (16) is connected with limiting plate (12).

4. The folding fitment apparatus for indoor design according to claim 3, wherein:

connect one end fixedly connected with that rope (16) kept away from spacing sleeve (15) and make installation pole (17) by the rubber material, mounting hole (170) have been seted up towards one side of spacing sleeve (15) to limiting plate (12), installation pole (17) interference is inserted and is established to mounting hole (170) in.

5. The folding fitment apparatus for indoor design according to claim 4, wherein:

the anti-falling device is characterized in that an anti-falling block (18) is fixedly arranged on the side wall of the mounting rod (17), an anti-falling hole (180) is formed in the inner side wall of the mounting hole (170), and the anti-falling block (18) is inserted into the anti-falling hole (180) in an adaptive mode.

6. The folding fitment apparatus for indoor design according to claim 1, wherein:

one side, facing the limiting plate (12), of the bedplate (1) is fixedly provided with a driving cylinder (2), and an output shaft of the driving cylinder (2) is fixedly connected with the limiting plate (12).

7. The folding fitment apparatus for indoor design according to claim 6, wherein:

the bedplate (1) is connected with an electric cabinet (21), and a control key (22) for controlling the driving cylinder (2) to stretch is arranged on the electric cabinet (21).

8. The folding fitment apparatus for indoor design according to claim 1, wherein:

both ends of the bedplate (1) are fixedly provided with hanging plates (3), the support plates (11) are positioned between the hanging plates (3), and the side walls of the support plates (11) are attached to the side walls of the hanging plates (3).

9. The folding fitment apparatus for indoor design according to claim 1, wherein:

one side of the bedplate (1) back to the support plate (11) is fixedly provided with a plurality of anti-slip convex edges (4), and the anti-slip convex edges (4) are mutually parallel and are uniformly distributed along the length direction of the bedplate (1).

10. The folding fitment apparatus for indoor design according to claim 1, wherein:

one end, far away from the bedplate (1), of the support plate (11) is fixedly provided with a support plate (5), and the support plate (5) is horizontally arranged.
